5MP AI IR Wall Mount
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories

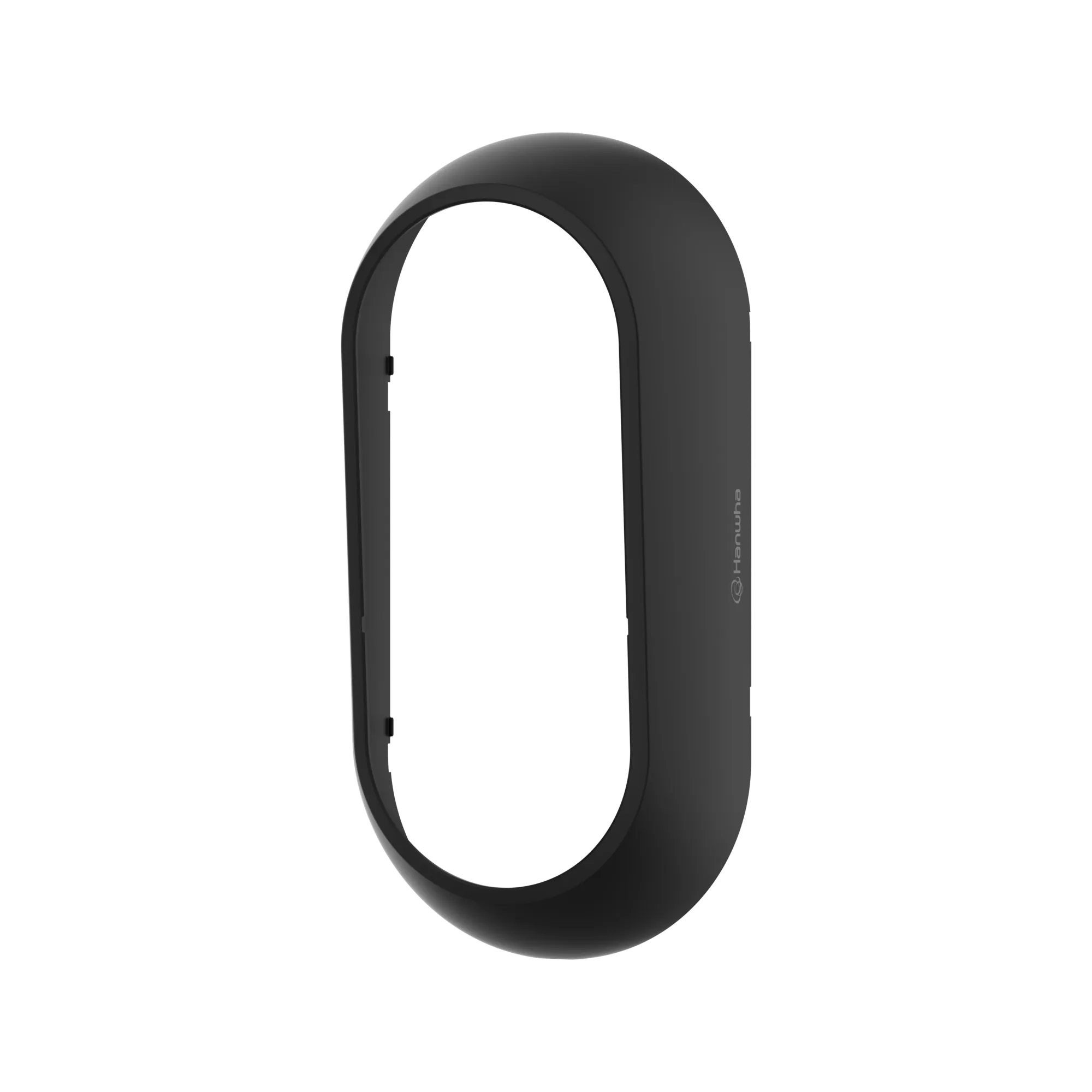

The SBC-140WB is a skin cover intended for the TNV-C8011RW camera. The manufacturer states polycarbonate as the material, and the colour is black. Its dimensions are 83.6 mm wide, 170.3 mm high and 40.6 mm deep. The accessory weighs 30 g. Black skin coverPolycarbonate materialDimensions 83.6 x 170.3 x 40.6 mmWeight 30 gFor TNV-C8011RW
Not in stock · delivery 3-4 days

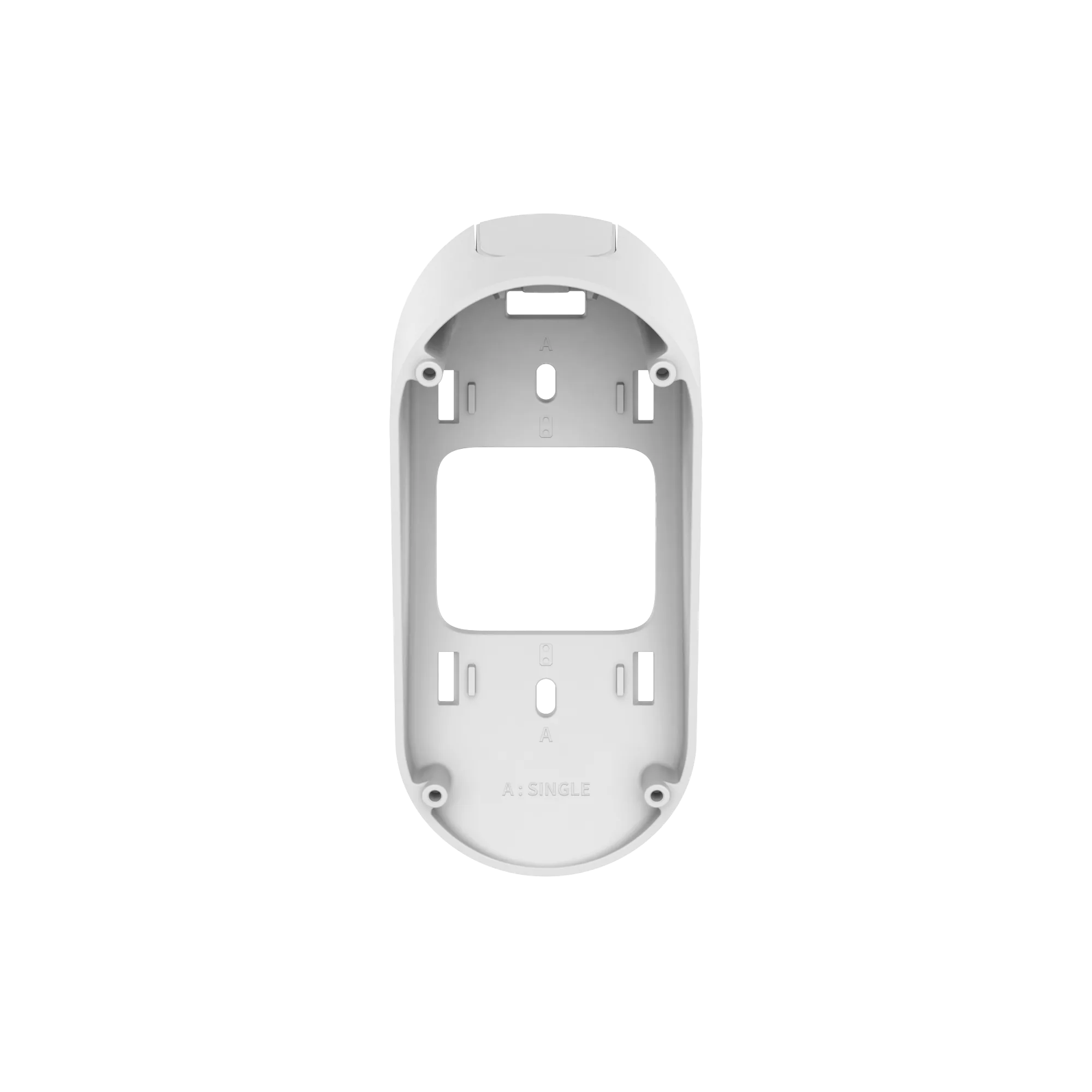

The SBV-140TBW is an aluminium tilt mount finished in white to RAL9003. The part measures 83.5x175.2x60.8mm and weighs 208g. Its tilt range is 20°, with no pan or rotation range provided. Maximum load is 1.5kg, the conduit hole is 19.1mm (3/4", M25) and the mount screw size is TR20. The specification names the TNV-C8011RW as the supported product. Aluminium tilt mountWhite, RAL9003Dimensions 83.5x175.2x60.8mm, 208gTilt range 20°Max. load 1.5kgSupports TNV-C8011RW
Not in stock · delivery 3-4 days

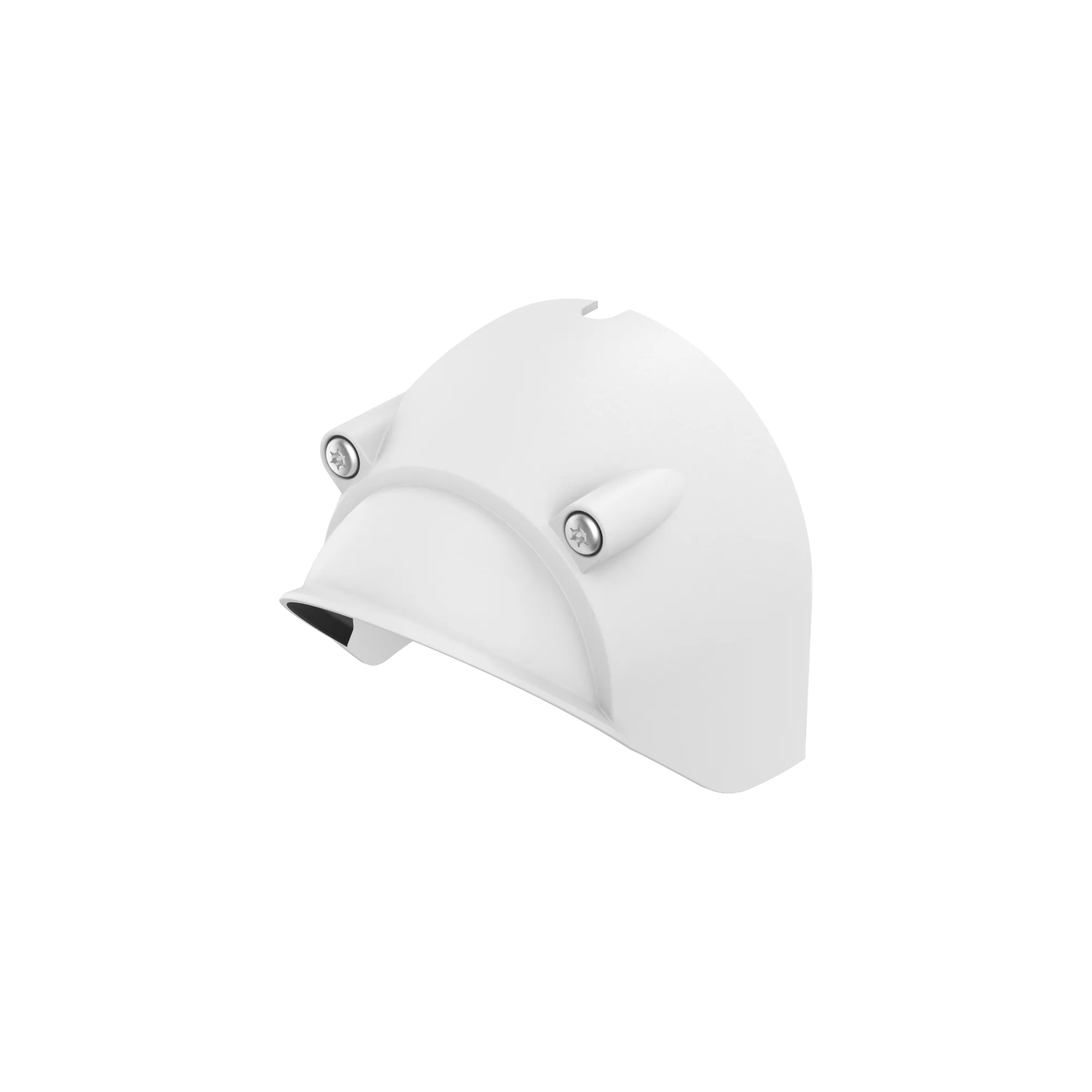

The SBV-140WCBW is a weather cap moulded from polycarbonate (PC) in a white finish. Its dimensions are 83.6(W)x67.8(D)x72.7(H)mm (3.29"x2.67"x2.86"). At 28.7g (0.06lb) the part is very light. According to the manufacturer it is intended for the TNV-C8011RW. Polycarbonate weather capWhite finishDimensions 83.6x67.8x72.7mmWeight 28.7g (0.06lb)Supports TNV-C8011RW
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNV-C8011RW
- EAN / GTIN
- 8801089228246
- Weight
- 0.77 kg
- Dimensions (W×H×D)
- 209 × 119 × 101 mm
Description

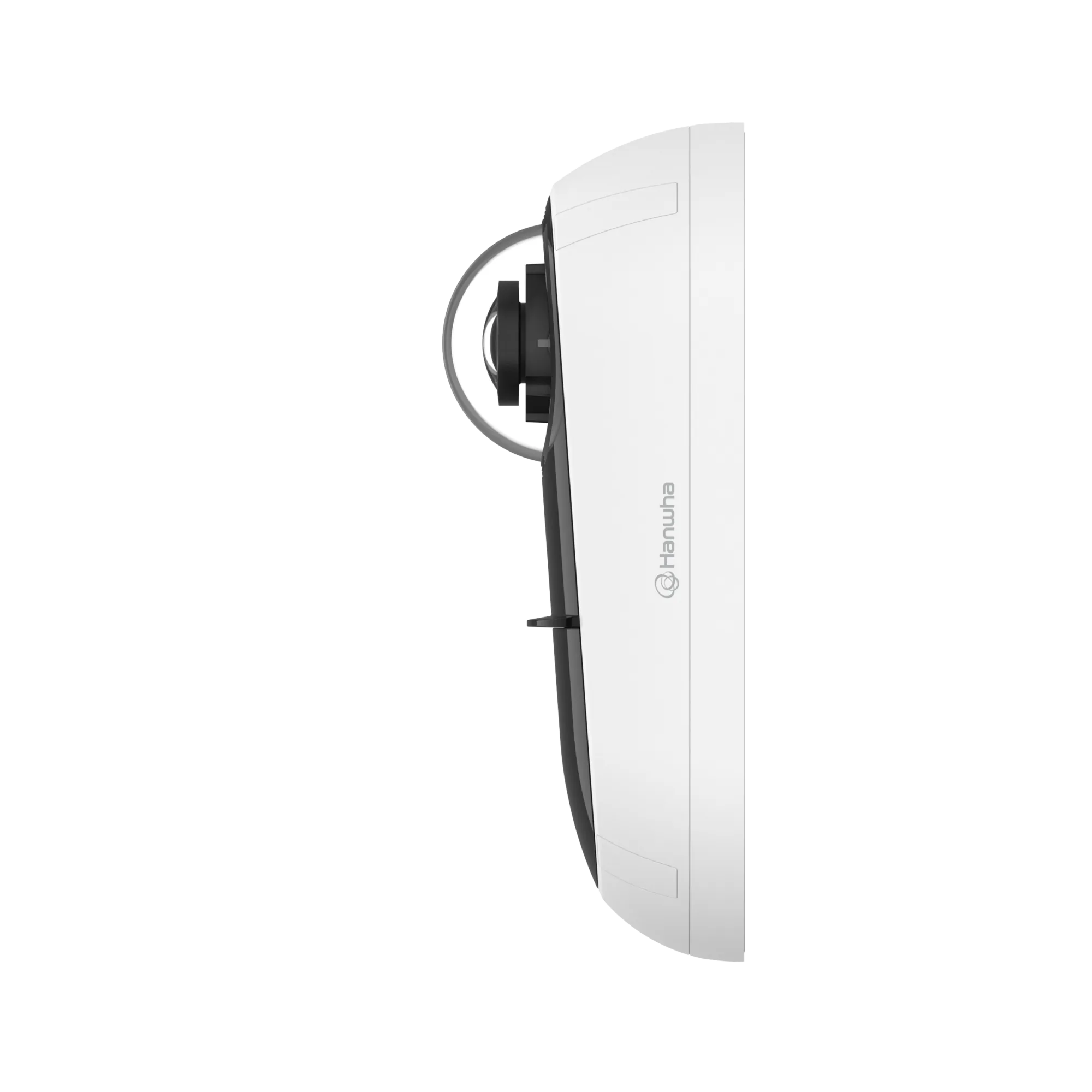

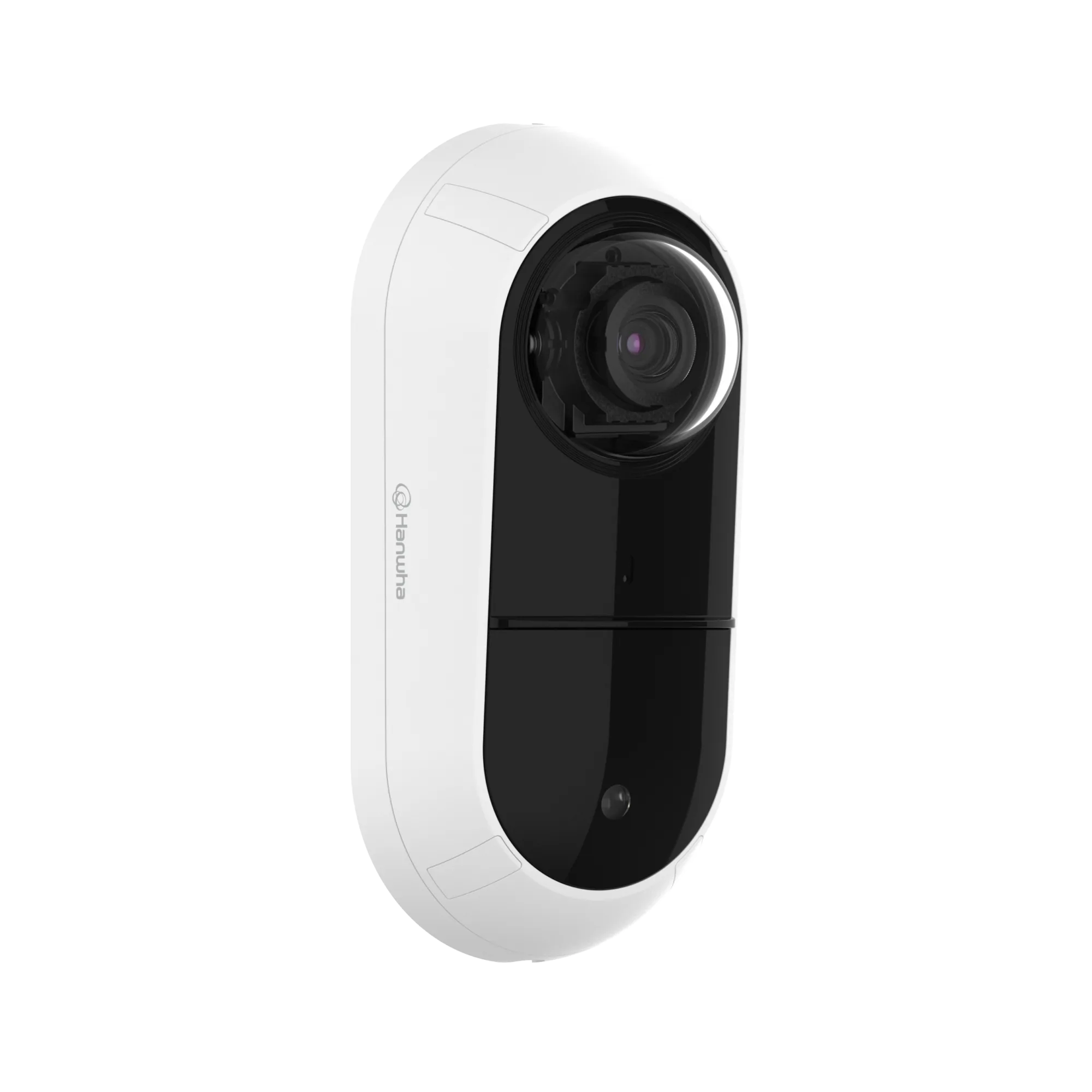

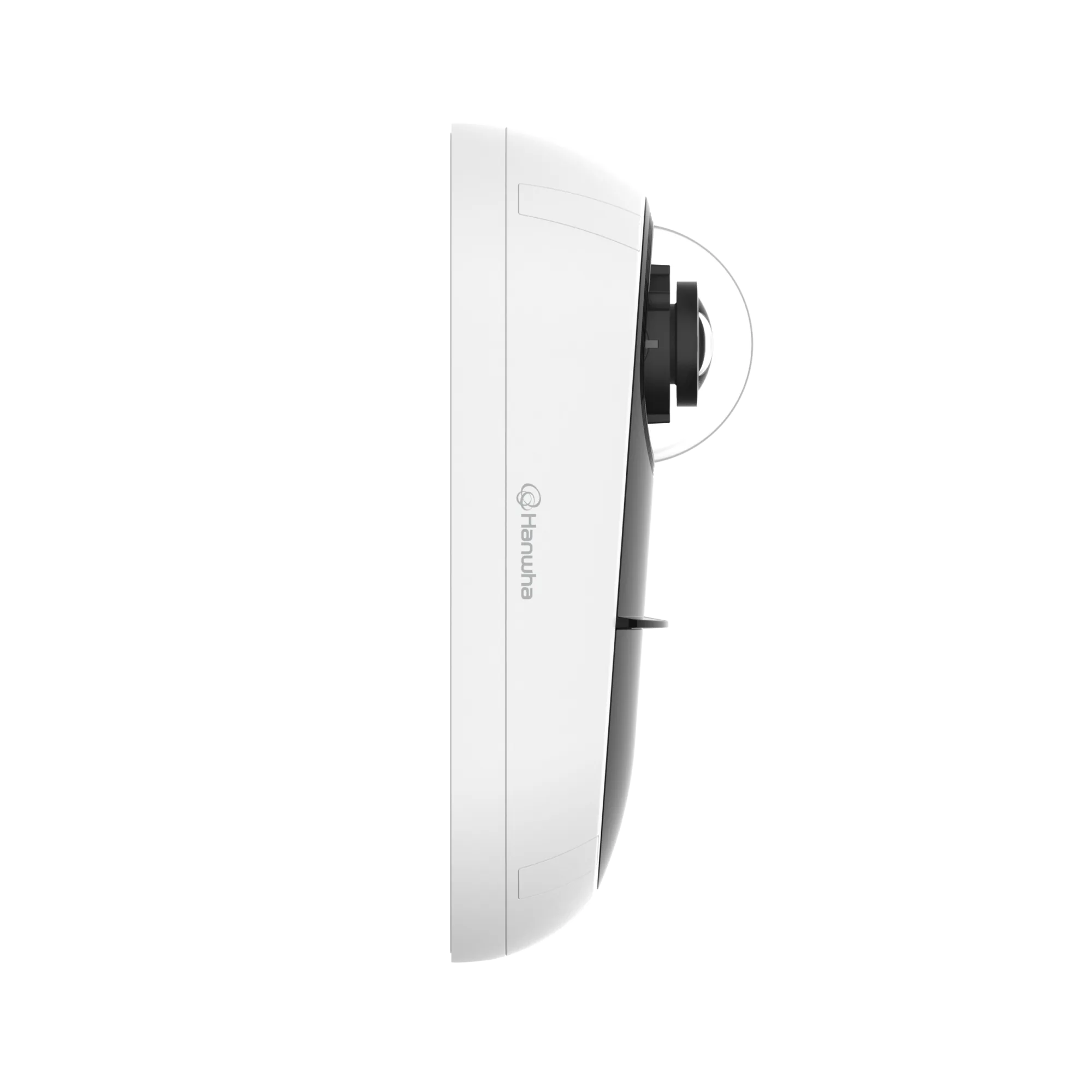

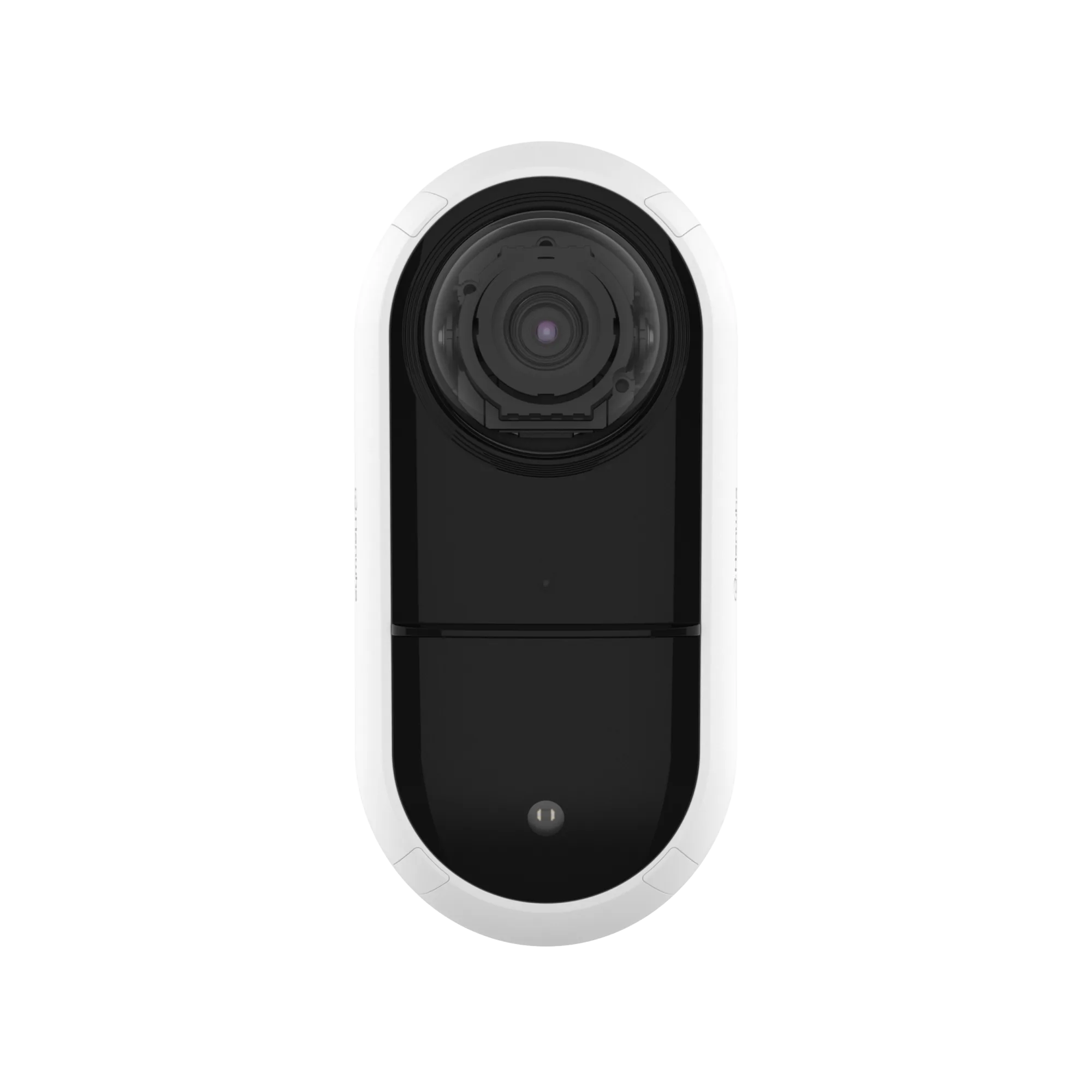

Wall mount 5MP camera with AI analytics and infrared. The 1/2.8" CMOS sensor outputs up to 2592x1944, running 30fps/25fps (60Hz/50Hz) in H.265/H.264 and 30fps in MJPEG with a 5fps maximum at 5MP. Its 1.6mm lens at F1.6 produces a panoramic view of 175° horizontally and 125° vertically at a 0.3m minimum object distance, with a 25° tilt lens for eye level monitoring and 15m IR viewable length. The AI engine drives the analytics events including loitering detection and line crossing detection, WiseNRⅡ noise reduction with SSNRⅤ, and WiseStreamⅢ. Business intelligence functions cover people counting, vehicle counting, queue management and heatmap. WDR is rated 120dB, the compact housing uses an anti-ligature rounded edge design, and tilt travel is -25°~+25°.
- 5MP, up to 2592x1944
- 1.6mm lens, F1.6, 175° x 125°
- 15m IR viewable length, 25° tilt lens
- AI analytics with loitering and line crossing detection
- People counting, vehicle counting, queue management, heatmap
- 120dB WDR, WiseNRⅡ, WiseStreamⅢ
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (7)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Shock detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Person
- Upper/Lower clothes color
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Face, Vehicle
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 30.05m(98.59ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 3.00m(9.84ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 12.02m(39.44ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 6.01m(19.72ft)
Environmental & Electrical (6)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 11.5W, Typ 4.8W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 1GB
- General / Memory – RAM
- 2GB
Lens (7)
- Lens / Angular Field of View – Diagonal
- 175°
- Lens / Angular Field of View – Horizontal
- 175°
- Lens / Angular Field of View – Vertical
- 125°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens – Focal Length (mm)
- 1.6
- Lens – Focus Control
- Fixed
- Lens – Min. Object Distance
- 0.3m(0.98ft)
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- 80(W)x167(H)x57(D)mm(3.15x6.56x2.24")
- Mechanical – Product Weight
- 600g(1.32lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 5 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (21)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 1/5~1/25,000sec
- Operational / Light Viewable Length – IR
- 15m(49.21ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Dynamic Privacy Masking: Color / Option
- Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Operational – Alarm Triggers
- Analytics, Network disconnect
- Operational – Audio In
- Built-in mic
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (1)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -25°~+25°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@5MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.0038
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.038
- Video – Resolution
- 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
