IP-CAMERA SC9133-RTL
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2 weeks
Matching accessories

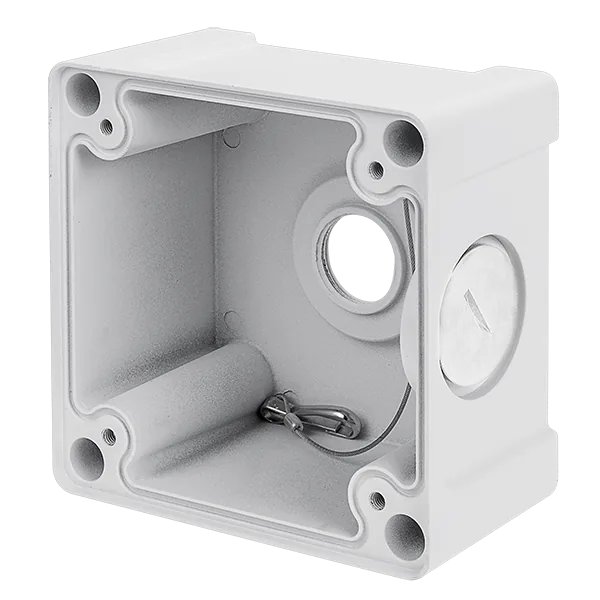

Sold under part number 100184500G, the AM-719 is an outdoor junction box. Its aluminium alloy casing is white and reaches IP66 when used with supported cameras. The pipe thread is PF 3/4". Dimensions are 122 (L) x 122 (W) x 63 (H) mm at a weight of 0.55 kg. Listed supported models include the IB836B-EHF3, IB836B-HT, IB8382-ET and IB9381-(E)HT. Outdoor junction boxAluminium alloy, white finishIP66 casing with supported camerasPF 3/4" pipe threadDimensions 122 x 122 x 63 mm, 0.55 kg
Not in stock · delivery 2 weeks

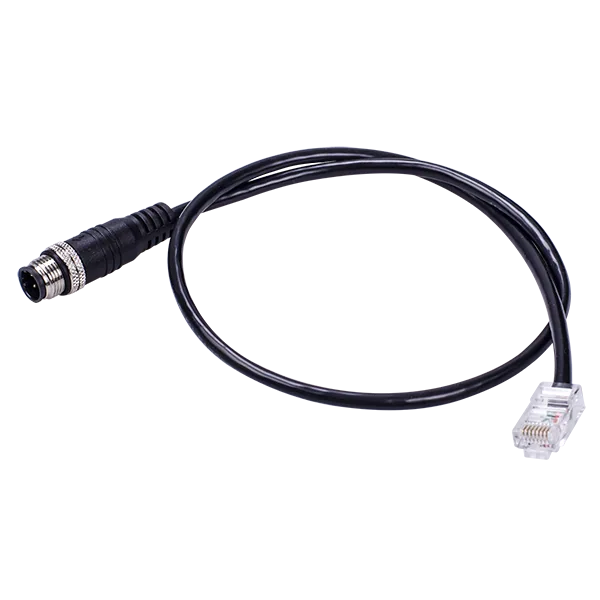

The AO-004 is an accessory cable terminated with an M12 connector in D coding with four male contacts at one end and an RJ45 plug at the other. Its overall length is 60 cm and it weighs 26 g. The manufacturer lists the item under part number 631439000Z. Supported camera models are stated as MD8563-EH, MD8565-N and MD8564-EH. M12 D-code 4-pin to RJ45 cableLength 60 cmWeight 26 gPart number 631439000ZFor MD8563-EH, MD8565-N, MD8564-EH
Not in stock · delivery 2 weeks

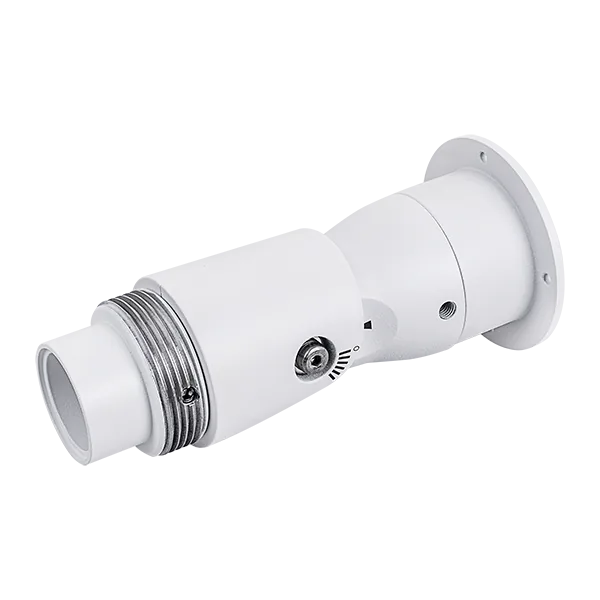

Part number 100186600G designates the AM-11G mounting bracket. Aluminium alloy is used for the body, which comes in white. The pipe thread is PF 1-1/2". The bracket measures Ø 70 x 149 mm and weighs 340 g. Supported camera models are given as the MS9390-HV and MS9390-EHV-V2. Mounting bracketAluminium alloy, white finishPF 1-1/2" pipe threadDimensions Ø 70 x 149 mm, 340 gSupports MS9390-HV and MS9390-EHV-V2
Not in stock · delivery 2 weeks

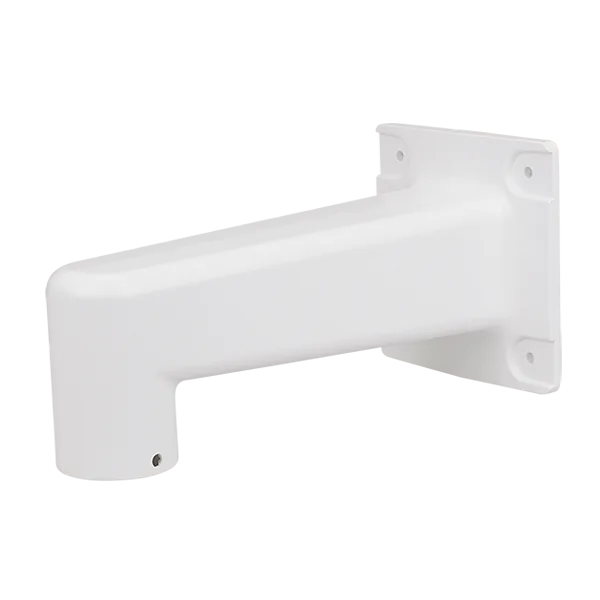

Carrying part number 100146101G (v02), the AM-218 is a wall mount bracket. The bracket is manufactured from aluminium alloy and finished in white. Its thread is specified as NPT 1-1/2". Dimensions are 231 (L) x 117 (W) x 117 (H) mm. The bracket weighs 0.7 kg. Wall mount bracketAluminium alloy, white finishNPT 1-1/2" pipe threadDimensions 231 x 117 x 117 mmWeight 0.7 kg
Not in stock · delivery 2 weeks

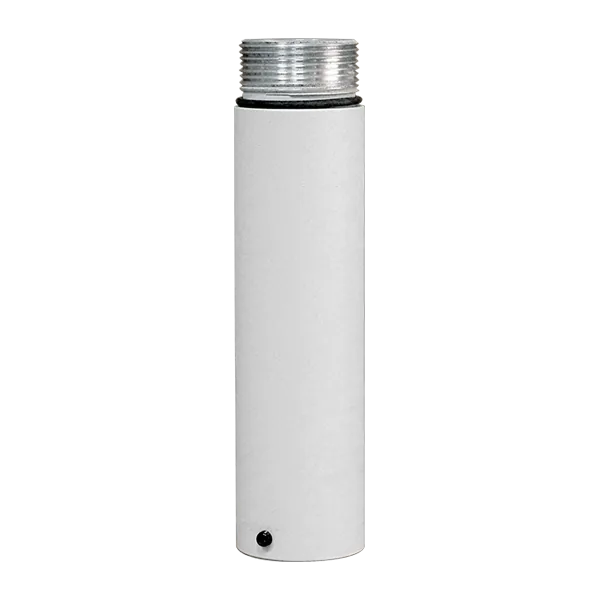

The AM-117 is a pendant pipe of 40cm length with a 1-1/2" PS thread, held in version V02 under part number 900014401G. It is produced from aluminum alloy with a white finish and carries a PF 1-1/2" pipe thread. Dimensions are Ø 51 x 400 mm at an own weight of 902g. A single box measures 470 (L) x 71 (W) x 68 (H) mm and weighs 1014g. A carton holds 10 pieces, measures 490 (L) x 365 (W) x 160 (H) mm and weighs 10870g. 40cm pendant pipeAluminum alloy, white finishPF 1-1/2" pipe threadDimensions Ø 51 x 400 mmOwn weight 902g
Not in stock · delivery 2 weeks

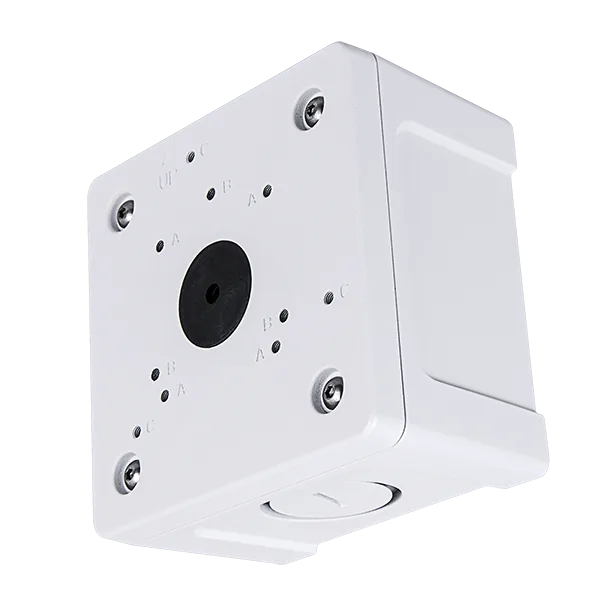

AM-71C is a waterproof junction box made from aluminium alloy and finished in white. Cable entry uses a PF 3/4” pipe thread, and the casing achieves IP66 together with the supported cameras. The box measures 122 (L) x 122 (W) x 76 (H) mm and weighs 760g; packed individually it comes to 217 (L) x 174 (W) x 94 (H) mm at 963g, and a carton of 10 pieces measures 490 (L) x 367 (W) x 252 (H) mm at 10,546g. Supported V01 models are FD9360-H, FD9380-H, IB9360-H, IB9368-HT, IB9380-H, IB9388-HT, IB9389-(E)H, IB9389-(E)HM, IB9389-(E)HT and IB9389-EH(T). Waterproof junction boxAluminium alloy housing in whitePF 3/4” pipe threadIP66 casing with supported cameras122 x 122 x 76 mm, 760g
Not in stock · delivery 2 weeks

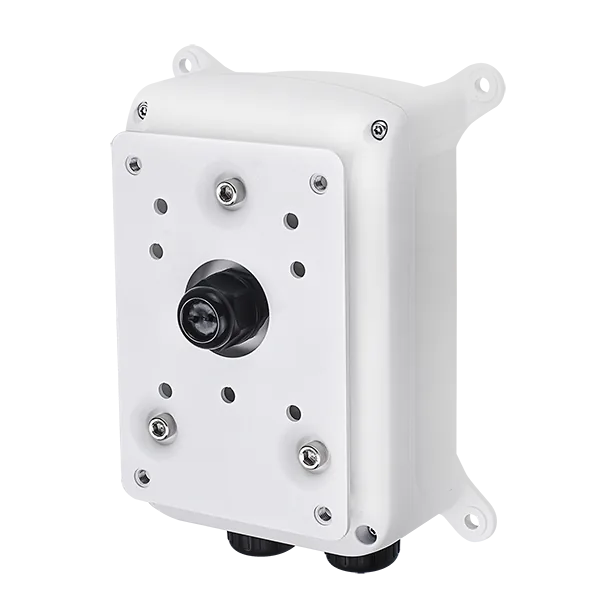

The AM-718 is a waterproof junction box for cable routing at camera installations. It is manufactured from aluminum and SPCC in white, and its casing is classified IP67 and IK10. Outer measurements are 255 (L) x 200 (W) x 130 (H) mm at a weight of 2020g. Single-unit packaging measures 315 (L) x 258 (W) x 188 (H) mm and weighs 2650g, while a four-piece carton comes to 534 (L) x 330 (W) x 397 (H) mm at 11600g. Supported models include SD9361-EHL, SD9362-EH, SD9363-EHL, SD9364-EHL, SD9365-EHL, SD9366-EHL and SD9368-EHL among others. Waterproof junction boxAluminum and SPCC, white finishCasing rated IP67, IK10Dimensions 255 x 200 x 130 mmWeight 2020g
Not in stock · delivery 2 weeks
Product data
- Manufacturer
- Vivotek
- Article number
- VIO100B03300
- EAN / GTIN
- 4710469353772
- Weight
- 0.9 kg
- Dimensions (W×H×D)
- 178 × 97 × 265 mm
Description
The SC9133-RTL is a counting network camera built around a 1/2.8" progressive CMOS sensor that outputs 1792x1792 pixels (3MP) at 30 fps, with 896x896 and 448x448 also available at 30 fps. Its fixed-focal f = 1.47 mm lens works at F2.7 with a fixed iris and covers 140.0° horizontally, vertically and diagonally, the fisheye optics widening the observed area at mounting heights between 1.9 and 10 m. Deep learning AI classification and stitching across up to 7 cameras handle the analysis side, while WDR Pro compensates for difficult lighting. Built-in white light and IR LEDs keep the scene usable down to 0 lux with IR illumination on, and day/night operation is provided without a removable IR-cut filter. Recording uses H.265, H.264 or MJPEG across four simultaneous streams to MicroSD/SDHC/SDXC cards up to 1TB or to network-attached storage. Tilt range is 0° ~ 20°; a multimedia SoC, 8 GB eMMC and 2 GB RAM run the camera.
- 1792x1792 (3MP) at 30 fps
- Fixed-focal f = 1.47 mm, F2.7
- 140.0° horizontal, vertical and diagonal field of view
- Deep learning AI classification
- Stitching up to 7 cameras
- Mounting height 1.9 to 10 m
Made by
Vivotek, a maker of IP cameras from Taiwan since 2000 and part of the Delta Group, is in the catalogue with dome, bullet, fisheye, multi-sensor and PTZ cameras, network recorders, PoE switches, SFP modules, hard drives, SD cards and the VAST video management system. Current models bring deep-learning analytics for people and vehicles. AI4Vision is an authorised distributor; every article comes with technical data and the manufacturer's German or English data sheet, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
AI Analytics (3)
- AI Analytics – Application available with license
- Staff Exclusion
- Applications
- Smart Counter
- Compute Capability
- SoC with built-in hardware deep learning accelerator
Alarm and Event (2)
- Alarm and Event Action
- Event notification via email, HTTP, FTP/SFTP, NAS server, SD card, digital output, audio clip, camera link File upload via email, HTTP, FTP/SFTP, NAS server, SD card
- Event Trigger
- Motion detection, Camera tampering detection, Audio detection, Digital input, Manual trigger, Periodical trigger, System boot, Recording notification, SD card life expectancy, Shock detection, Cybersecurity events (brute force attack event, cyberattack ev
Audio (4)
- Audio Capability
- One-way Audio
- Audio Interface
- Built-in microphone
- Compression
- G.711, G.726
- Effective Range
- 5 meters
Camera Specifications (16)
- Built-in Installation Aids
- Pixel calculator, Micro USB *Requires Wi-Fi dongle and Micro USB converter
- Camera Specifications Aperture
- F2.7
- Camera Specifications Storage
- Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
- Camera Specifications – Field of View
- 140.0° (Horizontal) 140.0° (Vertical) 140.0° (Diagonal)
- Camera Specifications – Focal Length
- f = 1.47 mm
- Camera Specifications – Image Sensor
- 1/2.8" Progressive CMOS
- Camera Specifications – Lens Type
- Fixed-focal
- Camera Specifications – Max. Resolution
- 1792x1792 (3MP)
- Camera Specifications – Minimum Illumination
- 0 lux with IR illumination on
- Day/Night
- Yes
- Illuminators
- Built-in White Light & IR LED
- Iris Type
- Fixed Iris
- Removable IR-cut filter
- No
- Shutter Time
- 1/60 sec. to 1/32,000 sec.
- Tilt Range
- 0° ~ 20°
- WDR Technology
- WDR Pro
General (10)
- General Certifications
- CE, LVD, FCC Class B, VCCI, C-Tick, UL, BIS, BSMI, UKCA, IK10 (IEC 62262), IP66 (IEC 60529)
- General Connectors
- M12 4-pin D-coded for Network/PoE *1 M12 12-pin A-coded for DC power/ 2x RS485 / 2x DI (max. 60V per port) / 1x DO Memory card slot *1
- General Dimensions
- 140 (D) x 76 (W) x 42 (H) mm
- General Humidity
- 90% RH
- General LED Indicator
- System power and status indicator
- General Operating Temperature
- Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
- General Power Consumption
- PoE: Max. 12.5W DC: Max. 13.3W
- General Power Input
- PoE IEEE 802.3af Class 3 DC 9-48V
- General Weight
- 492 g
- Warranty
- 36 months
Included Accessories (1)
- Packing Contents
- Quick installation guide, Ceiling mounting bracket with ears, screw pack, M12 to RJ45 cable
Network (4)
- Network Interface
- 10BASE-T/100BASE-TX Ethernet (M12, Female, 4-pin D-coded) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- Network Security
- Access list, Password protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event), User access log, User account management
- Protocols
- 802.1X, ARP, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IBIS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Users
- Live viewing for up to 10 clients
Solution Integration (1)
- VADP Package
- Device Center, Trend Micro IoT Security (3-year free trial)
System Information (3)
- Flash
- 8 GB eMMC
- RAM
- 2 GB
- System Information CPU
- Multimedia SoC (System-on-Chip)
System Requirements (3)
- Other Players
- VLC: 1.1.11 or above
- System Requirements – Operating System
- Microsoft Windows 10/8/7 Mac 10.12 (Chrome only)
- System Requirements – Web Browser
- Chrome 58.0 or above Internet Explorer 10/11
Video (10)
- 2nd Stream
- 30 fps @ 1792x1792, 896x896, 448x448
- 3rd Stream
- 30 fps @ 896x896, 448x448
- Dynamic Range
- 92 dB
- Image Settings
- General settings video title and time stamp overlay, video orientation (flip, mirror), day/night settings
- Main Stream
- 30 fps @ 1792x1792, 896x896, 448x448
- Maximum Frame Rate
- 30 fps @ 1792x1792 30 fps @ 896x896 30 fps @ 448x448
- Maximum Streams
- 4 simultaneous streams
- S/N Ratio
- 60.7 dB
- Video Compression
- H.265, H.264, MJPEG
- Video Streaming
- Adjustable resolution, quality and constant bit rate control, Smart Stream III
