5MP, Door Jamb with 2.45mm Lens (silver), for PNM-C20000QB
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SLA-F2480DSA
- EAN / GTIN
- 8801089238818
- Weight
- 0.63 kg
- Dimensions (W×H×D)
- 207 × 117 × 97 mm
Description

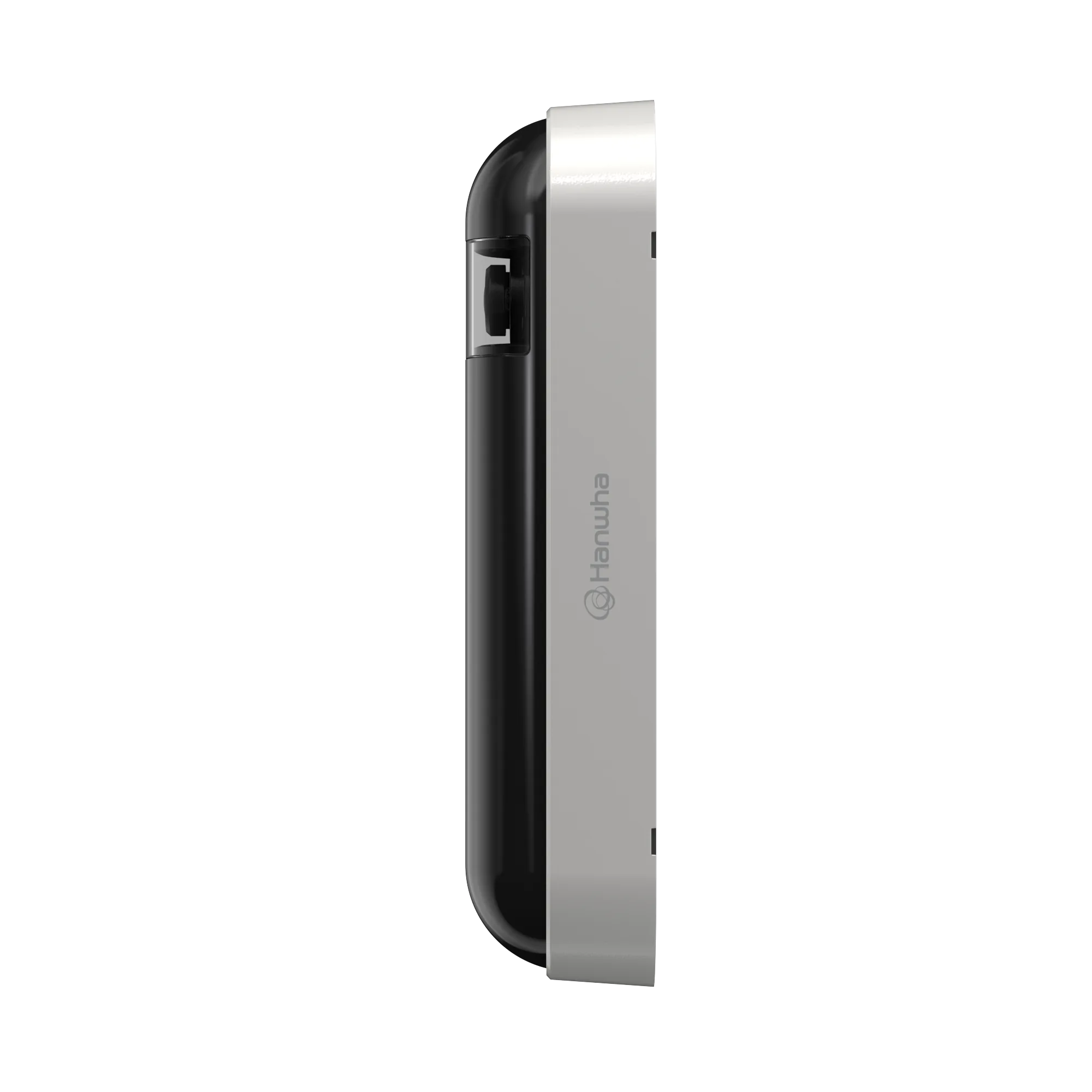

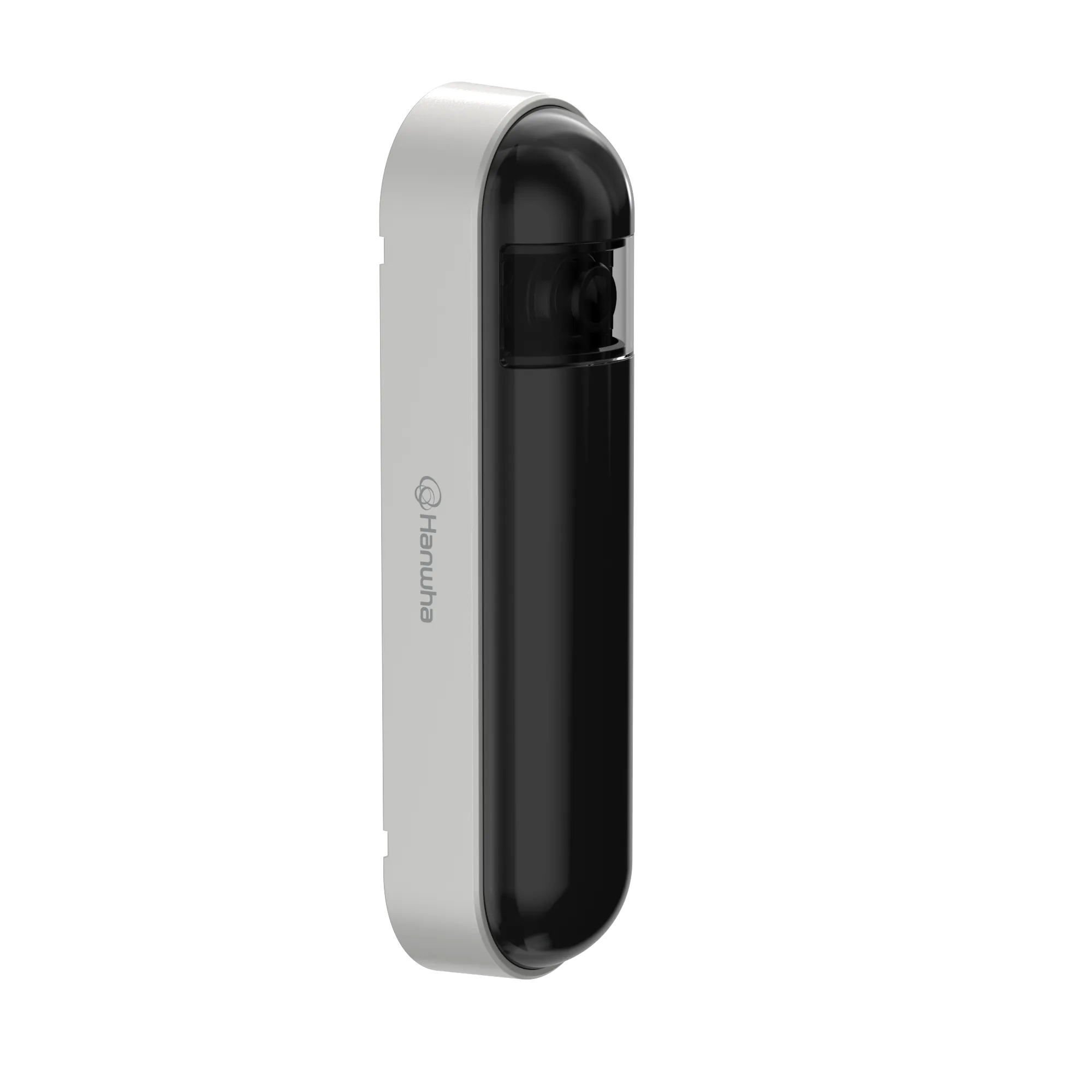

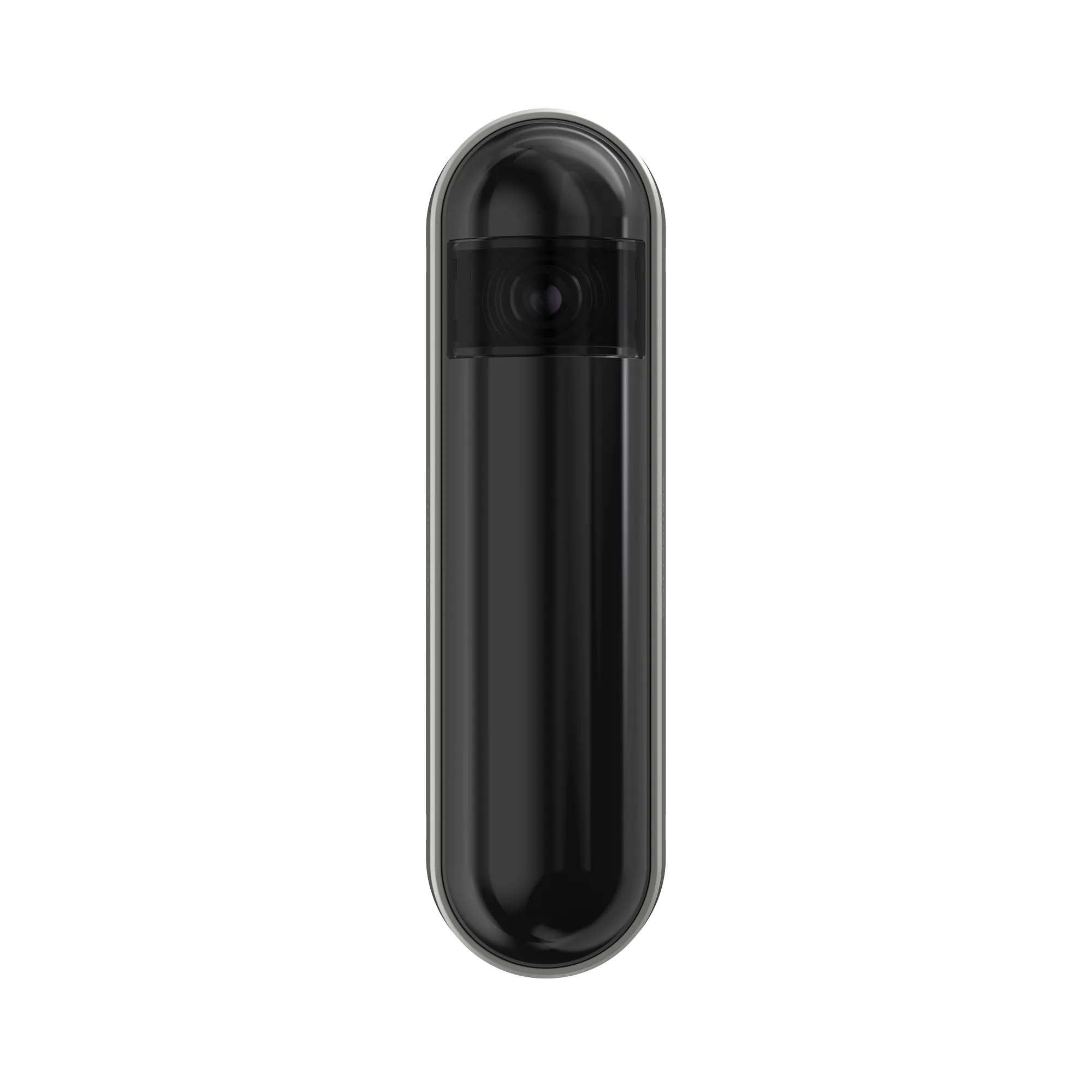

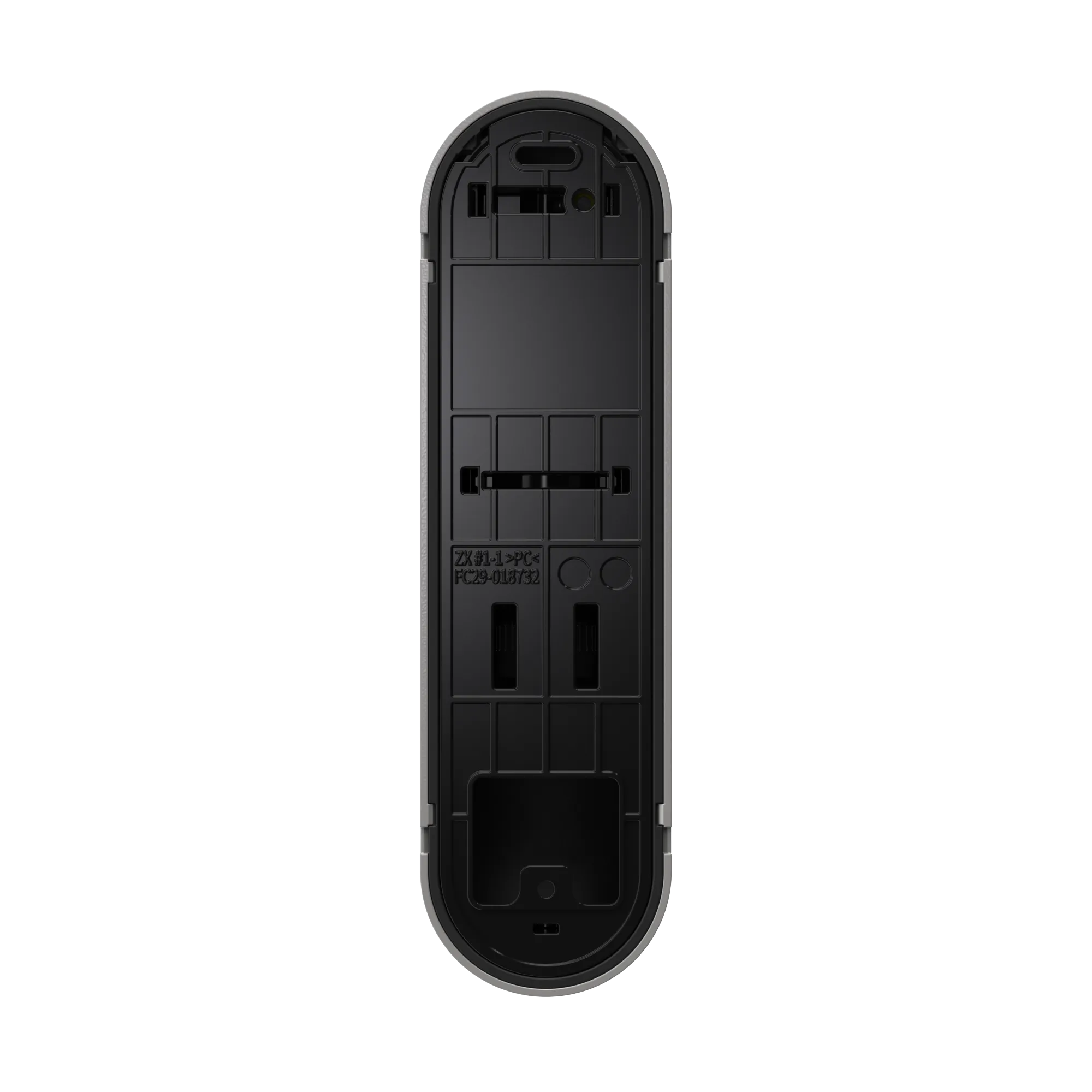

The SLA-F2480DSA is a 5MP doorjamb lens module supplied with a silver finish. A 1/2.8-inch CMOS sensor sits behind a fixed 2.45 mm lens with a maximum aperture of F2.0, giving 123° horizontal, 91° vertical and 159° diagonal coverage at a minimum illumination of 0.08 lux in colour and black-and-white alike. Connection to the main unit is made over RJ12 with an 8 m cable supplied, and the module pans through ±30°. Lens and plastic housing are included and the security screws are concealed. Operating temperature runs from -10 °C to +55 °C, and the PNM-C20000QB is the supported product.
- Silver finish, plastic housing
- Fixed 2.45 mm focal length, F2.0
- 1/2.8-inch CMOS, 0.08 lux colour and BW
- 123° x 91° x 159° field of view
- ±30° panning range
- 8 m cable, RJ12 connection
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certification & Standards (3)
- Certification & Standards EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certification & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
- Environment
- IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
Environmental & Electrical (4)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH
- Environmental & Electrical / Operating Condition – Temperature
- -10°C ~ +55°C (+14°F ~ +131°F)
- Environmental & Electrical / Storage Condition – Humidity
- Less than 90% RH
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
Lens (8)
- Lens / Angular Field of View – Diagonal
- 159°
- Lens / Angular Field of View – Horizontal
- 123°
- Lens / Angular Field of View – Vertical
- 91°
- Lens – Focal Length (mm)
- 2.45
- Lens – Focus Control
- Fixed
- Lens – Mount Type
- RJ12 connected with main unit
- Max. Aperture Ratio Tele
- 2.0
- Max. Aperture Ratio Wide
- 2.0
Mechanical (5)
- Mechanical – Color
- Silver
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- 48.29(W)x37.0(H)x174.01(D)mm(1.9x1.46x6.85"), Cable: 8m(26.2ft)
- Mechanical – Product Weight
- 124.5g(0.27lb), Cable: 350g(0.77lb)
- Supported products
- PNM-C20000QB
Pan (1)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- Flexible panning ±30°
Video (4)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.08
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.08
