3MP Mono BCR Camera
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNS-7000M
- EAN / GTIN
- 8801089240392
- Weight
- 0.5 kg
- Dimensions (W×H×D)
- 142 × 115 × 110 mm
Description
Monochrome 3MP BCR camera built for barcode capture. A 1/3" CMOS sensor with 2.25㎛ pixel size produces 2048x1536 at 50fps in H.265/H.264 (Main/High) or MJPEG. Its global shutter operates between 33.3ms and 150㎲ and is supported by HDR backlight compensation plus flip and mirror rotation. Code reading uses WiseBCR based on the AI engine and covers 1D symbologies such as Code128, CODE39, CODE93, Codabar, ITF, UPC and EAN together with the 2D types QRcode, DataMatrix, Maxicode and PDF417. Connectivity is RJ-45 (10/100/1000BASE-T) or M12, with two alarm inputs and two alarm outputs, unicast for up to 6 users and multicast support. Optional lenses are available in 6mm, 8mm, 12mm, 16mm and 25mm.
- 1/3" CMOS, 2048x1536 at 50fps
- 2.25㎛ pixel size, global shutter 33.3ms to 150㎲
- WiseBCR barcode recognition based on AI engine
- 1D and 2D codes including QRcode, DataMatrix, PDF417

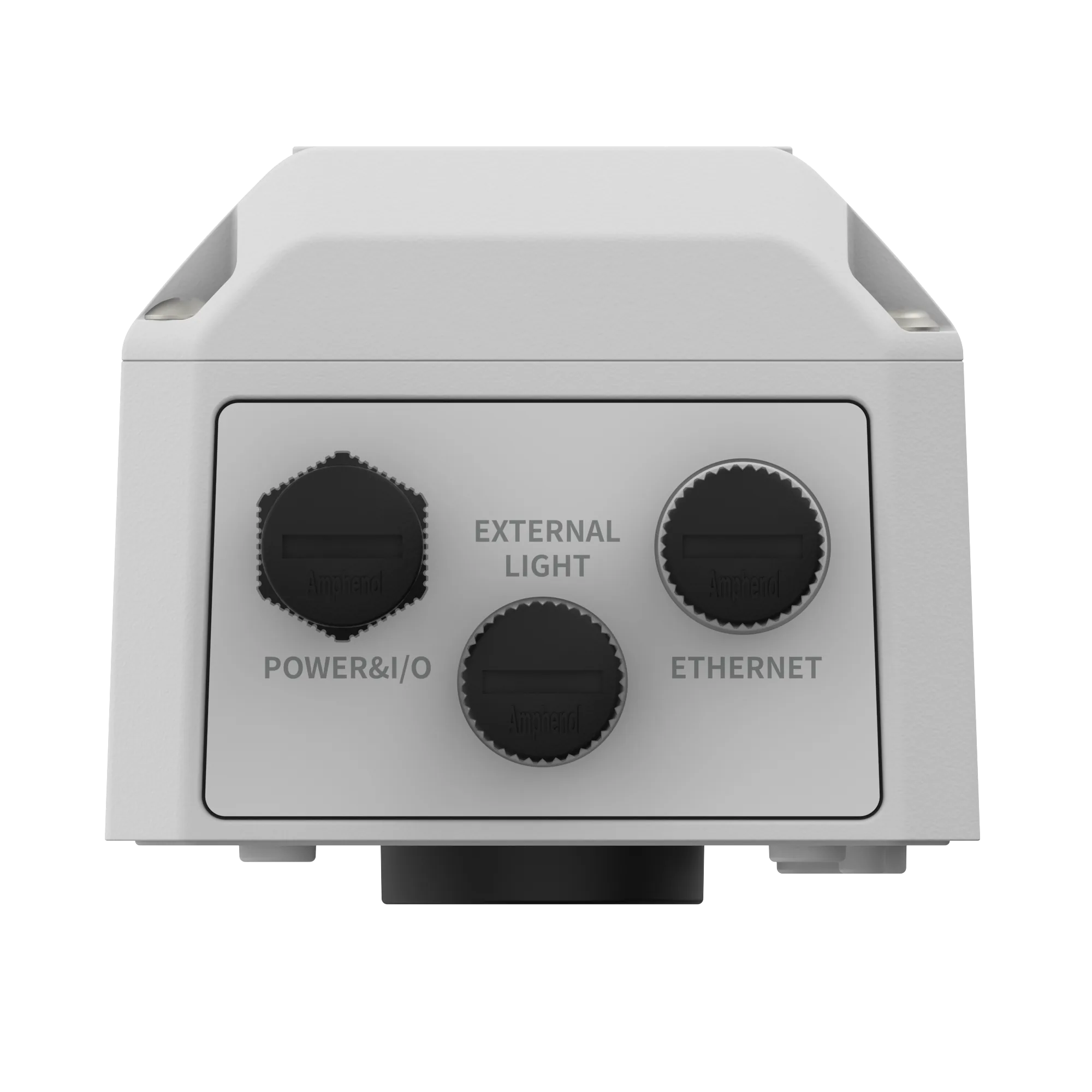

- RJ-45 (10/100/1000BASE-T) and M12
- Optional lenses from 6mm to 25mm
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (3)
- Advanced Analytics
- Barcode recognition, WiseBCR based on AI engine
- Barcode Type 1D Code
- Code128, CODE39, CODE93, Codabar, ITF(Interleaved 2 of 5), UPC, EAN
- Barcode Type 2D Code
- QRcode, DataMatrix, Maxicode, PDF417
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, IEC 60068-2-6, IEC 60068-2-27
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -40°C~+60°C(-40°F~+140°F)
- Environmental & Electrical – Input Voltage
- 24VDC
- Power Consumption 24VDC
- Max 12.9W, Typical 6.7W * Max: LED On Typical: LED Off
General (1)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
Lens (1)
- Lens – Optional Lens
- 6mm/8mm/12mm/16mm/25mm
Mechanical (7)
- Indicator LED
- Support
- Mechanical – Color
- White, Black
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- W74.4mm x H77.4mm x D59.4mm
- Mechanical – Product Weight
- 420g
- Mechanical – RAL Code
- RAL9003

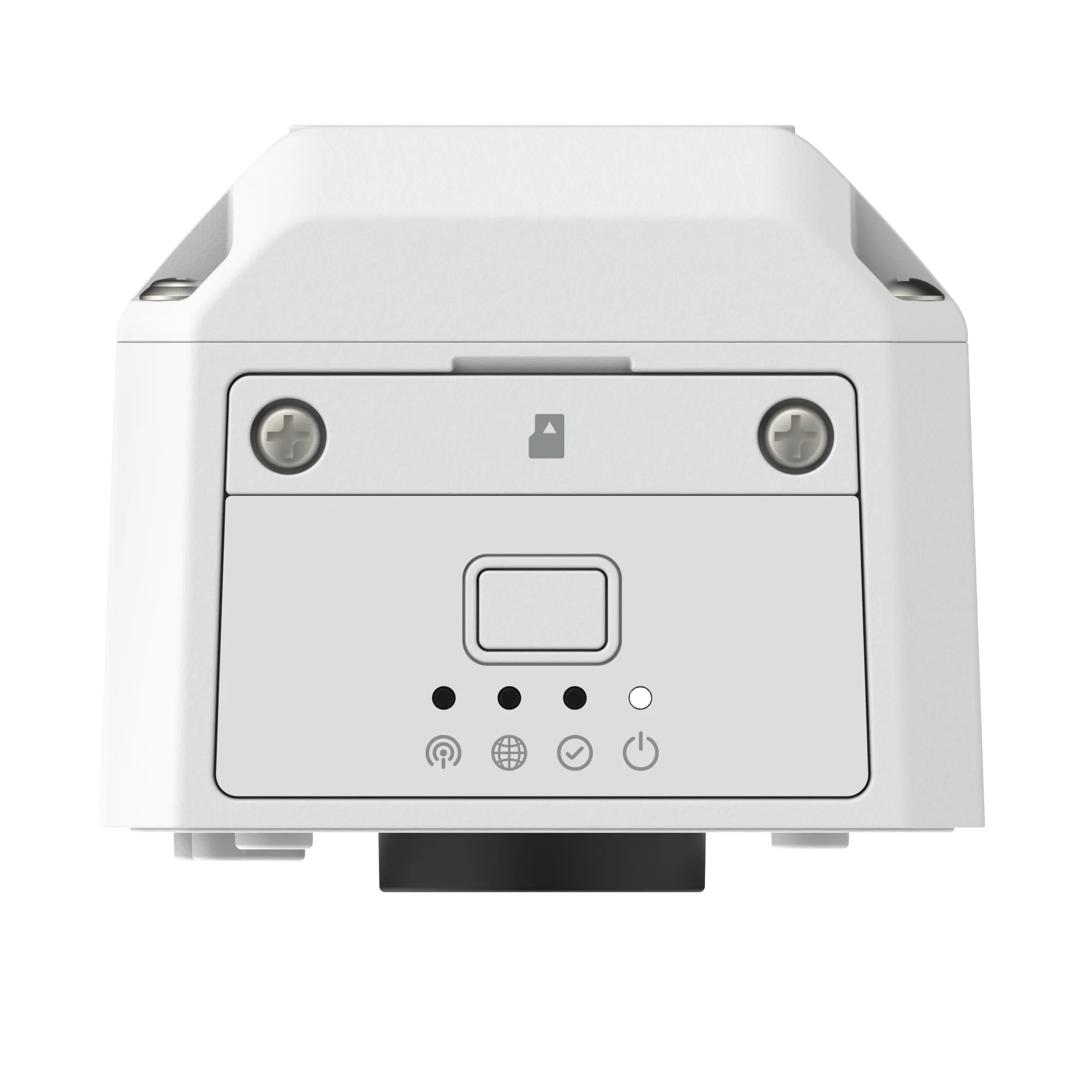

- Status LED
- Support
Network (9)
- Network / Application Programming Interface – ONVIF
- M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- RJ-45(10/100/1000BASE-T), M12
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), MQTT
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (8)
- LED Out

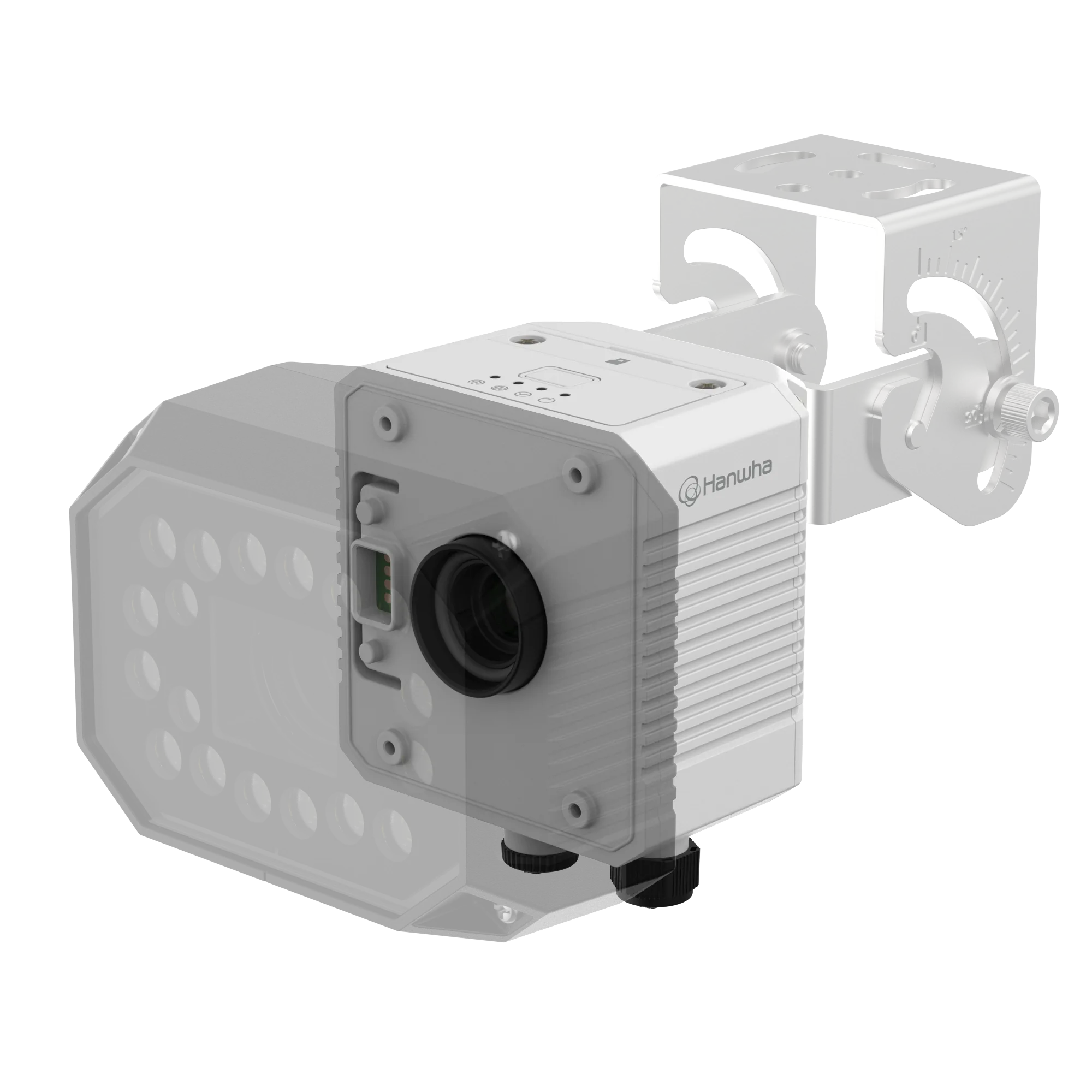

- Support via optional LED accessories(M12 pin connections), White/Red/Blue option
- Operational / Alarm Interface – In/Out
- Input 2ea, Output 2ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Global shutter mode
- Operational / Electronic Shutter – Speed Range
- 33.3ms~150㎲
- Operational – Alarm Events When Alarm Trigger Occurred
- Trigger On/Off, Read/NoRead
- Operational – Alarm Triggers
- Alarm input
- Operational – Backlight Compensation
- HDR
- Operational – Video Rotation
- Flip, Mirror
Video (5)
- Video / Imaging Device – Size
- 1/3"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 50fps
- Video – Pixel Size
- 2.25㎛
- Video – Resolution
- 2048x1536
