2MP AI IR Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories

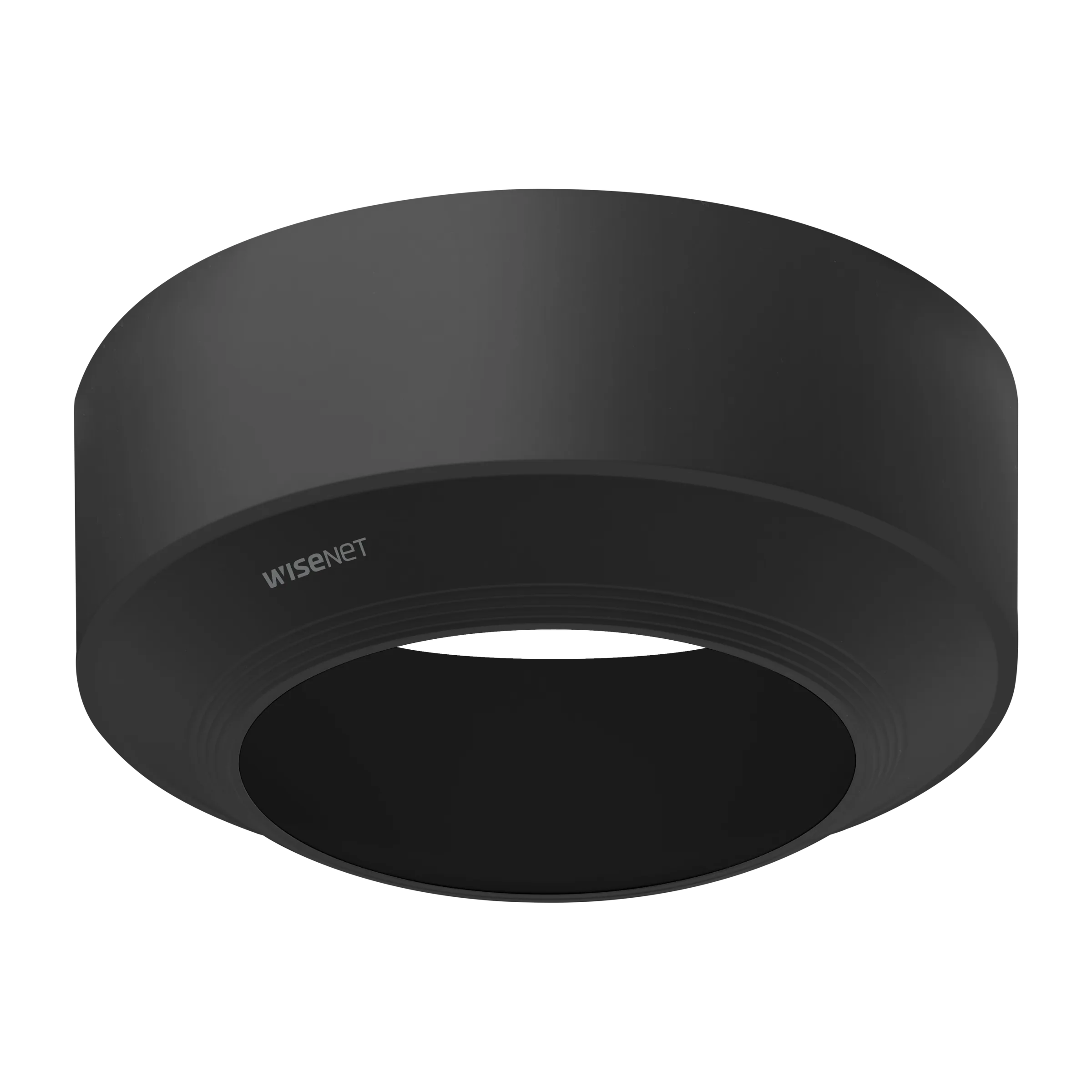

The SBC-160B is a black skin cover produced from polycarbonate. It measures Ø167 x 68 mm and weighs 120 g. XND-6083RV is entered as the supported product, and the manufacturer keeps further compatible models in its Toolbox. The product information additionally names PND-A9081RV, PND-A6081RV, XND-6081RV, XND-8081RV, XND-6082RV, XND-8082RV, XND-9082RV, XND-8083RV, XND-8093RV and XND-9083RV. Black skin coverPolycarbonate materialDimensions Ø167 x 68 mmWeight 120 gFor XND-6083RV and further models
Not in stock · delivery 3-4 days
The SBP-160WMW1 holds a camera on a wall or pole and is classified for indoor use. Its body is aluminium and its cover polycarbonate, finished in white to RAL9003. The mount measures 169.7(W)x118.3(H)x214.8(D)mm (6.68x4.66x8.46"), weighs 696g (1.53lb) and takes a permitted load of 5kg. The conduit hole is 19.1mm (3/4", M25), the gangbox hole supports single, double, 4" octagon and 4" square, and fixing uses a TR20 screw. Supported models are the XND-C6083RV, XND-C7083RV, XND-C8083RV and XND-C9083RV. Wall and pole mounting, indoorAluminium body with polycarbonate cover169.7x118.3x214.8mm / 696gMax. load 5kgConduit hole 19.1mm (M25)Gangbox single, double, 4" octagon, 4" square
Not in stock · delivery 3-4 days
The SBV-180BW is an aluminium back box finished in white to RAL9003. It measures ø183.8x51mm, weighs 650g and supports a load of up to 5kg. The conduit hole is 19.1mm (3/4", M25) and the mount screw size is TR20; no certification is stated for this part. Supported cameras are the XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV, XNV-6083R, XNV-8083R, XNV-8093R and XNV-9083R. Aluminium back boxWhite, RAL9003Dimensions ø183.8x51mm, 650gMax. load 5kgConduit hole 19.1mm (3/4", M25)Mount screw size TR20
Not in stock · delivery 3-4 days
SHD-1350FPW is an in-ceiling housing made of aluminium with a polycarbonate part, finished white to RAL 9003. At ø205x163 mm (8.07x6.42") it is one of the larger in-ceiling enclosures in the range, and it weighs 1,170 g (2.58 lb). Conduit holes of 12.7 mm (1/2", M20) and 19.1 mm (3/4", M25) are provided for cable routing. The supported model stated is XND-6083RV. In-ceiling housing in aluminium and polycarbonateWhite, RAL 9003ø205x163 mm1,170 gConduit holes 12.7 mm (M20) and 19.1 mm (M25)For XND-6083RV
In stock, ships immediately · delivery 1-2 days
SHD-1350P is a retrofit spacer for existing in-ceiling installations. Its top cover is polycarbonate while the spacer itself is aluminium, and the finish is white to RAL 9003. It measures 152.8x133x26.5 mm (6.02x5.24x1.04") and weighs 90 g (0.20 lb). It is intended for use with the SHD-3000F4 and SHD-3000FW4 in-ceiling mounts. On the camera side it supports XND-6083RV, XND-8083RV, XND-8093RV, XND-9083RV, PND-A6081RV, PND-A9081RV, XND-6081RV and XND-8081RV. Retrofit spacer for in-ceiling mountsPolycarbonate top cover, aluminium spacerWhite, RAL 9003152.8x133x26.5 mm, 90 gFor SHD-3000F4 and SHD-3000FW4Cameras XND-6083RV to XND-9083RV, PND-A6081RV, PND-A9081RV
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XND-6083RV
- EAN / GTIN
- 8801089207791
- Weight
- 2.67 kg
- Dimensions (W×H×D)
- 437 × 213 × 194 mm
Description

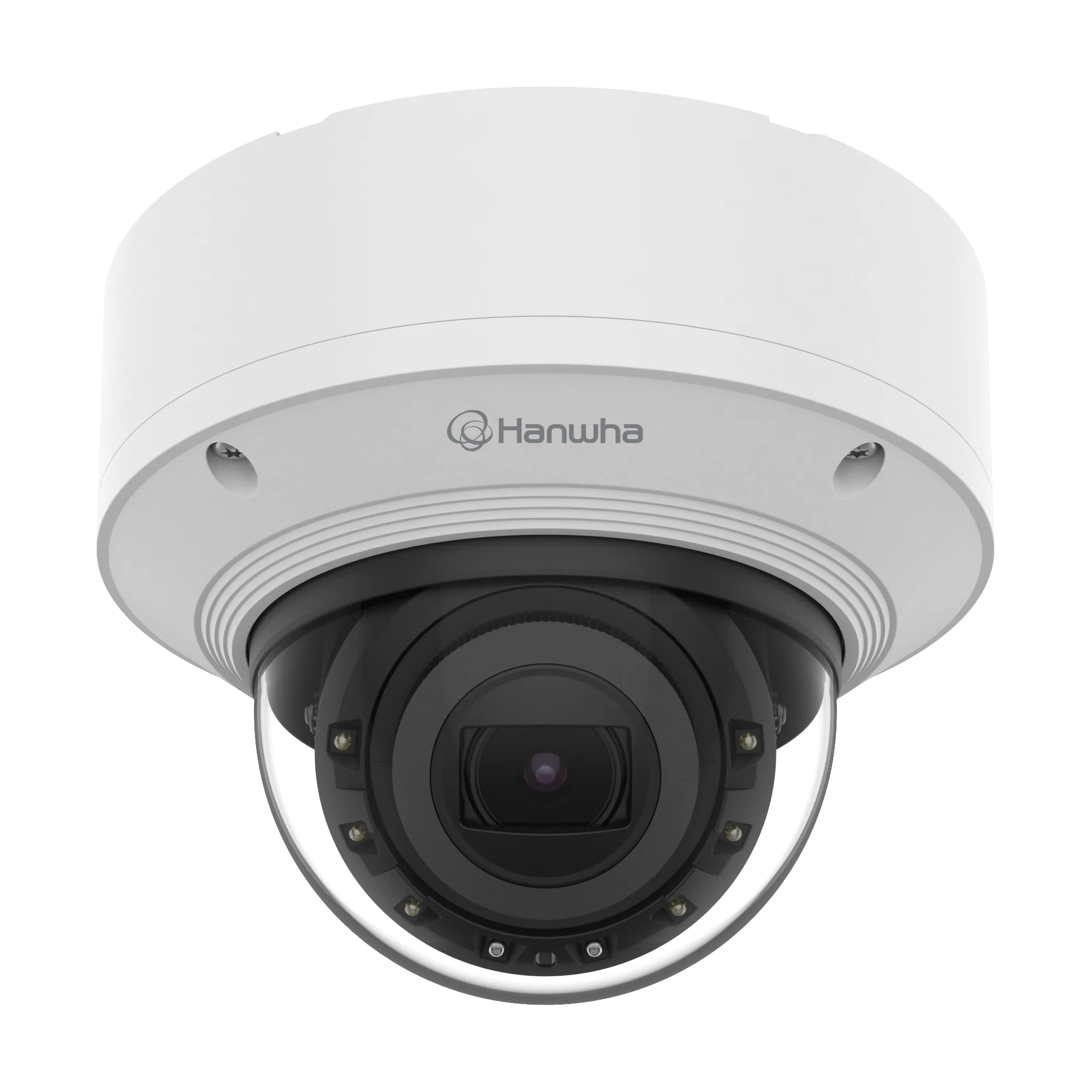

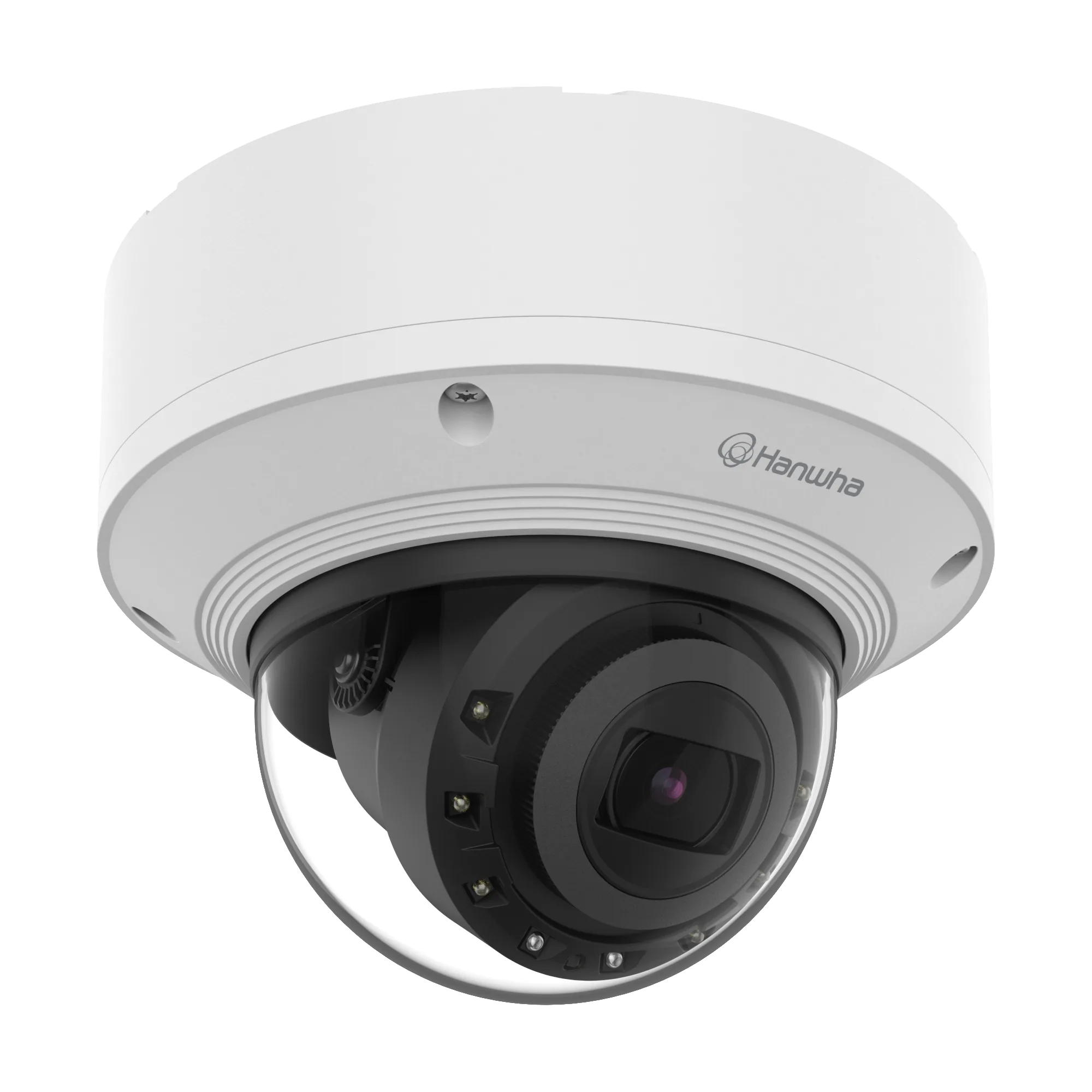

The XND-6083RV is a 2MP AI IR dome camera using a 1/2.8" CMOS sensor with a maximum resolution of 1920x1080. H.265 and H.264 run at 120fps/100fps (60Hz/50Hz) with WDR off and 60fps/50fps with WDR on, while MJPEG stays at 30fps. Its motorised 2.8 to 12 mm varifocal lens with 4.3x zoom opens from F1.4 at the wide end to F3.6 at tele and covers 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from a 0.5 m minimum object distance. Minimum illumination is quoted as 0.01 lux in colour and 0.001 lux in black-and-white, with day and night switching handled automatically by ICR. Focus can be set by simple focus or manually, and the camera is aligned through 0° to 360° pan, 0° to 85° tilt and 0° to 355° rotation.
- 1/2.8" CMOS, up to 1920x1080
- Motorised 2.8–12 mm varifocal lens, 4.3x
- 120fps/100fps WDR off, 60fps/50fps WDR on
- 0.01 lux colour, 0.001 lux B/W
- Automatic ICR day and night switching
- Simple focus or manual focus
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (6)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle)
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- DetectionShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 159.9m(524.76ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 22.2m(72.74ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 16.0m(52.48ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 2.2m(7.27ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 64.0m(209.90ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 8.9m(29.09ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 32.0m(104.95ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 4.4m(14.55ft)
Environmental & Electrical (9)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -25°C~+50°C(-13°F~+122°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 20W, typical 15.6W
- Environmental & Electrical / Power Consumption – PoE
- Max. 22.5W, typical 17.9W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
- Environmental & Electrical – Power Redundance Failover
- Support
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 2slot(Total 1TB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 2GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 143°~32°
- Lens / Angular Field of View – Horizontal
- 120°~27°
- Lens / Angular Field of View – Vertical
- 63°~15°
- Lens / Max Aperture Ratio (F number) – Tele
- 3.6
- Lens / Max Aperture Ratio (F number) – Wide
- 1.4
- Lens / Zoom Ratio – Optical
- 4.3x
- Lens – Focal Length (mm)
- 2.8~12
- Lens – Focus Control
- Simple focus, Manual
- Lens – Lens Type
- Adaptive P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 12.7mm(1/2")(M20)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- ø160x125mm(ø6.30x4.92")
- Mechanical – Product Weight
- 1600g(3.53lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (26)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Alarm Interface – Others
- 12VDC output
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 50m(164.04ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in), Built-in mic
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support(Fill/stretch mode)
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 150
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~85°
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 120fps/100fps(60Hz/50Hz)(WDR off) / 60fps/50fps(60Hz/50Hz)(WDR on)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.001
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.01
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
