2MP AI IR Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories

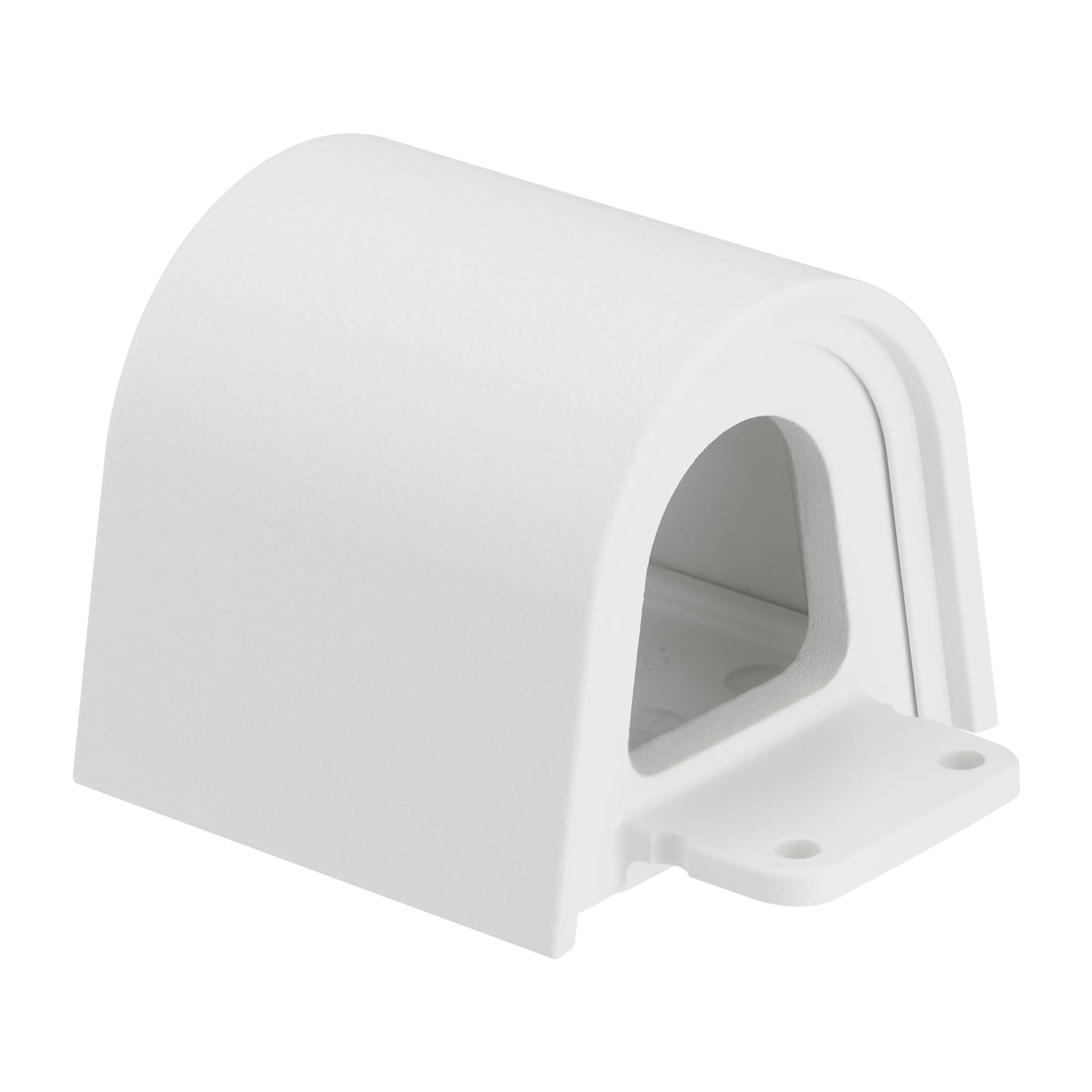

The SBO-147BA is an adaptor for conduit holes. Its cover is aluminium while the top cover is polycarbonate, and the finish is white. It measures 48.5mm wide, 41mm high and 56.7mm deep, weighing 45g. The conduit hole is sized at 19.1mm (3/4 in, M25). Conduit hole adaptorAluminium with polycarbonate top coverWhite48.5x41x56.7mm, 45g19.1mm (M25) conduit hole
Not in stock · delivery 3-4 days
The SBP-140CMT holds a camera in the profile of a tile grid ceiling. Its plate and rail are made of polycarbonate and aluminium, finished in white to RAL9003. Measuring ø140x27.5mm at 108g, the mount carries a load of up to 2.5kg and uses a TR20 mounting screw. Operation is rated from -10°C to +45°C at 5~90% RH (non-condensing), storage from -30°C to +60°C at 0~90% RH. Supported models are QNV-C8011R, QNV-C8012 and QNV-C9011R; four pieces are included in the package. Tile grid ceiling mountingPolycarbonate and aluminium, RAL9003ø140x27.5mm / 108gMax. load 2.5kgOperation -10°C to +45°C4 pieces per package
Not in stock · delivery 3-4 days
The SBP-160WMW1 holds a camera on a wall or pole and is classified for indoor use. Its body is aluminium and its cover polycarbonate, finished in white to RAL9003. The mount measures 169.7(W)x118.3(H)x214.8(D)mm (6.68x4.66x8.46"), weighs 696g (1.53lb) and takes a permitted load of 5kg. The conduit hole is 19.1mm (3/4", M25), the gangbox hole supports single, double, 4" octagon and 4" square, and fixing uses a TR20 screw. Supported models are the XND-C6083RV, XND-C7083RV, XND-C8083RV and XND-C9083RV. Wall and pole mounting, indoorAluminium body with polycarbonate cover169.7x118.3x214.8mm / 696gMax. load 5kgConduit hole 19.1mm (M25)Gangbox single, double, 4" octagon, 4" square
Not in stock · delivery 3-4 days

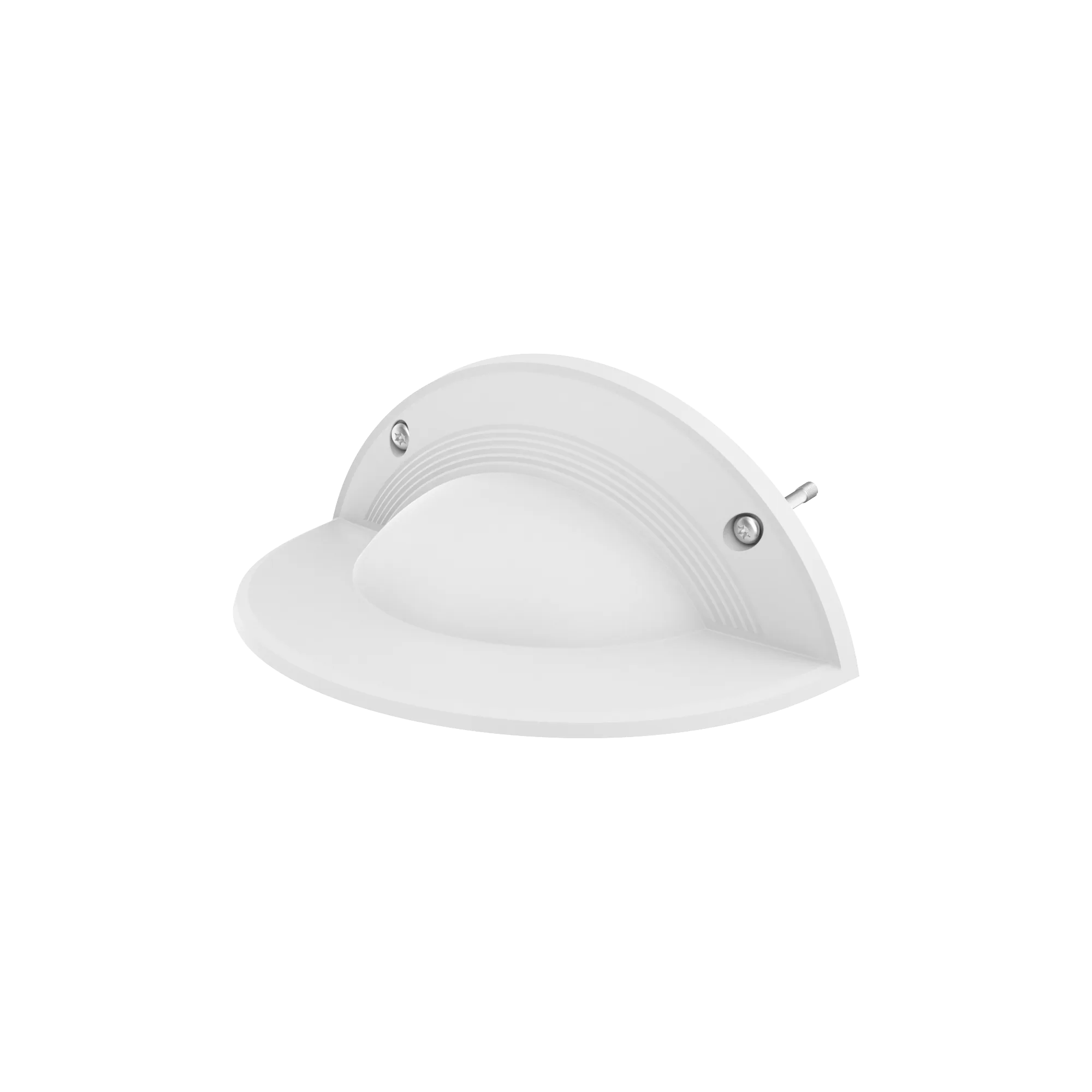

The SBV-161WCW is a polycarbonate (PC) weather cap finished in white to RAL9003. At 155.3x95.8x62.2mm and 49g it stays small and light. The cap is intended for the XNV-C6083R, XNV-C7083R, XNV-C8083R and XNV-C9083R. Further compatible models are listed on the manufacturer's website or in the Toolbox. Polycarbonate weather capWhite, RAL9003Dimensions 155.3x95.8x62.2mmWeight 49gSupports XNV-C6083R to XNV-C9083R
Not in stock · delivery 3-4 days

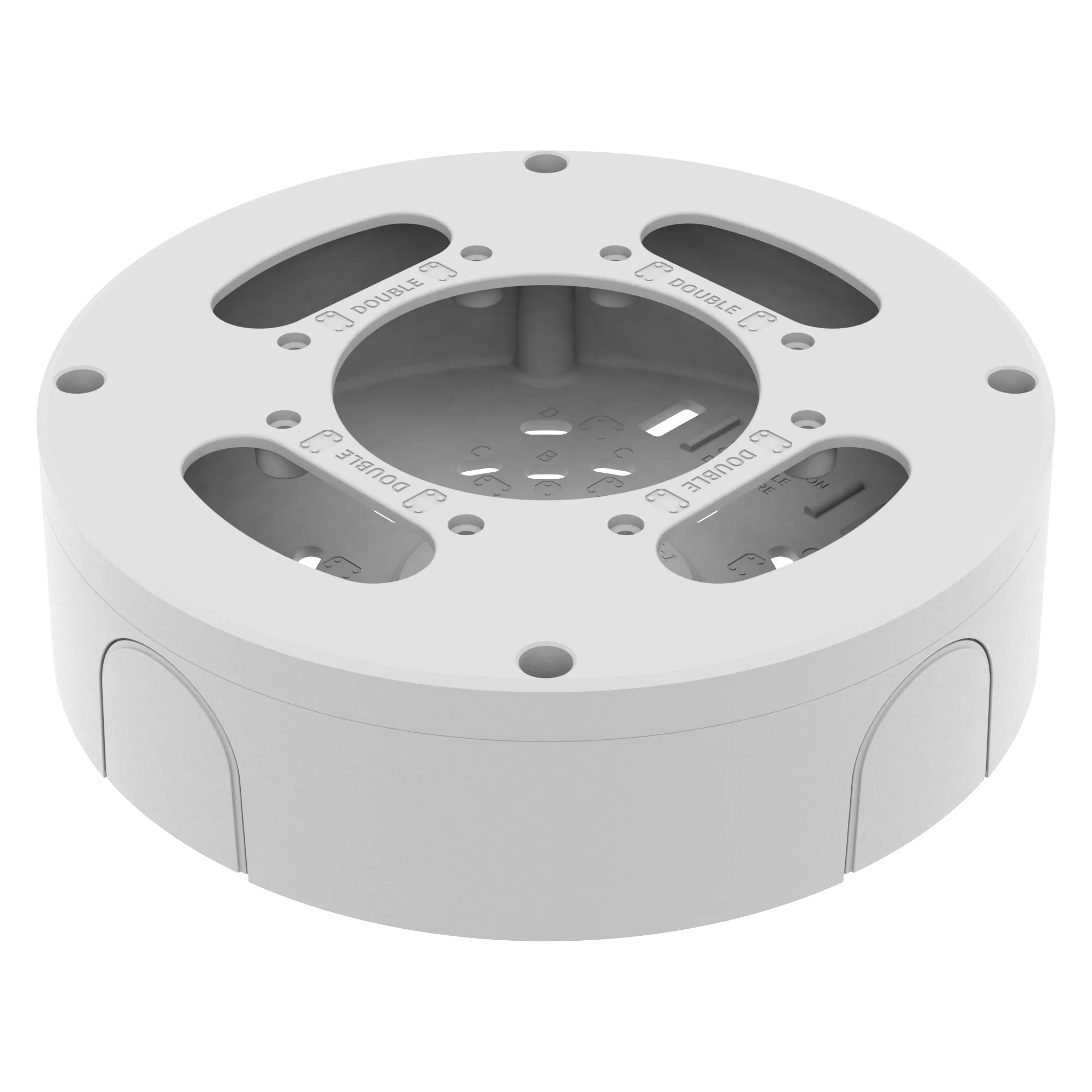

The SBV-180BW is an aluminium back box finished in white to RAL9003. It measures ø183.8x51mm, weighs 650g and supports a load of up to 5kg. The conduit hole is 19.1mm (3/4", M25) and the mount screw size is TR20; no certification is stated for this part. Supported cameras are the XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV, XNV-6083R, XNV-8083R, XNV-8093R and XNV-9083R. Aluminium back boxWhite, RAL9003Dimensions ø183.8x51mm, 650gMax. load 5kgConduit hole 19.1mm (3/4", M25)Mount screw size TR20
Not in stock · delivery 3-4 days
SHD-1350FPW is an in-ceiling housing made of aluminium with a polycarbonate part, finished white to RAL 9003. At ø205x163 mm (8.07x6.42") it is one of the larger in-ceiling enclosures in the range, and it weighs 1,170 g (2.58 lb). Conduit holes of 12.7 mm (1/2", M20) and 19.1 mm (3/4", M25) are provided for cable routing. The supported model stated is XND-6083RV. In-ceiling housing in aluminium and polycarbonateWhite, RAL 9003ø205x163 mm1,170 gConduit holes 12.7 mm (M20) and 19.1 mm (M25)For XND-6083RV
In stock, ships immediately · delivery 1-2 days

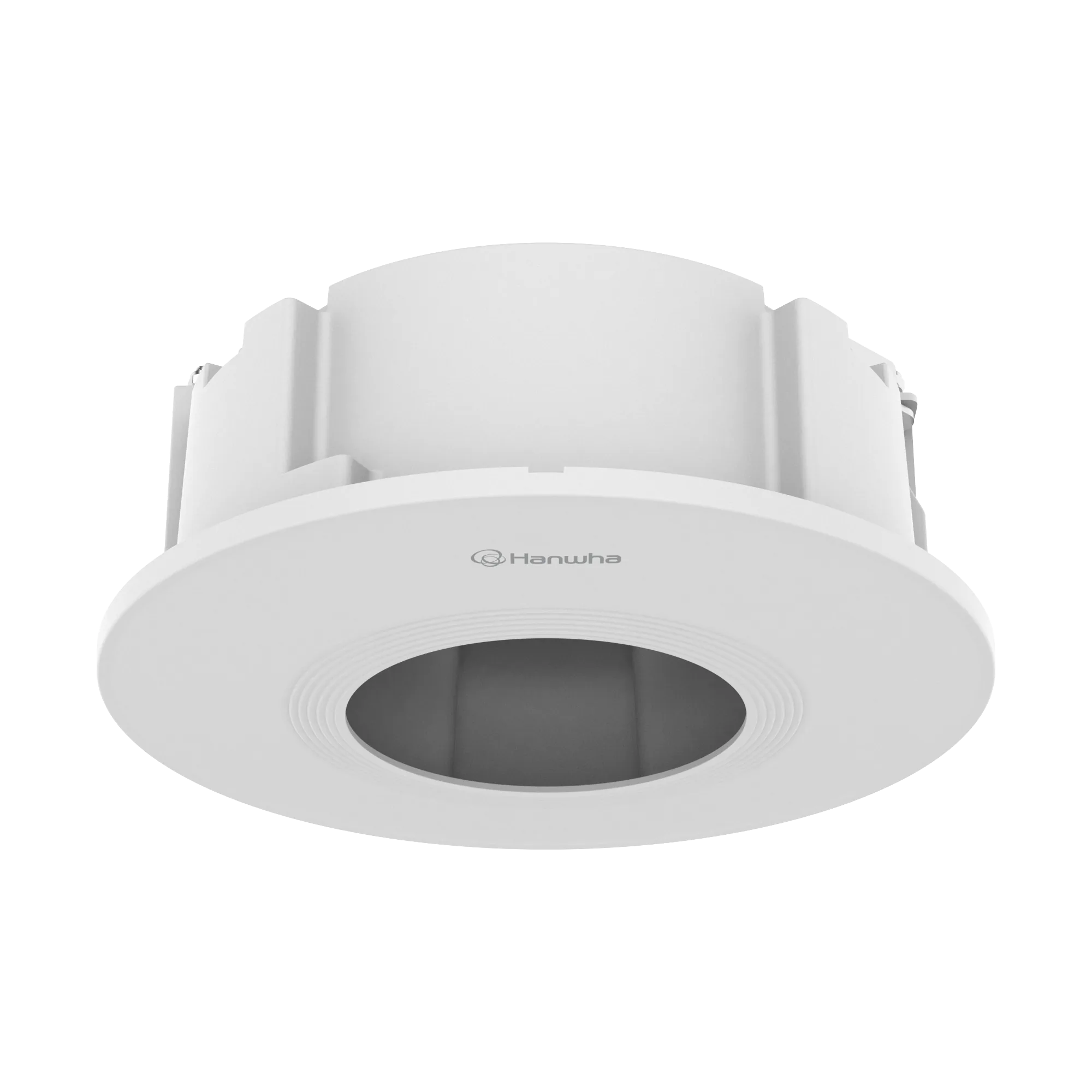

SHD-1600FW is an in-ceiling mount made of aluminium and finished white to RAL 9003. With dimensions of ø232x104.2 mm (ø9.13x4.10") it weighs 560 g (1.23 lb), making it shallower and lighter than the version with a polycarbonate rim. The mount screw size is TR20. The supported cameras are XND-C6083RV, XND-C7083RV, XND-C8083RV and XND-C9083RV. In-ceiling mount in aluminiumWhite, RAL 9003ø232x104.2 mm560 gMount screw size TR20For XND-C6083RV to XND-C9083RV
Not in stock · delivery 3-4 days

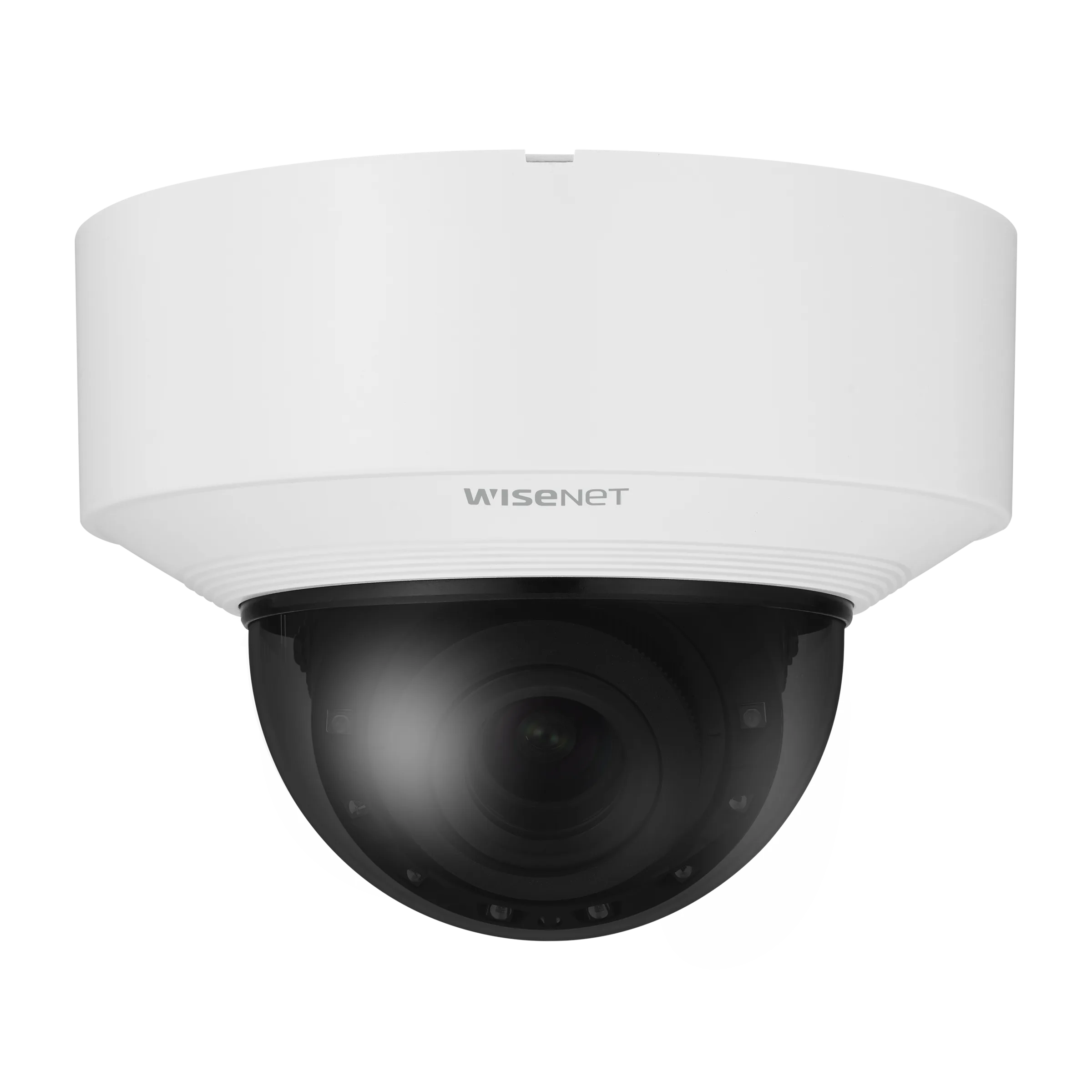

The SPB-IND88W is a smoked dome cover in white with RAL code RAL9003. The specification lists polycarbonate (PC) as the material. Product dimensions are ø160 x 80.8mm and the weight is 243g (0.54lb). Supported products are XND-C6083RV, XND-C7083RV, XND-C8083RV and XND-C9083RV, with further compatible cameras named on the manufacturer's website or in the Toolbox. Smoked dome coverWhite, RAL9003Polycarbonate materialø160 x 80.8mm, 243gFor XND-C6083RV to C9083RV
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XND-C6083RV
- EAN / GTIN
- 8801089207906
- Weight
- 1.8 kg
- Dimensions (W×H×D)
- 219 × 219 × 195 mm
Description

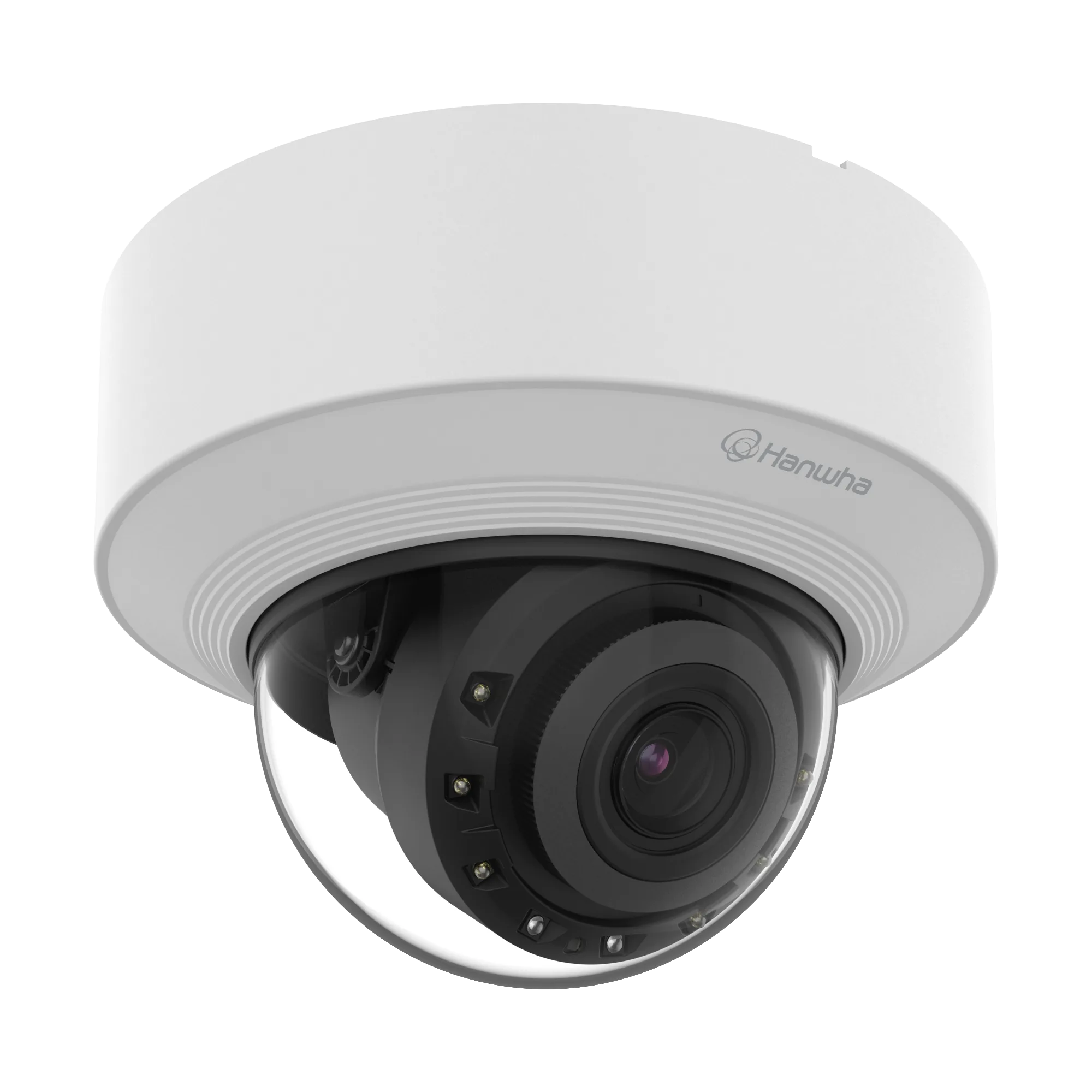

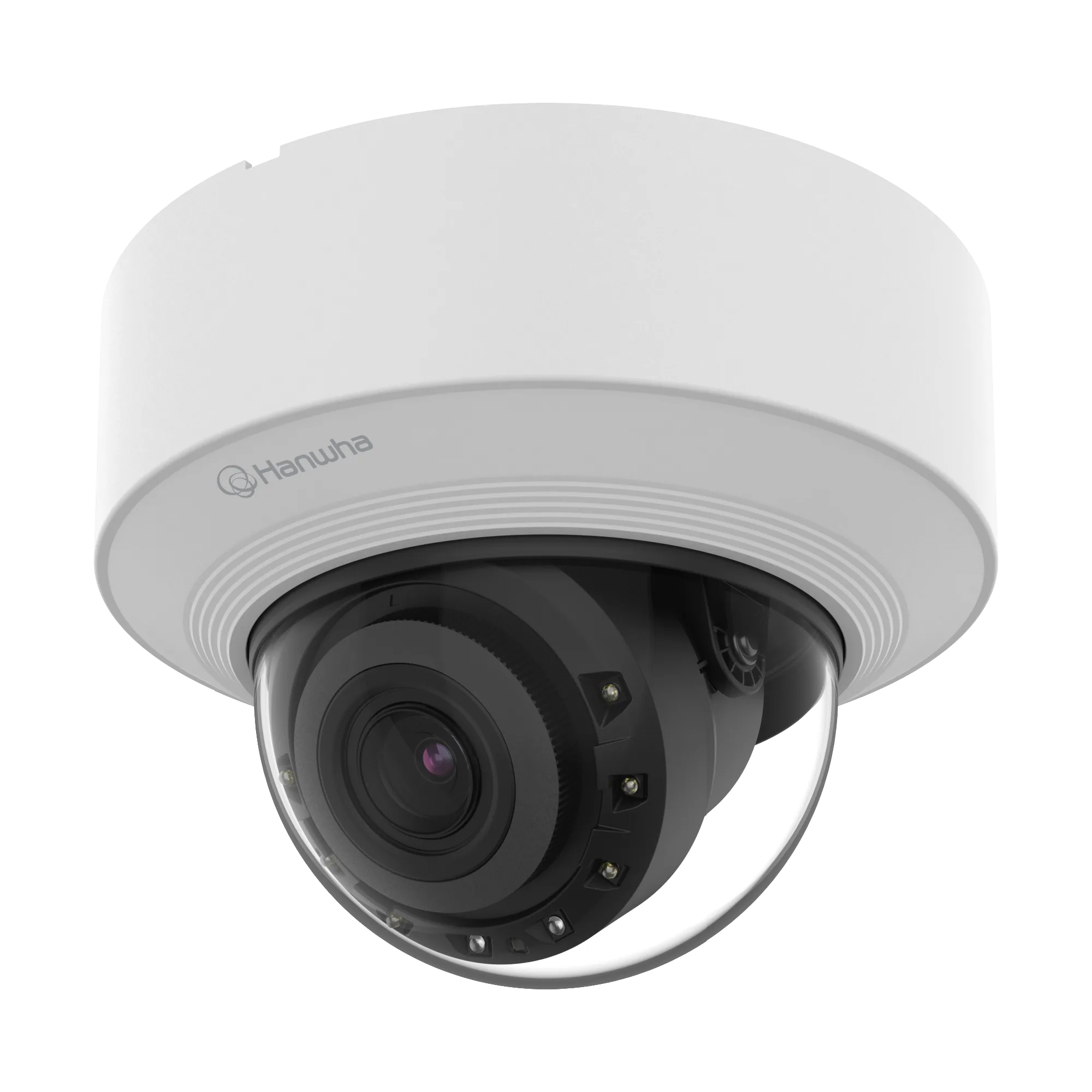

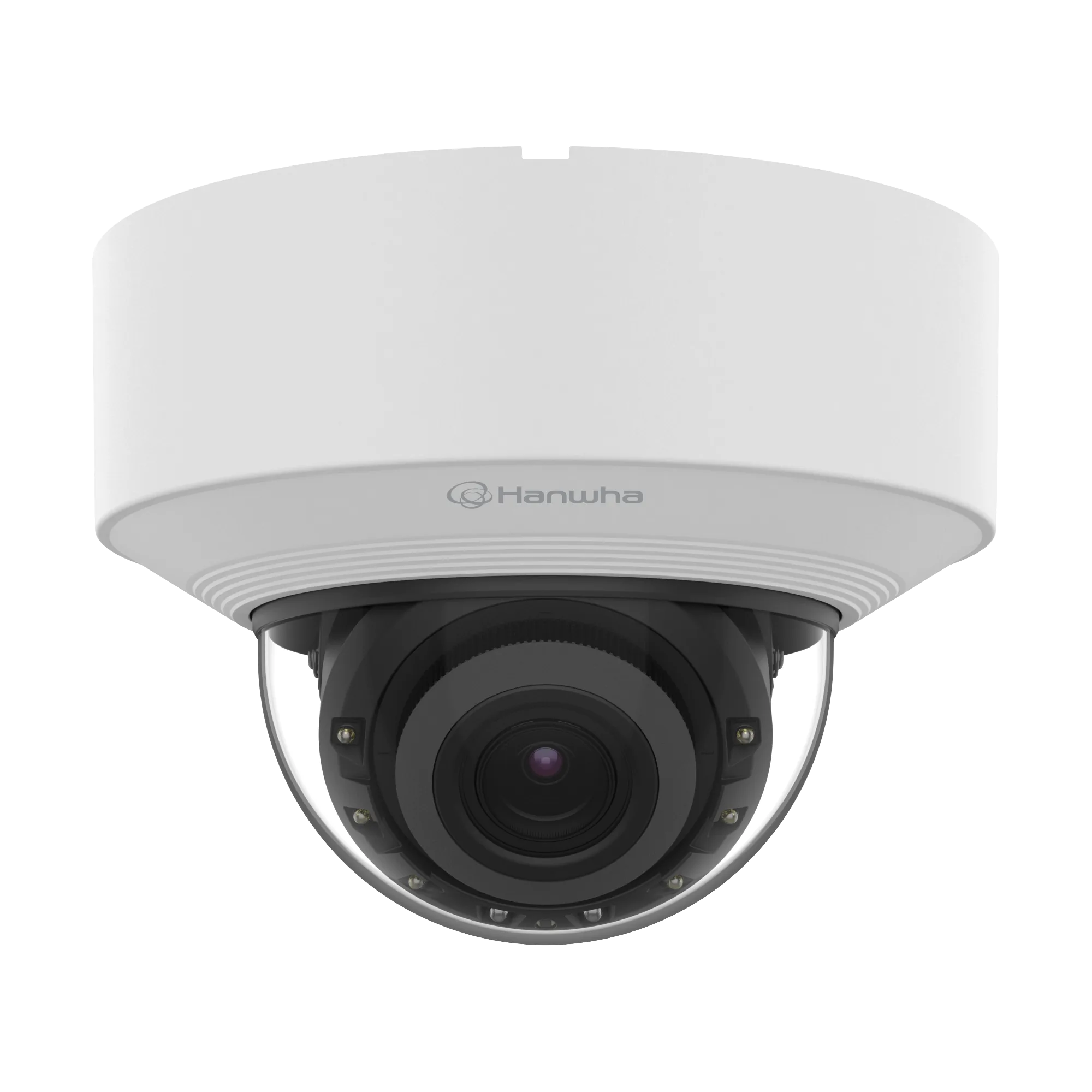

The XND-C6083RV is a 2MP AI IR dome camera whose 1/2.8" CMOS sensor outputs a maximum of 1920x1080. A motorised 2.8 to 12 mm varifocal lens opens from F1.4 wide to F3.6 tele and takes in 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from a 0.5 m minimum object distance. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) while MJPEG stays at 30fps, and minimum illumination is stated as 0.01 lux in colour and 0.001 lux in black-and-white. Image conditioning offers BLC, HLC, WDR and SSDR alongside automatic ICR day and night switching. Focus is available as simple focus or manual, alignment spans 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and preview and installation run over Micro USB Type B.
- 1/2.8" CMOS, up to 1920x1080
- Motorised 2.8–12 mm varifocal lens, F1.4 to F3.6
- 60fps/50fps in H.265 and H.264
- 0.01 lux colour, 0.001 lux B/W
- BLC, HLC, WDR and SSDR
- 0°–360° pan, 0°–75° tilt
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (6)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle)
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- DetectionShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK08
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 159.9m(524.76ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 22.2m(72.74ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 16.0m(52.48ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 2.2m(7.27ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 64.0m(209.90ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 8.9m(29.09ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 32.0m(104.95ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 4.4m(14.55ft)
Environmental & Electrical (9)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+50°C(+14°F~+122°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 12.5W, typical 10.0W
- Environmental & Electrical / Power Consumption – PoE
- Max 12.95W, typical 10.8W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – EPA(Effective Projected Area)
- 0.02㎡
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 1slot
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 2GB
Lens (9)
- Lens / Angular Field of View – Diagonal
- 143°~32°
- Lens / Angular Field of View – Horizontal
- 120°~27°
- Lens / Angular Field of View – Vertical
- 63°~15°
- Lens / Max Aperture Ratio (F number) – Tele
- 3.6
- Lens / Max Aperture Ratio (F number) – Wide
- 1.4
- Lens – Focal Length (mm)
- 2.8~12
- Lens – Focus Control
- Simple focus, Manual
- Lens – Lens Type
- Adaptive P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 12.7mm(1/2")(M20)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum, PC(Polycarbonate), Hard-coated dome
- Mechanical – Product Dimensions
- ø160x118mm(ø6.30x4.65")
- Mechanical – Product Weight
- 1,350g(2.98lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (25)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 40m(131.23ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support(Fill/stretch mode)
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 150
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~75°
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.001
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.01
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
