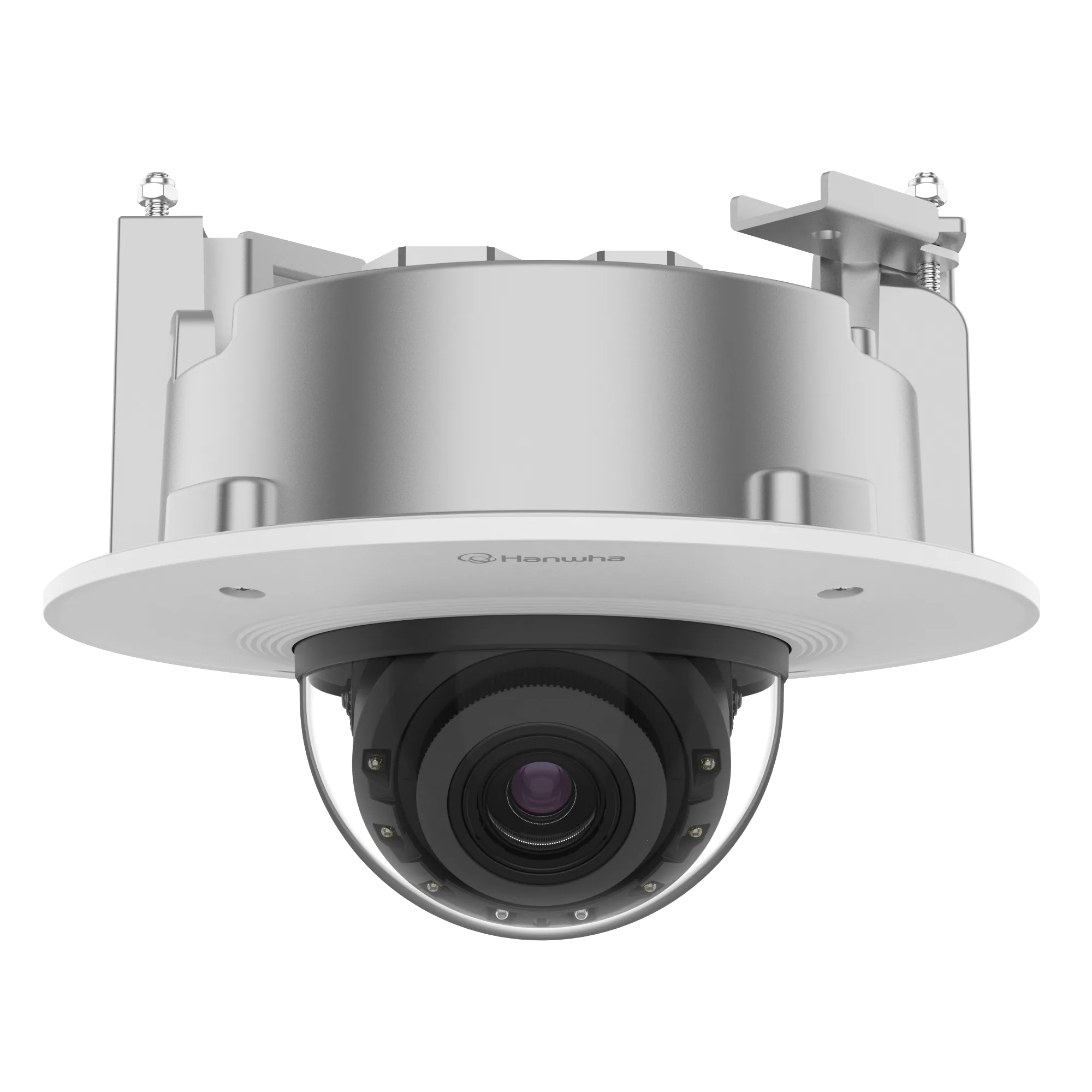

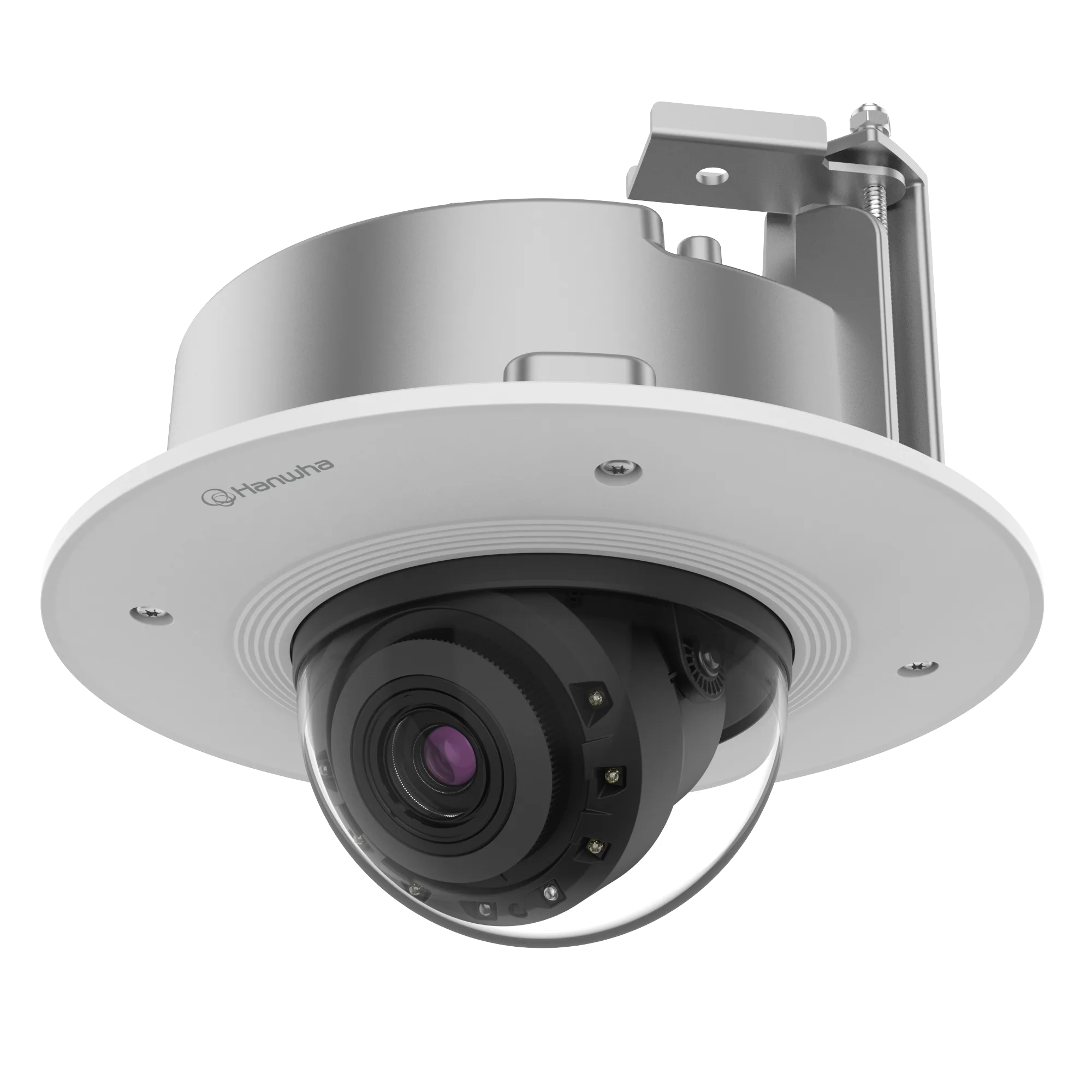

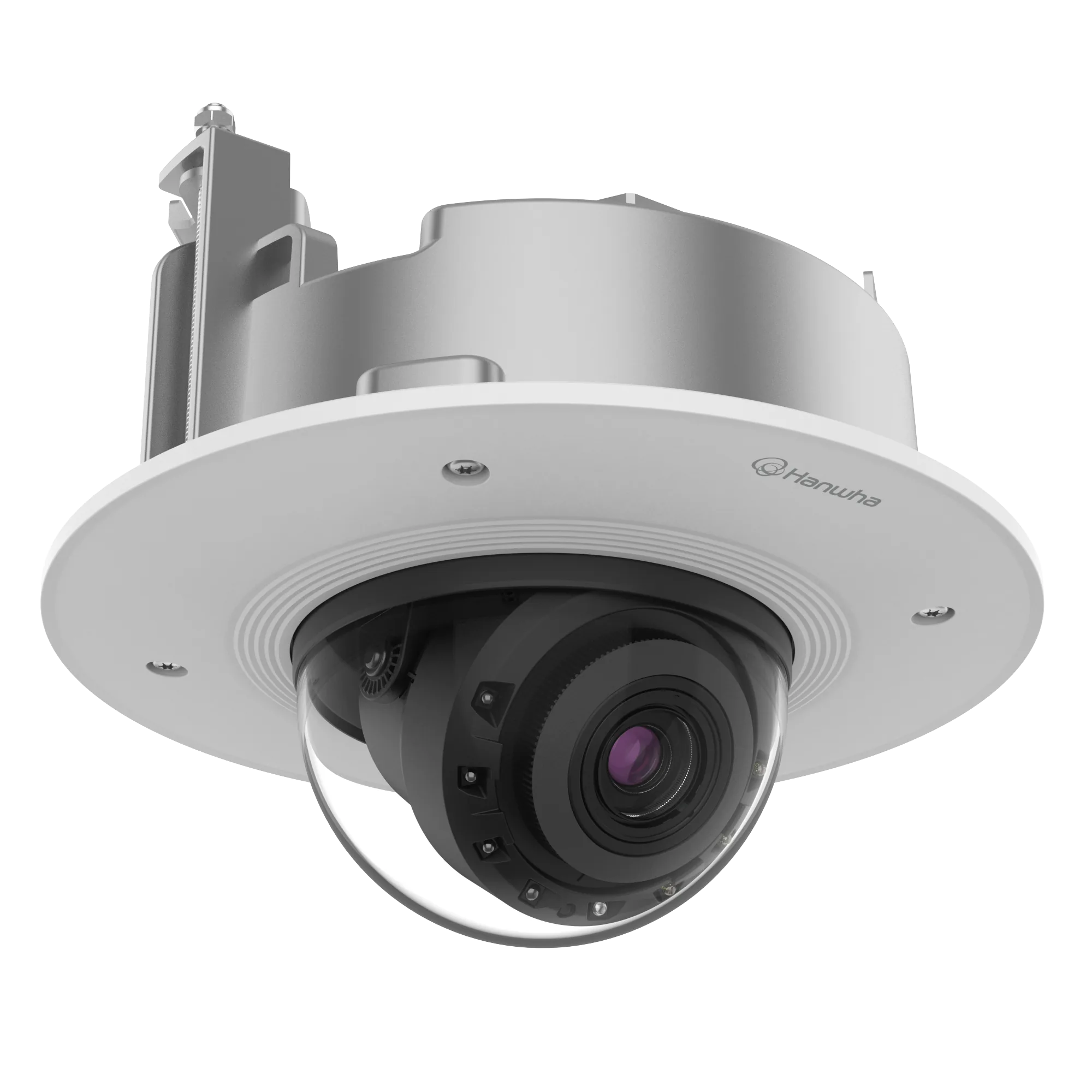

2MP AI IR Flush Mount Indoor Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories

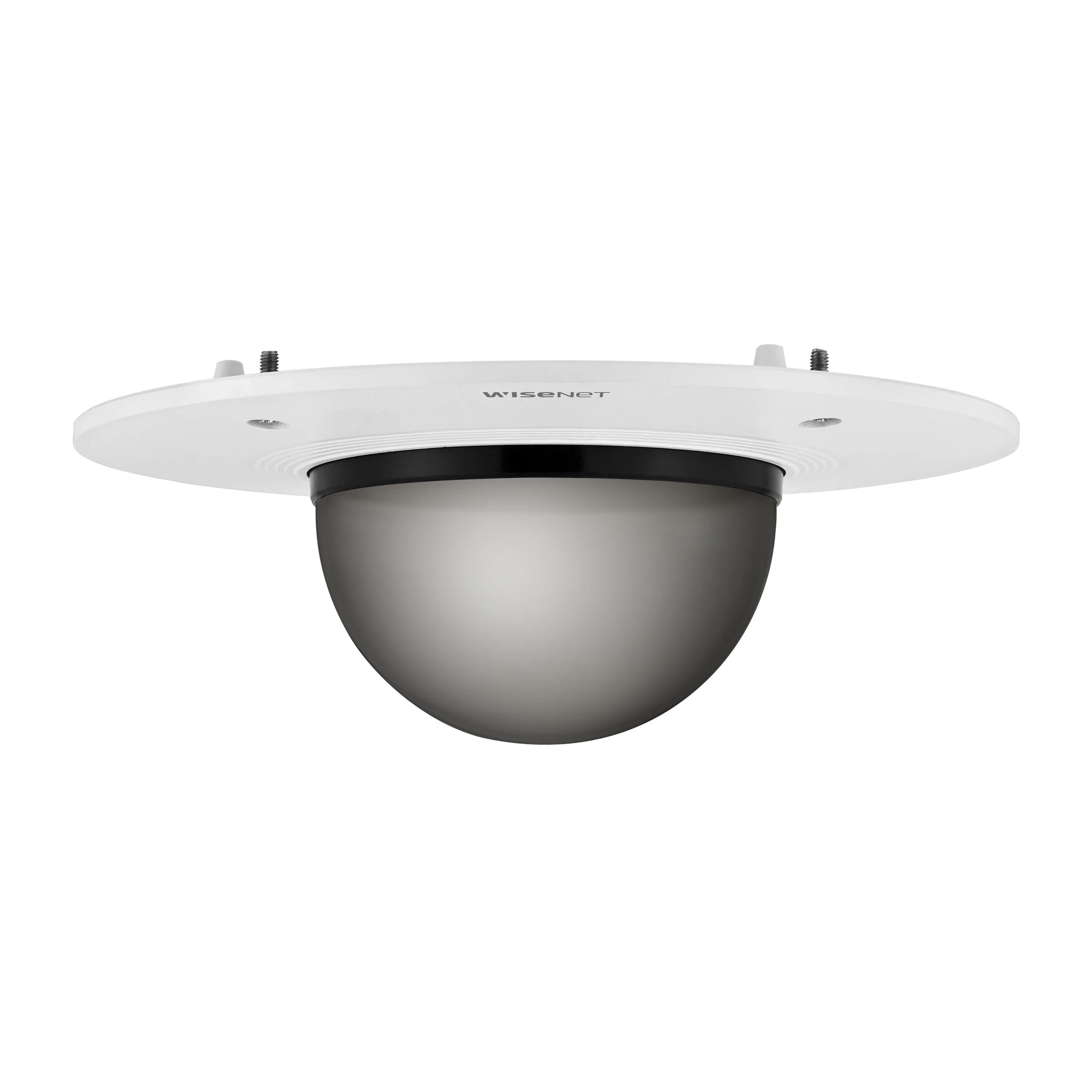

The SPB-FCD85W is a smoked dome cover intended for indoor flush mount cameras. Its base top is white in RAL code RAL9003, while the bubble itself is transparent smoked. Aluminum is used for the base top and polycarbonate (PC) for the bubble. Dimensions are ø205x78mm and the weight is 390g, with certification stated as IP52. XND-8081FZ is listed as a supported product; further compatible models are published on the manufacturer's website or in its Toolbox. Smoked bubbleWhite base top, RAL9003Aluminum and polycarbonateø205x78mm, 390gIP52Supports XND-8081FZ
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- PND-A6081RF
- EAN / GTIN
- 8801089199409
- Weight
- 3.28 kg
- Dimensions (W×H×D)
- 443 × 286 × 190 mm
Description
The PND-A6081RF is an AI-assisted IR network dome camera built on a 1/2-inch CMOS sensor with 2 megapixels and a maximum resolution of 1920x1080. H.265 and H.264 reach 120fps at 60Hz or 100fps at 50Hz, dropping to a maximum of 60fps or 50fps when AI is enabled, while MJPEG runs at 15fps. Object detection distinguishes people, faces, vehicles and licence plates and filters motion events so that event lists stay shorter and more relevant. Intelligent video analytics covers virtual lines and virtual areas for intrusion, entering, exiting, appearing and loitering, along with social distancing measurement and face mask detection. The varifocal lens runs from 4.38 to 9.33mm with 2.13x optical zoom, F1.3 at wide angle and F2.15 at telephoto, covering 103.1° to 44.5° horizontally through an IR-corrected P iris with simple focus from 0.5m. Sensitivity is 0.007 lux in colour and 0.0007 lux in black and white, and the camera head pans 0° to 360°, tilts -45° to 85° and rotates 0° to 355°.
- 2 megapixel resolution up to 1920x1080
- AI object detection for person, face, vehicle and licence plate
- Intelligent video analytics with virtual line and virtual area
- 4.38 to 9.33mm varifocal lens with 2.13x zoom
- 0.007 lux in colour, 0.0007 lux in black and white
- Up to 120/100fps in H.265 and H.264
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (8)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip & fall detection
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), WiseDetector for adding custom objects
- Analytics / Attributes – Face
- Age, Gender, Face mask, Glasses
- Analytics / Attributes – Person
- Upper/Lower clothes color, Gender, Bag
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 95.0m(311.82ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 30.0m(98.43ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 9.5m(31.18ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 3.0m(9.84ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 38.0m(124.73ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 12.0m(39.37ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 19.0m(62.36ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 6.0m(19.69ft)
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -25°C~+50°C(-13°F~+122°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 17.00W, typical 13.50W
- Environmental & Electrical / Power Consumption – PoE
- Max 19.50W, typical 16.00W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
- Environmental & Electrical – Power Redundance Failover
- Support
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 124°~51.1°
- Lens / Angular Field of View – Horizontal
- 103.1°~44.5°
- Lens / Angular Field of View – Vertical
- 54.2°~24.9°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.15
- Lens / Max Aperture Ratio (F number) – Wide
- 1.3
- Lens / Zoom Ratio – Optical
- 2.13x
- Lens – Focal Length (mm)
- 4.38~9.33
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- Ø205x163mm(8.07x4.92")
- Mechanical – Product Weight
- 1,950g(4.30lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 6 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (25)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Alarm Interface – Others
- 12VDC output
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 40m(131.23ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Black, White
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -45°~85°
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (9)
- Video / Imaging Device – Size
- 1/2"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 120fps/100fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps
- Video / Max. Framerate – Others
- Max. 60/50fps(60Hz/50Hz) when AI on
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.0007
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.007
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
