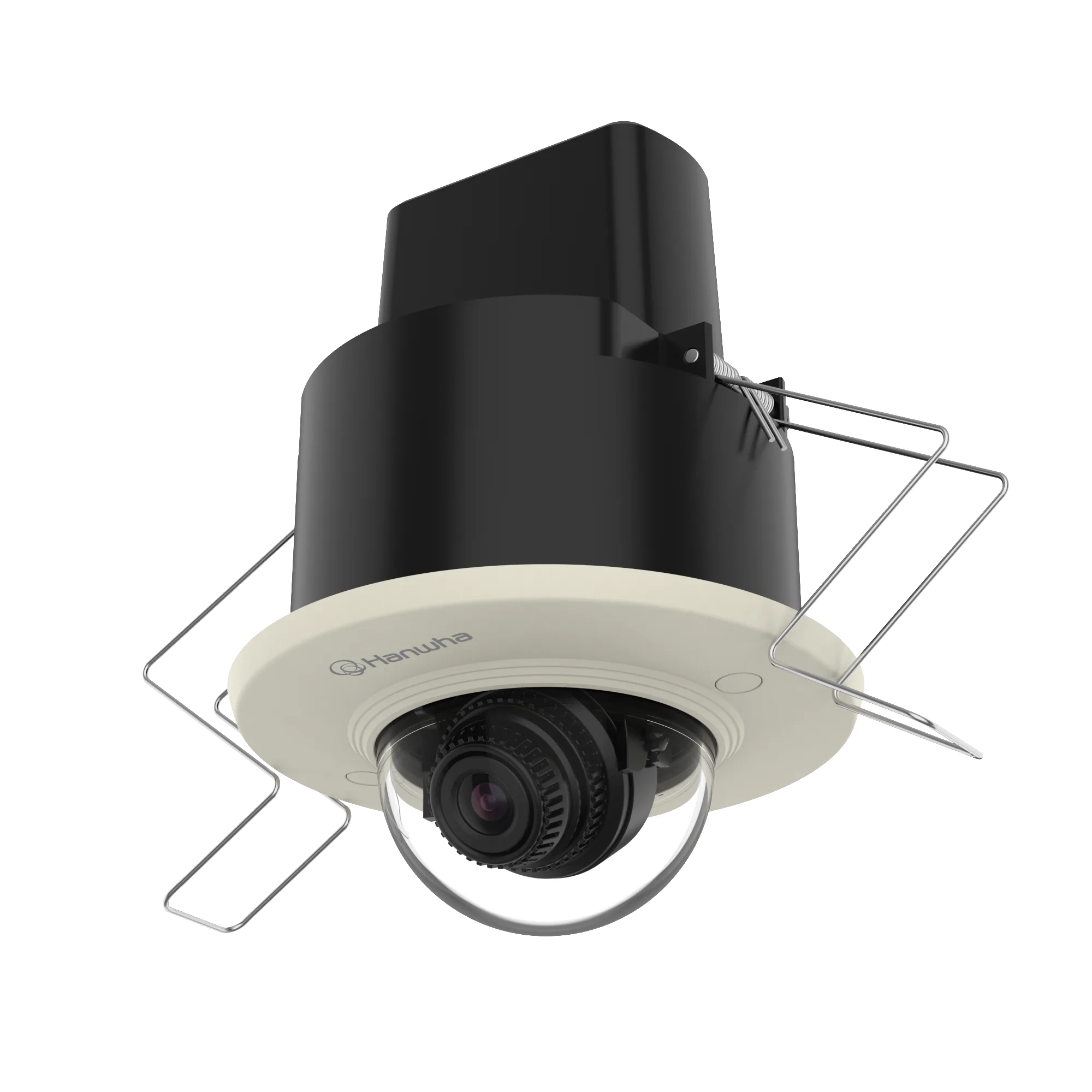

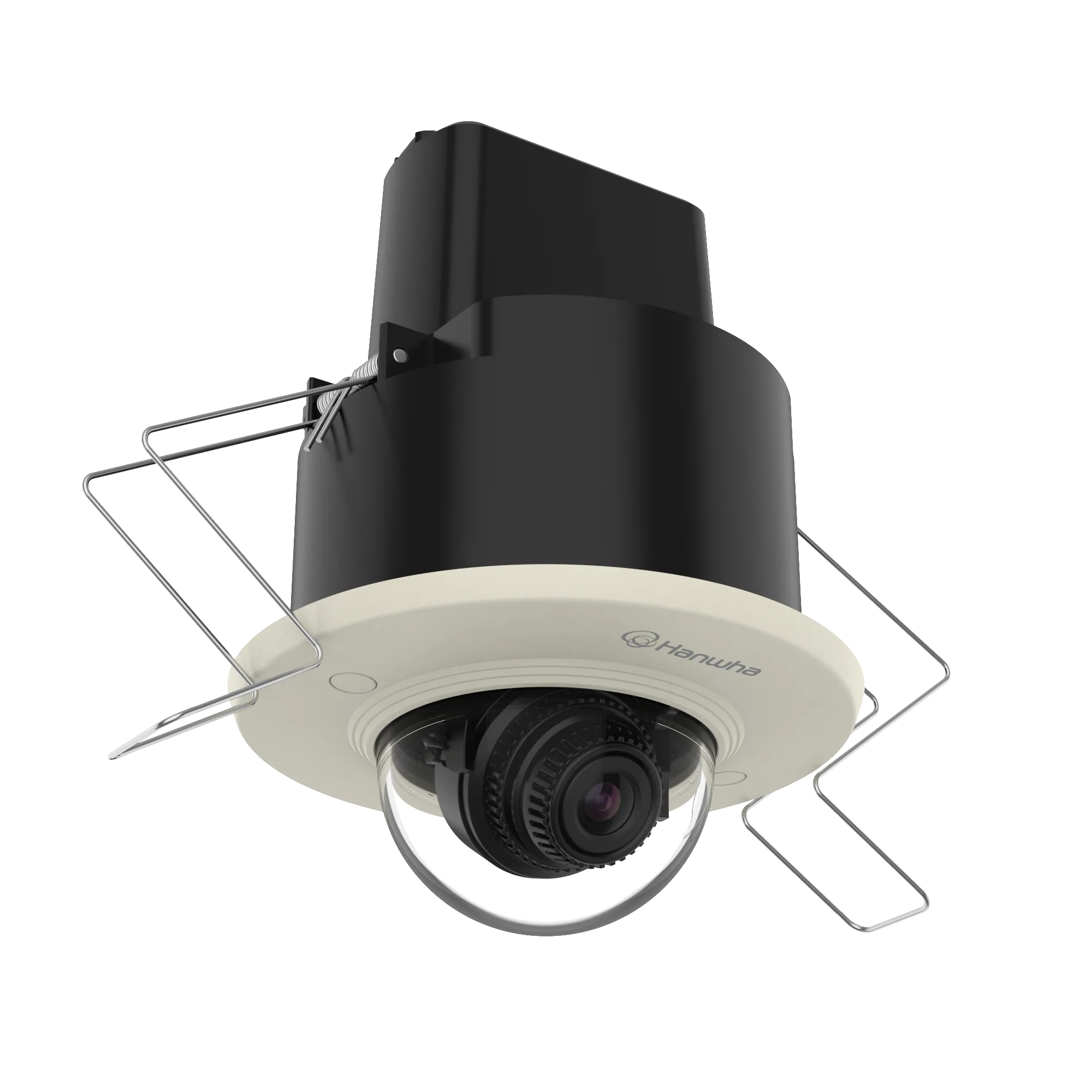

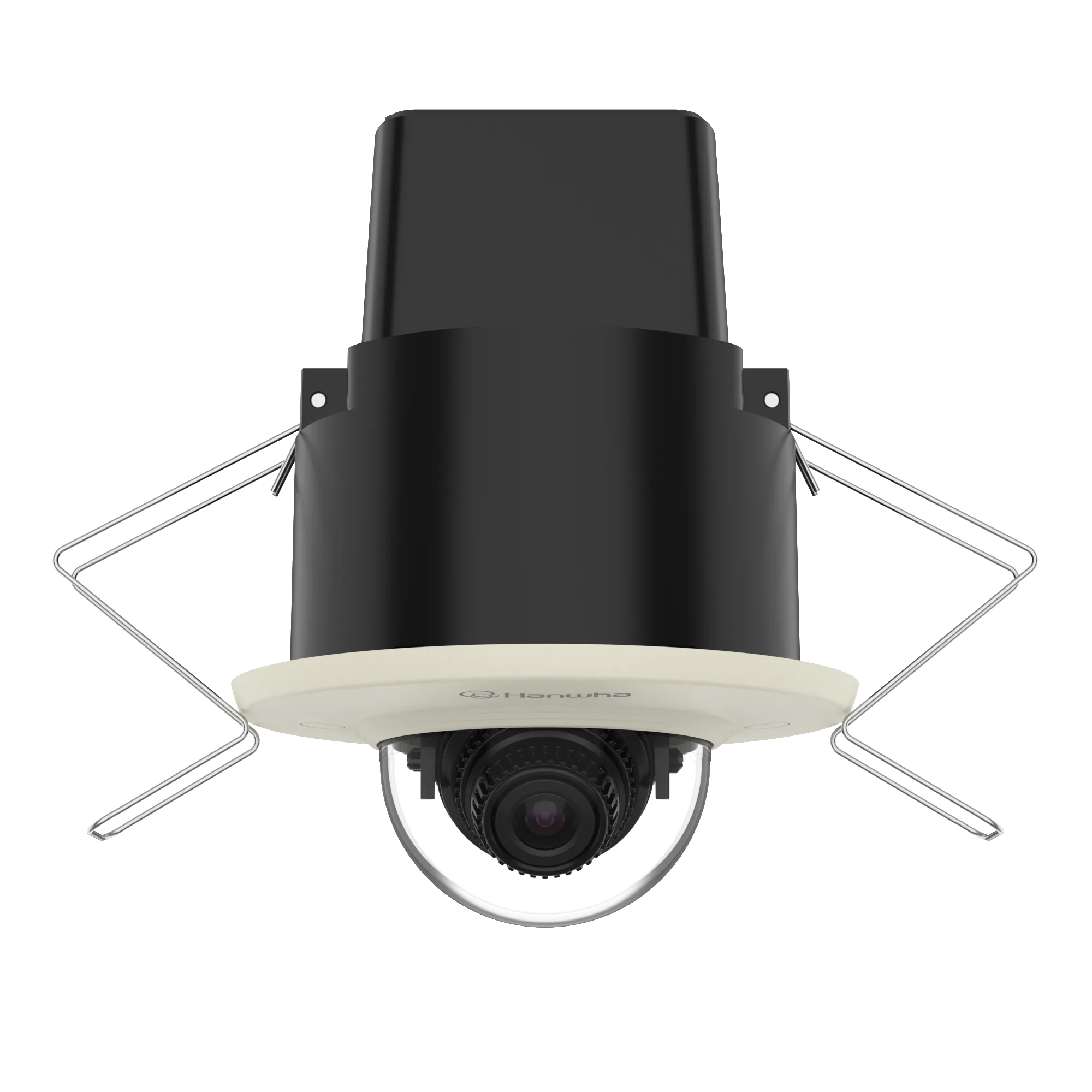

2MP Flush Mount
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XND-6011F
- EAN / GTIN
- 8801089142658
- Weight
- 0.61 kg
- Dimensions (W×H×D)
- 118 × 191 × 163 mm
Description
Built on a 1/2.8" CMOS sensor, the XND-6011F is a 2MP network dome camera delivering a maximum of 1920x1080. Its fixed 2.8 mm F2.0 lens with fixed iris covers 107.4° horizontally, 62.2° vertically and 122° diagonally, focusing from 0.2 m. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz), MJPEG runs at 30fps, and minimum illumination is 0.55 lux for both colour and black-and-white. High-contrast scenes are addressed with ICR day and night switching, 150 dB WDR, BLC, HLC, SSDR, SSNRⅤ noise reduction and defog. The camera also provides loitering, directional, fog and audio detection, digital auto tracking, sound classification, heatmap, people counting, queue management, tampering and motion detection, plus Hallway View, WiseStreamII, an SD/SDHC/SDXC slot for up to 256 GB and PoE or 12V DC supply.
- 1/2.8" CMOS, up to 1920x1080
- Fixed 2.8 mm F2.0 lens, fixed iris
- 150 dB WDR, defog, day/night (ICR)
- Hallway View and WiseStreamII
- SD/SDHC/SDXC up to 256 GB
- PoE or 12V DC power
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (2)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking
- Analytics / Business Intelligence – Normal
- People counting, Queue management, Heatmap
Certifications & Standards (1)
- Certifications & Standards – Environment
- IEC/EN 63000
Environmental & Electrical (6)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 4.7W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 1GB
Lens (7)
- Lens / Angular Field of View – Diagonal
- 122°
- Lens / Angular Field of View – Horizontal
- 107.4°
- Lens / Angular Field of View – Vertical
- 62.2°
- Lens / Max Aperture Ratio (F number) – Wide
- 2.0
- Lens – Focal Length (mm)
- 2.8
- Lens – Lens Type
- Fixed iris
- Lens – Min. Object Distance
- 0.2m(0.66ft)
Mechanical (4)
- Mechanical – Color
- Ivory
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- ø98.9x129.1mm(3.9x5.1")
- Mechanical – Product Weight
- 275g(0.60lb)
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (20)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- Polygonal zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Operational – Alarm Triggers
- Analytics, Network disconnect
- Operational – Audio In
- Built-in mic
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – LDC
- Support
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 150
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~353°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~47°
Security (8)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.55
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.55
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
