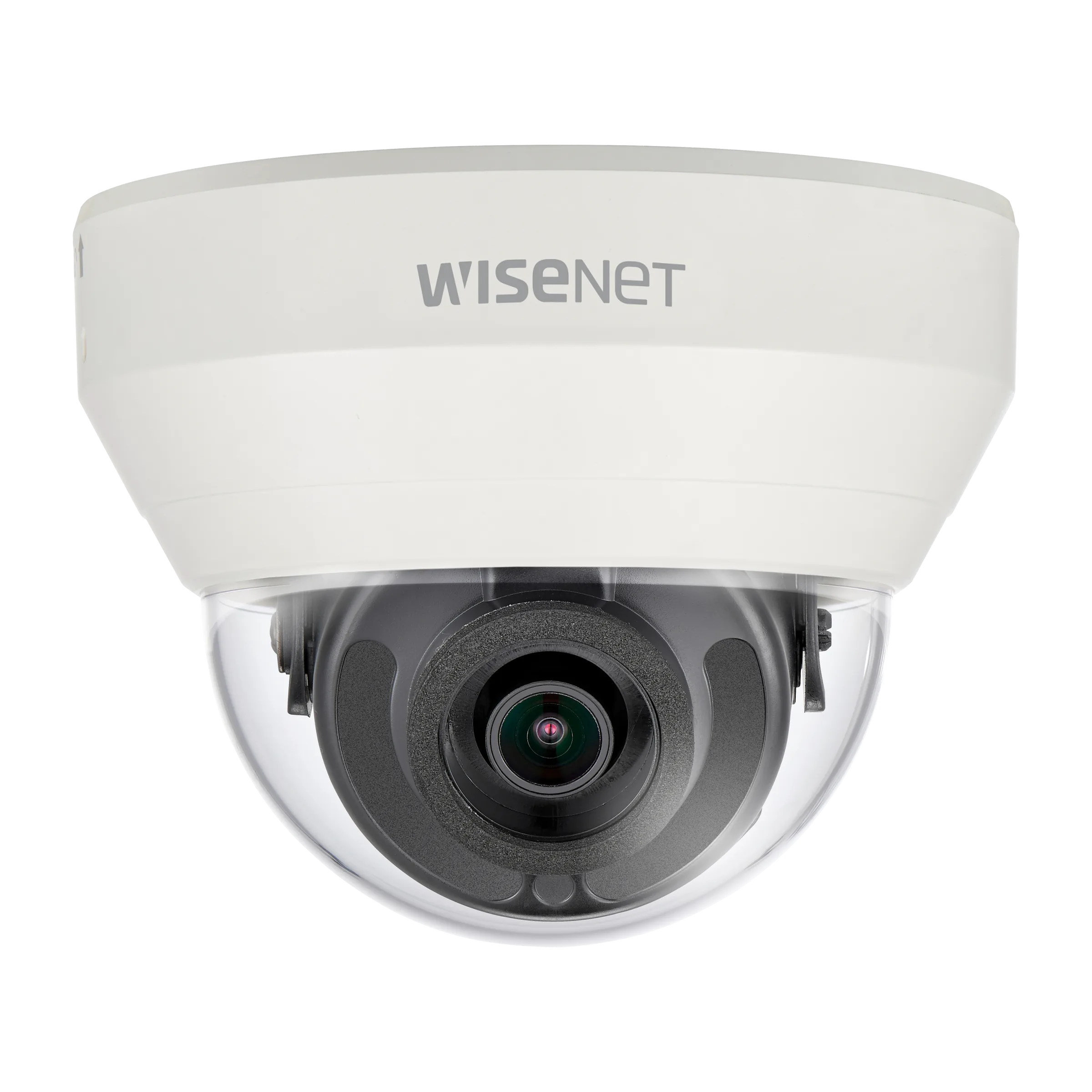

2MP Analogue HD+ Indoor Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- HCD-6010
- EAN / GTIN
- 8801089161192
- Weight
- 0.37 kg
- Dimensions (W×H×D)
- 145 × 145 × 120 mm
Description
The HCD-6010 is an analog dome camera with a 1/2.8-inch CMOS sensor recording 2 megapixels, or 1920x1080, at 30fps (NTSC) or 25fps (PAL). A fixed 2.8mm F2.0 lens covers 113.7° horizontally, 61.5° vertically and 134.5° diagonally, focus is set manually and the minimum object distance is 0.5m. The BNC output can be switched between AHD, TVI, CVI and CVBS, with cable runs of up to 500m on 5C2V coaxial cable. Low-light performance is quoted as 0.27 lux in colour and 0.017 lux in black and white, and an automatic ICR filter decides the switching point. BLC, HLC and 120dB WDR balance backlit scenes while SSNRⅣ reduces noise. Inside the housing the camera can be aligned across 0° to 350° pan, 0° to 67° tilt and 0° to 355° rotation.
- 1/2.8-inch CMOS sensor, 1920x1080
- Fixed 2.8mm F2.0 lens
- Selectable AHD/TVI/CVI/CVBS BNC output
- 0.27 lux colour, 0.017 lux black and white
- 120dB WDR and SSNRⅣ
- 113.7° horizontal field of view
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Motion detection
Environmental & Electrical (4)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical – Input Voltage
- 12VDC
- Power Consumption 12VDC
- Max 3.6W
Lens (7)
- Lens / Angular Field of View – Diagonal
- 134.5°
- Lens / Angular Field of View – Horizontal
- 113.7°
- Lens / Angular Field of View – Vertical
- 61.5°
- Lens / Max Aperture Ratio (F number) – Wide
- 2.0
- Lens – Focal Length (mm)
- 2.8
- Lens – Focus Control
- Manual
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (4)
- Mechanical – Color
- Ivory
- Mechanical – Material
- PC(Polycarbonate)
- Mechanical – Product Dimensions
- Ø110x86mm(4.33x3.39")
- Mechanical – Product Weight
- 221g(0.49lb)
Operational (13)
- Coaxial Protocol
- ACP, TCP, CCP, CVBS
- Defog
- Support
- Operational / Electronic Shutter – Speed Range
- 1~1/12,000sec
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Privacy Masking – Quantity
- 8ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Backlight Compensation
- BLC, HLC, WDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNRⅣ
- Operational – Gain Control
- Low, Middle, High, Very High
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~67°
Video (8)
- Max. Framerate(NTSC/PAL)
- 30fps/25fps
- Min. Illumination BW
- 0.017
- Min. Illumination Color
- 0.27
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video Transmission Distance
- 500m(5C2V Coaxial Cable)
- Video – Resolution
- 1920x1080
- Video – Video Out
- BNC: AHD/TVI/CVI/CVBS Selectable
