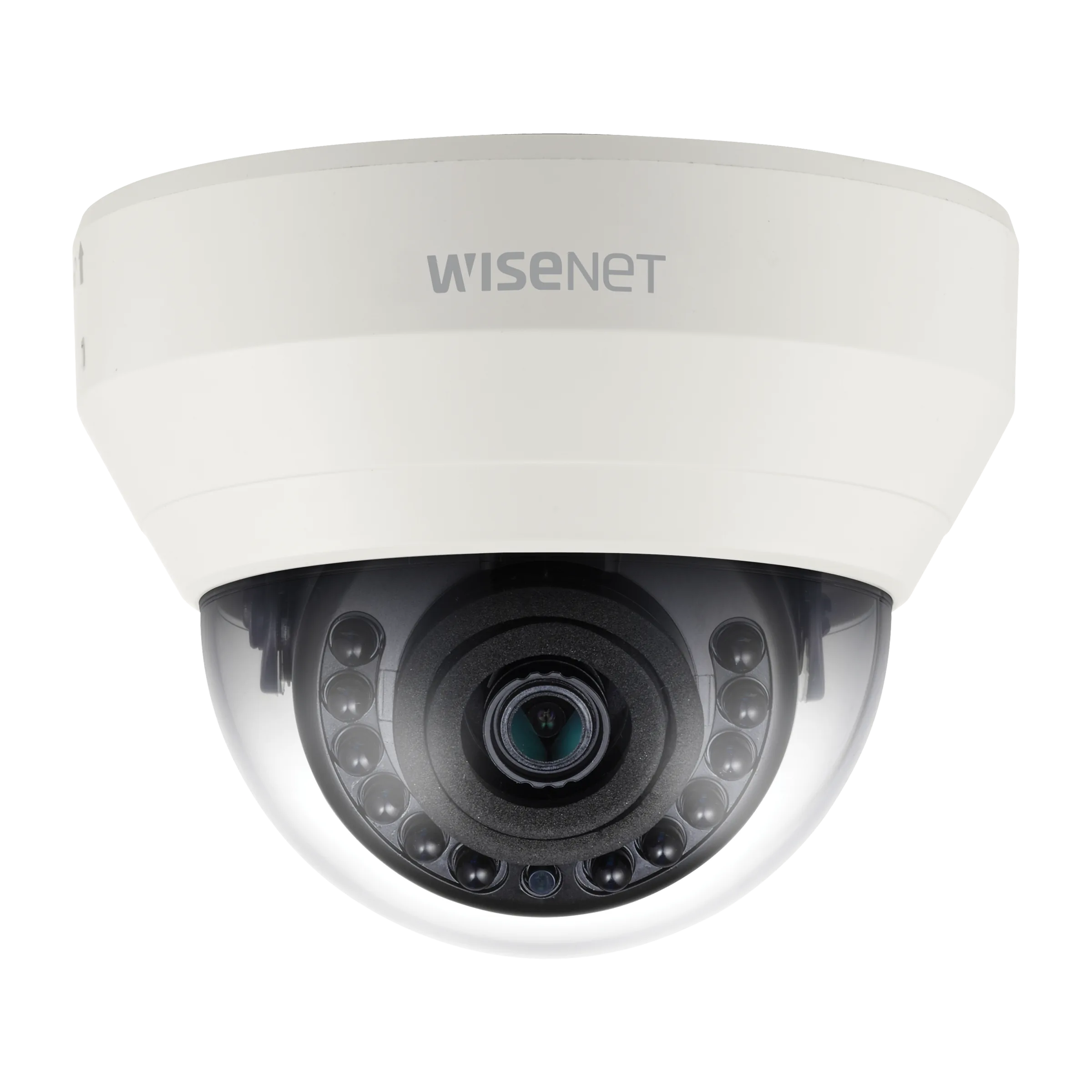

2MP Analogue HD+ IR Indoor Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- HCD-6020R
- EAN / GTIN
- 8801089155252
- Weight
- 0.37 kg
- Dimensions (W×H×D)
- 145 × 145 × 120 mm
Description
The HCD-6020R is an analog IR dome camera that captures 1920x1080 from a 1/2.8-inch CMOS sensor at 30fps (NTSC) or 25fps (PAL). Its fixed 4mm F1.6 lens spans 87.6° horizontally, 46.4° vertically and 104.5° diagonally, focus is manual and the minimum object distance is 0.5m. Low-light ratings are 0.17 lux in colour and 0.017 lux in black and white, with an automatic ICR filter controlling the move to night mode. The BNC connector supplies AHD, TVI, CVI or CVBS as required and drives up to 500m of 5C2V coaxial cable. High-contrast scenes are handled by BLC, HLC and 120dB WDR, while SSNRⅣ keeps noise down. The camera module pans across 0° to 350°, tilts from 0° to 67° and rotates through 0° to 355°.
- 1/2.8-inch CMOS sensor, 1920x1080
- Fixed 4mm F1.6 lens
- 0.17 lux colour, 0.017 lux black and white
- Selectable AHD/TVI/CVI/CVBS BNC output
- 120dB WDR and SSNRⅣ
- Up to 500m over 5C2V coaxial cable
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Motion detection
Environmental & Electrical (4)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical – Input Voltage
- 12VDC
- Power Consumption 12VDC
- Max 5.4W
Lens (7)
- Lens / Angular Field of View – Diagonal
- 104.5°
- Lens / Angular Field of View – Horizontal
- 87.6°
- Lens / Angular Field of View – Vertical
- 46.4°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens – Focal Length (mm)
- 4
- Lens – Focus Control
- Manual
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (4)
- Mechanical – Color
- Ivory
- Mechanical – Material
- PC(Polycarbonate)
- Mechanical – Product Dimensions
- Ø110x86mm(4.33x3.39")
- Mechanical – Product Weight
- 227g(0.50lb)
Operational (14)
- Coaxial Protocol
- ACP, TCP, CCP, CVBS
- Defog
- Support
- IR Viewable Length
- 20m(65.62ft)
- Operational / Electronic Shutter – Speed Range
- 1~1/12,000sec
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Privacy Masking – Quantity
- 8ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Backlight Compensation
- BLC, HLC, WDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNRⅣ
- Operational – Gain Control
- Low, Middle, High, Very High
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~67°
Video (8)
- Max. Framerate(NTSC/PAL)
- 30fps/25fps
- Min. Illumination BW
- 0.017
- Min. Illumination Color
- 0.17
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video Transmission Distance
- 500m(5C2V Coaxial Cable)
- Video – Resolution
- 1920x1080
- Video – Video Out
- BNC: AHD/TVI/CVI/CVBS Selectable
