2MP AI IR Indoor Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBC-160B is a black skin cover produced from polycarbonate. It measures Ø167 x 68 mm and weighs 120 g. XND-6083RV is entered as the supported product, and the manufacturer keeps further compatible models in its Toolbox. The product information additionally names PND-A9081RV, PND-A6081RV, XND-6081RV, XND-8081RV, XND-6082RV, XND-8082RV, XND-9082RV, XND-8083RV, XND-8093RV and XND-9083RV. Black skin coverPolycarbonate materialDimensions Ø167 x 68 mmWeight 120 gFor XND-6083RV and further models
Not in stock · delivery 3-4 days
SHD-1350P is a retrofit spacer for existing in-ceiling installations. Its top cover is polycarbonate while the spacer itself is aluminium, and the finish is white to RAL 9003. It measures 152.8x133x26.5 mm (6.02x5.24x1.04") and weighs 90 g (0.20 lb). It is intended for use with the SHD-3000F4 and SHD-3000FW4 in-ceiling mounts. On the camera side it supports XND-6083RV, XND-8083RV, XND-8093RV, XND-9083RV, PND-A6081RV, PND-A9081RV, XND-6081RV and XND-8081RV. Retrofit spacer for in-ceiling mountsPolycarbonate top cover, aluminium spacerWhite, RAL 9003152.8x133x26.5 mm, 90 gFor SHD-3000F4 and SHD-3000FW4Cameras XND-6083RV to XND-9083RV, PND-A6081RV, PND-A9081RV
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- PND-A6081RV
- EAN / GTIN
- 8801089199485
- Weight
- 2.67 kg
- Dimensions (W×H×D)
- 437 × 213 × 194 mm
Description

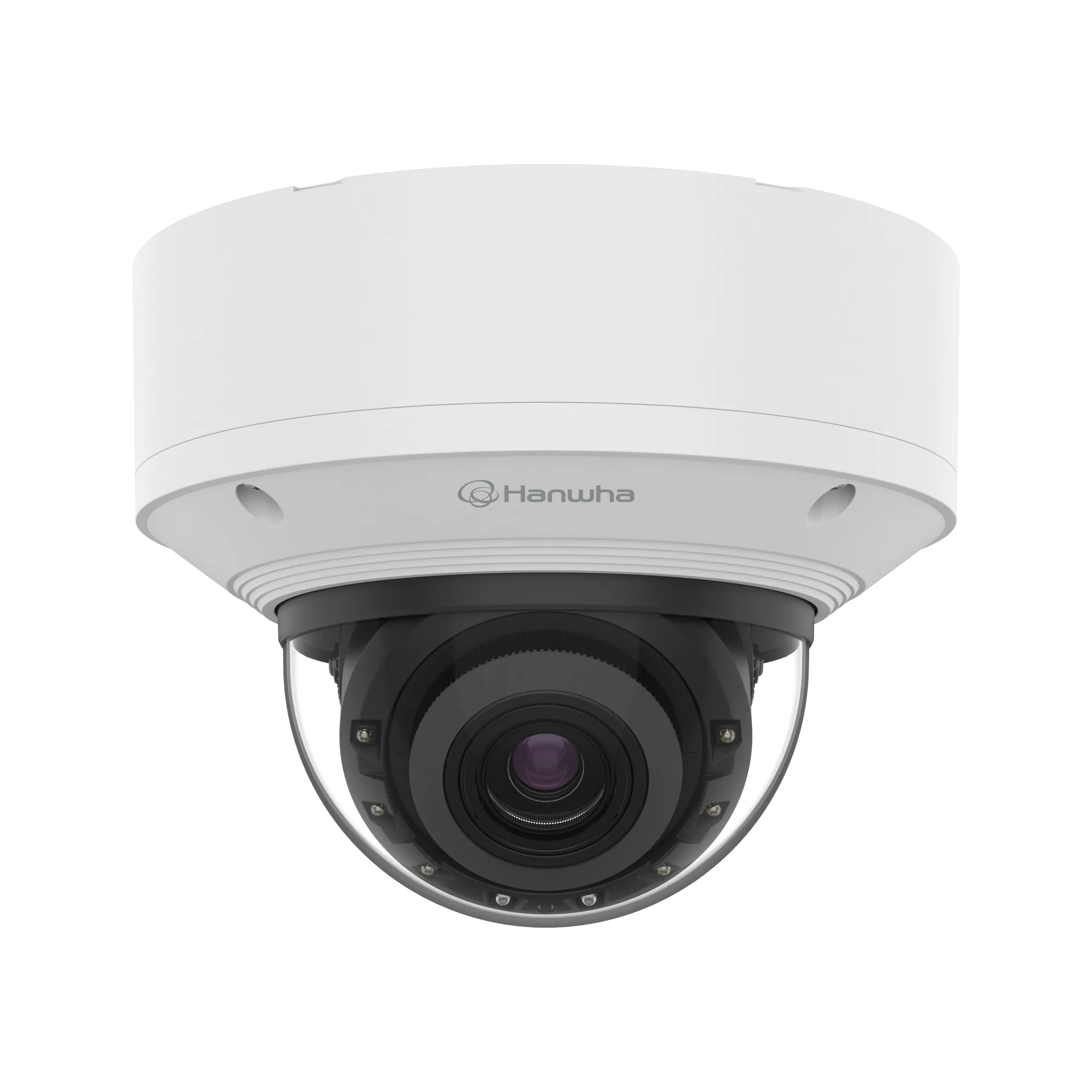

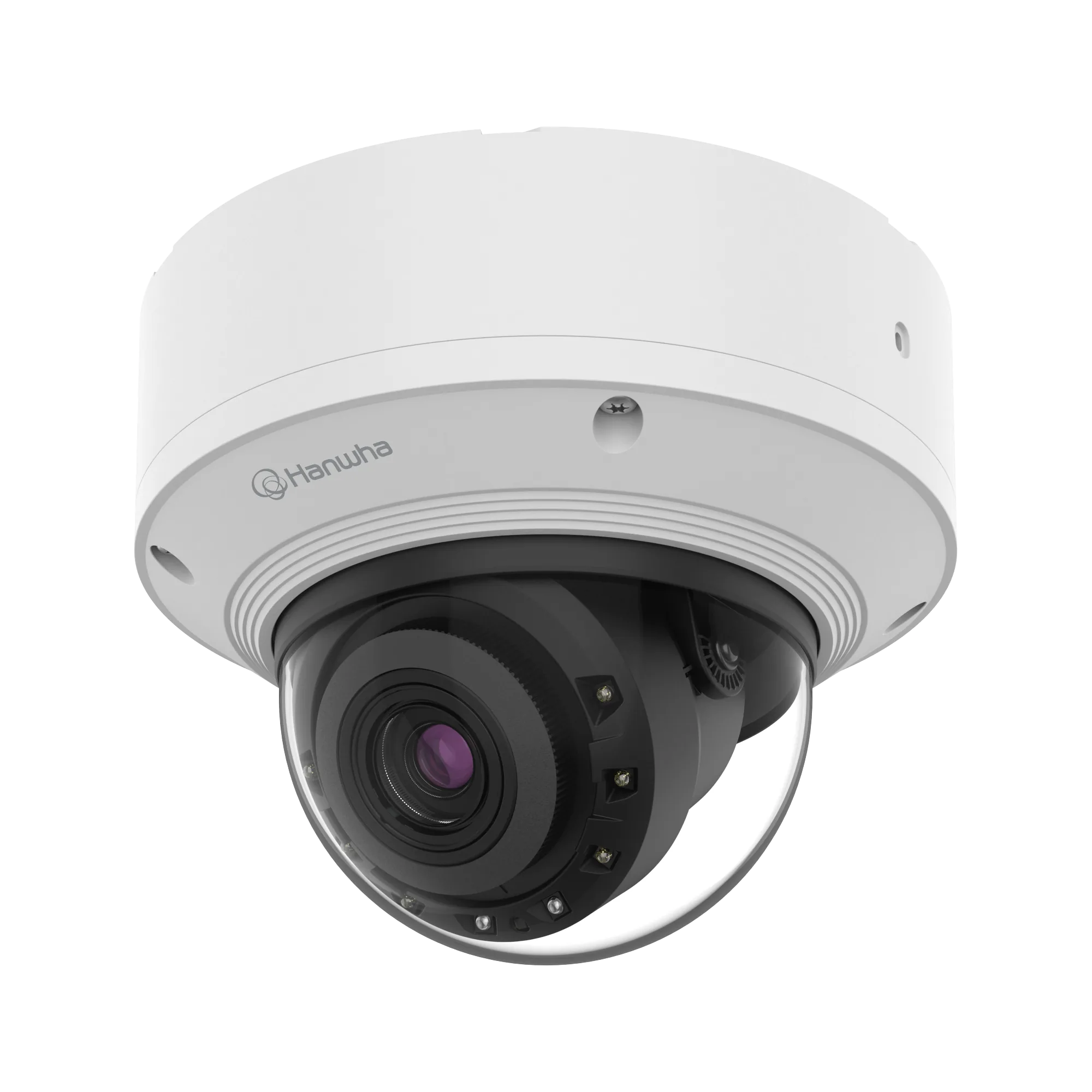

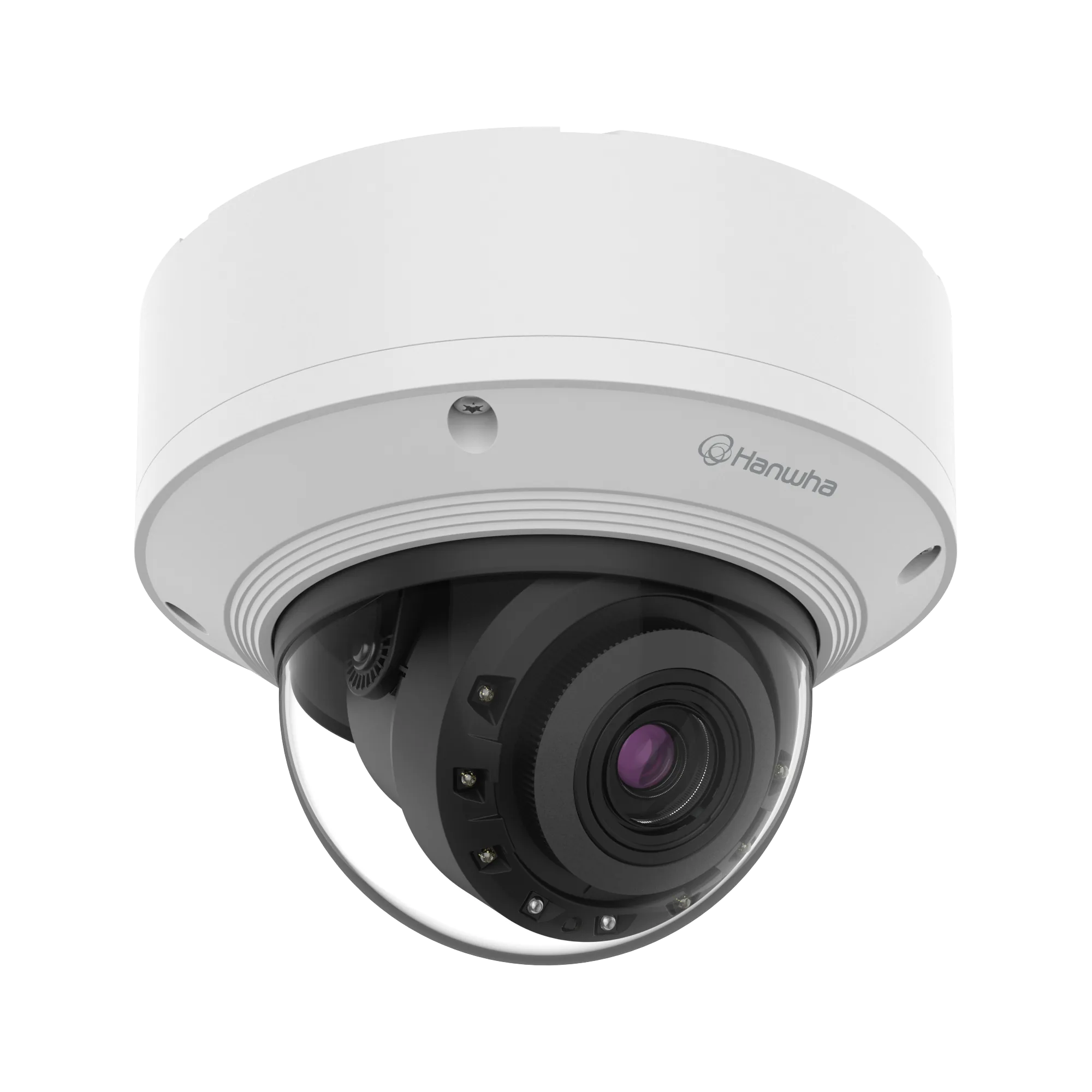

The PND-A6081RV is a 2 megapixel network dome camera with infrared illumination and AI analytics, capturing up to 1920x1080 from a 1/2-inch CMOS sensor. It detects people, faces, vehicles and licence plates, narrowing motion events down to the relevant alerts and keeping event lists shorter. Intelligent video analytics uses virtual lines and virtual areas for intrusion, entering, exiting, appearing and loitering, and adds social distancing measurement in crowds as well as face mask detection. Frame rates reach 120fps at 60Hz or 100fps at 50Hz in H.265 and H.264, a maximum of 60 or 50fps with AI enabled, and 15fps in MJPEG. The lens spans 4.38 to 9.33mm with 2.13x optical zoom, opens to F1.3 at wide angle and F2.15 at telephoto and focuses by simple focus from 0.5m through an IR-corrected P iris. Images are still produced at 0.007 lux in colour and 0.0007 lux in black and white, with 0° to 360° pan, -45° to 85° tilt and 0° to 355° rotation.
- 2 megapixel resolution up to 1920x1080
- AI object detection for person, face, vehicle and licence plate
- Video analytics with virtual line and virtual area
- 4.38 to 9.33mm varifocal lens, F1.3 to F2.15
- 0.007 lux in colour, 0.0007 lux in black and white
- 0° to 360° pan and 0° to 355° rotation
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (8)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip & fall detection
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), WiseDetector for adding custom objects
- Analytics / Attributes – Face
- Age, Gender, Face mask, Glasses
- Analytics / Attributes – Person
- Upper/Lower clothes color, Gender, Bag
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 95.0m(311.82ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 30.0m(98.43ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 9.5m(31.18ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 3.0m(9.84ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 38.0m(124.73ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 12.0m(39.37ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 19.0m(62.36ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 6.0m(19.69ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -25°C~+50°C(-13°F~+122°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 17.00W, typical 13.50W
- Environmental & Electrical / Power Consumption – PoE
- Max 19.50W, typical 16.00W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 2slot(Total 1TB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 124°~51.1°
- Lens / Angular Field of View – Horizontal
- 103.1°~44.5°
- Lens / Angular Field of View – Vertical
- 54.2°~24.9°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.15
- Lens / Max Aperture Ratio (F number) – Wide
- 1.3
- Lens / Zoom Ratio – Optical
- 2.13x
- Lens – Focal Length (mm)
- 4.38~9.33
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 12.7mm(1/2")(M20)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- ø160x125mm(6.30x4.92")
- Mechanical – Product Weight
- 1600g(3.53lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 6 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (26)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Alarm Interface – Others
- 12VDC output
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 40m(131.23ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Black, White
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in), Built-in mic
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Digital PTZ
- Support
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -45°~85°
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (9)
- Video / Imaging Device – Size
- 1/2"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 120fps/100fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps
- Video / Max. Framerate – Others
- Max. 60/50fps(60Hz/50Hz) when AI on
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.0007
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.007
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
