8K AI Box
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNB-9000
- EAN / GTIN
- 8801089175281
- Weight
- 4 kg
- Dimensions (W×H×D)
- 250 × 250 × 310 mm
Description

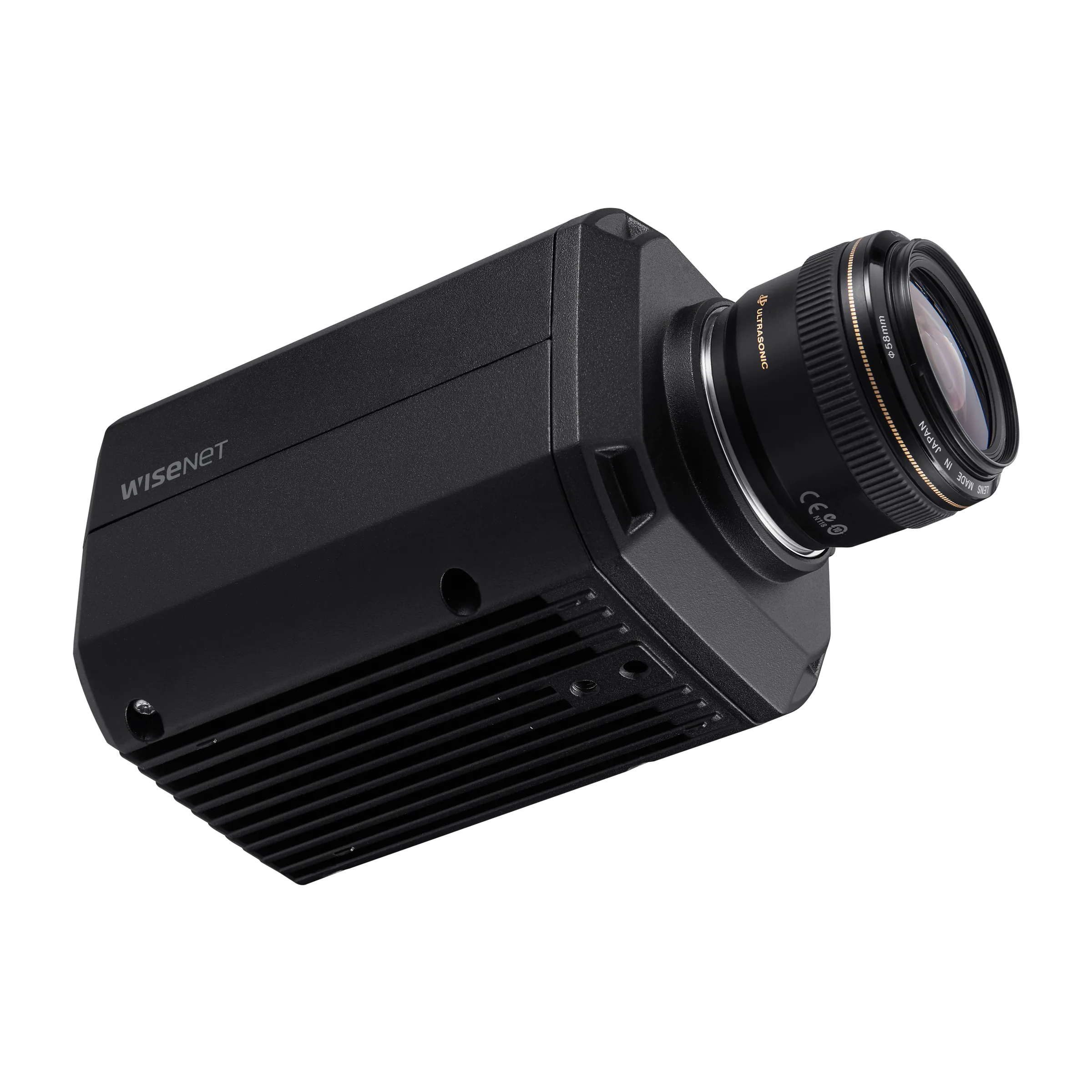

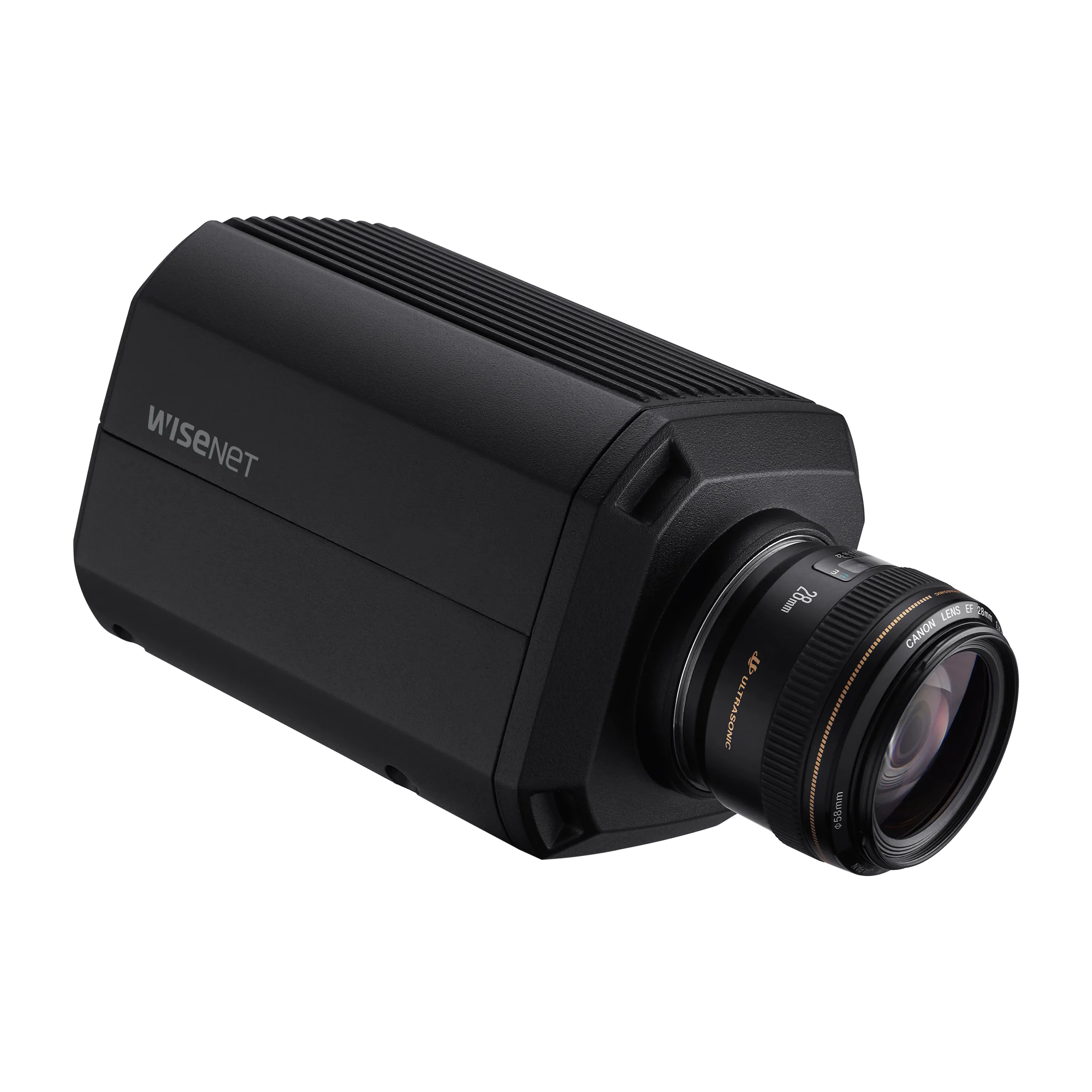

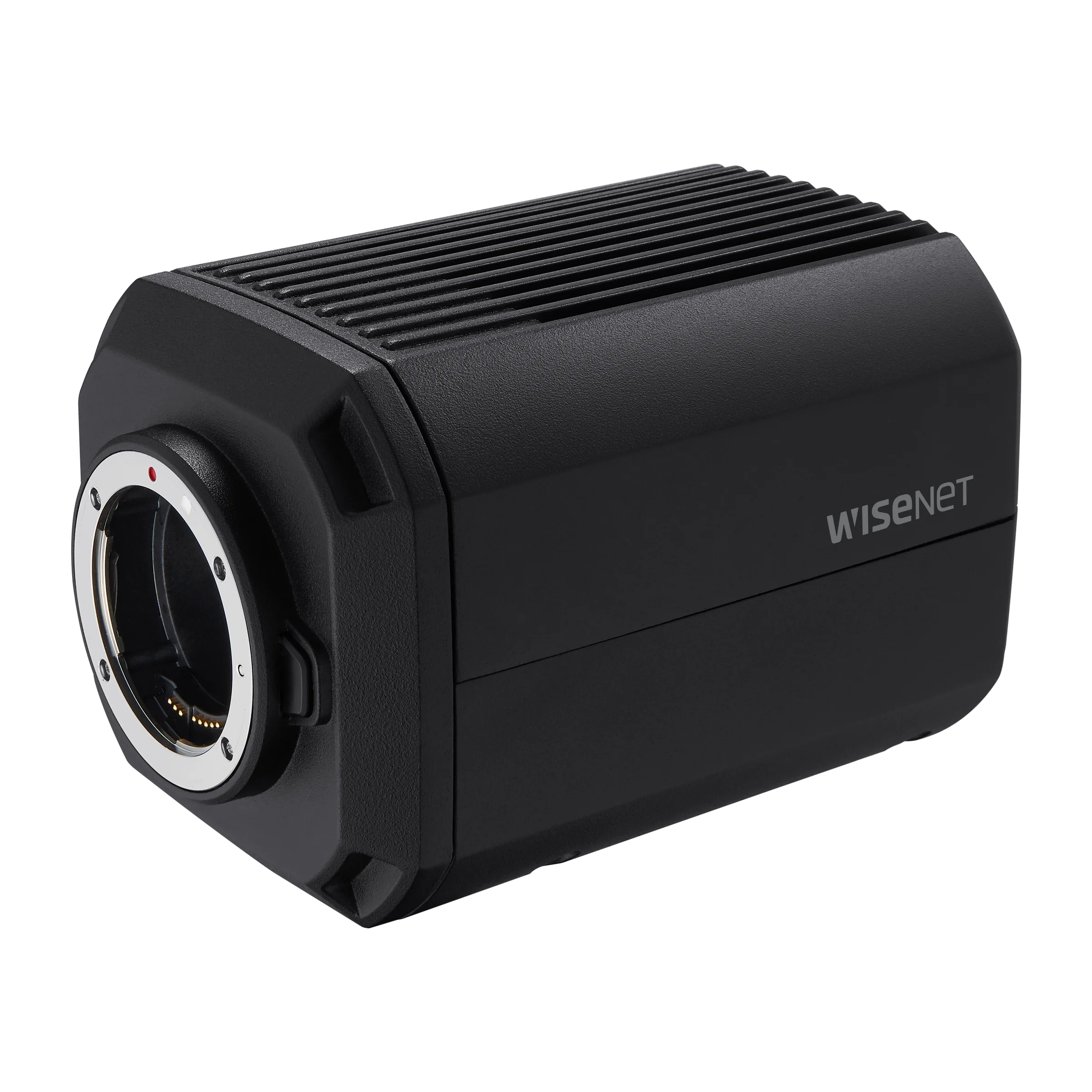

The TNB-9000 is a network box camera with a full-frame CMOS imaging device of 43.3mm diagonal and a top resolution of 7680x4320. Frame rate depends on the selected mode: 15fps@32MP(8K) in Mode 0, 20fps@24MP in Mode 1, 30fps@15MP in Mode 2 and 60fps@8MP(4K) in Mode 3, while minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white. Lenses attach through a Canon EF mount, focusing uses simple focus, and an HDMI output delivers 1080p@30/25fps(60/50Hz). Image handling covers automatic day and night switching by ICR, BLC and DWDR, SSNRⅤ, eight motion detection zones as 8-point polygons and six rectangular privacy masks in gray, black or white, plus gain control in three steps, white balance as ATW, AWC, manual, indoor or outdoor, and an electronic shutter with minimum, maximum and anti flicker settings. Recording uses a single microSD slot up to 256GB, connectivity is provided by RJ-45 and an SFP slot at 100/1000 Mbps, and compression is H.265/H.264 Main/High and MJPEG with WiseStream II.
- 43.3mm full-frame CMOS sensor
- 8K (7680 x 4320) at up to 15 fps
- Canon EF lens mount
- HDMI video output 1080p@30/25fps
- Single microSD slot up to 256GB
- RJ-45 and SFP slot, 100/1000 Mbps
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (7)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
- Analytics / Attributes – Face
- Age, Gender, Glasses
- Analytics / Attributes – Person
- Upper/Lower clothes color, Gender, Bag
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- BestShot
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- 0°C~+45°C(+32°F~+113°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 26W, typical 18W
- Environmental & Electrical / Power Consumption – PoE
- Max 30W, typical 20W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -40°C~+65°C(-40°F~+149°F)
- Environmental & Electrical – Input Voltage
- PoE++(IEEE802.3bt, Class5), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (4)
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- Canon EF mount
- Lens – Mount Type
- Canon EF mount
- Lens – Optional Lens
- Canon 24mm f1.4L Auto-Iris (EF 24mm f/1.4L II USM), Canon 35mm f1.4L Auto-Iris (EF 35mm f/1.4L II USM), Canon 50mm f1.4 Auto-Iris (EF 50mm f/1.4 USM), Canon 85mm f1.2L Auto-Iris (EF 85mm f/1.2L II USM), Canon 100mm f2.0 Auto-Iris (EF 100mm f/2 USM), Canon
Mechanical (4)
- Mechanical – Color
- Black
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- 120(W)x118.1(H)x179(D)mm
- Mechanical – Product Weight
- 2,100g(4.55lb)
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T), SFP
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (18)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Black, White
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, DWDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Digital PTZ
- Support
- Operational – Gain Control
- Low, Middle, High
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
Security (7)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP)
- Security – Secure Communication
- HTTPS
- Security – User authentication
- Digest authentication
Video (7)
- Video / Imaging Device – Size
- Diagonal 43.3mm Full-frame
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 15fps@32MP(8K)(Mode 0) / 20fps@24MP(Mode 1) / 30fps@15MP(Mode 2) / 60fps@8MP(4K)(Mode 3)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.0015
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.015
- Video – Resolution
- 7680x4320, 7360x4128, 6016x4008, 6016x3384, 5472x3648, 4768x3184, 4608x2592, 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Video – Video Out
- HDMI: 1080p@30/25fps(60/50Hz)
