4x 2MP Covert Main Module

The SBL-100D is a ceiling housing for remote head cameras. It is moulded from polycarbonate and coloured white to RAL9003. Its diameter is 89.9mm with a height of 54.7mm, and it weighs only 65g. The housing is intended for the SLA-T2480 and SLA-T2480A camera modules. The manufacturer publishes further compatible models on its website and in its Toolbox. Ceiling housing for remote head camerasPolycarbonate, white RAL9003ø89.9x54.7mm, 65gFor SLA-T2480 and SLA-T2480A

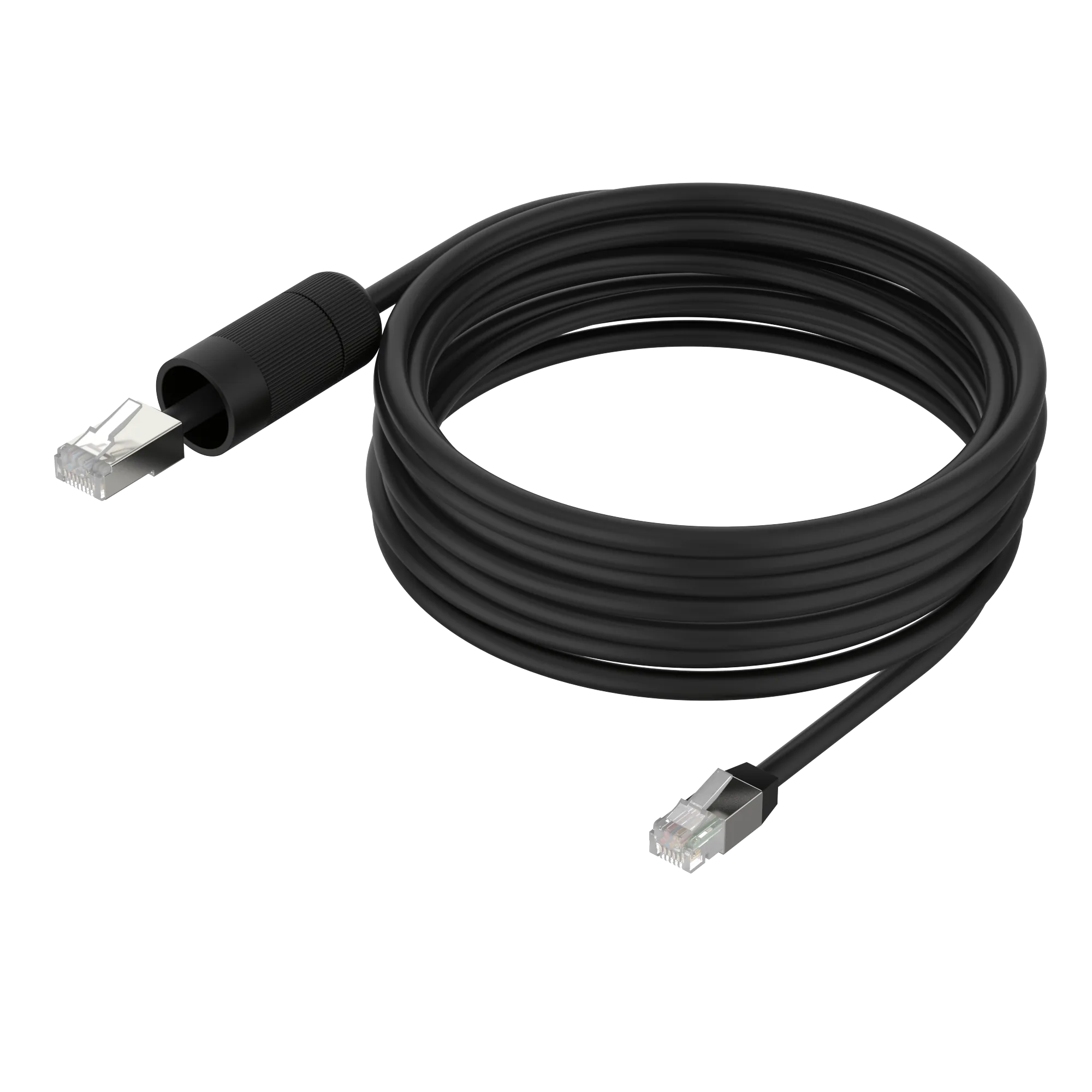

The SCL-150 is an extension cable for remote head lenses. It is supplied as a single cable with a length of 15m (49.2Ft). This extends the distance between the camera body and the remote lens head by 15m. The cable is intended for the PNM-C20000QB and PNM-9000QB as well as the SLA-T4680A, SLA-T4680VA, SLA-T2480A, SLA-T2480VA and SLA-T1080FA. Extension cable for remote head lensesLength 15m (49.2Ft)Supplied as 1 pieceFor PNM-C20000QB and PNM-9000QBFor SLA-T4680A, SLA-T2480A, SLA-T1080FA

The SLA-T1080FA is a 2MP lens module built around a 1/2.8-inch CMOS sensor. Its fixed 1.6 mm lens at F1.6 produces a very wide view of 187° horizontally and 113.9° vertically, with minimum illumination of 0.03 lux in colour and black-and-white. Focus is fixed and the module is connected to the main unit over RJ12. The black metal body measures Ø35 x 68.9 mm and weighs 430 g. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B, and the stated lens module cable is the SCL-150 at 15 m. Fixed 1.6 mm focal length, F1.6187° horizontal, 113.9° vertical field of view1/2.8-inch CMOS, 0.03 luxMetal body Ø35 x 68.9 mm, 430 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)

The SLA-T2480A is a 2MP lens module combining a 1/2.8-inch CMOS sensor with a fixed 2.4 mm lens at F2.0. Coverage amounts to 138° horizontally, 73° vertically and 165° diagonally, and minimum illumination is 0.045 lux in both colour and black-and-white. Focus is fixed and the module attaches to the main unit over RJ12. The black plastic body measures Ø24 x 49.8 mm and weighs 318 g, with an operating range of -10 °C to +55 °C. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B, using the SCL-150 lens module cable at 15 m. Fixed 2.4 mm focal length, F2.0138° x 73° x 165° field of view1/2.8-inch CMOS, 0.045 luxPlastic body Ø24 x 49.8 mm, 318 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)

The SLA-T2480VA is a 2MP lens module with a 1/2.8-inch CMOS sensor and a fixed 2.4 mm lens at F2.0. Minimum illumination is 0.045 lux in colour as well as black-and-white, and the field of view spans 138° horizontally, 73° vertically and 165° diagonally. Focus is fixed and the module is tied to the main unit over RJ12. The black plastic and metal body measures 30 x 27.9 x 45 mm and weighs 328 g. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B. Fixed 2.4 mm focal length, F2.00.045 lux in colour and BW138° x 73° x 165° field of view30 x 27.9 x 45 mm body, 328 gRJ12 connection to the main unit1/2.8-inch CMOS sensor

The SLA-T2480WA is a 2MP lens module rated to IP66 and NEMA 4X. A 1/2.8-inch CMOS sensor works behind a fixed 2.4 mm lens at F2.0, covering 138° horizontally, 73° vertically and 165° diagonally at a minimum illumination of 0.045 lux in colour and black-and-white. Focus is fixed and the link to the main unit runs over RJ12 with an 8 m cable. The black plastic body measures ø35 x 63.2 mm and weighs 101 g. Operation is specified from -30 °C to +55 °C with start-up above -30 °C, and supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B. IP66 and NEMA 4X ratedFixed 2.4 mm focal length, F2.0138° x 73° x 165° field of view1/2.8-inch CMOS, 0.045 luxø35 x 63.2 mm body, 101 g8 m cable, operation from -30 °C

The SLA-T2480WDA is a waterproof 2MP dome lens module in a white plastic housing. It is declared to EN IEC 63000, IEC 60529 IP66, IEC 62262 IK10 and NEMA 250 type 4X. Its 1/2.8-inch CMOS sensor works with a fixed 2.4 mm lens at F2.0, covering 138° horizontally, 73° vertically and 165° diagonally, with minimum illumination of 0.045 lux in colour and black-and-white. Alignment is available through 0° to 350° pan, 0° to 70° tilt and 0° to 355° rotation. The module measures ø110.0 x 77.0 mm, weighs 450 g and is rated from -30 °C to +55 °C with start-up above -30 °C. Dome form factor, white plastic housingIP66, IK10, NEMA 250 type 4XFixed 2.4 mm focal length, F2.0138° x 73° x 165° field of viewPan 0°-350°, tilt 0°-70°, rotate 0°-355°ø110.0 x 77.0 mm, 450 g

The SLA-T4680A is a 2MP lens module pairing a 1/2.8-inch CMOS sensor with a fixed 4.6 mm lens at F2.5. It covers 73° horizontally, 39° vertically and 85° diagonally, and minimum illumination is 0.06 lux in colour as well as black-and-white. Focus is fixed and the main unit is connected over RJ12. The black plastic body measures Ø24 x 49.8 mm and weighs 310 g, with an operating range from -10 °C to +55 °C. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B. Fixed 4.6 mm focal length, F2.573° x 39° x 85° field of view1/2.8-inch CMOS, 0.06 luxPlastic body Ø24 x 49.8 mm, 310 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)

The SLA-T4680VA is a 2MP lens module for the PNM-9000QB, built around a 1/2.8-inch CMOS sensor. Focal length is fixed at 4.6 mm with a maximum aperture of F2.5, giving 73° horizontal, 39° vertical and 85° diagonal coverage at a minimum illumination of 0.06 lux in colour and black-and-white. Focus is fixed and the module connects to the main unit over RJ12. Its black plastic and metal body measures 30 x 27.9 x 45 mm, weighs 321 g and is rated from -10 °C to +55 °C. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B. Fixed 4.6 mm focal length, F2.573° x 39° x 85° field of view1/2.8-inch CMOS, 0.06 lux30 x 27.9 x 45 mm body, 321 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)
