2MP Covert Main Module
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories

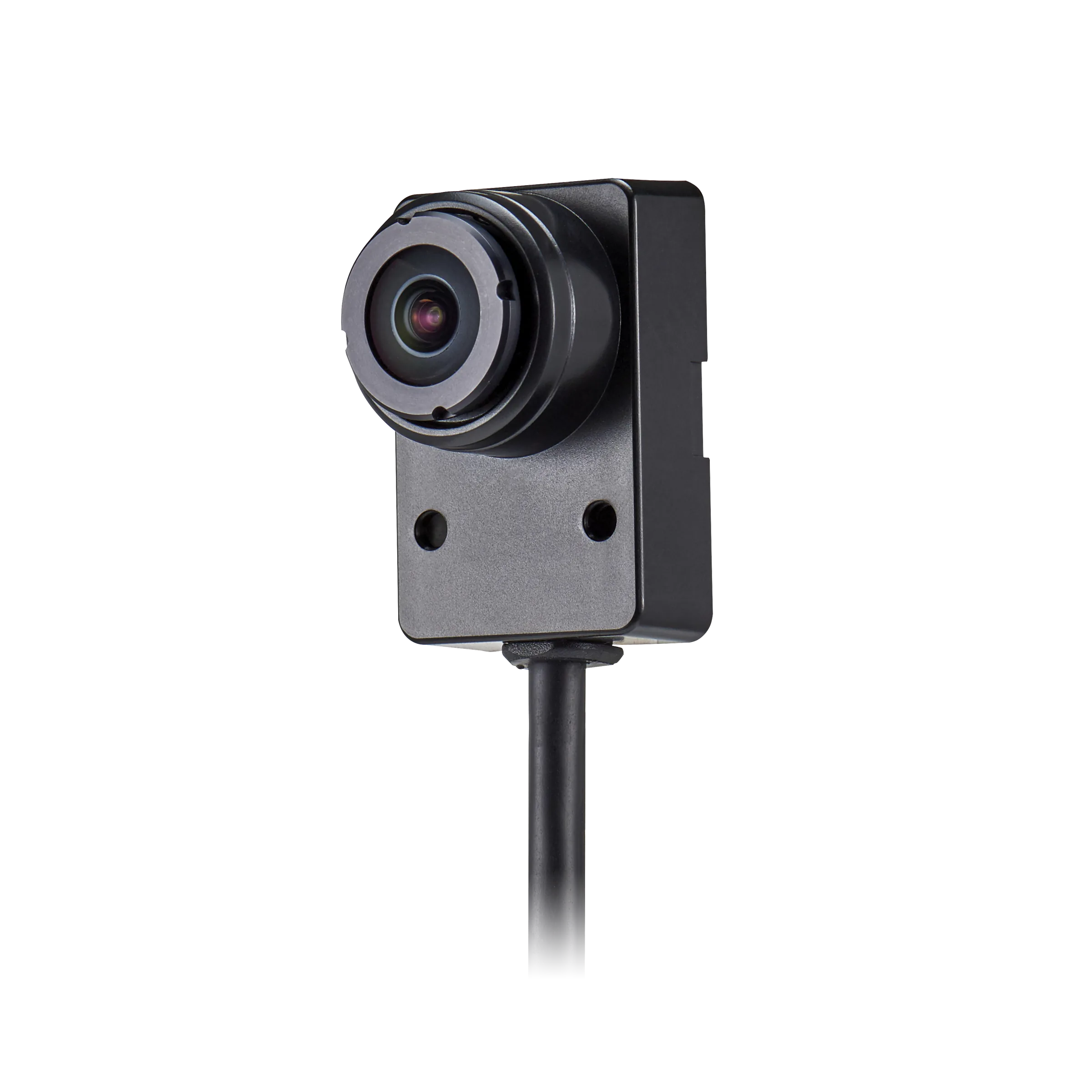

The SLA-T2480V is a 2MP lens module using a 1/2.8-inch CMOS sensor with 1,945 x 1,109 effective pixels, or 2.16 megapixels. Its fixed focal length is 2.4 mm at F2.0, covering 138° horizontally, 73° vertically and 165° diagonally. Minimum illumination is 0.45 lux in colour and 0.045 lux in black-and-white. Focus is fixed and the connection to the main unit runs over RJ12. The black plastic and metal body measures 30 x 27.9 x 45 mm, weighs 328 g and is rated from -10 °C to +55 °C. 1,945 x 1,109 effective pixels (2.16 MP)Fixed 2.4 mm focal length, F2.0138° x 73° x 165° field of view0.45 lux colour, 0.045 lux BW30 x 27.9 x 45 mm body, 328 gRJ12 connection to the main unit
Not in stock · delivery 3-4 days

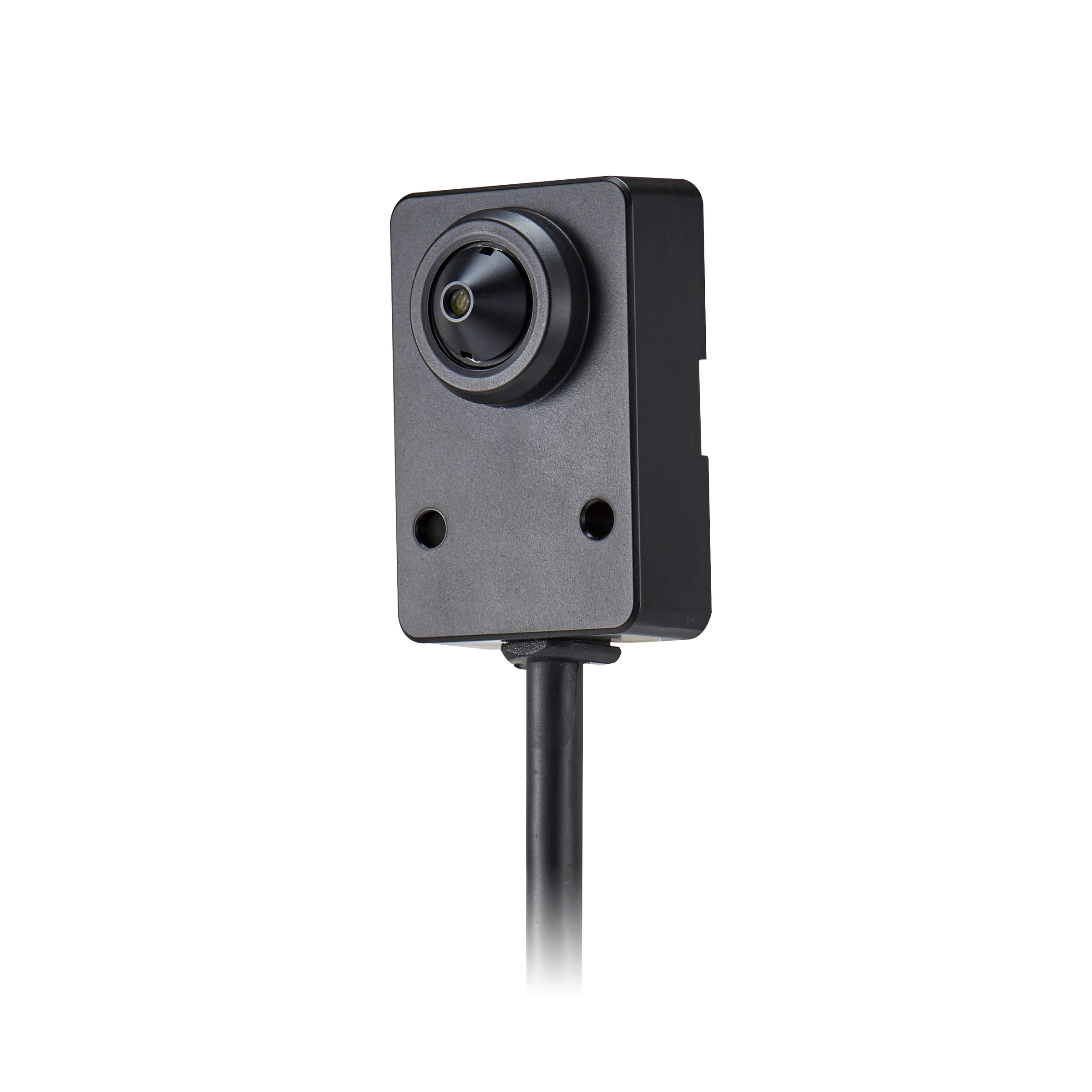

The SLA-T4680V is a 2MP lens module using a 1/2.8-inch CMOS sensor with 1,945 x 1,109 effective pixels, equal to 2.16 megapixels. Its fixed 4.6 mm pinhole lens works at F2.5 and covers 73° horizontally, 39° vertically and 85° diagonally, with minimum illumination of 0.06 lux in colour and black-and-white. Focus is fixed and the main unit is connected over RJ12. The black plastic and metal body measures 30 x 20.2 x 45 mm, weighs 321 g and is rated from -10 °C to +55 °C. 1,945 x 1,109 effective pixels (2.16 MP)4.6 mm pinhole lens, F2.573° x 39° x 85° field of view1/2.8-inch CMOS, 0.06 lux30 x 20.2 x 45 mm body, 321 gRJ12 connection to the main unit
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNB-6001
- EAN / GTIN
- 8801089142757
- Weight
- 0.389 kg
- Dimensions (W×H×D)
- 139 × 183 × 53 mm
Description

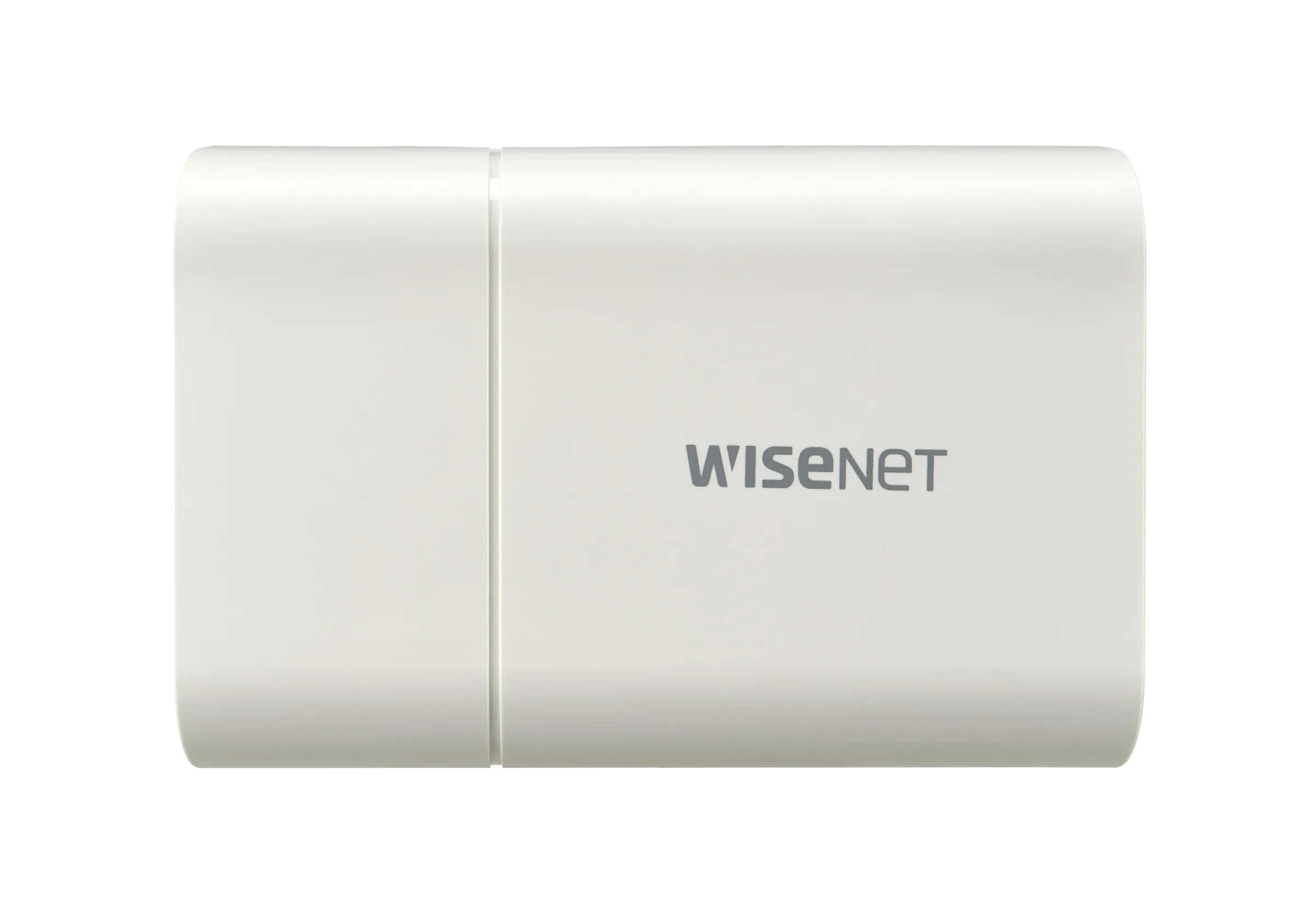

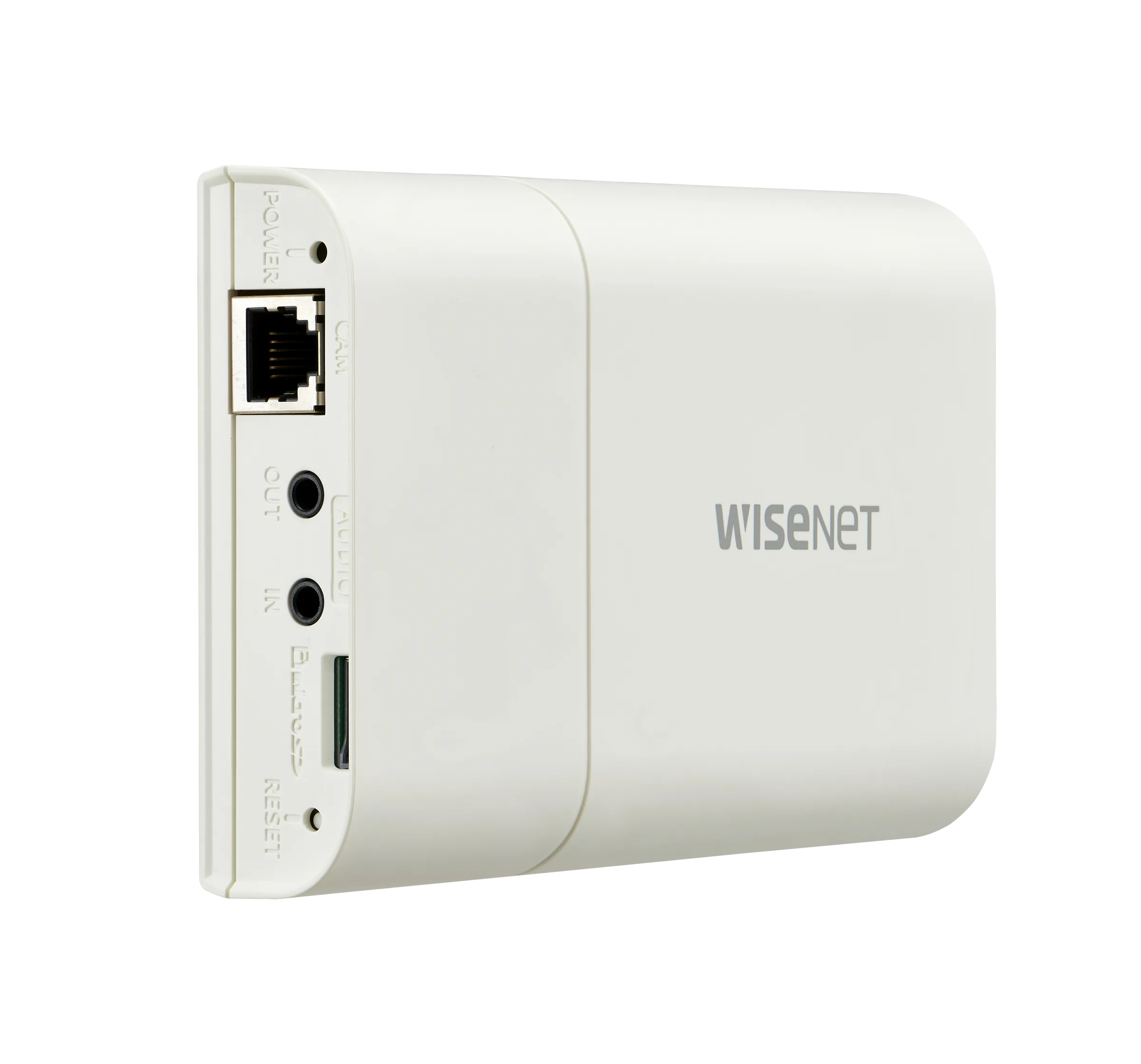

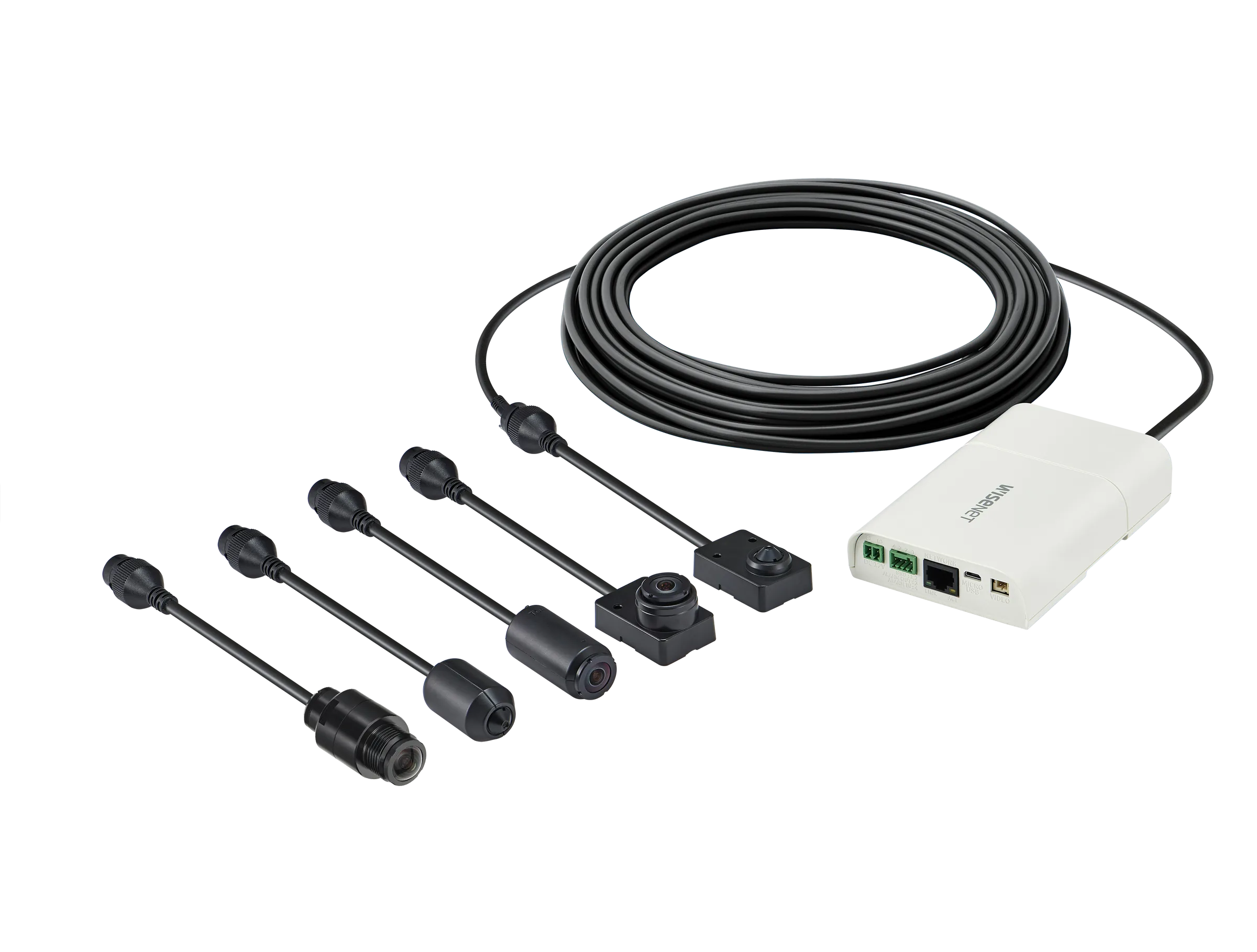

2MP network camera with a remote head and matching lens modules. Maximum resolution is 1920x1080 at 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with multiple streaming, hallway view at 90°/270° and WiseStreamII supported. Day and night switching is electrical and WDR is rated 120dB, joined by BLC, HLC, SSDR, SSNRⅤ, defog, digital image stabilisation and LDC. The electronic shutter spans 2~1/12,000sec, white balance offers ATW, AWC, manual, indoor and outdoor, and gain control has three steps. Motion detection uses eight 8point polygonal zones while privacy masking provides 32 areas in selectable colours or as a mosaic. Lens modules listed are SLA-T1080F, SLA-T2480, SLA-T2480V, SLA-T4680 and SLA-T4680V, and an SD/SDHC/SDXC slot takes up to 256GB.
- 2MP, 1920x1080 at 60fps/50fps
- Remote head with lens modules
- 120dB WDR, defog, DIS, LDC
- Shutter 2~1/12,000sec
- Hallway view 90°/270°, WiseStreamII
- SD/SDHC/SDXC slot up to 256GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 6W
- Environmental & Electrical / Power Consumption – PoE
- Max. 6.5W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 1GB
Lens (1)
- Lens – Optional Lens
- SLA-T1080F, SLA-T2480, SLA-T2480V, SLA-T4680, SLA-T4680V
Mechanical (4)
- Mechanical – Color
- Ivory
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- 131.1(W)x28(H)x86(D)mm(5.16x1.1x3.39")
- Mechanical – Product Weight
- 245g(0.54lb)
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (22)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(Electrical)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – LDC
- Support
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Security (8)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication
Video (4)
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
