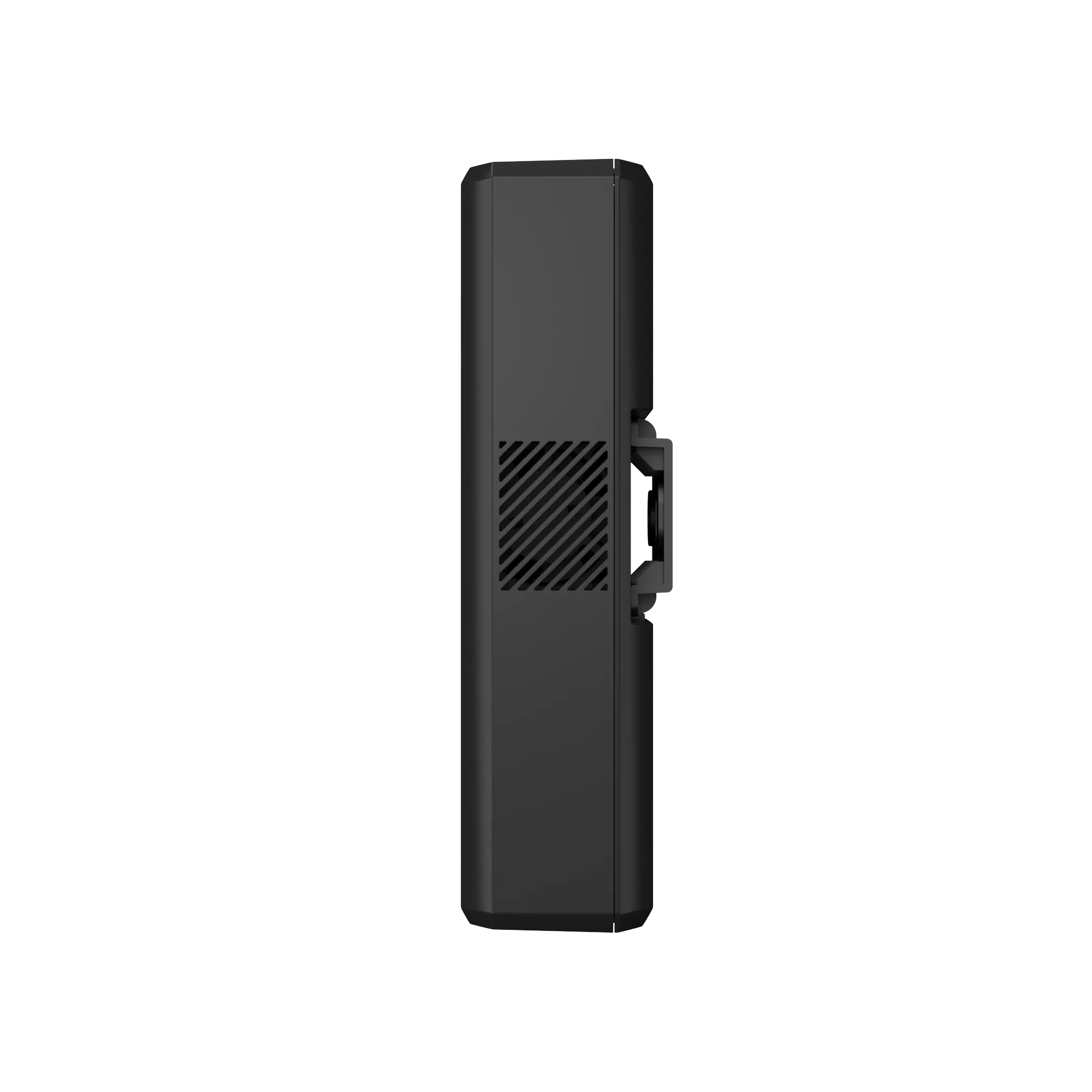

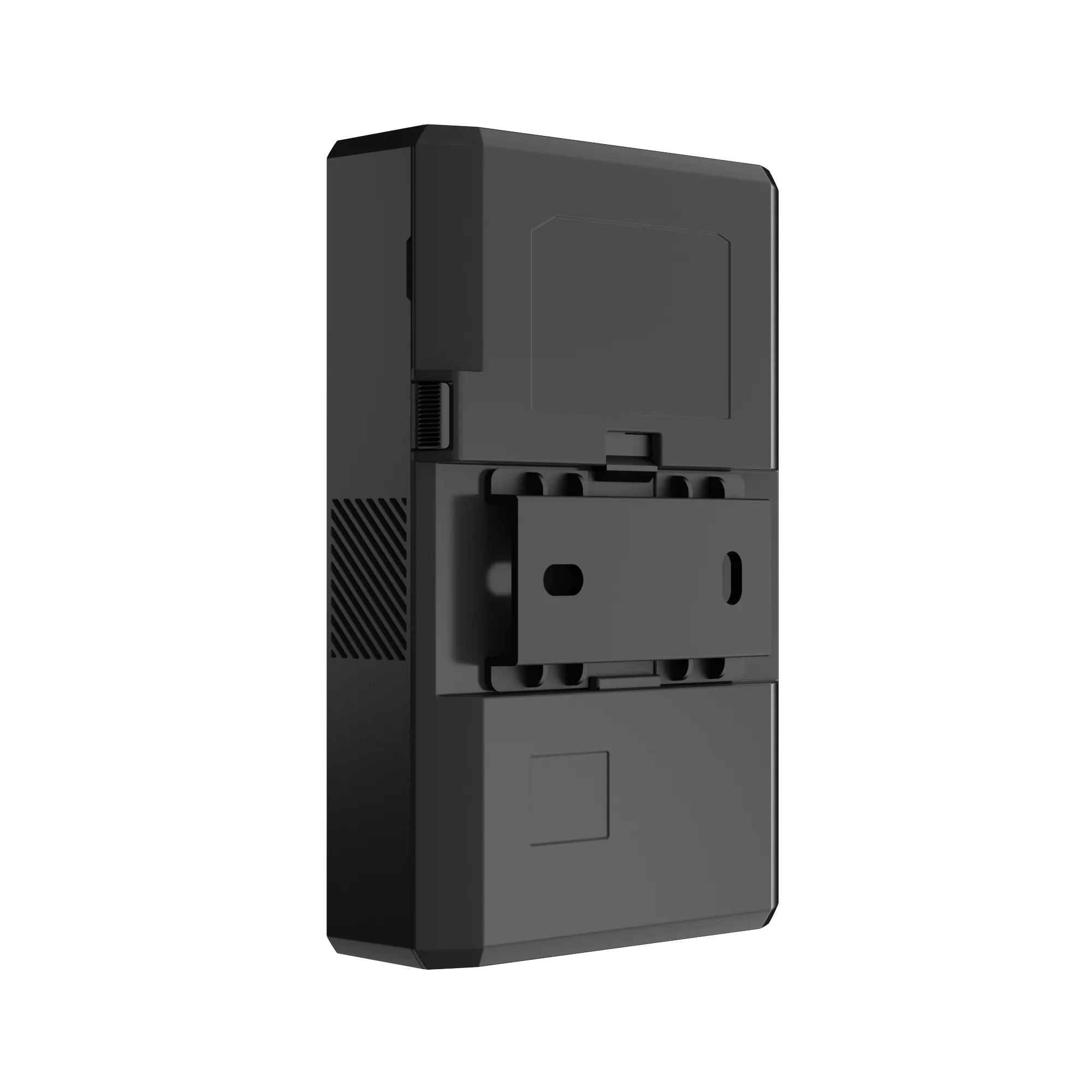

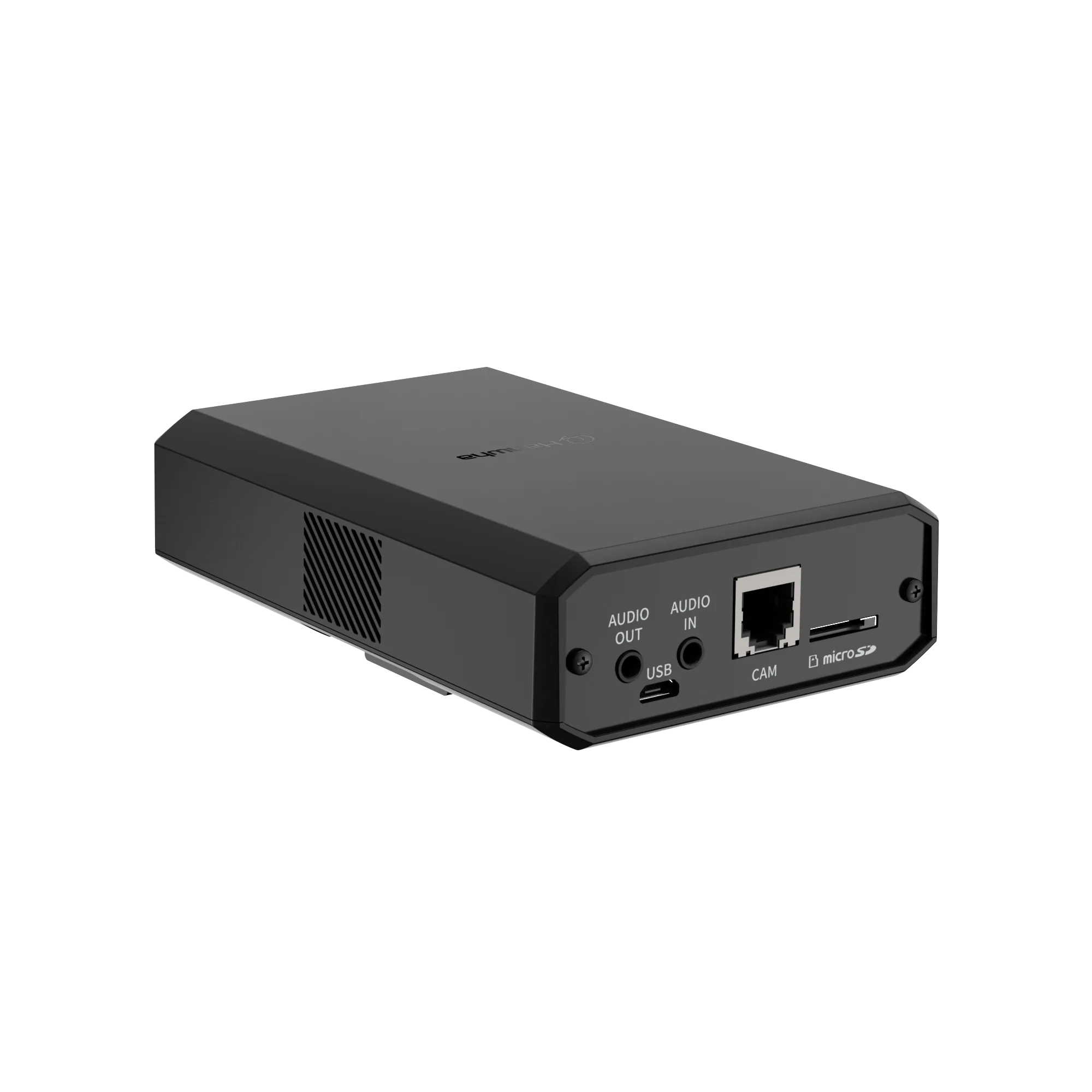

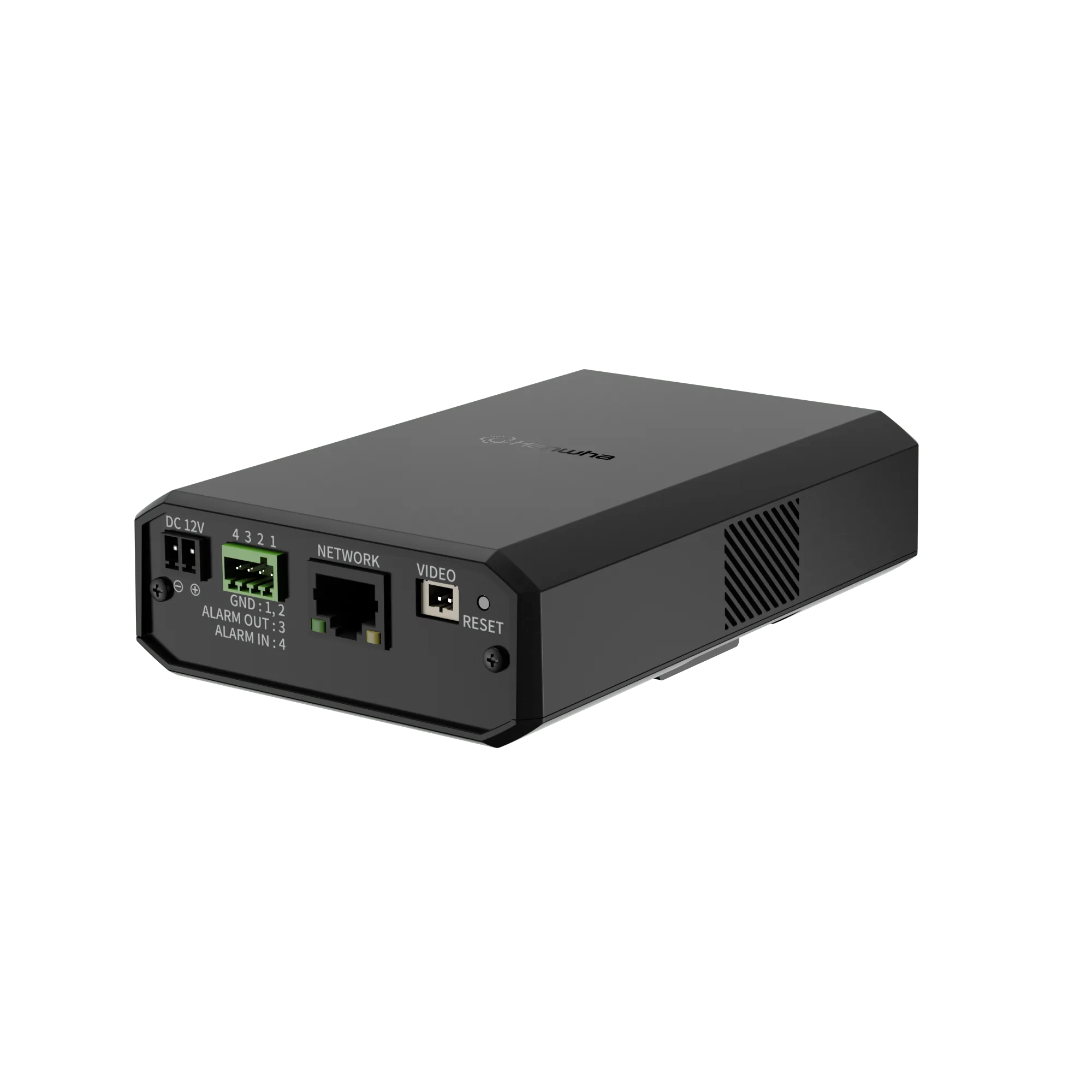

2MP Covert Main Module
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SLA-T2480WA is a 2MP lens module rated to IP66 and NEMA 4X. A 1/2.8-inch CMOS sensor works behind a fixed 2.4 mm lens at F2.0, covering 138° horizontally, 73° vertically and 165° diagonally at a minimum illumination of 0.045 lux in colour and black-and-white. Focus is fixed and the link to the main unit runs over RJ12 with an 8 m cable. The black plastic body measures ø35 x 63.2 mm and weighs 101 g. Operation is specified from -30 °C to +55 °C with start-up above -30 °C, and supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B. IP66 and NEMA 4X ratedFixed 2.4 mm focal length, F2.0138° x 73° x 165° field of view1/2.8-inch CMOS, 0.045 luxø35 x 63.2 mm body, 101 g8 m cable, operation from -30 °C
Not in stock · delivery 3-4 days
The SLA-T2480WDA is a waterproof 2MP dome lens module in a white plastic housing. It is declared to EN IEC 63000, IEC 60529 IP66, IEC 62262 IK10 and NEMA 250 type 4X. Its 1/2.8-inch CMOS sensor works with a fixed 2.4 mm lens at F2.0, covering 138° horizontally, 73° vertically and 165° diagonally, with minimum illumination of 0.045 lux in colour and black-and-white. Alignment is available through 0° to 350° pan, 0° to 70° tilt and 0° to 355° rotation. The module measures ø110.0 x 77.0 mm, weighs 450 g and is rated from -30 °C to +55 °C with start-up above -30 °C. Dome form factor, white plastic housingIP66, IK10, NEMA 250 type 4XFixed 2.4 mm focal length, F2.0138° x 73° x 165° field of viewPan 0°-350°, tilt 0°-70°, rotate 0°-355°ø110.0 x 77.0 mm, 450 g
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNB-6002
- EAN / GTIN
- 8801089218353
- Weight
- 0.5 kg
- Dimensions (W×H×D)
- 185 × 141 × 57 mm
Description
2MP network camera built as a remote head with lens modules. Resolution peaks at 1920x1080, running 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with multiple streaming and WiseStreamII available. Day and night switching is electrical, extremeWDR is rated 120dB, and BLC, HLC, SSDR, WiseNR with SSNRⅤ, defog, digital image stabilisation and LDC (not supported for fisheye lenses) are included. The electronic shutter covers 2 to 1/12,000sec and adds anti flicker plus a prefer shutter control mode, while white balance offers ATW, NarrowATW, AWC, manual, indoor and outdoor. Analytics include tampering, loitering, directional detection, fog detection, audio detection, sound classification, heatmap, people counting, queue management, face detection, motion detection and handover. The listed lens modules are SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A and SLA-T4680VA.
- 2MP, 1920x1080 at 60fps/50fps

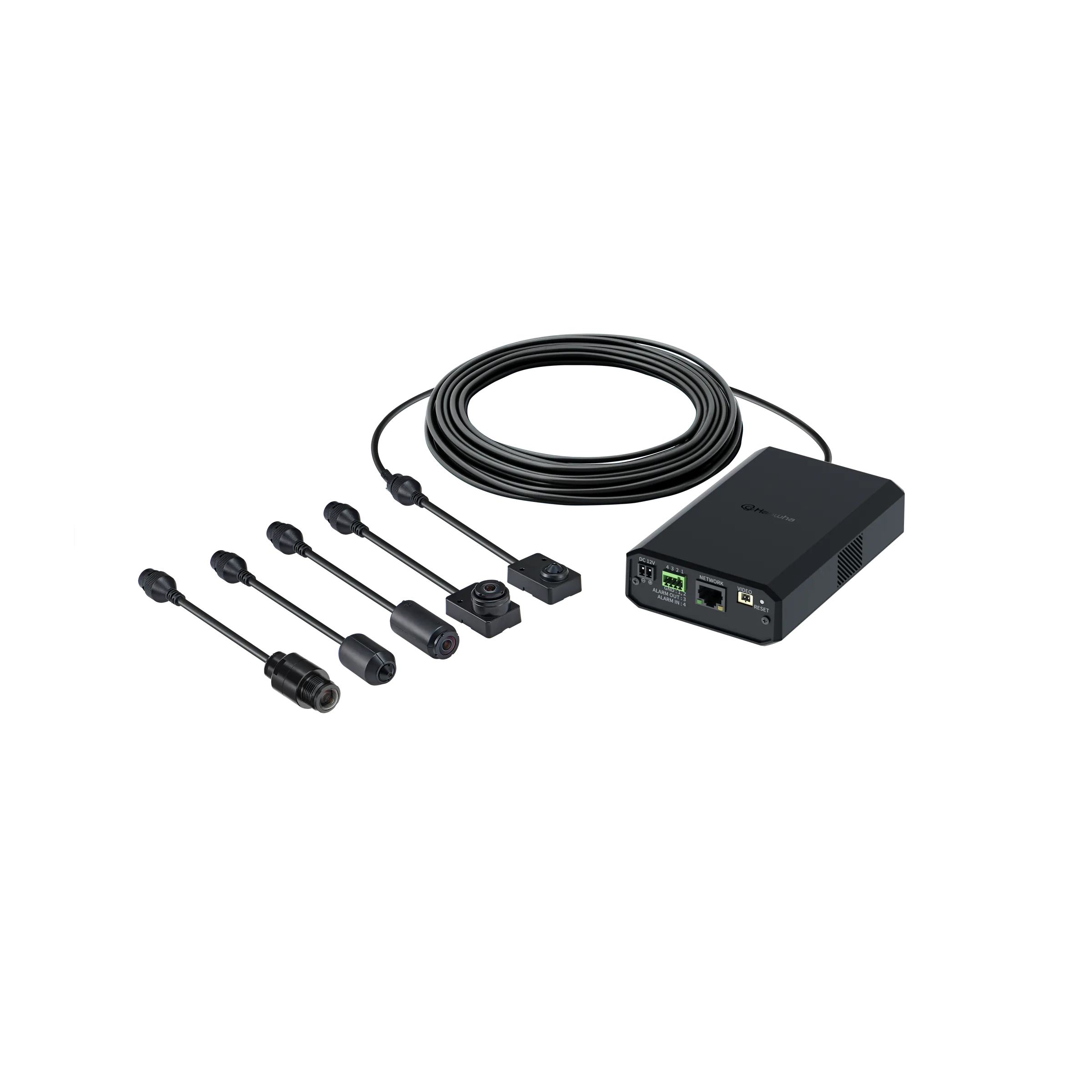

- Remote head with lens modules
- extremeWDR 120dB, defog, DIS, WiseStreamII
- WiseNR and SSNRⅤ
- Heatmap, people counting, queue management, face detection
- Shutter 2~1/12,000sec with anti flicker
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (2)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
- Analytics / Business Intelligence – Normal
- People counting, Queue management, Heatmap
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 8.6W, typical 5.5W
- Environmental & Electrical / Power Consumption – PoE
- Max 10.5W, typical 6.9W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
- Environmental & Electrical – Power Redundance Failover
- Support
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 2GB
Lens (1)
- Lens – Optional Lens
- SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA
Mechanical (5)
- Mechanical – Color
- Black
- Mechanical – Material
- Metal, Plastic
- Mechanical – Product Dimensions
- 131.1(W)x33.5(H)x86(D)mm(5.16x1.32x3.39")
- Mechanical – Product Weight
- 420g(0.93lb)
- Mechanical – RAL Code
- RAL9005
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast)
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (22)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(Electrical)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- WiseNR, SSNRⅤ
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – LDC
- Support(Not support for fisheye lens)
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (4)
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
