2MP Analogue HD+ Box
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- HCB-6001
- EAN / GTIN
- 8801089142405
- Weight
- 0.42 kg
- Dimensions (W×H×D)
- 105 × 120 × 175 mm
Description

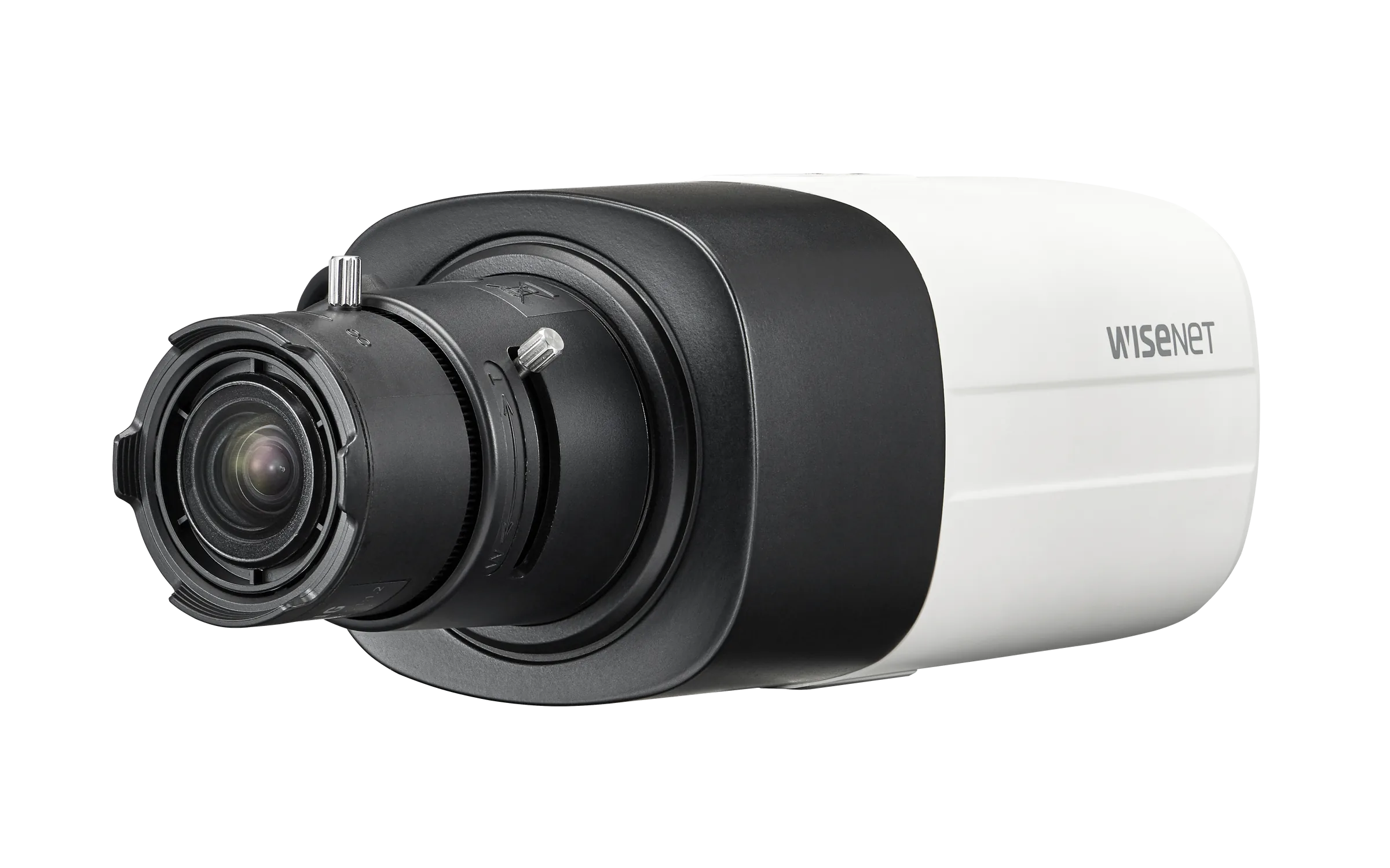

The HCB-6001 is an analog HD box camera whose 1/2.8-inch CMOS sensor outputs 1920x1080 at 30fps (NTSC) or 25fps (PAL). AHD, TVI, CVI and CVBS can be selected at the BNC output, and 5C2V coaxial cable supports runs of up to 500m. Focus control offers simple focus in addition to manual operation, while the lens interface provides a DC auto iris with IR correction and C or CS mount. In low light the camera is rated at 0.09 lux in colour and 0.009 lux in black and white, with automatic ICR switching. BLC, HLC and 120dB WDR, SSNRⅣ and defog refine the image, supported by four motion areas and four rectangular privacy zones. Five white balance modes, four-step gain control, a 1 to 1/12,000sec shutter, plug-and-play installation, dual power and RS-485 complete the specification.
- 1/2.8-inch CMOS sensor, 1920x1080 at 30/25fps
- Simple focus and manual focus control
- Selectable AHD/TVI/CVI/CVBS BNC output
- 120dB WDR, SSNRⅣ, defog
- Four privacy zones, four motion areas

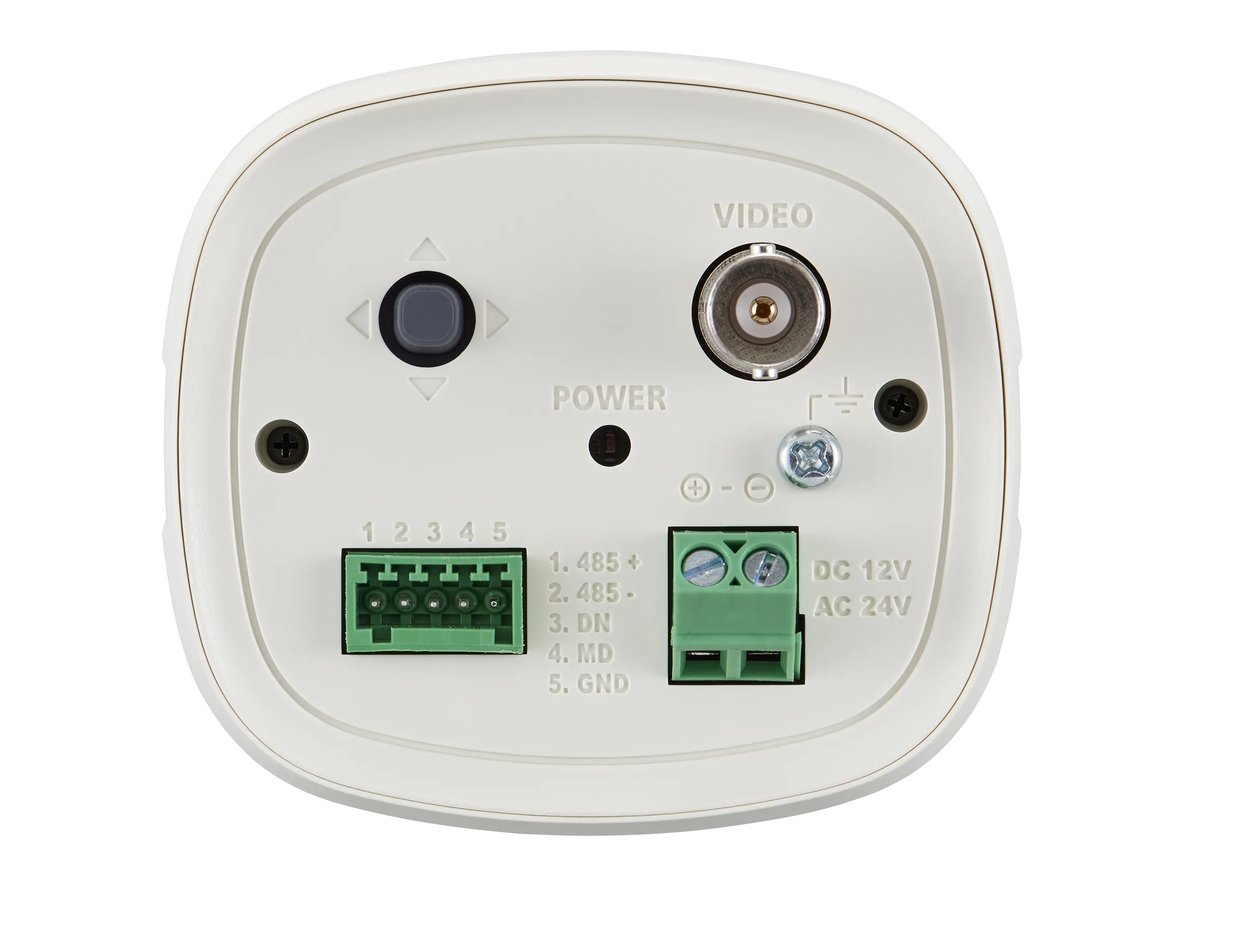

- Dual power and RS-485
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Motion detection
Environmental & Electrical (5)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical – Input Voltage
- 24VAC, 12VDC
- Power Consumption 12VDC
- Max 6W
- Power Consumption 24VAC
- Max 6W
Lens (3)
- Lens – Focus Control
- Simple focus, Manual
- Lens – Lens Type
- DC auto iris(IR corrected)

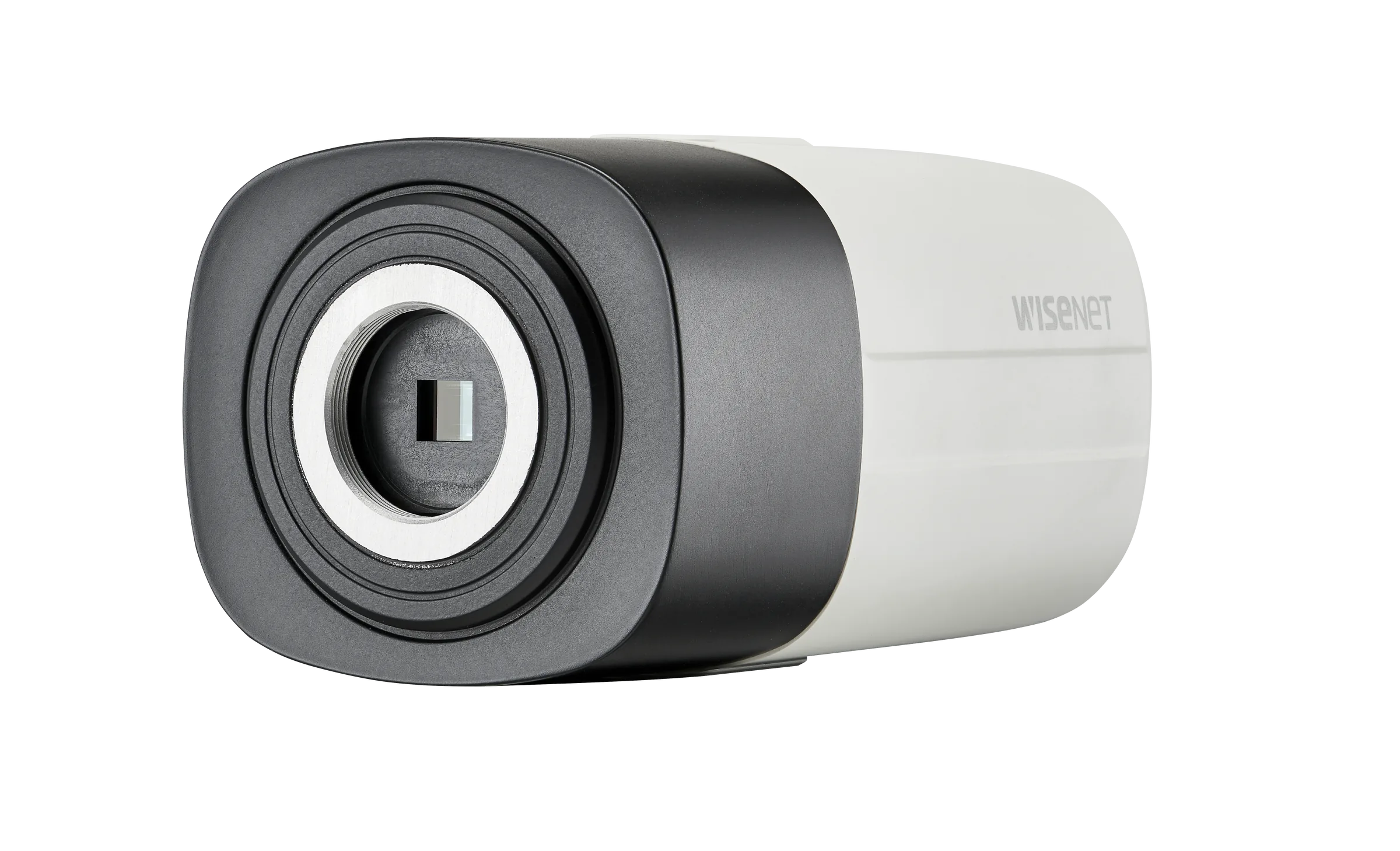

- Lens – Mount Type
- C mount, CS mount
Mechanical (4)
- Mechanical – Color
- Ivory, Black
- Mechanical – Material
- Aluminum, PC(Polycarbonate)
- Mechanical – Product Dimensions
- 130.9(H)×73.1(V)×67.2(D)mm(5.15×2.88×2.65")
- Mechanical – Product Weight
- 287g(0.63lb)
Operational (18)
- Coaxial Protocol
- ACP, TCP, CCP, CVBS
- Operational / Alarm Interface – In/Out
- Output 1ea
- Operational / Alarm Interface – Others
- External D/N
- Operational / Electronic Shutter – Speed Range
- 1~1/12,000sec
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Privacy Masking – Quantity
- 4ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- Alarm output
- Operational – Alarm Triggers
- Analytics
- Operational – Backlight Compensation
- BLC, HLC, WDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Noise Reduction
- SSNRⅣ
- Operational – Gain Control
- Low, Middle, High, Very High
- Operational – Serial Interface
- RS-485
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Video (8)
- Max. Framerate(NTSC/PAL)
- 30fps/25fps
- Min. Illumination BW
- 0.009
- Min. Illumination Color
- 0.09
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video Transmission Distance
- 500m(5C2V Coaxial Cable), 300m(5C2V Coaxial Cable)
- Video – Resolution
- 1920x1080
- Video – Video Out
- BNC: AHD/TVI/CVI/CVBS Selectable
