2MP Analogue HD+ Box

SHB-4300H is an outdoor housing in ivory aluminium for fixed network and analogue box cameras. A de-mister heater and a blower are built in and switch by temperature, the heater at 5 °C ± 5 °C and the blower at 45 °C ± 5 °C. This covers an operating range of -35 °C to +50 °C (-31 °F to +122 °) at 0 to 90 % relative humidity, with IP66 and CE (Class A) certification. Supply is 24 VAC at a power consumption of 25 W, made up of one 2 W AC fan and one 20 W AC heater. Outside dimensions are 184(W)x127(H)x460(D) mm with 91(W)x78(H)x190(D) mm of internal space; pan covers 0° to 360° and tilt 0° to 90°. Outdoor housing for fixed network and analogue camerasBuilt-in de-mister heater and blowerIP66 and CE (Class A)-35 °C to +50 °C24 VAC, 25 WOutside 184x127x460 mm, inside 91x78x190 mm

SHB-4300H1 is an extreme weatherproof housing for fixed camera applications, made of die-cast aluminium in ivory. It operates from -50 °C to +50 °C (-58 °F to +122 °F) at less than 90 % relative humidity and is certified to IP66 and CE (Class A). The integrated de-mister heater and blower are temperature controlled, the heater switching at 5 °C ± 5 °C and the blower at 45 °C ± 5 °C. Power is 24 VAC with a consumption of 55 W, split between one 2 W AC fan and two 20 W AC heaters. The bracket is fully cable managed and takes three cable glands; outside dimensions are 184(W)x127(H)x460(D) mm with 91(W)x78(H)x190(D) mm inside, and the mount covers 0° to 360° pan and 0° to 90° tilt. Extreme weatherproof housing for fixed camerasDie-cast aluminium, ivory-50 °C to +50 °C, IP66 and CE (Class A)24 VAC, 55 WDe-mister heater and blowerFully cable-managed bracket, three cable glands

SHB-4200 is a side-open indoor box camera housing for fixed network and analogue cameras. The body is aluminium in ivory and measures 148x421x107 mm. Operation is specified from -15 °C to +45 °C at 0 to 90 % relative humidity, and the housing carries an IP66 certification. The mount allows a pan range of 0° to 360° and a tilt range of 0° to 90°; no rotation axis is provided. PNB-A9001 and XNB-6003 are listed as supported products. Indoor housing for fixed camerasSide-open designAluminium body in ivoryIP66, -15 °C to +45 °C148x421x107 mmPan 0°~360°, tilt 0°~90°

SHB-4200H accommodates fixed cameras and is built from aluminium in ivory. Fan and heater are supported, which covers an operating range of -35 °C to +50 °C at 0 to 90 % relative humidity; the certification is IP66. Power is supplied at 24 VAC with a consumption of 21.6 W. The enclosure measures 148x421x107 mm and can be panned through 0° to 360° and tilted through 0° to 90°, with no rotation axis. The listed supported products are PNB-A9001 and XNB-6003. Housing for fixed camerasFan and heater supportedIP66, -35 °C to +50 °C24 VAC, 21.6 WAluminium body in ivory148x421x107 mm

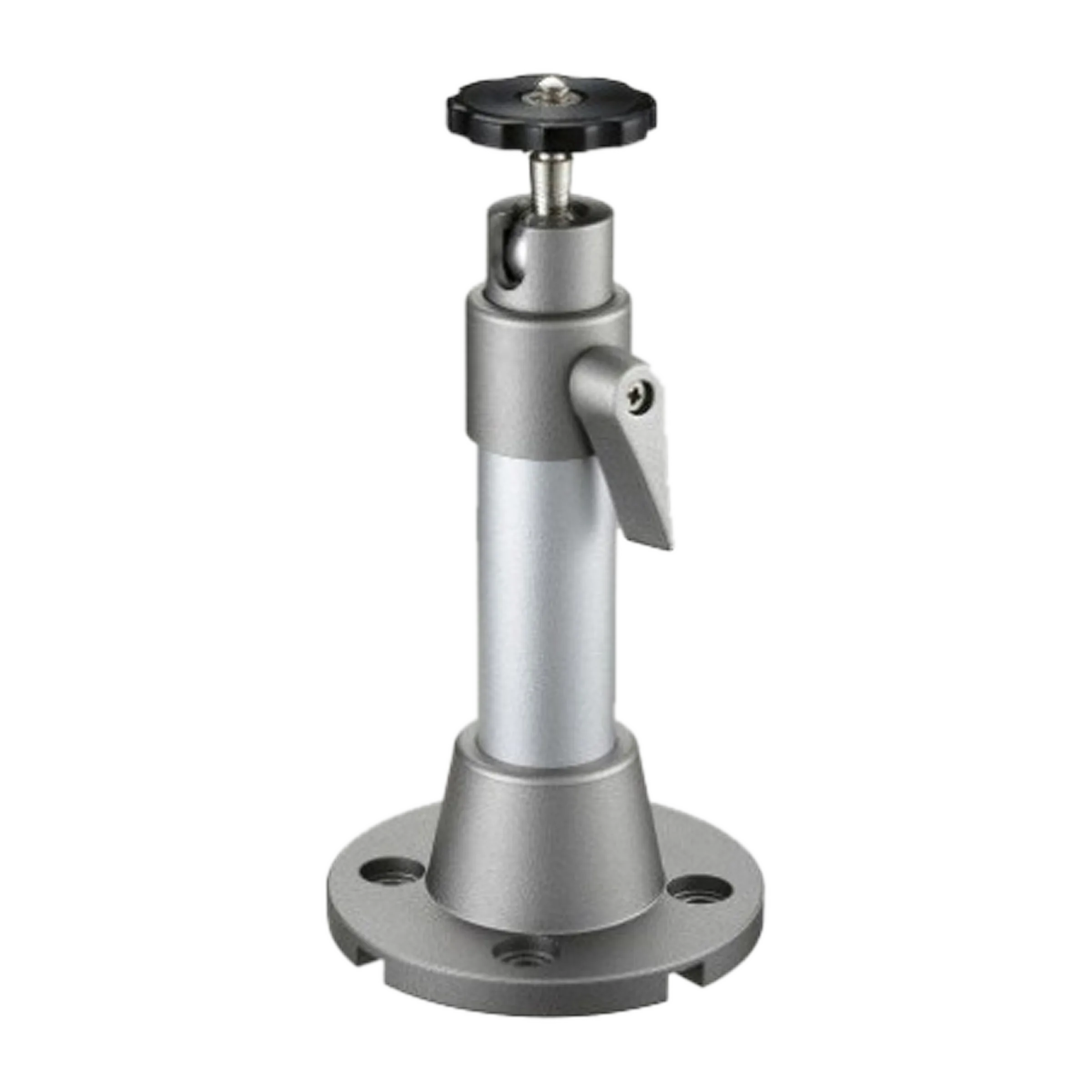

The STB-4150V is a fixed mount designed for box cameras. The bracket is made of aluminium and finished in silver. It measures ø80x155.4mm and weighs 400g. PNB-900 is named as the supported product. Fixed mount for box camerasAluminium constructionSilver finishDimensions ø80x155.4mm, weight 400gSupported product PNB-900
