2MP 32x Zoom Box
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNZ-6320A
- EAN / GTIN
- 8801089209931
- Weight
- 0.8 kg
- Dimensions (W×H×D)
- 209 × 119 × 101 mm
Description

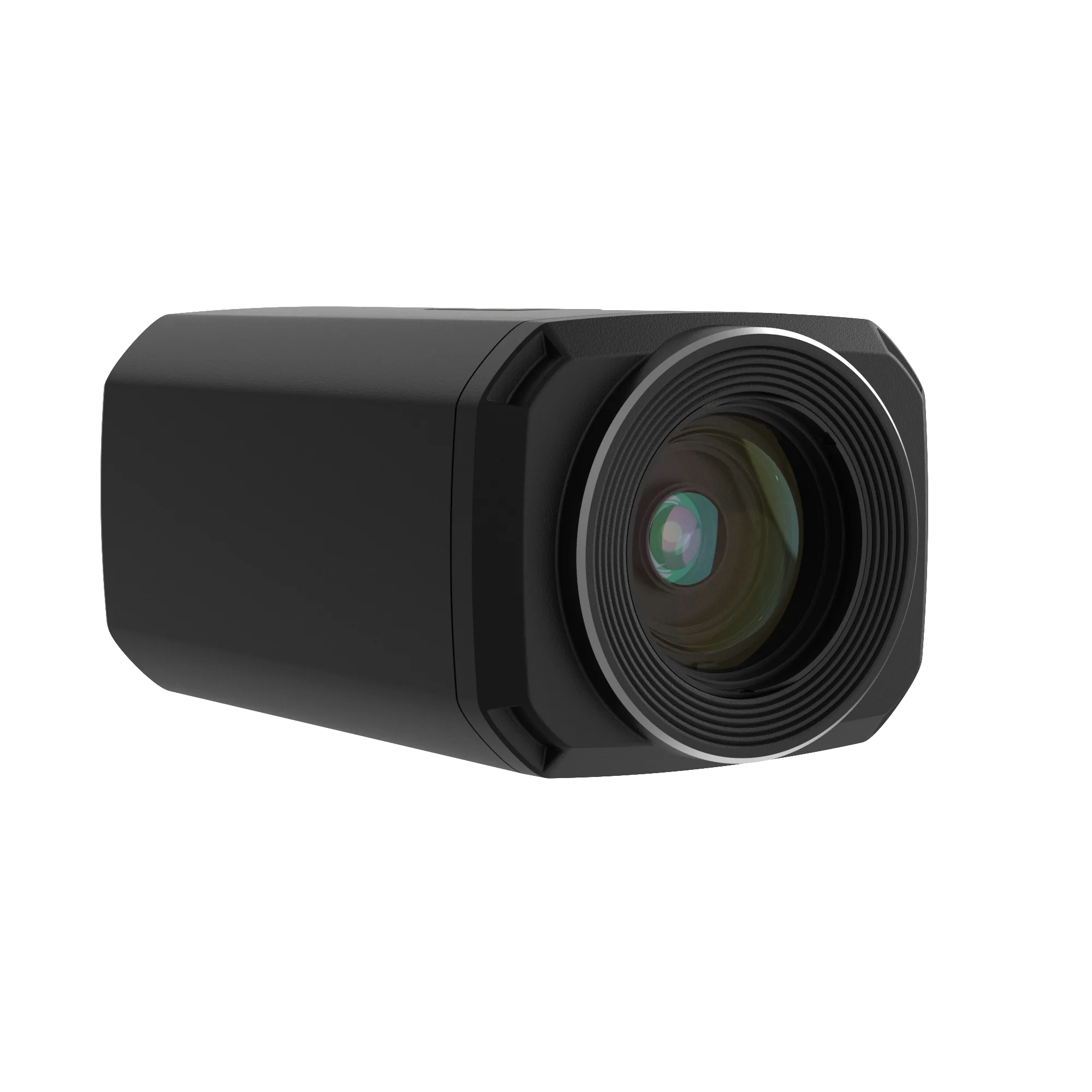

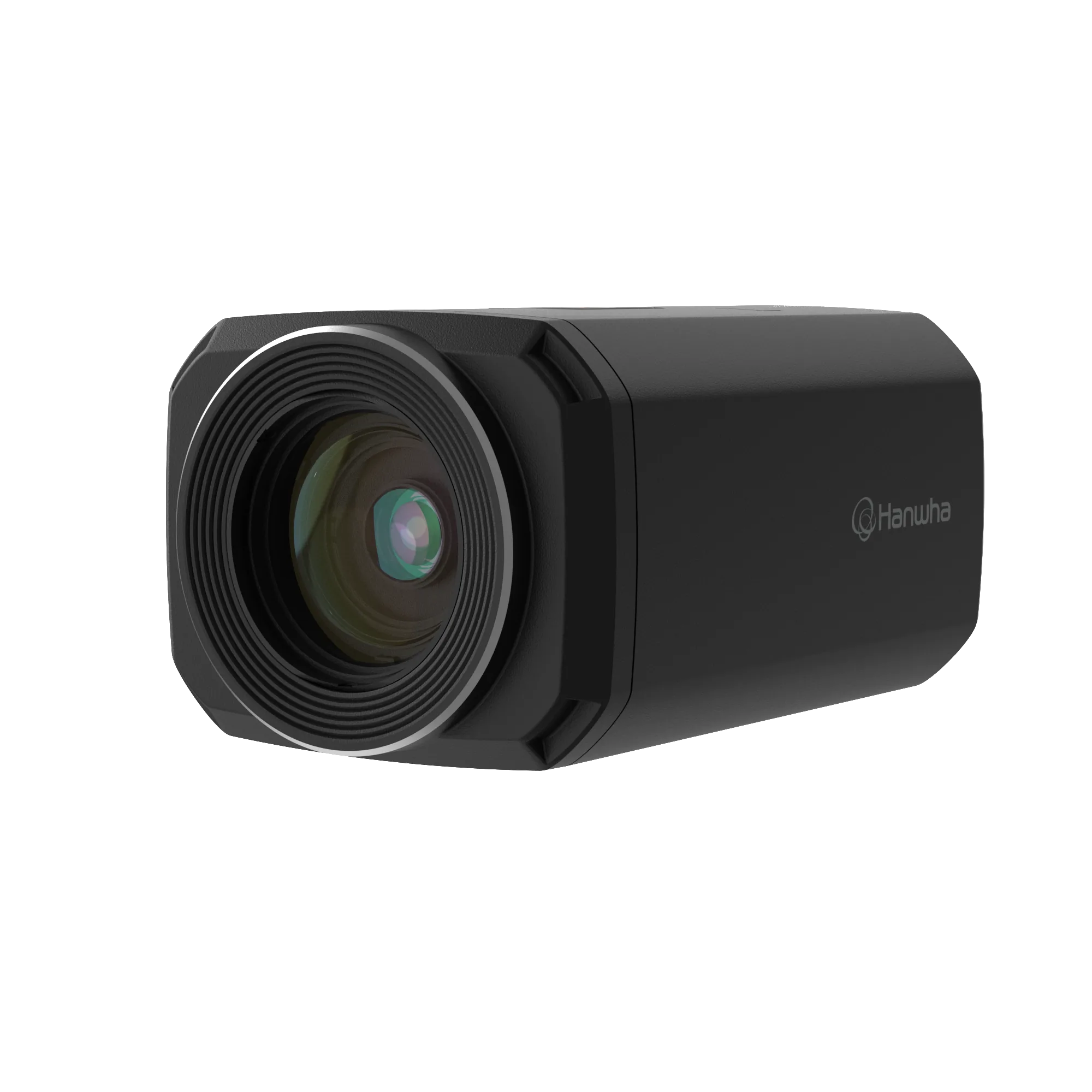

The XNZ-6320A is a 2MP zoom camera module with H.265 support, built on a 1/2.8-inch CMOS sensor that captures Full HD at 1920x1080 pixels. Its lens runs from 4.44 to 142.6mm and combines 32x optical with 32x digital zoom behind a DC auto iris of F1.6 to F4.4, narrowing the horizontal field of view from 64.66 to 2.29 degrees. All resolutions support up to 60fps at 60Hz or 50fps at 50Hz in H.265 and H.264, MJPEG runs at 30fps, and multiple streams can be delivered in parallel. Challenging light is addressed by ICR day and night switching, 120dB WDR, defog and the BLC, HLC and SSDR functions, with minimum illumination of 0.05 lux in colour and 0.005 lux in black and white. Focusing is automatic or by oneshot AF from an object distance of 1.5m, and the module adds video and audio analytics, a direction indicator, PoE and 12VDC power, and two microSD/SDHC/SDXC slots for up to 512GB.
- 2MP, 1920x1080 pixels
- 4.44-142.6mm, 32x optical and 32x digital zoom
- Up to 60fps at all resolutions (H.265/H.264)
- 120dB WDR, defog, BLC, HLC, SSDR
- PoE and 12VDC
- 2 microSD/SDHC/SDXC slots, 512GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 1921.3m(6303.4ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 60.7m(199.1ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 192.1m(630.3ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.1m(19.9ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 768.5m(2521.4ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 24.3m(79.6ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 384.3m(1260.7ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 12.1m(39.8ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 7.0W, typical 4.0W
- Environmental & Electrical / Power Consumption – PoE
- Max. 7.5W, typical 4.5W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 2slot(Total 1TB)
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 1GB
Lens (10)
- Lens / Angular Field of View – Horizontal
- 64.66°~2.29°
- Lens / Angular Field of View – Vertical
- 38.08°~1.30°
- Lens / Max Aperture Ratio (F number) – Tele
- 4.4
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Digital
- 32x
- Lens / Zoom Ratio – Optical
- 32x
- Lens – Focal Length (mm)
- 4.44~142.6
- Lens – Focus Control
- Auto, Oneshot AF
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 1.5m(4.92ft)
Mechanical (4)
- Mechanical – Color
- Dark grey
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- 96(W)x76(H)x143.5(D)mm(3.78x2.99x5.65")
- Mechanical – Product Weight
- 578g(1.27lb)
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T), SFP
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (23)

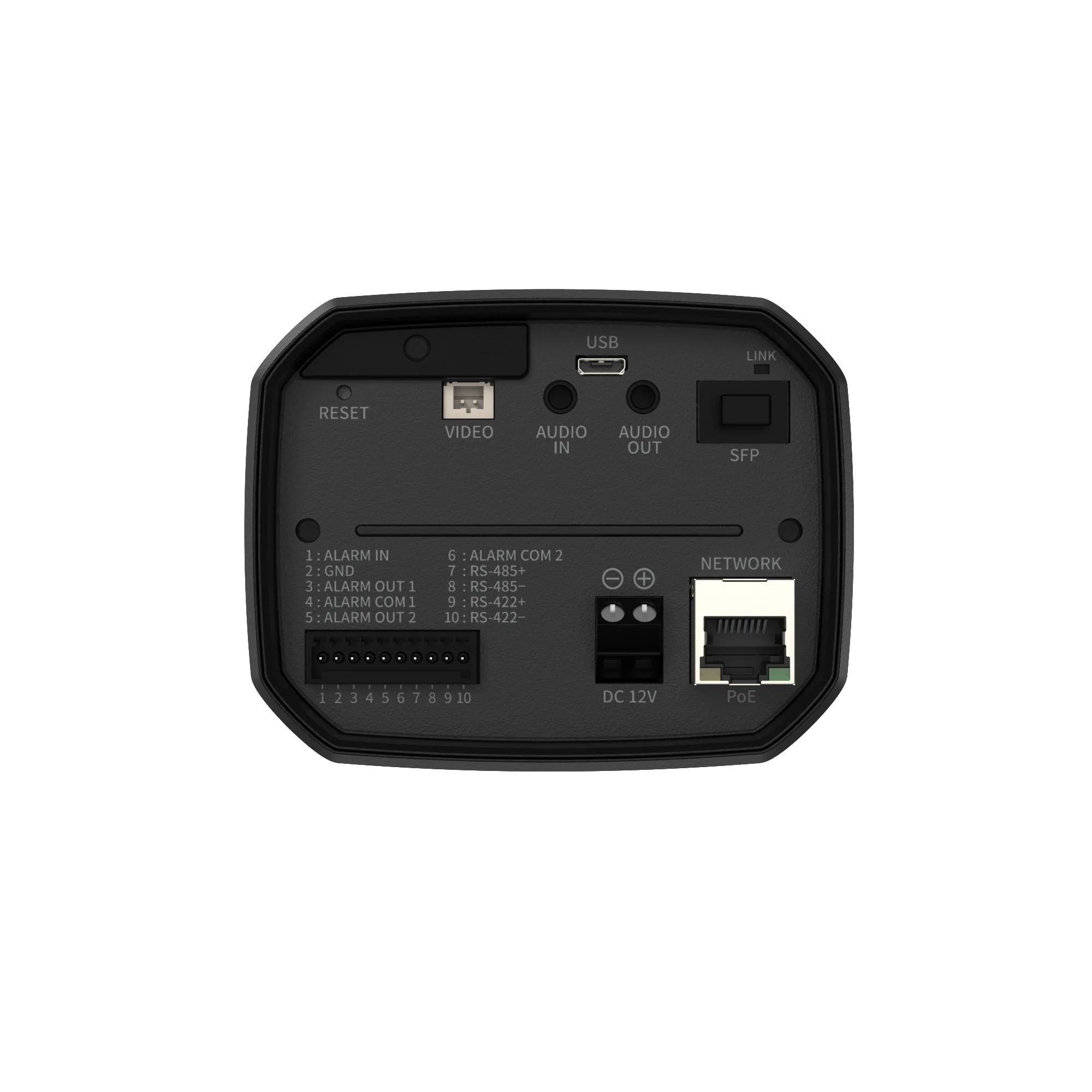

- Operational / Alarm Interface – In/Out
- Input 1ea, Output 2ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Direction Indicator
- Support
- Operational – Gain Control
- Low, Middle, High, Off
- Operational – Serial Interface
- RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
- Operational – Wide Dynamic Range (dB)
- 120
Security (8)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – User authentication
- Digest authentication
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.005
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.05
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
