27” AI PVM Monitor
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SMT-2731PV
- EAN / GTIN
- 8801089220219
- Weight
- 9.927 kg
- Dimensions (W×H×D)
- 446 × 336 × 285 mm
Description

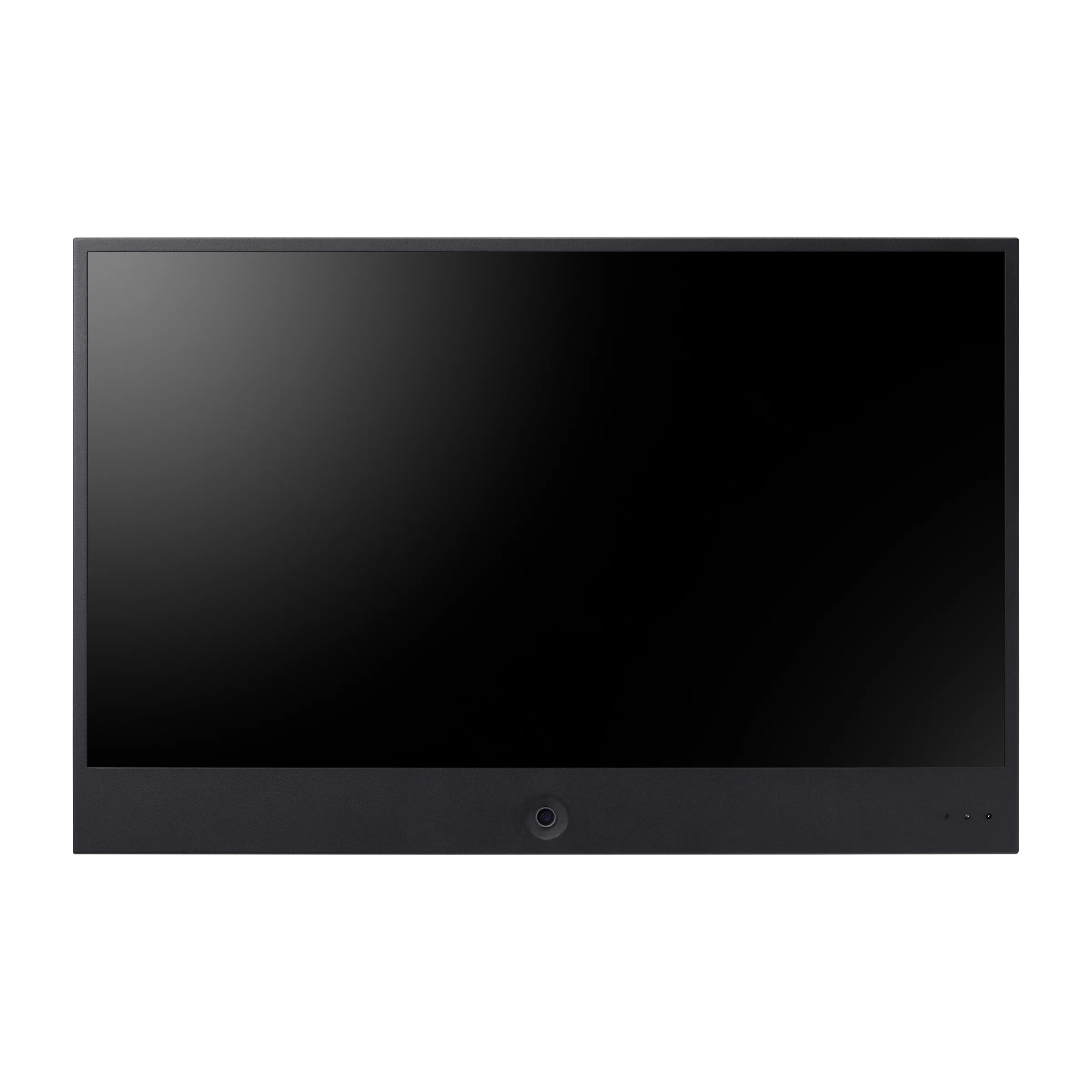

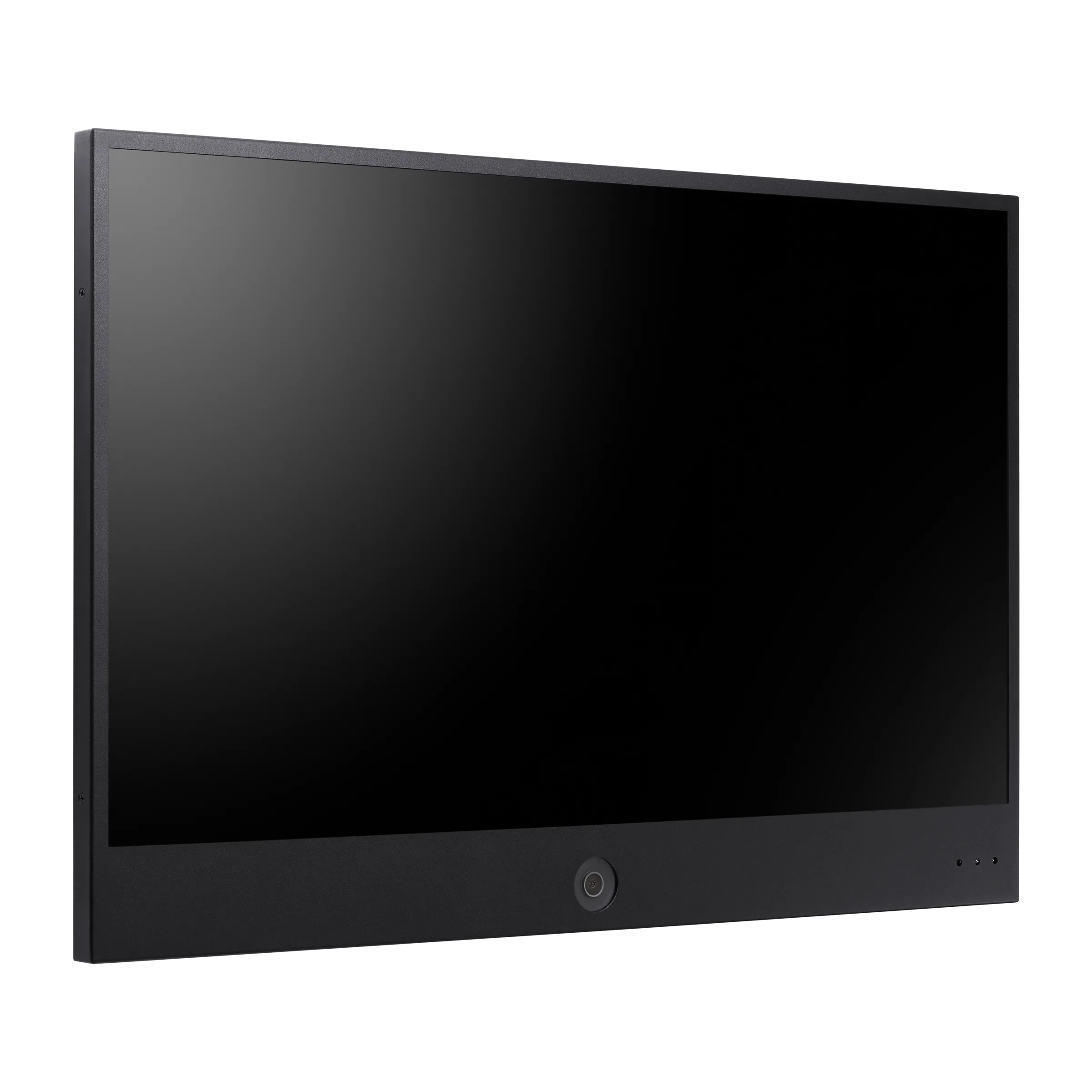

The SMT-2731PV is a 27-inch public view monitor with a 2 MP AI camera and additional two-window picture-in-picture and picture-by-picture modes, which combine the internal camera with HDMI 1; a second HDMI input is also fitted. The panel resolves 1920x1080 and is rated at 300 cd/m2, 1000:1 contrast, 14 ms response time, 178-degree viewing angles, 16.7 million colours and 30,000 hours of life. Camera processing uses AI-based object classification and intelligent video analytics, marking detected faces with a coloured bounding box as a visual deterrent. Image slide shows run without an extra micro SD card or USB medium, and text overlays such as "Recording in progress" plus an uploaded logo image can be displayed. Landscape and portrait mounting are both supported, and the interfaces add one alarm input and output, an RJ-45 10/100BASE-T port, a micro SD slot up to 256 GB and two 8 ohm 2 W speakers. Power comes from DC24V or HPoE 802.3bt at 31 W, with operation from 0 to +40 C.
- Two-window PIP and PBP
- 2 MP AI camera with video analytics
- Coloured face detection box
- Slide show without extra storage
- Two HDMI inputs
- DC24V or HPoE 802.3bt, 31 W
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Camera (33)
- Business Intelligence
- People counting, Queue management, Heatmap based on AI engine
- Camera / Network – Application Programming Interface
- ONVIF Profile S/G/T/M, SUNAPI(HTTP API)
- Camera Backlight Compensation
- BLC, WDR, SSDR
- Camera Digital Noise Reduction
- SSNRⅤ, WiseNRⅡ(Based on AI engine)
- Camera Network authentication
- 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
- Electronic Shutter Speed
- Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
- General Memory
- 2GB RAM, 1GB Flash
- Lens Angular Field of View
- H: 107.7° / V: 59.0° / D: 126.7°
- Lens Focal Length (Zoom Ratio)
- 3.06mm fixed focal
- Lens Max. Aperture Ratio
- F1.6
- Network Smart Codec
- WiseStreamⅢ
- Operational Alarm Events
- When alarm trigger occurred, - File upload(image) : e-mail/FTP, - Notification : e-mail, - Recording : SD/SDHC/SDXC or NAS recording at event triggers, - Alarm output, - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- Operational Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational Analytics
- Classified object type: Person/Face, Attributes: Not support, Support DetectionShot, Analytics events based on AI engine, - Motion detection, Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Analytics event
- Operational Digital PTZ
- Support
- Operational Gain Control
- Low / Middle / High
- Operational LDC
- Support
- Operational Motion Detection
- 8ea, 8point Polygonal zones
- Operational Privacy Masking
- 32ea, 4point Quadrangle zones
- Operational Video Rotation
- Flip, Mirror, Hallway view(90˚/270˚)
- Operational White Balance
- ATW / AWC / Manual / Indoor / Outdoor
- Operational Wide Dynamic Range
- 120dB
- Security Access Control
- Access control based on IP address
- Security Audit
- User Access/System/Event log management
- Security Data Protect
- Authentication information encryption, ZIP compression encryption
- Security Device ID
- Device Certificate(Hanwha Private Root CA)
- Security OS / Firmware Protect
- Secure boot, Signed firmware, Firmware encryption
- Security Secure Communication
- HTTPS, SRTP, WSS(Websocket secure)
- Security Secure Storage
- SDcard partition encrypt
- Security User authentication
- Digest Authentication, Prevent brute-force attack
- Video Imaging Device
- 1/2.8" 2MP CMOS
- Video Max. Framerate
- H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG: Max. 15fps/12fps(60Hz/50Hz)
- Video Min. Illumination
- Color: 0.03Lux (F1.6, 1/30sec)
Display (10)
- Display Aspect Ratio
- 16:9
- Display Brightness
- 300 cd/m²
- Display Color
- 16.7M
- Display Contrast Ratio
- 1000:1
- Display Max. Resolution
- 1920x1080
- Display Response Time
- 14ms
- Display Screen Size
- 27inch
- Display Type
- LED Monitor
- Display Viewing Angle (H/V)
- 178°/178°
- Panel Life
- 30,000 hours
General (10)
- Dimensions without Stand
- 619x405x58mm(24.4x15.9x2.3")
- General / Electrical – Input Voltage
- DC24V, HPoE 802.3bt
- General / Electrical – Power Consumption
- 31W
- General / Environmental – Operating Humidity
- 10% ~ 80% (non-condensing)
- General / Environmental – Operating Temperature
- 0 ~ +40°C (+32°F ~ +104°F)
- General Mechanical Weight
- 8.5kg(18.7lb)
- Mechanical Cabinet Color
- Black
- Mechanical Packing Dimension
- 750x551x194mm(29.5x21.7x7.6")
- Mechanical Packing Weight
- 11.3Kg(24.9lb)
- VESA Mounts Interface
- 100x100mm, 200x100mm, 200x200mm
Interface (7)
- Audio Output Signal
- Speakers : 8Ω 2W x 2
- General Edge Storage
- Micro SD/SDHC/SDXC 1slot 256GB
- HDMI Available Format
- 640x480@60Hz/72Hz/75Hz, 800x600@60Hz/72Hz/75Hz, 1024x768@60Hz/75Hz, 1280x1024@60Hz/75Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1280x720p@50Hz/60Hz
- HDMI Connector
- HDMI x 2
- Interface Alarm I/O
- Input 1ea / Output 1ea
- Network Ethernet
- 1 RJ-45 10/100BASE-T
- Video Connectors
- Camera(Internal, PIP/PBP), HDMI#1(PIP/PBP), HDMI#2, * two windows PIP/PBP : Internal Camera and HDMI#1
On Screen Display (2)
- Functions
- VESA™ DPMS Compatible
- On Screen Display Language
- English, Spanish, French
