22-Inch Full HD Monitor
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
The PMK-01 is an ergonomic wall mount kit for displays from 15 to 32 inches with a load capacity of 14.0 kg. Three pivots deliver 270° of rotation, tilt from -90° to +90° and 90° of swivel to each side. Supported VESA patterns are 75 x 75 mm and 100 x 100 mm. The bracket is made of steel and die-cast aluminium with an electronic dipping finish in black. Product dimensions are 115.0 x 115.0 x 131.0 mm, and one set weighs 1.5 kg net and 1.6 kg gross. Fits 15 to 32 inch displays14.0 kg weight capacity270° pivot, -90° to +90° tiltSwivel 90° / 90°VESA 75 x 75 mm and 100 x 100 mmSteel and die-cast aluminium
In stock, ships immediately · delivery 1-2 days
WMA-01 is a wall mount arm that lets display position and orientation be changed without tools. The arm swivels 90 degrees to the right and to the left and extends between 70.0 mm and 463.0 mm from the wall, so on-screen content can be shared in multi-user settings. Its rugged construction of steel, aluminium alloy and plastic includes integrated cable management. VESA patterns of 75 x 75, 100 x 100, 200 x 100 and 200 x 200 mm are supported for displays from 17 to 48 inches weighing up to 25 kg. Net weight is 3.1 kg, with four pieces per carton and 120 pieces per pallet. 25 kg capacity, displays from 17 to 48 inches90 degree swivel to the right and leftWall distance from 70.0 mm to 463.0 mmVESA 75 x 75 through 200 x 200 mmSteel, aluminium alloy and plasticIntegrated cable management
Not in stock · delivery 3-4 days
WMK-01 is a two-piece wall mount kit made from high-grade steel with an electronic surface finish, installed quickly and with little space taken up. VESA patterns of 75 x 75 and 100 x 100 mm are supported for displays from 15 to 32 inches weighing up to 18.0 kg. Its weather-resistant construction is intended for indoor and outdoor environments such as retail, healthcare, finance and public spaces where space is limited. The bracket is finished in black and weighs 0.36 kg net, supplied 20 pieces per carton and 1080 pieces per pallet. Two-piece steel wall mount kit18.0 kg capacity, displays from 15 to 32 inchesVESA 75 x 75 and 100 x 100 mmElectronic surface finish, blackNet weight 0.36 kg20 pieces per carton, 1080 per pallet
Not in stock · delivery 3-4 days
Rated for 60.0 kg, the WMK-03 holds professional displays securely. Its free-angle tilt from -15 to 0 degrees saves space and allows the screen to be matched to the viewing direction at the installation site. VESA patterns of 100 x 100, 200 x 100 and 200 x 200 mm are supported for displays from 15 to 48 inches. The mount is made of steel with an electronic coating in black and measures 248.0 x 230.0 x 45.0 mm when assembled. Net weight is 2.2 kg, with ten pieces per carton and 420 pieces per pallet. 60.0 kg weight capacityTilt range -15 to 0 degreesFits displays from 15 to 48 inchesVESA 100 x 100, 200 x 100 and 200 x 200 mmSteel with electronic coating, black2.2 kg net weight, ten pieces per carton
In stock, ships immediately · delivery 1-2 days
The DMC-01 is a desk clamp mount whose arm uses two joints, so the screen can be swivelled, tilted, height-adjusted and rotated. Pivot covers 360° and the swivel range is 90° / 90°. Through the 75 x 75 mm and 100 x 100 mm VESA patterns it takes displays weighing up to 10 kg. Steel, aluminium alloy and plastic are used, with an electronic coating in silver with black. One pallet holds 72 pieces. Desk clamp mount with two joints360° pivot, 90° / 90° swivelVESA 75 x 75 mm / 100 x 100 mmDisplay weight up to 10 kgSteel, aluminium alloy and plasticElectronic coating, silver with black
Not in stock · delivery 3-4 days
The DMC-02D is a desk clamp for two 15" - 24" screens using the 75 x 75 mm and 100 x 100 mm VESA patterns. Every hinge carries 12.0 kg (26.5 lb) and offers 20° / 20° of swivel plus tilt from -20° to +20°, while the pivot covers 360°. Orientation, tilt, height and rotation of both displays can therefore be set individually. The structure combines steel, aluminium alloy and plastic with a powder coating in silver with black. Net weight is 3.8 kg (8.3 lb) and one carton contains 3 pieces. Desk clamp for two 15" - 24" displays12.0 kg (26.5 lb) capacity per hinge360° pivot, 20° / 20° swivel per hingeTilt -20° to +20° per hingeVESA 75 x 75 mm / 100 x 100 mmPowder coating, silver with black
Not in stock · delivery 3-4 days
The CMP-01 is a steel ceiling mount pole for professional displays. Used together with the WMK-03, LMK-01 or LMK-02 tilt mounts, it lets various viewing angles be set. Its height is adjustable and the pole swivels 360° to the right and to the left. Each side carries up to 60.0 kg (132.3 lb). The unit is finished in black. Steel ceiling mount pole360° swivel right/left60.0 kg (132.3 lb) capacity per sideAdjustable heightBlack finishCombines with WMK-03, LMK-01, LMK-02
In stock, ships immediately · delivery 1-2 days
The DMS-01D is a stand for two 15" - 24" monitors with 75 x 75 mm and 100 x 100 mm VESA patterns. Each hinge takes 12.0 kg (26.5 lb), swivels 20° / 20° and tilts from -20° to +20°, and the pivot covers 360°. Integrated cable management routes the cables and keeps the working area tidy. Steel, aluminium alloy and plastic with a powder coating give the black and silver finish. Net weight is 3.1 kg (6.8 lb), with 5 pieces per carton. Stand for two 15" - 24" displays12.0 kg (26.5 lb) capacity per hinge360° pivot, 20° / 20° swivel per hingeTilt -20° to +20° per hingeCable managementBlack and silver finish
Not in stock · delivery 3-4 days
The ES-02 is an ergonomic monitor stand for 15" - 24" displays using 75 x 75 mm and 100 x 100 mm mounting patterns. Height adjusts over 130.0 mm (5.1"), the swivel range is 360°, tilt runs from -5° to +25°, and the 90° pivot switches between landscape and portrait. Display weights from 2.0 - 8.0 kg (4.4 - 17.6 lb) are supported. Cable management guides the connection cables behind the stand. The stand is made of plastic in black and ships 5 pieces per carton. Monitor stand for 15" - 24" displays2.0 - 8.0 kg (4.4 - 17.6 lb) weight capacity130.0 mm (5.1") height adjustment360° swivel, -5° to +25° tilt90° pivot landscape/portraitIntegrated cable management
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- AG-Neovo
- Article number
- LA-2204
- EAN / GTIN
- 4710739599039
- Weight
- 3.8 kg
- Dimensions (W×H×D)
- 110 × 375 × 562 mm
Description

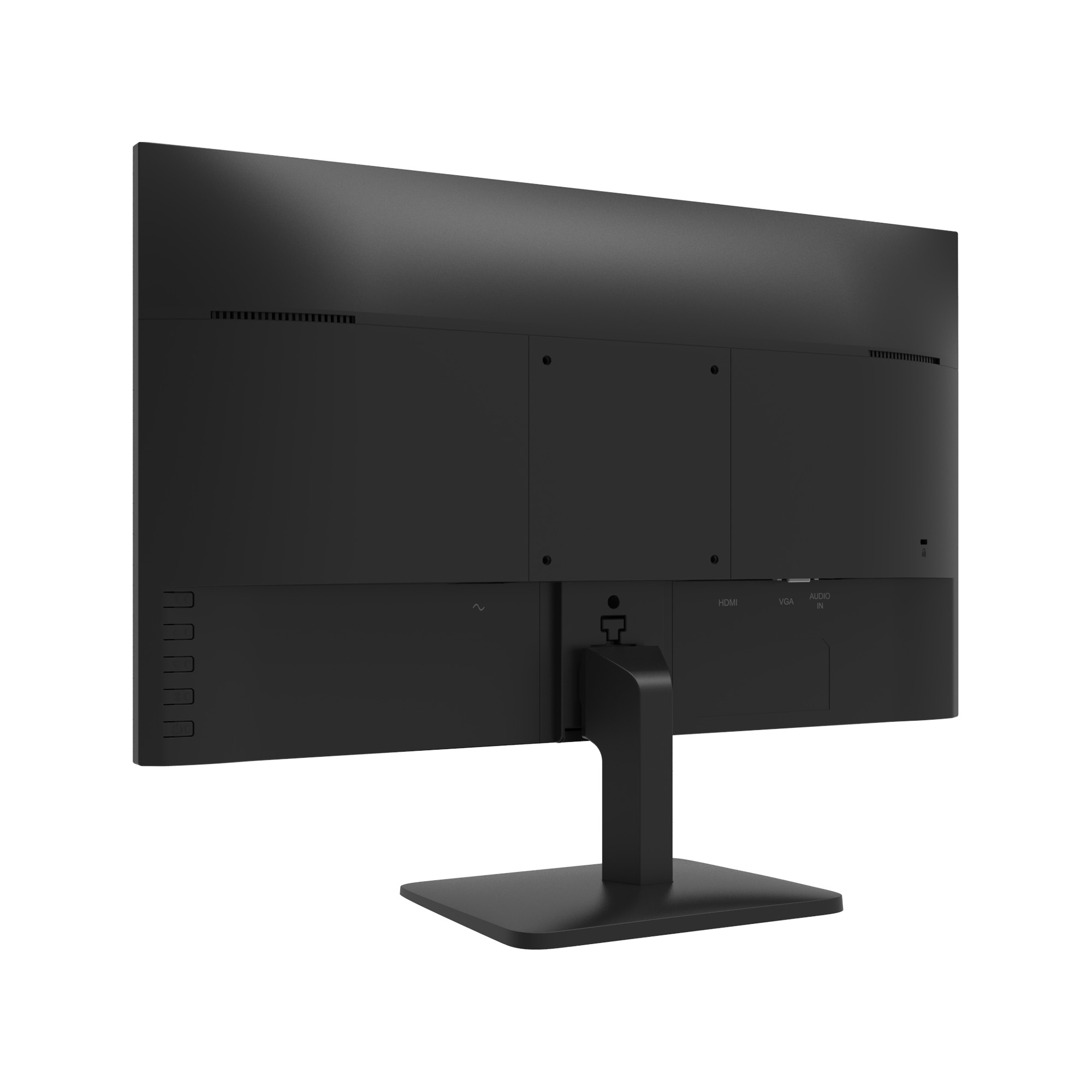

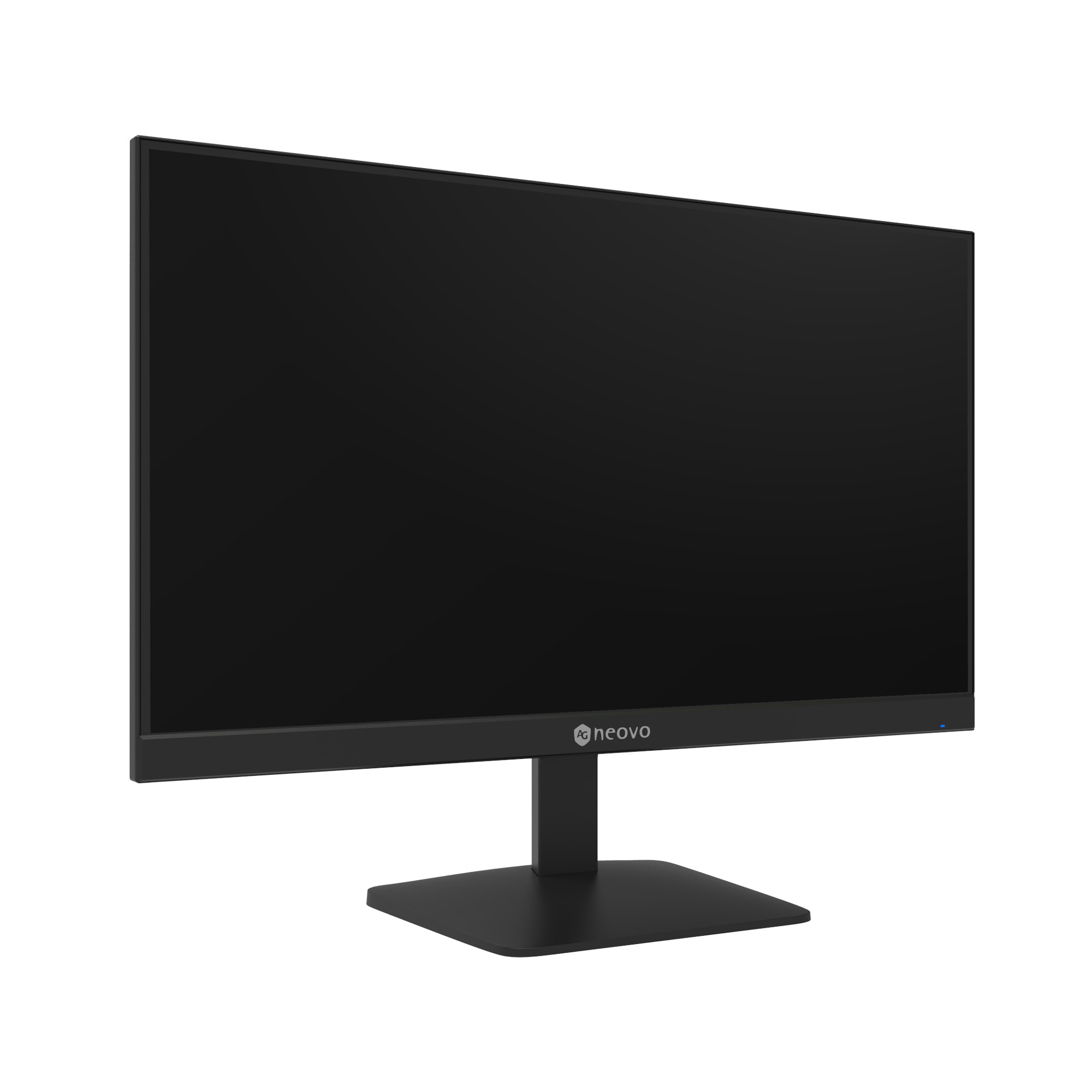

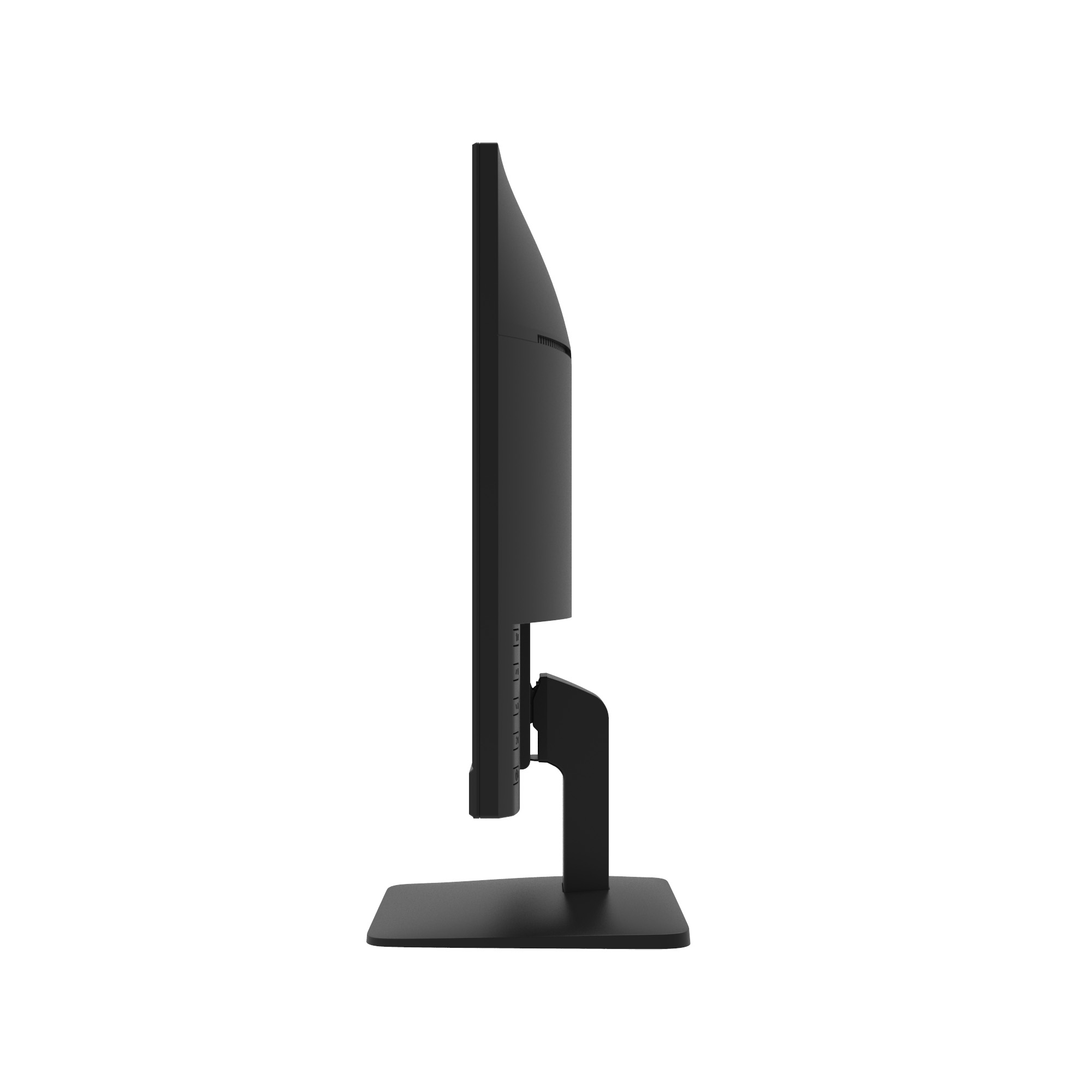

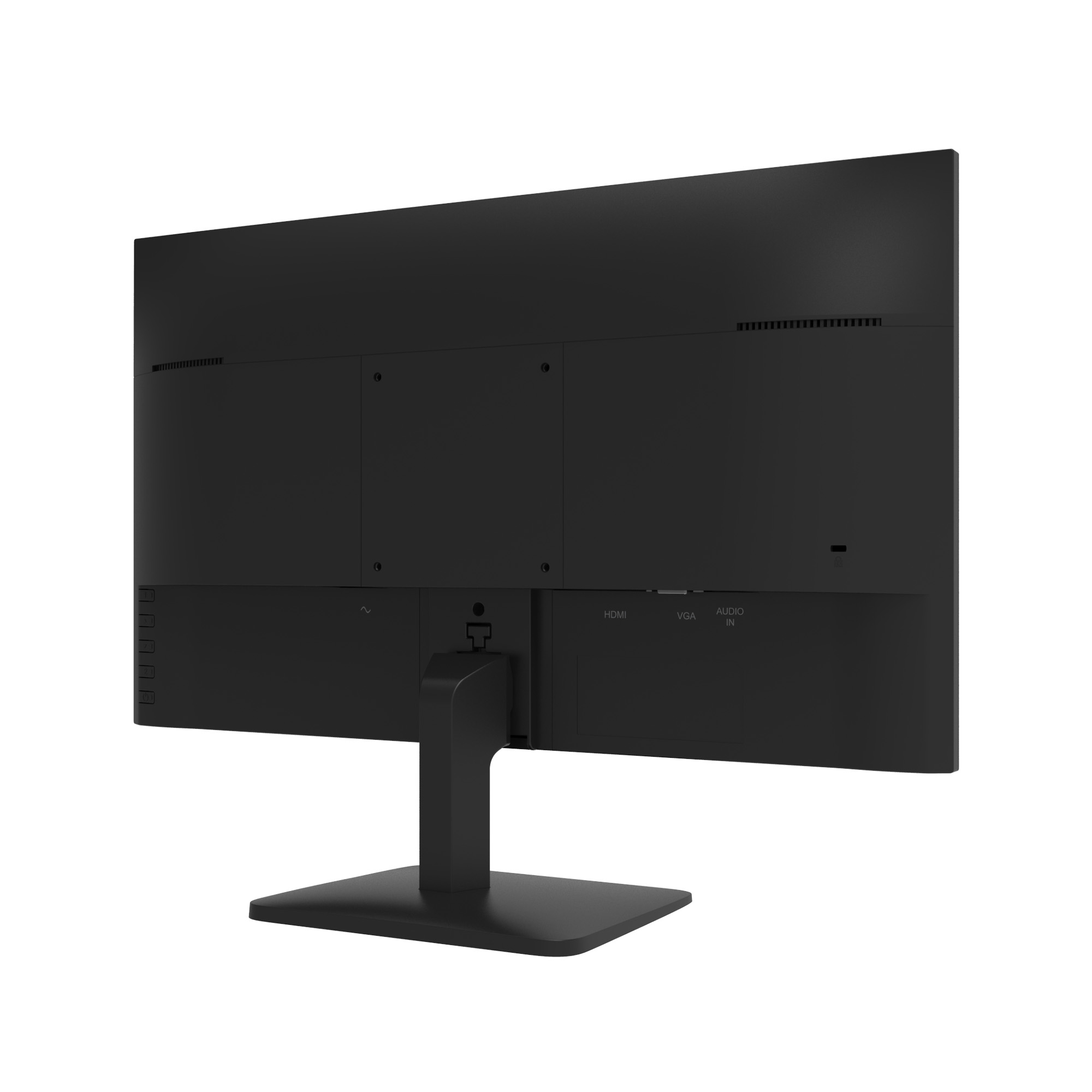

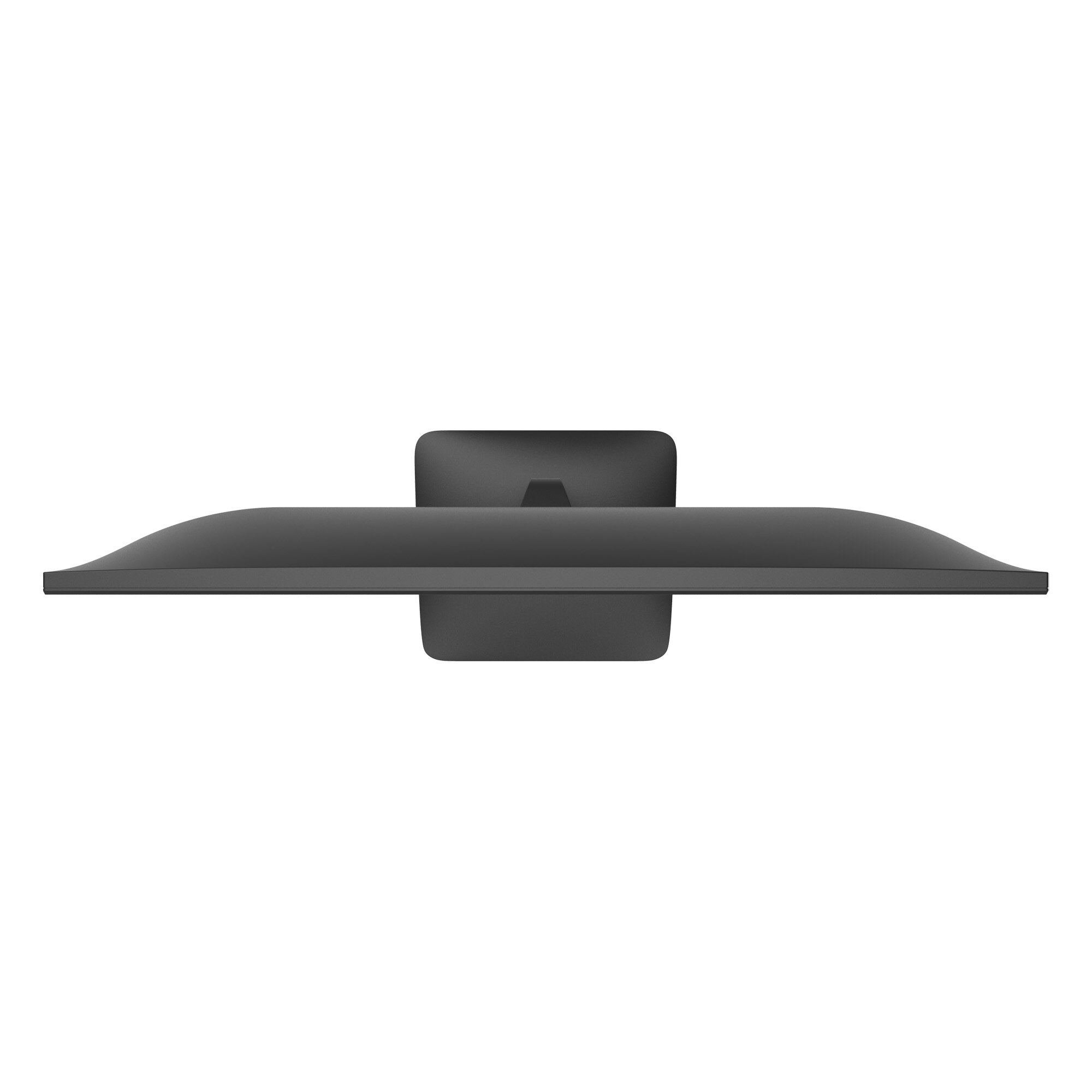

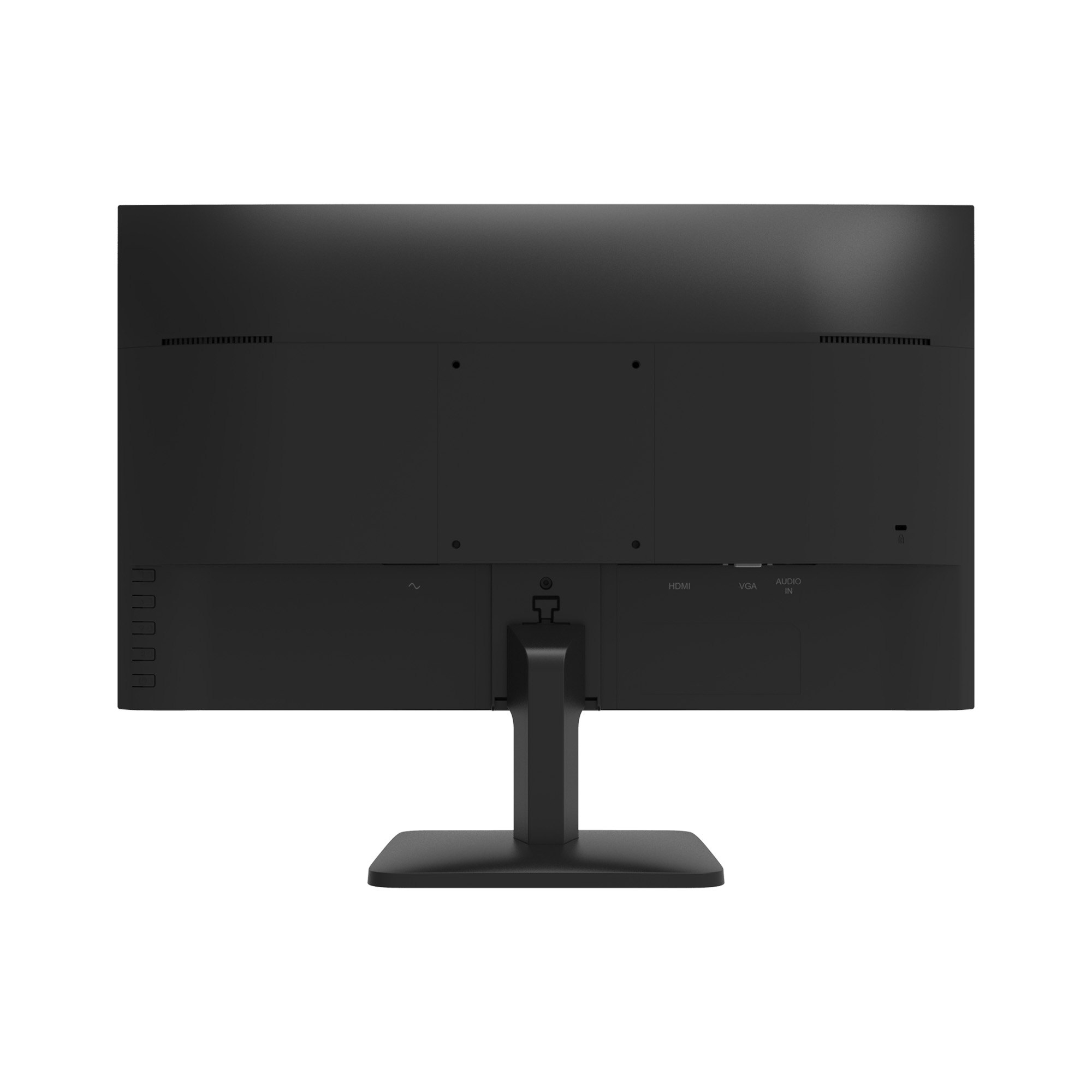

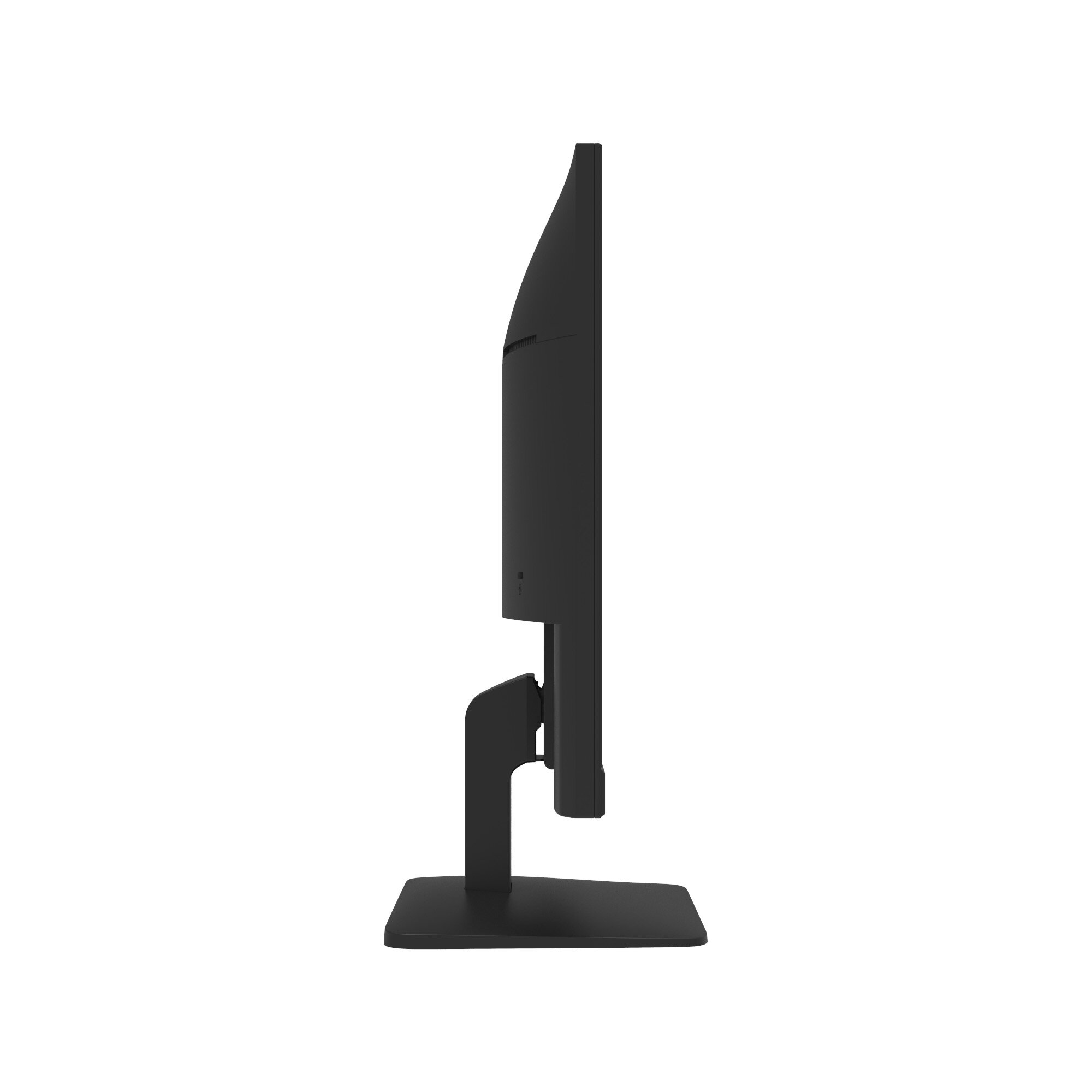

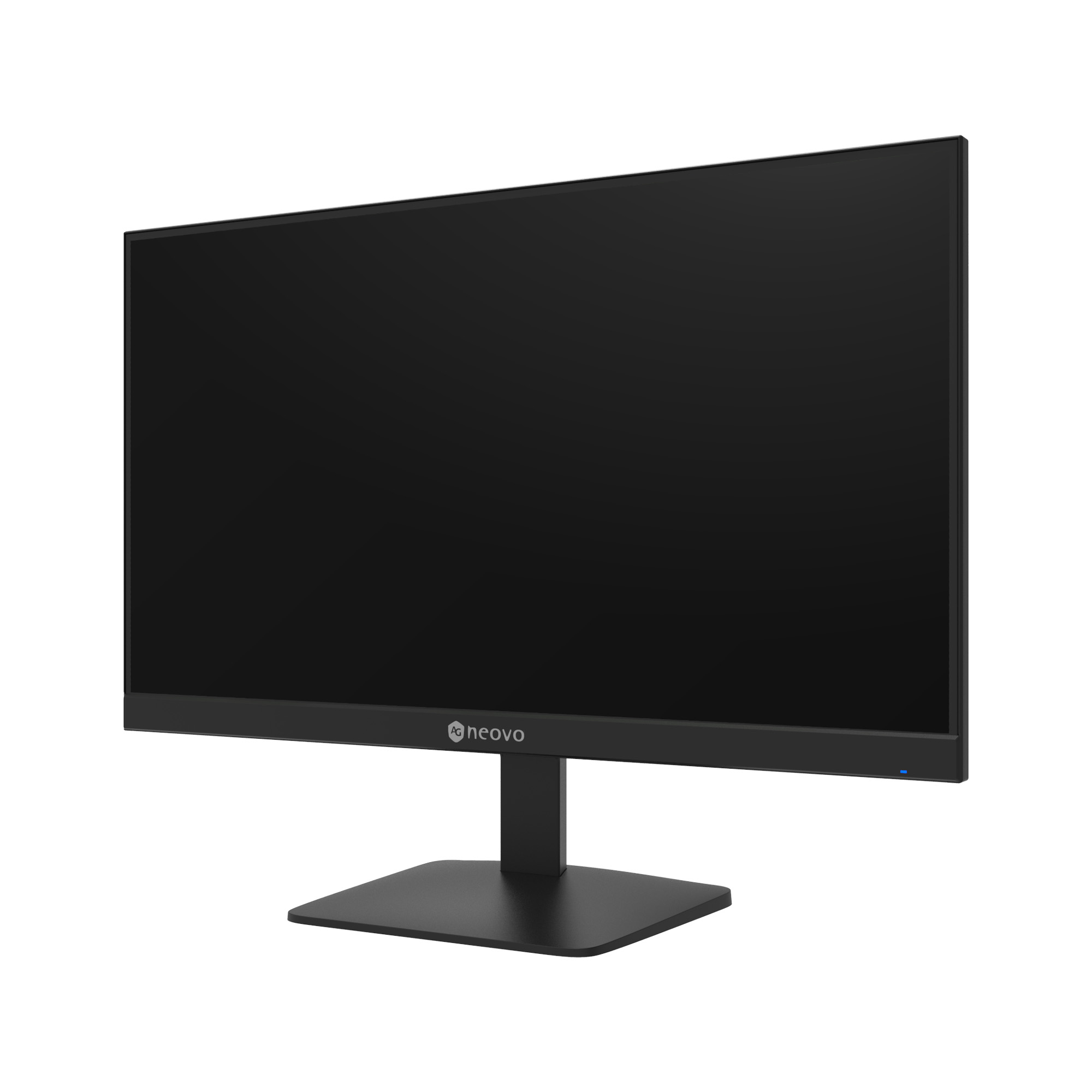

The LA-2204 is a 22-inch monitor using a 21.5" VA panel with FHD 1920 x 1080 resolution, a 0.241 mm pixel pitch and 250 cd/m² brightness. Dynamic contrast is 20,000,000:1 (DCR), viewing angles are 178°/178°, and the panel shows 16.7M colours across an NTSC 72% gamut at a 5 ms response time. The surface combines anti-glare treatment (Haze 25%) with a 3H hard coating, while a flicker-free backlight and blue light filter ease eyestrain. Connections are HDMI 1.4 x 1 and VGA (15-Pin D-Sub x 1), with 2W x 2 speakers built in. The internal power supply draws 16W when on, 25W at maximum, < 0.5W in standby and < 0.3W when off, and wall mounting follows VESA 100 x 100 mm.
- 21.5" VA panel, FHD 1920 x 1080
- 0.241 mm pixel pitch, 5 ms response time
- 20,000,000:1 (DCR) contrast, 178°/178° viewing angle
- NTSC 72% colour gamut, 16.7M colours
- HDMI 1.4 x 1 and VGA, 2W x 2 speakers
- VESA FPMPMI 100 x 100 mm
Made by
AG Neovo builds displays for continuous operation: surveillance monitors with 24/7 rating, metal housing and burn-in protection from 10 to 55 inches, public view monitors with a built-in camera, stretched displays for video walls, 4K digital signage, interactive smartboards with AI camera, plus workstations and mounts. Every model comes with technical data, data sheet, manual and certificates. AI4Vision is an authorised distributor; trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- Aspect Ratio
- 16:9
- Audio In
- Stereo Audio Jack (3.5 mm)
- Bezel Width
- 1.9mm(Top / Left / Right) 21.4mm(Bottom)
- Brightness
- 250 cd/m²
- Casing Colour
- Black
- Ceiling Mount
- CMP-01 + WMK-03
- Certifications & Compliance
- CE, LVD, WEEE, RoHS, REACH , UKCA
- Colour Gamut
- NTSC 72%
- Contrast Ratio
- 20,000,000:1 (DCR)
- Desk Mount
- DMC-01, DMC-02D
- Display Colour
- 16.7M
- Frequency (H)
- 30kHz-113 kHz
- Frequency (V)
- 48 Hz-100 Hz
- HDMI
- 1.4 x 1
- Humidity
- 5%-90% (non-condensing), 10%-90% (non-condensing)
- Internal Speakers
- 2W x 2
- Kensington Security Slot
- Yes
- Max. Resolution
- FHD 1920 x 1080
- Off Mode
- < 0.3W
- On Mode
- 16W (On)
- On Mode (Max)
- 25W
- Operating Time (Internal)
- 24/7
- Orientation
- Landscape / Portrait
- Packaging
- 3.8 kg (8.4 lb)
- Packaging (W x H x D)
- 562.0 x 375.0 x 110.0 mm (22.1” x 14.8” x 4.3”)
- Panel Size
- 21.5"
- Panel Size on Carton
- 21.5"
- Panel Type
- VA
- Pixel Pitch
- 0.241 mm
- Power Requirements
- AC 100-240V, 50/60 Hz
- Power Supply
- Internal
- Product w/o Base
- 2.3 kg (5.1 lb)
- Product w/o Base (W x H x D)
- 491.8 x 289.5 x 46.3 mm (19.4" x 11.4" x 1.8")
- Product with Base
- 2.6 kg (5.7 lb)
- Product with Base (W x H x D)
- 491.8 x 373.8 x 167.4 mm (19.4” x 14.7” x 6.6”)
- Rear Cover Material
- Plastic
- Response Time
- 5 ms
- Stand
- DMS-01D, ES-02
- Standby Mode
- < 0.5W
- Supplied
- HDMI Cable, Power Cord, Quick Start Guide
- Surface Treatment
- Anti-Glare Treatment (Haze 25%), 3H Hard Coating
- Temperature
- -20°C-60°C (-4°F-140°F), 0°C-40°C (32°F-104°F)
- Tilt
- -5° ~ 20°
- VESA FPMPMI
- Yes (100 x 100 mm)
- VGA
- 15-Pin D-Sub x 1
- Viewing Angle (H/V)
- 178°/178°
- Wall Mount
- PMK-01, WMA-01, WMK-01, WMK-03
