22-Inch Full HD Monitor
This article is being discontinued and will not be restocked. Ask us about remaining stock and successor models.
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The DMC-01 is a desk clamp mount whose arm uses two joints, so the screen can be swivelled, tilted, height-adjusted and rotated. Pivot covers 360° and the swivel range is 90° / 90°. Through the 75 x 75 mm and 100 x 100 mm VESA patterns it takes displays weighing up to 10 kg. Steel, aluminium alloy and plastic are used, with an electronic coating in silver with black. One pallet holds 72 pieces. Desk clamp mount with two joints360° pivot, 90° / 90° swivelVESA 75 x 75 mm / 100 x 100 mmDisplay weight up to 10 kgSteel, aluminium alloy and plasticElectronic coating, silver with black
Not in stock · delivery 3-4 days
The DMC-02D is a desk clamp for two 15" - 24" screens using the 75 x 75 mm and 100 x 100 mm VESA patterns. Every hinge carries 12.0 kg (26.5 lb) and offers 20° / 20° of swivel plus tilt from -20° to +20°, while the pivot covers 360°. Orientation, tilt, height and rotation of both displays can therefore be set individually. The structure combines steel, aluminium alloy and plastic with a powder coating in silver with black. Net weight is 3.8 kg (8.3 lb) and one carton contains 3 pieces. Desk clamp for two 15" - 24" displays12.0 kg (26.5 lb) capacity per hinge360° pivot, 20° / 20° swivel per hingeTilt -20° to +20° per hingeVESA 75 x 75 mm / 100 x 100 mmPowder coating, silver with black
Not in stock · delivery 3-4 days
The DMS-01D is a stand for two 15" - 24" monitors with 75 x 75 mm and 100 x 100 mm VESA patterns. Each hinge takes 12.0 kg (26.5 lb), swivels 20° / 20° and tilts from -20° to +20°, and the pivot covers 360°. Integrated cable management routes the cables and keeps the working area tidy. Steel, aluminium alloy and plastic with a powder coating give the black and silver finish. Net weight is 3.1 kg (6.8 lb), with 5 pieces per carton. Stand for two 15" - 24" displays12.0 kg (26.5 lb) capacity per hinge360° pivot, 20° / 20° swivel per hingeTilt -20° to +20° per hingeCable managementBlack and silver finish
Not in stock · delivery 3-4 days
The ES-02 is an ergonomic monitor stand for 15" - 24" displays using 75 x 75 mm and 100 x 100 mm mounting patterns. Height adjusts over 130.0 mm (5.1"), the swivel range is 360°, tilt runs from -5° to +25°, and the 90° pivot switches between landscape and portrait. Display weights from 2.0 - 8.0 kg (4.4 - 17.6 lb) are supported. Cable management guides the connection cables behind the stand. The stand is made of plastic in black and ships 5 pieces per carton. Monitor stand for 15" - 24" displays2.0 - 8.0 kg (4.4 - 17.6 lb) weight capacity130.0 mm (5.1") height adjustment360° swivel, -5° to +25° tilt90° pivot landscape/portraitIntegrated cable management
Not in stock · delivery 3-4 days
The PMK-01 is an ergonomic wall mount kit for displays from 15 to 32 inches with a load capacity of 14.0 kg. Three pivots deliver 270° of rotation, tilt from -90° to +90° and 90° of swivel to each side. Supported VESA patterns are 75 x 75 mm and 100 x 100 mm. The bracket is made of steel and die-cast aluminium with an electronic dipping finish in black. Product dimensions are 115.0 x 115.0 x 131.0 mm, and one set weighs 1.5 kg net and 1.6 kg gross. Fits 15 to 32 inch displays14.0 kg weight capacity270° pivot, -90° to +90° tiltSwivel 90° / 90°VESA 75 x 75 mm and 100 x 100 mmSteel and die-cast aluminium
In stock, ships immediately · delivery 1-2 days
WMK-01 is a two-piece wall mount kit made from high-grade steel with an electronic surface finish, installed quickly and with little space taken up. VESA patterns of 75 x 75 and 100 x 100 mm are supported for displays from 15 to 32 inches weighing up to 18.0 kg. Its weather-resistant construction is intended for indoor and outdoor environments such as retail, healthcare, finance and public spaces where space is limited. The bracket is finished in black and weighs 0.36 kg net, supplied 20 pieces per carton and 1080 pieces per pallet. Two-piece steel wall mount kit18.0 kg capacity, displays from 15 to 32 inchesVESA 75 x 75 and 100 x 100 mmElectronic surface finish, blackNet weight 0.36 kg20 pieces per carton, 1080 per pallet
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- AG-Neovo
- Article number
- LA-2203
- EAN / GTIN
- 4710739598780
- Weight
- 3.51 kg
Description

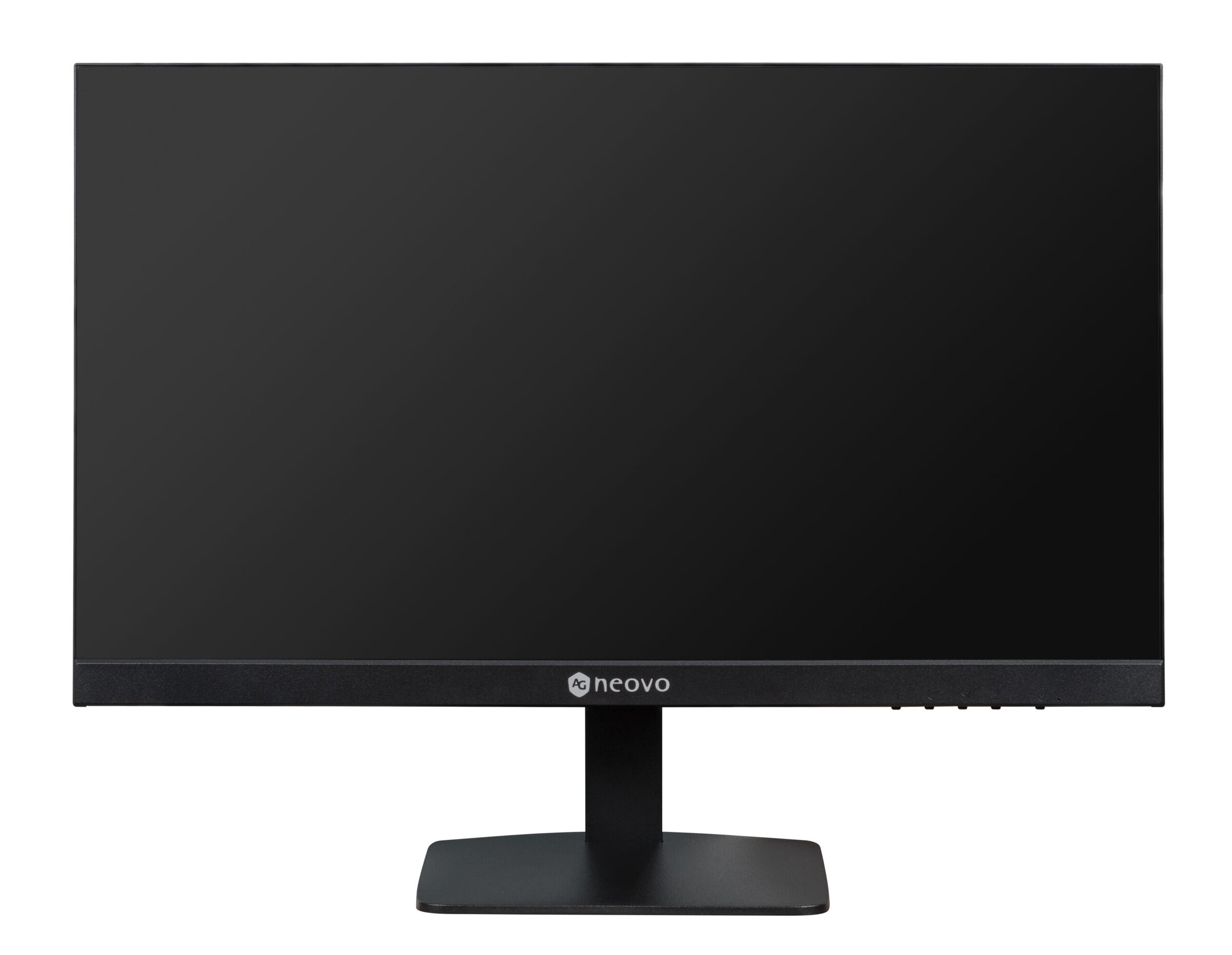

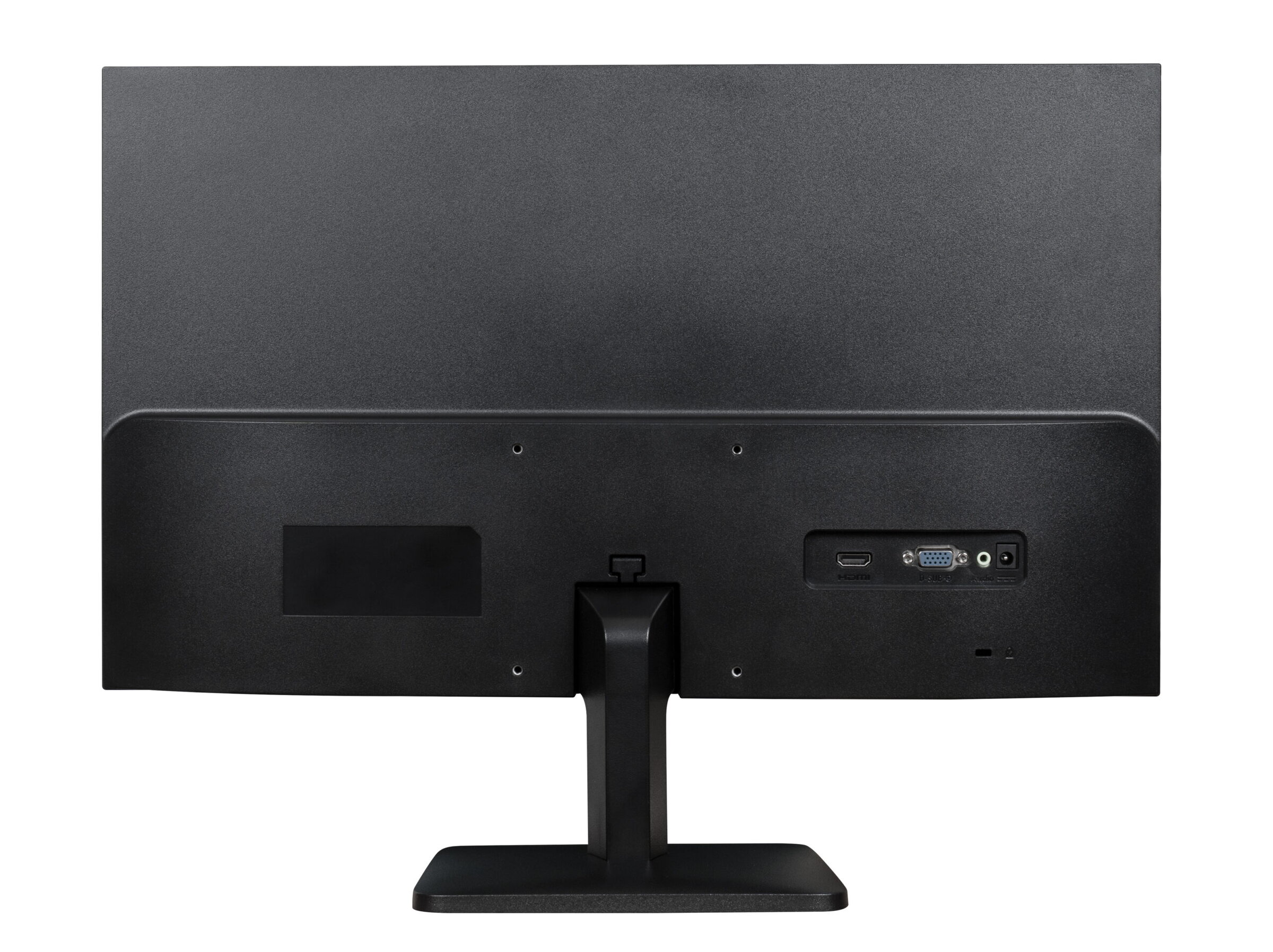

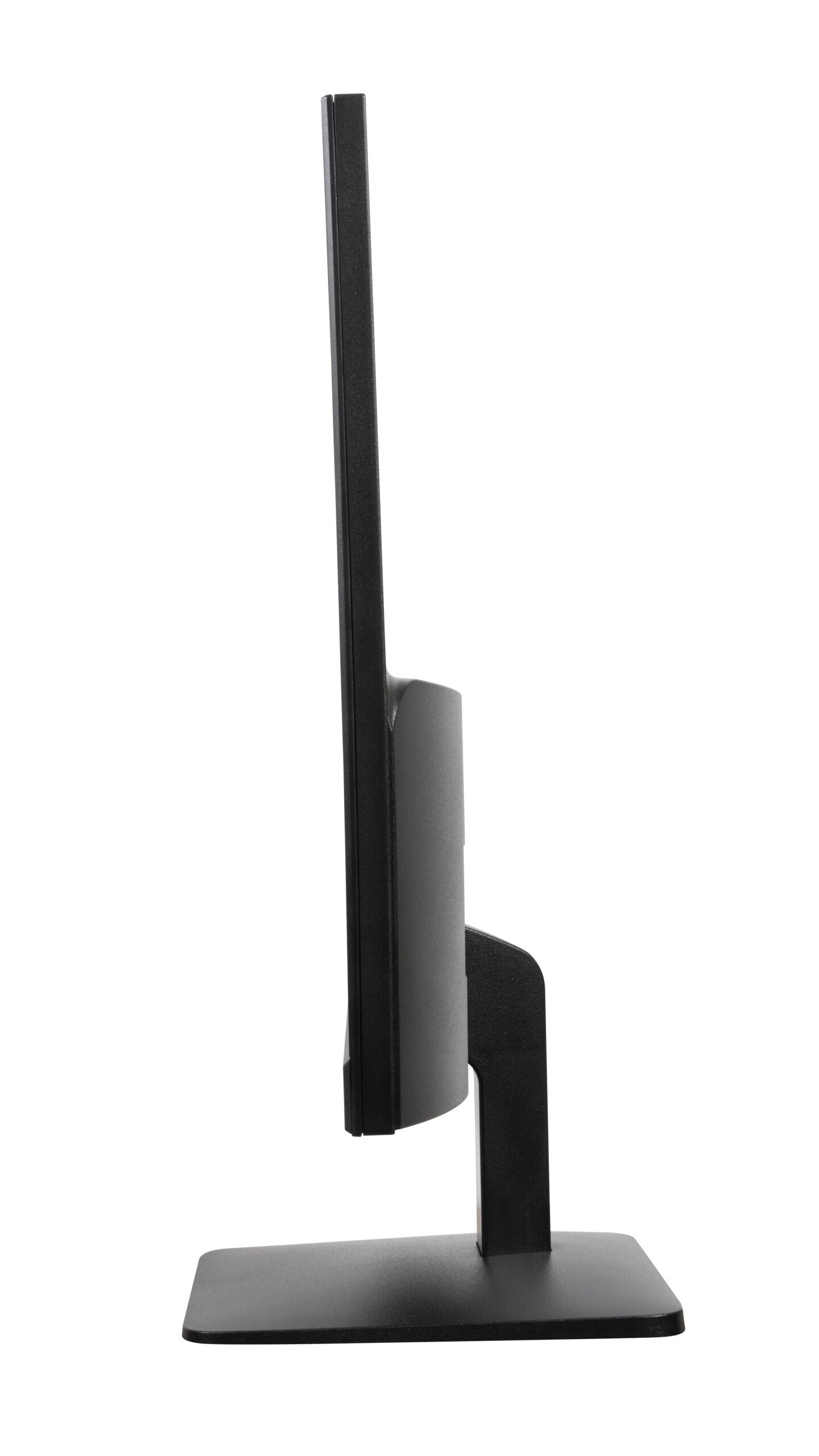

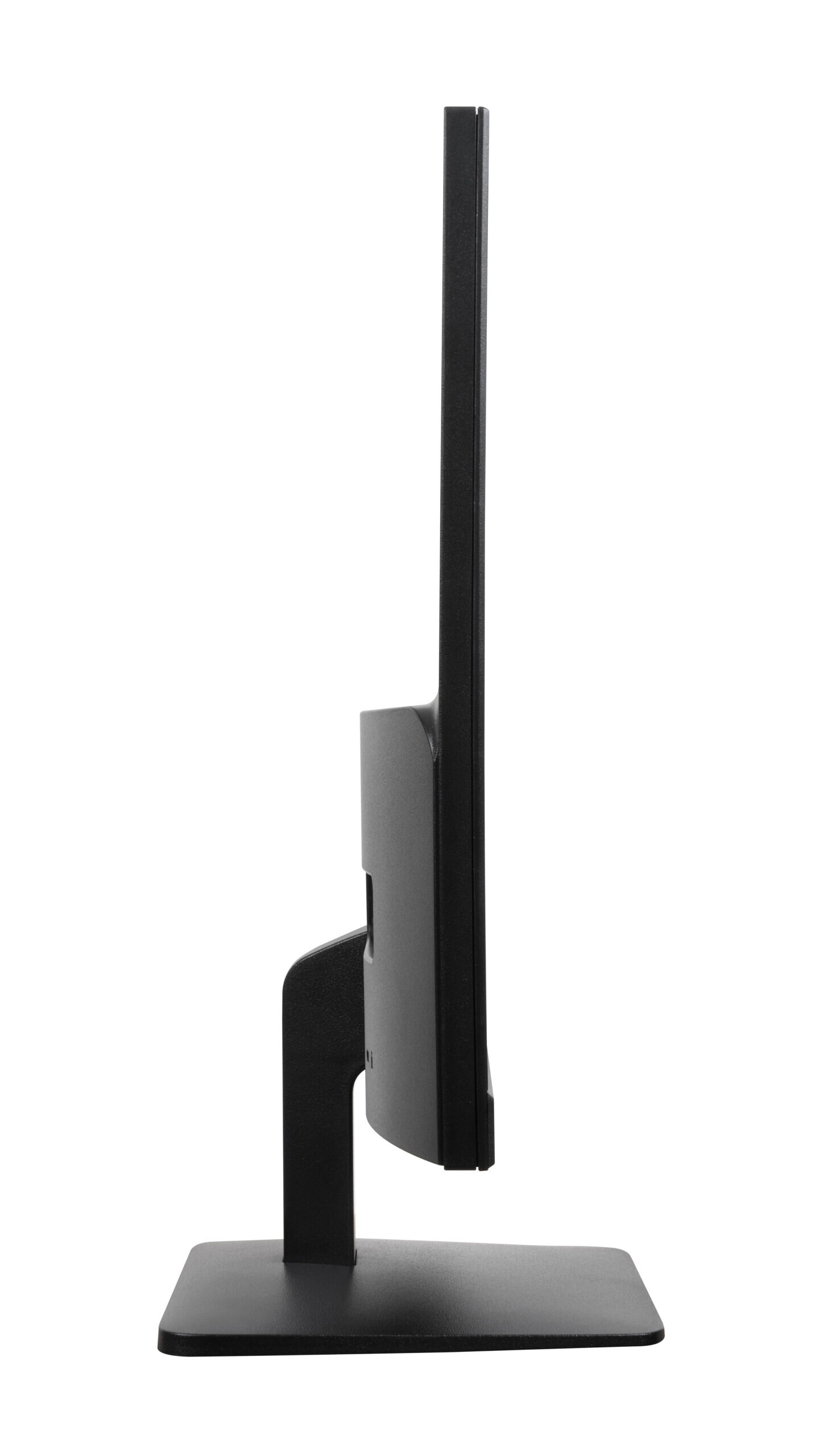

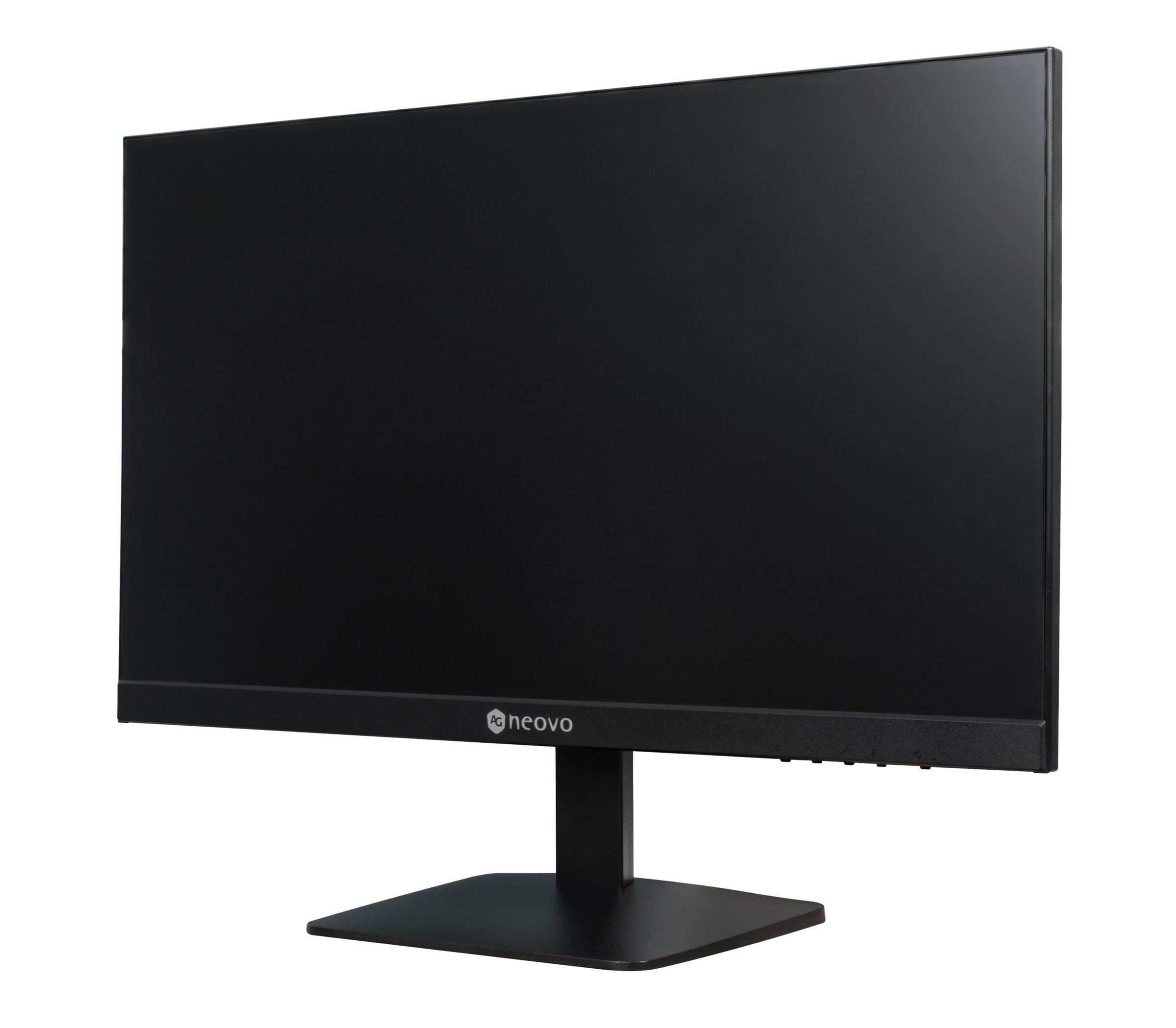

The LA-2203 is a 22-inch monitor built on a 21.5" IPS panel with FHD 1920 x 1080 (16:9) resolution, 250 cd/m² brightness and a 20,000,000:1 (DCR) dynamic contrast ratio. Its 178/178 viewing angles keep colours and detail consistent from any direction, response time is 5 ms and 16.7M colours are reproduced. A blue light filter and flicker-free backlight reduce eyestrain over long sessions, while the surface carries anti-glare treatment (Haze 25%) with 3H hard coating. Connectivity covers HDMI, VGA and Audio, and integrated speakers handle sound. Cable management on the stand gathers the cables, and mounting options are the DMC-01, DMC-02D, DMS-01D and ES-02 desk mounts plus the PMK-01 and WMK-01 wall mounts. An HDMI cable, power adaptor and quick start guide are supplied.
- 21.5" IPS panel, FHD 1920 x 1080 (16:9)
- 250 cd/m² brightness, 20,000,000:1 (DCR) contrast
- 178/178 viewing angles, 5 ms response time
- Blue light filter and flicker-free

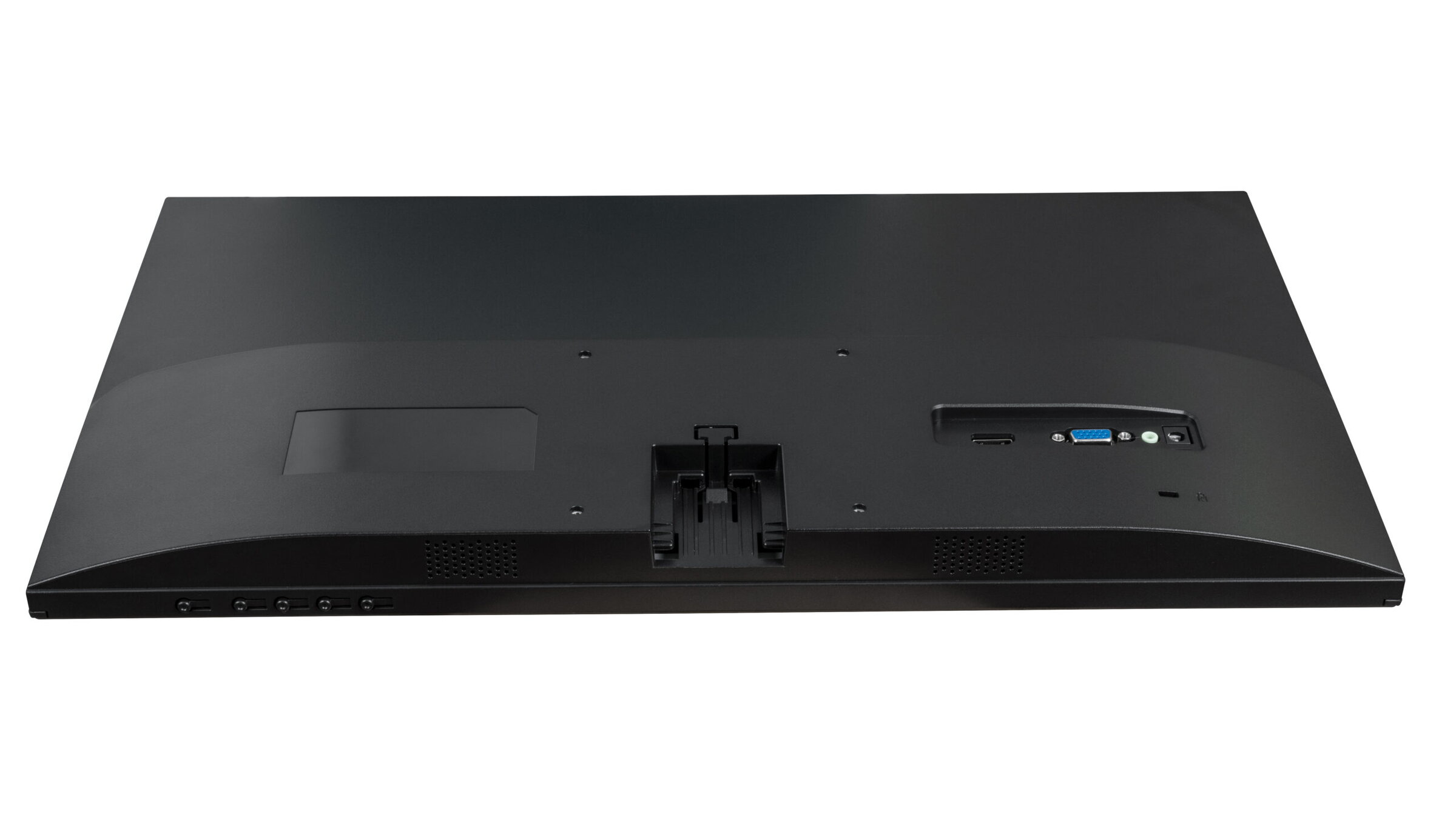

- HDMI, VGA and Audio inputs
- Integrated speakers and cable management
Made by
AG Neovo builds displays for continuous operation: surveillance monitors with 24/7 rating, metal housing and burn-in protection from 10 to 55 inches, public view monitors with a built-in camera, stretched displays for video walls, 4K digital signage, interactive smartboards with AI camera, plus workstations and mounts. Every model comes with technical data, data sheet, manual and certificates. AI4Vision is an authorised distributor; trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- Aspect Ratio
- 16:9
- Audio In
- Stereo Audio Jack (3.5 mm)
- Bezel Width
- 2.5mm (Top/Left/Right) 21.4mm(Bottom)
- Brightness
- 250 cd/m², < 350 cd/㎡
- Casing Colour
- Black
- Colour Gamut
- NTSC 72%
- Contrast Ratio
- 20,000,000:1 (DCR)
- Desk Mount
- DMC-01, DMC-02D, DMS-01D, ES-02
- Display Colour
- 16.7M
- Features
- Speaker
- Frequency (H)
- 30 kHz-85 kHz
- Frequency (V)
- 50 Hz-75 Hz
- HDMI
- 1.4 x 1
- Humidity
- 5%-90% (non-condensing), 10%-90% (non-condensing)
- Inputs
- Audio, HDMI, VGA
- Kensington Security Slot
- Yes
- Max. Resolution
- FHD 1920 x 1080
- On Mode
- 15W (On)
- On Mode (Max)
- 25W
- Operating Time (Internal)
- 24/7
- Orientation
- Landscape / Portrait
- Packaging
- 3.5 kg (7.7 lb)
- Packaging (W x H x D)
- 544.0 x 345.0 x108.0 mm (21.4” x 13.6” x 4.3”)
- Panel Size
- 21.5"
- Panel Size on Carton
- 21.5"
- Panel Type
- IPS
- Power Adaptor Certifications
- CE, WEEE
- Power Requirements
- DC 12V, 2.5A
- Power Supply
- External
- Product w/o Base
- 2.1 kg (4.5 lb)
- Product w/o Base (W x H x D)
- 491.8 x 289.5 x 37.3 mm (19.4“ x 11.4" x 1.5")
- Product with Base
- 2.3 kg (5.1 lb)
- Product with Base (W x H x D)
- 491.8 x 374.8 x 167.4 mm (19.4" x 14.7" x 6.5")
- Rear Cover Material
- Plastic
- Resolution
- FHD 1920 x 1080 (16:9)
- Response Time
- 5 ms
- Sizes
- 22"-28"
- Standby Mode
- < 0.5W
- Supplied
- HDMI Cable, Power Adaptor, Quick Start Guide
- Surface Treatment
- Anti-Glare Treatment (Haze 25%), 3H Hard Coating
- Temperature
- -20°C-60°C (-4°F-140°F), 0°C-40°C (32°F-104°F)
- VGA
- 15-Pin D-Sub x 1
- Viewing Angle (H/V)
- 178°/178°
- Viewing Angles
- 178/178
- Visibility
- Blue Light Filter, Flicker-Free
- Wall Mount
- PMK-01, WMK-01
