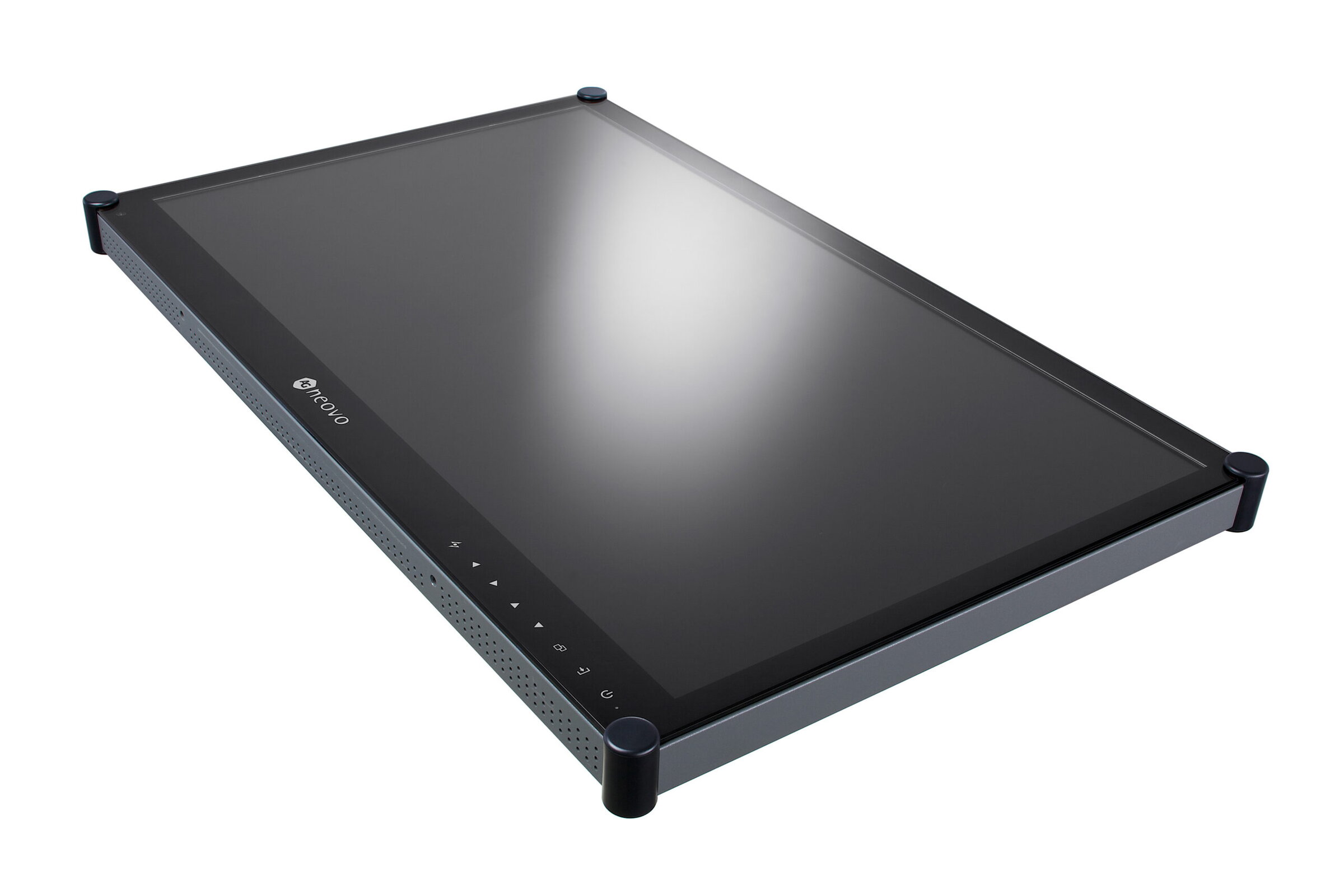

24-Inch SDI Monitor for Surveillance
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- AG-Neovo
- Article number
- HX-2402
- EAN / GTIN
- 4710739598209
Description
The HX-2402 is a 24-inch SDI monitor for surveillance use with a 0.275mm pixel pitch and a 5ms response time. One BNC input and one BNC output each for SDI and Composite allow camera signals to be displayed and looped through, covering SD-SDI at 480i @60fps and 576i @50fps, HD-SDI at 720p and 1080p, and 3G-SDI at 1080p @50/60fps with a transmission rate above 97%. Audio arrives through a 3.5 mm stereo jack and RCA, while control runs over RS232 on a 2.5 mm phone jack. The stand tilts from 3° to 21°, wall mounting uses the 100 x 100 mm and 75 x 75 mm VESA patterns, and the HDL-02 handle is available. Without its base the monitor measures 562.4 x 352.6 x 56.2 mm, weighs 7.0 kg (15.4 lb) and draws 18W when on.
- 24-inch SDI monitor for surveillance

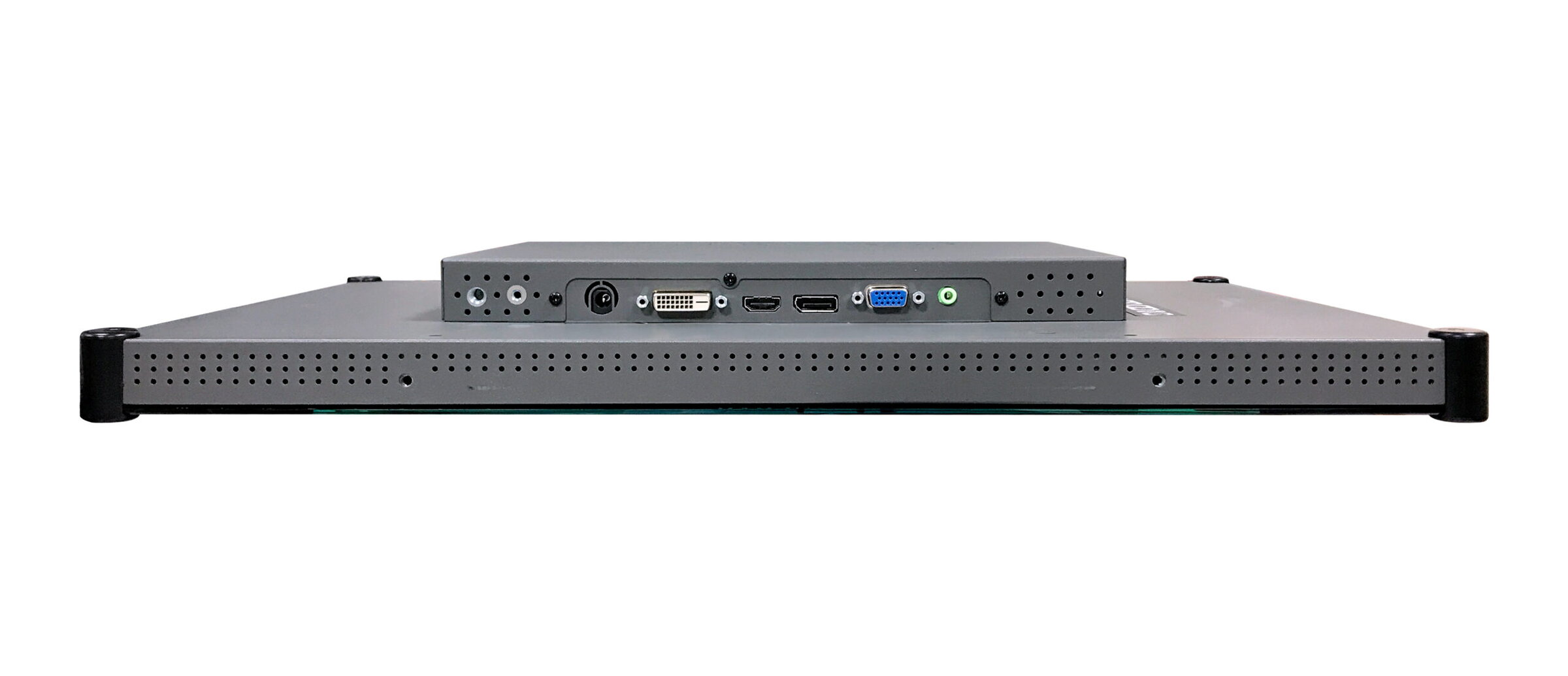

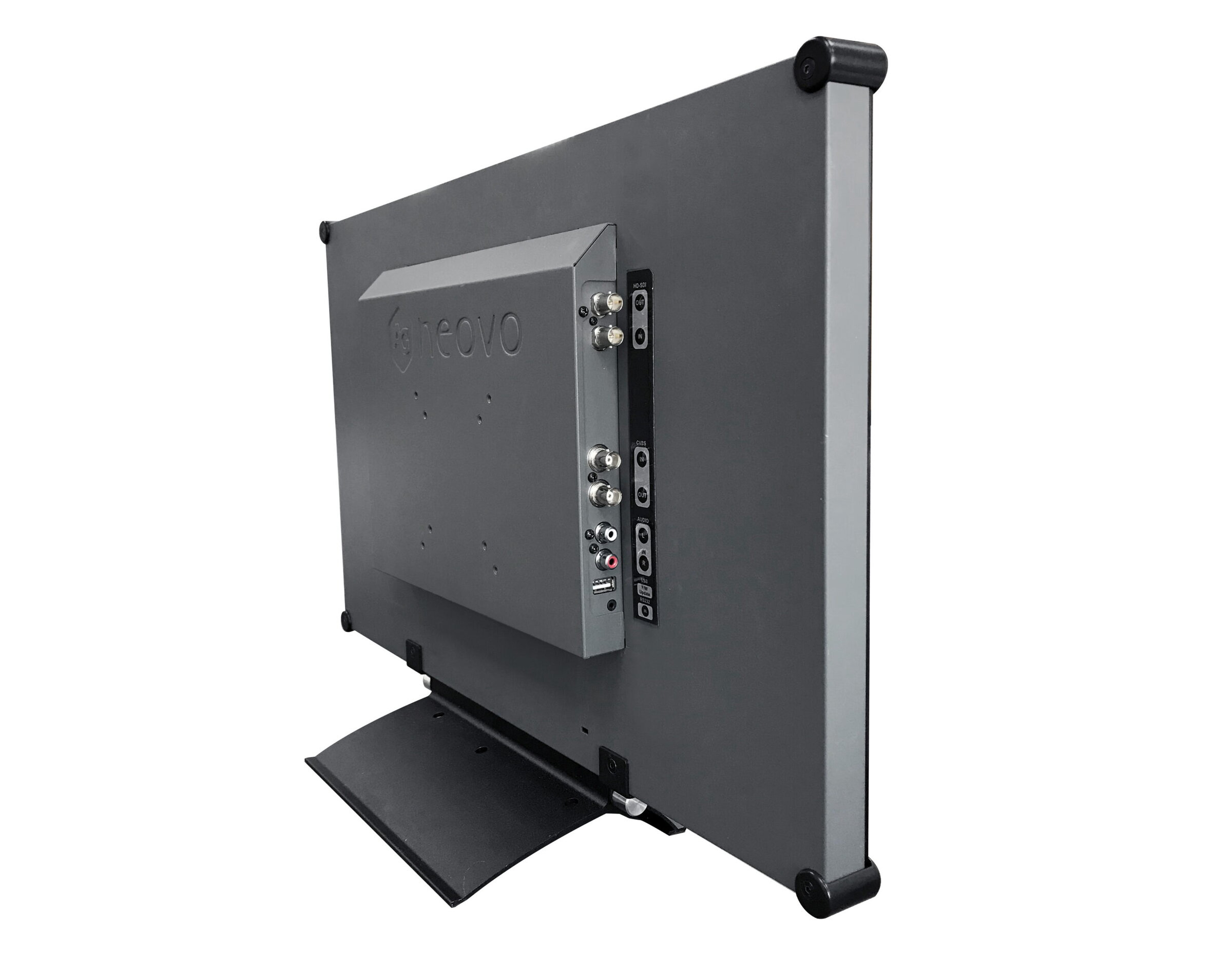

- SDI and Composite, BNC x 1 in and out
- 3G-SDI 1080p @50/60fps, HD-SDI, SD-SDI
- Transmission rate > 97%, 5ms response time
- Tilt 3° to 21°, VESA 100 x 100 mm and 75 x 75 mm
- 18W power draw when on
Made by
AG Neovo builds displays for continuous operation: surveillance monitors with 24/7 rating, metal housing and burn-in protection from 10 to 55 inches, public view monitors with a built-in camera, stretched displays for video walls, 4K digital signage, interactive smartboards with AI camera, plus workstations and mounts. Every model comes with technical data, data sheet, manual and certificates. AI4Vision is an authorised distributor; trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- 3G-SDI
- 1080p @50/60fps
- Anti-Burn-in
- Yes
- Aspect Ratio
- 16:9
- Audio In
- Stereo Audio Jack (3.5 mm), Stereo Audio Jack (RCA)
- Brightness
- 300 cd/m²
- Casing Colour
- Black
- Composite
- BNC x 1
- Frequency (H)
- 24 kHz-83 kHz
- Frequency (V)
- 50 Hz-75 Hz
- HD-SDI
- 720p @25/30/50/60fps, 1080p @24/25/30/50/60fps 1080i @50/60fps
- Handle
- HDL-02
- Humidity
- 5%-95% (non-condensing)
- IK Rating
- IK10 (Metal casing)
- IP Rating
- Front-Sided IP65
- On Mode
- 18W (On)
- Operating Time (Internal)
- 24/7
- Orientation
- Landscape / Portrait
- Packaging
- 10.5 kg (23.1 lb)
- Packaging (W x H x D)
- 672.0 x 517.0 x 249.0 mm (26.5" x 20.4" x 9.8")
- Panel Size on Carton
- 23.8"
- PbP
- Yes
- Pencil Hardness
- 9H
- PiP
- Yes
- Pixel Pitch
- 0.275mm
- Power Adaptor Certifications
- CE, cUL/UL, RCM, WEEE, KCC, BSMI
- Product w/o Base
- 7.0 kg (15.4 lb)
- Product w/o Base (W x H x D)
- 562.4 x 352.6 x 56.2 mm (22.1" x 13.9" x 2.2")
- Product with Base (W x H x D)
- 562.4 x 392.8 x 196.0 mm (22.1" x 15.4" x 7.7")
- RS232 In
- 2.5 mm Phone Jack
- Rear Cover Material
- Metal
- Response Time
- 5ms
- SD-SDI
- 480i @60fps, 576i @50fps
- SDI
- BNC x 1
- Temperature
- -5°C-45°C (23°F-113°F), -20°C-60°C (-4°F-144°F)
- Tilt
- 3° to 21°
- Transmission Rate
- > 97%
- VESA FPMPMI
- Yes (100 x 100 mm & 75 x 75 mm)
