27” AI PVM Monitor (Non PIP/PBP)
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SMT-2721PV
- EAN / GTIN
- 8801089232045
- Weight
- 11 kg
- Dimensions (W×H×D)
- 750 × 194 × 551 mm
Description

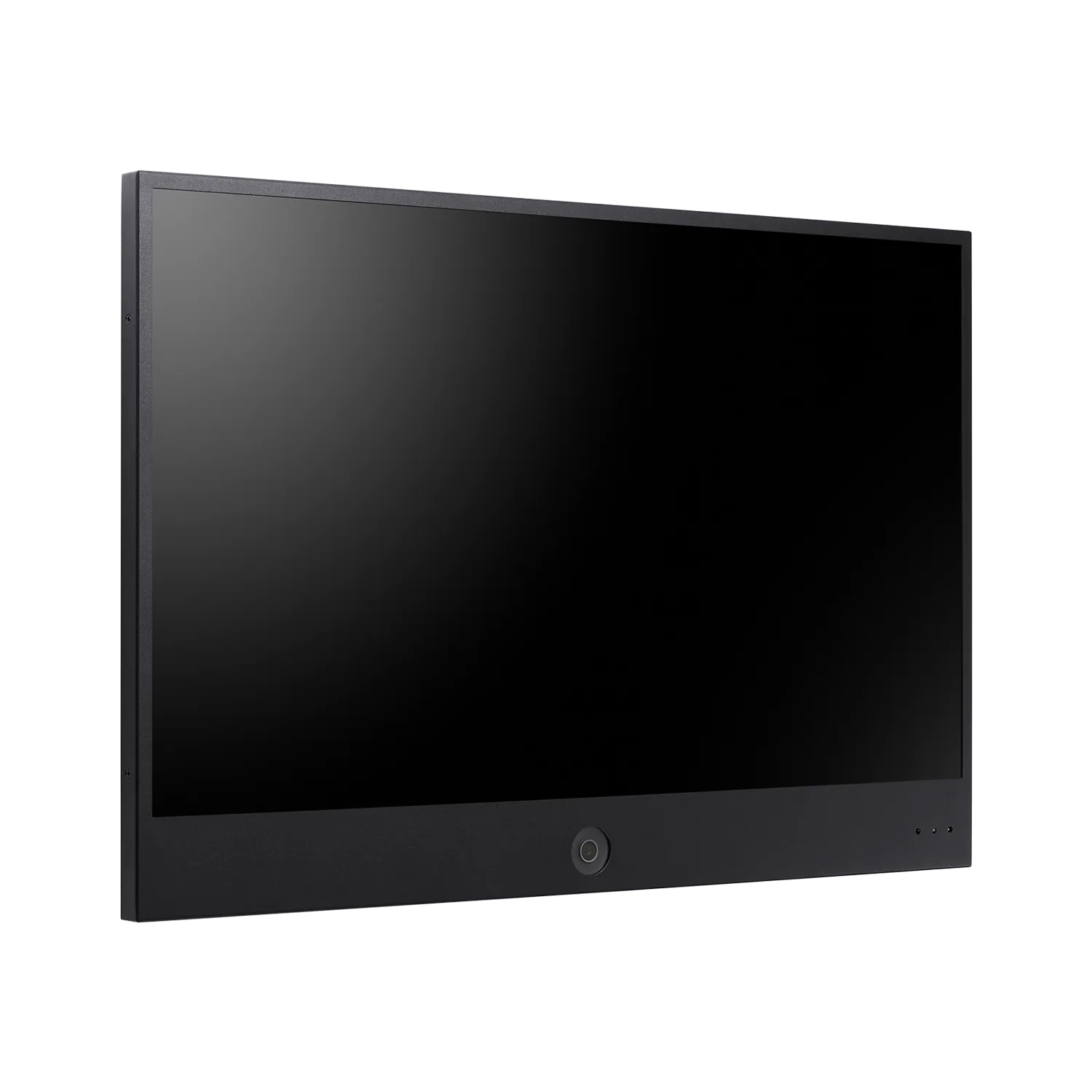

The SMT-2721PV is a 27-inch public view monitor with an integrated 2 MP AI camera (f1.6) and a Full HD panel at 1920x1080. Rated figures are 300 cd/m2, a 1000:1 contrast ratio, 14 ms response time, 178-degree viewing angles, 16.7 million colours and 30,000 hours of panel life. AI analytics classify objects, a face detection box is drawn on screen, and motion or events trigger the LED and audio alarm. Landscape and portrait installation are both supported, as are image slide shows that require no additional storage and a customisable text overlay preset to "Recording in progress". Besides the internal camera the monitor offers two HDMI inputs, one alarm input and output, an RJ-45 10/100BASE-T port, a micro SD slot up to 256 GB and two 8 ohm 2 W speakers, with SUNAPI and ONVIF Profile S/G/T/M for integration. It is powered by DC24V or HPoE per 802.3bt at 31 W and specified from 0 to +40 C.
- 27-inch Full HD with 2 MP AI camera
- AI object classification and analytics
- Landscape and portrait modes
- SUNAPI and ONVIF Profile S/G/T/M
- DC24V or HPoE 802.3bt, 31 W
- 300 cd/m2 brightness
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Camera (33)
- Business Intelligence
- People counting, Queue management, Heatmap based on AI engine
- Camera / Network – Application Programming Interface
- ONVIF Profile S/G/T/M, SUNAPI(HTTP API)
- Camera Backlight Compensation
- BLC, WDR, SSDR
- Camera Digital Noise Reduction
- SSNRⅤ, WiseNRⅡ(Based on AI engine)
- Camera Network authentication
- 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
- Electronic Shutter Speed
- Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
- General Memory
- 2GB RAM, 1GB Flash
- Lens Angular Field of View
- H: 107.7° / V: 59.0° / D: 126.7°
- Lens Focal Length (Zoom Ratio)
- 3.06mm fixed focal
- Lens Max. Aperture Ratio
- F1.6
- Network Smart Codec
- WiseStreamⅢ
- Operational Alarm Events
- When alarm trigger occurred, - File upload(image) : e-mail/FTP, - Notification : e-mail, - Recording : SD/SDHC/SDXC or NAS recording at event triggers, - Alarm output, - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- Operational Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational Analytics
- Classified object type: Person/Face, Attributes: Not support, Support DetectionShot, Analytics events based on AI engine, - Motion detection, Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Analytics event
- Operational Digital PTZ
- Support
- Operational Gain Control
- Low / Middle / High
- Operational LDC
- Support
- Operational Motion Detection
- 8ea, 8point Polygonal zones
- Operational Privacy Masking
- 32ea, 4point Quadrangle zones
- Operational Video Rotation
- Flip, Mirror, Hallway view(90˚/270˚)
- Operational White Balance
- ATW / AWC / Manual / Indoor / Outdoor
- Operational Wide Dynamic Range
- 120dB
- Security Access Control
- Access control based on IP address
- Security Audit
- User Access/System/Event log management
- Security Data Protect
- Authentication information encryption, ZIP compression encryption
- Security Device ID
- Device Certificate(Hanwha Private Root CA)
- Security OS / Firmware Protect
- Secure boot, Signed firmware, Firmware encryption
- Security Secure Communication
- HTTPS, SRTP, WSS(Websocket secure)
- Security Secure Storage
- SDcard partition encrypt
- Security User authentication
- Digest Authentication, Prevent brute-force attack
- Video Imaging Device
- 1/2.8" 2MP CMOS
- Video Max. Framerate
- H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG: Max. 15fps/12fps(60Hz/50Hz)
- Video Min. Illumination
- Color: 0.03Lux (F1.6, 1/30sec)
Display (10)
- Display Aspect Ratio
- 16:9
- Display Brightness
- 300 cd/m²
- Display Color
- 16.7M
- Display Contrast Ratio
- 1000:1
- Display Max. Resolution
- 1920x1080
- Display Response Time
- 14ms
- Display Screen Size
- 27inch
- Display Type
- LED Monitor
- Display Viewing Angle (H/V)
- 178°/178°
- Panel Life
- 30,000 hours
General (10)
- Dimensions without Stand
- 619x405x58mm(24.4x15.9x2.3")
- General / Electrical – Input Voltage
- DC24V, HPoE 802.3bt
- General / Electrical – Power Consumption
- 31W
- General / Environmental – Operating Humidity
- 10% ~ 80% (non-condensing)
- General / Environmental – Operating Temperature
- 0 ~ +40°C (+32°F ~ +104°F)
- General Mechanical Weight
- 8.5kg(18.7lb)
- Mechanical Cabinet Color
- Black
- Mechanical Packing Dimension
- 750x551x194mm(29.5x21.7x7.6")
- Mechanical Packing Weight
- 11.3Kg(24.9lb)

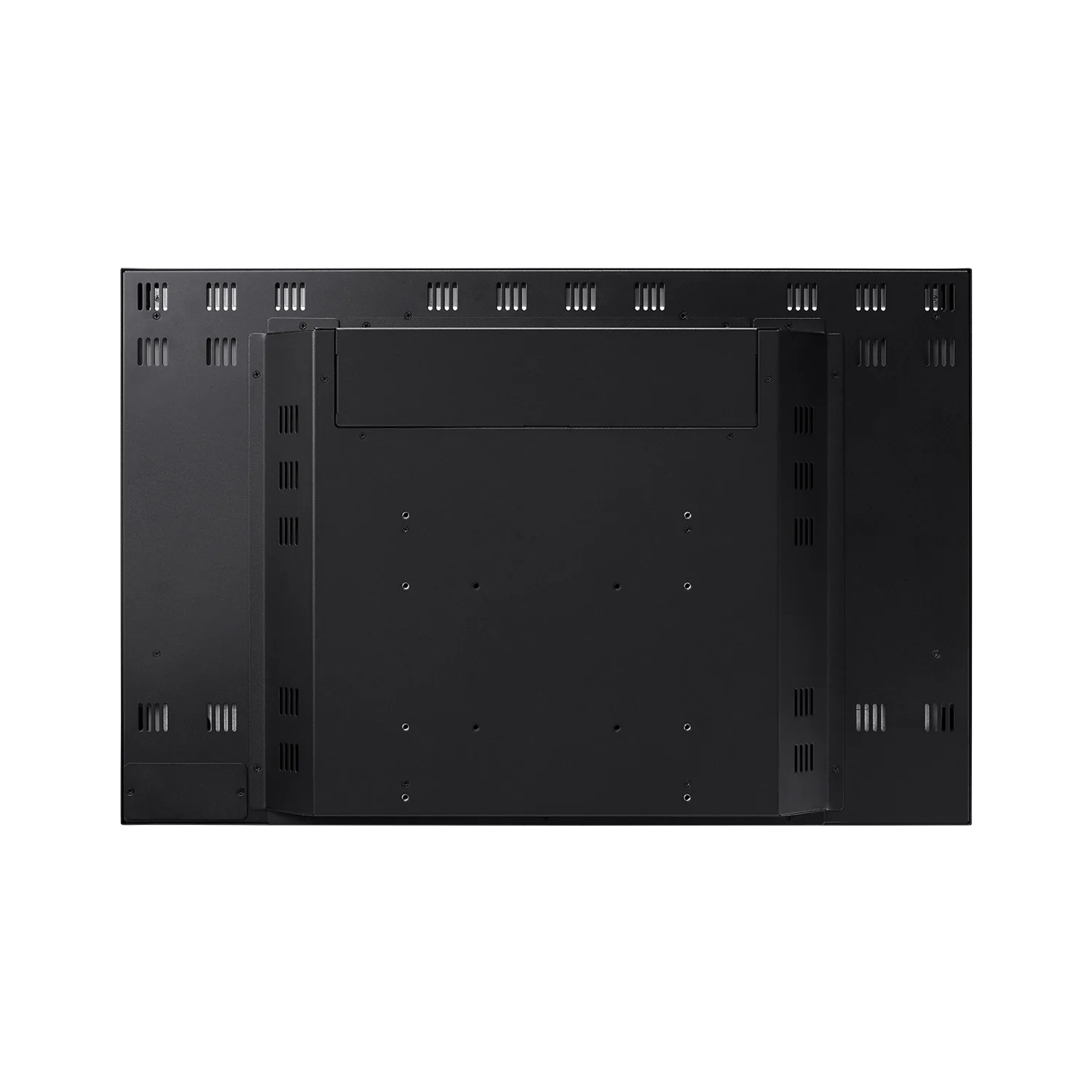

- VESA Mounts Interface
- 100x100mm, 200x100mm, 200x200mm

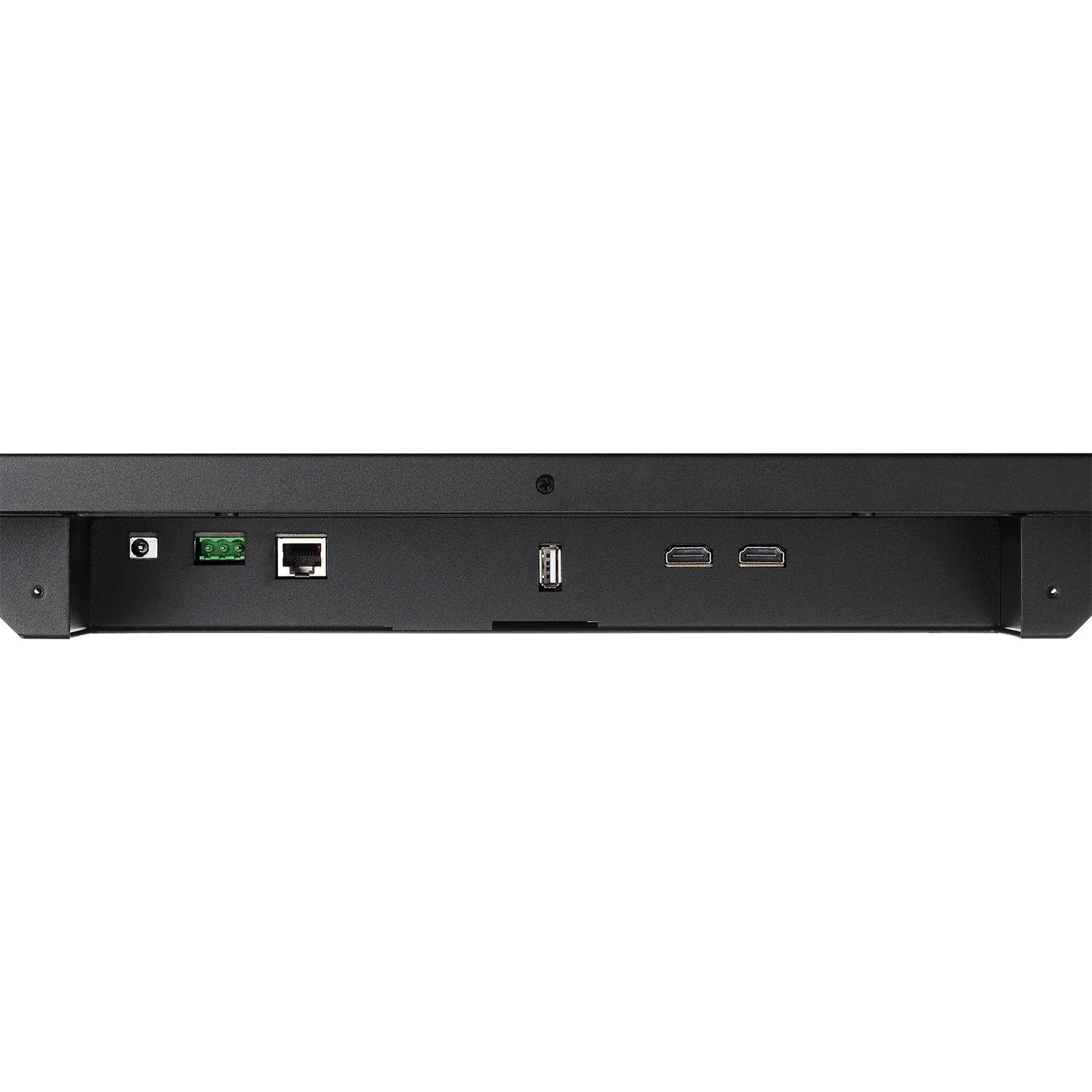

Interface (7)
- Audio Output Signal
- Speakers : 8Ω 2W x 2
- General Edge Storage
- Micro SD/SDHC/SDXC 1slot 256GB
- HDMI Available Format
- 640x480@60Hz/72Hz/75Hz, 800x600@60Hz/72Hz/75Hz, 1024x768@60Hz/75Hz, 1280x1024@60Hz/75Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1280x720p@50Hz/60Hz
- HDMI Connector
- HDMI x 2
- Interface Alarm I/O
- Input 1ea / Output 1ea
- Network Ethernet
- 1 RJ-45 10/100BASE-T
- Video Connectors
- Camera(Internal), HDMI(2)
On Screen Display (2)
- Functions
- VESA™ DPMS Compatible
- On Screen Display Language
- English, Spanish, French
