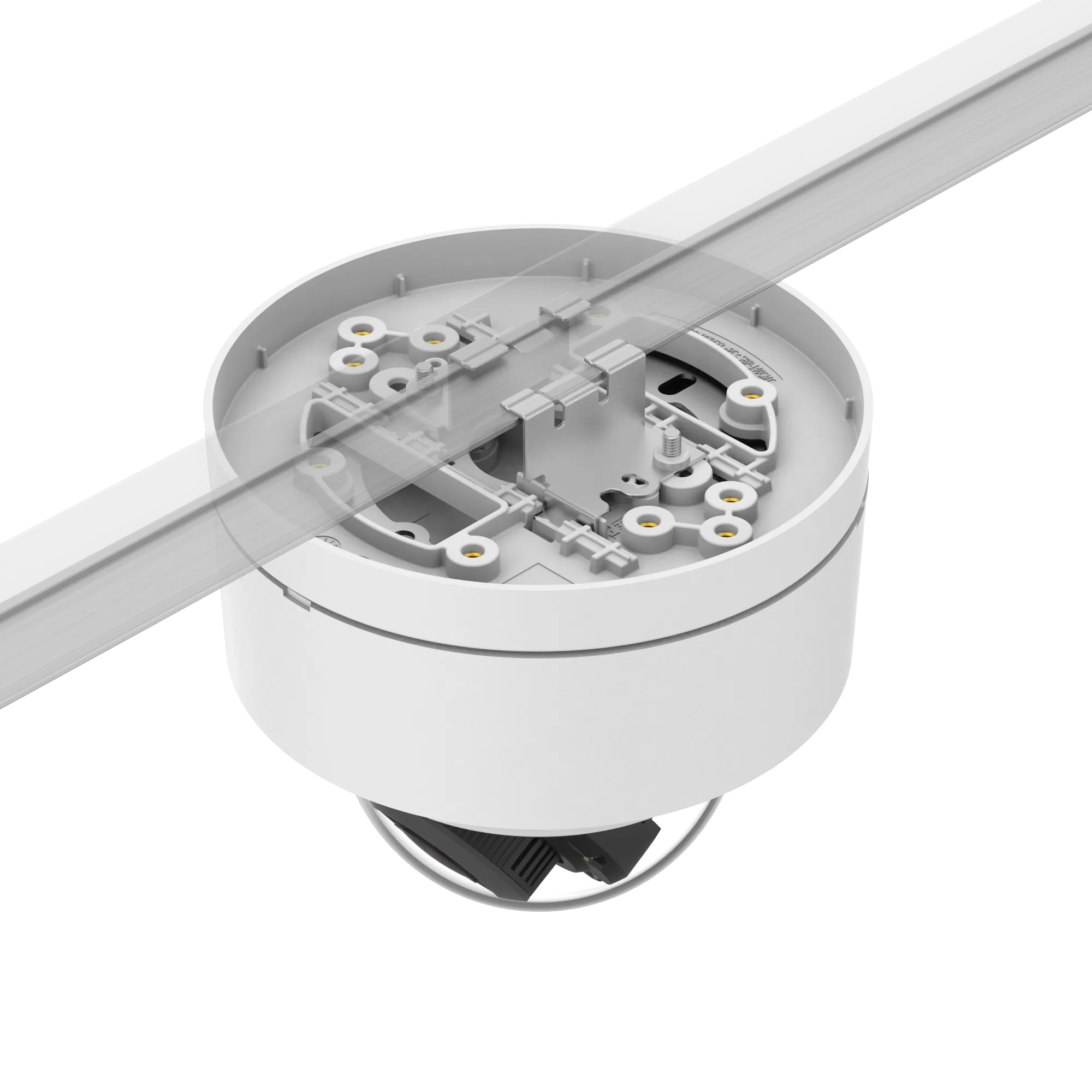

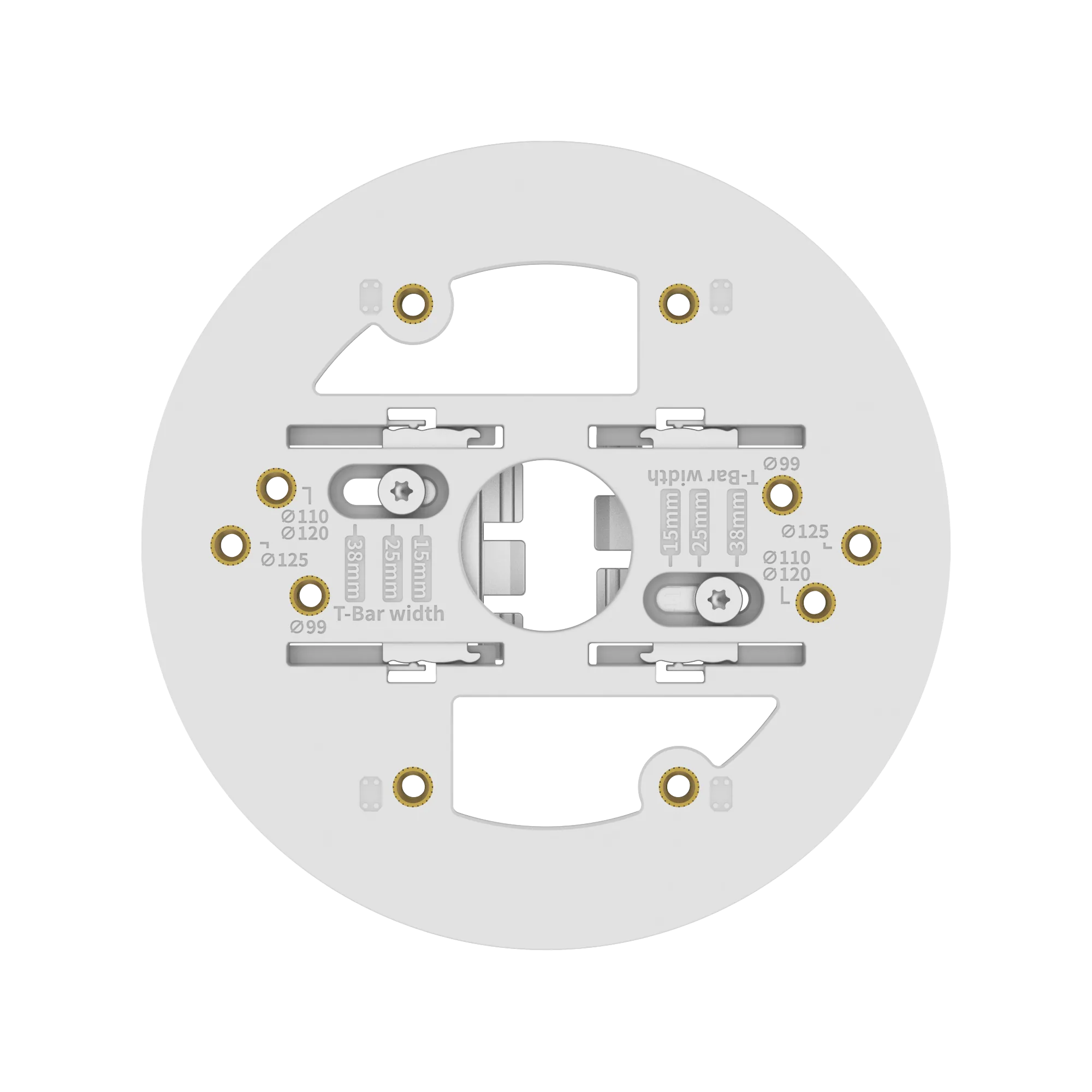

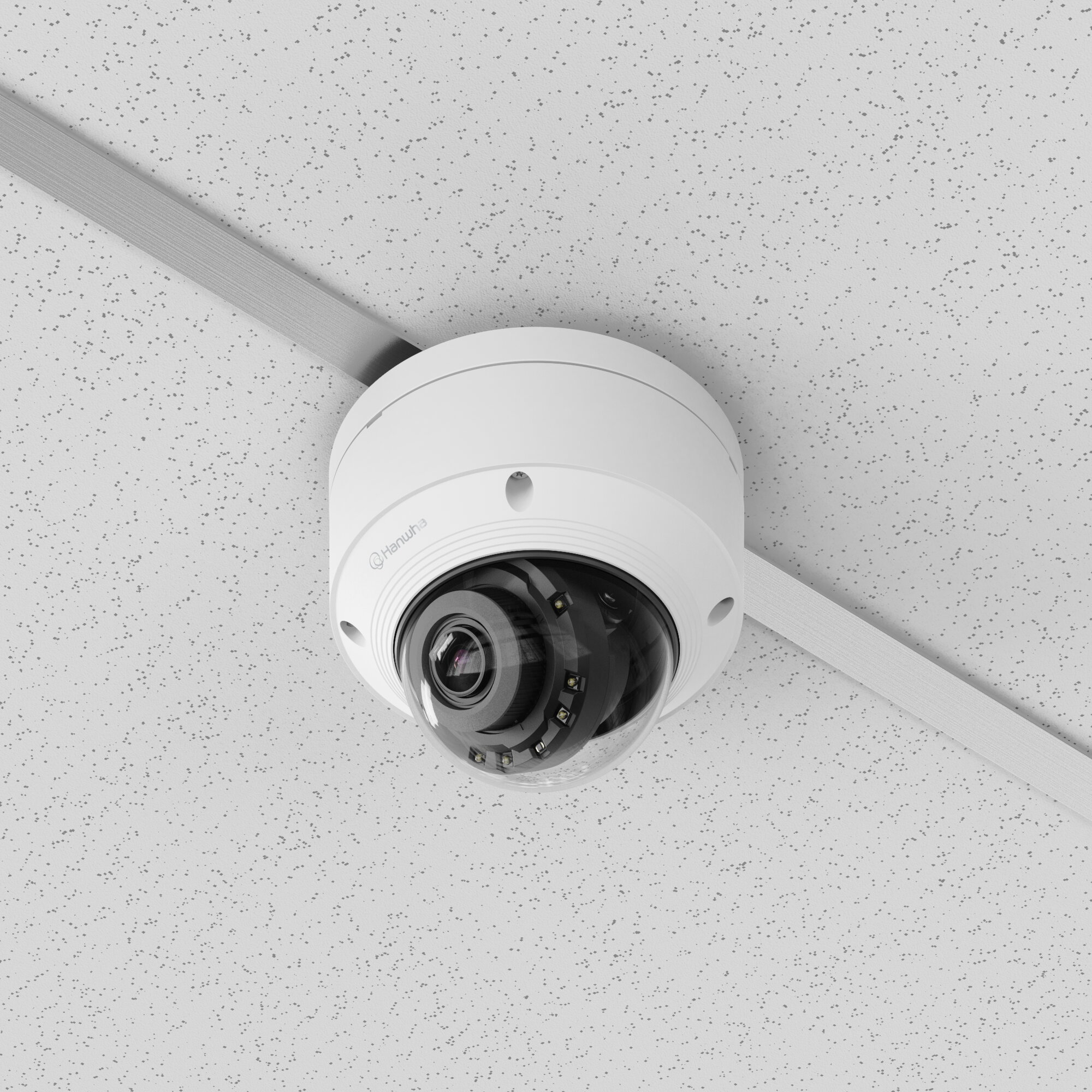

Tile Grid Ceiling Mount

The ANE-L6012R is a super-compact IR flateye camera whose 1/2.8 inch CMOS sensor captures 2 megapixels at 1920x1080. A built-in 3.0mm F1.6 lens covers 108 degrees horizontally, 59 degrees vertically and 127 degrees diagonally, with a minimum object distance of 1.1m. H.265, H.264 and MJPEG are available with multiple streaming, reaching 30fps or 25fps in H.265/H.264 and 10fps in MJPEG. Imaging relies on ICR day and night switching, 120dB WDR, SSDR, BLC and SSNR, with minimum illumination of 0.03 lux in colour and 0.003 lux in black and white. Analytics include virtual line crossing with directional detection, enter and exit, tampering and motion detection across four zones, joined by a microSD/SDHC slot up to 32GB, PoE, hallway view and WiseStream II. 2 megapixel, 1920x10803.0mm fixed lens, F1.6, 108 degrees horizontal120dB WDR, ICR day and night0.03 lux colour, 0.003 lux B/WmicroSD/SDHC up to 32GB, PoEHallway view and WiseStream II

The ANE-L7012L is a white light flateye camera built around a 1/2.8 inch CMOS sensor that produces 4 megapixels at 2560x1440. Its fixed 3mm lens works at F1.2 with a field of view of 97 degrees horizontal, 53 degrees vertical and 113 degrees diagonal from a minimum object distance of 1.1m. H.265, H.264 and MJPEG form the triple codec, reaching 30fps or 25fps while MJPEG runs at 15fps. Recording is colour only and day and night switching is electrical, supported by 120dB WDR, SSDR, BLC, SSNR and minimum illumination of 0.05 lux. Virtual areas for intrusion, enter and exit, virtual lines with direction detection, tampering and motion detection in four eight-point polygonal zones, a microSD/SDHC slot up to 32GB and PoE power complete the camera. 4 megapixel, 2560x14403mm fixed lens, F1.2, 97 degrees horizontalWhite light, colour only operation120dB WDR, 0.05 lux minimum illuminationmicroSD/SDHC up to 32GBPoE powered

The ANE-L7012R is a super-compact IR flateye camera with a 1/2.8 inch CMOS sensor recording 4 megapixels at 2560x1440. Its built-in 3mm F1.6 lens takes in 99 degrees horizontally, 55 degrees vertically and 115 degrees diagonally from a minimum object distance of 1.1m. H.265 and H.264 run at 30fps or 25fps, MJPEG at 15fps, and multiple streaming is supported. Difficult lighting is addressed by ICR day and night switching, 120dB WDR, SSDR, BLC and SSNR, with minimum illumination of 0.13 lux in colour and 0.013 lux in black and white. Defocus, directional and motion detection across four zones, enter and exit, tampering, a microSD/SDHC slot up to 32GB, PoE, hallway view and WiseStream II complete the unit. 4 megapixel, 2560x14403mm fixed lens, F1.6, 99 degrees horizontal120dB WDR, ICR day and night0.13 lux colour, 0.013 lux B/WDefocus, directional and tampering detectionmicroSD/SDHC up to 32GB, PoE

The PND-A7082RV is a modular indoor dome camera with infrared illumination and AI functions, its 1/1.8-inch CMOS sensor recording 4 megapixels up to 2592x1520. H.265 and H.264 manage 60fps at 60Hz or 50fps at 50Hz with WDR off, and 30fps or 25fps with WDR on, while MJPEG reaches 30fps and a maximum of 5fps at 4MP. The varifocal lens works from 4.6 to 9.35mm with 2.0x optical zoom, opening to F1.3 at wide angle and F2.15 at telephoto and covering 105° to 47° horizontally, 58° to 27° vertically and 128° to 55° diagonally. Focusing is by simple focus through an IR-corrected P iris from a minimum object distance of 1.5m. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with an automatic ICR filter managing day and night operation. Alignment covers 0° to 350° pan, -45° to 85° tilt and 0° to 355° rotation, and a USB Type C port is provided for preview during installation. 4 megapixel resolution up to 2592x15204.6 to 9.35mm varifocal lens with 2.0x zoomUp to 60/50fps with WDR off, 30/25fps with WDR on0.03 lux in colour, 0.003 lux in black and whiteSimple focus with IR-corrected P iris0° to 350° pan and -45° to 85° tilt

The PND-A9082RV is a modular 8MP indoor dome camera with AI and IR support. Its 1/1.2-inch CMOS sensor resolves a maximum of 3840x2160 pixels; H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) while MJPEG runs at 30fps, dropping to a maximum of 5fps at 8MP. The motorised lens covers 5.9 to 13.3 mm with 2.25x optical zoom, opens to F1.5 wide and F2.9 tele, and delivers a horizontal field of view between 109° and 49°. Minimum illumination is specified as 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR switching. Pan from 0° to 360°, tilt from -45° to 85°, rotation from 0° to 355° and a 0.8 m minimum object distance complete the mechanical data. 1/1.2-inch CMOS sensorUp to 3840x2160 resolution5.9-13.3 mm lens, 2.25x optical0.015 lux colour / 0.0015 lux BWP iris, IR correctedAutomatic day and night (ICR)

The QNV-C8011R is a compact vandal dome delivering up to 2592x1944 pixels from a 1/2.8 inch CMOS sensor. A fixed 3 mm lens with F1.6, fixed iris and M12 mount takes in 100° horizontally, 73° vertically and 129° diagonally from a minimum object distance of 0.5 m. H.265 and H.264 run at 30 fps on 60 Hz or 25 fps on 50 Hz, MJPEG reaches 30 fps and falls to 5 fps at 5 MP, and up to five streaming profiles can run side by side. Stated figures include 0.03 lux in colour, 0.003 lux in black and white, an IR viewable length of 20 m, 120 dB WDR, BLC, SSDR and automatic ICR day and night switching. WiseNR II and WiseStream III both draw on the AI engine, and the dome bubble is hard coated. Storage uses one Micro SD/SDHC/SDXC slot for up to 256 GB, and the housing is rated IP66, IK10 and NEMA4X. Fixed 3 mm lens, F1.6, M12 mountUp to 2592x1944 pixels, 30/25 fpsIR viewable length 20 mWiseNR II and WiseStream III on the AI engineIP66, IK10, NEMA4X, hard coated dome bubbleMicro SD/SDHC/SDXC up to 256 GB

The QNV-C8012 is a compact AI vandal dome with a 1/2.8 inch CMOS sensor and a maximum resolution of 2592x1944 pixels. Its fixed 2.4 mm lens with F2.0, fixed iris and M12 mount opens the view to 123° horizontally, 91° vertically and 159° diagonally, starting from an object distance of 0.5 m. H.265, H.264 and MJPEG are supported at 30 fps on 60 Hz or 25 fps on 50 Hz, with MJPEG at 30 fps and no more than 5 fps at 5 MP. Five streaming profiles can be configured in parallel. For dim scenes the camera is rated at 0.05 lux in colour and 0.005 lux in black and white, backed by 120 dB WDR, BLC, SSDR and ICR controlled day and night switching. Recordings go to a Micro SD/SDHC/SDXC slot holding up to 256 GB. Fixed 2.4 mm lens, F2.0, M12 mount123° horizontal and 159° diagonal field of viewUp to 2592x1944 pixels, 30/25 fps0.05 lux colour, 0.005 lux black and white120 dB WDR, BLC, SSDRMicro SD/SDHC/SDXC up to 256 GB

The QNV-C8083R is a vandal resistant dome offering up to 2592x1944 pixels and a motorised varifocal lens from 3.2 to 10.2 mm with 3.2x optical zoom. Aperture ranges from F1.6 at wide to F3.1 at tele, and the field of view spans 95° to 29° horizontally, 69° to 21° vertically and 126° to 36° diagonally, focused by Simple Focus through an IR corrected DC auto iris from 1.2 m. H.265, H.264 and MJPEG are on board, the first two at up to 30 fps at 5 MP and MJPEG at 30 fps, limited to 5 fps at 5 MP. Minimum illumination is stated as 0.07 lux in colour and 0.007 lux in black and white, and IR reaches 30 m. WiseNR II and WiseStream III use the AI engine, joined by 120 dB WDR and ICR switching. The dome bubble is hard coated, with up to five streaming profiles and a Micro SD slot for 256 GB. Motorised varifocal 3.2 to 10.2 mm, 3.2xF1.6 wide, F3.1 tele, Simple FocusIR viewable length 30 m0.07 lux colour, 0.007 lux black and white120 dB WDR, WiseNR II, WiseStream IIIMicro SD/SDHC/SDXC up to 256 GB

With 3840x2160 pixels on a 1/2.8 inch CMOS sensor, the QNV-C9011R is a compact 8 MP vandal dome. Its fixed 3 mm lens with F1.6, fixed iris and M12 mount captures 108° horizontally, 59° vertically and 127° diagonally from an object distance of 0.5 m. H.265 and H.264 work at 30 fps on 60 Hz or 25 fps on 50 Hz, MJPEG at 30 fps and up to 5 fps at 8 MP, and five streaming profiles can be issued at once. Rated light levels are 0.03 lux in colour and 0.003 lux in black and white, supported by 120 dB WDR, BLC, SSDR and automatic ICR day and night switching. Pan covers 0° to 350°, tilt -35° to 70° and rotation 0° to 355°. One Micro SD/SDHC/SDXC slot accepts up to 256 GB. 3840x2160 pixels on a 1/2.8 inch CMOS sensorFixed 3 mm lens, F1.6, M12 mount108° horizontal and 127° diagonal field of view0.03 lux colour, 0.003 lux black and white120 dB WDR, BLC, SSDRMicro SD/SDHC/SDXC up to 256 GB

The QNV-C9083R records at 3840x2160 pixels and combines its 1/2.8 inch CMOS sensor with a motorised varifocal lens from 3.2 to 10.2 mm at 3.2x optical zoom. Aperture sits between F1.6 at wide and F3.1 at tele, while the angle of view moves from 104° to 31° horizontally, 55° to 17° vertically and 124° to 35° diagonally. Simple Focus and the IR corrected DC auto iris operate from a minimum object distance of 1.2 m. H.265 and H.264 manage 30 fps on 60 Hz or 25 fps on 50 Hz, MJPEG reaches 30 fps and 5 fps at 8 MP, and up to five streaming profiles can run in parallel. Low light performance is quoted at 0.06 lux in colour and 0.006 lux in black and white, with 120 dB WDR and ICR switching alongside. Footage is stored on a Micro SD/SDHC/SDXC card of up to 256 GB. 3840x2160 pixels, up to 30/25 fpsMotorised varifocal 3.2 to 10.2 mm, 3.2xF1.6 wide, F3.1 tele, Simple Focus0.06 lux colour, 0.006 lux black and white120 dB WDR, ICR day and night switchingMicro SD/SDHC/SDXC up to 256 GB

The XND-A6084RV is a 2MP AI IR dome camera using a 1/2.8" CMOS sensor with a maximum resolution of 1920x1080. A motorised 2.8 to 12 mm varifocal lens supplies 4.3x optical zoom with an IR-corrected P iris and apertures from F1.4 wide to F3.6 tele, covering 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from 0.5 m. H.265 and H.264 support 60fps/50fps (60Hz/50Hz) while MJPEG stays at 30fps, and minimum illumination is given as 0.02 lux in colour and 0.002 lux in black-and-white. Day and night switching is automatic via ICR, and focus can be set through simple focus or manually. Alignment covers 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, with a USB Type C connection for preview and installation. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, 4.3xIR-corrected P iris, F1.4 to F3.660fps/50fps in H.265 and H.2640.02 lux colour, 0.002 lux B/W0°–360° pan, 0°–75° tilt

The XND-A8084RV is a 5MP AI IR dome camera that resolves up to 2560x1920 from a 1/2.8" CMOS sensor. Its motorised 3.3 to 9.3 mm varifocal lens provides 2.8x optical zoom with an IR-corrected P iris, F1.3 at the wide end and F2.3 at tele, giving 99° to 31° horizontally, 71° to 23° vertically and 133° to 39° diagonally from 0.5 m. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, dropping to a maximum of 5fps at 5MP. Minimum illumination is 0.04 lux in colour and 0.004 lux in black-and-white, and day and night switching is automatic via ICR. Focus is available as simple focus or manual, alignment spans 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and a USB Type C port serves preview and installation. 1/2.8" CMOS, up to 2560x1920Motorised 3.3–9.3 mm varifocal lens, 2.8xIR-corrected P iris, F1.3 to F2.330fps/25fps in H.265 and H.2640.04 lux colour, 0.004 lux B/W0°–360° pan, 0°–75° tilt

The XND-A8085RV is a modular 5MP AI IR dome camera built on a 1/2.8" CMOS sensor with a top resolution of 2560x1920. A motorised 3.3 to 9.3 mm varifocal lens with 2.8x zoom and an IR-corrected P iris works at F1.3 wide and F2.3 tele, covering 99° to 31° horizontally, 71° to 23° vertically and 133° to 39° diagonally from a 0.5 m minimum object distance. Frame rates are 30fps/25fps (60Hz/50Hz) in H.265 and H.264, with MJPEG at 30fps and a maximum of 5fps at 5MP. Minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black-and-white, and an ICR handles day and night switching automatically. A tilt range of -45° to 85° together with 0° to 360° pan and 0° to 355° rotation allows flexible alignment, and focusing is by simple focus. Modular design, 5MPMotorised 3.3–9.3 mm varifocal lens, 2.8xIR-corrected P iris, F1.3 to F2.3Tilt range -45° to 85°0.04 lux colour, 0.004 lux B/WICR day and night switching

The XND-A9084RV is an 8MP AI IR dome camera whose 1/1.8" CMOS sensor delivers up to 3840x2160. Its motorised 4.4 to 9.3 mm varifocal lens gives 2.1x optical zoom with an IR-corrected P iris, F1.3 at the wide end and F2.15 at tele, taking in 113° to 47° horizontally, 58° to 26° vertically and 138° to 54° diagonally from 0.5 m. H.265 and H.264 reach 30fps/25fps (60Hz/50Hz), while MJPEG runs at 30fps and a maximum of 5fps at 8MP. Minimum illumination is quoted as 0.04 lux in colour and 0.004 lux in black-and-white, and day and night switching is automatic via ICR. Focus can be set by simple focus or manually, and alignment covers 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation. 1/1.8" CMOS, up to 3840x2160Motorised 4.4–9.3 mm varifocal lens, 2.1xIR-corrected P iris, F1.3 to F2.1530fps/25fps in H.265 and H.2640.04 lux colour, 0.004 lux B/W0°–360° pan, 0°–75° tilt

In a modular design, the XND-A9085RV is an 8MP AI IR dome camera delivering up to 3840x2160 from a 1/1.8" CMOS sensor. Its motorised 4.4 to 9.3 mm varifocal lens works with 2.1x zoom, an IR-corrected P iris, F1.3 wide and F2.15 tele, covering 113° to 47° horizontally, 58° to 26° vertically and 138° to 54° diagonally, with a minimum object distance of 0.5 m. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, limited to 5fps at 8MP. Minimum illumination is given as 0.04 lux in colour and 0.004 lux in black-and-white, and an ICR performs day and night switching. Tilt ranges from -45° to 85°, complemented by 0° to 360° pan and 0° to 355° rotation, and focusing is by simple focus. Modular design, 8MP1/1.8" CMOS, up to 3840x2160Motorised 4.4–9.3 mm varifocal lens, 2.1xIR-corrected P iris, F1.3 to F2.15Tilt range -45° to 85°0.04 lux colour, 0.004 lux B/W

The XND-C6083RV is a 2MP AI IR dome camera whose 1/2.8" CMOS sensor outputs a maximum of 1920x1080. A motorised 2.8 to 12 mm varifocal lens opens from F1.4 wide to F3.6 tele and takes in 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from a 0.5 m minimum object distance. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) while MJPEG stays at 30fps, and minimum illumination is stated as 0.01 lux in colour and 0.001 lux in black-and-white. Image conditioning offers BLC, HLC, WDR and SSDR alongside automatic ICR day and night switching. Focus is available as simple focus or manual, alignment spans 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and preview and installation run over Micro USB Type B. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, F1.4 to F3.660fps/50fps in H.265 and H.2640.01 lux colour, 0.001 lux B/WBLC, HLC, WDR and SSDR0°–360° pan, 0°–75° tilt

The XND-C7083RV is a 4 megapixel AI IR dome camera reaching 2592x1520 on a 1/2.8" CMOS sensor. A motorised 2.8 to 10 mm varifocal lens supplies 3.6x optical zoom, F1.4 at the wide end and F3.0 at tele, with a field of view of 110° to 30° horizontally, 61° to 17° vertically and 132° to 35° diagonally from 0.5 m. H.265 and H.264 run at 60fps/50fps (60Hz/50Hz) with WDR off and 30fps/25fps with WDR on, while MJPEG delivers 30fps and a maximum of 5fps at 4MP. Minimum illumination is 0.038 lux in colour and 0.0038 lux in black-and-white, and day and night switching is automatic via ICR. Focus can be set by simple focus or manually, and the camera aligns across 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation. 1/2.8" CMOS, up to 2592x1520Motorised 2.8–10 mm varifocal lens, 3.6xF1.4 wide to F3.0 tele aperture60fps/50fps WDR off, 30fps/25fps WDR on0.038 lux colour, 0.0038 lux B/WICR day and night switching

The XND-C8083RV is a 6MP AI IR dome camera combining a 1/1.8" CMOS sensor with a motorised 4.4 to 9.3 mm varifocal lens offering 2.1x optical zoom. Its IR-corrected P iris works at F1.3 wide and F2.15 tele, the field of view spans 113° to 47° horizontally, 58° to 26° vertically and 138° to 54° diagonally, and the minimum object distance is 0.5 m. H.265 and H.264 provide 30fps/25fps (60Hz/50Hz) while MJPEG runs at 30fps and a maximum of 5fps at 6MP. Minimum illumination is given as 0.04 lux in colour and 0.004 lux in black-and-white, with an ICR switching automatically between day and night. Focus is by simple focus or manual, alignment covers 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and preview and installation use Micro USB Type B. 1/1.8" CMOS, 6MPMotorised 4.4–9.3 mm varifocal lens, 2.1xIR-corrected P iris, F1.3 to F2.1530fps/25fps in H.265 and H.2640.04 lux colour, 0.004 lux B/W0°–360° pan, 0°–75° tilt

Built around a 1/1.8" CMOS imager, the XND-C9083RV dome records at up to 3840x2160. Encoding runs at 30fps/25fps (60Hz/50Hz) for H.265 and H.264, while MJPEG reaches 30fps and is limited to 5fps at 8MP. The lens covers 4.4~9.3 mm with 2.1x optical zoom, giving 113°~47° horizontally, 58°~26° vertically and 138°~54° diagonally; it is a P iris type with IR correction and a minimum object distance of 0.5 m. Minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black and white (1/30 sec, 30 IRE), with automatic ICR day and night switching. Alignment ranges are 0°~360° pan, 0°~75° tilt and 0°~355° rotate, and focus is set by simple focus or manually. 1/1.8" CMOS sensorUp to 3840x21604.4~9.3 mm, 2.1x optical zoomP iris lens, IR corrected0.04 lux colour / 0.004 lux B/WAuto ICR day and night
