8MP AI IR Vandal Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories

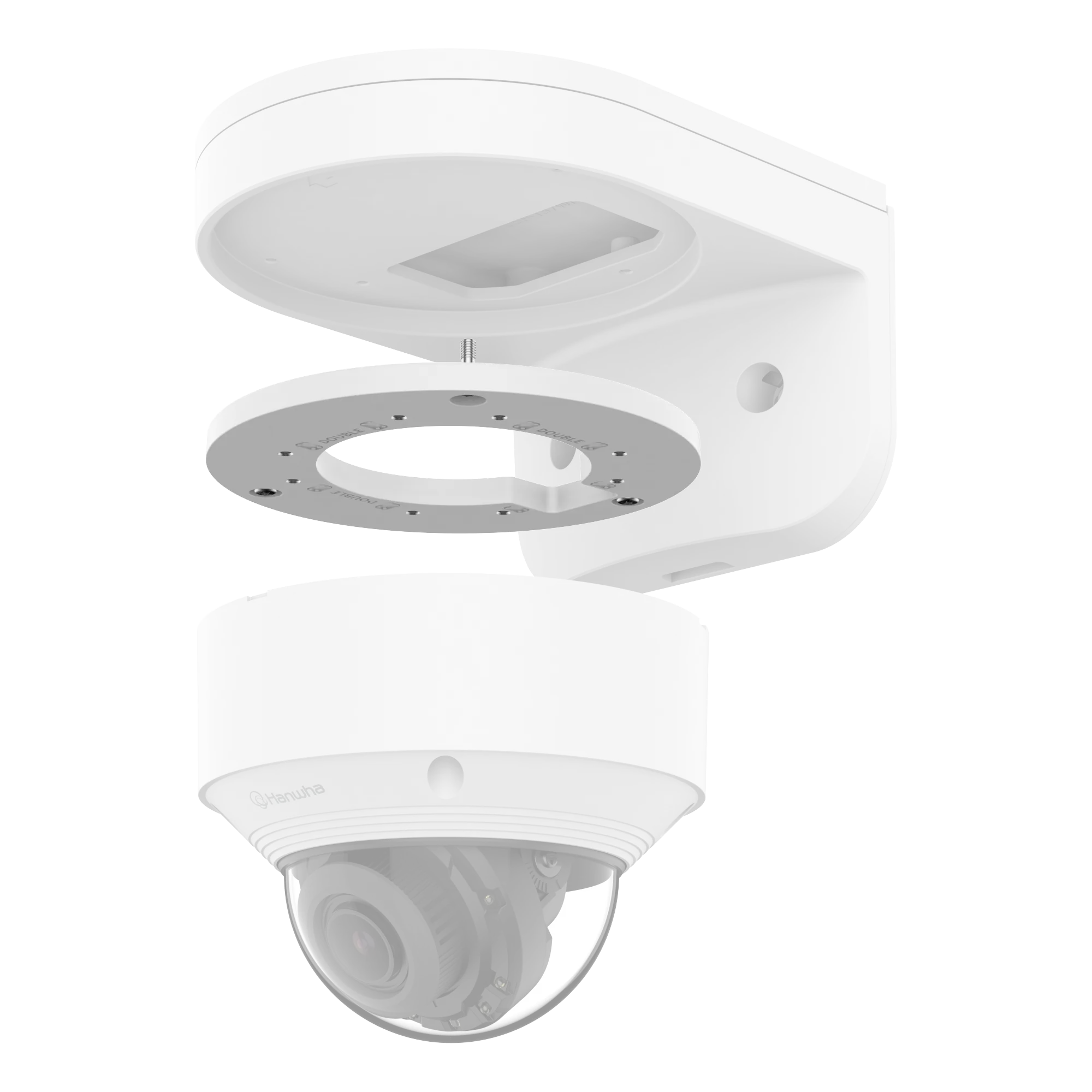

The SBD-137WMA is a wall adaptor intended as an interface piece for the SBP-137WMW mount. It is made entirely of aluminium and painted white to RAL9003. The part measures ø137.5x6.7mm and weighs 137g. TR20 screws are specified for installation. On the camera side, the QNV-C8083R and QNV-C9083R are listed as supported models. Wall adaptor for SBP-137WMWAluminium, white RAL9003ø137.5x6.7mm, 137gTR20 mount screwSupports QNV-C8083R and QNV-C9083R
Not in stock · delivery 3-4 days
Supplied as a corner mount, the SBD-140KMB is made of aluminium and finished white to RAL9003. It measures 121x102.5x10mm and weighs 139g. The maximum permitted load is 5kg. Mounting screws are size TR20. QNV-C8011R, QNV-C8012 and QNV-C9011R are given as supported cameras, with further compatible models published by the manufacturer online or via its Toolbox. Corner mountAluminium, white RAL9003121x102.5x10mm, 139gMax. load 5kgTR20 mount screw
Not in stock · delivery 3-4 days
The SBD-140PMB is an aluminium pole mount finished in white to RAL9003. At 121x70x11.2mm and 56g it stays very light. Its rated maximum load is 5kg. Fixing screws are size TR20. The manufacturer names QNV-C8011R, QNV-C8012 and QNV-C9011R as supported cameras and points to its website and Toolbox for additional compatible models. Pole mountAluminium, white RAL9003121x70x11.2mm, 56gMax. load 5kgTR20 mount screw
Not in stock · delivery 3-4 days
The SBD-140PMW pole mount pairs an aluminium core with a plastic cap and is finished white to RAL9003. It measures ø147.1x50.5mm and weighs 340g. Maximum load is 5kg and the conduit hole is 19.1mm (3/4 in, M25). Camera-side fixing uses TR20 screws, while the steel strap is tightened with TR30. Supported cameras are the QNV-C6083R, QNV-C8083R and QNV-C9083R. Pole mountAluminium core with polycarbonate capWhite, RAL9003ø147.1x50.5mm, 340gMax. load 5kg, 19.1mm (M25) conduit hole
In stock, ships immediately · delivery 1-2 days
Conduit hole adaptor made of aluminium and finished in white to RAL9003. It measures 54.1x43.5x40mm and weighs 27g. The conduit hole has a diameter of 19.1mm and corresponds to M25. Listed supported products are QNV-C6083R, QNV-C8083R, QNV-C9083R and PNM-C16013RVQ. Aluminium, white RAL9003Dimensions 54.1x43.5x40mmWeight 27gConduit hole 19.1mm (M25)For QNV-C6083R, QNV-C8083R, QNV-C9083R, PNM-C16013RVQ
Not in stock · delivery 3-4 days
The SBP-140CMT holds a camera in the profile of a tile grid ceiling. Its plate and rail are made of polycarbonate and aluminium, finished in white to RAL9003. Measuring ø140x27.5mm at 108g, the mount carries a load of up to 2.5kg and uses a TR20 mounting screw. Operation is rated from -10°C to +45°C at 5~90% RH (non-condensing), storage from -30°C to +60°C at 0~90% RH. Supported models are QNV-C8011R, QNV-C8012 and QNV-C9011R; four pieces are included in the package. Tile grid ceiling mountingPolycarbonate and aluminium, RAL9003ø140x27.5mm / 108gMax. load 2.5kgOperation -10°C to +45°C4 pieces per package
Not in stock · delivery 3-4 days
The SBP-140HMW suspends a camera below the ceiling. It combines polycarbonate and aluminium in a white finish to RAL9003. The adaptor measures ø155x65mm, weighs 240g and is rated for a maximum load of 3kg. Fixing is done with a TR20 mounting screw. QNV-C6083R, QNV-C8083R and QNV-C9083R are listed as supported models. Hanging camera mountingPolycarbonate and aluminium, RAL9003ø155x65mm / 240gMax. load 3kgTR20 mounting screw
Not in stock · delivery 3-4 days

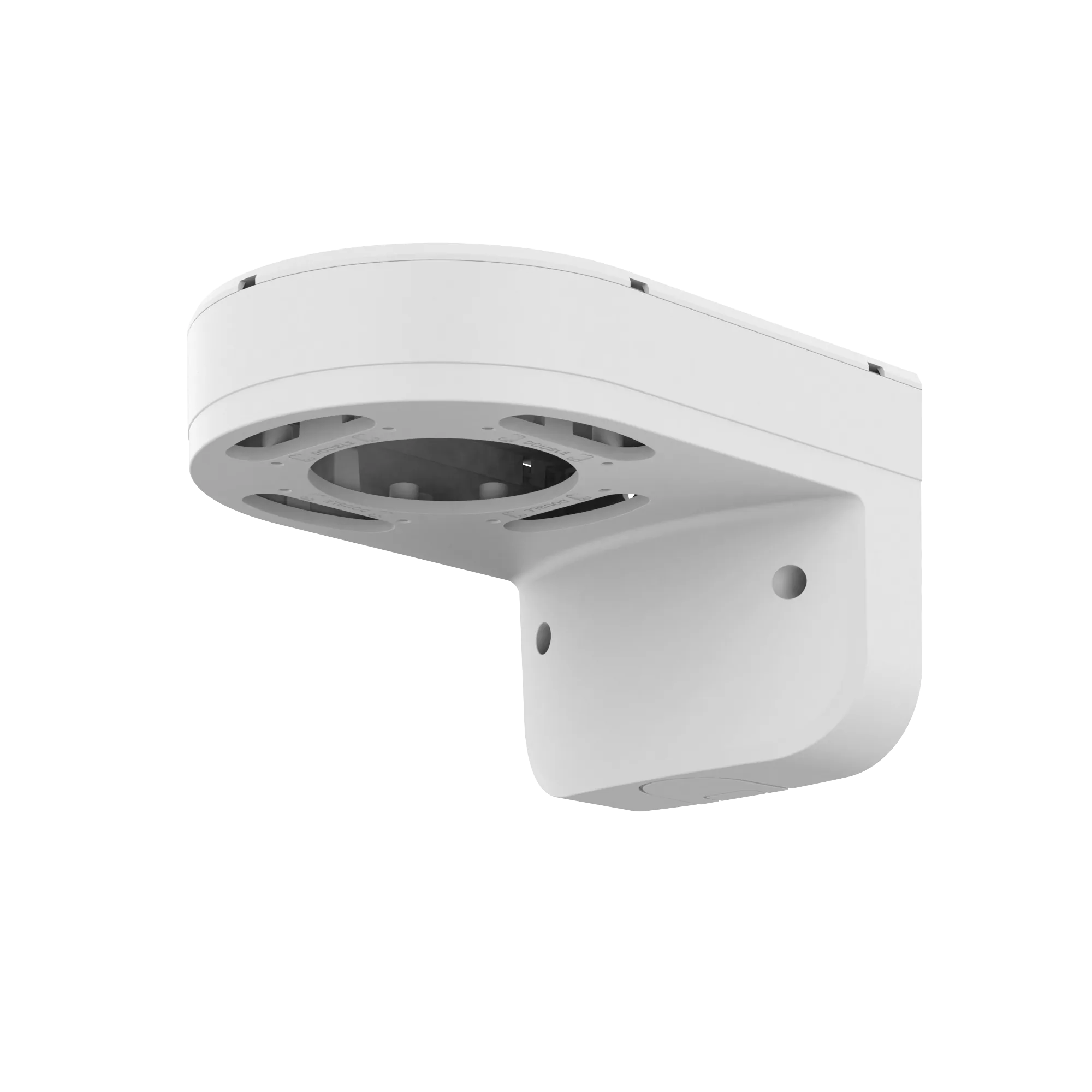

The SBP-140WMW carries a camera on a wall or pole. Its body is aluminium and its cover polycarbonate, finished in white to RAL9003. The mount measures 198.2x145.5x118.3mm, weighs 631g and takes a load of up to 3kg. A conduit hole of 19.1mm (3/4", M25) routes the cabling, and installation uses a TR20 mounting screw. Supported models are QNV-C6083R, QNV-C8083R and QNV-C9083R. Wall and pole mountingAluminium body with polycarbonate cover198.2x145.5x118.3mm / 631gMax. load 3kgConduit hole 19.1mm (M25)
Not in stock · delivery 3-4 days
The SBV-140WW is a waterproof aluminium back box finished in white to RAL9003. It is certified to IP66 and NEMA 4X. Dimensions are ø144.2x64.5mm, weight is 835g and the maximum load is 5kg. The conduit hole measures 19.1mm (3/4", M25) and the mount screw size is TR20. Supported models are the QNV-C6083R, QNV-C8083R and QNV-C9083R. Waterproof aluminium back boxIP66, NEMA 4X certifiedWhite, RAL9003Dimensions ø144.2x64.5mm, 835gMax. load 5kgSupports QNV-C6083R, QNV-C8083R, QNV-C9083R
In stock, ships immediately · delivery 1-2 days

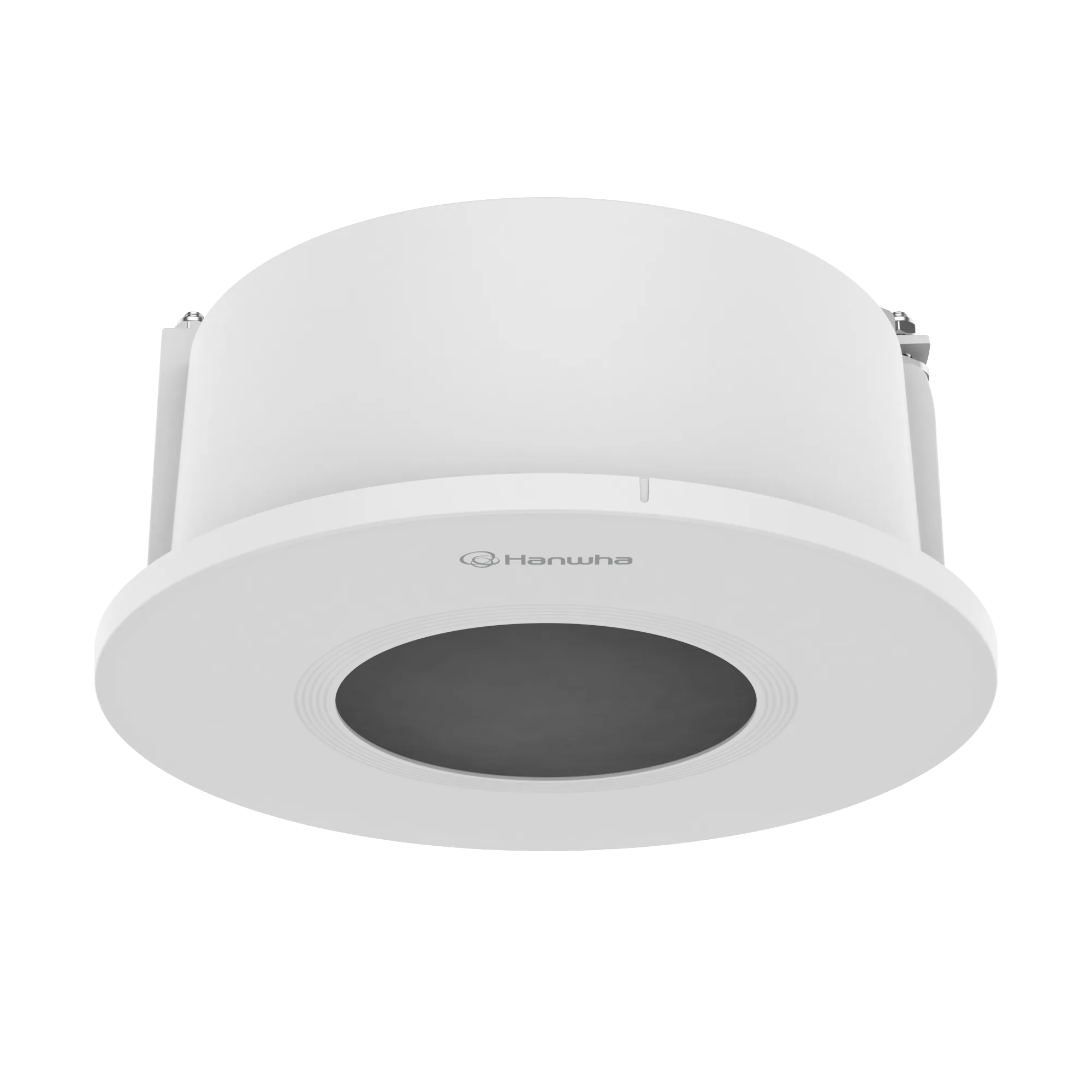

SHD-1400FPW is an aluminium in-ceiling housing finished white to RAL 9003. Its dimensions are ø202.3x92.7 mm at a weight of 835 g, and the ceiling hole size is ø185 mm (ø7.28"). It is designed for tile thicknesses of 10 to 70 mm and is fixed with TR20 mount screws. The conduit hole measures 19.1 mm (3/4", M25) and the maximum load is 2 kg. Supported cameras include QNV-C6083R, QNV-C8083R and QNV-C9083R. In-ceiling housing in aluminiumWhite, RAL 9003ø202.3x92.7 mm, 835 gCeiling hole ø185 mmTile thickness 10~70 mm, TR20 screwMax. load 2 kg
Not in stock · delivery 3-4 days

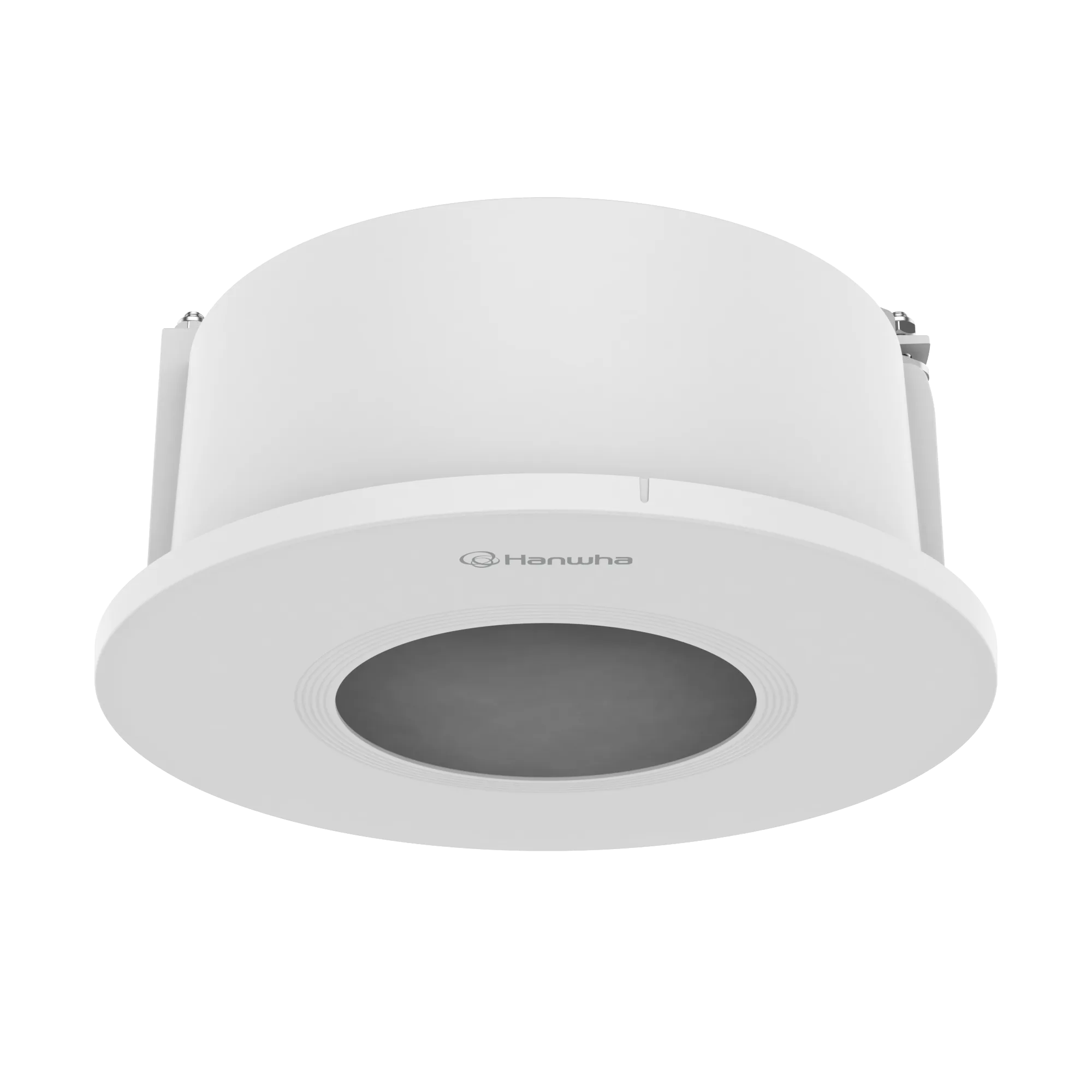

SHD-1400FW is the polycarbonate version of this in-ceiling housing, finished white to RAL 9003. It measures ø202.3x92.7 mm and weighs 505 g (1.11 lb), with a required ceiling hole size of ø185 mm (ø7.28"). Tile thicknesses from 10 to 70 mm are covered, and fixing uses TR20 mount screws. The maximum load is 2 kg. The manufacturer names QNV-C6083R, QNV-C8083R and QNV-C9083R among the supported cameras. In-ceiling housing in polycarbonateWhite, RAL 9003ø202.3x92.7 mm, 505 gCeiling hole ø185 mmTile thickness 10~70 mm, TR20 screwMax. load 2 kg
Not in stock · delivery 3-4 days
The SPP-C45W is an RJ45 cable that converts the cable type from plug-in to pigtail. Its sheath is plastic and the coil is copper, with the assembly finished in black. The cable measures 335mm(13.19") and weighs 22g(0.05lb). Supported products are listed as QNV-6012R and QNV-C6083R. RJ45 cable, plug-in to pigtail conversionBlack finishPlastic sheath, copper coilLength 335mm(13.19"), weight 22g(0.05lb)Supported products QNV-6012R, QNV-C6083R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNV-C9083R
- EAN / GTIN
- 8801089214690
- Weight
- 1.38 kg
- Dimensions (W×H×D)
- 525 × 258 × 364 mm
Description

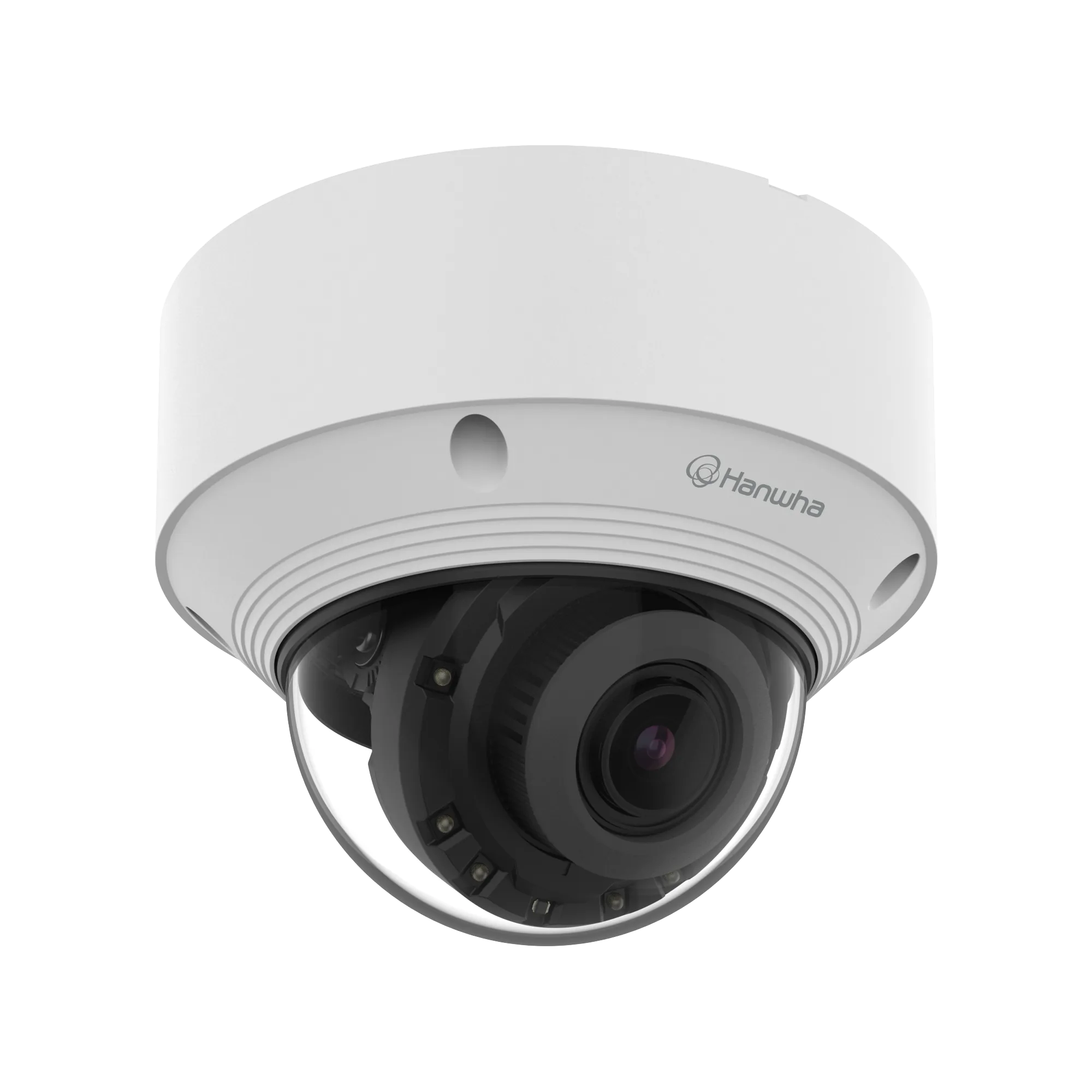

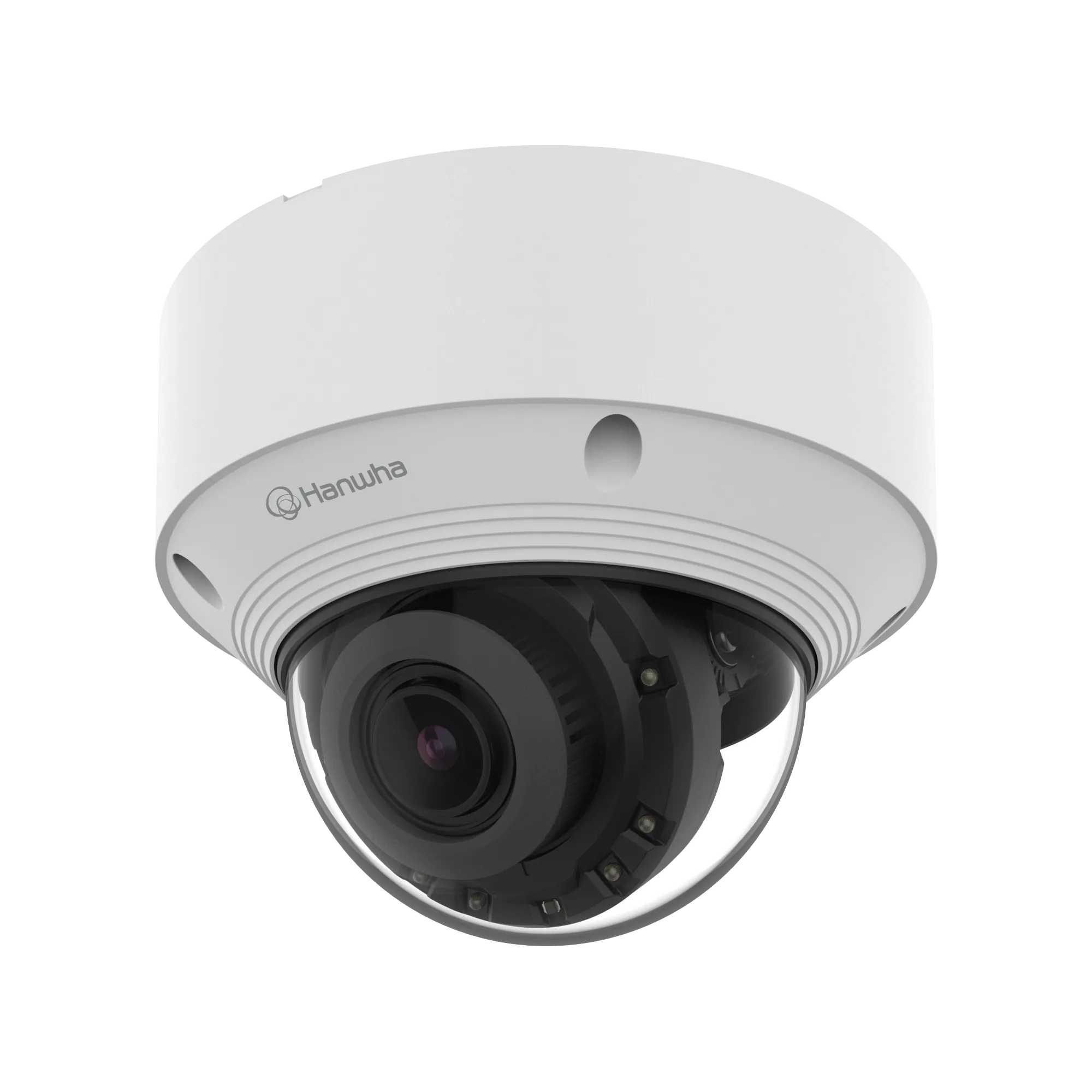

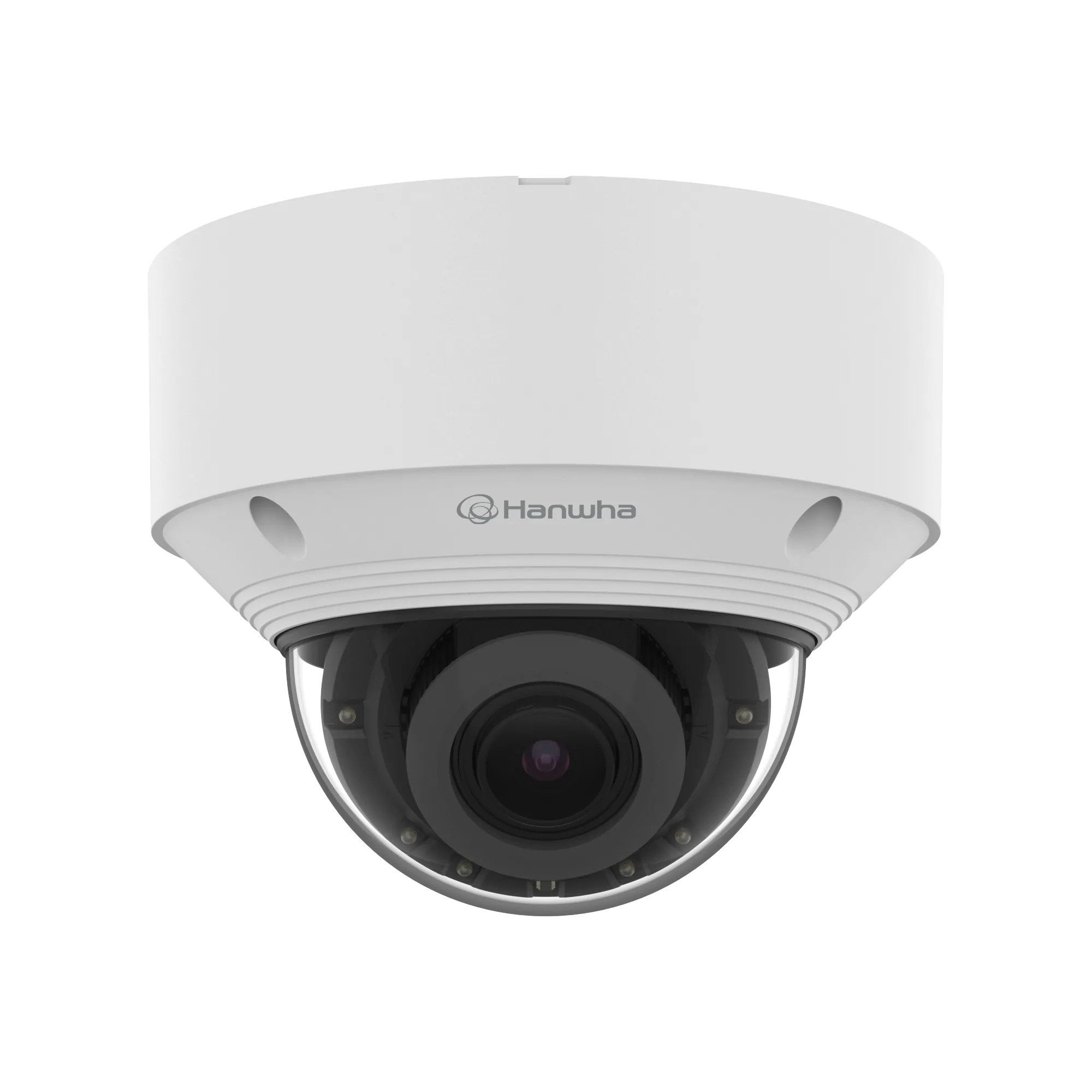

The QNV-C9083R records at 3840x2160 pixels and combines its 1/2.8 inch CMOS sensor with a motorised varifocal lens from 3.2 to 10.2 mm at 3.2x optical zoom. Aperture sits between F1.6 at wide and F3.1 at tele, while the angle of view moves from 104° to 31° horizontally, 55° to 17° vertically and 124° to 35° diagonally. Simple Focus and the IR corrected DC auto iris operate from a minimum object distance of 1.2 m. H.265 and H.264 manage 30 fps on 60 Hz or 25 fps on 50 Hz, MJPEG reaches 30 fps and 5 fps at 8 MP, and up to five streaming profiles can run in parallel. Low light performance is quoted at 0.06 lux in colour and 0.006 lux in black and white, with 120 dB WDR and ICR switching alongside. Footage is stored on a Micro SD/SDHC/SDXC card of up to 256 GB.
- 3840x2160 pixels, up to 30/25 fps
- Motorised varifocal 3.2 to 10.2 mm, 3.2x
- F1.6 wide, F3.1 tele, Simple Focus
- 0.06 lux colour, 0.006 lux black and white
- 120 dB WDR, ICR day and night switching
- Micro SD/SDHC/SDXC up to 256 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (7)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Virtual area(Appear/Disappear)
- Analytics / Attributes – Person
- Upper/Lower clothes color
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Vehicle
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 276.9m(908.57ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 60.0m(196.86ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 27.7m(90.86ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.0m(19.69ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 111.7m(363.43ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 24.2m(78.74ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 55.4m(181.71ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 12.0m(39.37ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max 12.95W, typical 5.3W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 1GB
- General / Memory – RAM
- 2GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 124°~35°
- Lens / Angular Field of View – Horizontal
- 104°~31°
- Lens / Angular Field of View – Vertical
- 55°~17°
- Lens / Max Aperture Ratio (F number) – Tele
- 3.1
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.2x
- Lens – Focal Length (mm)
- 3.2~10.2
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris(IR corrected)
- Lens – Min. Object Distance
- 1.2m(3.93ft)
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- ø140x110.2mm(ø5.51x4.34")
- Mechanical – Product Weight
- 875g(1.93lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 5 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (25)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Alarm Interface – Others
- Support alarm I/O through an optional cable
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 1/5~1/25,000sec
- Operational / Light Viewable Length – IR
- 30m(98.42ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White
- Operational / Privacy Masking – Dynamic Privacy Masking: Color / Option
- Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in), Support audio cable as optional
- Operational – Audio Out
- Line out, Support audio cable as optional
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -35°~70°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@8MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.006
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.06
- Video – Resolution
- 3840x2160, 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
