4MP White Light Flateye
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
The SBP-140CMT holds a camera in the profile of a tile grid ceiling. Its plate and rail are made of polycarbonate and aluminium, finished in white to RAL9003. Measuring ø140x27.5mm at 108g, the mount carries a load of up to 2.5kg and uses a TR20 mounting screw. Operation is rated from -10°C to +45°C at 5~90% RH (non-condensing), storage from -30°C to +60°C at 0~90% RH. Supported models are QNV-C8011R, QNV-C8012 and QNV-C9011R; four pieces are included in the package. Tile grid ceiling mountingPolycarbonate and aluminium, RAL9003ø140x27.5mm / 108gMax. load 2.5kgOperation -10°C to +45°C4 pieces per package
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- ANE-L7012L
- EAN / GTIN
- 8801089228734
- Weight
- 0.86 kg
- Dimensions (W×H×D)
- 175 × 175 × 166 mm
Description

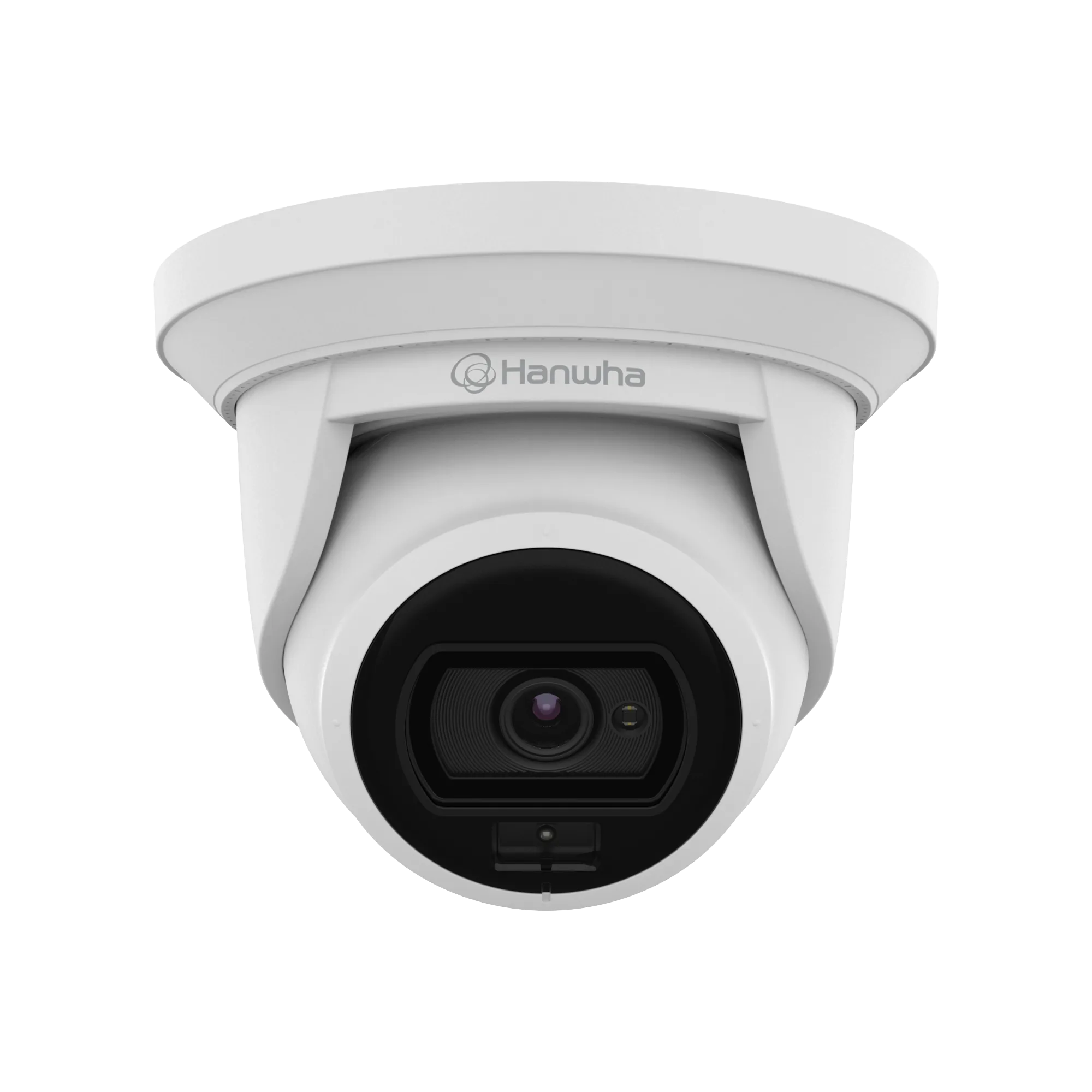

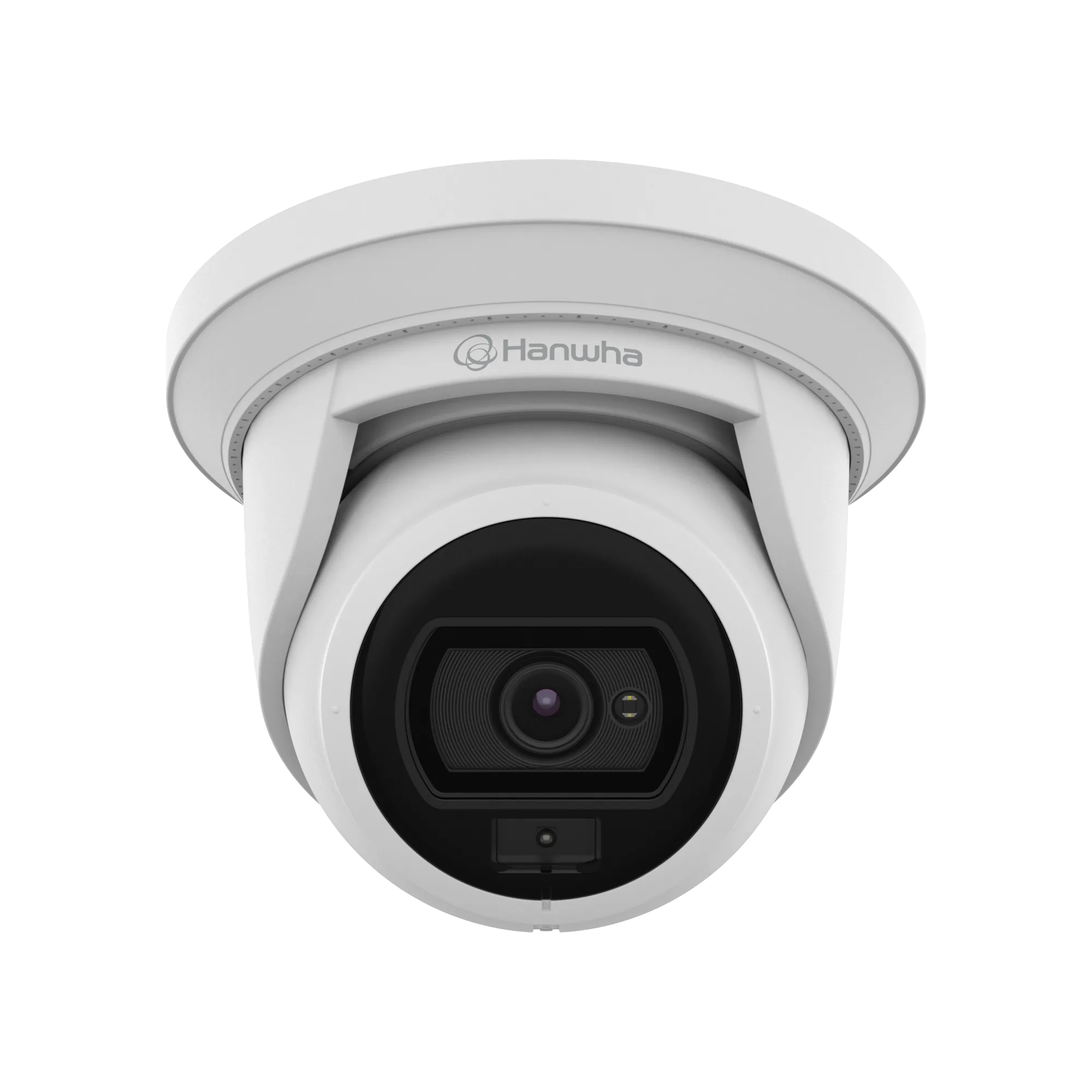

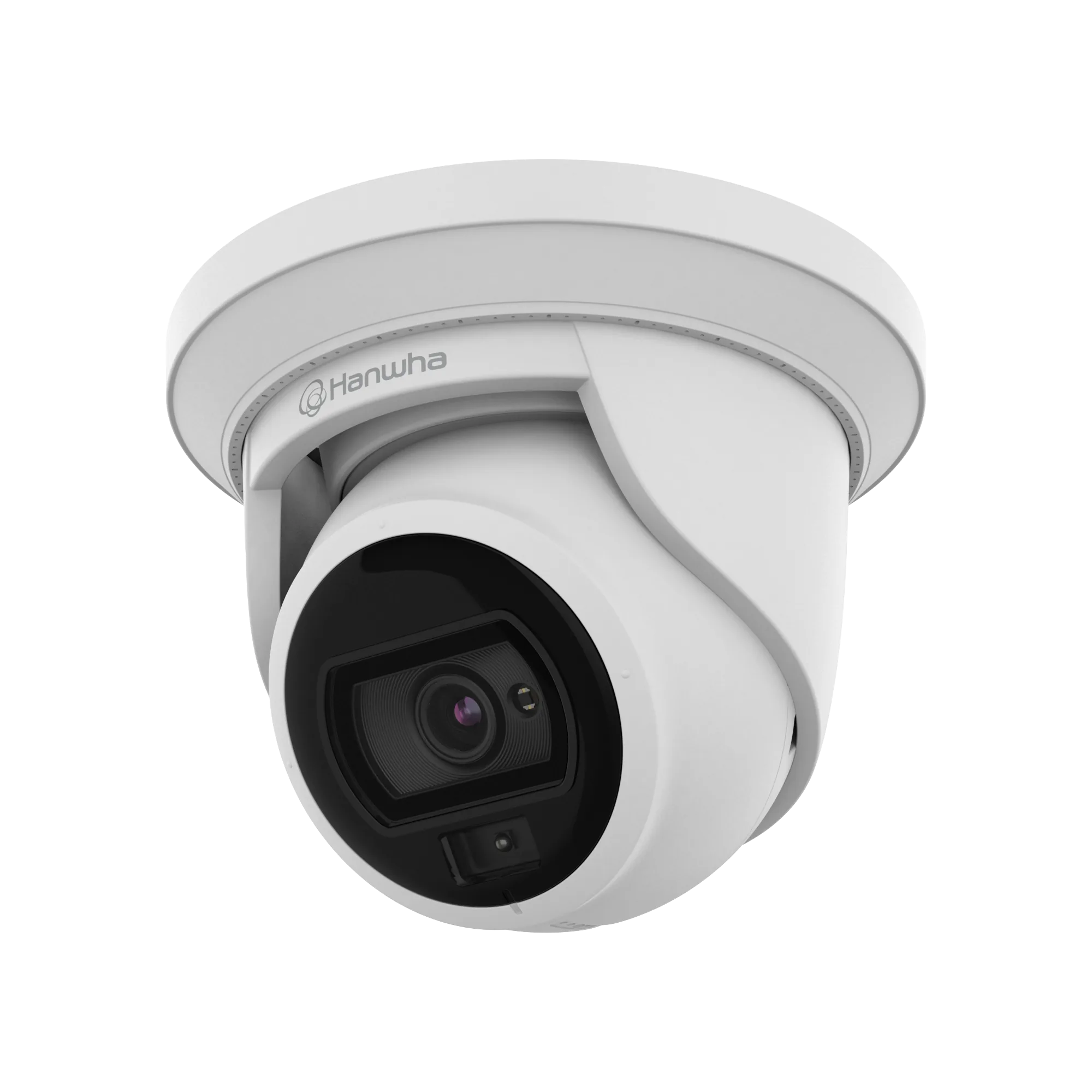

The ANE-L7012L is a white light flateye camera built around a 1/2.8 inch CMOS sensor that produces 4 megapixels at 2560x1440. Its fixed 3mm lens works at F1.2 with a field of view of 97 degrees horizontal, 53 degrees vertical and 113 degrees diagonal from a minimum object distance of 1.1m. H.265, H.264 and MJPEG form the triple codec, reaching 30fps or 25fps while MJPEG runs at 15fps. Recording is colour only and day and night switching is electrical, supported by 120dB WDR, SSDR, BLC, SSNR and minimum illumination of 0.05 lux. Virtual areas for intrusion, enter and exit, virtual lines with direction detection, tampering and motion detection in four eight-point polygonal zones, a microSD/SDHC slot up to 32GB and PoE power complete the camera.
- 4 megapixel, 2560x1440
- 3mm fixed lens, F1.2, 97 degrees horizontal
- White light, colour only operation
- 120dB WDR, 0.05 lux minimum illumination
- microSD/SDHC up to 32GB
- PoE powered
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 45.3m(148.62ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 4.5m(14.86ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 18.1m(59.45ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 9.1m(29.72ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -20°C
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 7.6W, typical 4.2W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (7)
- Lens / Angular Field of View – Diagonal
- 113°
- Lens / Angular Field of View – Horizontal
- 97°
- Lens / Angular Field of View – Vertical
- 53°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.2
- Lens – Focal Length (mm)
- 3
- Lens – Focus Control
- Fixed
- Lens – Min. Object Distance
- 1.1m(3.6ft)
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon
- Mechanical – Material
- Aluminum, Plastic
- Mechanical – Product Dimensions
- ø125.0x87.4mm(ø4.92x3.44")
- Mechanical – Product Weight
- 620g(1.37lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PPPoE, PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (18)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – Warm Light
- 20m(65.61ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, Light alarm
- Operational – Alarm Triggers
- Analytics, Network disconnect
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(Electrical)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – LDC
- Support
- Operational – Light Type
- Warm color
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~75°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (6)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps(@4MP Max. 2fps)
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.05
- Video – Resolution
- 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
