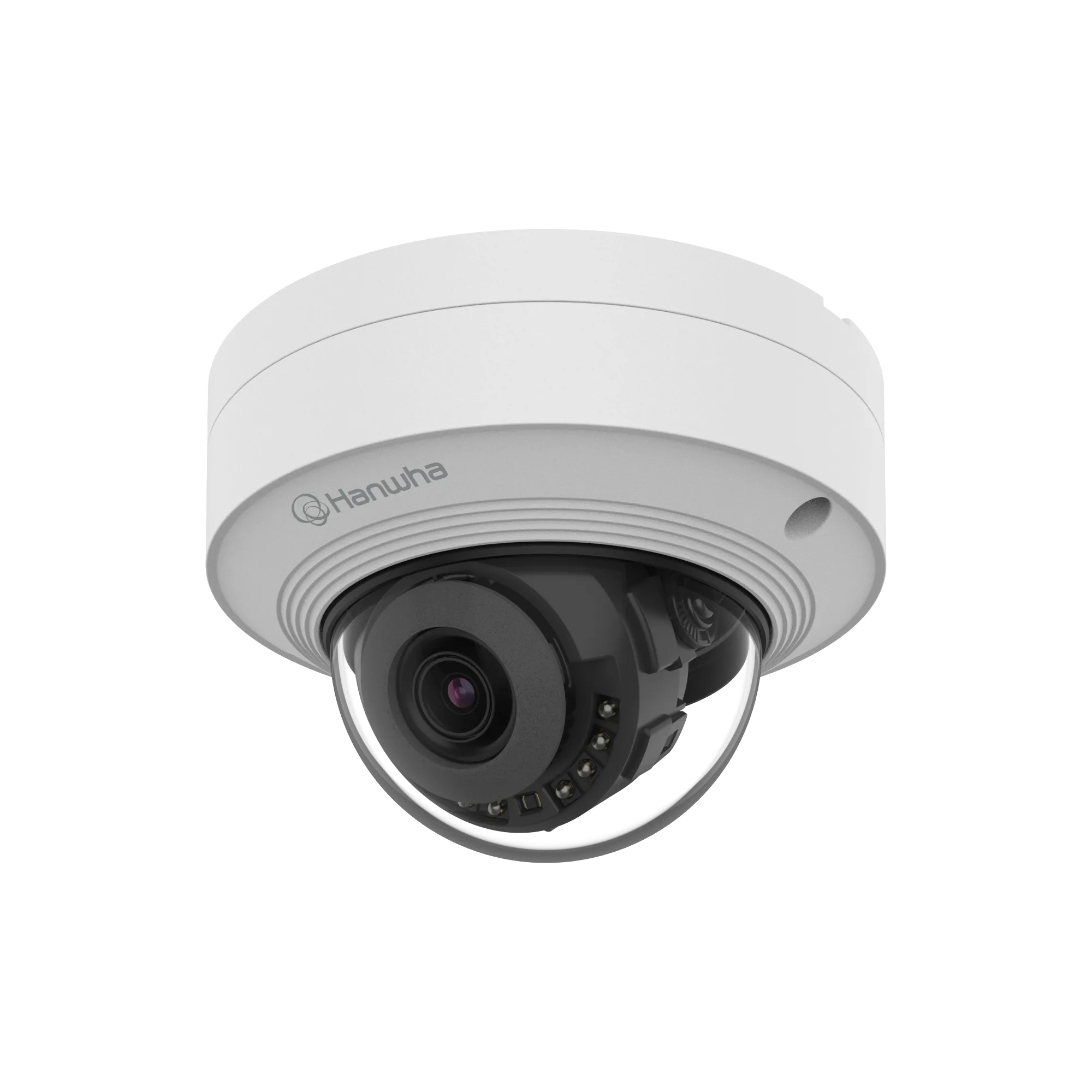

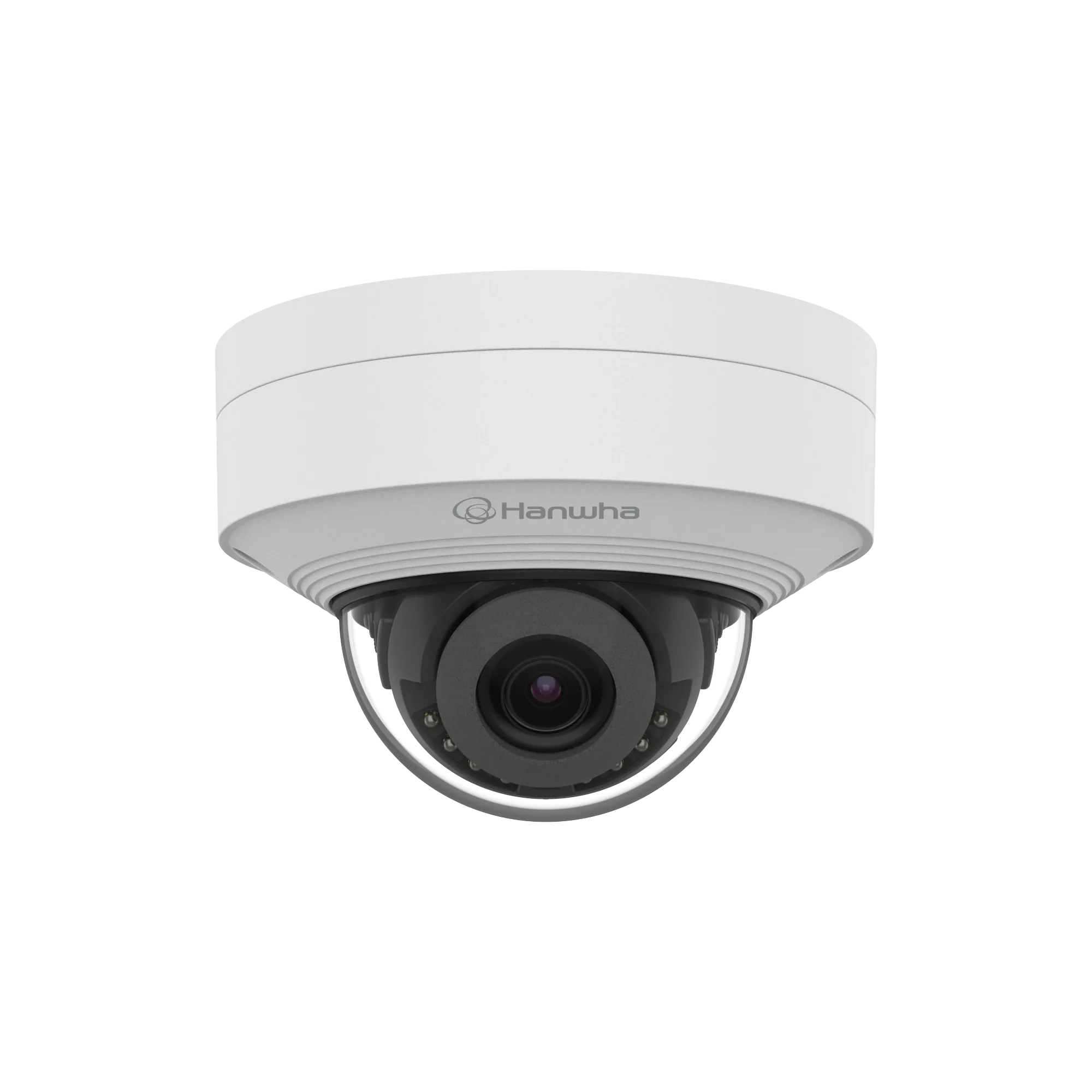

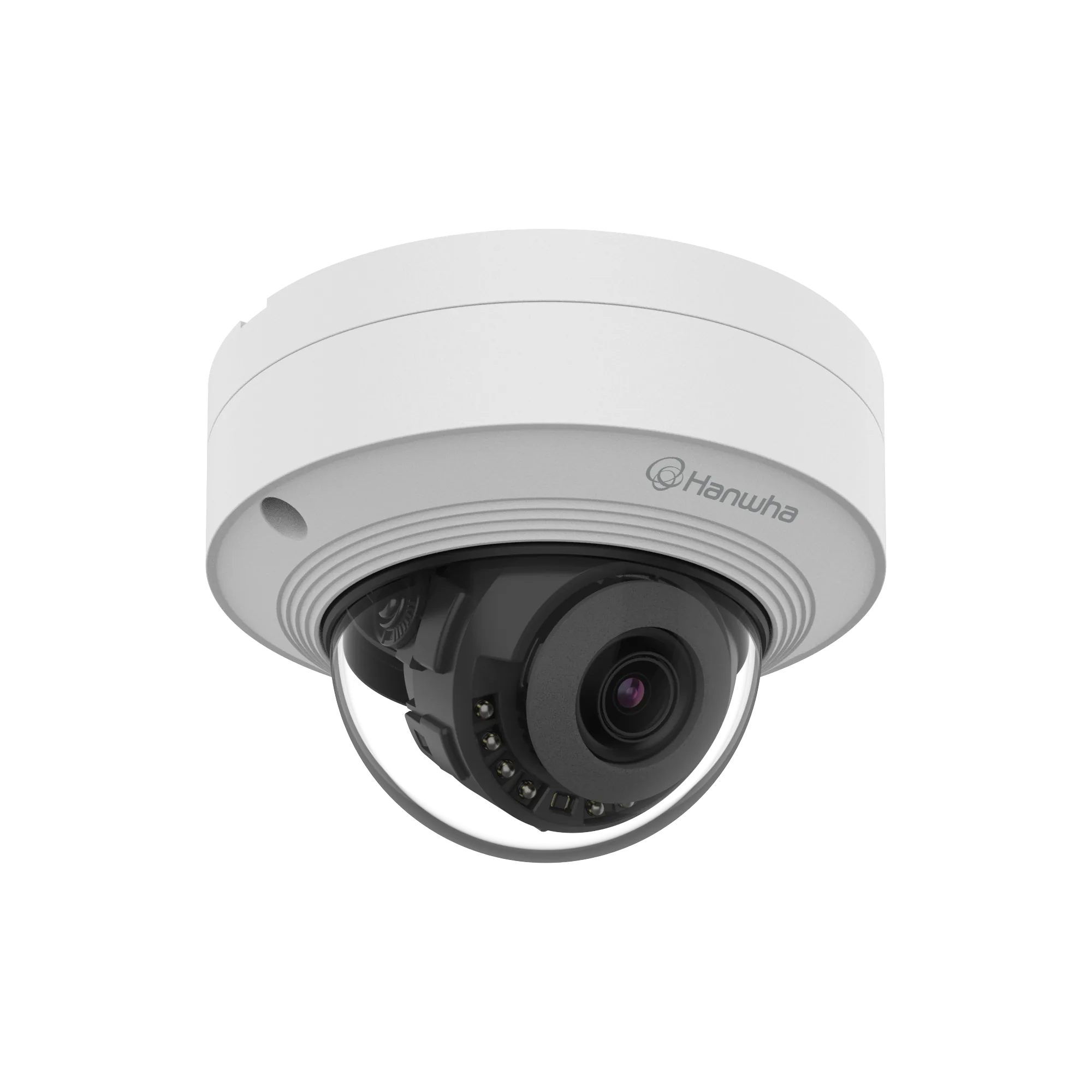

8MP AI IRMicro Vandal Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
Finished in white to RAL9003, the SBD-110GP1 serves as a wall adaptor. Its build combines an aluminium bottom section with a plastic top section, the material specification listing polycarbonate and aluminium. Dimensions are ø140x12.2mm at a weight of 181g. Fixing is done with TR20 screws. QNV-C8011R, QNV-C8012 and QNV-C9011R are named as supported cameras, and further compatible models are listed by the manufacturer online or in its Toolbox. Wall adaptorWhite, RAL9003Aluminium and polycarbonateø140x12.2mm, 181gTR20 mount screw
Not in stock · delivery 3-4 days
Supplied as a corner mount, the SBD-140KMB is made of aluminium and finished white to RAL9003. It measures 121x102.5x10mm and weighs 139g. The maximum permitted load is 5kg. Mounting screws are size TR20. QNV-C8011R, QNV-C8012 and QNV-C9011R are given as supported cameras, with further compatible models published by the manufacturer online or via its Toolbox. Corner mountAluminium, white RAL9003121x102.5x10mm, 139gMax. load 5kgTR20 mount screw
Not in stock · delivery 3-4 days
The SBD-140PMB is an aluminium pole mount finished in white to RAL9003. At 121x70x11.2mm and 56g it stays very light. Its rated maximum load is 5kg. Fixing screws are size TR20. The manufacturer names QNV-C8011R, QNV-C8012 and QNV-C9011R as supported cameras and points to its website and Toolbox for additional compatible models. Pole mountAluminium, white RAL9003121x70x11.2mm, 56gMax. load 5kgTR20 mount screw
Not in stock · delivery 3-4 days
The SBD-140PMW pole mount pairs an aluminium core with a plastic cap and is finished white to RAL9003. It measures ø147.1x50.5mm and weighs 340g. Maximum load is 5kg and the conduit hole is 19.1mm (3/4 in, M25). Camera-side fixing uses TR20 screws, while the steel strap is tightened with TR30. Supported cameras are the QNV-C6083R, QNV-C8083R and QNV-C9083R. Pole mountAluminium core with polycarbonate capWhite, RAL9003ø147.1x50.5mm, 340gMax. load 5kg, 19.1mm (M25) conduit hole
In stock, ships immediately · delivery 1-2 days
Hanging adaptor made of polycarbonate and aluminium for suspended installation, finished white to RAL9003. It measures ø135x65mm and weighs 230g. The mount screw size is TR20 and the maximum load is 2kg. Supported cameras are the QNV-C8011R, QNV-C8012 and QNV-C9011R. Polycarbonate and aluminiumWhite RAL9003Dimensions ø135x65mm, 230gTR20 mount screw sizeMax. load 2kgFor QNV-C8011R, QNV-C8012, QNV-C9011R
Not in stock · delivery 3-4 days
The SBP-140CMT holds a camera in the profile of a tile grid ceiling. Its plate and rail are made of polycarbonate and aluminium, finished in white to RAL9003. Measuring ø140x27.5mm at 108g, the mount carries a load of up to 2.5kg and uses a TR20 mounting screw. Operation is rated from -10°C to +45°C at 5~90% RH (non-condensing), storage from -30°C to +60°C at 0~90% RH. Supported models are QNV-C8011R, QNV-C8012 and QNV-C9011R; four pieces are included in the package. Tile grid ceiling mountingPolycarbonate and aluminium, RAL9003ø140x27.5mm / 108gMax. load 2.5kgOperation -10°C to +45°C4 pieces per package
Not in stock · delivery 3-4 days
SHD-1200FPW is an in-ceiling housing with an aluminium body and a polycarbonate part, finished white to RAL 9003. It measures ø180x100.7 mm (ø7.09x3.96") and weighs 676.4 g (1.49 lb). Installation is possible in ceilings with a tile thickness of 10 to 70 mm (0.4 to 2.8"), using TR20 mount screws. Conduit holes of 12.7 mm (1/2", M20) and 19.1 mm (3/4", M25) take the cabling, and the maximum load is 1.5 kg with a ceiling board limit of 3 kg. A QR installation guide supports the fitting; the supported cameras are QNV-C8011R, QNV-C8012 and QNV-C9011R. In-ceiling housing in aluminium and polycarbonateWhite, RAL 9003ø180x100.7 mm, 676.4 gTile thickness 10~70 mm, TR20 screwConduit holes 12.7 mm (M20) and 19.1 mm (M25)For QNV-C8011R, QNV-C8012, QNV-C9011R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNV-C9011R
- EAN / GTIN
- 8801089220301
- Weight
- 0.72 kg
- Dimensions (W×H×D)
- 525 × 258 × 364 mm
Description
With 3840x2160 pixels on a 1/2.8 inch CMOS sensor, the QNV-C9011R is a compact 8 MP vandal dome. Its fixed 3 mm lens with F1.6, fixed iris and M12 mount captures 108° horizontally, 59° vertically and 127° diagonally from an object distance of 0.5 m. H.265 and H.264 work at 30 fps on 60 Hz or 25 fps on 50 Hz, MJPEG at 30 fps and up to 5 fps at 8 MP, and five streaming profiles can be issued at once. Rated light levels are 0.03 lux in colour and 0.003 lux in black and white, supported by 120 dB WDR, BLC, SSDR and automatic ICR day and night switching. Pan covers 0° to 350°, tilt -35° to 70° and rotation 0° to 355°. One Micro SD/SDHC/SDXC slot accepts up to 256 GB.
- 3840x2160 pixels on a 1/2.8 inch CMOS sensor
- Fixed 3 mm lens, F1.6, M12 mount
- 108° horizontal and 127° diagonal field of view
- 0.03 lux colour, 0.003 lux black and white
- 120 dB WDR, BLC, SSDR
- Micro SD/SDHC/SDXC up to 256 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (7)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Virtual area(Appear/Disappear)
- Analytics / Attributes – Person
- Upper/Lower clothes color
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Vehicle
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 55.8m(183.07ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 5.6m(18.31ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 22.5m(73.23ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 11.2m(36.61ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 8.5W, typical 4.9W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 1GB
- General / Memory – RAM
- 2GB
Lens (9)
- Lens / Angular Field of View – Diagonal
- 127°
- Lens / Angular Field of View – Horizontal
- 108°
- Lens / Angular Field of View – Vertical
- 59°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens – Focal Length (mm)
- 3.0
- Lens – Focus Control
- Fixed
- Lens – Lens Type
- Fixed iris
- Lens – Min. Object Distance
- 0.5m(1.64ft)
- Lens – Mount Type
- M12
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø110x77mm(ø4.33x3.03")
- Mechanical – Product Weight
- 522g(1.15lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 5 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (21)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 1/5~1/25,000sec
- Operational / Light Viewable Length – IR
- 20m(65.62ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White
- Operational / Privacy Masking – Dynamic Privacy Masking: Color / Option
- Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, MQTT subscription
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -35°~70°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@8MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.003
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.03
- Video – Resolution
- 3840x2160, 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
