4MP Turret
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories

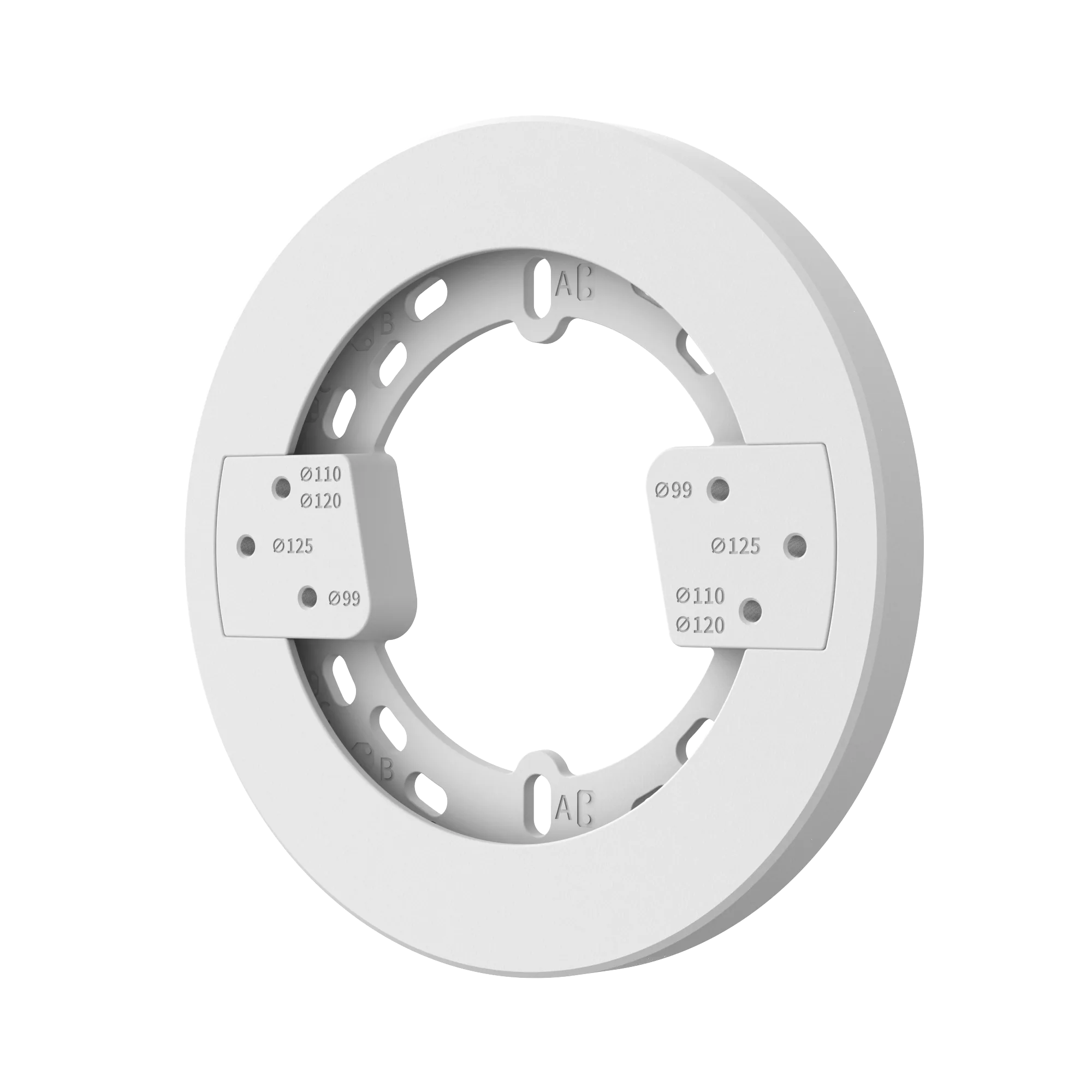

Finished in white to RAL9003, the SBD-110GP1 serves as a wall adaptor. Its build combines an aluminium bottom section with a plastic top section, the material specification listing polycarbonate and aluminium. Dimensions are ø140x12.2mm at a weight of 181g. Fixing is done with TR20 screws. QNV-C8011R, QNV-C8012 and QNV-C9011R are named as supported cameras, and further compatible models are listed by the manufacturer online or in its Toolbox. Wall adaptorWhite, RAL9003Aluminium and polycarbonateø140x12.2mm, 181gTR20 mount screw
Not in stock · delivery 3-4 days

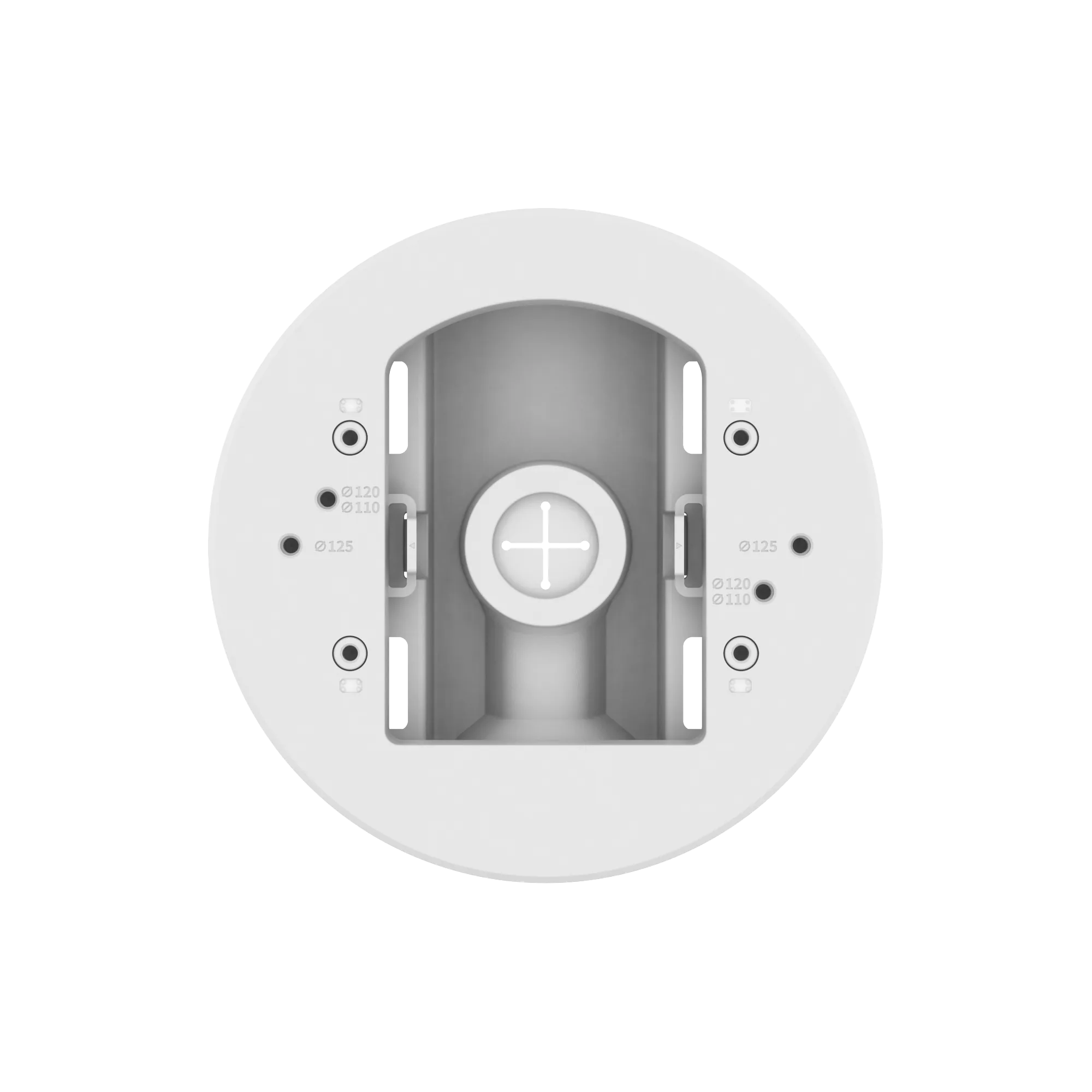

The SBD-140PMW pole mount pairs an aluminium core with a plastic cap and is finished white to RAL9003. It measures ø147.1x50.5mm and weighs 340g. Maximum load is 5kg and the conduit hole is 19.1mm (3/4 in, M25). Camera-side fixing uses TR20 screws, while the steel strap is tightened with TR30. Supported cameras are the QNV-C6083R, QNV-C8083R and QNV-C9083R. Pole mountAluminium core with polycarbonate capWhite, RAL9003ø147.1x50.5mm, 340gMax. load 5kg, 19.1mm (M25) conduit hole
In stock, ships immediately · delivery 1-2 days

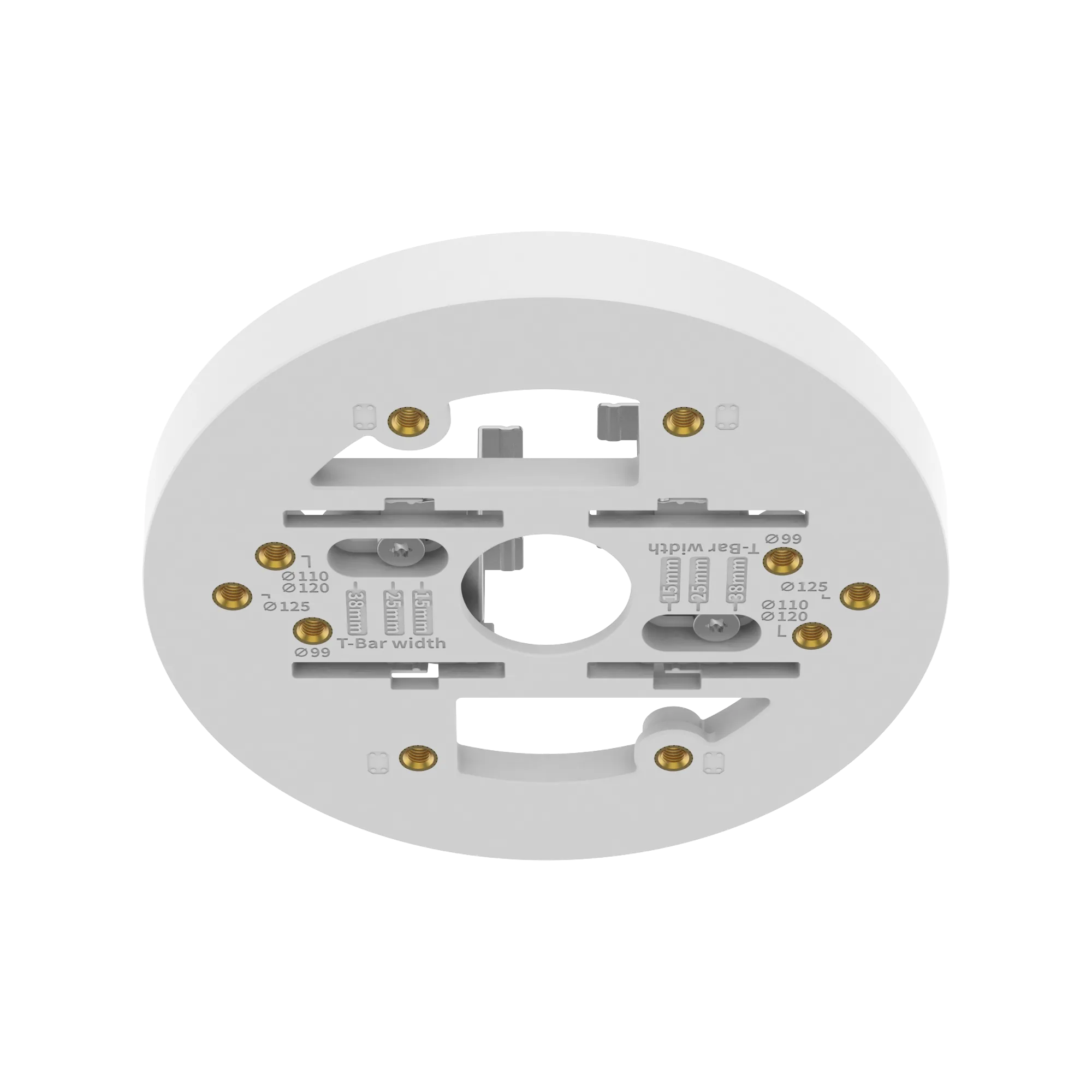

The SBP-140CMT holds a camera in the profile of a tile grid ceiling. Its plate and rail are made of polycarbonate and aluminium, finished in white to RAL9003. Measuring ø140x27.5mm at 108g, the mount carries a load of up to 2.5kg and uses a TR20 mounting screw. Operation is rated from -10°C to +45°C at 5~90% RH (non-condensing), storage from -30°C to +60°C at 0~90% RH. Supported models are QNV-C8011R, QNV-C8012 and QNV-C9011R; four pieces are included in the package. Tile grid ceiling mountingPolycarbonate and aluminium, RAL9003ø140x27.5mm / 108gMax. load 2.5kgOperation -10°C to +45°C4 pieces per package
Not in stock · delivery 3-4 days

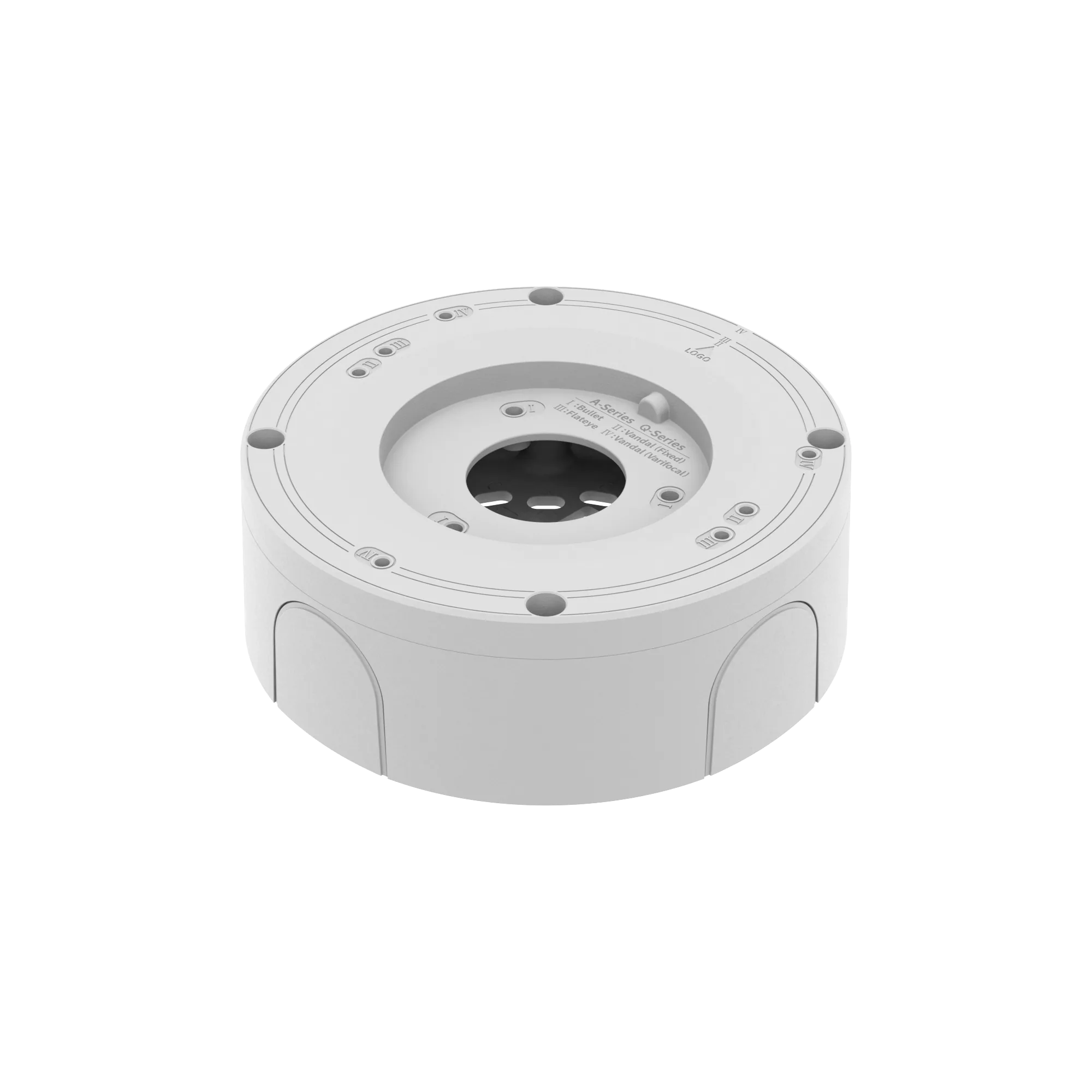

The SBV-A14B is an aluminium back box finished in white to RAL9003. It adapts A and Q series cameras to standard gangboxes while providing conduit access and room for cabling. The housing measures ø144x51mm, weighs 450g and takes a maximum load of 2kg; the conduit hole is 19.1mm (3/4", M25) and the mount screw size is TR20. For corner installations the box can be fitted to the SBP-300KMW1. Supported cameras are the ANO-L6082R, ANO-L7082R, ANV-L6082R, ANV-L7082R, ANE-L6012R and ANE-L7012R. Aluminium back boxWhite, RAL9003Dimensions ø144x51mm, 450gMax. load 2kgConduit hole 19.1mm (3/4", M25)Corner mounting via SBP-300KMW1
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- ANE-L7012R
- EAN / GTIN
- 8801089228727
- Weight
- 0.87 kg
- Dimensions (W×H×D)
- 175 × 175 × 166 mm
Description

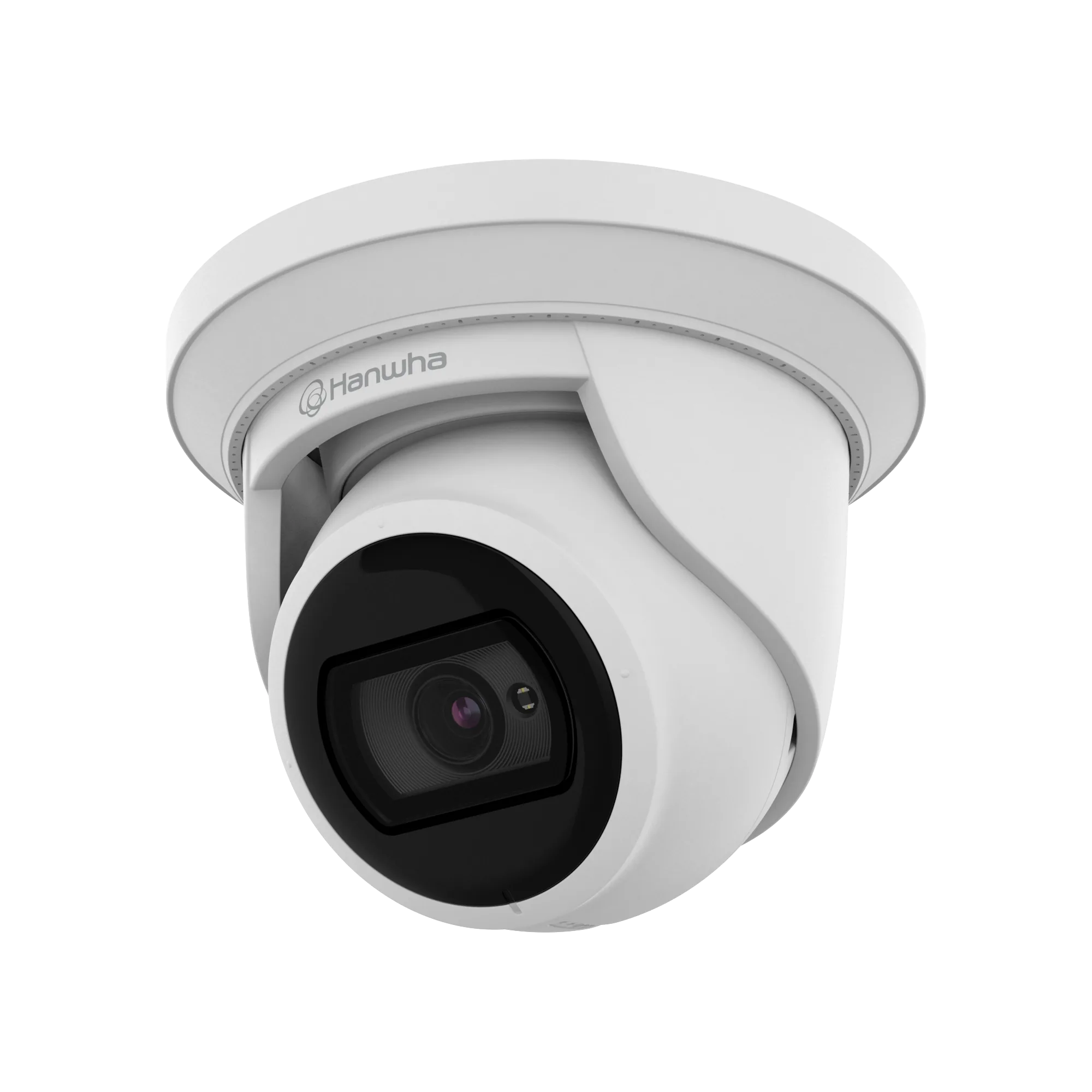

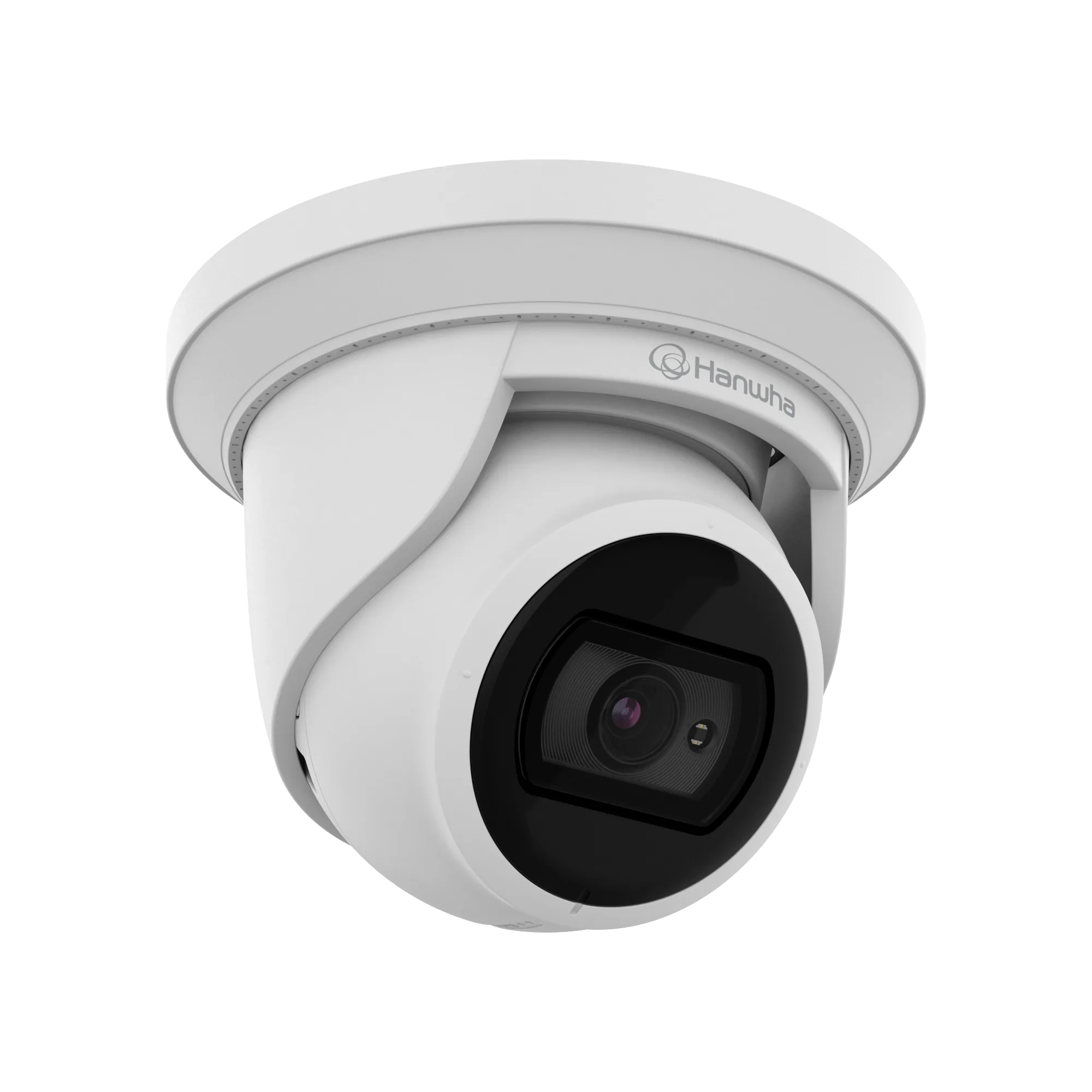

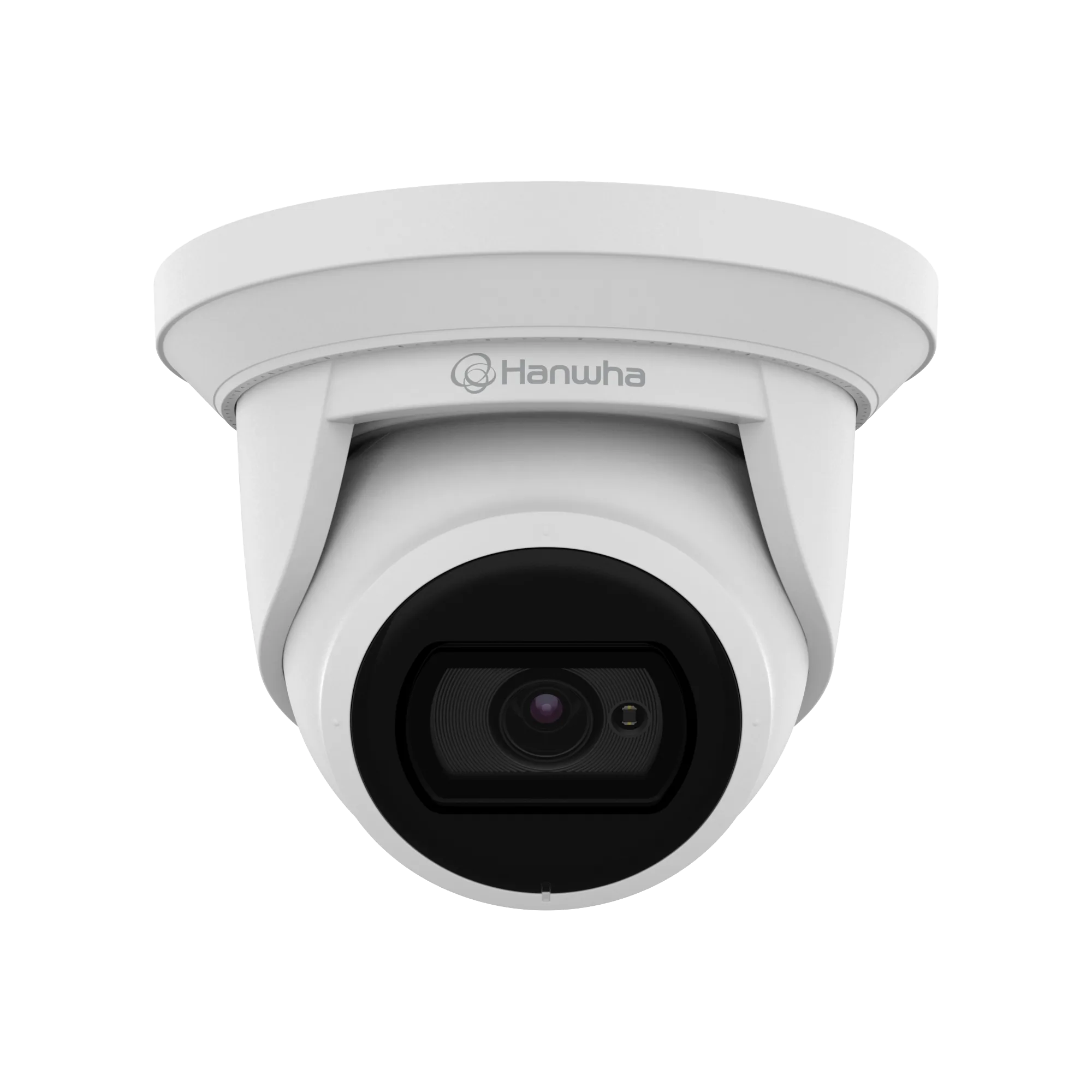

The ANE-L7012R is a super-compact IR flateye camera with a 1/2.8 inch CMOS sensor recording 4 megapixels at 2560x1440. Its built-in 3mm F1.6 lens takes in 99 degrees horizontally, 55 degrees vertically and 115 degrees diagonally from a minimum object distance of 1.1m. H.265 and H.264 run at 30fps or 25fps, MJPEG at 15fps, and multiple streaming is supported. Difficult lighting is addressed by ICR day and night switching, 120dB WDR, SSDR, BLC and SSNR, with minimum illumination of 0.13 lux in colour and 0.013 lux in black and white. Defocus, directional and motion detection across four zones, enter and exit, tampering, a microSD/SDHC slot up to 32GB, PoE, hallway view and WiseStream II complete the unit.
- 4 megapixel, 2560x1440
- 3mm fixed lens, F1.6, 99 degrees horizontal
- 120dB WDR, ICR day and night
- 0.13 lux colour, 0.013 lux B/W
- Defocus, directional and tampering detection
- microSD/SDHC up to 32GB, PoE
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP67, IEC 62262 IK10
- Certifications & Standards – Safety
- UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 43.7m(143.47ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 4.4m(14.35ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 17.5m(57.39ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 8.7m(28.69ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -20°C
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 7.5W, typical 5.7W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (7)
- Lens / Angular Field of View – Diagonal
- 115°
- Lens / Angular Field of View – Horizontal
- 99°
- Lens / Angular Field of View – Vertical
- 55°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens – Focal Length (mm)
- 3
- Lens – Focus Control
- Fixed
- Lens – Min. Object Distance
- 1.1m(3.6ft)
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon
- Mechanical – Material
- Aluminum, Plastic
- Mechanical – Product Dimensions
- ø125.0x87.4mm(4.92x3.44")
- Mechanical – Product Weight
- 630g(1.39lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PPPoE, PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (19)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 20m(65.62ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~75°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (7)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps(@4MP Max. 2fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.013
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.13
- Video – Resolution
- 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
