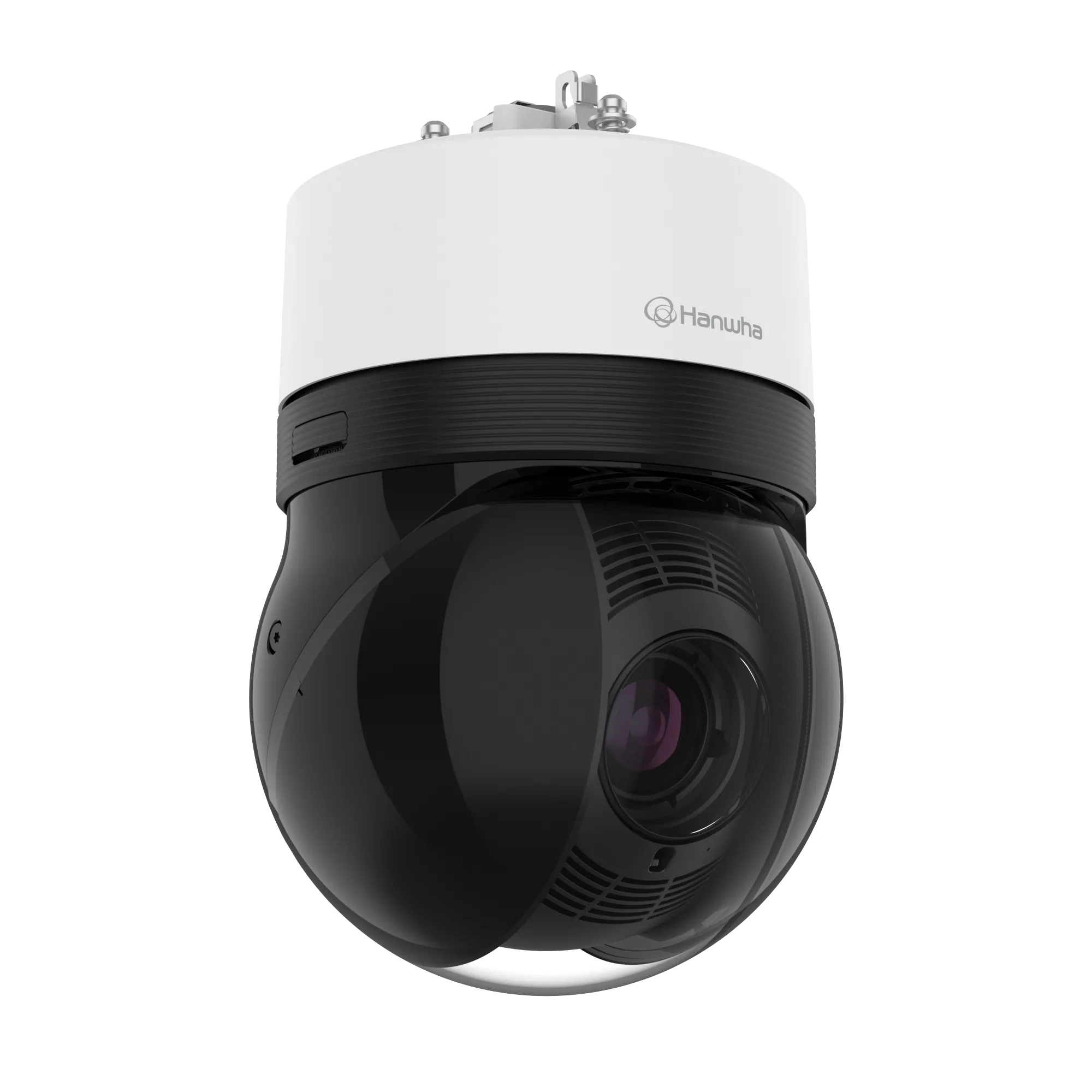

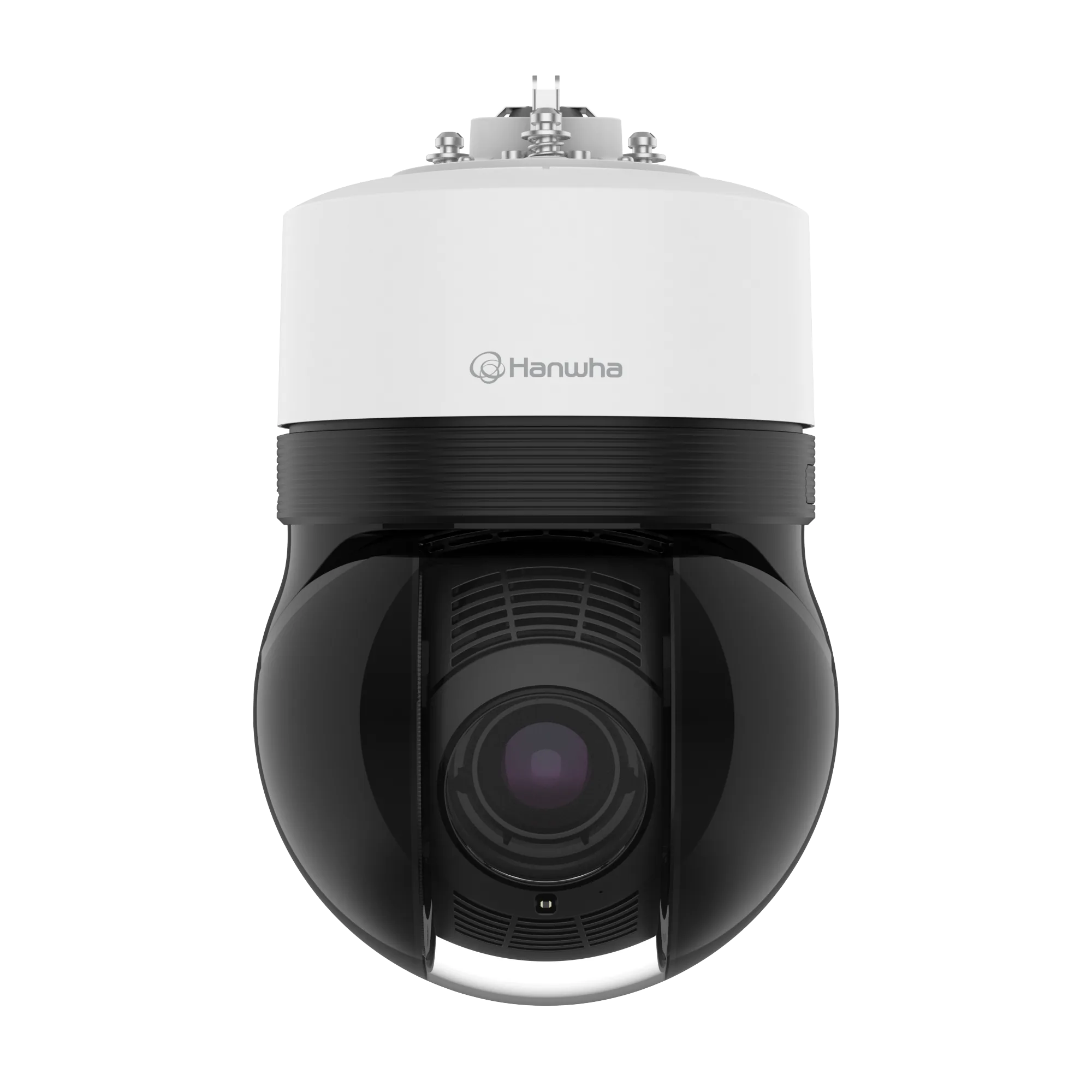

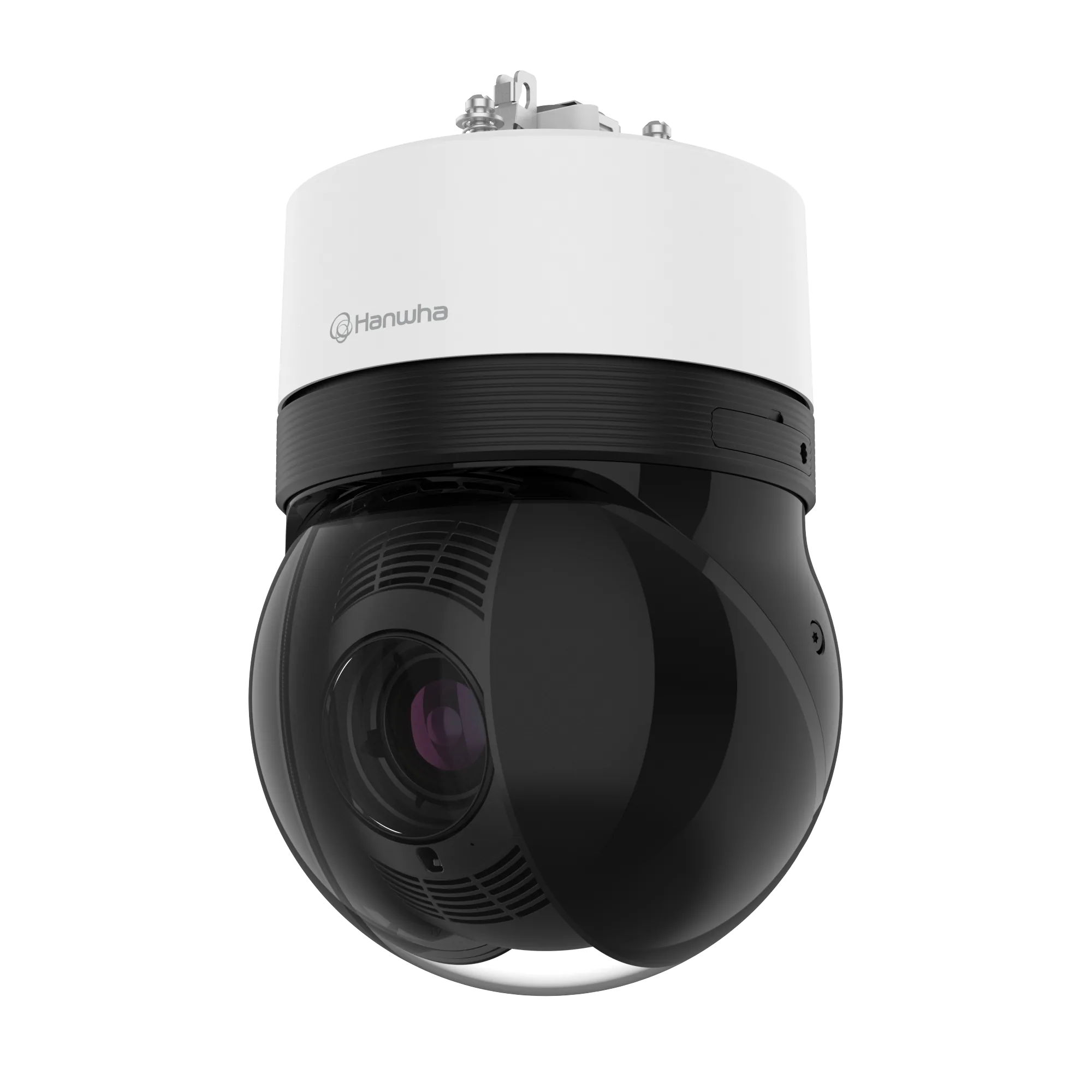

4MP AI Focus IR PTZ
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories

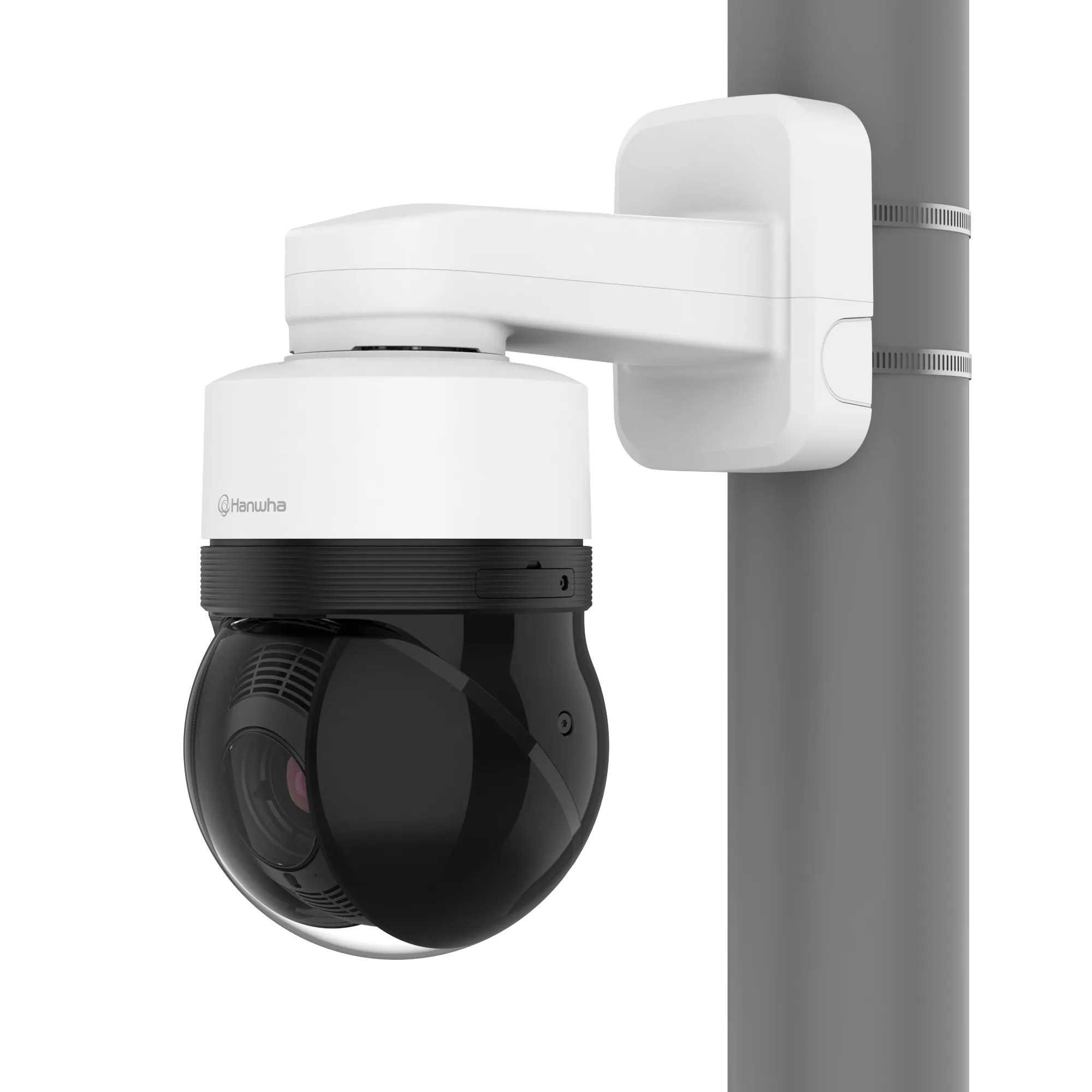

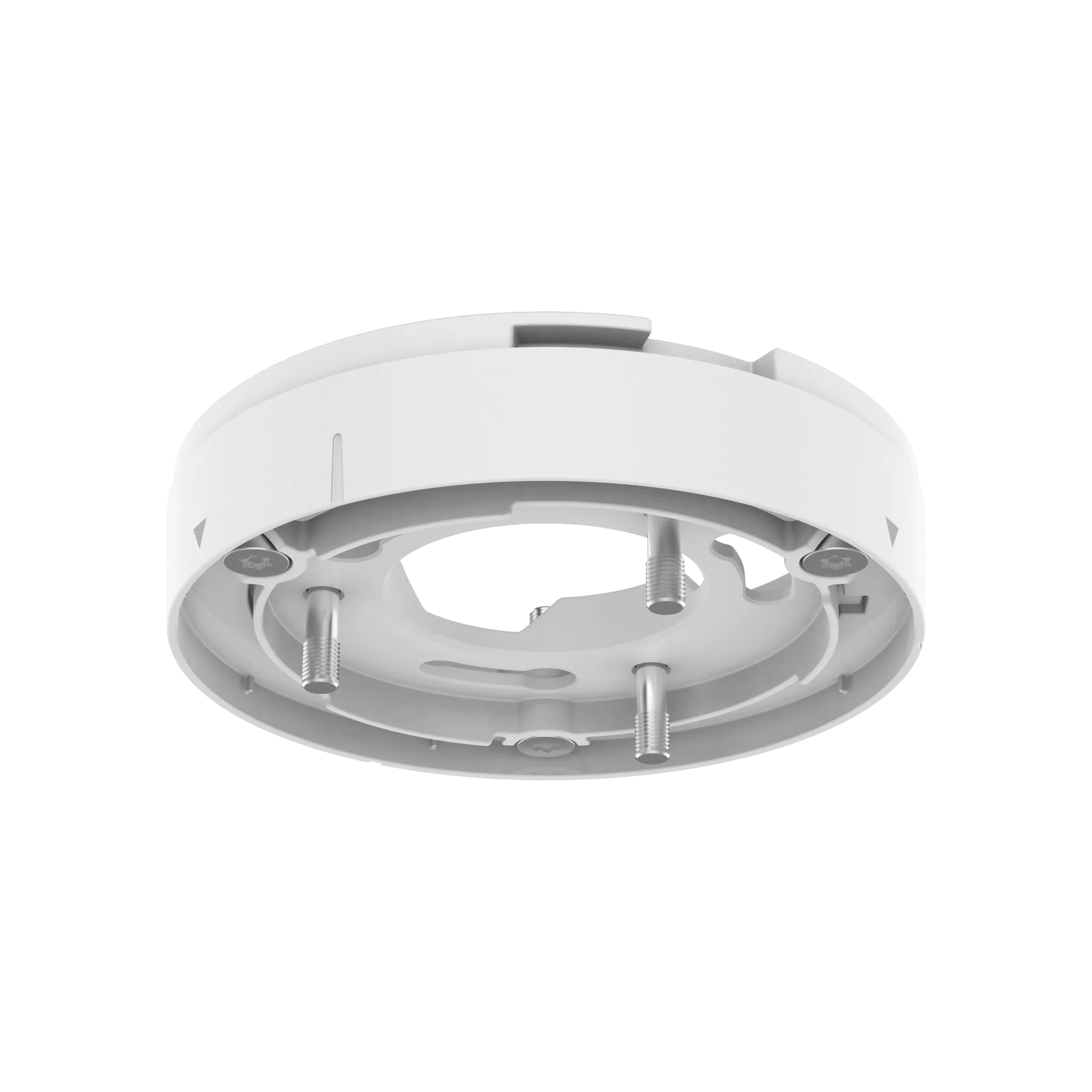

Three shaft adaptor for wall and pole mounts, made from polycarbonate and aluminium. The finish is white to RAL9003. It measures ø125x27.7mm and weighs 242g. Fixing uses TR30 mount screws. Supported brackets are the SBP-250WMW and SBP-400WMW. Polycarbonate and aluminiumWhite RAL9003Dimensions ø125x27.7mm, 242gTR30 mount screw sizeFor SBP-250WMW and SBP-400WMW
In stock, ships immediately · delivery 1-2 days

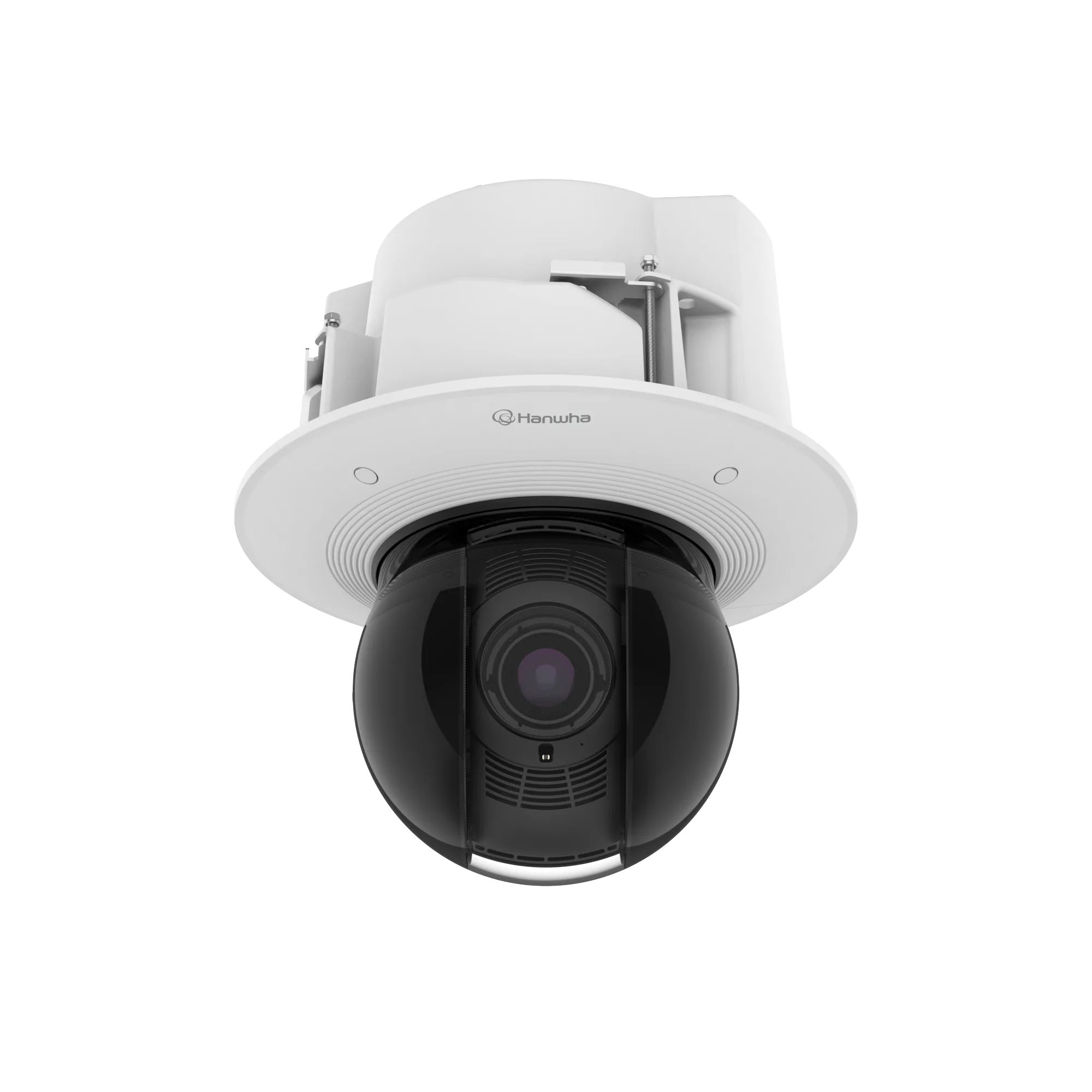

The SHP-1730FPW is an in-ceiling mount in white to RAL9003 with an aluminium enclosure and a polycarbonate (PC) top cover. It measures ø311x188mm (ø12.24x7.40") at 2450g (5.40lb) and requires a ceiling hole size of ø266mm (ø10.50"). Ceiling tiles of 10~70mm (0.4~2.8") thickness can be fitted, using TR20 and T30 mount screw sizes. Maximum load is 7kg (15.43lb), with 15kg (33.10lb) stated for the ceiling board. Conduit holes of 19.1mm (3/4") (M25) and 12.7mm (1/2") (M20) are present; supported products are XNP-C7310R and XNP-C9310R. Enclosure aluminium, top cover polycarbonate (PC)White RAL9003ø311x188mm (ø12.24x7.40") / 2450g (5.40lb)Ceiling hole size ø266mm (ø10.50")Max. load 7kg (15.43lb), ceiling board 15kg (33.10lb)For XNP-C7310R, XNP-C9310R
Not in stock · delivery 3-4 days

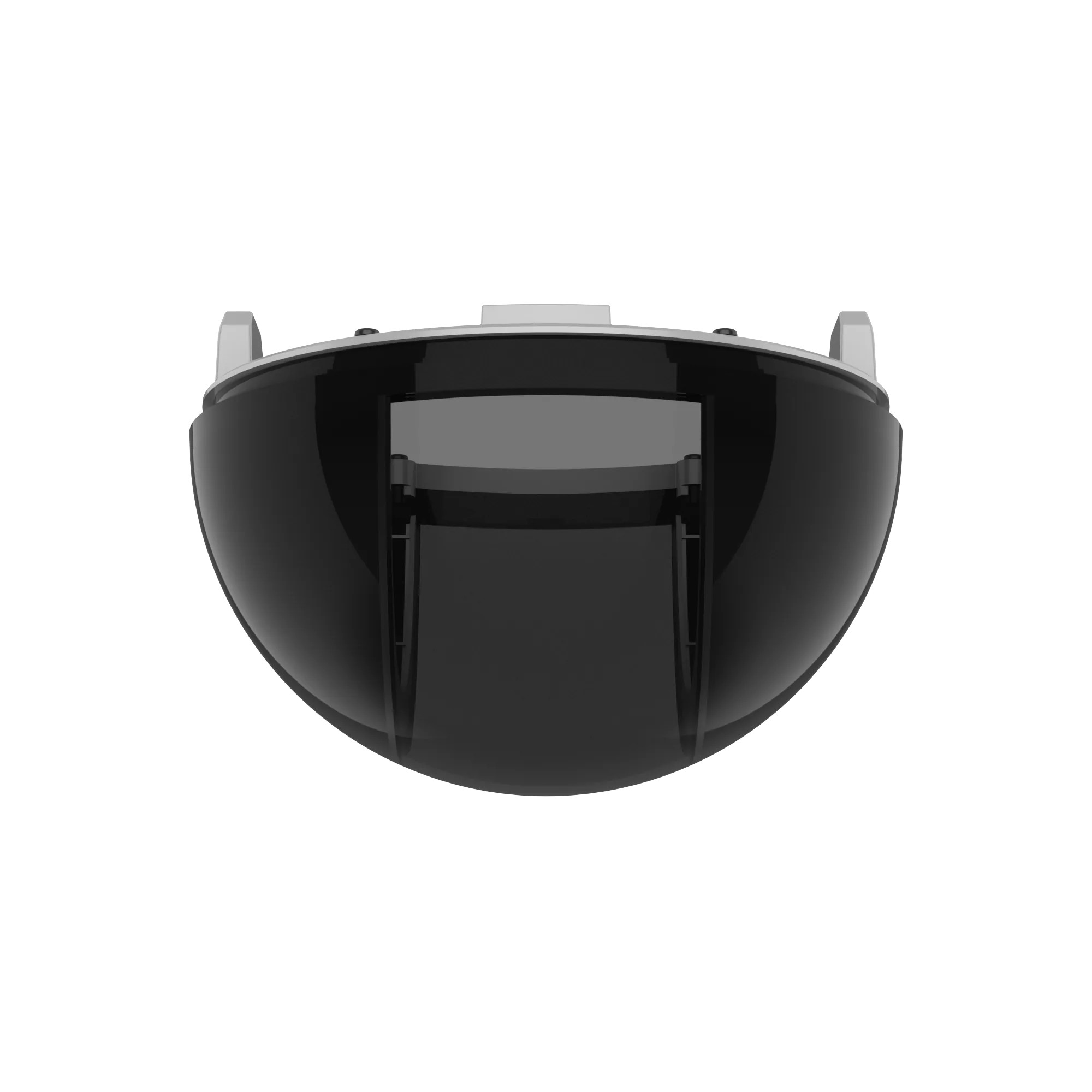

The SPB-PTZ95W is a polycarbonate (PC) dome cover for PTZ cameras. The specification states the color as black. Product dimensions are ø188.1 x 126.5mm with a weight of 289g. Mounting is by a TR20 screw. XNP-C9310R and XNP-C7310R are listed as supported products, and further compatible models appear on the manufacturer's website or in the Toolbox. PTZ dome coverPolycarbonate materialBlack finishø188.1 x 126.5mm, 289gTR20 mount screwFor XNP-C9310R and XNP-C7310R
Not in stock · delivery 3-4 days

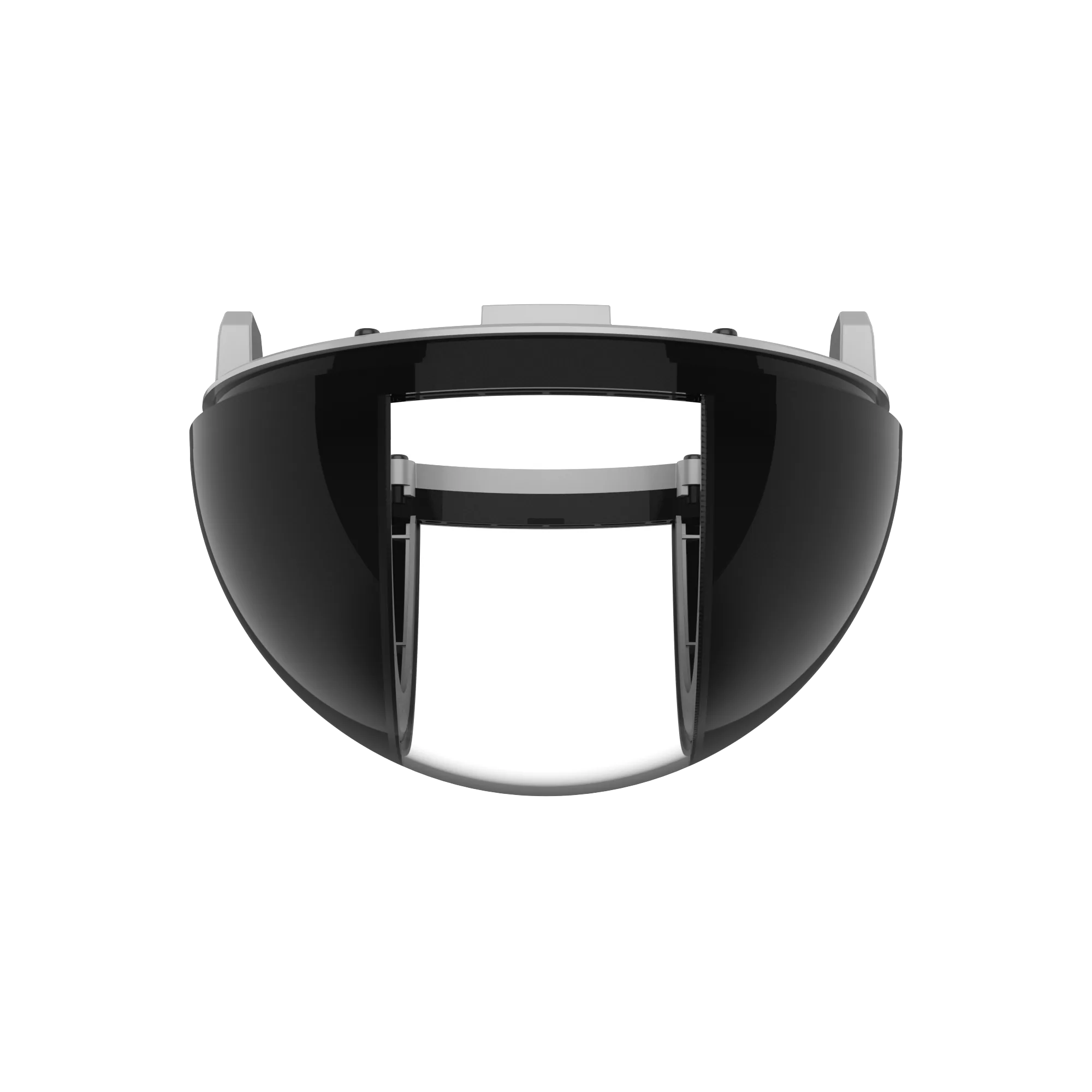

The SPG-PTZ95W is a polycarbonate (PC) dome cover for PTZ cameras. According to the data sheet it is finished in black. Its dimensions are ø188.1x126.5mm (ø7.41x4.98") and the stated weight is 289 g. TR20 is given as the mount screw size. Supported products are XNP-C9310R and XNP-C7310R; further compatible models are listed in the manufacturer's compatibility overview. Dome cover for PTZ camerasPolycarbonate (PC) constructionBlack finishDimensions ø188.1x126.5mmWeight 289 gFor XNP-C9310R and XNP-C7310R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNP-C7310R
- EAN / GTIN
- 8801089223159
- Weight
- 6.6 kg
- Dimensions (W×H×D)
- 248 × 235 × 478 mm
Description
This 4MP AI IR PTZ camera is based on a 1/1.8 inch CMOS sensor with a maximum resolution of 2592x1520. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) with WDR off and 30fps/25fps with WDR on, while MJPEG runs at 30fps and a maximum of 5fps at 4MP. The motorised varifocal lens from 6.91 to 214.7 mm supplies 31x optical and 32x digital zoom, F1.36 wide and F4.6 tele, and a horizontal field of view of 59.4 to 2.54 degrees. Wise IR reaches 300 m (984ft), and sensitivity is quoted as 0.04 lux in colour and 0.004 lux in black and white, falling to 0 lux with the IR LED on. Focusing options include oneshot AF, focus save, focus scan and Wise auto focus, alongside WDR at 120 dB, AI-based WiseNR II and WiseStream III, DIS with a gyro sensor and IP66/IP67, IK10 and NEMA4X ratings.
- 6.91~214.7 mm, 31x optical, 32x digital zoom
- 1/1.8 inch CMOS, up to 2592x1520
- Wise IR up to 300 m (984ft)
- WDR 120 dB, WiseNR II, prefer shutter
- Wise auto focus and focus save
- IP66/IP67, IK10, NEMA4X
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (5)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle)
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- DetectionShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 2338.4m(7671.81ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 90.9m(298.18ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 233.8m(767.18ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 9.1m(29.82ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 935.3m(3068.72ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 36.4m(119.27ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 467.7m(1534.36ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 18.2m(59.64ft)
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -50°C~+55°C(-58°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 62W, typical 23W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – EPA(Effective Projected Area)
- 0.046㎡
- Environmental & Electrical – Input Voltage
- PoE++(IEEE802.3bt type4, Class8)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 2slot(Total 1TB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (12)
- Lens / Angular Field of View – Diagonal
- 68.2°~2.95°
- Lens / Angular Field of View – Horizontal
- 59.4°~2.54°
- Lens / Angular Field of View – Vertical
- 35.8°~1.49°
- Lens / Max Aperture Ratio (F number) – Tele
- 4.6
- Lens / Max Aperture Ratio (F number) – Wide
- 1.36
- Lens / Zoom Ratio – Digital
- 32x
- Lens / Zoom Ratio – Optical
- 31x
- Lens – Focal Length (mm)
- 6.91 ~ 214.7
- Lens – Focus Control
- Oneshot AF, Focus save, Focus scan, Wise auto focus
- Lens – Lens Type
- P iris(IR corrected)
- Lens – Min. Object Distance
- 3m(9.84ft)
- Lens – Optional Lens
- Non
Mechanical (5)
- Mechanical – Color
- White, Black
- Mechanical – Material
- Aluminum, PC(Polycarbonate)
- Mechanical – Product Dimensions
- ø188x264.9mm(7.40x10.47")
- Mechanical – Product Weight
- 4,400g(9.70lb)
- Mechanical – RAL Code
- RAL9003, RAL9005
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (27)
- Operational / Alarm Interface – Others
- Support alarm I/O via optional I/O box
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- Wise IR 300m(984ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
- Operational – Audio In
- Support via optional I/O box
- Operational – Audio Out
- Support via optional I/O box
- Operational – Auto Tracking
- Support, Object auto tracking(Person/Vehicle), Target lock tracking
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Direction Indicator
- Support
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – IR Wavelength
- 850nm
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip&Mirror
- Operational – Water Removal
- Support(Spin Dry, Lens heater)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
- Operational – Wide Dynamic Range (dB)
- 120
Pan (8)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 360° Endless
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 90°~-20°
- Pan / Tilt / Rotate / Pan Speed – Manual
- 0.024°/sec~200°/sec
- Pan / Tilt / Rotate / Pan Speed – Preset
- Max. 550°/sec
- Pan / Tilt / Rotate / Tilt Speed – Manual
- 0.024°/sec~200°/sec
- Pan / Tilt / Rotate / Tilt Speed – Preset
- Max. 550°/sec
- Pan / Tilt / Rotate – Preset Accuracy
- ±0.05°
- Pan / Tilt / Rotate – Sequence
- Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Security (10)
- Security – Access Control
- IP-based access control, MAC-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (7)
- Video / Imaging Device – Size
- 1/1.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on)
- Video / Max. Framerate – MJPEG
- 30fps(@4MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.004
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.04
- Video – Resolution
- 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
