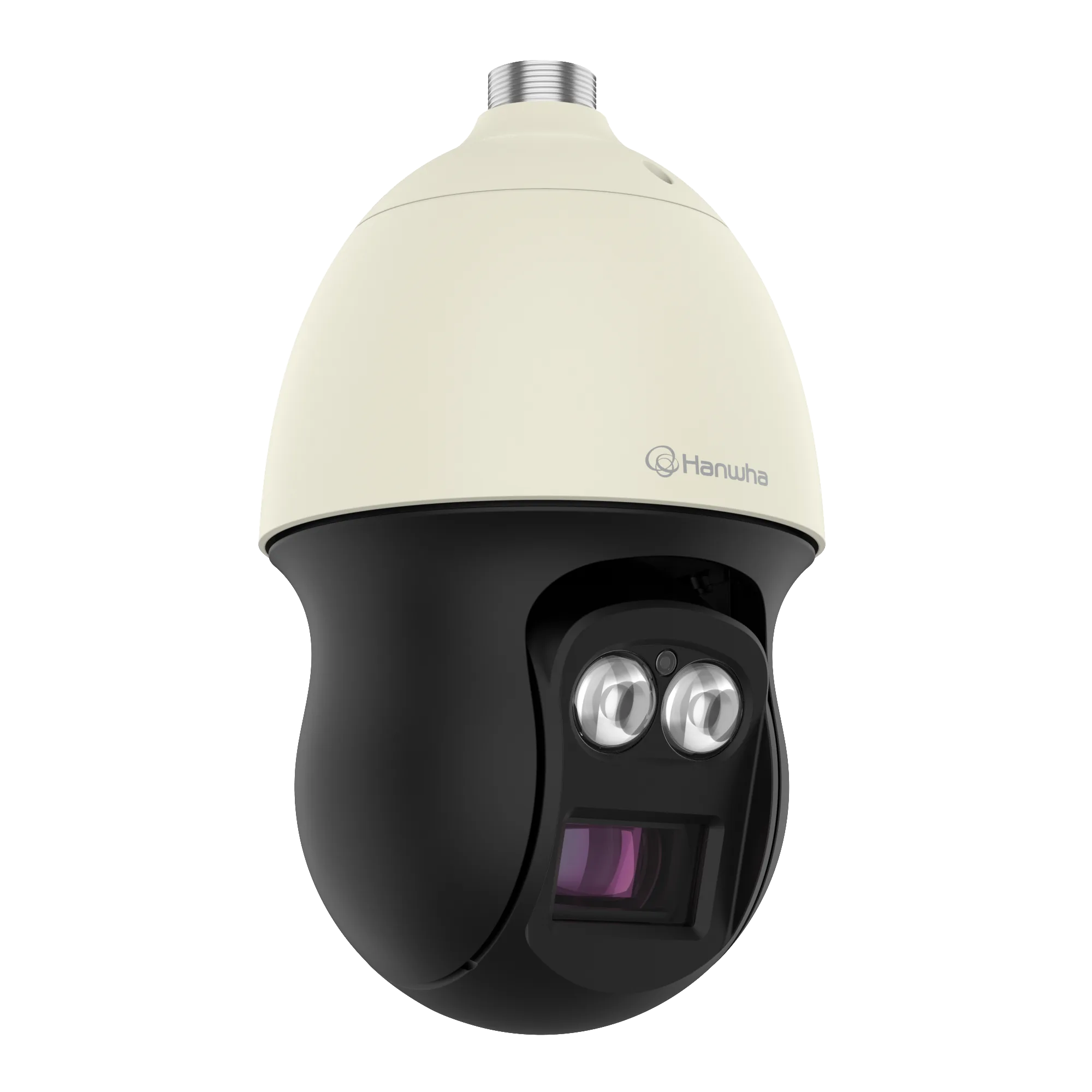

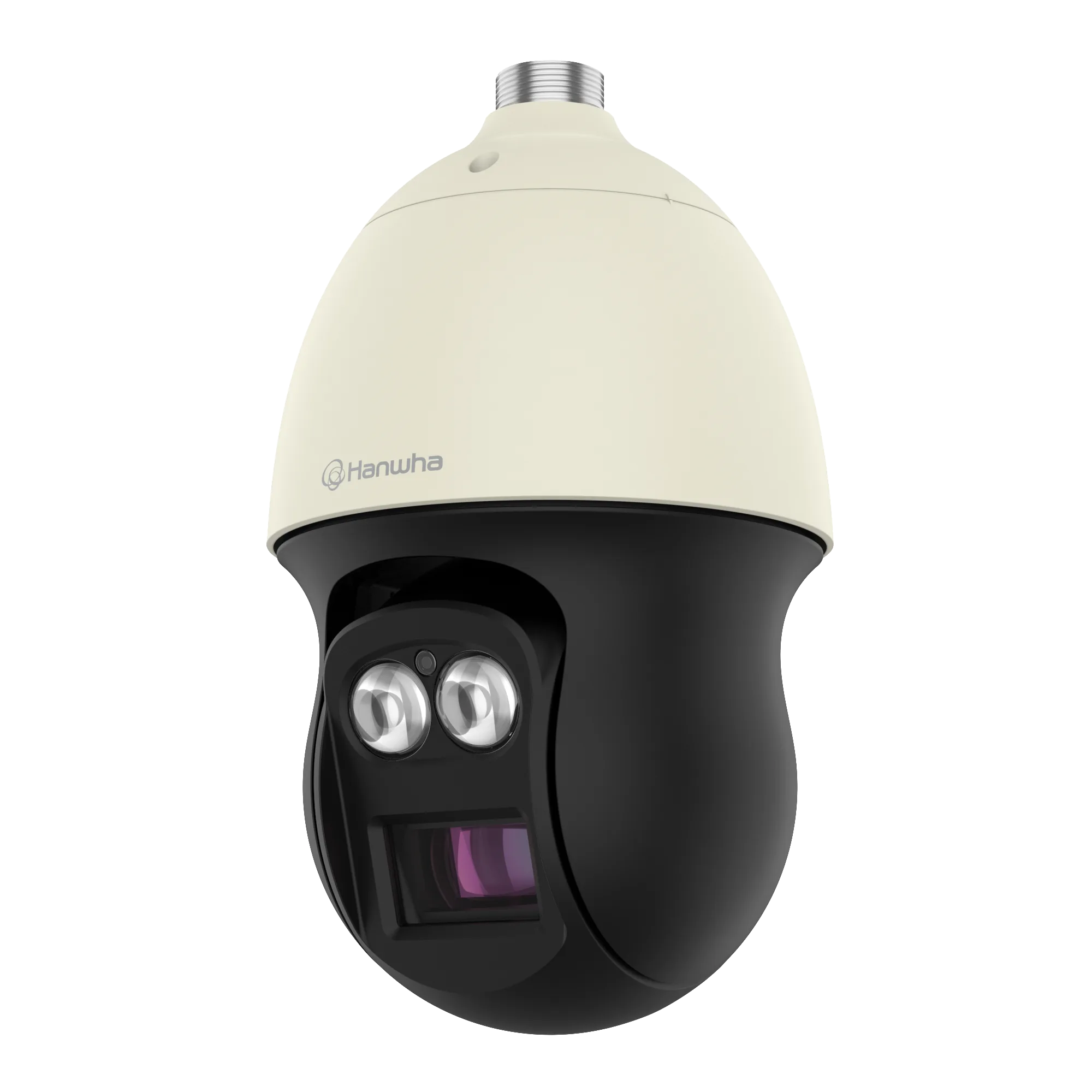

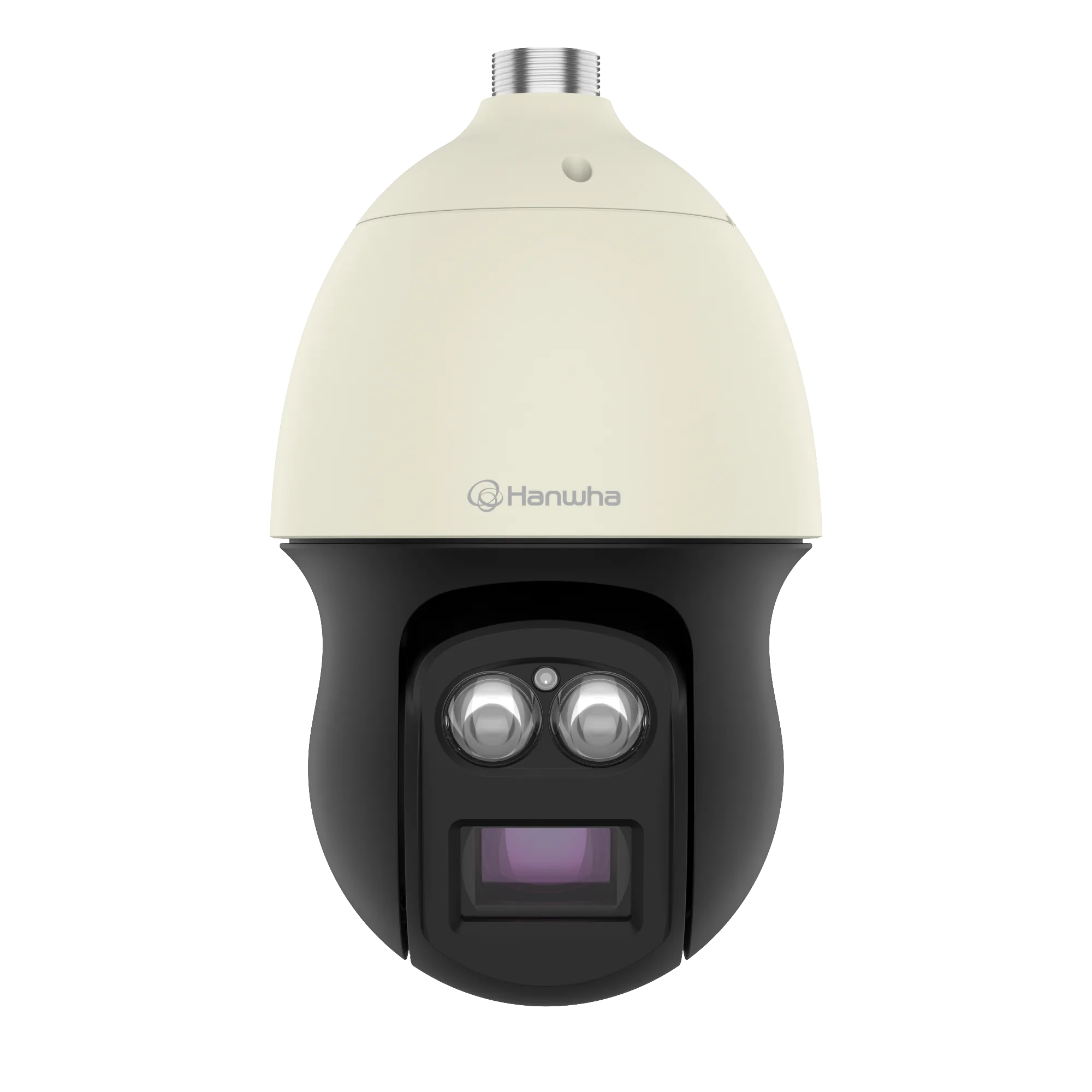

2MP 55x IR PTZ
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNP-6550RH
- EAN / GTIN
- 8801089144867
- Weight
- 11.84 kg
- Dimensions (W×H×D)
- 620 × 365 × 485 mm
Description
This IR PTZ dome camera resolves 1920x1080 from a 1/2.8 inch CMOS sensor and encodes H.265 and H.264 at 60fps/50fps (60Hz/50Hz), with MJPEG at 30fps. The lens covers 4.75 to 261.4 mm, equal to 55x optical zoom, opens to F1.6 wide and F6.5 tele and captures 58.6 to 1.23 degrees horizontally and 34.8 to 0.71 degrees vertically. Minimum illumination is given as 0.02 lux in colour and 0.002 lux in black and white, and maximum IR viewable length is 500 m. Pan range spans 0 to 360 degrees and tilt -5 to 90 degrees, with preset speeds of up to 400 degrees per second panning and 250 degrees per second tilting. It also offers ICR day and night operation, WDR at 120 dB, digital image stabilisation with a built-in gyro sensor, multiple streaming with WiseStream II and intelligent video and audio analytics with optical defog.
- 4.75~261.4 mm, 55x optical zoom
- IR viewable length up to 500 m
- 0.02 lux colour / 0.002 lux BW
- WDR 120 dB, ICR day and night
- Image stabilisation with gyro sensor
- Video and audio analytics, optical defog
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
Certifications & Standards (1)
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 62262 IK10
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 3577.4m(11736.7ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 68.4m(224.5ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 357.7m(1173.7ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.8m(22.5ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 1430.9m(4694.7ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 27.4m(89.8ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 715.5m(2347.3ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 13.7m(44.9ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- AC24: -50°C~+55°C(-58°F~+131°F) / HPoE: -40°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – 24VAC
- Max. 92W, typical : 30W
- Environmental & Electrical / Power Consumption – PoE
- Max. 60W, typical : 30W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE++(IEEE802.3bt type4, Class7), 24VAC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 1GB
Lens (9)
- Lens / Angular Field of View – Horizontal
- 58.6°~1.23°
- Lens / Angular Field of View – Vertical
- 34.8°~0.71°
- Lens / Max Aperture Ratio (F number) – Tele
- 6.5
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 55x
- Lens – Focal Length (mm)
- 4.75~261.4
- Lens – Focus Control
- Auto, Manual, Oneshot AF
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 5m(16.40ft)
Mechanical (4)
- Mechanical – Color
- Ivory, Black
- Mechanical – Material
- Aluminum, Plastic
- Mechanical – Product Dimensions
- ø236.9x407.7mm(9.33x16.05")
- Mechanical – Product Weight
- 7.1Kg(15.65lb)
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- SFP, RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (27)
- Operational / Alarm Interface – In/Out
- Input 4ea / Output 2ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- 500m(1,640.42ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Auto Tracking
- Support
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Direction Indicator
- Support
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – Light Type
- IR LED
- Operational – Serial Interface
- RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 150
Pan (8)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -5°~90°
- Pan / Tilt / Rotate / Pan Speed – Manual
- 0.024°/sec~250°/sec
- Pan / Tilt / Rotate / Pan Speed – Preset
- Max. 400°/sec
- Pan / Tilt / Rotate / Tilt Speed – Manual
- 0.024°/sec~250°/sec
- Pan / Tilt / Rotate / Tilt Speed – Preset
- Max. 250°/sec
- Pan / Tilt / Rotate – Preset Accuracy
- ±0.2°
- Pan / Tilt / Rotate – Sequence
- Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Security (5)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP)
- Security – Secure Communication
- HTTPS, SRTP
- Security – User authentication
- Digest authentication
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.002
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.02
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
