2MP 32x PTZ
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories

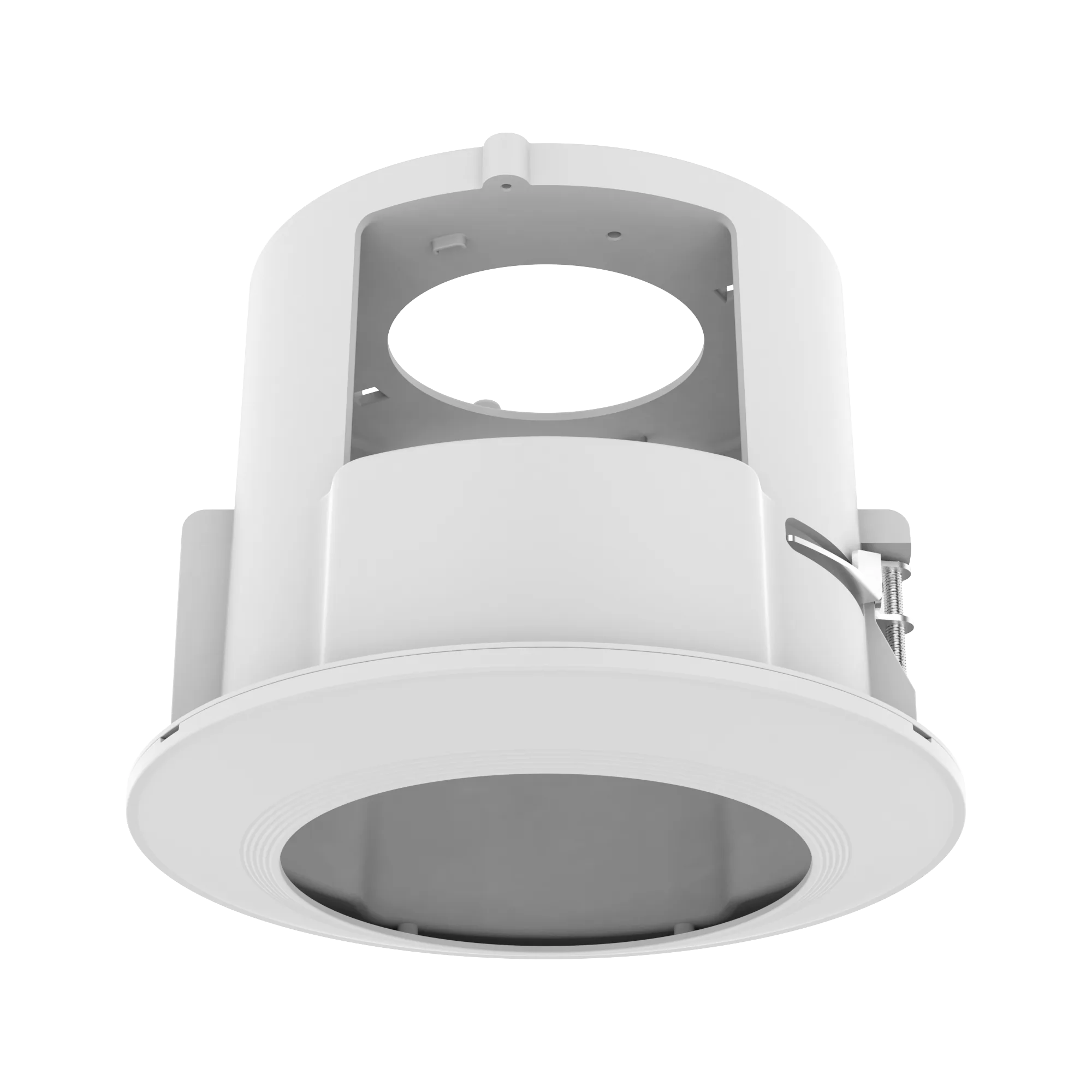

The SHP-1520FW is an in-ceiling housing made of PC (polycarbonate). It is finished in white to RAL9003. Dimensions are ø212.1x164.5mm at a weight of 450g. The manufacturer states an operating temperature range of -10°C to 50°C. In-ceiling housingPC (polycarbonate), white RAL9003ø212.1x164.5mm / 450gTemperature -10°C ~ 50°C
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNP-6320
- EAN / GTIN
- 8801089143945
- Weight
- 2.51 kg
- Dimensions (W×H×D)
- 288 × 288 × 408 mm
Description

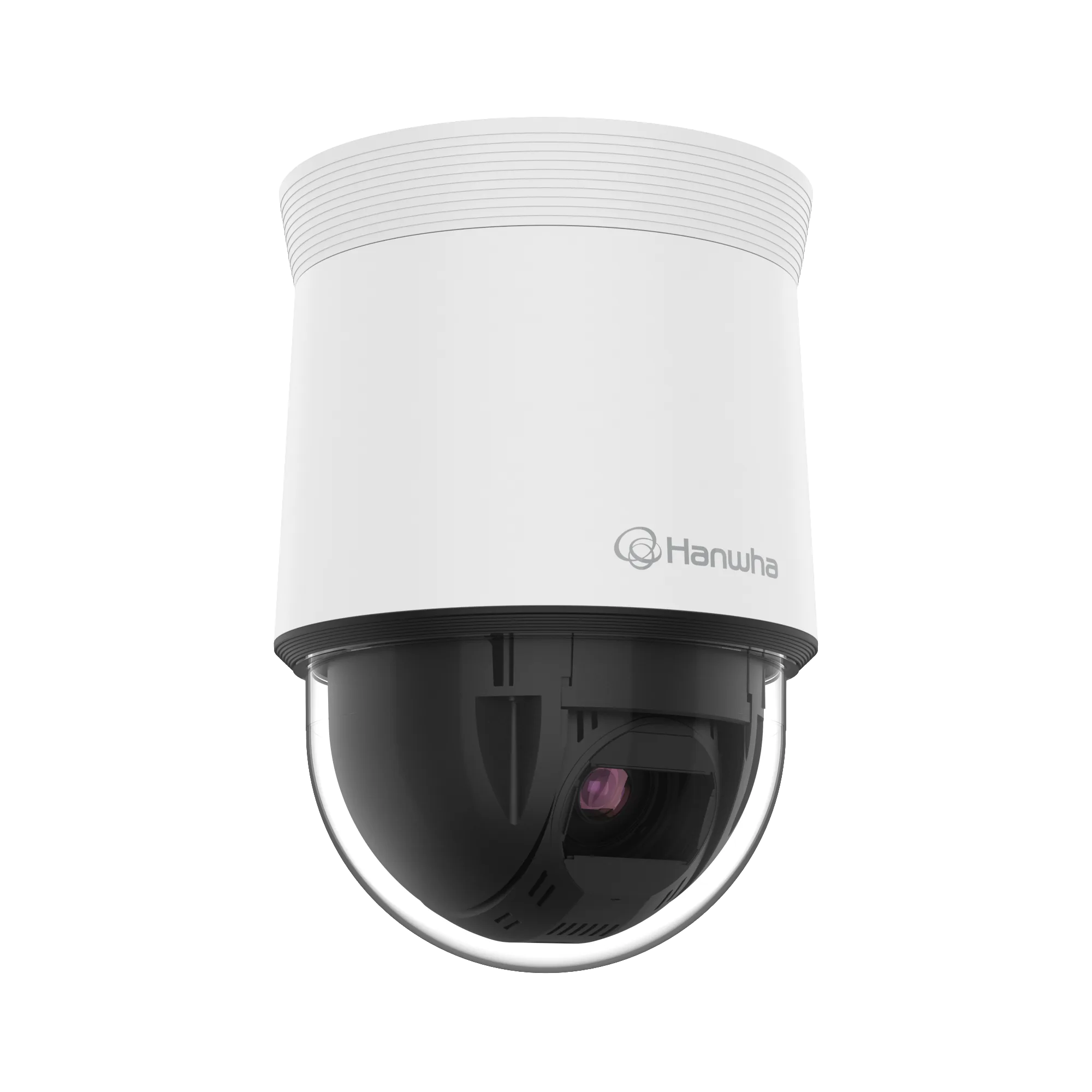

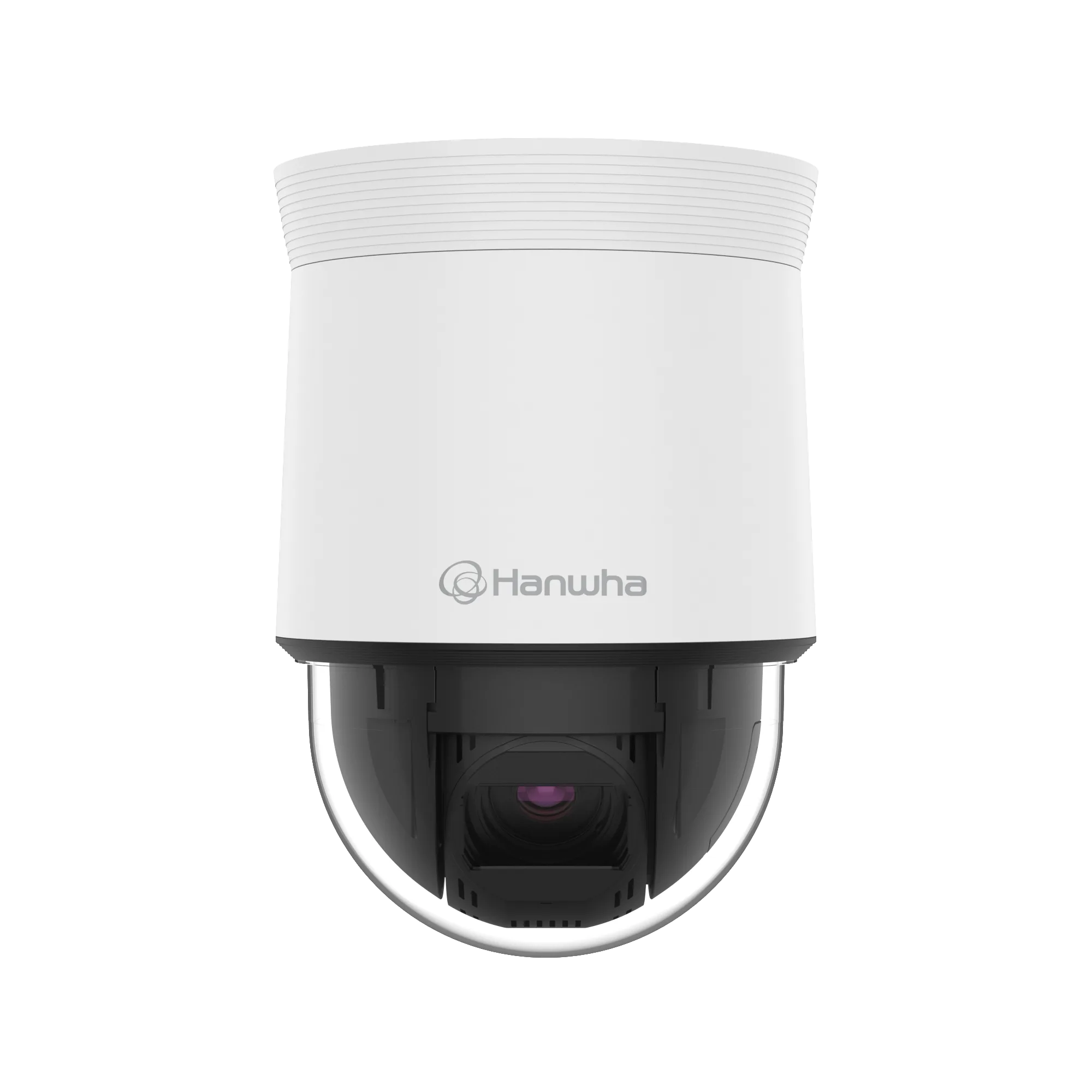

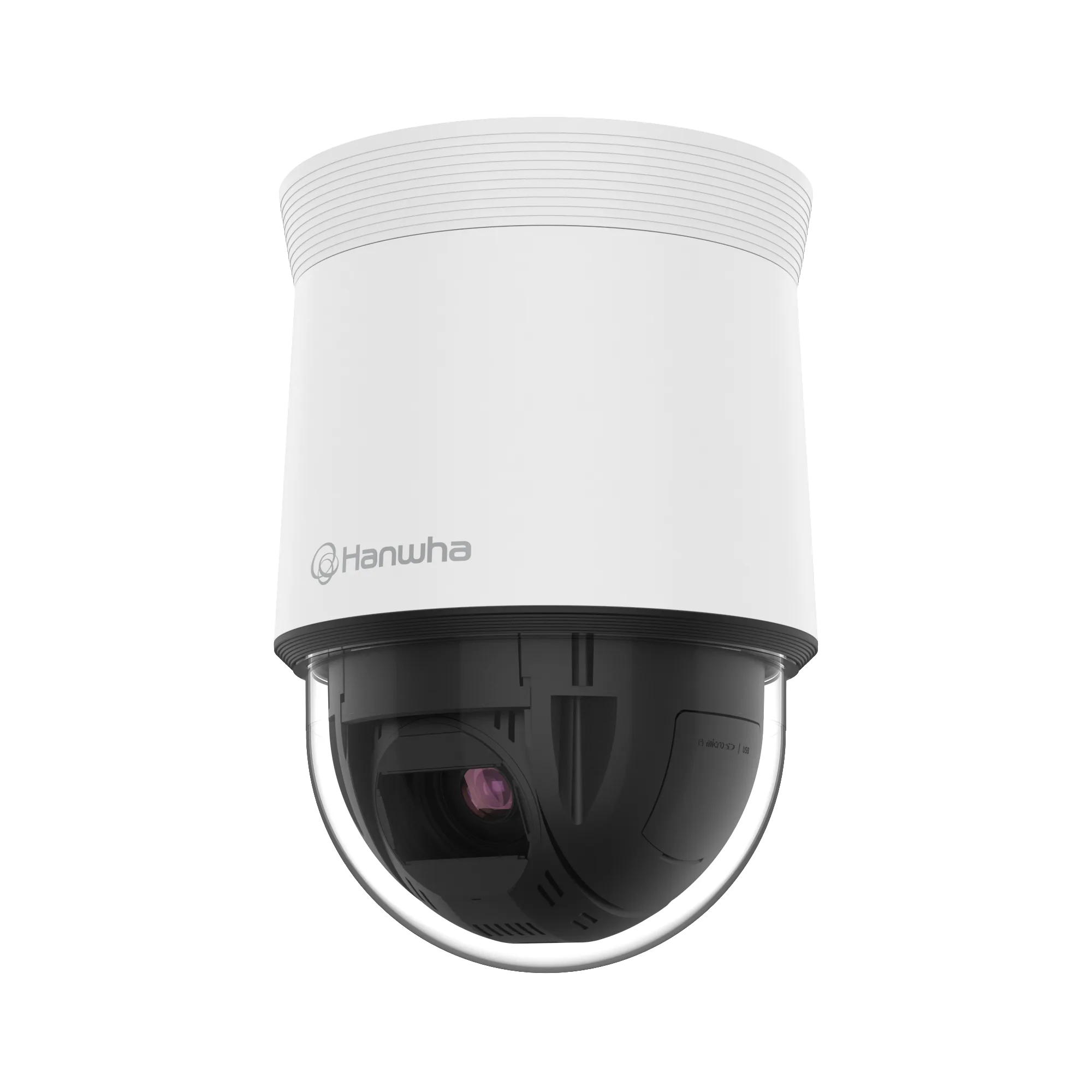

The QNP-6320 is a network PTZ camera with a 32x optic and a 1/2.8" CMOS sensor capturing up to 1920x1080. Its lens spans 4.44 to 142.6 mm at F1.6 wide and F4.4 tele, adds 32x digital zoom, a DC auto iris and oneshot AF with focus save, and covers 64.66 to 2.29 degrees horizontally and 38.08 to 1.30 degrees vertically from 1.5 m. Pan is endless across 360 degrees and tilt ranges from 90 to -15 degrees, moving at up to 700 degrees per second on presets, 0.024 to 200 degrees per second manually and up to 300 degrees per second for preset tilt. H.265/H.264 reach 60fps/50fps (60Hz/50Hz), MJPEG runs at 30fps and WiseStream II trims the bitrate. At 1/30 sec and 30 IRE the camera achieves 0.05 lux in colour and 0.005 lux in black and white, rounded out by ICR day/night switching, WDR, DIS with a gyro sensor, intelligent analytics and a Micro SD/SDHC/SDXC slot for 256 GB.
- 4.44 to 142.6 mm lens, 32x optical zoom
- 1/2.8" CMOS, max. 1920x1080
- 360 degree endless pan, 90 to -15 degree tilt
- 60fps/50fps in H.265/H.264, WiseStream II
- DIS with gyro sensor, WDR, ICR
- Micro SD/SDHC/SDXC up to 256 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Motion detection, Tampering, Audio detection, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, IC Regulation ICES-003 Issue 7 Class A
- Certifications & Standards – Environment
- IEC/EN 63000
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 1921.3m(6303.4ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 60.7m(199.1ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 192.1m(630.3ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.1m(19.9ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 768.5m(2521.4ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 24.3m(79.6ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 384.3m(1260.7ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 12.1m(39.8ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – 110VAC
- Non
- Environmental & Electrical / Power Consumption – PoE
- Max. 14.5W, Typical 12W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 1GB
Lens (10)
- Lens / Angular Field of View – Horizontal
- 64.66°~2.29°
- Lens / Angular Field of View – Vertical
- 38.08°~1.30°
- Lens / Max Aperture Ratio (F number) – Tele
- 4.4
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Digital
- 32x
- Lens / Zoom Ratio – Optical
- 32x
- Lens – Focal Length (mm)
- 4.44~142.6
- Lens – Focus Control
- Oneshot AF, Focus save
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 1.5m(4.92ft)
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- ø152x218mm(ø5.98x8.58")
- Mechanical – Product Weight
- 1700g(3.75 lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (23)
- Operational / Alarm Interface – In/Out
- Input 4ea / Output 2ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Auto Tracking
- Support
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Direction Indicator
- Support
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – Video Rotation
- Flip&Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
- Operational – Wide Dynamic Range (dB)
- 120
Pan (8)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 360° Endless
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 90°~-15°
- Pan / Tilt / Rotate / Pan Speed – Manual
- 0.024°/sec~200°/sec
- Pan / Tilt / Rotate / Pan Speed – Preset
- Max. 700°/sec
- Pan / Tilt / Rotate / Tilt Speed – Manual
- 0.024°/sec~200°/sec
- Pan / Tilt / Rotate / Tilt Speed – Preset
- Max. 300°/sec
- Pan / Tilt / Rotate – Preset Accuracy
- ±0.2°
- Pan / Tilt / Rotate – Sequence
- Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Security (8)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (7)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.005
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.05
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
