2MP 32x Stainless steel PTZ
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNP-6320HS
- EAN / GTIN
- 8801089210029
- Weight
- 7.4 kg
- Dimensions (W×H×D)
- 420 × 380 × 485 mm
Description

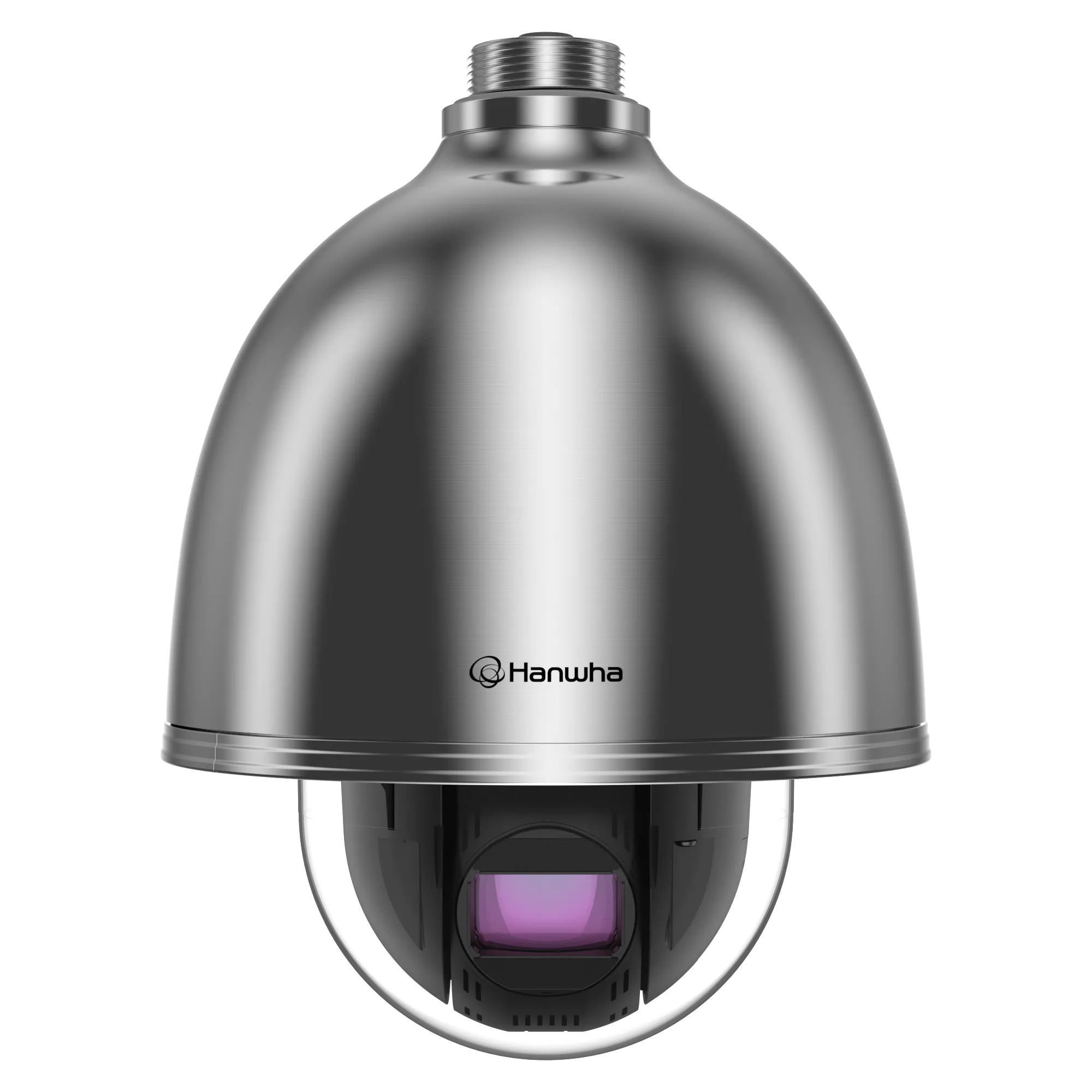

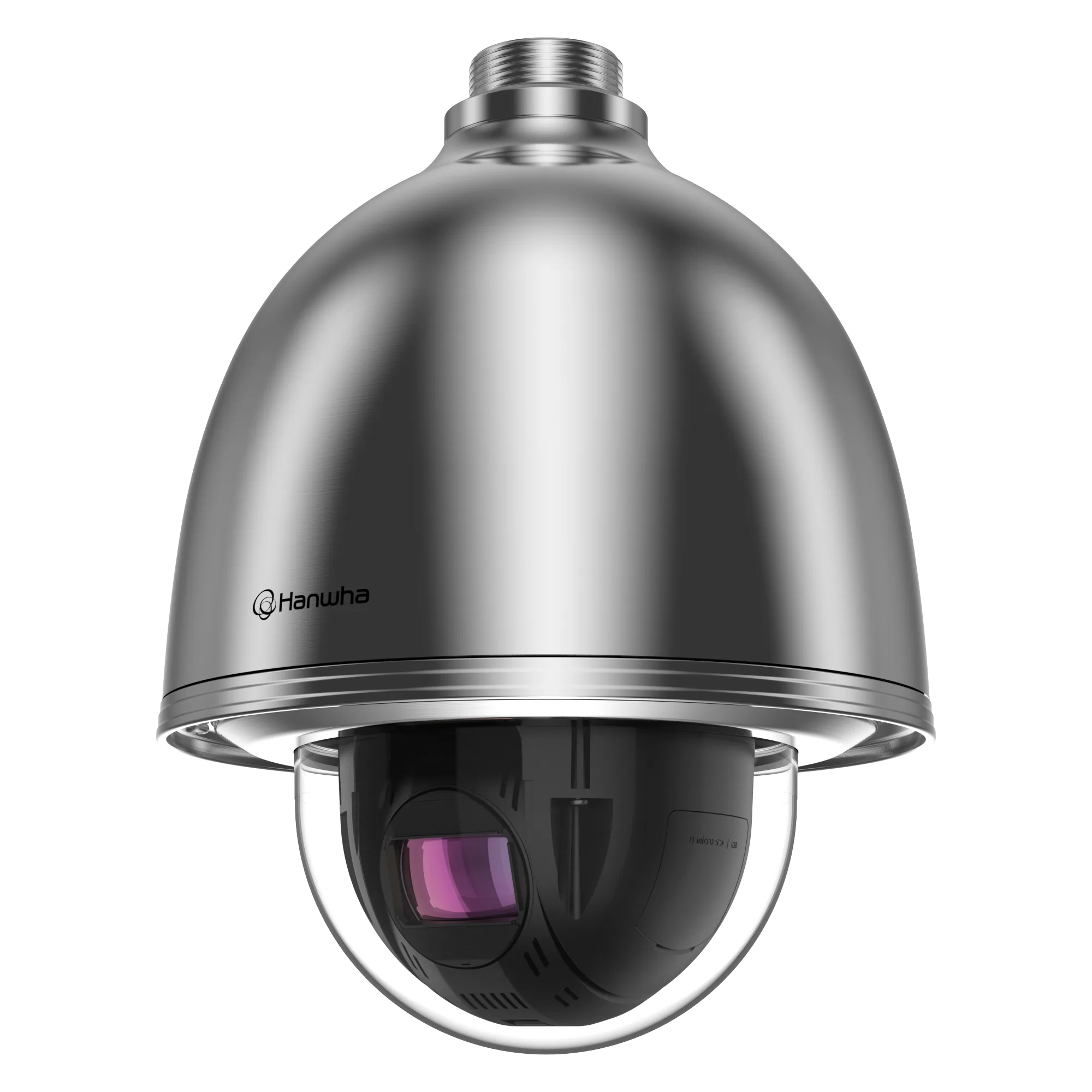

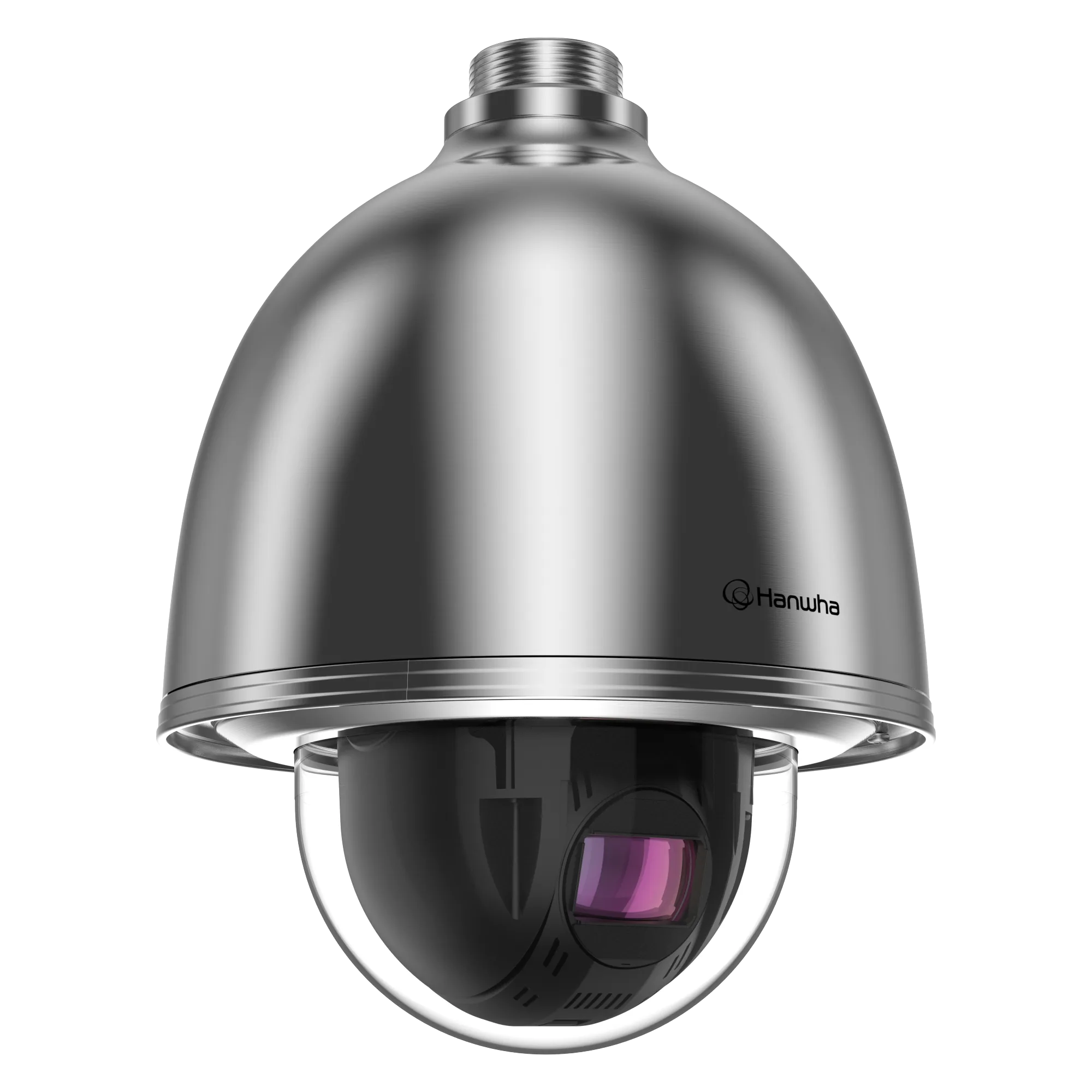

The QNP-6320HS is a PTZ camera in a SUS316L stainless steel housing rated IP66/IP67, IK10 and NEMA4X, powered over PoE. Its 1/2.8" CMOS sensor resolves up to 1920x1080, and H.265, H.264 and MJPEG stream at 60fps/50fps (60Hz/50Hz) and 30fps respectively, with multiple streaming and WiseStream II. The lens covers 4.44 to 142.6 mm, giving 32x optical and 32x digital zoom at F1.6 to F4.4, and combines a DC auto iris with auto, manual and oneshot AF plus focus save across 64.66 to 2.29 degrees horizontally and 38.08 to 1.30 degrees vertically from 1.5 m. Positioning is endless over 360 degrees with tilt from 90 to -15 degrees, at up to 700 degrees per second on presets, 0.024 to 200 degrees per second manually and up to 300 degrees per second for preset tilt. Sensitivity is 0.05 lux in colour and 0.005 lux in black and white at 1/30 sec and 30 IRE, while analytics cover directional detection, tampering, motion detection, audio detection and digital auto tracking, with recording to Micro SD/SDHC/SDXC up to 256 GB.
- SUS316L stainless steel, IP66/IP67, IK10, NEMA4X
- 4.44 to 142.6 mm, 32x optical zoom
- 120 dB WDR, ICR day/night, WiseStream II
- Directional, tampering and motion detection
- Audio detection and digital auto tracking
- Micro SD/SDHC/SDXC up to 256 GB, PoE
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Motion detection, Tampering, Audio detection, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, IC Regulation ICES-003 Issue 7 Class A
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 1921.3m(6303.4ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 60.7m(199.1ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 192.1m(630.3ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.1m(19.9ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 768.5m(2521.4ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 24.3m(79.6ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 384.3m(1260.7ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 12.1m(39.8ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -25°C
- Environmental & Electrical / Operating Condition – Temperature
- -35°C~+55°C(-31°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 23W, typical 14W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 1GB
Lens (10)
- Lens / Angular Field of View – Horizontal
- 64.66°~2.29°
- Lens / Angular Field of View – Vertical
- 38.08°~1.30°
- Lens / Max Aperture Ratio (F number) – Tele
- 4.4
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Digital
- 32x
- Lens / Zoom Ratio – Optical
- 32x
- Lens – Focal Length (mm)
- 4.44~142.6
- Lens – Focus Control
- Auto, Manual, Oneshot AF, Focus save
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 1.5m(4.92ft)
Mechanical (4)
- Mechanical – Color
- Silver
- Mechanical – Material
- Stainless(STS316L)
- Mechanical – Product Dimensions
- Ø227x299.2mm(8.94x11.78")
- Mechanical – Product Weight
- 5,400g(11.93lb)
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (23)
- Operational / Alarm Interface – Others
- Support alarm I/O via optional I/O box
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Support via optional I/O box
- Operational – Audio Out
- Support via optional I/O box
- Operational – Auto Tracking
- Support
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Direction Indicator
- Support
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – Video Rotation
- Flip&Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
- Operational – Wide Dynamic Range (dB)
- 120
Pan (8)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 360° Endless
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 90°~-15°
- Pan / Tilt / Rotate / Pan Speed – Manual
- 0.024°/sec~200°/sec
- Pan / Tilt / Rotate / Pan Speed – Preset
- Max. 700°/sec
- Pan / Tilt / Rotate / Tilt Speed – Manual
- 0.024°/sec~200°/sec
- Pan / Tilt / Rotate / Tilt Speed – Preset
- Max. 300°/sec
- Pan / Tilt / Rotate – Preset Accuracy
- ±0.2°
- Pan / Tilt / Rotate – Sequence
- Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Security (7)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (7)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.005
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.05
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
