2MP AI PTZ
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
Three shaft adaptor for wall and pole mounts, made from polycarbonate and aluminium. The finish is white to RAL9003. It measures ø125x27.7mm and weighs 242g. Fixing uses TR30 mount screws. Supported brackets are the SBP-250WMW and SBP-400WMW. Polycarbonate and aluminiumWhite RAL9003Dimensions ø125x27.7mm, 242gTR30 mount screw sizeFor SBP-250WMW and SBP-400WMW
In stock, ships immediately · delivery 1-2 days

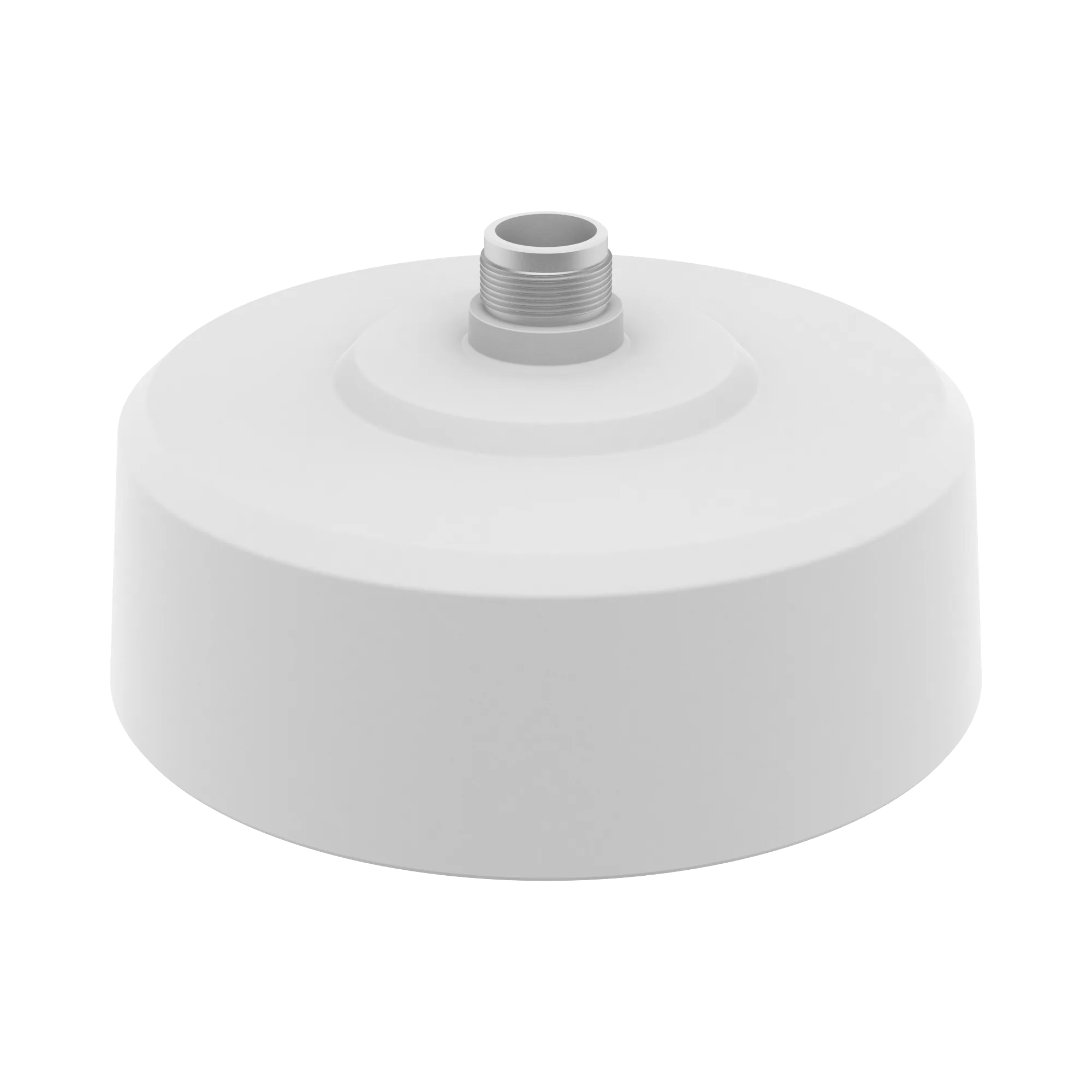

The SBP-156HMWR is a hanging adaptor made of aluminium. It comes in a white finish and measures ø325x169mm (ø12.79x6.30"). Its own weight is 4.5kg (9.92lb). The adaptor is installed using TR20 screws. The maximum permissible load is 8.0kg. Hanging adaptorAluminium, whiteø325x169mmOwn weight 4.5kgMax. load 8.0kgTR20 mounting screw
Not in stock · delivery 3-4 days

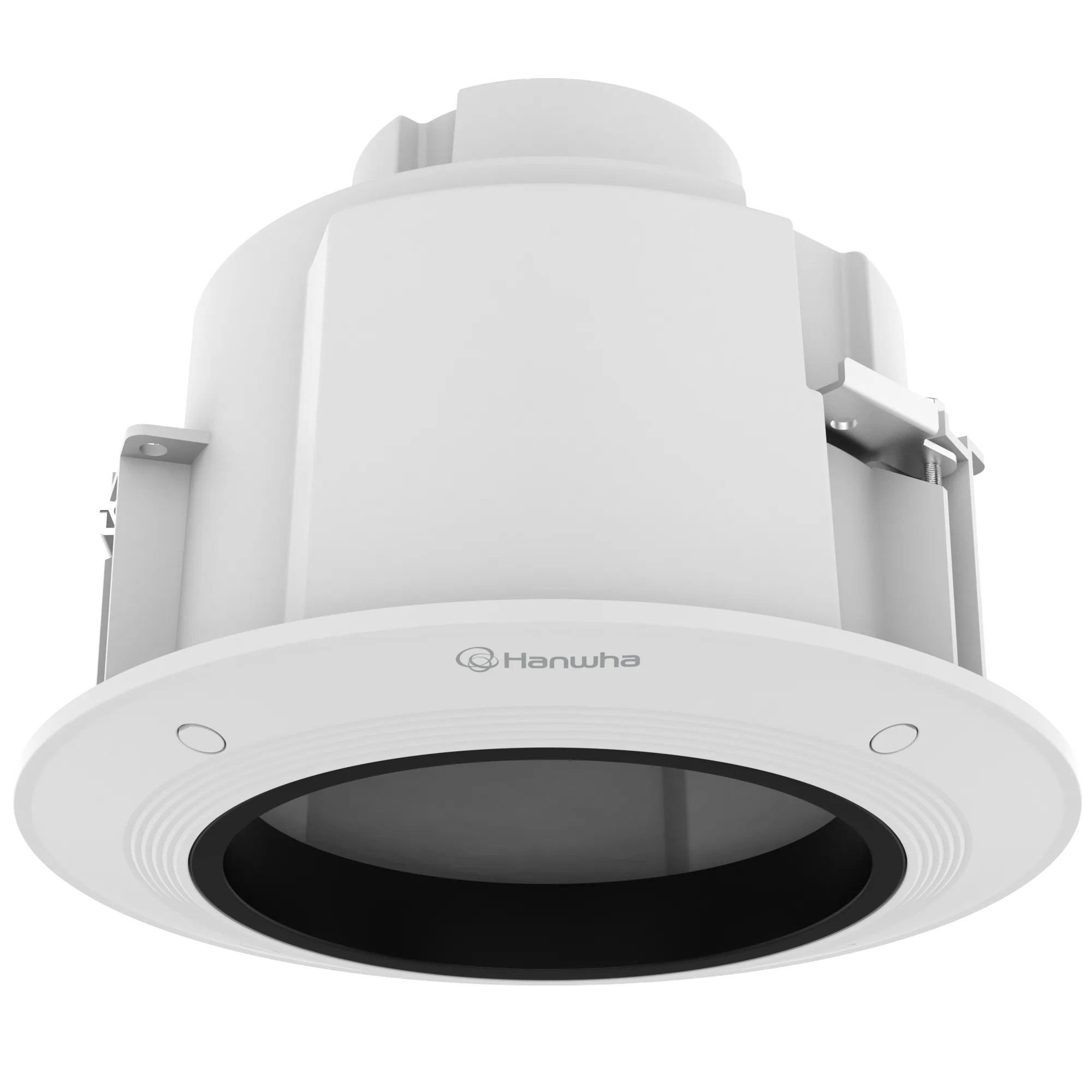

The SHP-1563FPW is an in-ceiling mount with an aluminium enclosure and a polycarbonate (PC) top cover, finished in white to RAL9003. It measures ø268x209mm (ø10.55x8.23") and weighs 1900g (4.19lb). Installation is designed for tile thicknesses of 3~70mm. Conduit holes of 19.1mm (3.4") (M25) and 12.7mm (1/2") (M20) are provided for cable routing. Supported products are XNP-C6403, XNP-C6403R and QNP-6250R. Enclosure aluminium, top cover polycarbonate (PC)White RAL9003ø268x209mm (ø10.55x8.23") / 1900g (4.19lb)Tile thickness 3~70mmConduit hole 19.1mm (M25), 12.7mm (M20)For XNP-C6403, XNP-C6403R, QNP-6250R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNP-C6403
- EAN / GTIN
- 8801089224620
- Weight
- 4.6 kg
- Dimensions (W×H×D)
- 279 × 219 × 348 mm
Description

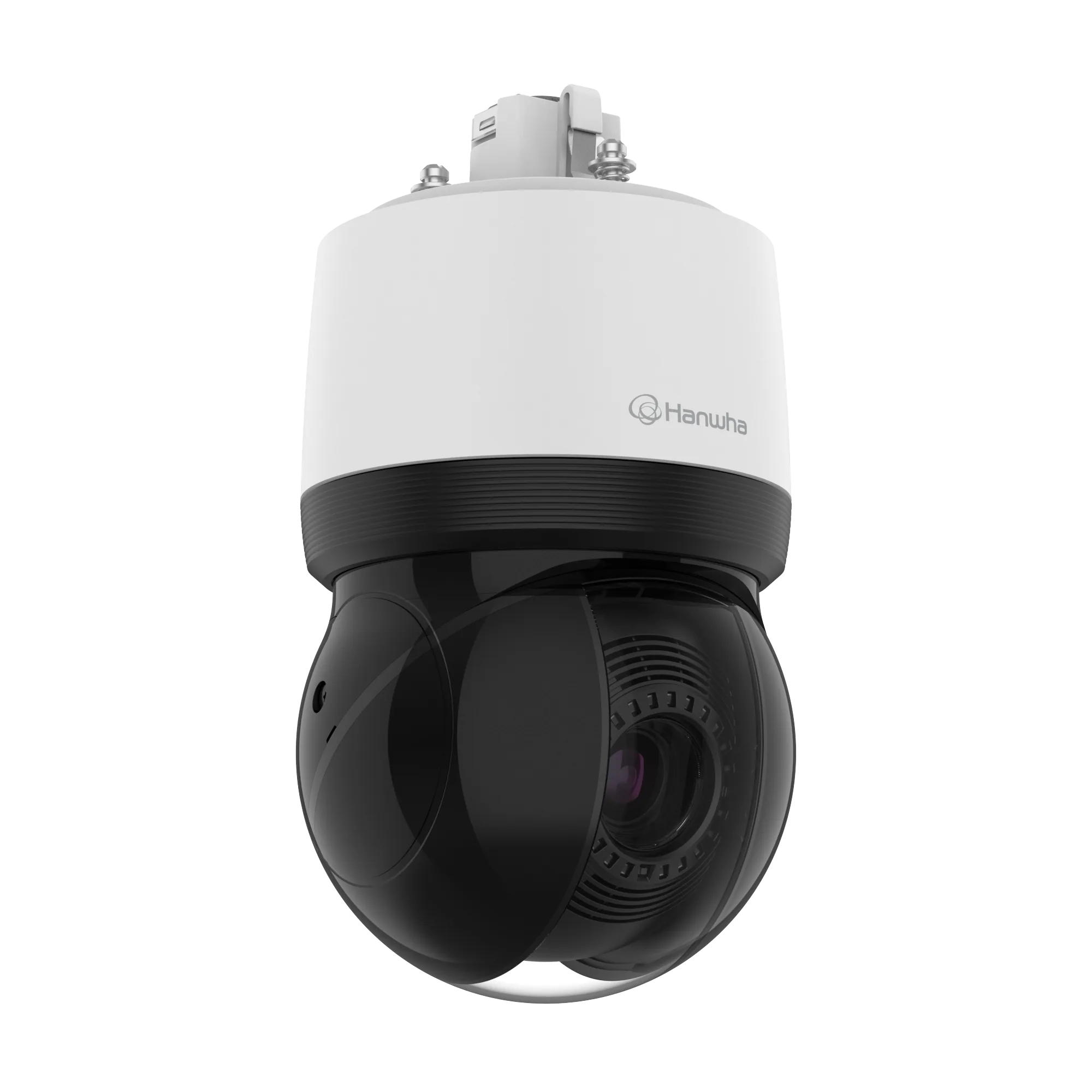

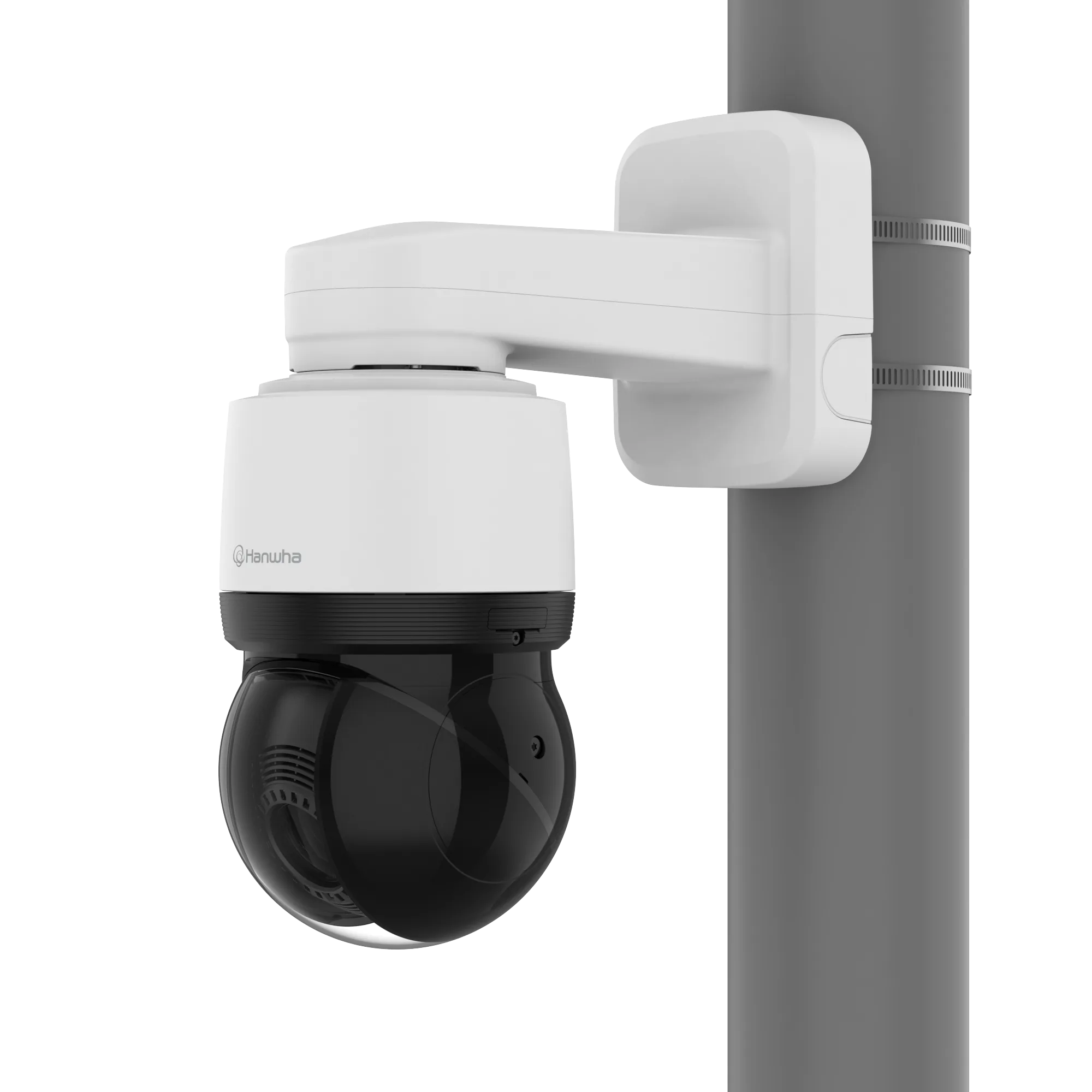

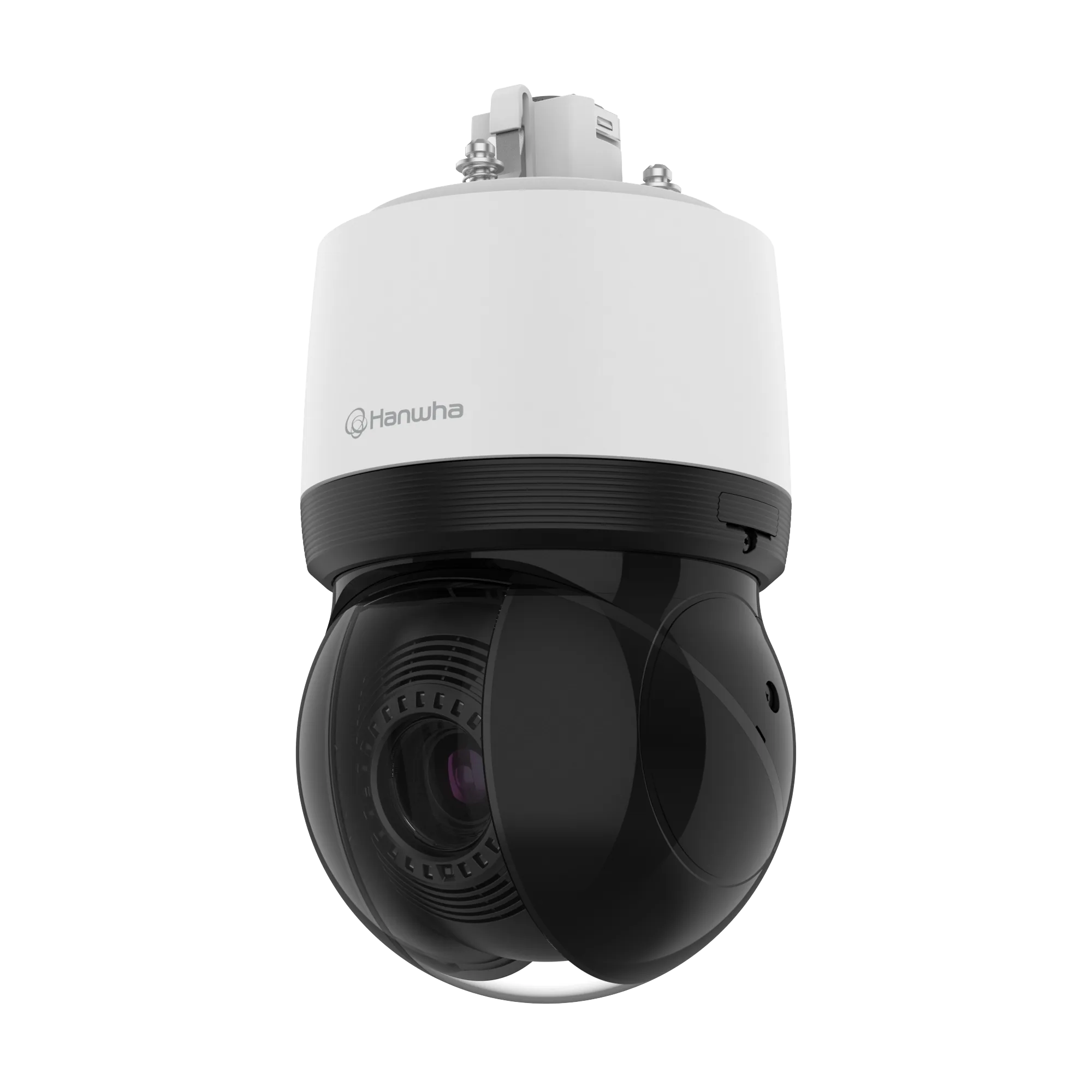

This AI PTZ camera in PTZ PLUS design uses a 1/2.8 inch CMOS sensor and delivers up to 1920x1080, encoding H.265 and H.264 at 60fps/50fps (60Hz/50Hz) and MJPEG at 30fps. The lens spans 4.25 to 170 mm and provides 40x optical plus 32x digital zoom, 1280x in total, at F1.6 wide and F4.95 tele. Horizontal field of view runs from 65.66 to 1.88 degrees and vertical from 39.4 to 1.09 degrees, with a minimum object distance of 5 m (16.4ft). At 1/30 sec it reaches 0.05 lux in colour and 0.005 lux in black and white; pan is endless across 360 degrees at up to 700 degrees per second and tilt covers 90 to -20 degrees at up to 500 degrees per second. Intelligent analytics with object auto tracking for persons and vehicles, target lock tracking, WiseStream II and a housing rated IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) complete the specification.
- 4.25~170 mm, 40x optical, 32x digital, 1280x total
- 1920x1080, 60fps/50fps in H.265/H.264
- 0.05 lux colour / 0.005 lux BW
- Object auto tracking and target lock tracking
- 360 degree endless pan, up to 700 degrees/sec
- IP66, IK10, NEMA4X, NEMA-TS 2
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (5)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle)
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- DetectionShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 2340.4m(7678.4ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 59.5m(195.3ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 234.0m(767.8ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.0m(19.5ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 936.2m(3071.4ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 23.8m(78.1ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 468.1m(1535.7ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 11.9m(39.1ft)
Environmental & Electrical (9)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+50°C(-40°F~+122°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 25.5W, Typical 24W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – EPA(Effective Projected Area)
- 0.035㎡
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4)
- Environmental & Electrical – Wind Load
- 241km/h(150mph)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 2slot(Total 1TB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (10)
- Lens / Angular Field of View – Horizontal
- 65.66°~1.88°
- Lens / Angular Field of View – Vertical
- 39.4°~1.09°
- Lens / Max Aperture Ratio (F number) – Tele
- 4.95
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Digital
- 32x
- Lens / Zoom Ratio – Optical
- 40x
- Lens – Focal Length (mm)
- 4.25~170
- Lens – Focus Control
- Oneshot AF, Focus save
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 5m(16.4ft)
Mechanical (5)
- Mechanical – Color
- White, Black
- Mechanical – Material
- Aluminum, PC(Polycarbonate), Hard-coated dome
- Mechanical – Product Dimensions
- ø158x293.3mm(6.22x11.55")
- Mechanical – Product Weight
- 3,200g(7.05lb)
- Mechanical – RAL Code
- RAL9003, RAL9005
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (24)
- Operational / Alarm Interface – Others
- Support alarm I/O via optional I/O box
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
- Operational – Audio In
- Support via optional I/O box
- Operational – Audio Out
- Support via optional I/O box
- Operational – Auto Tracking
- Support, Object auto tracking(Person/Vehicle), Target lock tracking
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Direction Indicator
- Support
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – Video Rotation
- Flip&Mirror
- Operational – Water Removal
- Support(Spin Dry, Lens heater)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
- Operational – Wide Dynamic Range (dB)
- 150
Pan (8)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 360° Endless
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 90°~-20°
- Pan / Tilt / Rotate / Pan Speed – Manual
- 0.024°/sec~250°/sec
- Pan / Tilt / Rotate / Pan Speed – Preset
- Max. 700°/sec
- Pan / Tilt / Rotate / Tilt Speed – Manual
- 0.024°/sec~250°/sec
- Pan / Tilt / Rotate / Tilt Speed – Preset
- Max. 500°/sec
- Pan / Tilt / Rotate – Preset Accuracy
- Up to ±0.1°, Pan/Tilt correction
- Pan / Tilt / Rotate – Sequence
- Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (7)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.005
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.05
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
