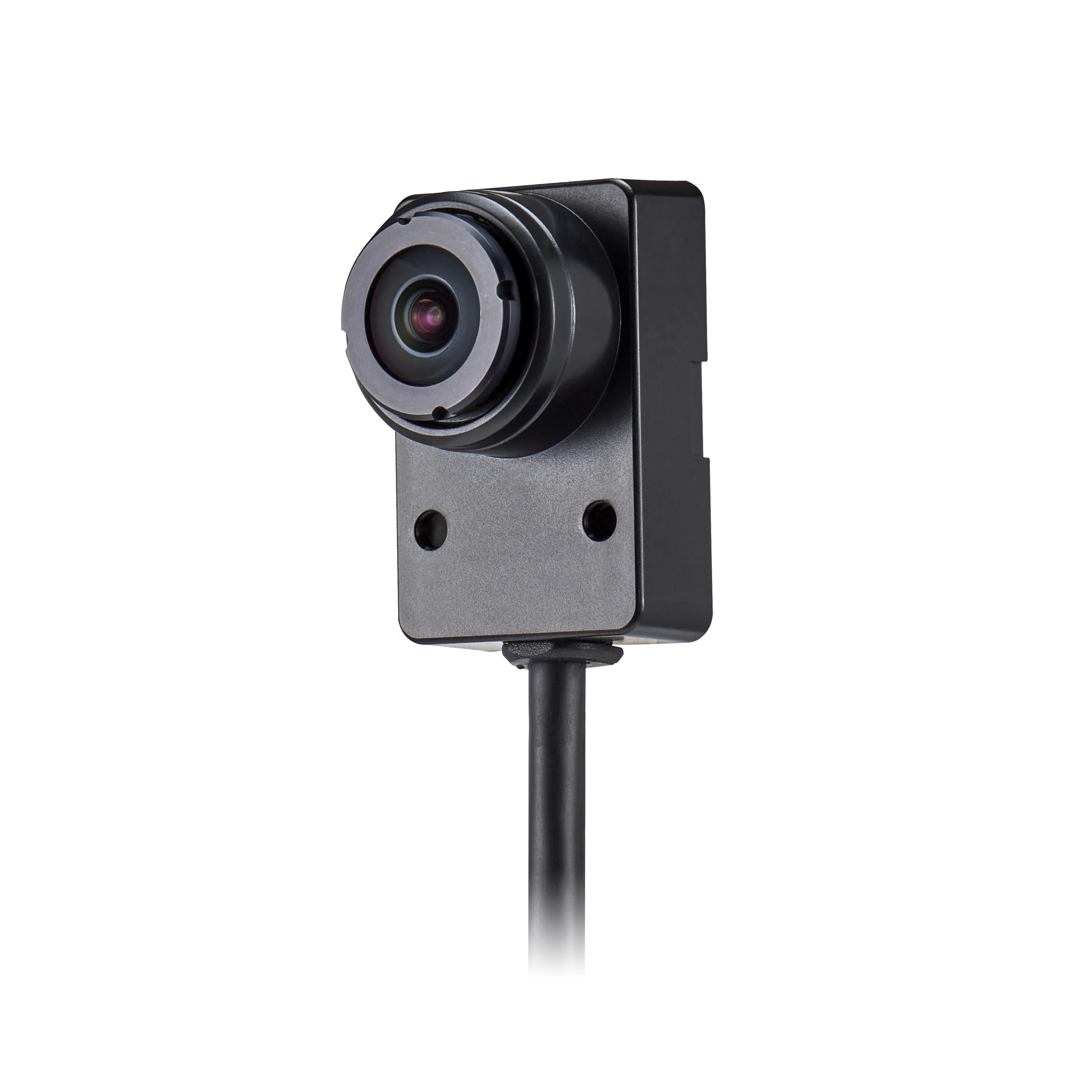

2.4mm Lens/Imager right angle body for XNB-6001 (8.0m cable)
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Fits
2MP network camera with a remote head and matching lens modules. Maximum resolution is 1920x1080 at 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with multiple streaming, hallway view at 90°/270° and WiseStreamII supported. Day and night switching is electrical and WDR is rated 120dB, joined by BLC, HLC, SSDR, SSNRⅤ, defog, digital image stabilisation and LDC. The electronic shutter spans 2~1/12,000sec, white balance offers ATW, AWC, manual, indoor and outdoor, and gain control has three steps. Motion detection uses eight 8point polygonal zones while privacy masking provides 32 areas in selectable colours or as a mosaic. Lens modules listed are SLA-T1080F, SLA-T2480, SLA-T2480V, SLA-T4680 and SLA-T4680V, and an SD/SDHC/SDXC slot takes up to 256GB. 2MP, 1920x1080 at 60fps/50fpsRemote head with lens modules120dB WDR, defog, DIS, LDCShutter 2~1/12,000secHallway view 90°/270°, WiseStreamIISD/SDHC/SDXC slot up to 256GB
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SLA-T2480V
- EAN / GTIN
- 8801089137906
- Weight
- 0.47 kg
- Dimensions (W×H×D)
- 183 × 139 × 53 mm
Description
The SLA-T2480V is a 2MP lens module using a 1/2.8-inch CMOS sensor with 1,945 x 1,109 effective pixels, or 2.16 megapixels. Its fixed focal length is 2.4 mm at F2.0, covering 138° horizontally, 73° vertically and 165° diagonally. Minimum illumination is 0.45 lux in colour and 0.045 lux in black-and-white. Focus is fixed and the connection to the main unit runs over RJ12. The black plastic and metal body measures 30 x 27.9 x 45 mm, weighs 328 g and is rated from -10 °C to +55 °C.
- 1,945 x 1,109 effective pixels (2.16 MP)
- Fixed 2.4 mm focal length, F2.0
- 138° x 73° x 165° field of view
- 0.45 lux colour, 0.045 lux BW
- 30 x 27.9 x 45 mm body, 328 g
- RJ12 connection to the main unit
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental & Electrical (4)
- Environmental & Electrical / Operating Condition – Humidity
- Less than 90% RH
- Environmental & Electrical / Operating Condition – Temperature
- -10°C ~ +55°C (+14°F ~ +131°F)
- Environmental & Electrical / Storage Condition – Humidity
- Less than 90% RH
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
Lens (7)
- Lens / Angular Field of View – Diagonal
- 165°
- Lens / Angular Field of View – Horizontal
- 138°
- Lens / Angular Field of View – Vertical
- 73°
- Lens / Max Aperture Ratio (F number) – Wide
- 2.0
- Lens – Focal Length (mm)
- 2.4
- Lens – Focus Control
- Fixed
- Lens – Mount Type
- RJ12 connected with main unit
Mechanical (4)
- Mechanical – Color
- Black
- Mechanical – Material
- Plastic, Metal
- Mechanical – Product Dimensions
- 30x27.9x45mm(1.18"x0.10"x1.77")
- Mechanical – Product Weight
- 328g (0.72 lb)
Video (5)
- Effective Pixels
- 1,945(H)x1,109(V) 2.16M
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.045
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.45
