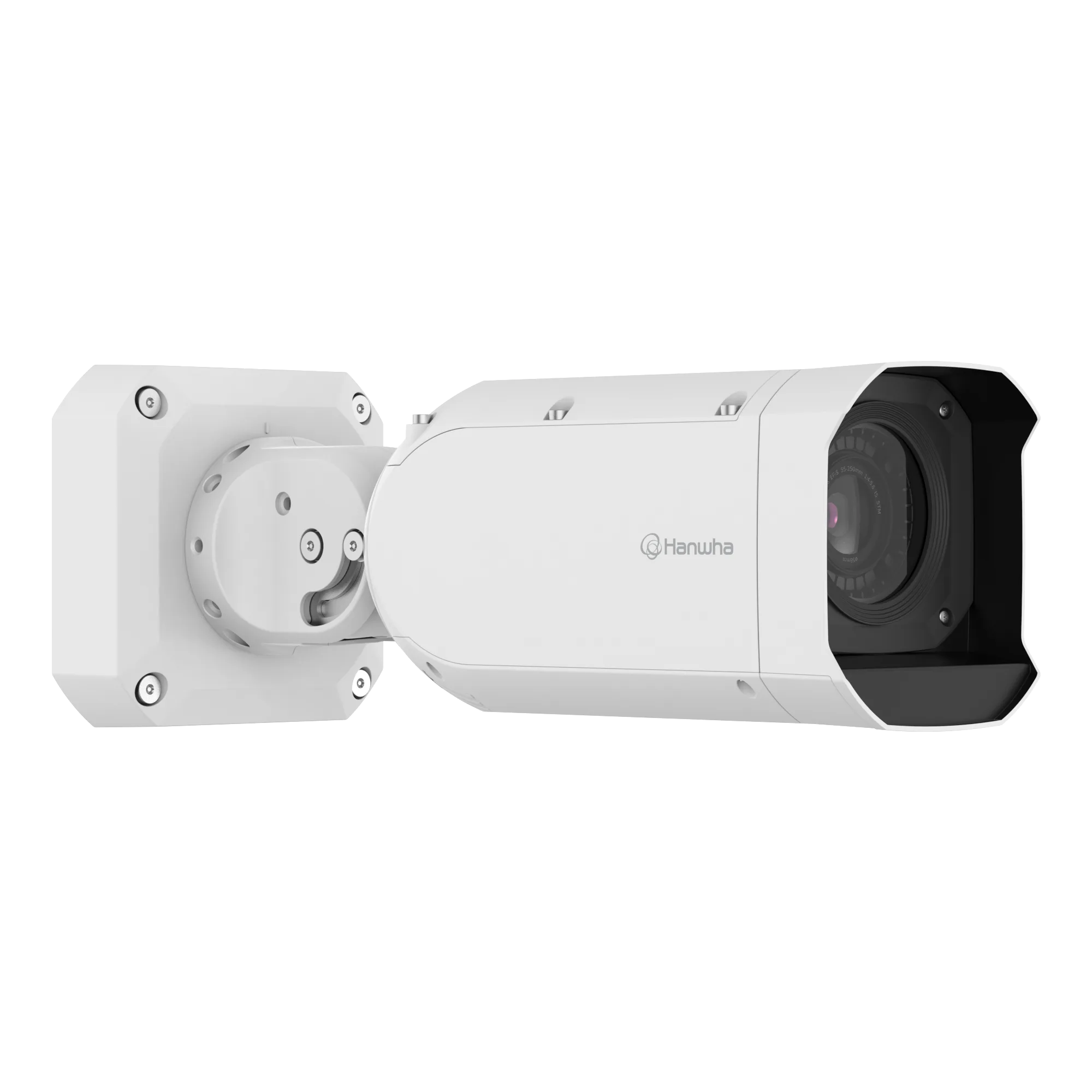

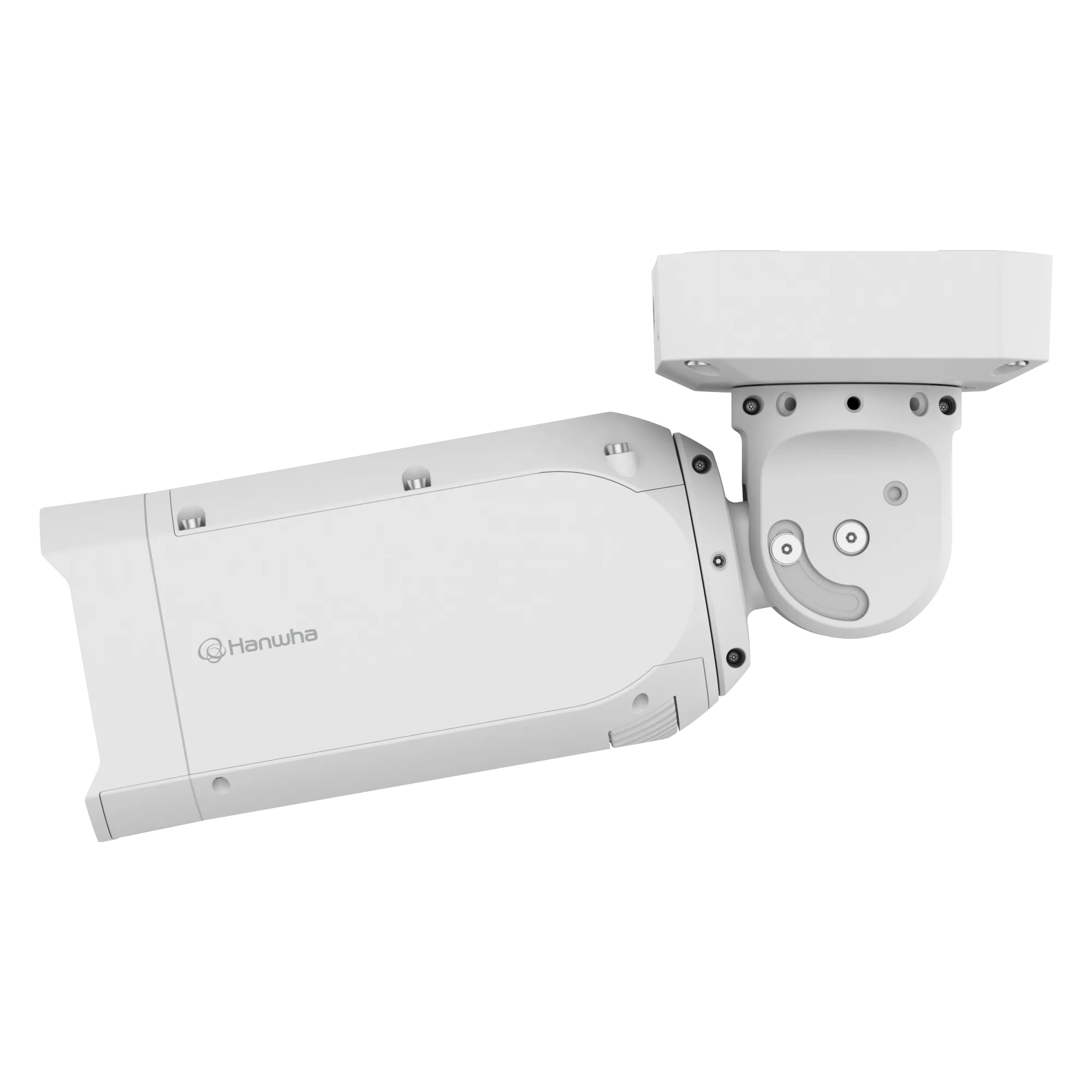

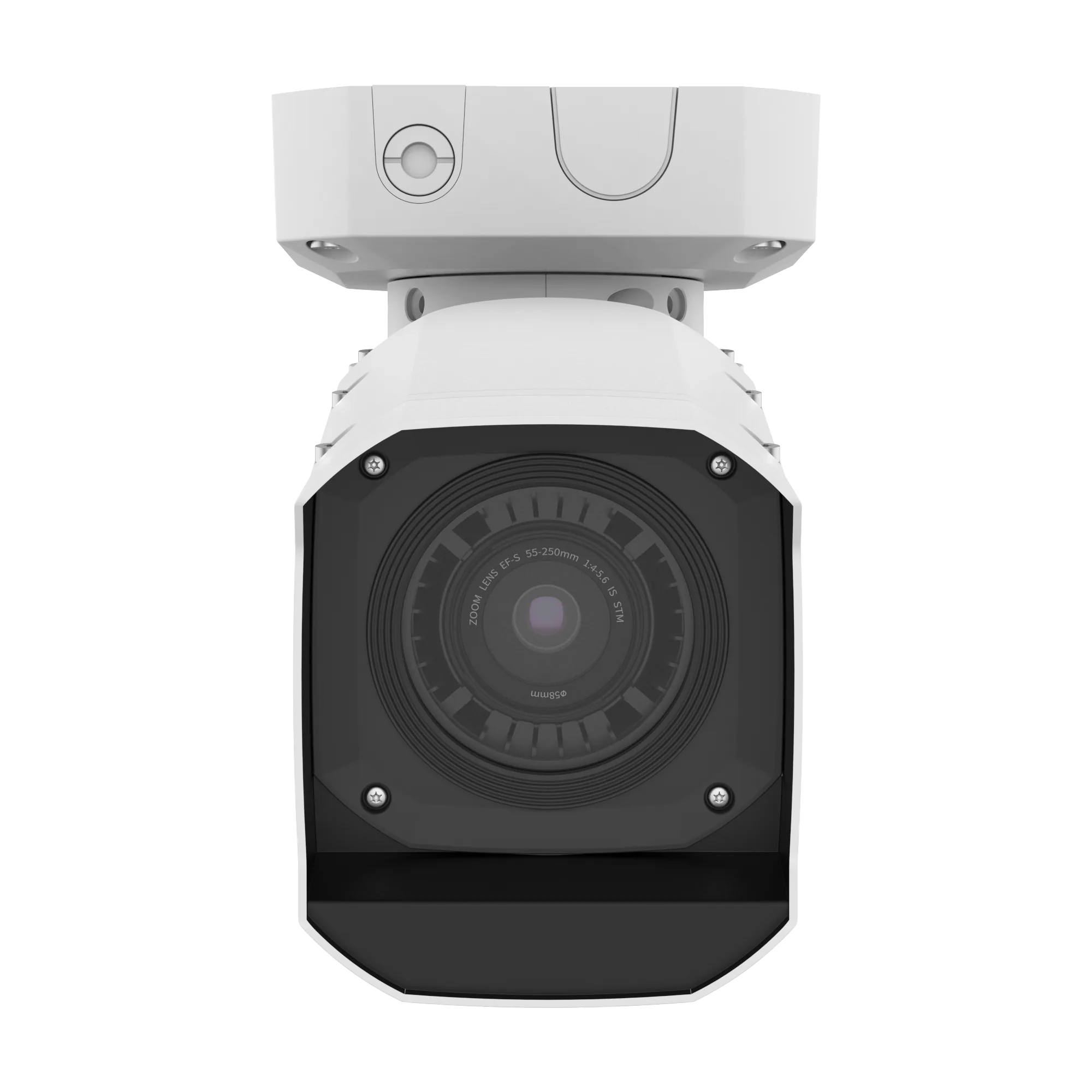

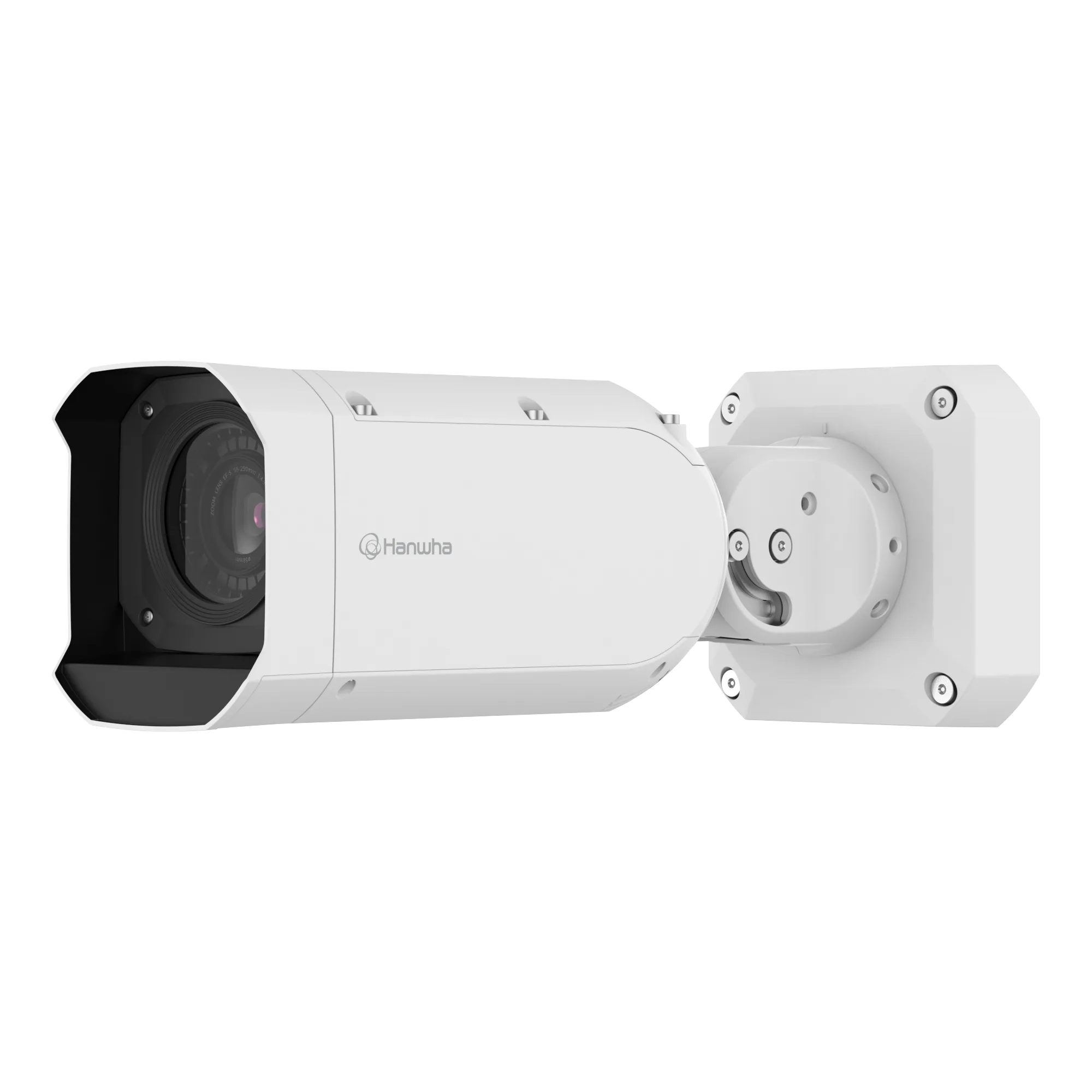

26MP Ultra High Resolution AI Bullet Camera
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNO-A26081
- EAN / GTIN
- 8801089227232
- Weight
- 10 kg
- Dimensions (W×H×D)
- 740 × 275 × 330 mm
Description
With 26 MP and a maximum resolution of 6240x4160, the TNO-A26081 addresses tasks that demand fine detail, imaging through a CMOS sensor measuring 28.3 mm diagonally (1.8"). Every resolution is delivered at up to 30 fps in H.265, H.264 and MJPEG, dropping to a maximum of 20 fps when WiseAI is switched on. The lens is a Canon EF-S 55~250 mm F4-5.6 IS STM on an EF-S mount, giving 4.54x zoom, a field of view from 24° to 5.4° horizontally and 16° to 3.6° vertically, and a minimum object distance of 0.85 m; minimum illumination is 0.2 lux in colour and 0.02 lux in black and white, each at F4.0 and 1/30 sec. AI capabilities cover object detection, virtual lines for crossing and direction, virtual areas for loitering, intrusion, enter and exit, motion detection and a best shot per object. Hallway View, WiseStream III, auto ICR day and night switching, BLC and SSDR are also present. Power is drawn from PoE++ (IEEE802.3bt type3, Class6) or 12 V DC, and the housing carries IP66, IP67, IK10 and NEMA4X ratings.
- 26 MP, max. 6240x4160, CMOS with 28.3 mm diagonal
- Canon EF-S 55~250 mm F4-5.6 IS STM, 4.54x
- Up to 30 fps, max. 20 fps with WiseAI on
- Object detection, virtual lines and areas, best shot per object
- PoE++ (IEEE802.3bt type3, Class6) or 12 V DC
- IP66, IP67, IK10, NEMA4X
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (8)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Audio detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Face
- Age, Gender, Face mask, Glasses
- Analytics / Attributes – Person
- Upper/Lower clothes color, Gender, Bag
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 2,646.4m(8,682.3ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 587.1m(1,926.3ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 264.6m(868.2ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 58.7m(192.6ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 1,058.6m(3,472.9ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 234.9m(770.5ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 529.3m(1,736.5ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 117.4m(385.3ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 35.4W, Typical 19.6W
- Environmental & Electrical / Power Consumption – PoE
- Max 44.3W, Typical 24.9W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE++(IEEE802.3bt type3, Class6), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 2slot(Total 1TB)
- General / Memory – Flash
- 16GB eMMC
- General / Memory – RAM
- 8GB
Lens (11)
- Lens / Angular Field of View – Diagonal
- 29°(Wide)~6.5°(Tele)
- Lens / Angular Field of View – Horizontal
- 24°(Wide)~5.4°(Tele)
- Lens / Angular Field of View – Vertical
- 16°(Wide)~3.6°(Tele)
- Lens / Max Aperture Ratio (F number) – Tele
- 5.6
- Lens / Max Aperture Ratio (F number) – Wide
- 4
- Lens / Zoom Ratio – Optical
- 4.54
- Lens – Focal Length (mm)
- 55-250
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- Canon EF-S 55~250mm F4-5.6 IS STM
- Lens – Min. Object Distance
- 0.85m (2.8ft)
- Lens – Mount Type
- Canon EF-S
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum, PC(Polycarbonate)
- Mechanical – Product Dimensions
- 193.5x193.5x532mm(7.62"x7.62"x20.94")
- Mechanical – Product Weight
- 8100g(17.86lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T), SFP
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStream(Based on AI engine)
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (18)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Black, White
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
Security (10)
- Security – Access Control
- IP-based access control, MAC-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- Secure element with FIPS 140-3 level3
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (9)
- Video / Imaging Device – Size
- Diagonal 28.3mm 1.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Max. Framerate – Others
- Max. 20fps when WiseAI on
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.02Lux(F4.0, 1/30sec)
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.2Lux(F4.0, 1/30sec)
- Video – Resolution
- 6240x4160, 3840x2160, 2880x1920, 1920x1080, 1600x1200, 1440x960, 1280x800, 1280x720, 1024x768, 720x480, 640x480
- Video – Video Out
- USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.
