12MP Indoor Fisheye
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
Finished in white to RAL9003, the SBD-110GP1 serves as a wall adaptor. Its build combines an aluminium bottom section with a plastic top section, the material specification listing polycarbonate and aluminium. Dimensions are ø140x12.2mm at a weight of 181g. Fixing is done with TR20 screws. QNV-C8011R, QNV-C8012 and QNV-C9011R are named as supported cameras, and further compatible models are listed by the manufacturer online or in its Toolbox. Wall adaptorWhite, RAL9003Aluminium and polycarbonateø140x12.2mm, 181gTR20 mount screw
Not in stock · delivery 3-4 days
Supplied as a corner mount, the SBD-140KMB is made of aluminium and finished white to RAL9003. It measures 121x102.5x10mm and weighs 139g. The maximum permitted load is 5kg. Mounting screws are size TR20. QNV-C8011R, QNV-C8012 and QNV-C9011R are given as supported cameras, with further compatible models published by the manufacturer online or via its Toolbox. Corner mountAluminium, white RAL9003121x102.5x10mm, 139gMax. load 5kgTR20 mount screw
Not in stock · delivery 3-4 days
The SBD-140PMB is an aluminium pole mount finished in white to RAL9003. At 121x70x11.2mm and 56g it stays very light. Its rated maximum load is 5kg. Fixing screws are size TR20. The manufacturer names QNV-C8011R, QNV-C8012 and QNV-C9011R as supported cameras and points to its website and Toolbox for additional compatible models. Pole mountAluminium, white RAL9003121x70x11.2mm, 56gMax. load 5kgTR20 mount screw
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNF-9010
- EAN / GTIN
- 8801089153852
- Weight
- 0.53 kg
- Dimensions (W×H×D)
- 143 × 143 × 118 mm
Description

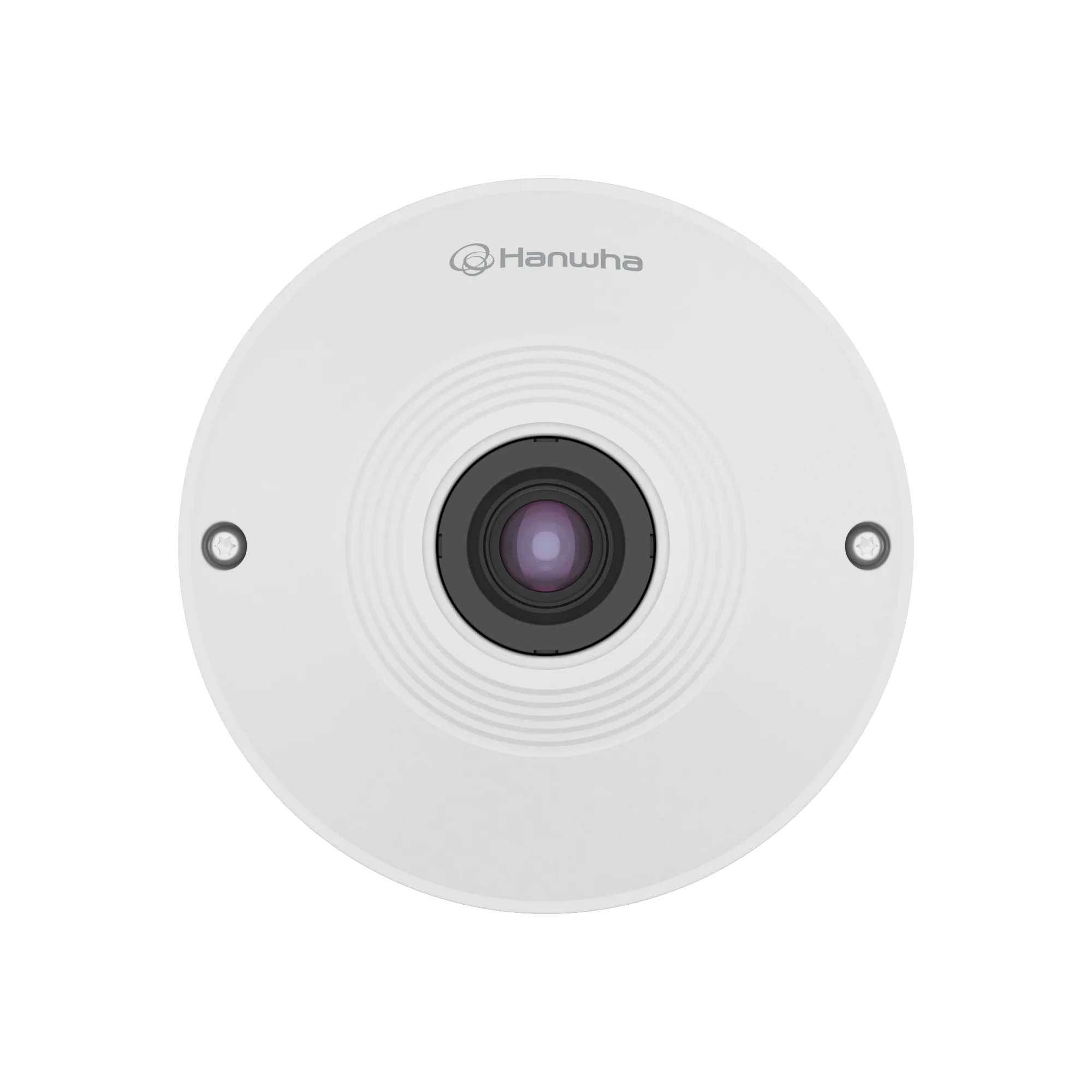

As a 12MP fisheye network camera, the QNF-9010 captures up to 3008 x 3008 pixels on a 1/2.3-inch CMOS sensor and reaches a maximum of 30fps at 9MP. Its 1.08 mm lens at F2.2 provides 187° horizontally, vertically and diagonally with a minimum object distance of 0.5 m. Available views are original fisheye, single panorama, double panorama and quad view, together with digital PTZ, and encoding uses H.265, H.264 and MJPEG with WiseStream Ⅱ. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 5fps, with minimum colour illumination of 0.39 lux. Electrical day/night switching, BLC, 120 dB WDR, SSDR, SSNR Ⅴ and three-step gain complement four polygonal motion zones and six rectangular privacy zones. Power comes over PoE and the Micro SD/SDHC/SDXC slot holds 256 GB.
- Resolution up to 3008 x 3008, max. 30fps at 9MP
- 1.08 mm fisheye lens, F2.2, 187° field of view
- Original fisheye, single and double panorama, quad view
- Digital PTZ, 120 dB WDR, WiseStream Ⅱ
- Micro SD/SDHC/SDXC slot, 256 GB, PoE
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (2)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering
- Analytics / Business Intelligence – Normal
- People counting, Heatmap
Certifications & Standards (3)
- Certifications & Standards – EMC
- EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP42
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 34.9m(114.49ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 3.5m(11.48ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 13.9m(45.60ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 7.0m(22.96ft)
Environmental & Electrical (6)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+40°C(+14°F~+104°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 7.7W, typical 6.4W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 2GB
Lens (6)
- Lens / Angular Field of View – Diagonal
- 187°
- Lens / Angular Field of View – Horizontal
- 187°
- Lens / Angular Field of View – Vertical
- 187°
- Lens / Max Aperture Ratio (F number) – Wide
- 2.2
- Lens – Focal Length (mm)
- 1.08
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- Ø99x49mm(Ø3.89x1.93")
- Mechanical – Product Weight
- 370g(0.82lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (16)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Operational – Alarm Triggers
- Analytics, Network disconnect
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(Electrical)
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Digital PTZ
- Support
- Operational – Gain Control
- Low, Middle, High
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Security (7)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP)
- Security – Secure Communication
- HTTPS
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication
Video (7)
- Video / Imaging Device – Size
- 1/2.3"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 5fps
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.39
- Video – Resolution
- 3200x800, 3008x3008, 2560x1920, 2560x1280, 2560x640, 1920x1440, 1920x960, 1920x480, 1280x960, 1280x640, 1280x320, 1024x768, 1024x512, 1024x256, 640x640, 640x480, 640x320
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
