12MP Indoor AI Fisheye
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNF-C9010
- EAN / GTIN
- 8801089233899
- Weight
- 0.5 kg
- Dimensions (W×H×D)
- 143 × 143 × 118 mm
Description

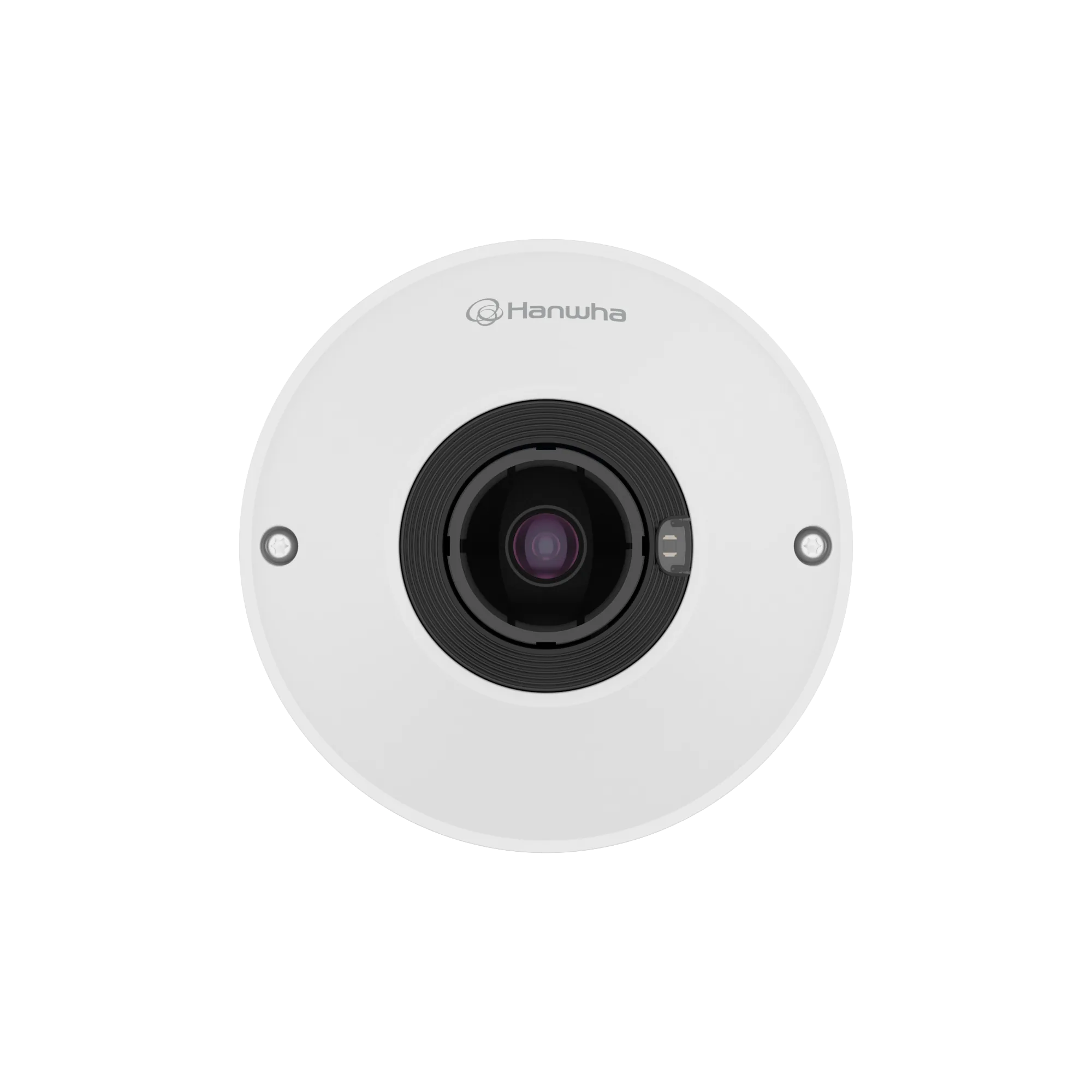

The QNF-C9010 is an AI fisheye camera built on a 1/1.6-inch 12MP CMOS sensor with a fixed stereographic lens of 1.76 mm at F1.8. Its field of view measures 185° horizontally, vertically and diagonally, the minimum object distance is 0.5 m, and digital rotation is available. The original view runs at up to 20fps at 3008x3008, double panorama at 20fps at 3584x1792, single panorama at 20fps at 3584x896, quad view at 20fps at 3584x2688 and quadrants Q1 to Q4 in 4:3 at 20fps at 1792x1344, while MJPEG runs at 5fps. Colour capture starts at 0.02 lux (F1.8, 1/30sec) and black and white at 0.001 lux, supported by ICR day/night switching, 120 dB WDR, BLC, SSDR plus WiseNR Ⅱ and SSNR Ⅴ. Analytics on the AI engine cover object detection for people and vehicles, colour attribute and BestShot, motion detection, virtual line crossing and direction, and virtual areas for loitering, intrusion, enter and exit, with H.265, H.264, MJPEG and WiseStream Ⅲ encoding.
- 1/1.6-inch 12MP CMOS sensor
- 1.76 mm fixed lens, F1.8, 185° field of view
- Digital rotation, 32 privacy masks
- 120 dB WDR, WiseNR Ⅱ, ICR day/night
- AI object detection for person and vehicle, colour attribute, BestShot
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (7)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Motion detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear)
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering
- Analytics / Attributes – Person
- Upper/Lower clothes color
- Analytics / Attributes – Vehicle
- Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap
- Analytics – Classified Object Type
- Person, Vehicle
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP42
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 36.9m(121.03ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 3.7m(12.10ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 14.8m(48.42ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 7.4m(24.21ft)
Environmental & Electrical (6)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+40°C(+14°F~+104°F)
- Environmental & Electrical / Power Consumption – PoE
- Max 7.3W, typical 4.3W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 1GB
- General / Memory – RAM
- 2GB
Lens (6)
- Lens / Angular Field of View – Diagonal
- 185°
- Lens / Angular Field of View – Horizontal
- 185°
- Lens / Angular Field of View – Vertical
- 185°
- Lens / Max Aperture Ratio (F number) – Wide
- F1.8
- Lens – Focal Length (mm)
- 1.76
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- ø99x52mm(ø3.9x2.05")
- Mechanical – Product Weight
- 360g(0.79lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 5 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStream(Based on AI engine)
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (16)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Digital PTZ
- Support
- Operational – Gain Control
- Low, Middle, High
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (1)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Others
- Digital Rotation
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/1.6"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 20fps/20fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 5fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.001
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.02
- Video – Resolution
- 3584x2688, 3584x1792, 3584x896, 3008x3008, 2560x2560, 2048x1536, 1920x1920, 1920x960, 1920x480, 1792x1344, 1504x1504, 1280x1280, 1280x640, 1280x320, 1024x768, 1024x512, 1024x256, 800x800, 768x576, 640x640, 640x320, 640x160, 512x384, 480x480
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
