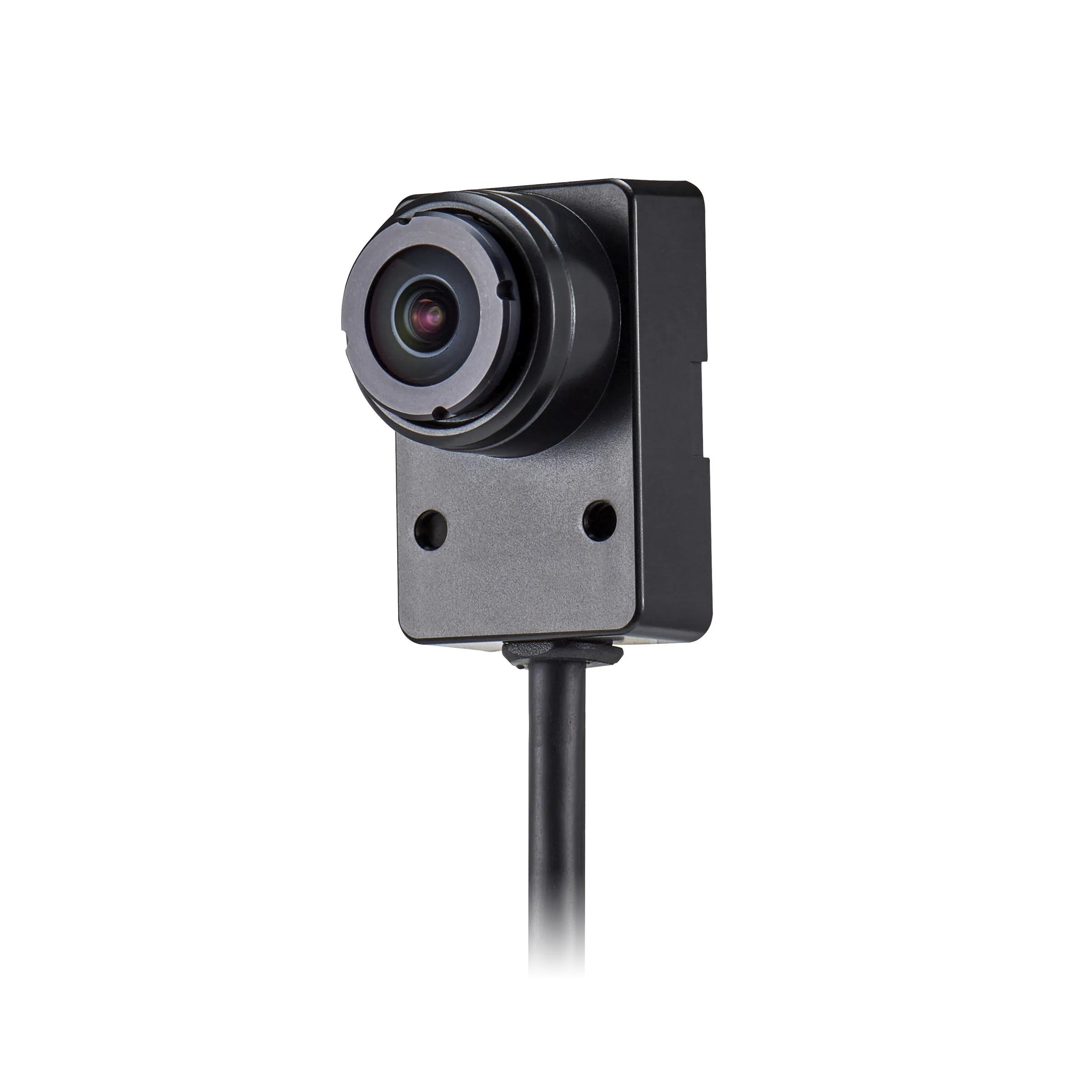

2.4mm Lens/Imager right angle body for PNM-9000QB (8.0m cable)
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SCL-150 is an extension cable for remote head lenses. It is supplied as a single cable with a length of 15m (49.2Ft). This extends the distance between the camera body and the remote lens head by 15m. The cable is intended for the PNM-C20000QB and PNM-9000QB as well as the SLA-T4680A, SLA-T4680VA, SLA-T2480A, SLA-T2480VA and SLA-T1080FA. Extension cable for remote head lensesLength 15m (49.2Ft)Supplied as 1 pieceFor PNM-C20000QB and PNM-9000QBFor SLA-T4680A, SLA-T2480A, SLA-T1080FA
Not in stock · delivery 3-4 days
Fits
The PNM-9000QB is a remote-head unit for four 2MP channels with a maximum of 1920x1080 pixels. H.265 and H.264 operate at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, while HDMI provides single or quad view output. Optional lens modules are supported, and SCL-150 with a length of 15 m is listed as the compatible connecting cable. Image processing covers BLC, HLC, 120 dB WDR, SSDR, SSNR V noise reduction, digital image stabilisation, defog, LDC and WiseStream II. Eight motion detection zones as 8-point polygons, 32 four-point privacy masks in seven display options, white balance from ATW to manual, flip and mirror rotation and an electronic shutter from 2 to 1/12,000 sec complete the feature set. Four 2MP channelsHDMI single and quad view120 dB WDR, SSNR V, WiseStream II32 privacy masks, 8 motion zonesShutter 2 to 1/12,000 secSCL-150 connecting cable (15 m)
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SLA-T2480VA
- EAN / GTIN
- 8801089195883
- Weight
- 0.469 kg
- Dimensions (W×H×D)
- 183 × 139 × 53 mm
Description
The SLA-T2480VA is a 2MP lens module with a 1/2.8-inch CMOS sensor and a fixed 2.4 mm lens at F2.0. Minimum illumination is 0.045 lux in colour as well as black-and-white, and the field of view spans 138° horizontally, 73° vertically and 165° diagonally. Focus is fixed and the module is tied to the main unit over RJ12. The black plastic and metal body measures 30 x 27.9 x 45 mm and weighs 328 g. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B.
- Fixed 2.4 mm focal length, F2.0
- 0.045 lux in colour and BW
- 138° x 73° x 165° field of view
- 30 x 27.9 x 45 mm body, 328 g
- RJ12 connection to the main unit
- 1/2.8-inch CMOS sensor
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Lens (7)
- Lens / Angular Field of View – Diagonal
- 165°
- Lens / Angular Field of View – Horizontal
- 138°
- Lens / Angular Field of View – Vertical
- 73°
- Lens / Max Aperture Ratio (F number) – Wide
- 2.0
- Lens – Focal Length (mm)
- 2.4
- Lens – Focus Control
- Fixed
- Lens – Mount Type
- RJ12 connected with main unit
Mechanical (5)
- Mechanical Supported Products
- XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B
- Mechanical – Color
- Black
- Mechanical – Material
- Plastic, Metal
- Mechanical – Product Dimensions
- W30xH27.9xD45mm
- Mechanical – Product Weight
- 328g
Video (4)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.045
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.045
