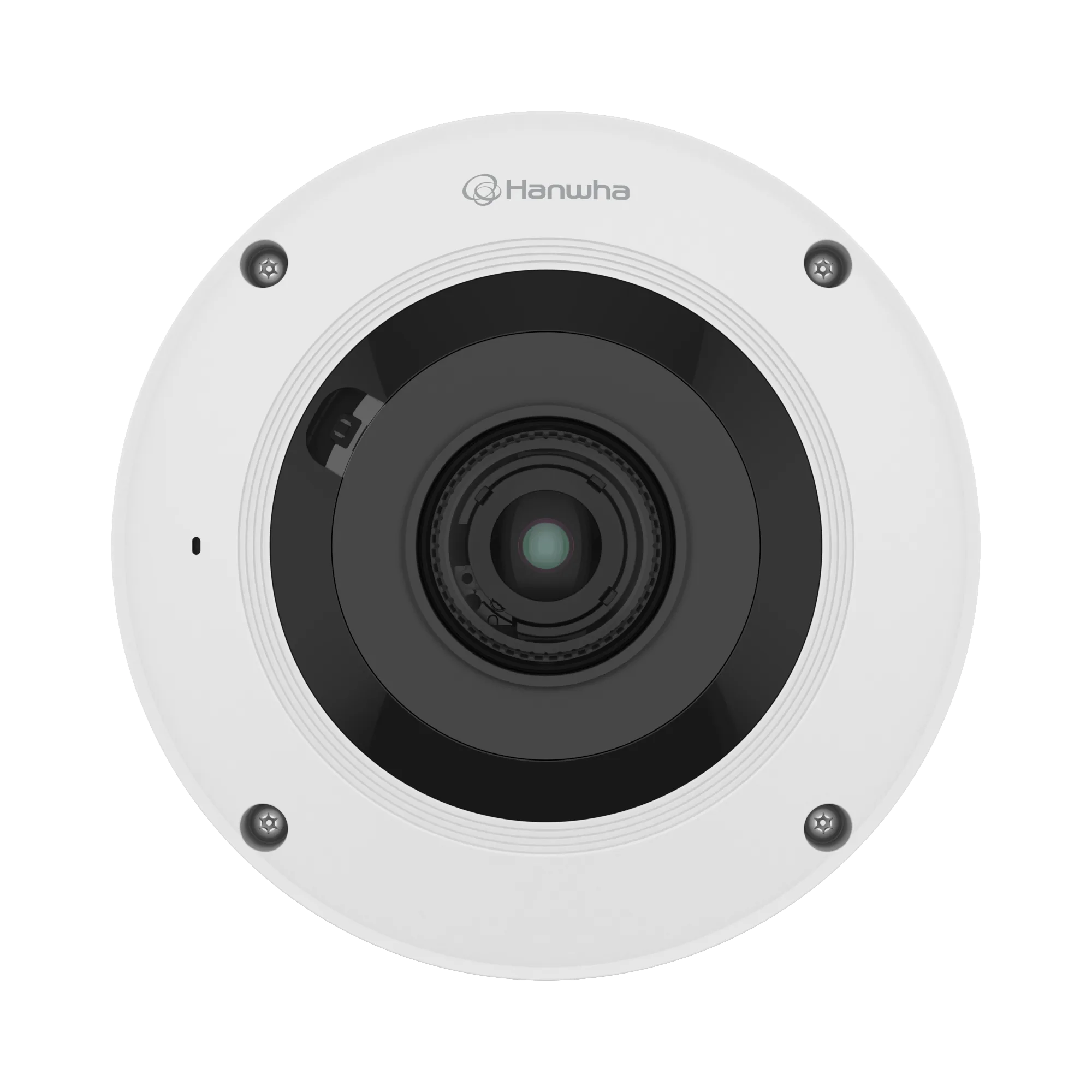

12MP IR Fisheye Camera
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNF-9010RVM
- EAN / GTIN
- 8801089193698
- Weight
- 1.5 kg
- Dimensions (W×H×D)
- 216 × 216 × 150 mm
Description
Fitted with an M12 connector, the XNF-9010RVM works with a 1/2.3" CMOS imager and a stereographic 1.08 mm fixed lens that raises resolution towards the periphery and covers 187° horizontally, vertically and diagonally. Peak resolution is 3584x2688, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, capped at 5fps for 9MP. Fisheye, single panorama, double panorama and quad view are dewarped on board and can be cropped by digital PTZ. Extreme WDR at 120 dB, BLC, HLC, SSDR and SSNR V condition the image, ICR handles the day and night change automatically, and Wise IR illumination reaches 10 m. Minimum illumination is given as 0.39 lux in colour and 0.039 lux in black and white, with object distance starting at 0.5 m. Motion detection offers 8 polygonal zones of 8 points each and privacy masking covers 32 areas.
- M12 connector
- Up to 3584x2688
- 1.08 mm stereographic fixed lens
- 187° field of view horizontal, vertical, diagonal
- Extreme WDR 120 dB
- Wise IR, 10 m range
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (2)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
- Analytics / Business Intelligence – Normal
- People counting, Queue management, Heatmap
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X, EN 50155
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 34.9m(114.49ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 3.5m(11.48ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 13.9m(45.60ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 7.0m(22.96ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+60°C(-40°F~+140°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 11W, typical 9.1W
- Environmental & Electrical / Power Consumption – PoE
- Max 12.95W, typical 11W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (7)
- Lens / Angular Field of View – Diagonal
- 187°
- Lens / Angular Field of View – Horizontal
- 187°
- Lens / Angular Field of View – Vertical
- 187°
- Lens / Max Aperture Ratio (F number) – Wide
- 2.2
- Lens – Focal Length (mm)
- 1.08
- Lens – Focus Control
- Simple focus
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø160x72mm(ø6.30x2.83")
- Mechanical – Product Weight
- 1100g(2.43 lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- Metal shielded M12(10/100BASE-T)(through RJ45 to M12 cable)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (23)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 10m(32.8ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in), Built-in mic
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support(Fill/stretch mode)
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.3"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@9MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.039
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.39
- Video – Resolution
- 3584x2688, 3584x1792, 3584x896, 3008x3008, 1792x1344, 1504x1504, 1080x1080, 960x960, 768x768, 720x720, 640x640, 640x480, 640x320, 640x160, 480x480
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
