X series Wisenet 9, 5MP AI IR Compact Outdoor Vandal Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
Hanging adaptor made of polycarbonate and aluminium for suspended installation, finished white to RAL9003. It measures ø135x65mm and weighs 230g. The mount screw size is TR20 and the maximum load is 2kg. Supported cameras are the QNV-C8011R, QNV-C8012 and QNV-C9011R. Polycarbonate and aluminiumWhite RAL9003Dimensions ø135x65mm, 230gTR20 mount screw sizeMax. load 2kgFor QNV-C8011R, QNV-C8012, QNV-C9011R
Not in stock · delivery 3-4 days
Ceiling mount base made of aluminium, finished in white to RAL9003. It measures ø140x33mm and weighs 250g. The mount screw size is M10. Listed supported products are the SBP-150CMP, SBP-300CMP and SBP-900CMP ceiling mounts. AluminiumWhite RAL9003Dimensions ø140x33mmWeight 250gM10 mount screw sizeFor SBP-150CMP, SBP-300CMP, SBP-900CMP
Not in stock · delivery 3-4 days
The SBP-180CMB serves as the ceiling mount base for suspended camera installations. It is made of aluminium and finished in white to RAL9003. The body measures ø180 x 86.5 mm at a weight of 970 g, and the mount screw size is TR30. A conduit hole of 19.1 mm (M25) is provided for cable entry. The base can be combined with SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P and SBP-C15H, among others. Aluminium ceiling mount baseWhite RAL9003ø180 x 86.5 mm, 970 gMount screw size TR30Conduit hole 19.1 mm (M25)For SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P, SBP-C15H
Not in stock · delivery 3-4 days
The SBP-180CMS is a ball head ceiling mount base used to align suspended cameras. Aluminium is used as the material and the finish is white to RAL9003. Dimensions and weight are ø180 x 86.5 mm and 970 g, with a TR30 mount screw size. A 19.1 mm (M25) conduit hole is provided. Supported items include SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P and SBP-C15H. Ball head ceiling mount baseAluminium, white RAL9003ø180 x 86.5 mm, 970 gMount screw size TR30Conduit hole 19.1 mm (M25)For SBP-150CMP, SBP-300CMP, SBP-C15P and others
Not in stock · delivery 3-4 days
The SBP-150CMP is an aluminium ceiling pipe that sets the distance between ceiling and camera mount. It is finished in white to RAL9003. The pipe measures ø54x150mm and weighs 250g. Fixing uses M6 screws. It can be combined with the SBP-140CMB, SBP-180CMB, SBP-180CMS and SBP-C15P. Ceiling mount pipeAluminium, RAL9003 whiteø54x150mm / 250gM6 mounting screwCombines with SBP-140CMB and SBP-180CMB
Not in stock · delivery 3-4 days
The SBP-300CMP is an aluminium ceiling mount pipe finished in white to RAL9003. Measuring ø54 x 300 mm at 560 g, it extends a ceiling installation by 300 mm. The mount screw size is M6. The pipe is used together with the SBP-140CMB, SBP-180CMB and SBP-180CMS bases as well as with SBP-C15P, and further compatible models are available. Aluminium ceiling mount pipeWhite RAL9003ø54 x 300 mmWeight 560 gMount screw size M6For SBP-140CMB, SBP-180CMB, SBP-180CMS, SBP-C15P
Not in stock · delivery 3-4 days
The SBP-900CMP is an aluminium ceiling mount pipe finished in white to RAL9003. At ø54 x 900mm it bridges the distance between ceiling and camera mount. Its weight is 1,700g (3.75lb). The mount screw size is M6. The pipe combines with SBP-140CMB, SBP-180CMB, SBP-180CMS and SBP-C15P. Ceiling mount pipeAluminium constructionWhite, RAL9003Size ø54 x 900mm, 1,700gM6 mount screwFor SBP-140CMB, SBP-180CMB, SBP-180CMS, SBP-C15P
Not in stock · delivery 3-4 days
The SBP-C15H is an aluminium thread coupler joining a 1.5" PF thread to a further 1.5" PF thread. Its finish is white to RAL9003. Dimensions are ø56 x 57mm at 115g (0.25lb). A total of 4 pieces is included in the package. The coupler works with SBP-140CMB and SBP-120HMW. Thread coupler 1.5" PF to 1.5" PFAluminium constructionWhite, RAL9003Size ø56 x 57mm, 115g4 pieces per packageFor SBP-140CMB and SBP-120HMW
Not in stock · delivery 3-4 days
The SBP-C15P is a thread coupler for ceiling installation, manufactured from aluminium. Its colour is white to RAL9003. The part is compact at 60 x 86 x 71mm and 230g (0.51lb). It is used together with the ceiling mount pipes SBP-150CMP, SBP-300CMP and SBP-900CMP. Thread coupler for ceiling mountingAluminium constructionWhite, RAL9003Size 60 x 86 x 71mmWeight 230gFor SBP-150CMP, SBP-300CMP, SBP-900CMP
Not in stock · delivery 3-4 days
The SBP-150CMI links hanging adaptors to the ceiling. The mount is made of aluminium and finished in white to RAL9003. It measures ø140x155mm, weighs 520g and accepts a load of up to 10kg. Screw fixing is in size M10. Supported items are the SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1 adaptors. Ceiling mountingAluminium, RAL9003 whiteø140x155mm / 520gMax. load 10kgM10 mounting screw
Not in stock · delivery 3-4 days
The SBP-300CMI is an aluminium ceiling mount finished in white to RAL9003. It measures ø140 x 305 mm and weighs 800 g. The mount screw size is M10 and the maximum load is 10 kg. The mount can be combined with the SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1 hanging adaptors, and further compatible models are available. Aluminium ceiling mountWhite RAL9003ø140 x 305 mm, 800 gMount screw size M10Maximum load 10 kgFor SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1
Not in stock · delivery 3-4 days
The SBP-300CMW1 is a fixed-length aluminium ceiling mount finished in white to RAL9003. It measures ø180 x 358.5 mm and weighs 1,500 g. Mount screw size is TR30 and the maximum load comes to 20 kg. A conduit hole of 19.1 mm (M25) is provided for cable routing. The mount can be combined with SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-150CMP, SBP-300CMP, SBP-900CMP and SBP-C15P. Aluminium ceiling mountWhite RAL9003ø180 x 358.5 mm, 1,500 gMount screw size TR30Maximum load 20 kgConduit hole 19.1 mm (M25)
Not in stock · delivery 3-4 days
The SBP-900CMW is an aluminium ceiling mount painted white to RAL9003. It measures ø180 x 958.5mm and weighs 2,700g (5.93lb). Fixing uses a TR30 mount screw, and the maximum load is 20kg. A conduit hole of 19.1mm (3/4")(M25) routes the cabling. Supported items are SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-C15P, SBP-150CMP, SBP-300CMP and SBP-900CMP. Ceiling mountAluminium, white RAL9003Size ø180 x 958.5mm, 2,700gTR30 mount screwMax. load 20kgConduit hole 19.1mm (3/4")(M25)
Not in stock · delivery 3-4 days
The SBP-300CMTW is a telescopic ceiling mount produced from aluminium in white to RAL9003. Its extension range runs from 956.5 mm to 1,667.5 mm at a diameter of 180 mm, and the weight is 3,750 g. TR30 serves as the mount screw size, the maximum load is stated as 20 kg and the conduit hole as 19.1 mm (M25). The pipe can be extended once, giving a total length of up to 2,524 mm when the SBP-900CMP is used. Supported items include SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-150CMP, SBP-300CMP, SBP-900CMP and SBP-C15P. Telescopic ceiling mountAluminium, white RAL9003ø180 x 956.5 to 1,667.5 mm, 3,750 gMount screw size TR30Maximum load 20 kgConduit hole 19.1 mm (M25)
Not in stock · delivery 3-4 days
The SBP-300CMTS is a ball head ceiling mount made of aluminium in white to RAL9003. Its length is adjustable from 956.5 mm to 1,667.5 mm at ø180, and the assembly weighs 3,750 g. The ball head offers a pan and tilt range of plus/minus 45 degrees each, while no rotation range is provided. Mount screw size is TR30, maximum load is 20 kg and the conduit hole measures 19.1 mm (M25). The pipe can be extended once, reaching a maximum length of 2,524 mm when the SBP-900CMP is used. Compatible items include SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-150CMP, SBP-300CMP, SBP-900CMP and SBP-C15P. Ball head ceiling mountAluminium, white RAL9003ø180 x 956.5 to 1,667.5 mm, 3,750 gPan and tilt plus/minus 45 degrees eachMount screw size TR30, 20 kg loadMaximum length 2,524 mm with SBP-900CMP
Not in stock · delivery 3-4 days
Wall and pole mount with an aluminium body and a polycarbonate cover, finished white to RAL9003. It measures 174.4x128.5x118.3mm and weighs 505g. The mount screw size is TR20 and the maximum load is 5kg. Cabling is routed through a 19.1mm conduit hole (M25). Supported cameras are the QNV-C8011R, QNV-C8012 and QNV-C9011R. Aluminium body, polycarbonate coverWhite RAL9003Dimensions 174.4x128.5x118.3mm, 505gTR20 mount screw sizeMax. load 5kgConduit hole 19.1mm (M25)
Not in stock · delivery 3-4 days
The SBP-200WMW is an aluminium wall and pole mount finished in white to RAL9003. It measures ø137 x 182.8 x 250 mm and weighs 1,150 g. Mount screw size is TR30 and the maximum load is 20 kg. Three conduit holes of 19.1 mm (M25) each are provided for cable routing. Supported adaptors include SBP-099HMW, SBP-122HMW, SBP-125HMW, SBP-120HMW, SBP-140HMW, SBP-156HMW, SBP-160HMW1, SBP-167HMW, SBP-180HMW1 and SBP-187HMW. Aluminium wall and pole mountWhite RAL9003ø137 x 182.8 x 250 mm, 1,150 gMount screw size TR30Maximum load 20 kgThree conduit holes 19.1 mm (M25)
Not in stock · delivery 3-4 days
The SBP-250WMW is a wall and pole mount made from polycarbonate (PC) and aluminium in white to RAL9003. It measures 315.8 x 137 x 183 mm, weighs 1,940 g and uses a TR30 mount screw size. The maximum load is 20 kg and three conduit holes of 19.1 mm (M25) each are available for cable routing. Supported products include XND-C6083RV, XNV-6083R and QNV-C6083R. Depending on the application an additional adaptor is required: SBP-115PA for PTZ plus, SBP-115PFA for a hanging adaptor. Wall and pole mount in PC and aluminiumWhite RAL9003315.8 x 137 x 183 mm, 1,940 gMount screw size TR30, 20 kg loadThree conduit holes 19.1 mm (M25)SBP-115PA or SBP-115PFA adaptor depending on application
In stock, ships immediately · delivery 1-2 days
The SBP-300WMW is a swan-neck wall mount for installing PTZ cameras on a wall construction. It is made of aluminium and finished in white to RAL 9003. Dimensions are 276.5 x 112 x 183 mm with a weight of 730 g, the mount screw size is M10 and the maximum load is 10 kg. Supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 276.5 x 112 x 183 mmWeight 730 gMount screw size M10Maximum load 10 kg
Not in stock · delivery 3-4 days
The SBP-400WMW is an outdoor wall and pole mount produced from polycarbonate and aluminium in white to RAL9003. It is certified to IP66 and NEMA 4X. Measurements are 449.3 x 200 x 263.1mm (17.69 x 7.87 x 10.36") at a weight of 4,622g (10.19lb). Mount screw size is T30, maximum load is 20kg, and the conduit hole measures 19.1mm (M25). Supported products include SBP-115PFA, SBP-115PA, SPO-8315, SPO-6011, XNV-6083R and QNV-6083R. Outdoor wall and pole mountIP66, NEMA 4XPolycarbonate and aluminium, white RAL9003Size 449.3 x 200 x 263.1mm, 4,622gT30 mount screw, max. load 20kgConduit hole 19.1mm (M25)
Not in stock · delivery 3-4 days
Adaptor with a 1.5 inch PF thread for wall and pole mounts, built from polycarbonate and aluminium. The colour is white to RAL9003. Dimensions are ø125x49mm at a weight of 242g. The mount screw size is TR30. Supported hanging mounts are the SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Polycarbonate and aluminiumWhite RAL9003Dimensions ø125x49mm, 242gTR30 mount screw sizeFor SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1
Not in stock · delivery 3-4 days
The SBV-140TMW is an aluminium tilt mount finished in white to RAL9003. It measures ø143.8x81.1mm (ø5.66x3.19") and weighs 450g (0.99lb). Cable entry is provided by a 19.1mm (3/4", M25) conduit hole, and mounting uses TR20 screws. The specification lists the QNV-C8083R and QNV-C8011R as supported cameras; further compatible models appear on the manufacturer's website or in the Toolbox. Aluminium tilt mountWhite, RAL9003Dimensions ø143.8x81.1mmWeight 450g (0.99lb)Mount screw size TR20Supports QNV-C8083R, QNV-C8011R
Not in stock · delivery 3-4 days
Finished in white to RAL9003, the SBD-110GP1 serves as a wall adaptor. Its build combines an aluminium bottom section with a plastic top section, the material specification listing polycarbonate and aluminium. Dimensions are ø140x12.2mm at a weight of 181g. Fixing is done with TR20 screws. QNV-C8011R, QNV-C8012 and QNV-C9011R are named as supported cameras, and further compatible models are listed by the manufacturer online or in its Toolbox. Wall adaptorWhite, RAL9003Aluminium and polycarbonateø140x12.2mm, 181gTR20 mount screw
Not in stock · delivery 3-4 days

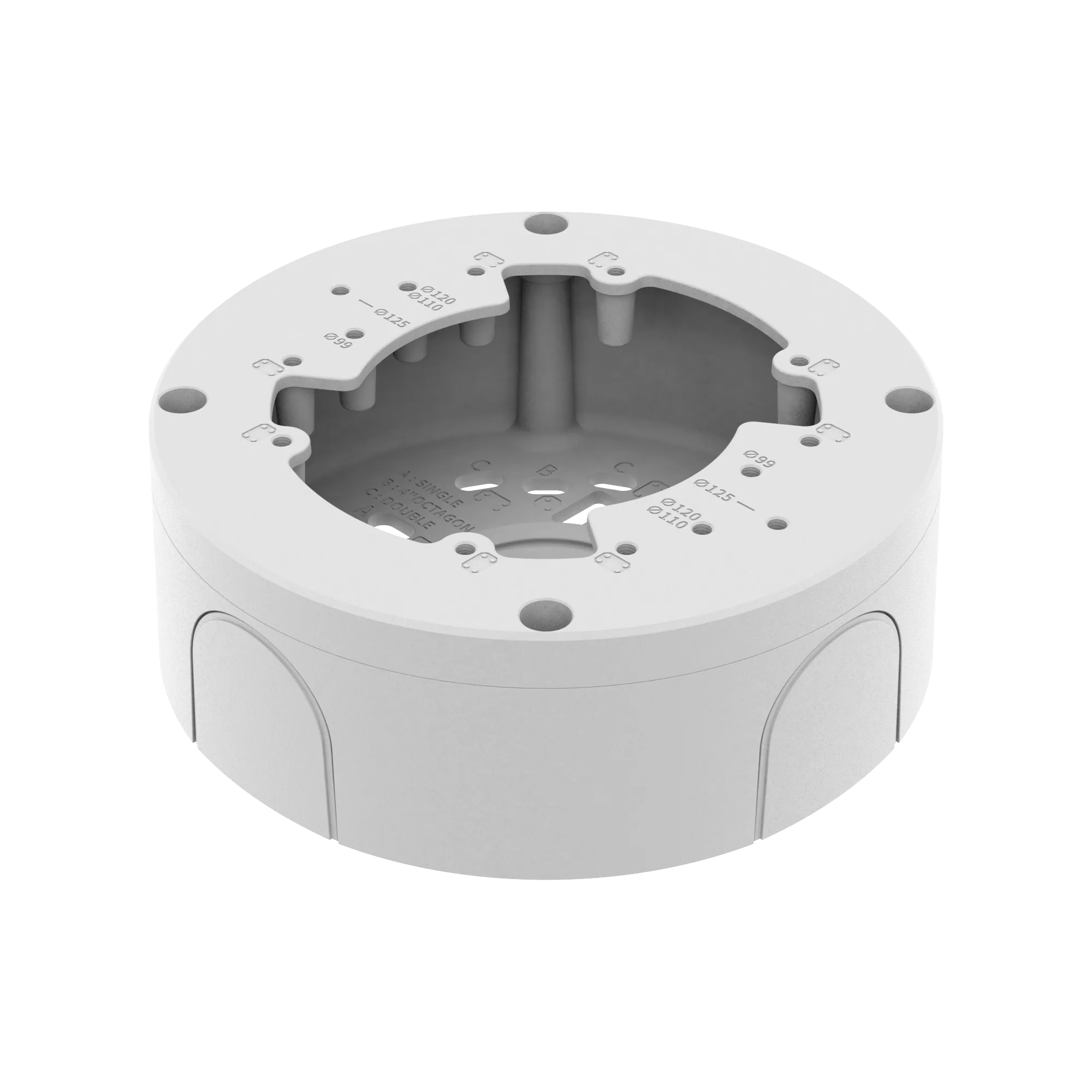

The SBV-140BW is an aluminium back box finished in white to RAL9003. It measures ø143x50.8mm, weighs 450g and carries a maximum load of 5kg. The conduit hole is 19.1mm (3/4", M25) and the mount screw size is TR20. The manufacturer classifies the part as an extension and back box for indoor use, with wall, ceiling and pole placement. Supported cameras are the QNV-C8083R, QNV-C9083R, QNV-C8011R, QNV-C8012 and QNV-C9011R. Aluminium back boxWhite, RAL9003Dimensions ø143x50.8mm, 450gMax. load 5kgConduit hole 19.1mm (3/4", M25)Wall, ceiling and pole placement
In stock, ships immediately · delivery 1-2 days

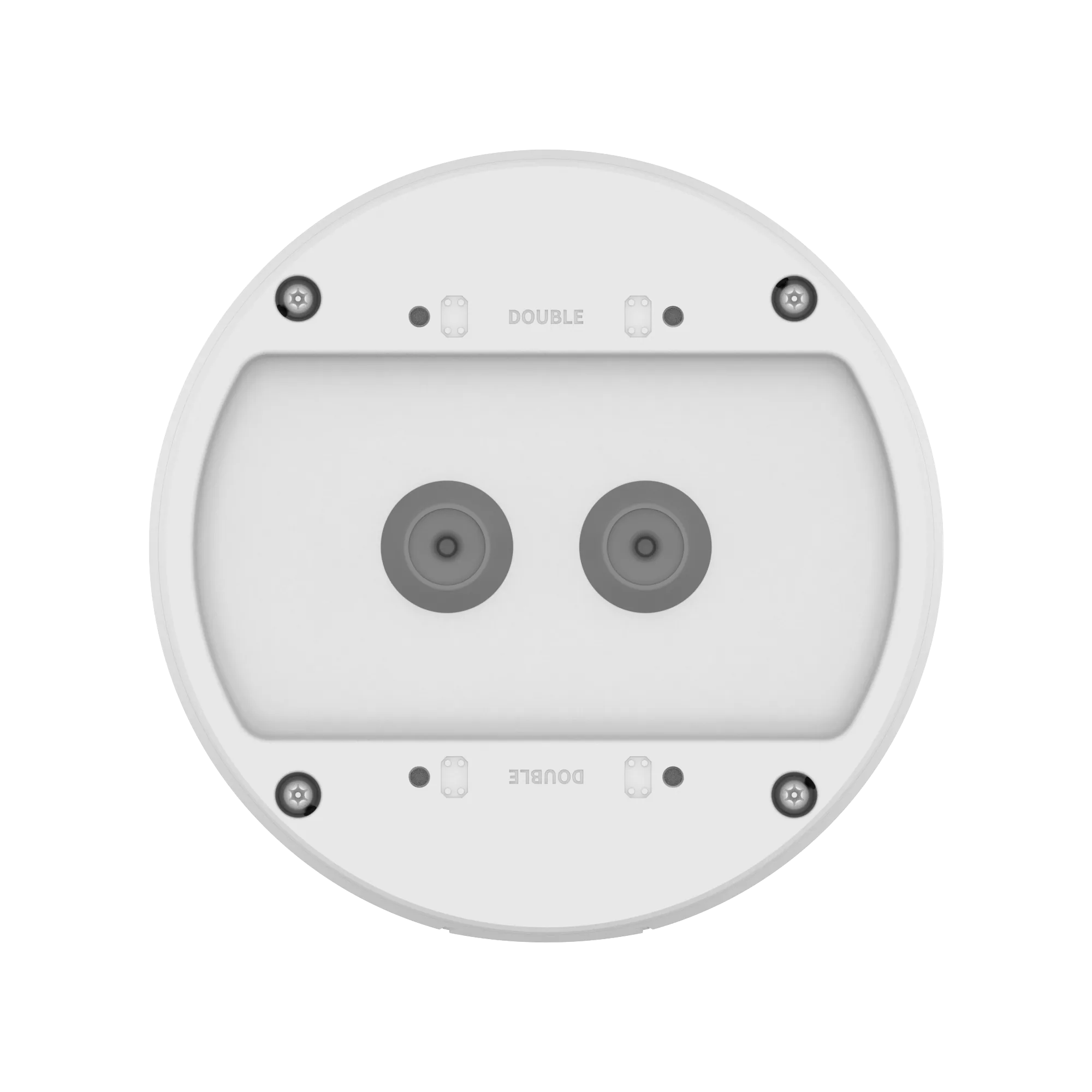

The SBV-140WW is a waterproof aluminium back box finished in white to RAL9003. It is certified to IP66 and NEMA 4X. Dimensions are ø144.2x64.5mm, weight is 835g and the maximum load is 5kg. The conduit hole measures 19.1mm (3/4", M25) and the mount screw size is TR20. Supported models are the QNV-C6083R, QNV-C8083R and QNV-C9083R. Waterproof aluminium back boxIP66, NEMA 4X certifiedWhite, RAL9003Dimensions ø144.2x64.5mm, 835gMax. load 5kgSupports QNV-C6083R, QNV-C8083R, QNV-C9083R
In stock, ships immediately · delivery 1-2 days
The SBD-140PMW pole mount pairs an aluminium core with a plastic cap and is finished white to RAL9003. It measures ø147.1x50.5mm and weighs 340g. Maximum load is 5kg and the conduit hole is 19.1mm (3/4 in, M25). Camera-side fixing uses TR20 screws, while the steel strap is tightened with TR30. Supported cameras are the QNV-C6083R, QNV-C8083R and QNV-C9083R. Pole mountAluminium core with polycarbonate capWhite, RAL9003ø147.1x50.5mm, 340gMax. load 5kg, 19.1mm (M25) conduit hole
In stock, ships immediately · delivery 1-2 days
The SBD-140PMB is an aluminium pole mount finished in white to RAL9003. At 121x70x11.2mm and 56g it stays very light. Its rated maximum load is 5kg. Fixing screws are size TR20. The manufacturer names QNV-C8011R, QNV-C8012 and QNV-C9011R as supported cameras and points to its website and Toolbox for additional compatible models. Pole mountAluminium, white RAL9003121x70x11.2mm, 56gMax. load 5kgTR20 mount screw
Not in stock · delivery 3-4 days
The SBP-156KMW is intended for installation in a building corner. The mount is made of aluminium and finished in white to RAL9003. It measures 276.8(W)x183(H)x158.5(D)mm (10.90x7.20x6.24") and weighs 763g (1.68lb). A load of up to 20kg may be carried. It can be combined with the SBP-156WMW, SBP-250WMW and SBP-400WMW mounts. Corner mountingAluminium, RAL9003 white276.8x183x158.5mm / 763gMax. load 20kgCombines with SBP-156WMW
In stock, ships immediately · delivery 1-2 days
Supplied as a corner mount, the SBD-140KMB is made of aluminium and finished white to RAL9003. It measures 121x102.5x10mm and weighs 139g. The maximum permitted load is 5kg. Mounting screws are size TR20. QNV-C8011R, QNV-C8012 and QNV-C9011R are given as supported cameras, with further compatible models published by the manufacturer online or via its Toolbox. Corner mountAluminium, white RAL9003121x102.5x10mm, 139gMax. load 5kgTR20 mount screw
Not in stock · delivery 3-4 days
The SBP-156LMW1 is a telescopic parapet mount made of aluminium. It is finished in white according to RAL9003. Dimensions are 835~1,098x1,000x95mm (32.9~43.2x39.4x3.8") and the weight is 7,260g. Up to 20kg may be carried. Supported components are the SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Telescopic parapet mountAluminium, RAL9003 white835~1,098x1,000x95mm7,260gMax. load 20kg
Not in stock · delivery 3-4 days
White RAL9003 camera cabinet built from polycarbonate and aluminium, measuring 240x290x123.1mm at a weight of 2.5kg. It accepts a maximum load of 5kg and is assembled with TR20 and T30 mount screws. Cabling runs through one 12.7mm conduit hole (M20) and four 19.1mm holes (M25). The operating range covers -40°C to +65°C at 0 to 100% RH (condensing) with humidity control via an air vent, while storage is rated from -50°C to +65°C at 0 to 95% RH. Certification covers IP66, IK10 and NEMA 4X. Supported products include QNV-C6083R, QNV-C8083R, QNV-C9083R, QNE-C8013RL, QNE-C9013RL, XNO-C6083R, XNO-C7083R, XNO-C8083R and XNO-C9083. IP66, IK10, NEMA 4XPolycarbonate and aluminium, white RAL9003240x290x123.1mm, 2.5kgMax. load 5kgOperating temperature -40°C to +65°CConduit holes 12.7mm (M20) and 19.1mm (M25)
Not in stock · delivery 3-4 days

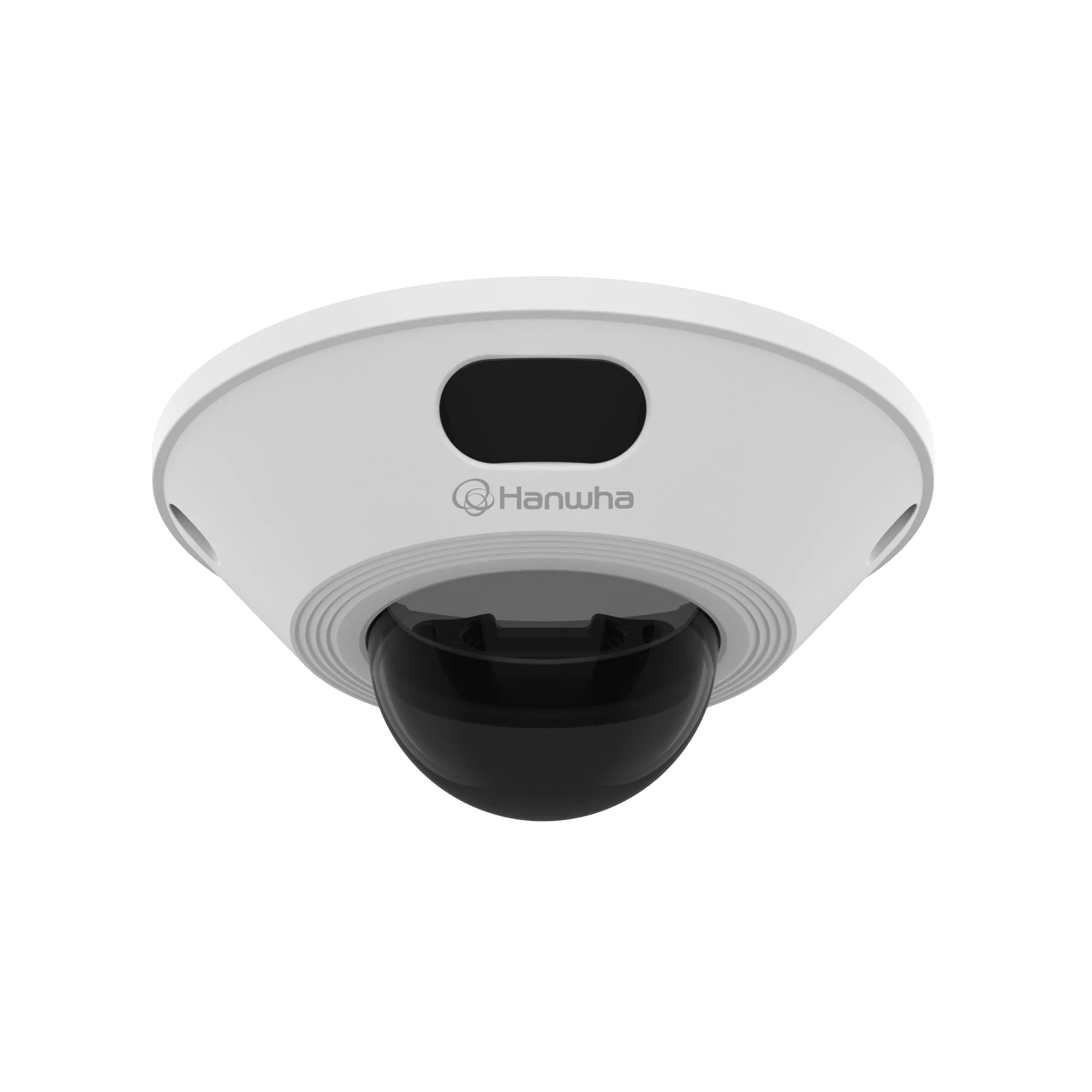

The SPB-VAN68W is a smoked dome cover in a vandal-resistant design. The cover is made of aluminium and the dome bubble of polycarbonate (PC). It is finished in white to RAL9003. Dimensions are ø118.8x55mm and the stated weight is 143.96 g. According to the manufacturer, the supported models are XNV-A9016R, XNV-A8016R and XNV-A6016R. Smoked dome cover, vandal typeAluminium cover, polycarbonate dome bubbleWhite finish, RAL9003Dimensions ø118.8x55mmWeight 143.96 gFor XNV-A9016R, XNV-A8016R, XNV-A6016R
Not in stock · delivery 3-4 days
The SPM-4210 is a network I/O box providing alarm and audio connections for PTZ PLUS cameras. It offers one RJ45 port together with four selectable I/O ports. Two audio I/O ports, one input and one output, are also fitted. Power comes from PoE only, with consumption of max. 4.5 W. The white housing measures 143 mm x 73 mm x 27.3 mm (5.63" x 2.87" x 1.07") and weighs 171 g (0.38 lb). Alarm/audio I/O box for PTZ PLUS cameras1 RJ45 port, 4 selectable I/O ports2 audio I/O ports (1 each)PoE-only power supply, max. 4.5 W143 mm x 73 mm x 27.3 mm, 171 g (0.38 lb)White housing
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNV-A8016R
- EAN / GTIN
- 8801089251985
- Weight
- 0.74 kg
- Dimensions (W×H×D)
- 161 × 131 × 161 mm
Description

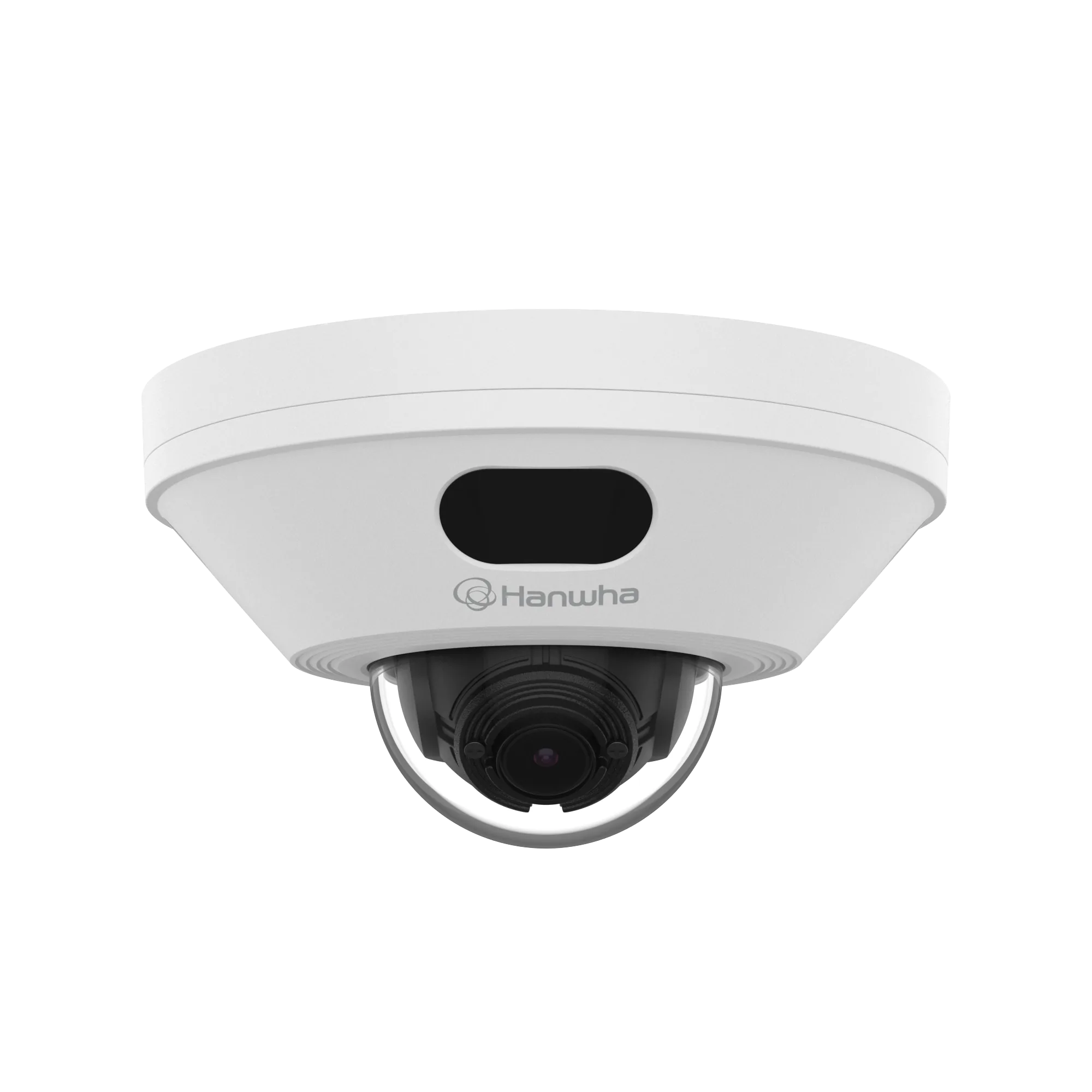

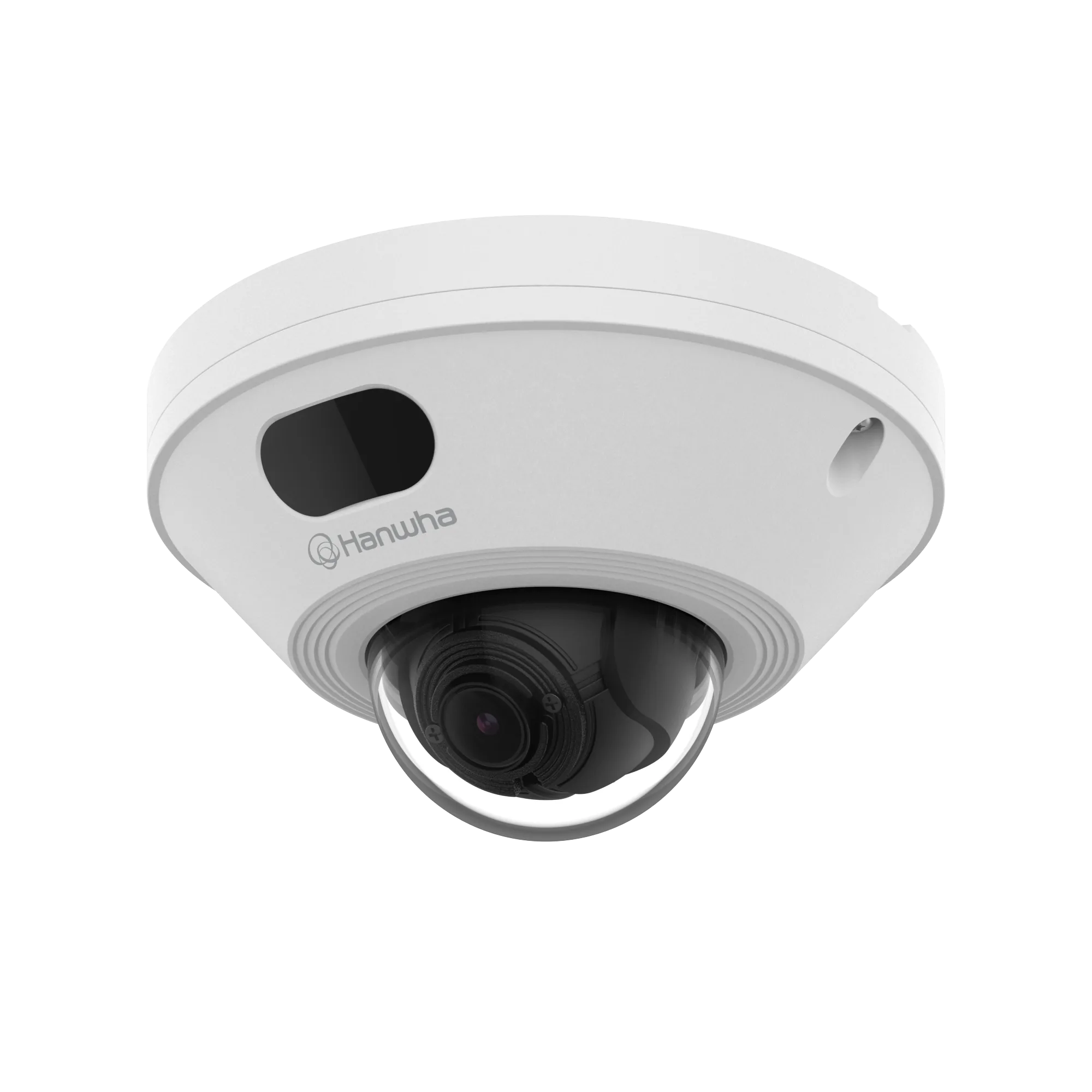

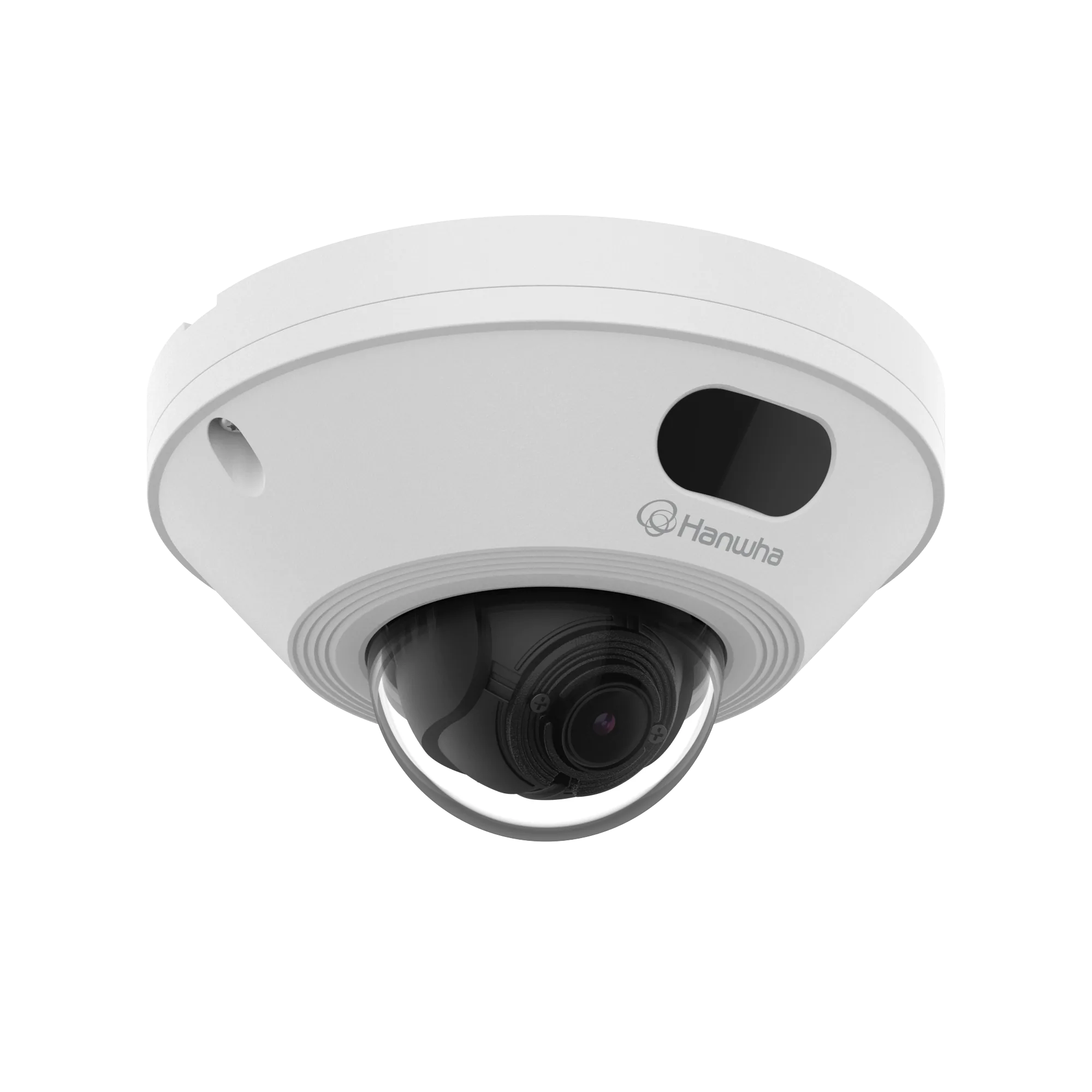

The XNV-A8016R is a compact outdoor IR network dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 2560 x 1920 pixels (5 MP). Its 3.0 mm fixed-iris lens at F1.6 is focused manually and covers 100° horizontally, 74° vertically and 130° diagonally from 0.4 m. H.265 and H.264 operate at up to 30 fps or 25 fps and MJPEG at 30 fps, limited to 5 fps at 5 MP, while minimum illumination is given as 0.06 lux in colour and 0.006 lux in black and white. Automatic ICR day and night switching plus BLC, HLC, WDR and SSDR support changing light conditions. The USB Type-C port is for preview and installation only and requires a WiFi dongle, and alignment offers 0°~351° pan, 0°~64° tilt and ±90° rotation.
- 5 MP resolution (2560 x 1920)
- 3.0 mm lens with fixed F1.6 iris
- 100° horizontal field of view
- Day and night (ICR), BLC, HLC, WDR, SSDR
- 0.06 lux colour, 0.006 lux black and white
- Adjustment range 0°~351°, 0°~64°, ±90°
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (8)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Stopped vehicle, Virtual area(Loitering/Intrusion/Enter/Exit/Appea
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Audio detection
- Analytics / Attributes – Face
- Age, Gender, Face mask, Glasses
- Analytics / Attributes – Person
- Upper/Lower clothes color, Gender, Bag
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- BestShot
Certifications & Standards (2)
- Certifications & Standards – EMC
- None, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 43.5m(142.71ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 4.3m(14.27ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 17.4m(57.09ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 8.7m(28.54ft)
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 7.9W, typical 6.2W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
- Environmental & Electrical – WisePower
- Power monitoring, Eco mode
General (4)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot
- General / Memory – Flash
- 8GB eMMC
- General / Memory – RAM
- 4GB
Lens (9)
- Lens / Angular Field of View – Diagonal
- 130°
- Lens / Angular Field of View – Horizontal
- 100°
- Lens / Angular Field of View – Vertical
- 74°
- Lens / Max Aperture Ratio (F number) – Tele
- 1.6
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens – Focal Length (mm)
- 3.0
- Lens – Focus Control
- Manual
- Lens – Lens Type
- Fixed iris
- Lens – Min. Object Distance
- 0.4m(1.31ft)
Mechanical (6)
- Mechanical / Material Management – Declaration
- RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- ø120x65.5mm(ø4.72x2.58")
- Mechanical – Product Weight
- 555g(1.22b)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 5 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, PIM-SM, SMTP(StartTLS), Syslog
- Network – Smart Codec
- Manual, WiseStream(Based on AI engine)
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (27)
- Operational / Alarm Interface – Others
- Support alarm I/O via optional I/O box
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/30,000sec
- Operational / Light Viewable Length – IR
- 25m(82.02ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
- Operational / Privacy Masking – Dynamic Privacy Masking: Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- Polygonal zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Day/Night, Storage disruption
- Operational – Audio In
- Support via optional I/O box
- Operational – Audio Out
- Support via optional I/O box
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Digital PTZ
- Support
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support(Fill/stretch mode)
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~351°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- ±90°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~64°
Security (11)
- Security – Access Control
- IP-based access control, MAC-based access control, Auto logout
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP, 802.1AE(MACsec)
- Security – Secure Storage
- SDcard partition encrypt(AES-256), Secure element
- Security – Security Certificate
- Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
- Security – Supply Chain Security
- SBOM
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@5MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.006
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.06
- Video – Resolution
- 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
- Video – Video Out
- USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.
