Ceiling Mount

The PND-A7082RV is a modular indoor dome camera with infrared illumination and AI functions, its 1/1.8-inch CMOS sensor recording 4 megapixels up to 2592x1520. H.265 and H.264 manage 60fps at 60Hz or 50fps at 50Hz with WDR off, and 30fps or 25fps with WDR on, while MJPEG reaches 30fps and a maximum of 5fps at 4MP. The varifocal lens works from 4.6 to 9.35mm with 2.0x optical zoom, opening to F1.3 at wide angle and F2.15 at telephoto and covering 105° to 47° horizontally, 58° to 27° vertically and 128° to 55° diagonally. Focusing is by simple focus through an IR-corrected P iris from a minimum object distance of 1.5m. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with an automatic ICR filter managing day and night operation. Alignment covers 0° to 350° pan, -45° to 85° tilt and 0° to 355° rotation, and a USB Type C port is provided for preview during installation. 4 megapixel resolution up to 2592x15204.6 to 9.35mm varifocal lens with 2.0x zoomUp to 60/50fps with WDR off, 30/25fps with WDR on0.03 lux in colour, 0.003 lux in black and whiteSimple focus with IR-corrected P iris0° to 350° pan and -45° to 85° tilt

The PND-A9082RV is a modular 8MP indoor dome camera with AI and IR support. Its 1/1.2-inch CMOS sensor resolves a maximum of 3840x2160 pixels; H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) while MJPEG runs at 30fps, dropping to a maximum of 5fps at 8MP. The motorised lens covers 5.9 to 13.3 mm with 2.25x optical zoom, opens to F1.5 wide and F2.9 tele, and delivers a horizontal field of view between 109° and 49°. Minimum illumination is specified as 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR switching. Pan from 0° to 360°, tilt from -45° to 85°, rotation from 0° to 355° and a 0.8 m minimum object distance complete the mechanical data. 1/1.2-inch CMOS sensorUp to 3840x2160 resolution5.9-13.3 mm lens, 2.25x optical0.015 lux colour / 0.0015 lux BWP iris, IR correctedAutomatic day and night (ICR)

The PNM-C16083RQZ is a multi-directional camera with four 4MP channels on 1/2.8-inch CMOS sensors. Top resolution is 2592x1520 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, falling to a maximum of 5fps at 4MP. The varifocal lenses run from 3.2 to 10.2 mm with 3.2x optical zoom, open to F1.6 wide and F3.1 tele and capture 93° to 29° horizontally, using a P iris and simple focus from 1.2 m. Minimum illumination is given as 0.1 lux in colour and 0.01 lux in black and white, with automatic ICR switching. Channels pan 0° to 360°, tilt 30° to 90° and rotate 0° to 90°, and remote adjustment is rated for a maximum of 200 cycles. Four 4MP channelsMax. 2592x1520 at 30fps/25fps3.2-10.2 mm varifocal, 3.2x opticalP iris with simple focus from 1.2 mAutomatic day and night (ICR)Remote adjustment, max. 200 cycles

The PNM-C32083RQZ combines four 8MP channels on 1/1.8-inch CMOS sensors. Maximum resolution is 3840x2160 pixels at 15fps in H.265, H.264 and MJPEG; MJPEG falls to a maximum of 5fps at 8MP, and up to 20fps is available with AI switched off. The varifocal lenses span 4.38 to 9.33 mm with 2.1x optical zoom, open to F1.3 wide and F2.15 tele and cover 113° to 47° horizontally and 138° to 54° diagonally. Minimum illumination is stated as 0.07 lux in colour and 0.007 lux in black and white, with a P iris and simple focus from 1.3 m. Channels pan 0° to 360°, tilt 30° to 90° and rotate 0° to 90°, and remote adjustment is rated for a maximum of 200 cycles. Four 8MP channelsMax. 3840x2160 at 15fpsUp to 20fps with AI switched off4.38-9.33 mm varifocal, 2.1x optical0.07 lux colour / 0.007 lux BWRemote adjustment, max. 200 cycles

The PNO-A7082R is a vandal-resistant 4MP bullet camera with AI and IR. Its 1/1.8-inch CMOS sensor resolves a maximum of 2592x1520 pixels; H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) with WDR off and 30fps/25fps with WDR on, while MJPEG delivers 30fps and no more than 5fps at 4MP. The lens spans 4.6 to 9.35 mm with 2.0x optical zoom, opens to F1.3 wide and F2.15 tele and covers 105° to 47° horizontally and 128° to 55° diagonally. An IR-corrected P iris with simple focus works from a minimum object distance of 1.5 m. Minimum illumination is given as 0.03 lux in colour and 0.003 lux in black and white with automatic ICR switching, and mechanical adjustment allows 0° to 360° pan, 0° to 90° tilt and 0° to 180° rotation. 1/1.8-inch CMOS sensor, 2592x152060fps/50fps WDR off, 30fps/25fps WDR on4.6-9.35 mm lens, 2.0x optical0.03 lux colour / 0.003 lux BWIR-corrected P iris, focus from 1.5 mAutomatic day and night (ICR)

The PNO-A9082R is an 8MP AI bullet camera using a 1/1.2-inch CMOS sensor with a maximum resolution of 3840x2160. H.265 and H.264 streams run at up to 30fps/25fps (60Hz/50Hz), while MJPEG reaches 30fps and is limited to 5fps at 8MP. Sensitivity extends to 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR day and night switching. The IR corrected P iris lens covers 5.9~13.3mm with 2.25x optical zoom at F1.5 wide and F2.9 tele, giving a horizontal field of view of 109°~49° and a minimum object distance of 0.8m. Installers can align the camera across 0°~360° pan, 0°~90° tilt and 0°~180° rotation, and a USB Type C connection is provided for setup. 1/1.2-inch CMOS sensor, 8MP (3840x2160)5.9~13.3mm lens with 2.25x optical zoomMinimum illumination 0.015 lux colour / 0.0015 lux BWSimple focus with IR corrected P irisPan 0°~360°, tilt 0°~90°, rotate 0°~180°

The PNO-A9092R is a long range 8MP AI bullet camera built on a 1/1.2-inch CMOS sensor with a top resolution of 3840x2160. Its 15~50mm lens provides 3.33x optical zoom at F1.67 wide and F3.5 tele, narrowing the horizontal field of view from 42.7° to 12.6°, with a minimum object distance of 2.5m. H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz), and MJPEG runs at 30fps, capped at 5fps when 8MP is selected. Low light performance reaches 0.015 lux in colour and 0.0015 lux in black and white, switched automatically by ICR. Mounting alignment covers 0°~360° pan, 0°~90° tilt and 0°~180° rotation, and the lens uses adaptive P iris with IR correction. 15~50mm long range lens with 3.33x optical zoom1/1.2-inch CMOS sensor, 8MP (3840x2160)Horizontal field of view 42.7°~12.6°Minimum illumination 0.015 lux colour / 0.0015 lux BWMinimum object distance 2.5m

The PNV-A7082RZ is a modular outdoor vandal dome camera with AI and IR, using a 1/1.8-inch CMOS sensor at 4MP (2592x1520). With WDR switched off it records at 60fps/50fps (60Hz/50Hz), and at 30fps/25fps with WDR on, while MJPEG runs at 30fps and is limited to 5fps at 4MP. The IR corrected P iris lens spans 4.6~9.35mm with 2.0x optical zoom at F1.3 wide and F2.15 tele, covering 105°~47° horizontally with a minimum object distance of 1.5m. Being a PTRZ model, it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with automatic ICR day and night switching. 4MP (2592x1520) on a 1/1.8-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles4.6~9.35mm lens with 2.0x optical zoom60/50fps with WDR off, 30/25fps with WDR onMinimum illumination 0.03 lux colour / 0.003 lux BW

The PNV-A9082RZ is an outdoor vandal dome camera with AI, using a 1/1.2-inch CMOS sensor at 8MP (3840x2160). H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz), while MJPEG runs at 30fps and is capped at 5fps when 8MP is selected. The IR corrected P iris lens covers 5.9~13.3mm with 2.25x optical zoom at F1.5 wide and F2.9 tele, spanning 109°~49° horizontally, and the minimum object distance is 0.8m. As a PTRZ model it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR day and night switching. 8MP (3840x2160) on a 1/1.2-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles5.9~13.3mm lens with 2.25x optical zoomMinimum illumination 0.015 lux colour / 0.0015 lux BWHorizontal field of view 109°~49°

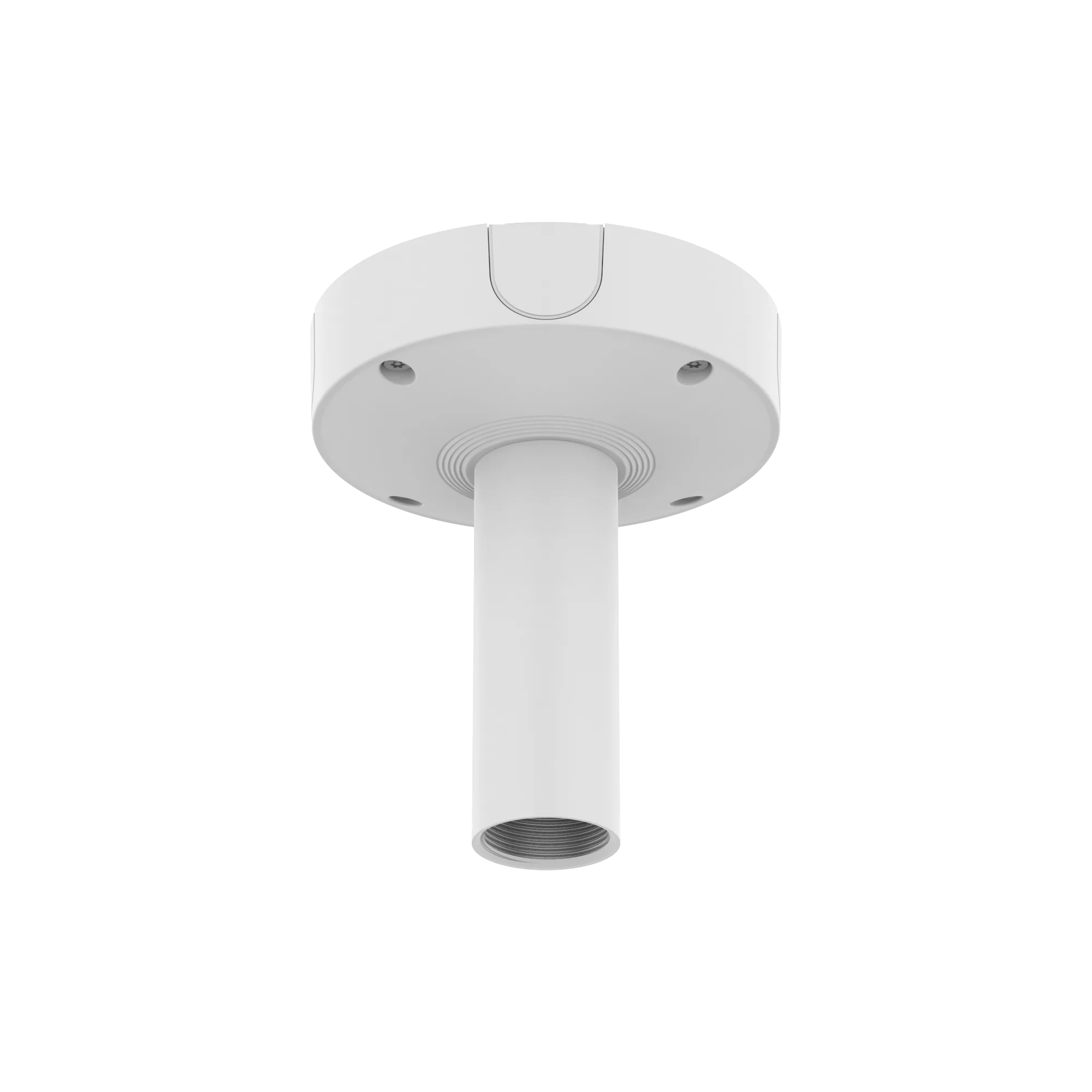

Ceiling mount base made of aluminium, finished in white to RAL9003. It measures ø140x33mm and weighs 250g. The mount screw size is M10. Listed supported products are the SBP-150CMP, SBP-300CMP and SBP-900CMP ceiling mounts. AluminiumWhite RAL9003Dimensions ø140x33mmWeight 250gM10 mount screw sizeFor SBP-150CMP, SBP-300CMP, SBP-900CMP

The SBP-180CMB serves as the ceiling mount base for suspended camera installations. It is made of aluminium and finished in white to RAL9003. The body measures ø180 x 86.5 mm at a weight of 970 g, and the mount screw size is TR30. A conduit hole of 19.1 mm (M25) is provided for cable entry. The base can be combined with SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P and SBP-C15H, among others. Aluminium ceiling mount baseWhite RAL9003ø180 x 86.5 mm, 970 gMount screw size TR30Conduit hole 19.1 mm (M25)For SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P, SBP-C15H

The SBP-180CMS is a ball head ceiling mount base used to align suspended cameras. Aluminium is used as the material and the finish is white to RAL9003. Dimensions and weight are ø180 x 86.5 mm and 970 g, with a TR30 mount screw size. A 19.1 mm (M25) conduit hole is provided. Supported items include SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P and SBP-C15H. Ball head ceiling mount baseAluminium, white RAL9003ø180 x 86.5 mm, 970 gMount screw size TR30Conduit hole 19.1 mm (M25)For SBP-150CMP, SBP-300CMP, SBP-C15P and others

The TNO-4050T resolves thermal scenes at 640x480, with 640x360 and 320x240 available as alternatives. Its uncooled micro bolometer uses a 17 µm pixel pitch, a thermal sensitivity of ≤50 mK and the 8~14 µm spectral band, and frame rates reach 30/25 fps (60/50 Hz) in H.265 and H.264 as well as 30 fps in MJPEG. A fixed 35 mm F1.0 lens sits in front of the sensor and covers 17.2° horizontally, 13° vertically and 22° diagonally, for an iFoV of 0.47 mRad and a minimum object distance of 36 m. Analytics include motion detection with handover, tampering and loitering detection, directional detection, audio detection, sound classification, and detection of shock and temperature change. An SD/SDHC/SDXC slot takes up to 256 GB of recordings, and Hallway View and WiseStream II are supported. Uncooled micro bolometer, 640x480, 17 µmNETD ≤50 mK, 8~14 µm spectral range35 mm fixed lens, F1.0, field of view 17.2° x 13°Up to 30/25 fps in H.265 and H.264Shock and temperature change detectionSD/SDHC/SDXC up to 256 GB

The TNO-C3040T is a thermal camera with a tele lens and AI capability. Its uncooled micro bolometer carries 384x288 pixels at a 17 µm pitch and works in the 8~14 µm band, with thermal sensitivity quoted as ≤20 mK at 25 °C and F1.0. Images are output at 768x576 and 384x288 with up to 30 frames per second in H.265, H.264 and MJPEG, and a micro USB type B connector serves preview and installation. In front of the sensor sits an athermalised 13 mm fixed lens at F1.0 covering 28.5° horizontally, 21.4° vertically and 35.5° diagonally, for an iFoV of 1.308 mRad and a minimum object distance of 5 m. During installation the camera can be panned 0°~350°, tilted 0°~90° and rotated 0°~350°, and eight 8-point polygonal motion detection zones are available for analysis. Uncooled micro bolometer, 384x288, 17 µmNETD ≤20 mK at 25 °C, F1.0Athermalised 13 mm fixed lens, F1.0Field of view 28.5° x 21.4°, iFoV 1.308 mRadUp to 30 fps in H.265, H.264 and MJPEGEight 8-point polygonal motion detection zones

The TNO-C3042T pairs an athermalised 13 mm tele lens at F1.0 with an uncooled micro bolometer of 384x288 pixels and a 17 µm pixel pitch, reaching a thermal sensitivity of ≤20 mK at 25 °C and F1.0 within the 8~14 µm band. Output resolutions are 768x576 and 384x288 at up to 8 frames per second in H.265, H.264 and MJPEG. The field of view measures 28.5° horizontally, 21.4° vertically and 35.5° diagonally, with an iFoV of 1.308 mRad and a minimum object distance of 5 m. Detected objects are classified as person or vehicle by an AI engine. The housing is rated IP66/67, IK10, NEMA4X, NEMA-TS2 and MIL-STD-810H, and a secure element certified to FIPS 140-3 level 3 and CC EAL6+ protects the camera. Uncooled micro bolometer, 384x288, 17 µmNETD ≤20 mK at 25 °C, F1.0Athermalised 13 mm tele lens, F1.0Max. 8 fps in H.265, H.264 and MJPEGAI classification of person and vehicleIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3052T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 19 mm at F1.0 and takes in 19.3° horizontally, 14.6° vertically and 23.9° diagonally, with an iFoV of 0.895 mRad and a minimum object distance of 10.6 m (34.8 ft). H.265, H.264 and MJPEG are each encoded at up to 8 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 19 mm fixed lens, F1.0NETD ≤20 mK at 25 °CUp to 8 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3060T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 35 mm at F1.0 and takes in 10.7° horizontally, 8.0° vertically and 13.3° diagonally, with an iFoV of 0.486 mRad and a minimum object distance of 36.1 m (118.4 ft). H.265, H.264 and MJPEG are each encoded at up to 30 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 35 mm fixed lens, F1.0NETD ≤20 mK at 25 °CUp to 30 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3062T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 35 mm at F1.0 and takes in 10.7° horizontally, 8.0° vertically and 13.3° diagonally, with an iFoV of 0.486 mRad and a minimum object distance of 36.1 m (118.4 ft). H.265, H.264 and MJPEG are each encoded at up to 8 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 35 mm fixed lens, F1.0NETD ≤20 mK at 25 °CUp to 8 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3080T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 60 mm at F1.2 and takes in 6.2° horizontally, 4.7° vertically and 7.7° diagonally, with an iFoV of 0.283 mRad and a minimum object distance of 88.3 m (289.7 ft). H.265, H.264 and MJPEG are each encoded at up to 30 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 60 mm fixed lens, F1.2NETD ≤20 mK at 25 °CUp to 30 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3082T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 60 mm at F1.2 and takes in 6.2° horizontally, 4.7° vertically and 7.7° diagonally, with an iFoV of 0.283 mRad and a minimum object distance of 88.3 m (289.7 ft). H.265, H.264 and MJPEG are each encoded at up to 8 fps. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 60 mm fixed lens, F1.2NETD ≤20 mK at 25 °CUp to 8 fps (H.265/H.264/MJPEG)Field of view 6.2° x 4.7°Minimum object distance 88.3 m (289.7 ft)

A 640x480 uncooled micro bolometer with a 17 µm pixel size drives the TNO-C4040T, which outputs 1280x960, 640x480, 640x360 or 320x240. Across the 8–14 µm spectral range, sensitivity is specified as NETD ≤16 mK at 25 °C, F1.0. The athermalized 13 mm fixed lens at F1.0 spans 49.1° horizontally and 36.4° vertically, 62.3° on the diagonal, with an iFoV of 1.31 mRad and a minimum object distance of 5 m (16.4 ft). H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) and MJPEG 30fps. WiseNR digital noise reduction conditions the image, and eight zones are available for motion detection. An SD/SDHC/SDXC slot takes cards of up to 256 GB, Hallway View and WiseStream II are supported, power comes from PoE, 24 V AC or 12 V DC, and the housing is rated IP66, NEMA4X and IK10. Uncooled micro bolometer 640x480Athermalized 13 mm fixed lens, F1.0NETD ≤16 mK at 25 °CUp to 30fps/25fps (60Hz/50Hz) (H.265/H.264)SD/SDHC/SDXC slot up to 256 GBIP66, NEMA4X, IK10

A 640x480 uncooled micro bolometer with a 17 µm pixel size drives the TNO-C4042T, which outputs 1280x960, 640x480, 640x360 or 320x240. Across the 8–14 µm spectral range, sensitivity is specified as NETD ≤16 mK at 25 °C, F1.0. The athermalized 13 mm fixed lens at F1.0 spans 49.1° horizontally and 36.4° vertically, 62.3° on the diagonal, with an iFoV of 1.31 mRad and a minimum object distance of 5 m (16.4 ft). H.265 and H.264 reach 8fps and MJPEG 8fps. WiseNR digital noise reduction conditions the image, and eight zones are available for motion detection. Persons, vehicles and vessels are detected, and the image can be upscaled to 1280x960. Uncooled micro bolometer 640x480Athermalized 13 mm fixed lens, F1.0NETD ≤16 mK at 25 °CUp to 8fps (H.265/H.264)Person, vehicle and vessel detectionMIL-STD, NEMA 4X, NEMA TS rated

A 640x480 uncooled micro bolometer with a 17 µm pixel size drives the TNO-C4050T, which outputs 1280x960, 640x480, 640x360 or 320x240. Across the 8–14 µm spectral range, sensitivity is specified as NETD ≤16 mK at 25 °C, F1.0. The athermalized 19 mm fixed lens at F1.0 spans 32.8° horizontally and 24.6° vertically, 41.1° on the diagonal, with an iFoV of 0.89 mRad and a minimum object distance of 11 m (36.1 ft). H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) and MJPEG 30fps. WiseNR digital noise reduction conditions the image, and eight zones are available for motion detection. The image can be upscaled to 1280x960, and the camera carries MIL-STD, NEMA 4X and NEMA TS ratings. Uncooled micro bolometer 640x480Athermalized 19 mm fixed lens, F1.0NETD ≤16 mK at 25 °CUp to 30fps/25fps (60Hz/50Hz) (H.265/H.264)Upscaling to 1280x960MIL-STD, NEMA 4X, NEMA TS rated

A 640x480 uncooled micro bolometer with a 17 µm pixel size drives the TNO-C4052T, which outputs 1280x960, 640x480, 640x360 or 320x240. Across the 8–14 µm spectral range, sensitivity is specified as NETD ≤16 mK at 25 °C, F1.0. The athermalized 19 mm fixed lens at F1.0 spans 32.8° horizontally and 24.6° vertically, 41.1° on the diagonal, with an iFoV of 0.89 mRad and a minimum object distance of 11 m (36.1 ft). H.265 and H.264 reach 8fps and MJPEG 8fps. WiseNR digital noise reduction conditions the image, and eight zones are available for motion detection. Persons, vehicles and vessels are detected, and the image can be upscaled to 1280x960. Uncooled micro bolometer 640x480Athermalized 19 mm fixed lens, F1.0NETD ≤16 mK at 25 °CUp to 8fps (H.265/H.264)Person, vehicle and vessel detectionMIL-STD, NEMA 4X, NEMA TS rated

A 640x480 uncooled micro bolometer with a 17 µm pixel size drives the TNO-C4060T, which outputs 1280x960, 640x480, 640x360 or 320x240. Across the 8–14 µm spectral range, sensitivity is specified as NETD ≤16 mK at 25 °C, F1.0. The athermalized 35 mm fixed lens at F1.0 spans 17.5° horizontally and 13.2° vertically, 21.7° on the diagonal, with an iFoV of 0.47 mRad and a minimum object distance of 36 m (118.1 ft). H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) and MJPEG 30fps. WiseNR digital noise reduction conditions the image, and eight zones are available for motion detection. The image can be upscaled to 1280x960, and the camera carries MIL-STD, NEMA 4X and NEMA TS ratings. Uncooled micro bolometer 640x480Athermalized 35 mm fixed lens, F1.0NETD ≤16 mK at 25 °CUp to 30fps/25fps (60Hz/50Hz) (H.265/H.264)Upscaling to 1280x960MIL-STD, NEMA 4X, NEMA TS rated

A 640x480 uncooled micro bolometer with a 17 µm pixel size drives the TNO-C4062T, which outputs 1280x960, 640x480, 640x360 or 320x240. Across the 8–14 µm spectral range, sensitivity is specified as NETD ≤16 mK at 25 °C, F1.0. The athermalized 35 mm fixed lens at F1.0 spans 17.5° horizontally and 13.2° vertically, 21.7° on the diagonal, with an iFoV of 0.47 mRad and a minimum object distance of 36 m (118.1 ft). H.265 and H.264 reach 8fps and MJPEG 8fps. WiseNR digital noise reduction conditions the image, and eight zones are available for motion detection. Persons, vehicles and vessels are detected, and the image can be upscaled to 1280x960. Uncooled micro bolometer 640x480Athermalized 35 mm fixed lens, F1.0NETD ≤16 mK at 25 °CUp to 8fps (H.265/H.264)Person, vehicle and vessel detectionMIL-STD, NEMA 4X, NEMA TS rated

A 640x480 uncooled micro bolometer with a 17 µm pixel size drives the TNO-C4080T, which outputs 1280x960, 640x480, 640x360 or 320x240. Across the 8–14 µm spectral range, sensitivity is specified as NETD ≤16 mK at 25 °C, F1.0. The athermalized 60 mm fixed lens at F1.15 spans 10.3° horizontally and 7.7° vertically, 12.8° on the diagonal, with an iFoV of 0.28 mRad and a minimum object distance of 92 m (301.8 ft). H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) and MJPEG 30fps. WiseNR digital noise reduction conditions the image, and eight zones are available for motion detection. The image can be upscaled to 1280x960, and the camera carries MIL-STD, NEMA 4X and NEMA TS ratings. Uncooled micro bolometer 640x480Athermalized 60 mm fixed lens, F1.15NETD ≤16 mK at 25 °CUp to 30fps/25fps (60Hz/50Hz) (H.265/H.264)Upscaling to 1280x960MIL-STD, NEMA 4X, NEMA TS rated

A 640x480 uncooled micro bolometer with a 17 µm pixel size drives the TNO-C4082T, which outputs 1280x960, 640x480, 640x360 or 320x240. Across the 8–14 µm spectral range, sensitivity is specified as NETD ≤16 mK at 25 °C, F1.0. The athermalized 60 mm fixed lens at F1.15 spans 10.3° horizontally and 7.7° vertically, 12.8° on the diagonal, with an iFoV of 0.28 mRad and a minimum object distance of 92 m (301.8 ft). H.265 and H.264 reach 8fps and MJPEG 8fps. WiseNR digital noise reduction conditions the image, and eight zones are available for motion detection. Persons, vehicles and vessels are detected, and the image can be upscaled to 1280x960. Uncooled micro bolometer 640x480Athermalized 60 mm fixed lens, F1.15NETD ≤16 mK at 25 °CUp to 8fps (H.265/H.264)Person, vehicle and vessel detectionMIL-STD, NEMA 4X, NEMA TS rated

The XND-A6084RV is a 2MP AI IR dome camera using a 1/2.8" CMOS sensor with a maximum resolution of 1920x1080. A motorised 2.8 to 12 mm varifocal lens supplies 4.3x optical zoom with an IR-corrected P iris and apertures from F1.4 wide to F3.6 tele, covering 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from 0.5 m. H.265 and H.264 support 60fps/50fps (60Hz/50Hz) while MJPEG stays at 30fps, and minimum illumination is given as 0.02 lux in colour and 0.002 lux in black-and-white. Day and night switching is automatic via ICR, and focus can be set through simple focus or manually. Alignment covers 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, with a USB Type C connection for preview and installation. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, 4.3xIR-corrected P iris, F1.4 to F3.660fps/50fps in H.265 and H.2640.02 lux colour, 0.002 lux B/W0°–360° pan, 0°–75° tilt

The XND-A8084RV is a 5MP AI IR dome camera that resolves up to 2560x1920 from a 1/2.8" CMOS sensor. Its motorised 3.3 to 9.3 mm varifocal lens provides 2.8x optical zoom with an IR-corrected P iris, F1.3 at the wide end and F2.3 at tele, giving 99° to 31° horizontally, 71° to 23° vertically and 133° to 39° diagonally from 0.5 m. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, dropping to a maximum of 5fps at 5MP. Minimum illumination is 0.04 lux in colour and 0.004 lux in black-and-white, and day and night switching is automatic via ICR. Focus is available as simple focus or manual, alignment spans 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and a USB Type C port serves preview and installation. 1/2.8" CMOS, up to 2560x1920Motorised 3.3–9.3 mm varifocal lens, 2.8xIR-corrected P iris, F1.3 to F2.330fps/25fps in H.265 and H.2640.04 lux colour, 0.004 lux B/W0°–360° pan, 0°–75° tilt

The XND-A8085RV is a modular 5MP AI IR dome camera built on a 1/2.8" CMOS sensor with a top resolution of 2560x1920. A motorised 3.3 to 9.3 mm varifocal lens with 2.8x zoom and an IR-corrected P iris works at F1.3 wide and F2.3 tele, covering 99° to 31° horizontally, 71° to 23° vertically and 133° to 39° diagonally from a 0.5 m minimum object distance. Frame rates are 30fps/25fps (60Hz/50Hz) in H.265 and H.264, with MJPEG at 30fps and a maximum of 5fps at 5MP. Minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black-and-white, and an ICR handles day and night switching automatically. A tilt range of -45° to 85° together with 0° to 360° pan and 0° to 355° rotation allows flexible alignment, and focusing is by simple focus. Modular design, 5MPMotorised 3.3–9.3 mm varifocal lens, 2.8xIR-corrected P iris, F1.3 to F2.3Tilt range -45° to 85°0.04 lux colour, 0.004 lux B/WICR day and night switching

The XND-A9084RV is an 8MP AI IR dome camera whose 1/1.8" CMOS sensor delivers up to 3840x2160. Its motorised 4.4 to 9.3 mm varifocal lens gives 2.1x optical zoom with an IR-corrected P iris, F1.3 at the wide end and F2.15 at tele, taking in 113° to 47° horizontally, 58° to 26° vertically and 138° to 54° diagonally from 0.5 m. H.265 and H.264 reach 30fps/25fps (60Hz/50Hz), while MJPEG runs at 30fps and a maximum of 5fps at 8MP. Minimum illumination is quoted as 0.04 lux in colour and 0.004 lux in black-and-white, and day and night switching is automatic via ICR. Focus can be set by simple focus or manually, and alignment covers 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation. 1/1.8" CMOS, up to 3840x2160Motorised 4.4–9.3 mm varifocal lens, 2.1xIR-corrected P iris, F1.3 to F2.1530fps/25fps in H.265 and H.2640.04 lux colour, 0.004 lux B/W0°–360° pan, 0°–75° tilt

In a modular design, the XND-A9085RV is an 8MP AI IR dome camera delivering up to 3840x2160 from a 1/1.8" CMOS sensor. Its motorised 4.4 to 9.3 mm varifocal lens works with 2.1x zoom, an IR-corrected P iris, F1.3 wide and F2.15 tele, covering 113° to 47° horizontally, 58° to 26° vertically and 138° to 54° diagonally, with a minimum object distance of 0.5 m. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, limited to 5fps at 8MP. Minimum illumination is given as 0.04 lux in colour and 0.004 lux in black-and-white, and an ICR performs day and night switching. Tilt ranges from -45° to 85°, complemented by 0° to 360° pan and 0° to 355° rotation, and focusing is by simple focus. Modular design, 8MP1/1.8" CMOS, up to 3840x2160Motorised 4.4–9.3 mm varifocal lens, 2.1xIR-corrected P iris, F1.3 to F2.15Tilt range -45° to 85°0.04 lux colour, 0.004 lux B/W

The XNF-A8014R AI fisheye camera relies on a 1/1.6" CMOS imager and a 1.76 mm lens spanning 185° horizontally, vertically and diagonally. Maximum resolution is 2560x2560, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz), MJPEG at 5fps and a ceiling of 20fps in PoE mode. The aperture ratio is 1.8 at both the wide and the tele end, and object distance starts at 0.5 m. Minimum illumination is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), and ICR switches between day and night automatically. Image conditioning includes extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog. The image can also be rotated digitally. 1/1.6" CMOS sensorUp to 2560x25601.76 mm lens, 185° field of viewExtreme WDR 120 dBWiseNR II, AI basedDigital image stabilisation, defog

As an AI fisheye model, the XNF-A8014RV relies on a 1/1.6" CMOS imager and a 1.76 mm lens spanning 185° horizontally, vertically and diagonally. Maximum resolution is 2560x2560, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz), MJPEG at 5fps and a ceiling of 20fps in PoE mode. The aperture ratio is 1.8 at both the wide and the tele end, and object distance starts at 0.5 m. Minimum illumination is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), and ICR switches between day and night automatically. Image conditioning includes extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog. The image can also be rotated digitally. 1/1.6" CMOS sensorUp to 2560x25601.76 mm lens, F1.8185° field of view, digital rotationExtreme WDR 120 dB, WiseNR II0.02 lux colour / 0.001 lux B/W

The XNF-A9014R works with a 1/1.6" CMOS imager and a fixed stereographic 1.76 mm lens covering 185° horizontally, vertically and diagonally. Top resolution is 3584x2688, encoded at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 5fps in MJPEG, with a maximum of 20fps in PoE mode. The aperture ratio is 1.8 at the wide and the tele end, object distance begins at 0.5 m, and the image can be rotated digitally. Stated sensitivity is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), with ICR taking care of day and night switching. Extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog condition the picture. The manufacturer additionally states a 20 m IR range, an IP42 rating, a dual NPU for AI-based image enhancement and support for object detection, intelligent video analytics and motion detection. Up to 3584x26881.76 mm fixed stereographic lens20 m IR rangeIP42 ratedDual NPU for AI-based image enhancementObject detection, intelligent video analytics

As an AI IR fisheye camera, the XNF-A9014RV works with a 1/1.6" CMOS imager and a fixed stereographic 1.76 mm lens covering 185° horizontally, vertically and diagonally. Top resolution is 3584x2688, encoded at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 5fps in MJPEG, with a maximum of 20fps in PoE mode. The aperture ratio is 1.8 at the wide and the tele end, object distance begins at 0.5 m, and the image can be rotated digitally. Stated sensitivity is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), with ICR taking care of day and night switching. Extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog condition the picture. 1/1.6" CMOS sensorUp to 3584x26881.76 mm lens, 185° field of viewDigital rotationExtreme WDR 120 dB, WiseNR IIDigital image stabilisation, defog

The XNO-A6084R is a bullet camera on a 1/2.8" CMOS imager, recording at up to 1920x1080 with smaller formats down to 320x180. H.265 and H.264 run at 60fps/50fps (60Hz/50Hz) and MJPEG at 30fps. Its motorised lens covers 2.8~12 mm with 4.3x optical zoom, apertures from 1.4 wide to 3.6 tele and a field of view of 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally, focused by simple focus or manually from 0.5 m. Built as a P iris lens with IR correction, the camera reaches 0.02 lux in colour and 0.002 lux in black and white (1/30 sec, 30 IRE) with automatic ICR day and night switching. Alignment ranges are 0°~350° pan, 0°~90° tilt and 0°~350° rotate, and the video output is a USB Type C connector. Up to 1920x1080, 60fps2.8~12 mm, 4.3x optical zoomP iris lens, IR corrected0.02 lux colour / 0.002 lux B/WAuto ICR day and night0°~350° pan, 0°~90° tilt, 0°~350° rotate

As a bullet camera with a 1/2.8" CMOS imager, the XNO-A8084R resolves up to 2560x1920. H.265 and H.264 are encoded at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, though at 5MP it is limited to 5fps. The motorised lens operates from 3.3~9.3 mm with 2.8x optical zoom at apertures of 1.3 wide and 2.3 tele, giving 99°~31° horizontally, 71°~23° vertically and 133°~39° diagonally from 0.5 m. It is a P iris design with IR correction, adjusted by simple focus or manually. Sensitivity is quoted as 0.04 lux in colour and 0.004 lux in black and white (1/30 sec, 30 IRE) with automatic ICR day and night switching. Ranges of 0°~350° pan, 0°~90° tilt and 0°~350° rotate ease alignment, and a USB Type C connector serves as video output. Up to 2560x19203.3~9.3 mm, 2.8x optical zoomP iris, IR corrected0.04 lux colour / 0.004 lux B/WAuto ICR day and night0°~350° pan, 0°~90° tilt, 0°~350° rotate

The XNO-A9084R uses a 1/1.8" CMOS imager and records at up to 3840x2160, with H.265 and H.264 reaching 30fps/25fps (60Hz/50Hz) and MJPEG 30fps, limited to 5fps at 8MP. Its motorised lens spans 4.4~9.3 mm with 2.1x optical zoom, at aperture ratios of 1.3 wide and 2.15 tele. Coverage is 113°~47° horizontally, 58°~26° vertically and 138°~54° diagonally from a minimum object distance of 0.5 m, set through simple focus or manually. The P iris lens is IR corrected, minimum illumination is 0.04 lux in colour and 0.004 lux in black and white (1/30 sec, 30 IRE), and ICR switches between day and night automatically. Installation is supported by 0°~350° pan, 0°~90° tilt and 0°~350° rotate, and video output is over a USB Type C connector. 1/1.8" CMOS sensorUp to 3840x21604.4~9.3 mm, 2.1x optical zoomP iris, IR corrected0.04 lux colour / 0.004 lux B/W0°~350° pan, 0°~90° tilt, 0°~350° rotate

The XNV-A6016R is a compact outdoor IR network dome camera whose 1/2.8" CMOS sensor delivers up to 1920 x 1080 pixels (2 MP). Its 3.0 mm fixed-iris lens at F1.6 is focused manually and covers 108° horizontally, 59° vertically and 127° diagonally from an object distance of 0.4 m. H.265 and H.264 run at up to 60 fps or 50 fps and MJPEG at 30 fps, with minimum illumination of 0.027 lux in colour and 0.0027 lux in black and white. Image processing includes automatic ICR day and night switching together with BLC, HLC, WDR and SSDR. A USB Type-C port serves preview and installation only and requires a WiFi dongle, while adjustment spans 0°~351° pan, 0°~64° tilt and ±90° rotation. 2 MP resolution (1920 x 1080)3.0 mm lens with fixed F1.6 iris108° horizontal field of viewUp to 60 fps in H.265/H.264Day and night (ICR), BLC, HLC, WDR, SSDR0.027 lux colour, 0.0027 lux black and white

The XNV-A6084R is a vandal-resistant AI IR dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 1920 x 1080 pixels (2 MP). Its motorised 2.8 to 12 mm varifocal lens provides 4.3x optical zoom, opens to F1.4 wide and F3.6 tele and covers 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally from 0.5 m. Focusing works by simple focus or manually, the aperture is regulated by an IR-corrected P iris, and automatic ICR day and night switching is included. H.265 and H.264 allow up to 60 fps or 50 fps and MJPEG 30 fps, with minimum illumination of 0.02 lux in colour and 0.002 lux in black and white. The USB Type-C port is intended for preview and installation only and needs a WiFi dongle, while adjustment covers 0°~360° pan, 0°~75° tilt and 0°~355° rotation. 2 MP resolution (1920 x 1080)2.8~12 mm motorised varifocal lens (4.3x)IR-corrected P iris with simple focusUp to 60 fps in H.265/H.2640.02 lux colour, 0.002 lux black and whiteDay and night (ICR)

The XNV-A8016R is a compact outdoor IR network dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 2560 x 1920 pixels (5 MP). Its 3.0 mm fixed-iris lens at F1.6 is focused manually and covers 100° horizontally, 74° vertically and 130° diagonally from 0.4 m. H.265 and H.264 operate at up to 30 fps or 25 fps and MJPEG at 30 fps, limited to 5 fps at 5 MP, while minimum illumination is given as 0.06 lux in colour and 0.006 lux in black and white. Automatic ICR day and night switching plus BLC, HLC, WDR and SSDR support changing light conditions. The USB Type-C port is for preview and installation only and requires a WiFi dongle, and alignment offers 0°~351° pan, 0°~64° tilt and ±90° rotation. 5 MP resolution (2560 x 1920)3.0 mm lens with fixed F1.6 iris100° horizontal field of viewDay and night (ICR), BLC, HLC, WDR, SSDR0.06 lux colour, 0.006 lux black and whiteAdjustment range 0°~351°, 0°~64°, ±90°

Built around a 1/2.8-inch CMOS sensor, the XNV-A8084R is a vandal-resistant dome camera with infrared illumination and AI analytics that records at up to 2560x1920 pixels. H.265 and H.264 streams run at 30fps in 60Hz mode and 25fps in 50Hz mode, while MJPEG reaches 30fps and is limited to 5fps at 5MP. Its 3.3 to 9.3mm lens provides 2.8x optical zoom with an aperture of F1.3 at the wide end and F2.3 at tele, covering 99 to 31 degrees horizontally and 71 to 23 degrees vertically. Minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black and white, with automatic day and night switching via ICR. Installation is supported by a pan range of 0 to 360 degrees, tilt of 0 to 75 degrees and rotation of 0 to 355 degrees; the USB Type C output serves preview and setup only and needs a WiFi dongle. 5MP, up to 2560x1920 pixels1/2.8-inch CMOS sensor3.3-9.3mm lens with 2.8x optical zoom0.04 lux colour / 0.004 lux BWP iris, IR correctedDay & Night Auto (ICR)

The XNV-A9016R is a compact outdoor 4K network dome camera with 25m of infrared reach in a housing measuring 120mm in diameter and 65.5mm in height. Its 1/2.8-inch CMOS sensor provides 8MP at up to 3840x2160 pixels; H.265 and H.264 deliver 30fps at 60Hz or 25fps at 50Hz, and MJPEG runs at 30fps, limited to 5fps at 8MP. A fixed 3.0mm lens with fixed iris and manual focus control covers 108 degrees horizontally, 59 degrees vertically and 127 degrees diagonally, focusing from 0.4m. Minimum illumination is given as 0.1 lux in colour and 0.01 lux in black and white, and backlight situations are addressed by BLC, HLC, WDR and SSDR. Processing runs on Wisenet 9 with a dual NPU that separates AI processing from image enhancement, which is what the analytics events and business intelligence functions build on. The housing is rated IP66 and IK10, and alignment uses 0 to 351 degrees of pan, 0 to 64 degrees of tilt and plus/minus 90 degrees of rotation. 8MP, up to 3840x2160 pixelsFixed 3.0mm focal length, fixed iris25m IR rangeIP66, IK10 ratedWisenet 9 with dual NPUBLC, HLC, WDR, SSDR

The XNV-A9084R is an 8MP vandal-resistant IR dome camera whose 1/1.8-inch CMOS sensor reaches resolutions up to 3840x2160 pixels. H.265 and H.264 run at 30fps in 60Hz mode and 25fps in 50Hz mode, while MJPEG achieves 30fps and no more than 5fps at 8MP. The IR-corrected P iris lens spans 4.4 to 9.3mm with 2.1x optical zoom, F1.3 at the wide end and F2.15 at tele, giving 113 to 47 degrees horizontally and 138 to 54 degrees diagonally. Usable images are specified down to 0.04 lux in colour and 0.004 lux in black and white, with ICR switching between day and night automatically. Focus can be set through simple focus or manually, and the camera is aligned across 0 to 360 degrees of pan, 0 to 75 degrees of tilt and 0 to 355 degrees of rotation. 8MP, up to 3840x2160 pixels1/1.8-inch CMOS sensor4.4-9.3mm lens, 2.1x optical zoomF1.3 wide / F2.15 tele0.04 lux colour / 0.004 lux BWDay & Night Auto (ICR)
