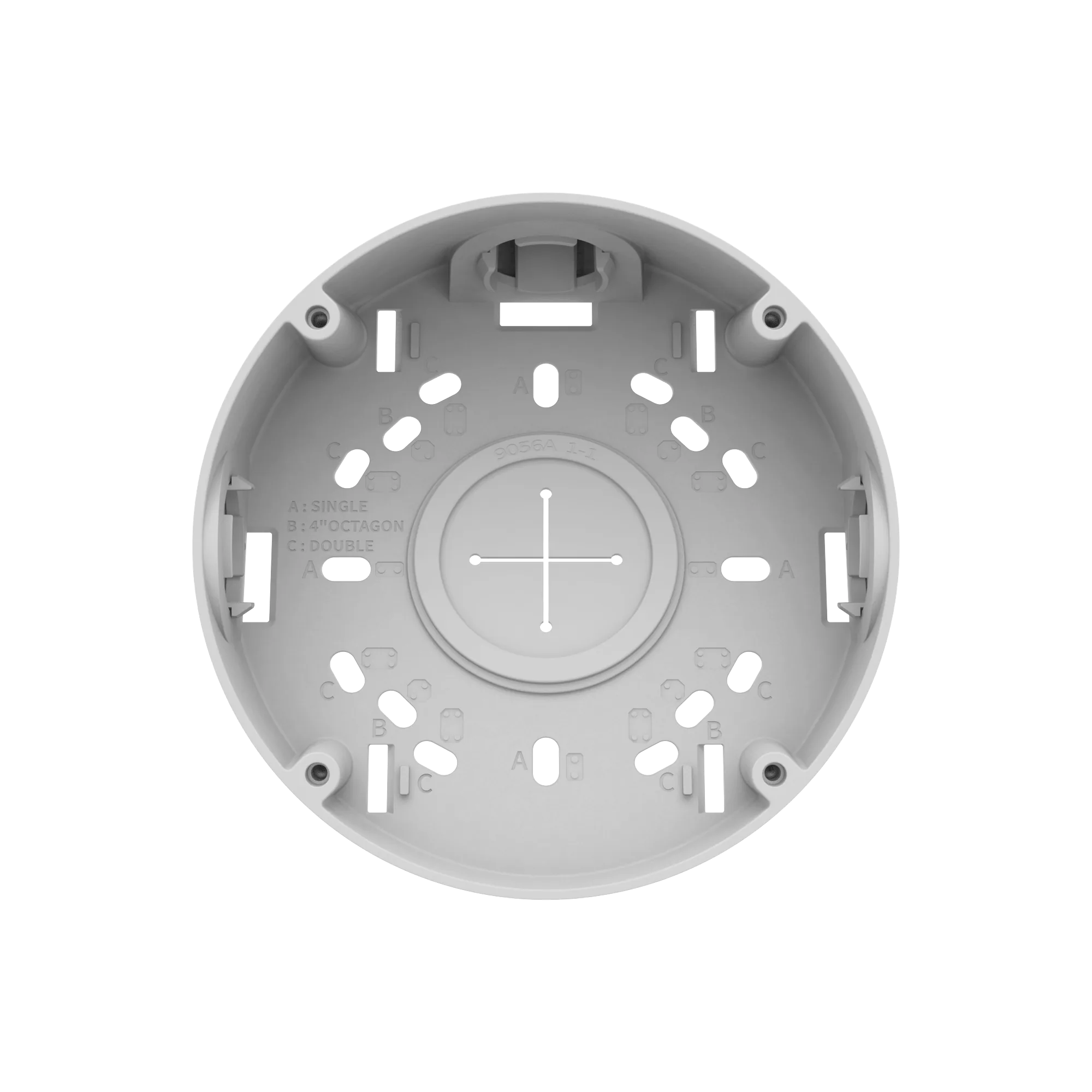

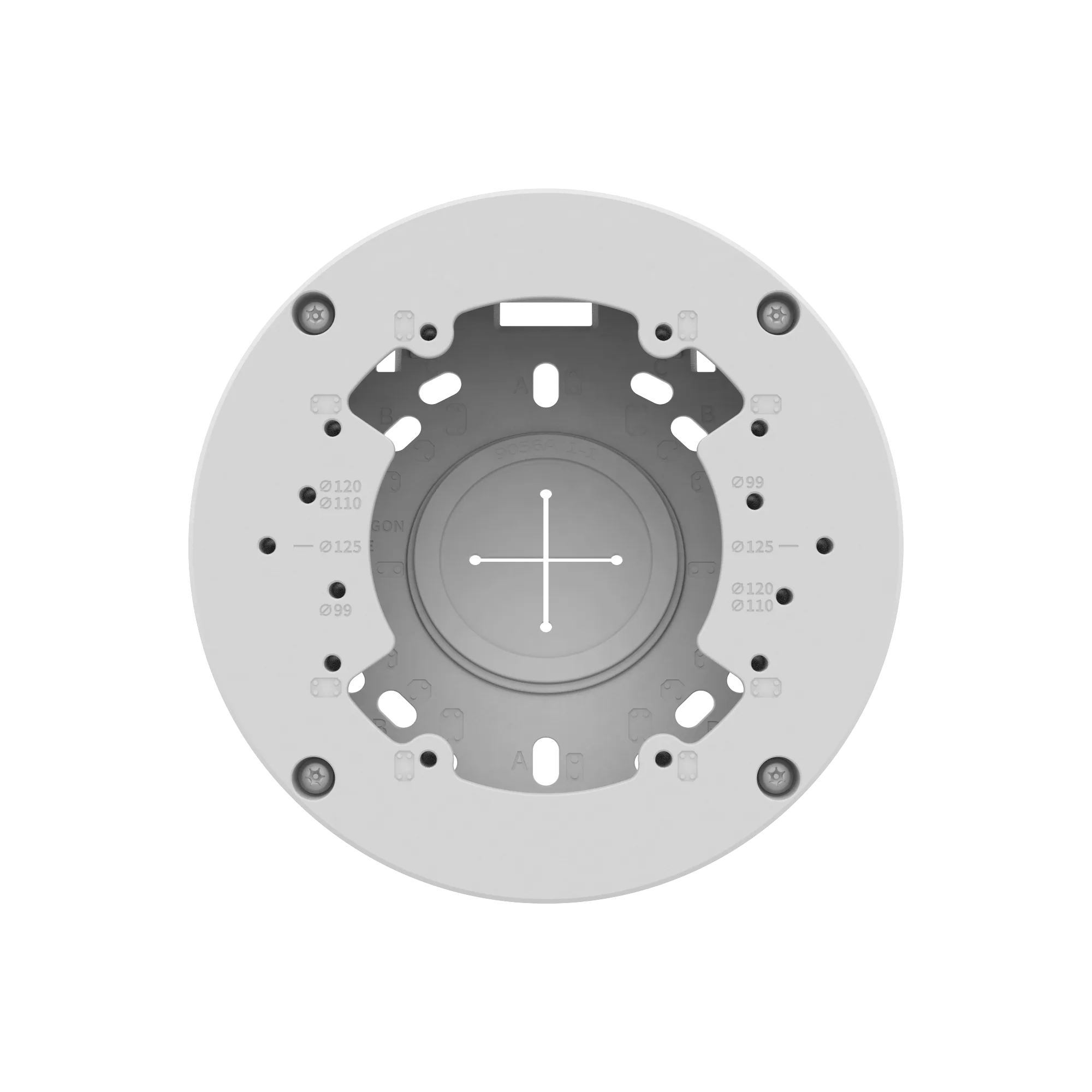

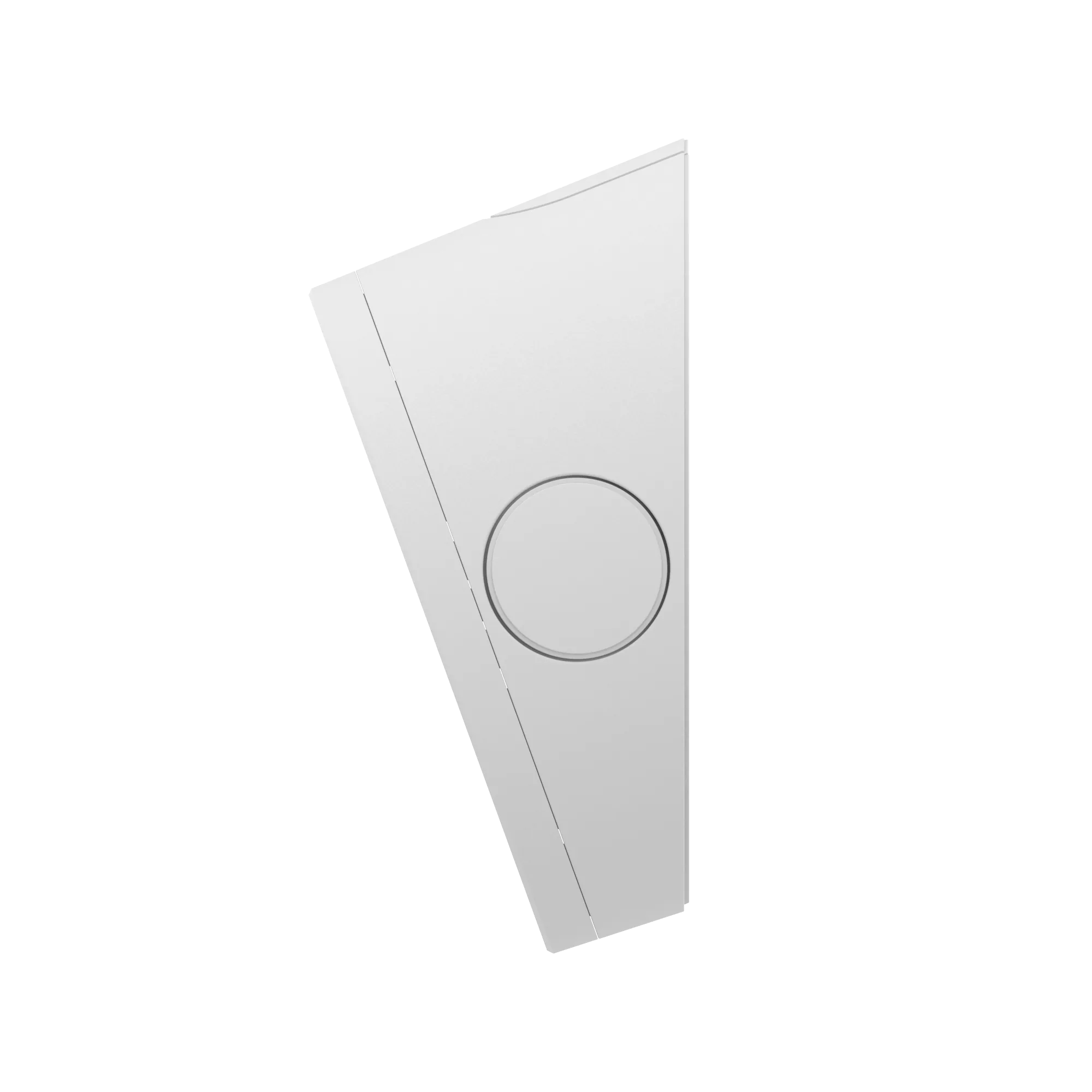

Tilt Mount

The QND-6011 is a compact network dome camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 2MP (1920x1080). H.265 and H.264 run at up to 30fps/25fps (60Hz/50Hz), MJPEG at 15fps and no more than 4fps at 2MP, with multiple streaming, hallway view and WiseStream II supported. Its fixed 2.8mm F2.0 lens covers 114° horizontally, 62° vertically and 135° diagonally. Image processing includes 120dB WDR, BLC, SSDR, SSNR and electrical day and night switching. Tampering, motion and defocus detection are provided, with four motion zones defined as eight point polygons, and a Micro SD/SDHC/SDXC slot accepts cards up to 128GB. 2MP (1920x1080) on a 1/2.8-inch CMOS sensorFixed 2.8mm F2.0 lens, 114° horizontal120dB WDR with BLC, SSDR and SSNRFour motion zones as 8 point polygonsMicro SD/SDHC/SDXC slot up to 128GBHallway view and WiseStream II

The QND-6012R is an IR network dome camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 2MP (1920x1080). All resolutions are encoded in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), while MJPEG delivers 15fps and a maximum of 4fps at 2MP, with multiple streaming available. The fixed 2.8mm F2.0 lens covers 114° horizontally, 62° vertically and 135° diagonally, at a minimum object distance of 0.5m. Colour images start at 0.03 lux and black and white at 0.003 lux, with 0 lux operation once the IR LED is on, backed by 120dB WDR, BLC, SSDR and SSNR. Motion, tampering and defocus detection are included, hallway view (90°/270°) and LDC are supported, and the Micro SD/SDHC/SDXC slot takes cards up to 128GB. 2MP (1920x1080) on a 1/2.8-inch CMOS sensorFixed 2.8mm F2.0 lens0.03 lux in colour, 0 lux with IR LED onHallway view (90°/270°) and LDC supportMicro SD/SDHC/SDXC slot up to 128GB120dB WDR with BLC and SSDR

The QND-6021 is a compact network dome camera using a 1/2.8-inch CMOS sensor with a maximum resolution of 2MP (1920x1080). Its fixed 4mm F1.6 lens covers 88° horizontally, 47° vertically and 105° diagonally. H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz) and MJPEG at 15fps, limited to 4fps at 2MP, with multiple streaming, hallway view and WiseStream II supported. The camera works from 0.03 lux in colour and 0.003 lux in black and white, switches between day and night electrically, and applies 120dB WDR, BLC, SSDR and SSNR. Tampering, motion and defocus detection are included, four motion zones can be drawn as eight point polygons, and a Micro SD/SDHC/SDXC slot holds cards up to 128GB. 2MP (1920x1080) on a 1/2.8-inch CMOS sensorFixed 4mm F1.6 lens, 88° horizontal120dB WDR with BLC, SSDR and SSNRFour motion zones as 8 point polygonsHallway view and WiseStream IIMicro SD/SDHC/SDXC slot up to 128GB

The QND-6022R is an IR network dome camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 2MP (1920x1080). Its fixed 4mm F1.6 lens covers 88° horizontally, 47° vertically and 105° diagonally, with a minimum object distance of 0.5m. All resolutions are available in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), while MJPEG reaches 15fps and a maximum of 4fps at 2MP, and multiple streaming is supported. Colour images begin at 0.03 lux and black and white at 0.003 lux, with 0 lux operation when the IR LED is on, assisted by 120dB WDR, BLC, SSDR and SSNR. Motion, tampering and defocus detection are provided, hallway view (90°/270°) and LDC are supported, and the Micro SD/SDHC/SDXC slot accepts up to 128GB. 2MP (1920x1080) on a 1/2.8-inch CMOS sensorFixed 4mm F1.6 lens0.03 lux in colour, 0 lux with IR LED onHallway view (90°/270°) and LDC supportMicro SD/SDHC/SDXC slot up to 128GB120dB WDR with BLC and SSDR

The QND-6082R is an IR network dome camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 2MP (1920x1080). Instead of a fixed lens it uses a 3.2~10mm varifocal with 3.1x optical zoom at F1.6 wide and F2.9 tele, covering 109°~33° horizontally, focused by simple focus with a DC auto iris and rated for a minimum object distance of 0.5m. All resolutions are available in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), with MJPEG at 15fps and a 4fps ceiling at 2MP. Sensitivity starts at 0.03 lux in colour and 0.003 lux in black and white, dropping to 0 lux with the IR LED on, and day and night switching is handled by ICR. Motion, tampering and defocus detection are included, hallway view (90°/270°) and LDC are supported, and the Micro SD/SDHC/SDXC slot takes up to 128GB. 3.2~10mm varifocal lens with 3.1x zoom2MP (1920x1080) on a 1/2.8-inch CMOS sensorSimple focus with DC auto irisHallway view (90°/270°) and LDC supportMicro SD/SDHC/SDXC slot up to 128GBHorizontal field of view 109°~33°

The QND-7012R is an IR dome camera with a 1/3-inch CMOS sensor and a maximum resolution of 4MP (2560x1440). All resolutions are available in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), while MJPEG delivers 15fps and no more than 2fps at 4MP, and multiple streaming is supported. The fixed 2.8mm F2.0 lens covers 108° horizontally, 60° vertically and 122° diagonally. Colour recording works from 0.15 lux and black and white from 0.015 lux, reaching 0 lux with the IR LED on, supported by 120dB WDR, BLC, SSDR and SSNR. Motion, tampering and defocus detection are included with four motion zones, hallway view (90°/270°) and LDC are supported, and the Micro SD/SDHC/SDXC slot takes cards up to 128GB. 4MP (2560x1440) on a 1/3-inch CMOS sensorFixed 2.8mm F2.0 lens, 108° horizontal0.15 lux in colour, 0 lux with IR LED onHallway view (90°/270°) and LDC supportMicro SD/SDHC/SDXC slot up to 128GB120dB WDR with BLC and SSDR

The QND-7022R is an IR dome camera using a 1/3-inch CMOS sensor with a maximum resolution of 4MP (2560x1440). Its fixed 4mm F1.6 lens covers 79° horizontally, 42° vertically and 92° diagonally. All resolutions encode in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), with MJPEG at 15fps and a 2fps limit at 4MP, alongside multiple streaming. Colour images are possible from 0.15 lux (F1.6, 1/30sec) and black and white from 0.015 lux, reaching 0 lux with the IR LED on, while 120dB WDR, BLC, SSDR, SSNR and automatic ICR day and night switching complete the imaging. Motion, tampering and defocus detection are provided with four motion zones, hallway view (90°/270°) and LDC are supported, and a Micro SD/SDHC/SDXC slot accepts 128GB. 4MP (2560x1440) on a 1/3-inch CMOS sensorFixed 4mm F1.6 lens, 79° horizontal0.15 lux in colour, 0 lux with IR LED onHallway view (90°/270°) and LDC supportMicro SD/SDHC/SDXC slot with 128GB120dB WDR with BLC and SSDR

The QND-7082R is an IR dome camera on a 1/3-inch CMOS sensor, offering up to 4MP (2560x1440) at up to 30fps. Its motorised varifocal lens spans 3.2~10mm with 3.1x zoom at F1.6 wide and F2.9 tele, covering 99°~30° horizontally, focused by simple focus with a DC auto iris at a minimum object distance of 0.5m. IR illumination reaches a viewable length of 20m (65.62ft), and the camera records in colour from 0.1 lux (F1.6, 1/30sec), in black and white from 0.01 lux, and at 0 lux with the IR LED on. ICR day and night switching and 120dB WDR are included, with H.265, H.264 and MJPEG encoding plus multiple streaming. Motion, tampering and defocus detection are provided, and hallway view (90°/270°) and LDC are supported. 4MP (2560x1440) at up to 30fpsMotorised 3.2~10mm varifocal lens with 3.1x zoomIR viewable length 20m (65.62ft)0.1 lux in colour, 0 lux with IR LED on120dB WDR with ICR day and night switchingHallway view (90°/270°) and LDC support

The QND-8011 is a compact network dome camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 5 megapixels (2592x1944). H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz), with MJPEG at 15fps and no more than 2fps at 5MP, and multiple streaming is supported. The fixed 2.8mm F2.0 lens covers 105° horizontally, 77° vertically and 137° diagonally, minimum illumination is 0.15 lux, and 120dB WDR works together with BLC, SSDR, SSNR and electrical day and night switching. An HDMI output at 1080p, 30/25fps eases installation and can serve public view monitoring. Tampering, motion and defocus detection are provided with four motion zones, and the Micro SD/SDHC/SDXC slot takes cards up to 128GB. 5MP (2592x1944) on a 1/2.8-inch CMOS sensorHDMI video out at 1080p, 30/25fpsFixed 2.8mm F2.0 lens, 105° horizontal120dB WDR with BLC, SSDR and SSNRMicro SD/SDHC/SDXC slot up to 128GBTampering, motion and defocus detection

The QND-8021 is a compact network dome camera built around a 1/2.8-inch CMOS sensor with a maximum resolution of 5 megapixels (2592 x 1944). Fixed lenses of 2.8 mm and 4 mm are available; the 4 mm version at F1.6 covers 81° horizontally, 58° vertically and 106° diagonally. H.265 and H.264 deliver 30fps/25fps (60Hz/50Hz) and MJPEG 15fps (max. 2fps at 5MP), with multiple streaming supported. Minimum illumination is 0.15 lux in both colour and black and white, WDR reaches 120 dB, and BLC, SSDR and SSNR are also on board. Tampering, motion and defocus detection cover four motion zones. An HDMI output at 1080p 30/25fps (60/50Hz) assists installation and public view monitoring, while the Micro SD/SDHC/SDXC slot takes up to 128 GB. 5MP resolution (2592 x 1944)2.8 mm or 4 mm fixed lens120 dB WDR, ICR day/nightHDMI output, 1080p at 30/25fpsMicro SD/SDHC/SDXC slot up to 128 GB

The QNE-8011R is a flateye network camera with IR illumination, using a 1/2.8-inch CMOS sensor for up to 5 megapixels (2592 x 1944). A fixed 2.8 mm lens at F2.0 covers 105° horizontally, 77° vertically and 137° diagonally. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 15fps (max. 2fps at 5MP), with multiple streams available in parallel. Colour output holds down to 0.15 lux, black and white down to 0.015 lux, and 0 lux once the IR LED is on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR meet tampering, motion and defocus detection across four eight-point polygonal zones. The Micro SD/SDHC/SDXC slot accepts up to 128 GB. 5MP resolution (2592 x 1944)2.8 mm fixed lens, F2.0Field of view 105° H, 77° V, 137° D120 dB WDR, ICR day/nightMicro SD/SDHC/SDXC slot up to 128 GB

The XNV-A6016R is a compact outdoor IR network dome camera whose 1/2.8" CMOS sensor delivers up to 1920 x 1080 pixels (2 MP). Its 3.0 mm fixed-iris lens at F1.6 is focused manually and covers 108° horizontally, 59° vertically and 127° diagonally from an object distance of 0.4 m. H.265 and H.264 run at up to 60 fps or 50 fps and MJPEG at 30 fps, with minimum illumination of 0.027 lux in colour and 0.0027 lux in black and white. Image processing includes automatic ICR day and night switching together with BLC, HLC, WDR and SSDR. A USB Type-C port serves preview and installation only and requires a WiFi dongle, while adjustment spans 0°~351° pan, 0°~64° tilt and ±90° rotation. 2 MP resolution (1920 x 1080)3.0 mm lens with fixed F1.6 iris108° horizontal field of viewUp to 60 fps in H.265/H.264Day and night (ICR), BLC, HLC, WDR, SSDR0.027 lux colour, 0.0027 lux black and white

The XNV-A8016R is a compact outdoor IR network dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 2560 x 1920 pixels (5 MP). Its 3.0 mm fixed-iris lens at F1.6 is focused manually and covers 100° horizontally, 74° vertically and 130° diagonally from 0.4 m. H.265 and H.264 operate at up to 30 fps or 25 fps and MJPEG at 30 fps, limited to 5 fps at 5 MP, while minimum illumination is given as 0.06 lux in colour and 0.006 lux in black and white. Automatic ICR day and night switching plus BLC, HLC, WDR and SSDR support changing light conditions. The USB Type-C port is for preview and installation only and requires a WiFi dongle, and alignment offers 0°~351° pan, 0°~64° tilt and ±90° rotation. 5 MP resolution (2560 x 1920)3.0 mm lens with fixed F1.6 iris100° horizontal field of viewDay and night (ICR), BLC, HLC, WDR, SSDR0.06 lux colour, 0.006 lux black and whiteAdjustment range 0°~351°, 0°~64°, ±90°

The XNV-A9016R is a compact outdoor 4K network dome camera with 25m of infrared reach in a housing measuring 120mm in diameter and 65.5mm in height. Its 1/2.8-inch CMOS sensor provides 8MP at up to 3840x2160 pixels; H.265 and H.264 deliver 30fps at 60Hz or 25fps at 50Hz, and MJPEG runs at 30fps, limited to 5fps at 8MP. A fixed 3.0mm lens with fixed iris and manual focus control covers 108 degrees horizontally, 59 degrees vertically and 127 degrees diagonally, focusing from 0.4m. Minimum illumination is given as 0.1 lux in colour and 0.01 lux in black and white, and backlight situations are addressed by BLC, HLC, WDR and SSDR. Processing runs on Wisenet 9 with a dual NPU that separates AI processing from image enhancement, which is what the analytics events and business intelligence functions build on. The housing is rated IP66 and IK10, and alignment uses 0 to 351 degrees of pan, 0 to 64 degrees of tilt and plus/minus 90 degrees of rotation. 8MP, up to 3840x2160 pixelsFixed 3.0mm focal length, fixed iris25m IR rangeIP66, IK10 ratedWisenet 9 with dual NPUBLC, HLC, WDR, SSDR
