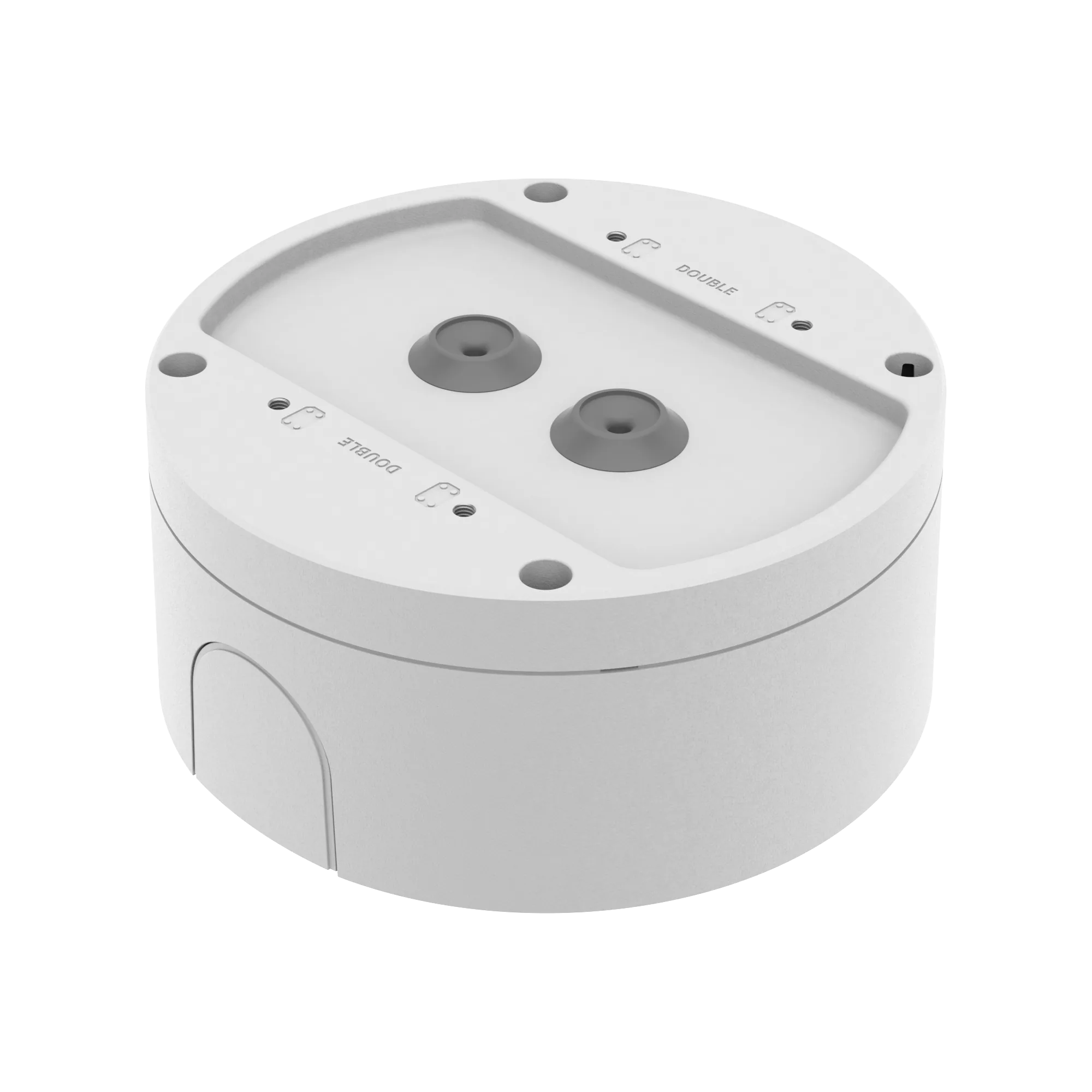

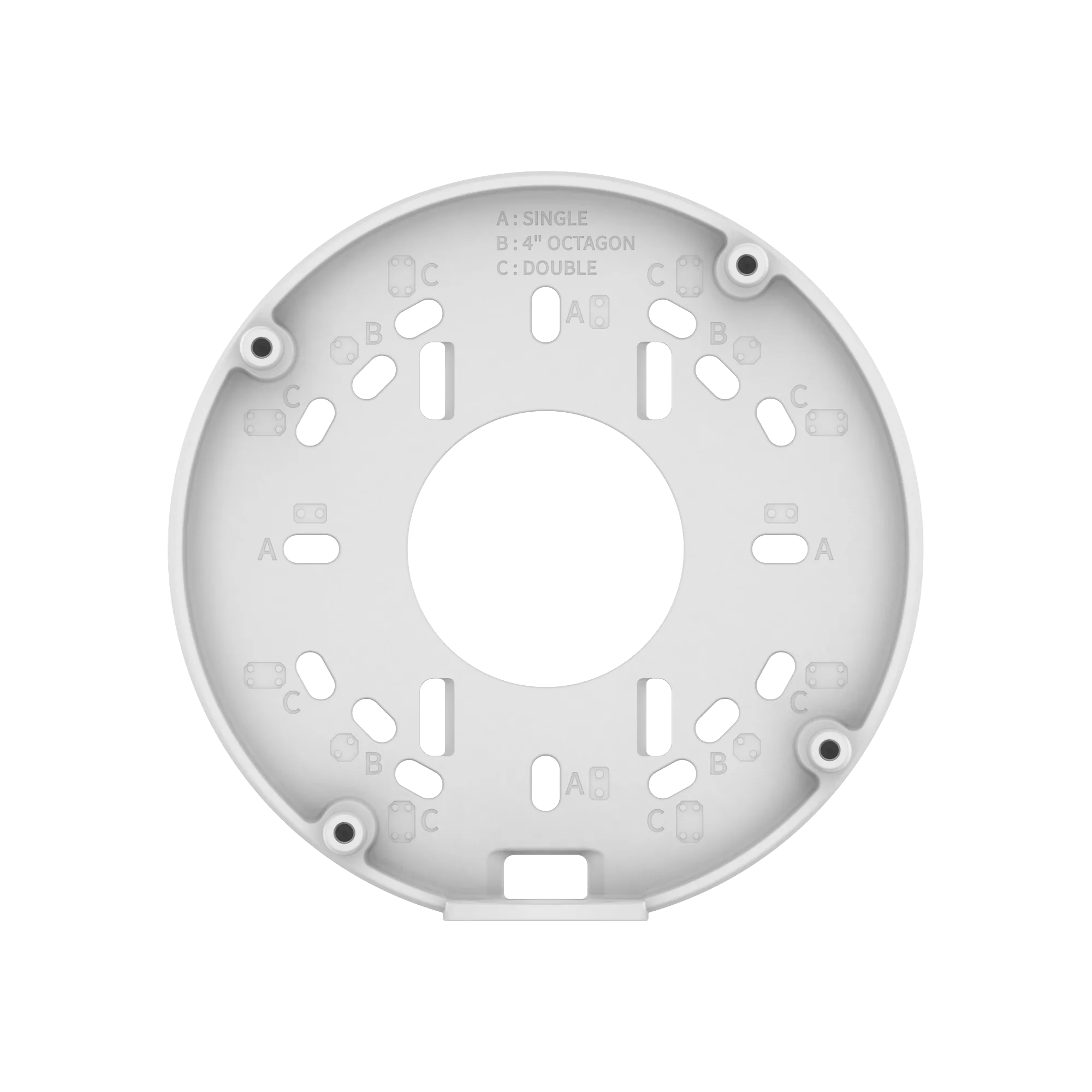

Waterproof Back Box

The QNV-C8083R is a vandal resistant dome offering up to 2592x1944 pixels and a motorised varifocal lens from 3.2 to 10.2 mm with 3.2x optical zoom. Aperture ranges from F1.6 at wide to F3.1 at tele, and the field of view spans 95° to 29° horizontally, 69° to 21° vertically and 126° to 36° diagonally, focused by Simple Focus through an IR corrected DC auto iris from 1.2 m. H.265, H.264 and MJPEG are on board, the first two at up to 30 fps at 5 MP and MJPEG at 30 fps, limited to 5 fps at 5 MP. Minimum illumination is stated as 0.07 lux in colour and 0.007 lux in black and white, and IR reaches 30 m. WiseNR II and WiseStream III use the AI engine, joined by 120 dB WDR and ICR switching. The dome bubble is hard coated, with up to five streaming profiles and a Micro SD slot for 256 GB. Motorised varifocal 3.2 to 10.2 mm, 3.2xF1.6 wide, F3.1 tele, Simple FocusIR viewable length 30 m0.07 lux colour, 0.007 lux black and white120 dB WDR, WiseNR II, WiseStream IIIMicro SD/SDHC/SDXC up to 256 GB

The QNV-C9083R records at 3840x2160 pixels and combines its 1/2.8 inch CMOS sensor with a motorised varifocal lens from 3.2 to 10.2 mm at 3.2x optical zoom. Aperture sits between F1.6 at wide and F3.1 at tele, while the angle of view moves from 104° to 31° horizontally, 55° to 17° vertically and 124° to 35° diagonally. Simple Focus and the IR corrected DC auto iris operate from a minimum object distance of 1.2 m. H.265 and H.264 manage 30 fps on 60 Hz or 25 fps on 50 Hz, MJPEG reaches 30 fps and 5 fps at 8 MP, and up to five streaming profiles can run in parallel. Low light performance is quoted at 0.06 lux in colour and 0.006 lux in black and white, with 120 dB WDR and ICR switching alongside. Footage is stored on a Micro SD/SDHC/SDXC card of up to 256 GB. 3840x2160 pixels, up to 30/25 fpsMotorised varifocal 3.2 to 10.2 mm, 3.2xF1.6 wide, F3.1 tele, Simple Focus0.06 lux colour, 0.006 lux black and white120 dB WDR, ICR day and night switchingMicro SD/SDHC/SDXC up to 256 GB

The XNV-A8016R is a compact outdoor IR network dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 2560 x 1920 pixels (5 MP). Its 3.0 mm fixed-iris lens at F1.6 is focused manually and covers 100° horizontally, 74° vertically and 130° diagonally from 0.4 m. H.265 and H.264 operate at up to 30 fps or 25 fps and MJPEG at 30 fps, limited to 5 fps at 5 MP, while minimum illumination is given as 0.06 lux in colour and 0.006 lux in black and white. Automatic ICR day and night switching plus BLC, HLC, WDR and SSDR support changing light conditions. The USB Type-C port is for preview and installation only and requires a WiFi dongle, and alignment offers 0°~351° pan, 0°~64° tilt and ±90° rotation. 5 MP resolution (2560 x 1920)3.0 mm lens with fixed F1.6 iris100° horizontal field of viewDay and night (ICR), BLC, HLC, WDR, SSDR0.06 lux colour, 0.006 lux black and whiteAdjustment range 0°~351°, 0°~64°, ±90°

The XNV-A9016R is a compact outdoor 4K network dome camera with 25m of infrared reach in a housing measuring 120mm in diameter and 65.5mm in height. Its 1/2.8-inch CMOS sensor provides 8MP at up to 3840x2160 pixels; H.265 and H.264 deliver 30fps at 60Hz or 25fps at 50Hz, and MJPEG runs at 30fps, limited to 5fps at 8MP. A fixed 3.0mm lens with fixed iris and manual focus control covers 108 degrees horizontally, 59 degrees vertically and 127 degrees diagonally, focusing from 0.4m. Minimum illumination is given as 0.1 lux in colour and 0.01 lux in black and white, and backlight situations are addressed by BLC, HLC, WDR and SSDR. Processing runs on Wisenet 9 with a dual NPU that separates AI processing from image enhancement, which is what the analytics events and business intelligence functions build on. The housing is rated IP66 and IK10, and alignment uses 0 to 351 degrees of pan, 0 to 64 degrees of tilt and plus/minus 90 degrees of rotation. 8MP, up to 3840x2160 pixelsFixed 3.0mm focal length, fixed iris25m IR rangeIP66, IK10 ratedWisenet 9 with dual NPUBLC, HLC, WDR, SSDR
