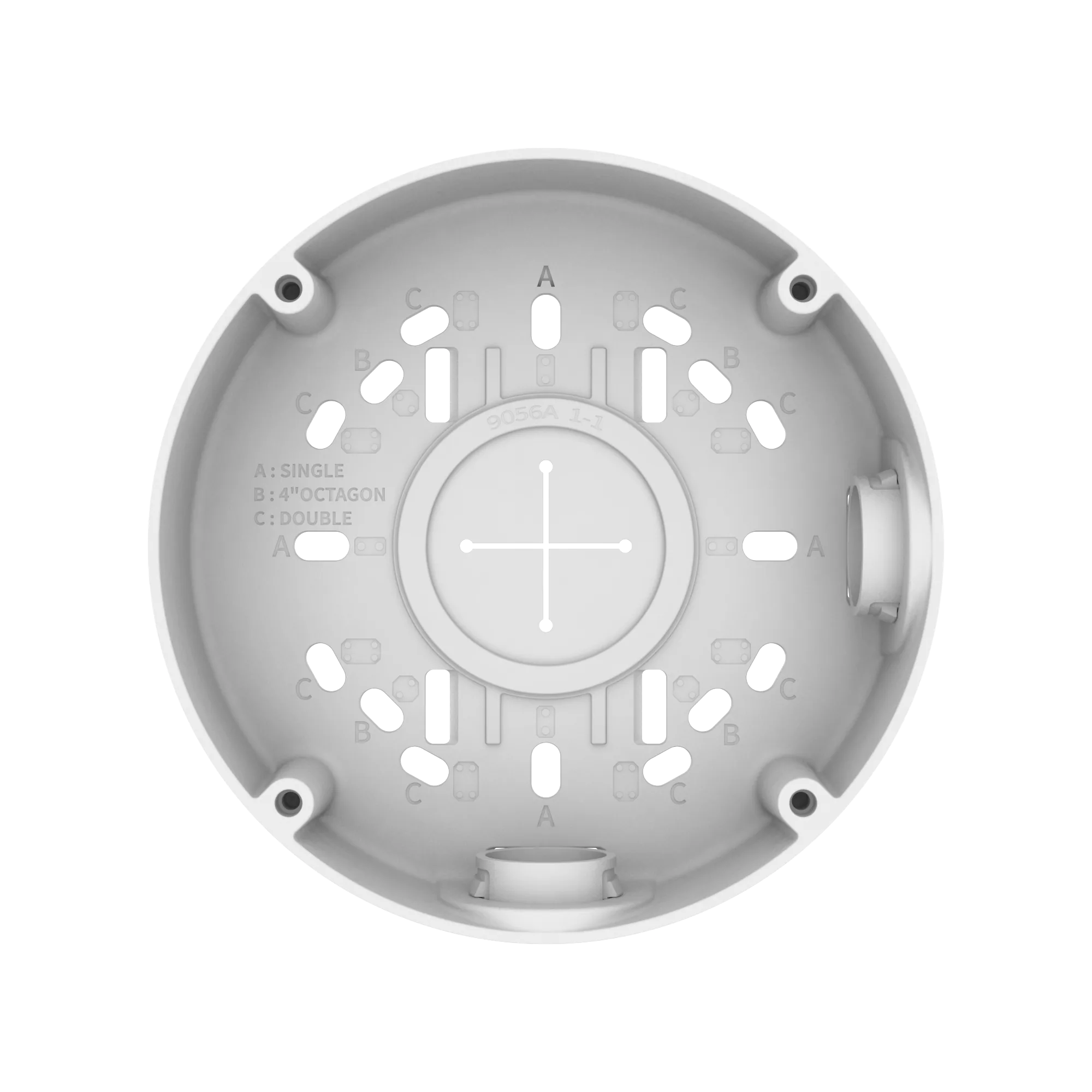

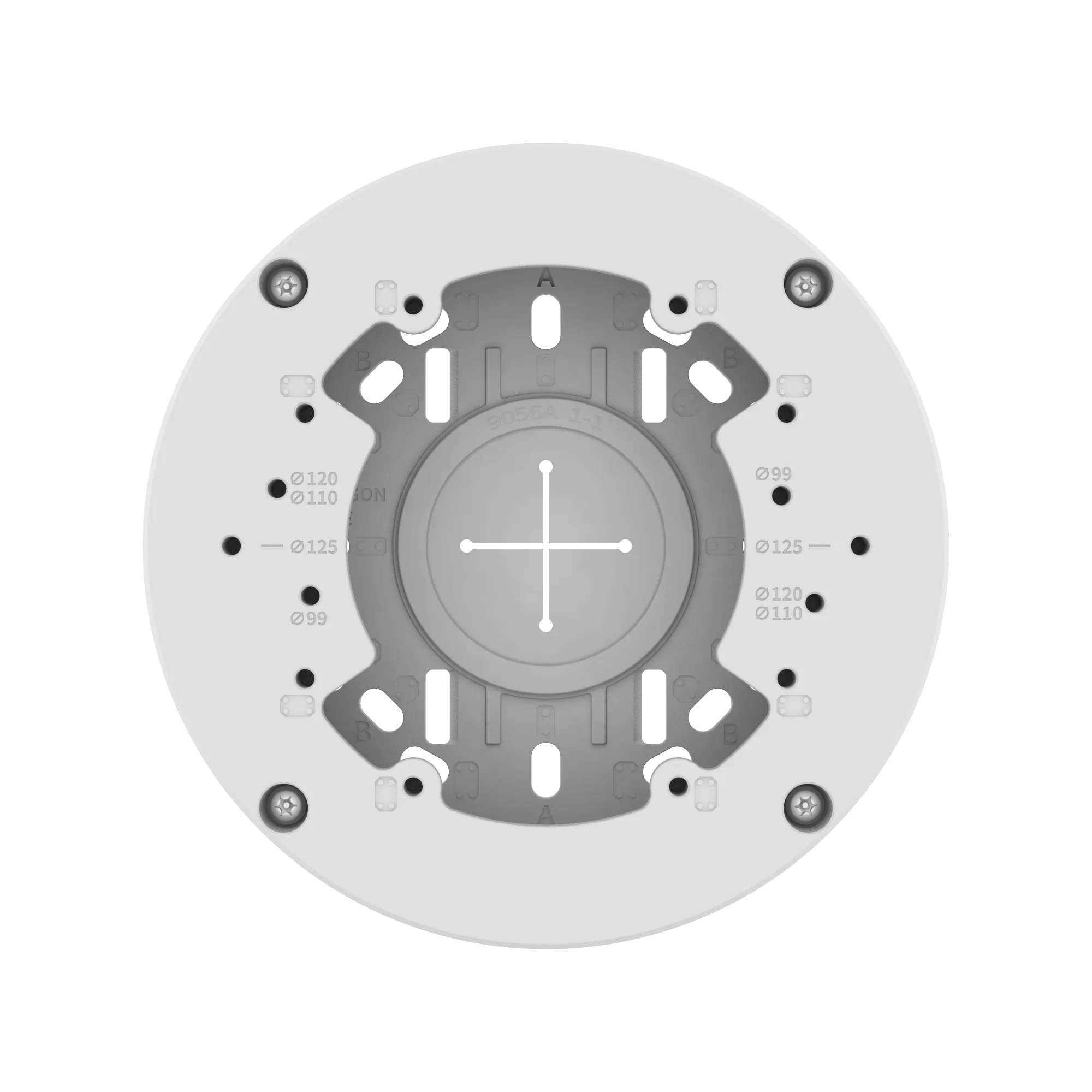

Back Box

The QND-6011 is a compact network dome camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 2MP (1920x1080). H.265 and H.264 run at up to 30fps/25fps (60Hz/50Hz), MJPEG at 15fps and no more than 4fps at 2MP, with multiple streaming, hallway view and WiseStream II supported. Its fixed 2.8mm F2.0 lens covers 114° horizontally, 62° vertically and 135° diagonally. Image processing includes 120dB WDR, BLC, SSDR, SSNR and electrical day and night switching. Tampering, motion and defocus detection are provided, with four motion zones defined as eight point polygons, and a Micro SD/SDHC/SDXC slot accepts cards up to 128GB. 2MP (1920x1080) on a 1/2.8-inch CMOS sensorFixed 2.8mm F2.0 lens, 114° horizontal120dB WDR with BLC, SSDR and SSNRFour motion zones as 8 point polygonsMicro SD/SDHC/SDXC slot up to 128GBHallway view and WiseStream II

The QND-6021 is a compact network dome camera using a 1/2.8-inch CMOS sensor with a maximum resolution of 2MP (1920x1080). Its fixed 4mm F1.6 lens covers 88° horizontally, 47° vertically and 105° diagonally. H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz) and MJPEG at 15fps, limited to 4fps at 2MP, with multiple streaming, hallway view and WiseStream II supported. The camera works from 0.03 lux in colour and 0.003 lux in black and white, switches between day and night electrically, and applies 120dB WDR, BLC, SSDR and SSNR. Tampering, motion and defocus detection are included, four motion zones can be drawn as eight point polygons, and a Micro SD/SDHC/SDXC slot holds cards up to 128GB. 2MP (1920x1080) on a 1/2.8-inch CMOS sensorFixed 4mm F1.6 lens, 88° horizontal120dB WDR with BLC, SSDR and SSNRFour motion zones as 8 point polygonsHallway view and WiseStream IIMicro SD/SDHC/SDXC slot up to 128GB

The XNV-A8016R is a compact outdoor IR network dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 2560 x 1920 pixels (5 MP). Its 3.0 mm fixed-iris lens at F1.6 is focused manually and covers 100° horizontally, 74° vertically and 130° diagonally from 0.4 m. H.265 and H.264 operate at up to 30 fps or 25 fps and MJPEG at 30 fps, limited to 5 fps at 5 MP, while minimum illumination is given as 0.06 lux in colour and 0.006 lux in black and white. Automatic ICR day and night switching plus BLC, HLC, WDR and SSDR support changing light conditions. The USB Type-C port is for preview and installation only and requires a WiFi dongle, and alignment offers 0°~351° pan, 0°~64° tilt and ±90° rotation. 5 MP resolution (2560 x 1920)3.0 mm lens with fixed F1.6 iris100° horizontal field of viewDay and night (ICR), BLC, HLC, WDR, SSDR0.06 lux colour, 0.006 lux black and whiteAdjustment range 0°~351°, 0°~64°, ±90°

The XNV-A9016R is a compact outdoor 4K network dome camera with 25m of infrared reach in a housing measuring 120mm in diameter and 65.5mm in height. Its 1/2.8-inch CMOS sensor provides 8MP at up to 3840x2160 pixels; H.265 and H.264 deliver 30fps at 60Hz or 25fps at 50Hz, and MJPEG runs at 30fps, limited to 5fps at 8MP. A fixed 3.0mm lens with fixed iris and manual focus control covers 108 degrees horizontally, 59 degrees vertically and 127 degrees diagonally, focusing from 0.4m. Minimum illumination is given as 0.1 lux in colour and 0.01 lux in black and white, and backlight situations are addressed by BLC, HLC, WDR and SSDR. Processing runs on Wisenet 9 with a dual NPU that separates AI processing from image enhancement, which is what the analytics events and business intelligence functions build on. The housing is rated IP66 and IK10, and alignment uses 0 to 351 degrees of pan, 0 to 64 degrees of tilt and plus/minus 90 degrees of rotation. 8MP, up to 3840x2160 pixelsFixed 3.0mm focal length, fixed iris25m IR rangeIP66, IK10 ratedWisenet 9 with dual NPUBLC, HLC, WDR, SSDR
