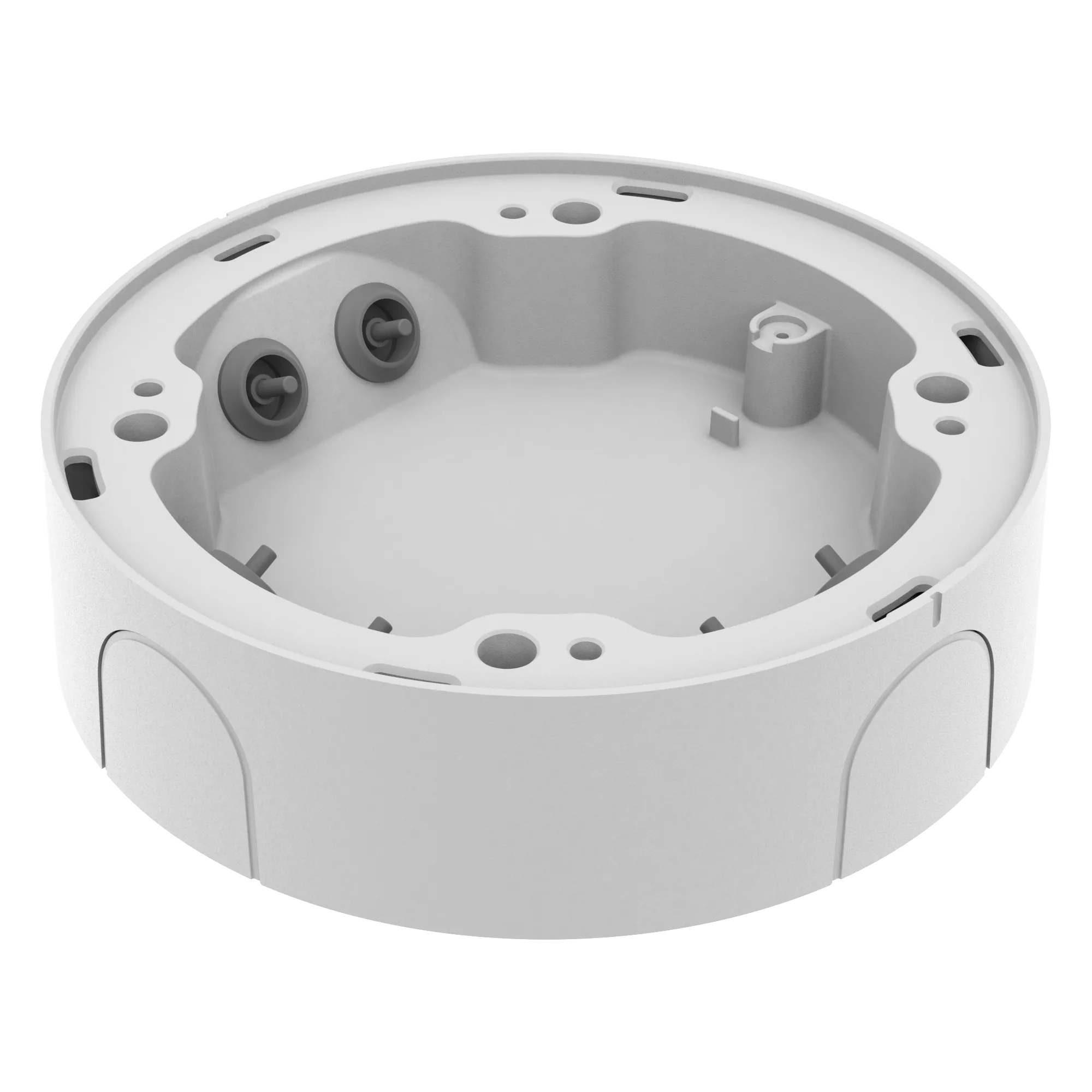

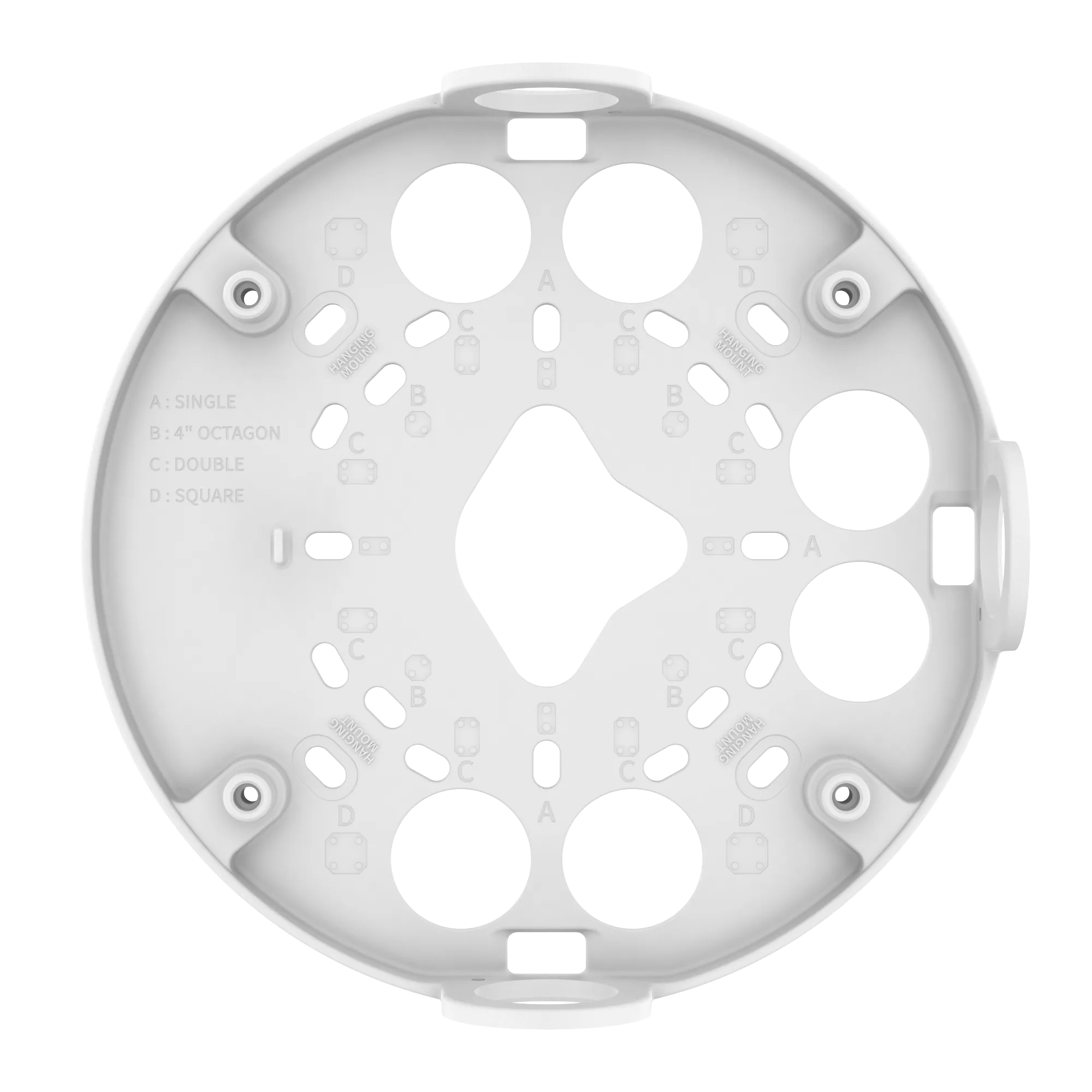

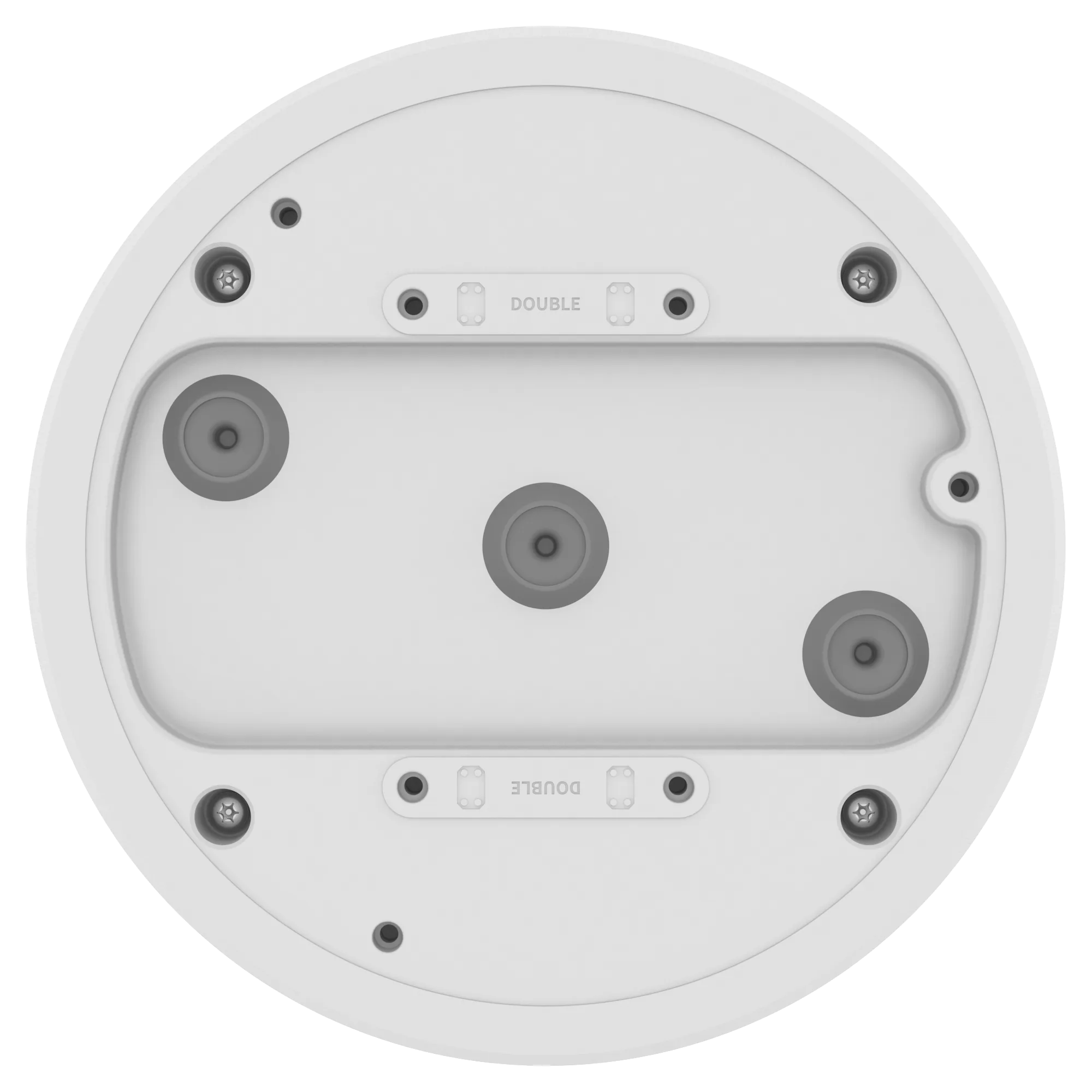

Waterproof Back Box

The PND-A7082RV is a modular indoor dome camera with infrared illumination and AI functions, its 1/1.8-inch CMOS sensor recording 4 megapixels up to 2592x1520. H.265 and H.264 manage 60fps at 60Hz or 50fps at 50Hz with WDR off, and 30fps or 25fps with WDR on, while MJPEG reaches 30fps and a maximum of 5fps at 4MP. The varifocal lens works from 4.6 to 9.35mm with 2.0x optical zoom, opening to F1.3 at wide angle and F2.15 at telephoto and covering 105° to 47° horizontally, 58° to 27° vertically and 128° to 55° diagonally. Focusing is by simple focus through an IR-corrected P iris from a minimum object distance of 1.5m. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with an automatic ICR filter managing day and night operation. Alignment covers 0° to 350° pan, -45° to 85° tilt and 0° to 355° rotation, and a USB Type C port is provided for preview during installation. 4 megapixel resolution up to 2592x15204.6 to 9.35mm varifocal lens with 2.0x zoomUp to 60/50fps with WDR off, 30/25fps with WDR on0.03 lux in colour, 0.003 lux in black and whiteSimple focus with IR-corrected P iris0° to 350° pan and -45° to 85° tilt

The PND-A9082RV is a modular 8MP indoor dome camera with AI and IR support. Its 1/1.2-inch CMOS sensor resolves a maximum of 3840x2160 pixels; H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) while MJPEG runs at 30fps, dropping to a maximum of 5fps at 8MP. The motorised lens covers 5.9 to 13.3 mm with 2.25x optical zoom, opens to F1.5 wide and F2.9 tele, and delivers a horizontal field of view between 109° and 49°. Minimum illumination is specified as 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR switching. Pan from 0° to 360°, tilt from -45° to 85°, rotation from 0° to 355° and a 0.8 m minimum object distance complete the mechanical data. 1/1.2-inch CMOS sensorUp to 3840x2160 resolution5.9-13.3 mm lens, 2.25x optical0.015 lux colour / 0.0015 lux BWP iris, IR correctedAutomatic day and night (ICR)

The PNV-A7082RZ is a modular outdoor vandal dome camera with AI and IR, using a 1/1.8-inch CMOS sensor at 4MP (2592x1520). With WDR switched off it records at 60fps/50fps (60Hz/50Hz), and at 30fps/25fps with WDR on, while MJPEG runs at 30fps and is limited to 5fps at 4MP. The IR corrected P iris lens spans 4.6~9.35mm with 2.0x optical zoom at F1.3 wide and F2.15 tele, covering 105°~47° horizontally with a minimum object distance of 1.5m. Being a PTRZ model, it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with automatic ICR day and night switching. 4MP (2592x1520) on a 1/1.8-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles4.6~9.35mm lens with 2.0x optical zoom60/50fps with WDR off, 30/25fps with WDR onMinimum illumination 0.03 lux colour / 0.003 lux BW

The PNV-A9082RZ is an outdoor vandal dome camera with AI, using a 1/1.2-inch CMOS sensor at 8MP (3840x2160). H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz), while MJPEG runs at 30fps and is capped at 5fps when 8MP is selected. The IR corrected P iris lens covers 5.9~13.3mm with 2.25x optical zoom at F1.5 wide and F2.9 tele, spanning 109°~49° horizontally, and the minimum object distance is 0.8m. As a PTRZ model it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR day and night switching. 8MP (3840x2160) on a 1/1.2-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles5.9~13.3mm lens with 2.25x optical zoomMinimum illumination 0.015 lux colour / 0.0015 lux BWHorizontal field of view 109°~49°

The XND-A6084RV is a 2MP AI IR dome camera using a 1/2.8" CMOS sensor with a maximum resolution of 1920x1080. A motorised 2.8 to 12 mm varifocal lens supplies 4.3x optical zoom with an IR-corrected P iris and apertures from F1.4 wide to F3.6 tele, covering 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from 0.5 m. H.265 and H.264 support 60fps/50fps (60Hz/50Hz) while MJPEG stays at 30fps, and minimum illumination is given as 0.02 lux in colour and 0.002 lux in black-and-white. Day and night switching is automatic via ICR, and focus can be set through simple focus or manually. Alignment covers 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, with a USB Type C connection for preview and installation. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, 4.3xIR-corrected P iris, F1.4 to F3.660fps/50fps in H.265 and H.2640.02 lux colour, 0.002 lux B/W0°–360° pan, 0°–75° tilt

The XND-A8084RV is a 5MP AI IR dome camera that resolves up to 2560x1920 from a 1/2.8" CMOS sensor. Its motorised 3.3 to 9.3 mm varifocal lens provides 2.8x optical zoom with an IR-corrected P iris, F1.3 at the wide end and F2.3 at tele, giving 99° to 31° horizontally, 71° to 23° vertically and 133° to 39° diagonally from 0.5 m. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, dropping to a maximum of 5fps at 5MP. Minimum illumination is 0.04 lux in colour and 0.004 lux in black-and-white, and day and night switching is automatic via ICR. Focus is available as simple focus or manual, alignment spans 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and a USB Type C port serves preview and installation. 1/2.8" CMOS, up to 2560x1920Motorised 3.3–9.3 mm varifocal lens, 2.8xIR-corrected P iris, F1.3 to F2.330fps/25fps in H.265 and H.2640.04 lux colour, 0.004 lux B/W0°–360° pan, 0°–75° tilt

The XND-A8085RV is a modular 5MP AI IR dome camera built on a 1/2.8" CMOS sensor with a top resolution of 2560x1920. A motorised 3.3 to 9.3 mm varifocal lens with 2.8x zoom and an IR-corrected P iris works at F1.3 wide and F2.3 tele, covering 99° to 31° horizontally, 71° to 23° vertically and 133° to 39° diagonally from a 0.5 m minimum object distance. Frame rates are 30fps/25fps (60Hz/50Hz) in H.265 and H.264, with MJPEG at 30fps and a maximum of 5fps at 5MP. Minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black-and-white, and an ICR handles day and night switching automatically. A tilt range of -45° to 85° together with 0° to 360° pan and 0° to 355° rotation allows flexible alignment, and focusing is by simple focus. Modular design, 5MPMotorised 3.3–9.3 mm varifocal lens, 2.8xIR-corrected P iris, F1.3 to F2.3Tilt range -45° to 85°0.04 lux colour, 0.004 lux B/WICR day and night switching

The XND-A9084RV is an 8MP AI IR dome camera whose 1/1.8" CMOS sensor delivers up to 3840x2160. Its motorised 4.4 to 9.3 mm varifocal lens gives 2.1x optical zoom with an IR-corrected P iris, F1.3 at the wide end and F2.15 at tele, taking in 113° to 47° horizontally, 58° to 26° vertically and 138° to 54° diagonally from 0.5 m. H.265 and H.264 reach 30fps/25fps (60Hz/50Hz), while MJPEG runs at 30fps and a maximum of 5fps at 8MP. Minimum illumination is quoted as 0.04 lux in colour and 0.004 lux in black-and-white, and day and night switching is automatic via ICR. Focus can be set by simple focus or manually, and alignment covers 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation. 1/1.8" CMOS, up to 3840x2160Motorised 4.4–9.3 mm varifocal lens, 2.1xIR-corrected P iris, F1.3 to F2.1530fps/25fps in H.265 and H.2640.04 lux colour, 0.004 lux B/W0°–360° pan, 0°–75° tilt

In a modular design, the XND-A9085RV is an 8MP AI IR dome camera delivering up to 3840x2160 from a 1/1.8" CMOS sensor. Its motorised 4.4 to 9.3 mm varifocal lens works with 2.1x zoom, an IR-corrected P iris, F1.3 wide and F2.15 tele, covering 113° to 47° horizontally, 58° to 26° vertically and 138° to 54° diagonally, with a minimum object distance of 0.5 m. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, limited to 5fps at 8MP. Minimum illumination is given as 0.04 lux in colour and 0.004 lux in black-and-white, and an ICR performs day and night switching. Tilt ranges from -45° to 85°, complemented by 0° to 360° pan and 0° to 355° rotation, and focusing is by simple focus. Modular design, 8MP1/1.8" CMOS, up to 3840x2160Motorised 4.4–9.3 mm varifocal lens, 2.1xIR-corrected P iris, F1.3 to F2.15Tilt range -45° to 85°0.04 lux colour, 0.004 lux B/W

The XNF-A8014R AI fisheye camera relies on a 1/1.6" CMOS imager and a 1.76 mm lens spanning 185° horizontally, vertically and diagonally. Maximum resolution is 2560x2560, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz), MJPEG at 5fps and a ceiling of 20fps in PoE mode. The aperture ratio is 1.8 at both the wide and the tele end, and object distance starts at 0.5 m. Minimum illumination is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), and ICR switches between day and night automatically. Image conditioning includes extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog. The image can also be rotated digitally. 1/1.6" CMOS sensorUp to 2560x25601.76 mm lens, 185° field of viewExtreme WDR 120 dBWiseNR II, AI basedDigital image stabilisation, defog

As an AI fisheye model, the XNF-A8014RV relies on a 1/1.6" CMOS imager and a 1.76 mm lens spanning 185° horizontally, vertically and diagonally. Maximum resolution is 2560x2560, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz), MJPEG at 5fps and a ceiling of 20fps in PoE mode. The aperture ratio is 1.8 at both the wide and the tele end, and object distance starts at 0.5 m. Minimum illumination is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), and ICR switches between day and night automatically. Image conditioning includes extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog. The image can also be rotated digitally. 1/1.6" CMOS sensorUp to 2560x25601.76 mm lens, F1.8185° field of view, digital rotationExtreme WDR 120 dB, WiseNR II0.02 lux colour / 0.001 lux B/W

The XNF-A9014R works with a 1/1.6" CMOS imager and a fixed stereographic 1.76 mm lens covering 185° horizontally, vertically and diagonally. Top resolution is 3584x2688, encoded at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 5fps in MJPEG, with a maximum of 20fps in PoE mode. The aperture ratio is 1.8 at the wide and the tele end, object distance begins at 0.5 m, and the image can be rotated digitally. Stated sensitivity is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), with ICR taking care of day and night switching. Extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog condition the picture. The manufacturer additionally states a 20 m IR range, an IP42 rating, a dual NPU for AI-based image enhancement and support for object detection, intelligent video analytics and motion detection. Up to 3584x26881.76 mm fixed stereographic lens20 m IR rangeIP42 ratedDual NPU for AI-based image enhancementObject detection, intelligent video analytics

As an AI IR fisheye camera, the XNF-A9014RV works with a 1/1.6" CMOS imager and a fixed stereographic 1.76 mm lens covering 185° horizontally, vertically and diagonally. Top resolution is 3584x2688, encoded at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 5fps in MJPEG, with a maximum of 20fps in PoE mode. The aperture ratio is 1.8 at the wide and the tele end, object distance begins at 0.5 m, and the image can be rotated digitally. Stated sensitivity is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), with ICR taking care of day and night switching. Extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog condition the picture. 1/1.6" CMOS sensorUp to 3584x26881.76 mm lens, 185° field of viewDigital rotationExtreme WDR 120 dB, WiseNR IIDigital image stabilisation, defog

The XNV-6080R is a vandal-resistant IR network dome camera using a 1/2.8" CMOS sensor with a maximum of 1920 x 1080 pixels (2 MP). Its motorised 2.8~12 mm varifocal lens (4.3x optical, F1.4 wide) covers 119.5°~27.9° horizontally, 62.8°~15.7° vertically and 142.1°~32.0° diagonally and uses simple focus from 0.5 m, with IR-corrected DC auto iris and P iris. Frame rates reach 60 fps in H.265 and H.264 and 30 fps in MJPEG, while minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white. Image processing includes ICR day and night switching, wide dynamic range up to 150 dB, DWDR, BLC, HLC, SSDR and defog. Recordings can be held on SD/SDHC/SDXC cards up to 512 GB, and adjustment covers 0°~354°, 0°~67° and 0°~355°. 2 MP resolution (1920 x 1080)2.8~12 mm motorised varifocal lens (4.3x)IR-corrected DC auto iris and P irisWide dynamic range up to 150 dB, DWDR, SSDRSD/SDHC/SDXC slot up to 512 GBDefog and day/night (ICR)

The XNV-6083R is a vandal-resistant AI IR dome camera built on a 1/2.8" CMOS sensor with a maximum resolution of 1920 x 1080 pixels (2 MP). With WDR off, H.265 and H.264 reach 120 fps or 100 fps depending on the mains frequency, dropping to 60 fps or 50 fps with WDR on, while MJPEG runs at 30 fps. Its motorised 2.8~12 mm varifocal lens with 4.3x optical zoom opens to F1.4 wide and F3.6 tele and covers 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally from an object distance of 0.5 m. Simple focus, manual focus, an IR-corrected adaptive P iris and ICR day and night switching govern sharpness and exposure. Minimum illumination is 0.01 lux in colour and 0.001 lux in black and white, and adjustment covers 0°~360° pan, 0°~85° tilt and 0°~355° rotation. 2 MP resolution (1920 x 1080)Up to 120 fps with WDR off2.8~12 mm motorised varifocal lens (4.3x)IR-corrected adaptive P iris0.01 lux colour, 0.001 lux black and whiteDay and night (ICR)

The XNV-8080R is a vandal-resistant IR network dome camera with a 1/1.8" CMOS sensor and up to 2560 x 1920 pixels (5 MP). Its motorised varifocal lens spans 3.9 to 9.4 mm (2.4x optical) and opens to F1.3 wide and F2.4 tele, covering 92.1°~38.7° horizontally, 67.2°~29.0° vertically and 119.9°~48.6° diagonally from 0.5 m. Simple focus, a DC auto iris and an IR-corrected P iris handle focusing and exposure. H.265 and H.264 deliver up to 30 fps or 25 fps and MJPEG 30 fps, with minimum illumination of 0.07 lux in colour and 0.007 lux in black and white. ICR switching, wide dynamic range up to 120 dB, defog, an SD/SDHC/SDXC slot for up to 512 GB and adjustment of 0°~354°, 0°~67° and 0°~355° complete the camera. 5 MP resolution (2560 x 1920)3.9~9.4 mm motorised varifocal lens (2.4x)Wide dynamic range up to 120 dB with defogSimple focus with IR-corrected P irisSD/SDHC/SDXC slot up to 512 GB0.07 lux colour, 0.007 lux black and white

The XNV-8083RZ is a vandal-resistant AI IR dome camera whose 1/1.8" CMOS sensor delivers up to 3328 x 1872 pixels (6 MP). Its motorised 4.4 to 9.3 mm varifocal lens with 2.1x optical zoom opens to F1.3 wide and F2.15 tele, giving 113°~47° horizontal, 58°~26° vertical and 138°~54° diagonal coverage from a minimum object distance of 0.5 m. Pan, tilt and rotate travel across 0°~350°, 0°~85° and 0°~340° and can be trimmed remotely for a maximum of 200 cycles. H.265 and H.264 run at up to 30 fps or 25 fps and MJPEG at 30 fps, dropping to 5 fps at 6 MP. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, supported by simple focus, manual focus, an IR-corrected P iris and ICR day and night switching. 6 MP resolution (3328 x 1872)4.4~9.3 mm motorised varifocal lens (2.1x)Remote pan, tilt and rotate adjustment (max. 200 cycles)0.03 lux colour, 0.003 lux black and whiteIR-corrected P irisDay and night (ICR)

The XNV-9083RZ is a vandal-resistant AI IR dome camera with a 1/1.8" CMOS sensor and a top resolution of 3840 x 2160 pixels (8 MP). Its motorised 4.4 to 9.3 mm varifocal lens provides 2.1x optical zoom at F1.3 wide and F2.15 tele and covers 113°~47° horizontally, 58°~26° vertically and 138°~54° diagonally from an object distance of 0.5 m. Focus and aperture are handled by simple focus, manual focus and an IR-corrected P iris, together with automatic ICR day and night switching. H.265 and H.264 allow up to 30 fps or 25 fps and MJPEG reaches 30 fps, limited to 5 fps at 8 MP, while minimum illumination is 0.03 lux in colour and 0.003 lux in black and white. Pan, tilt and rotate cover 0°~350°, 0°~85° and 0°~340° and can be trimmed remotely for a maximum of 200 cycles. 8 MP resolution (3840 x 2160)4.4~9.3 mm motorised varifocal lens (2.1x)Remote pan, tilt and rotate adjustment (max. 200 cycles)0.03 lux colour, 0.003 lux black and whiteIR-corrected P irisDay and night (ICR)

The XNV-A6084R is a vandal-resistant AI IR dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 1920 x 1080 pixels (2 MP). Its motorised 2.8 to 12 mm varifocal lens provides 4.3x optical zoom, opens to F1.4 wide and F3.6 tele and covers 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally from 0.5 m. Focusing works by simple focus or manually, the aperture is regulated by an IR-corrected P iris, and automatic ICR day and night switching is included. H.265 and H.264 allow up to 60 fps or 50 fps and MJPEG 30 fps, with minimum illumination of 0.02 lux in colour and 0.002 lux in black and white. The USB Type-C port is intended for preview and installation only and needs a WiFi dongle, while adjustment covers 0°~360° pan, 0°~75° tilt and 0°~355° rotation. 2 MP resolution (1920 x 1080)2.8~12 mm motorised varifocal lens (4.3x)IR-corrected P iris with simple focusUp to 60 fps in H.265/H.2640.02 lux colour, 0.002 lux black and whiteDay and night (ICR)

Built around a 1/2.8-inch CMOS sensor, the XNV-A8084R is a vandal-resistant dome camera with infrared illumination and AI analytics that records at up to 2560x1920 pixels. H.265 and H.264 streams run at 30fps in 60Hz mode and 25fps in 50Hz mode, while MJPEG reaches 30fps and is limited to 5fps at 5MP. Its 3.3 to 9.3mm lens provides 2.8x optical zoom with an aperture of F1.3 at the wide end and F2.3 at tele, covering 99 to 31 degrees horizontally and 71 to 23 degrees vertically. Minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black and white, with automatic day and night switching via ICR. Installation is supported by a pan range of 0 to 360 degrees, tilt of 0 to 75 degrees and rotation of 0 to 355 degrees; the USB Type C output serves preview and setup only and needs a WiFi dongle. 5MP, up to 2560x1920 pixels1/2.8-inch CMOS sensor3.3-9.3mm lens with 2.8x optical zoom0.04 lux colour / 0.004 lux BWP iris, IR correctedDay & Night Auto (ICR)

The XNV-A9084R is an 8MP vandal-resistant IR dome camera whose 1/1.8-inch CMOS sensor reaches resolutions up to 3840x2160 pixels. H.265 and H.264 run at 30fps in 60Hz mode and 25fps in 50Hz mode, while MJPEG achieves 30fps and no more than 5fps at 8MP. The IR-corrected P iris lens spans 4.4 to 9.3mm with 2.1x optical zoom, F1.3 at the wide end and F2.15 at tele, giving 113 to 47 degrees horizontally and 138 to 54 degrees diagonally. Usable images are specified down to 0.04 lux in colour and 0.004 lux in black and white, with ICR switching between day and night automatically. Focus can be set through simple focus or manually, and the camera is aligned across 0 to 360 degrees of pan, 0 to 75 degrees of tilt and 0 to 355 degrees of rotation. 8MP, up to 3840x2160 pixels1/1.8-inch CMOS sensor4.4-9.3mm lens, 2.1x optical zoomF1.3 wide / F2.15 tele0.04 lux colour / 0.004 lux BWDay & Night Auto (ICR)
