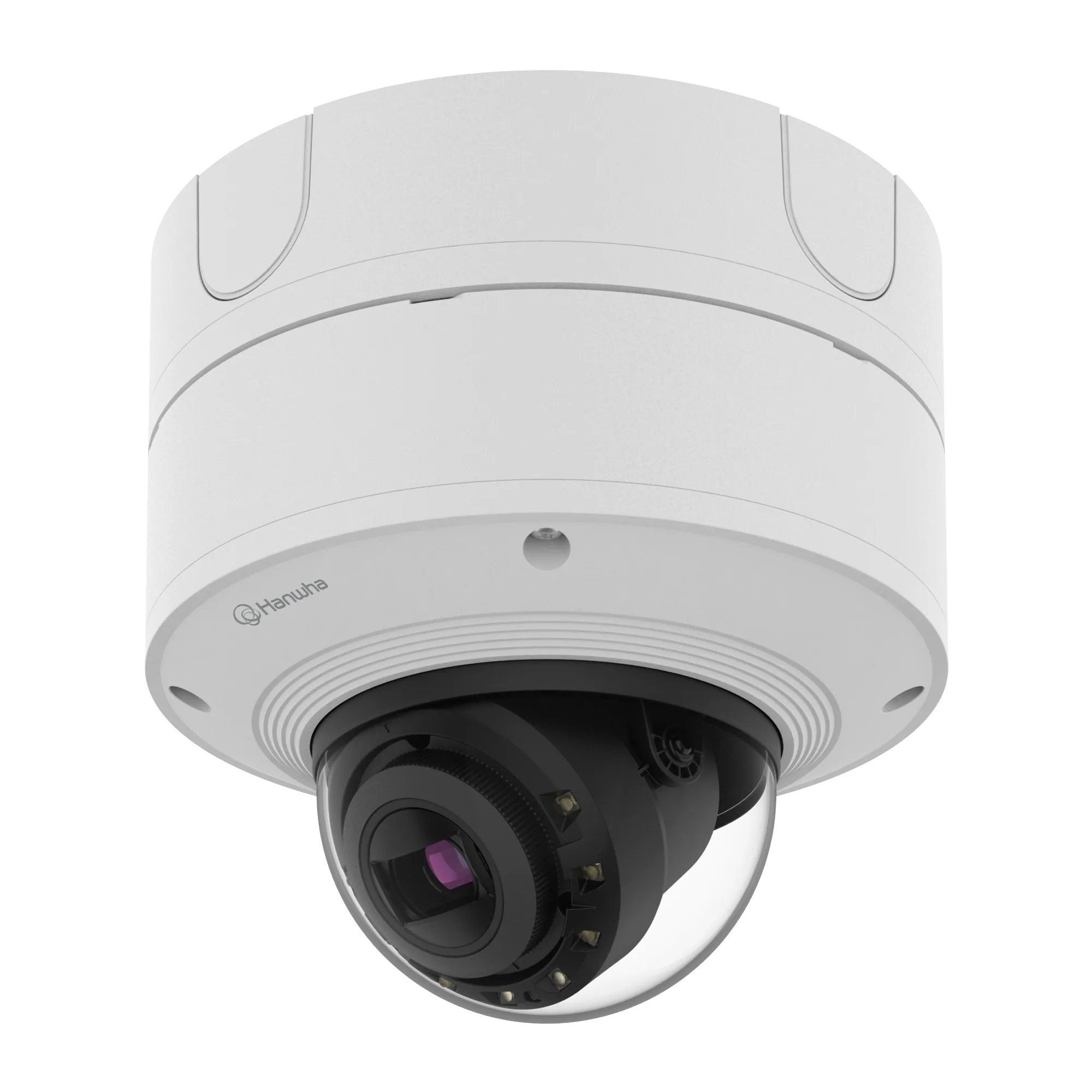

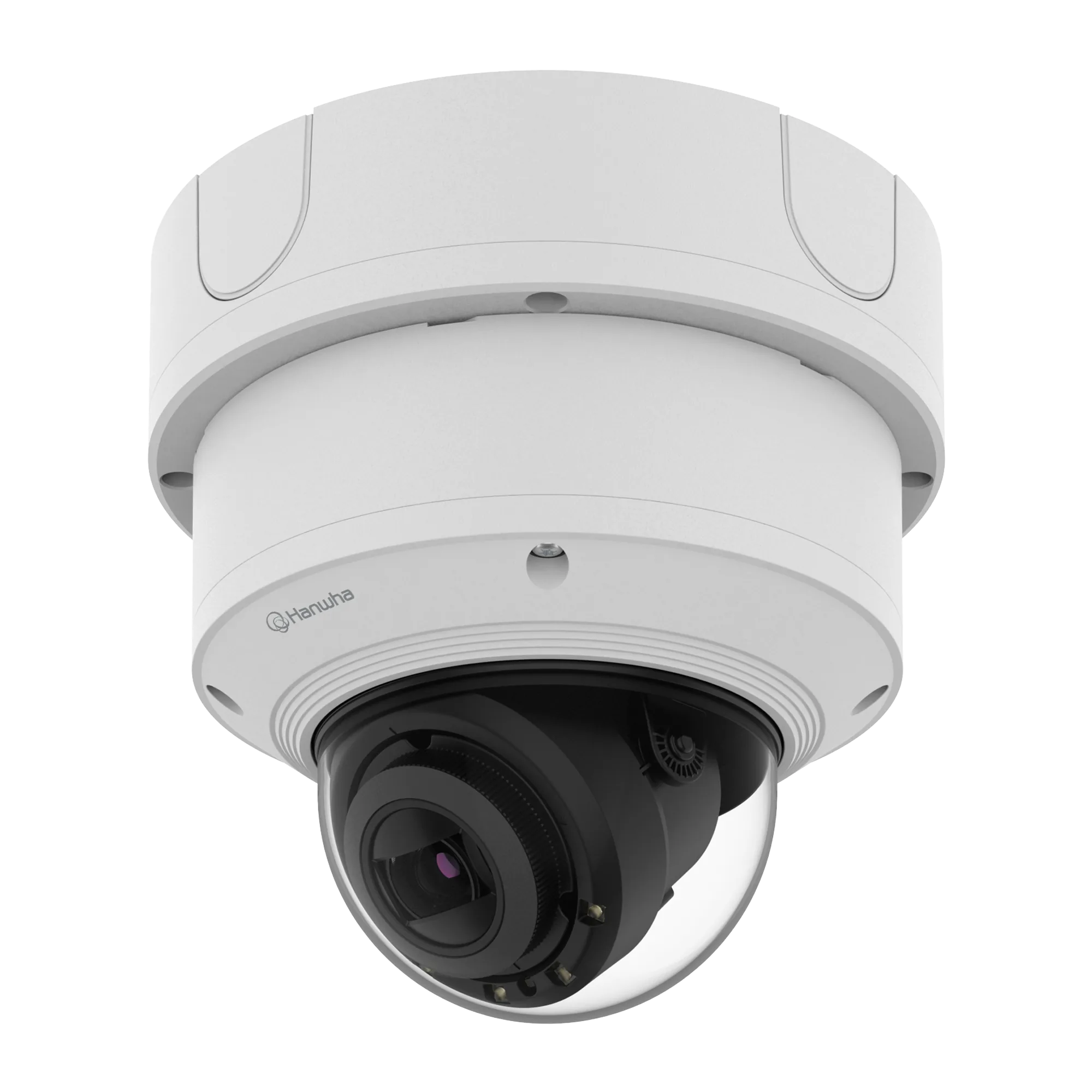

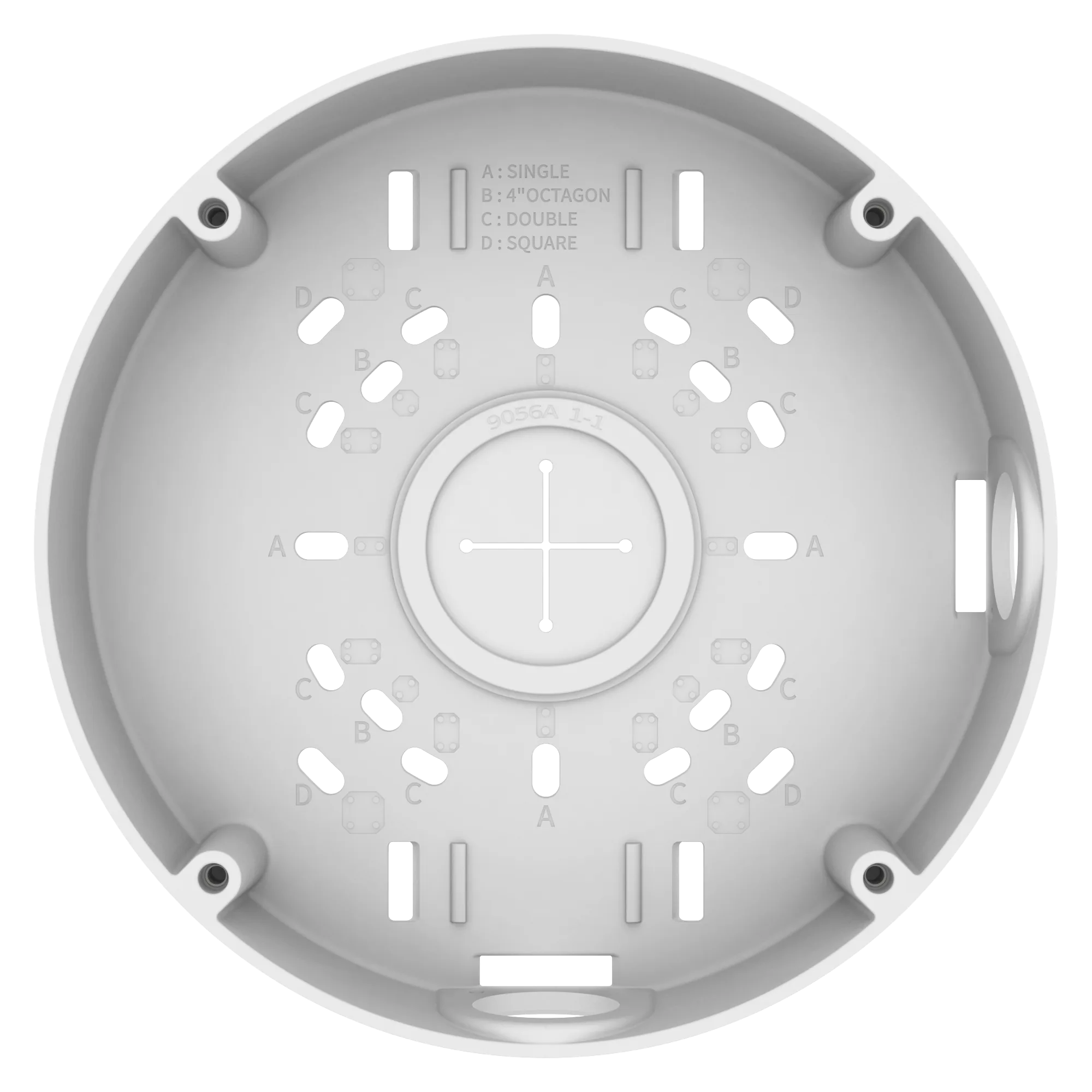

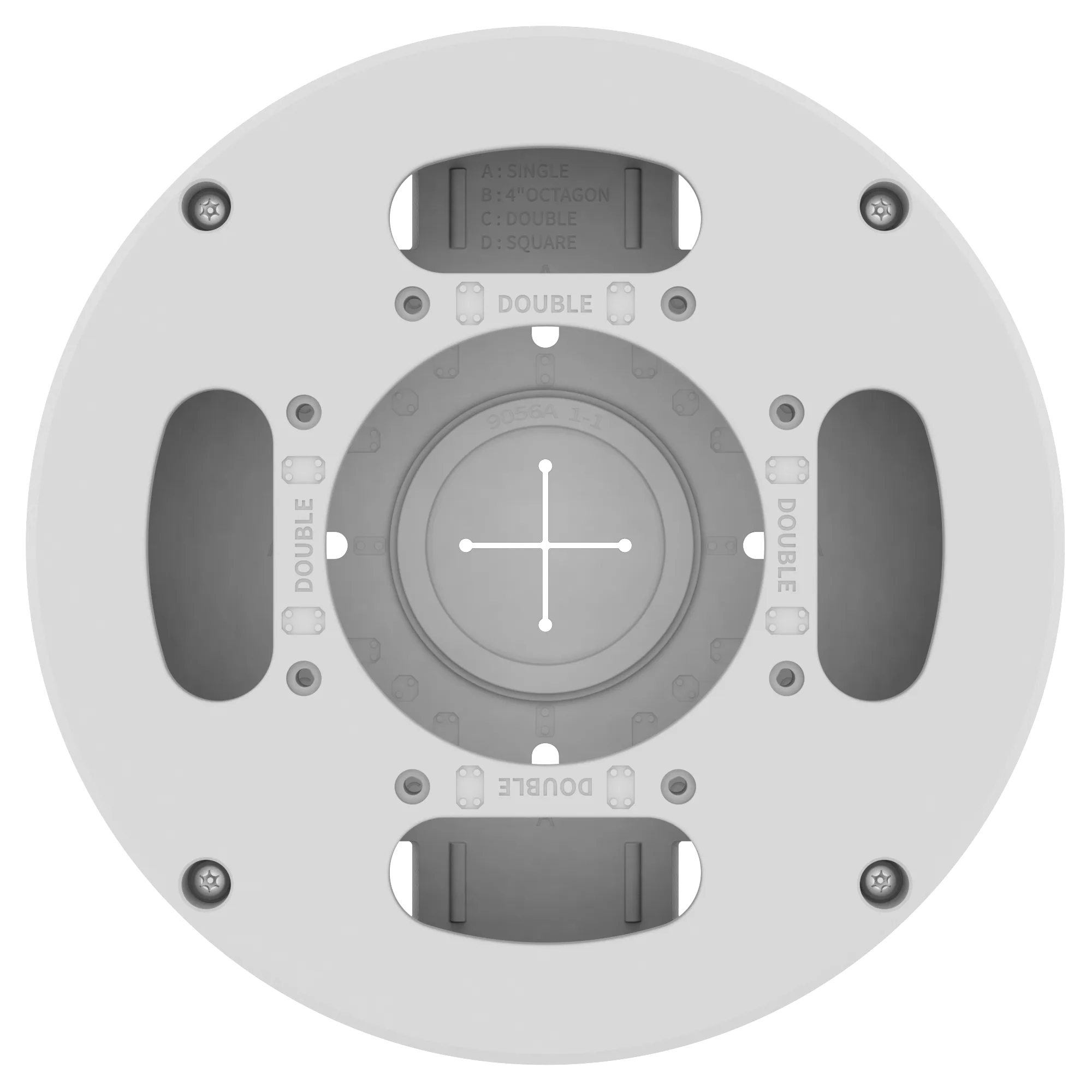

Dome Back box

The PND-A7082RV is a modular indoor dome camera with infrared illumination and AI functions, its 1/1.8-inch CMOS sensor recording 4 megapixels up to 2592x1520. H.265 and H.264 manage 60fps at 60Hz or 50fps at 50Hz with WDR off, and 30fps or 25fps with WDR on, while MJPEG reaches 30fps and a maximum of 5fps at 4MP. The varifocal lens works from 4.6 to 9.35mm with 2.0x optical zoom, opening to F1.3 at wide angle and F2.15 at telephoto and covering 105° to 47° horizontally, 58° to 27° vertically and 128° to 55° diagonally. Focusing is by simple focus through an IR-corrected P iris from a minimum object distance of 1.5m. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with an automatic ICR filter managing day and night operation. Alignment covers 0° to 350° pan, -45° to 85° tilt and 0° to 355° rotation, and a USB Type C port is provided for preview during installation. 4 megapixel resolution up to 2592x15204.6 to 9.35mm varifocal lens with 2.0x zoomUp to 60/50fps with WDR off, 30/25fps with WDR on0.03 lux in colour, 0.003 lux in black and whiteSimple focus with IR-corrected P iris0° to 350° pan and -45° to 85° tilt

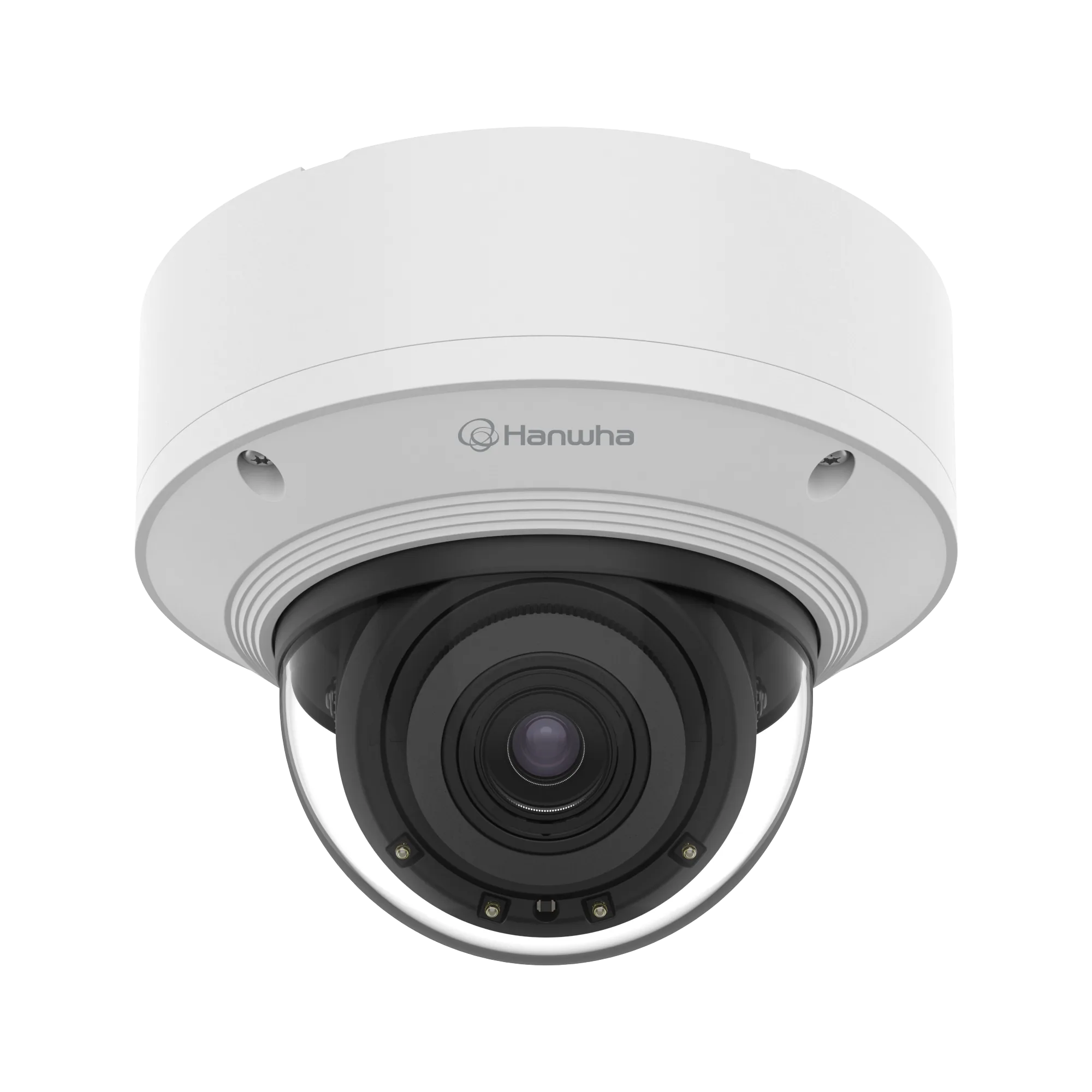

The PND-A9081RV is a dome network camera with deep-learning based AI video analytics. A 1/1.8-inch CMOS sensor supplies up to 3840x2160 pixels, running at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 30fps in MJPEG, with H.265, H.264 and MJPEG codecs alongside WiseStream II. Focal length spans 4.5 to 10 mm at 2.2x optical zoom, with F1.6 at the wide end, F2.65 at tele and a horizontal field of view of 101.4° to 45.5°. Low-light figures are given as 0.05 lux in colour and 0.005 lux in black and white, backed by ICR day and night switching and 120 dB WDR. Mechanical adjustment covers 0° to 360° pan, -45° to 85° tilt and 0° to 355° rotation; minimum object distance is 0.5 m. 1/1.8-inch CMOS sensorUp to 3840x2160 resolution4.5-10 mm lens, 2.2x optical0.05 lux colour / 0.005 lux BW120 dB WDR, day and night (ICR)Deep-learning AI video analytics

The PND-A9082RV is a modular 8MP indoor dome camera with AI and IR support. Its 1/1.2-inch CMOS sensor resolves a maximum of 3840x2160 pixels; H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) while MJPEG runs at 30fps, dropping to a maximum of 5fps at 8MP. The motorised lens covers 5.9 to 13.3 mm with 2.25x optical zoom, opens to F1.5 wide and F2.9 tele, and delivers a horizontal field of view between 109° and 49°. Minimum illumination is specified as 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR switching. Pan from 0° to 360°, tilt from -45° to 85°, rotation from 0° to 355° and a 0.8 m minimum object distance complete the mechanical data. 1/1.2-inch CMOS sensorUp to 3840x2160 resolution5.9-13.3 mm lens, 2.25x optical0.015 lux colour / 0.0015 lux BWP iris, IR correctedAutomatic day and night (ICR)

The PNV-A6081R is a vandal resistant IR dome camera delivering 2MP (1920x1080) from a 1/2-inch CMOS sensor. Its AI engine identifies people, faces, vehicles and licence plates and filters motion events down to shorter, more relevant event lists, complemented by video analytics using virtual line and virtual area rules for intrusion, entering, exiting, appearing and loitering, plus social distancing checks and face mask detection. H.265 and H.264 reach up to 120fps/100fps (60Hz/50Hz), dropping to a maximum of 60/50fps with AI enabled, while MJPEG runs at 15fps. Minimum illumination is 0.007 lux in colour and 0.0007 lux in black and white. The IR corrected P iris lens spans 4.38~9.33mm with 2.13x zoom at F1.3 to F2.15 and covers 103.1°~44.5° horizontally. 2MP (1920x1080) on a 1/2-inch CMOS sensorAI detection of person, face, vehicle and licence plateVirtual line and virtual area video analyticsUp to 120/100fps, 60/50fps maximum with AI on4.38~9.33mm lens with 2.13x zoomMinimum illumination 0.007 lux colour / 0.0007 lux BW

The PNV-A7082RZ is a modular outdoor vandal dome camera with AI and IR, using a 1/1.8-inch CMOS sensor at 4MP (2592x1520). With WDR switched off it records at 60fps/50fps (60Hz/50Hz), and at 30fps/25fps with WDR on, while MJPEG runs at 30fps and is limited to 5fps at 4MP. The IR corrected P iris lens spans 4.6~9.35mm with 2.0x optical zoom at F1.3 wide and F2.15 tele, covering 105°~47° horizontally with a minimum object distance of 1.5m. Being a PTRZ model, it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with automatic ICR day and night switching. 4MP (2592x1520) on a 1/1.8-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles4.6~9.35mm lens with 2.0x optical zoom60/50fps with WDR off, 30/25fps with WDR onMinimum illumination 0.03 lux colour / 0.003 lux BW

The PNV-A9082RZ is an outdoor vandal dome camera with AI, using a 1/1.2-inch CMOS sensor at 8MP (3840x2160). H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz), while MJPEG runs at 30fps and is capped at 5fps when 8MP is selected. The IR corrected P iris lens covers 5.9~13.3mm with 2.25x optical zoom at F1.5 wide and F2.9 tele, spanning 109°~49° horizontally, and the minimum object distance is 0.8m. As a PTRZ model it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR day and night switching. 8MP (3840x2160) on a 1/1.2-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles5.9~13.3mm lens with 2.25x optical zoomMinimum illumination 0.015 lux colour / 0.0015 lux BWHorizontal field of view 109°~49°

The XND-6083RV is a 2MP AI IR dome camera using a 1/2.8" CMOS sensor with a maximum resolution of 1920x1080. H.265 and H.264 run at 120fps/100fps (60Hz/50Hz) with WDR off and 60fps/50fps with WDR on, while MJPEG stays at 30fps. Its motorised 2.8 to 12 mm varifocal lens with 4.3x zoom opens from F1.4 at the wide end to F3.6 at tele and covers 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from a 0.5 m minimum object distance. Minimum illumination is quoted as 0.01 lux in colour and 0.001 lux in black-and-white, with day and night switching handled automatically by ICR. Focus can be set by simple focus or manually, and the camera is aligned through 0° to 360° pan, 0° to 85° tilt and 0° to 355° rotation. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, 4.3x120fps/100fps WDR off, 60fps/50fps WDR on0.01 lux colour, 0.001 lux B/WAutomatic ICR day and night switchingSimple focus or manual focus

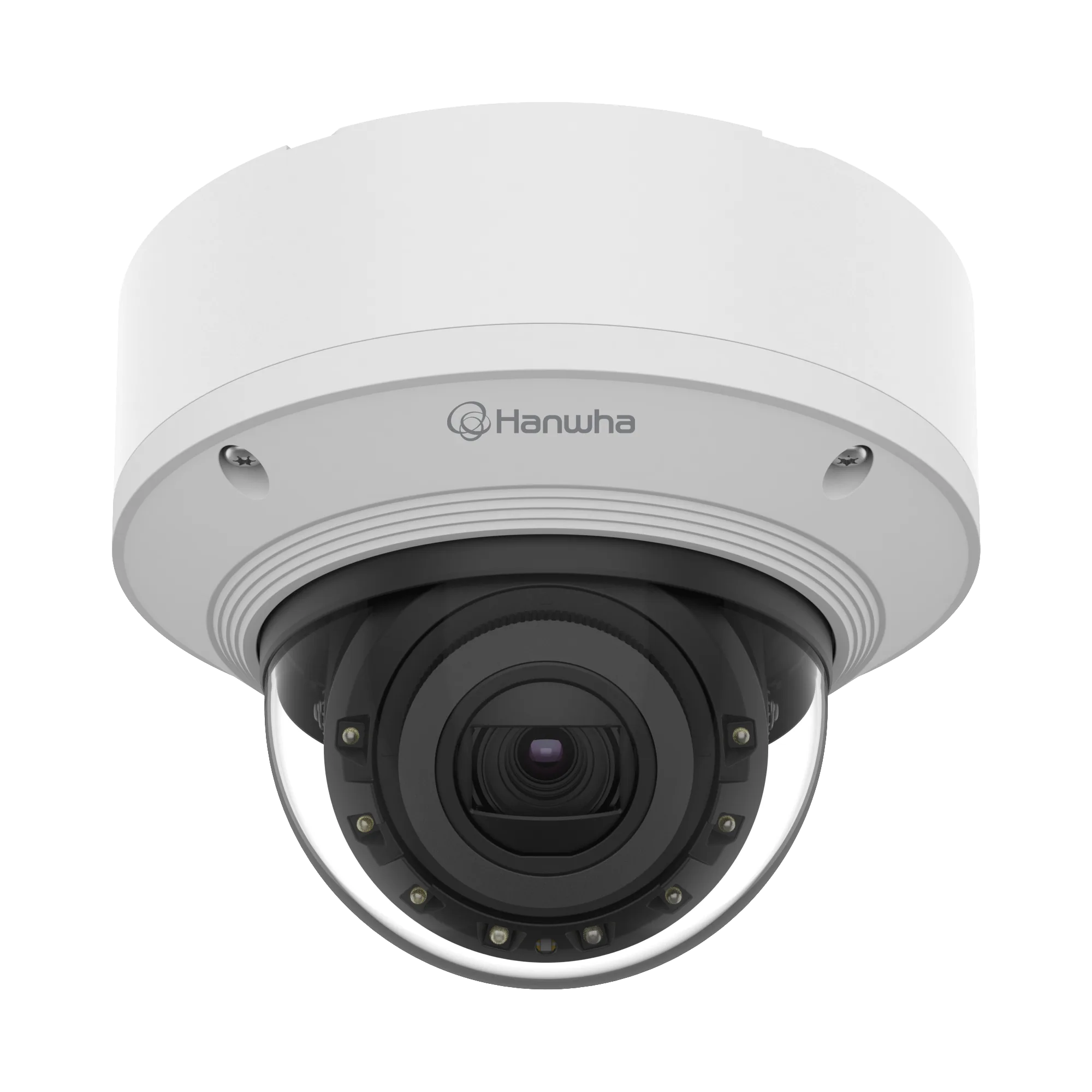

The XND-8082RV is a 6MP IR network dome camera with a 1/2.8" CMOS sensor and a motorised 2.8 to 8.4 mm varifocal lens offering 3x optical zoom. Aperture spans F1.2 wide to F2.8 tele, the field of view 114° to 40° horizontally, 62° to 22° vertically and 133° to 46° diagonally, with a minimum object distance of 0.7 m. H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) while MJPEG delivers 30fps and a maximum of 5fps at 6MP; minimum illumination is 0.05 lux at F1.2 in colour and 0 lux in black-and-white with the IR LED on, rated at 40 m. Digital image stabilisation with a built-in gyro sensor, ICR day and night switching and WDR keep the picture steady and readable. Video analytics cover defocus, directional detection, audio detection, shock detection and face and upper body detection. Motorised 2.8–8.4 mm varifocal lens, 3xF1.2 wide to F2.8 tele aperture40 m IR rangeDigital image stabilisation with gyro sensorFace and upper body detection0.05 lux at F1.2 in colour

The XND-A6084RV is a 2MP AI IR dome camera using a 1/2.8" CMOS sensor with a maximum resolution of 1920x1080. A motorised 2.8 to 12 mm varifocal lens supplies 4.3x optical zoom with an IR-corrected P iris and apertures from F1.4 wide to F3.6 tele, covering 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from 0.5 m. H.265 and H.264 support 60fps/50fps (60Hz/50Hz) while MJPEG stays at 30fps, and minimum illumination is given as 0.02 lux in colour and 0.002 lux in black-and-white. Day and night switching is automatic via ICR, and focus can be set through simple focus or manually. Alignment covers 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, with a USB Type C connection for preview and installation. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, 4.3xIR-corrected P iris, F1.4 to F3.660fps/50fps in H.265 and H.2640.02 lux colour, 0.002 lux B/W0°–360° pan, 0°–75° tilt

The XND-A8084RV is a 5MP AI IR dome camera that resolves up to 2560x1920 from a 1/2.8" CMOS sensor. Its motorised 3.3 to 9.3 mm varifocal lens provides 2.8x optical zoom with an IR-corrected P iris, F1.3 at the wide end and F2.3 at tele, giving 99° to 31° horizontally, 71° to 23° vertically and 133° to 39° diagonally from 0.5 m. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, dropping to a maximum of 5fps at 5MP. Minimum illumination is 0.04 lux in colour and 0.004 lux in black-and-white, and day and night switching is automatic via ICR. Focus is available as simple focus or manual, alignment spans 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and a USB Type C port serves preview and installation. 1/2.8" CMOS, up to 2560x1920Motorised 3.3–9.3 mm varifocal lens, 2.8xIR-corrected P iris, F1.3 to F2.330fps/25fps in H.265 and H.2640.04 lux colour, 0.004 lux B/W0°–360° pan, 0°–75° tilt

The XND-A8085RV is a modular 5MP AI IR dome camera built on a 1/2.8" CMOS sensor with a top resolution of 2560x1920. A motorised 3.3 to 9.3 mm varifocal lens with 2.8x zoom and an IR-corrected P iris works at F1.3 wide and F2.3 tele, covering 99° to 31° horizontally, 71° to 23° vertically and 133° to 39° diagonally from a 0.5 m minimum object distance. Frame rates are 30fps/25fps (60Hz/50Hz) in H.265 and H.264, with MJPEG at 30fps and a maximum of 5fps at 5MP. Minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black-and-white, and an ICR handles day and night switching automatically. A tilt range of -45° to 85° together with 0° to 360° pan and 0° to 355° rotation allows flexible alignment, and focusing is by simple focus. Modular design, 5MPMotorised 3.3–9.3 mm varifocal lens, 2.8xIR-corrected P iris, F1.3 to F2.3Tilt range -45° to 85°0.04 lux colour, 0.004 lux B/WICR day and night switching

The XND-A9084RV is an 8MP AI IR dome camera whose 1/1.8" CMOS sensor delivers up to 3840x2160. Its motorised 4.4 to 9.3 mm varifocal lens gives 2.1x optical zoom with an IR-corrected P iris, F1.3 at the wide end and F2.15 at tele, taking in 113° to 47° horizontally, 58° to 26° vertically and 138° to 54° diagonally from 0.5 m. H.265 and H.264 reach 30fps/25fps (60Hz/50Hz), while MJPEG runs at 30fps and a maximum of 5fps at 8MP. Minimum illumination is quoted as 0.04 lux in colour and 0.004 lux in black-and-white, and day and night switching is automatic via ICR. Focus can be set by simple focus or manually, and alignment covers 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation. 1/1.8" CMOS, up to 3840x2160Motorised 4.4–9.3 mm varifocal lens, 2.1xIR-corrected P iris, F1.3 to F2.1530fps/25fps in H.265 and H.2640.04 lux colour, 0.004 lux B/W0°–360° pan, 0°–75° tilt

In a modular design, the XND-A9085RV is an 8MP AI IR dome camera delivering up to 3840x2160 from a 1/1.8" CMOS sensor. Its motorised 4.4 to 9.3 mm varifocal lens works with 2.1x zoom, an IR-corrected P iris, F1.3 wide and F2.15 tele, covering 113° to 47° horizontally, 58° to 26° vertically and 138° to 54° diagonally, with a minimum object distance of 0.5 m. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, limited to 5fps at 8MP. Minimum illumination is given as 0.04 lux in colour and 0.004 lux in black-and-white, and an ICR performs day and night switching. Tilt ranges from -45° to 85°, complemented by 0° to 360° pan and 0° to 355° rotation, and focusing is by simple focus. Modular design, 8MP1/1.8" CMOS, up to 3840x2160Motorised 4.4–9.3 mm varifocal lens, 2.1xIR-corrected P iris, F1.3 to F2.15Tilt range -45° to 85°0.04 lux colour, 0.004 lux B/W

The XND-C6083RV is a 2MP AI IR dome camera whose 1/2.8" CMOS sensor outputs a maximum of 1920x1080. A motorised 2.8 to 12 mm varifocal lens opens from F1.4 wide to F3.6 tele and takes in 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from a 0.5 m minimum object distance. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) while MJPEG stays at 30fps, and minimum illumination is stated as 0.01 lux in colour and 0.001 lux in black-and-white. Image conditioning offers BLC, HLC, WDR and SSDR alongside automatic ICR day and night switching. Focus is available as simple focus or manual, alignment spans 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and preview and installation run over Micro USB Type B. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, F1.4 to F3.660fps/50fps in H.265 and H.2640.01 lux colour, 0.001 lux B/WBLC, HLC, WDR and SSDR0°–360° pan, 0°–75° tilt

The XND-C7083RV is a 4 megapixel AI IR dome camera reaching 2592x1520 on a 1/2.8" CMOS sensor. A motorised 2.8 to 10 mm varifocal lens supplies 3.6x optical zoom, F1.4 at the wide end and F3.0 at tele, with a field of view of 110° to 30° horizontally, 61° to 17° vertically and 132° to 35° diagonally from 0.5 m. H.265 and H.264 run at 60fps/50fps (60Hz/50Hz) with WDR off and 30fps/25fps with WDR on, while MJPEG delivers 30fps and a maximum of 5fps at 4MP. Minimum illumination is 0.038 lux in colour and 0.0038 lux in black-and-white, and day and night switching is automatic via ICR. Focus can be set by simple focus or manually, and the camera aligns across 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation. 1/2.8" CMOS, up to 2592x1520Motorised 2.8–10 mm varifocal lens, 3.6xF1.4 wide to F3.0 tele aperture60fps/50fps WDR off, 30fps/25fps WDR on0.038 lux colour, 0.0038 lux B/WICR day and night switching

The XND-C8083RV is a 6MP AI IR dome camera combining a 1/1.8" CMOS sensor with a motorised 4.4 to 9.3 mm varifocal lens offering 2.1x optical zoom. Its IR-corrected P iris works at F1.3 wide and F2.15 tele, the field of view spans 113° to 47° horizontally, 58° to 26° vertically and 138° to 54° diagonally, and the minimum object distance is 0.5 m. H.265 and H.264 provide 30fps/25fps (60Hz/50Hz) while MJPEG runs at 30fps and a maximum of 5fps at 6MP. Minimum illumination is given as 0.04 lux in colour and 0.004 lux in black-and-white, with an ICR switching automatically between day and night. Focus is by simple focus or manual, alignment covers 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and preview and installation use Micro USB Type B. 1/1.8" CMOS, 6MPMotorised 4.4–9.3 mm varifocal lens, 2.1xIR-corrected P iris, F1.3 to F2.1530fps/25fps in H.265 and H.2640.04 lux colour, 0.004 lux B/W0°–360° pan, 0°–75° tilt

Built around a 1/1.8" CMOS imager, the XND-C9083RV dome records at up to 3840x2160. Encoding runs at 30fps/25fps (60Hz/50Hz) for H.265 and H.264, while MJPEG reaches 30fps and is limited to 5fps at 8MP. The lens covers 4.4~9.3 mm with 2.1x optical zoom, giving 113°~47° horizontally, 58°~26° vertically and 138°~54° diagonally; it is a P iris type with IR correction and a minimum object distance of 0.5 m. Minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black and white (1/30 sec, 30 IRE), with automatic ICR day and night switching. Alignment ranges are 0°~360° pan, 0°~75° tilt and 0°~355° rotate, and focus is set by simple focus or manually. 1/1.8" CMOS sensorUp to 3840x21604.4~9.3 mm, 2.1x optical zoomP iris lens, IR corrected0.04 lux colour / 0.004 lux B/WAuto ICR day and night

The XNF-A8014R AI fisheye camera relies on a 1/1.6" CMOS imager and a 1.76 mm lens spanning 185° horizontally, vertically and diagonally. Maximum resolution is 2560x2560, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz), MJPEG at 5fps and a ceiling of 20fps in PoE mode. The aperture ratio is 1.8 at both the wide and the tele end, and object distance starts at 0.5 m. Minimum illumination is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), and ICR switches between day and night automatically. Image conditioning includes extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog. The image can also be rotated digitally. 1/1.6" CMOS sensorUp to 2560x25601.76 mm lens, 185° field of viewExtreme WDR 120 dBWiseNR II, AI basedDigital image stabilisation, defog

As an AI fisheye model, the XNF-A8014RV relies on a 1/1.6" CMOS imager and a 1.76 mm lens spanning 185° horizontally, vertically and diagonally. Maximum resolution is 2560x2560, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz), MJPEG at 5fps and a ceiling of 20fps in PoE mode. The aperture ratio is 1.8 at both the wide and the tele end, and object distance starts at 0.5 m. Minimum illumination is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), and ICR switches between day and night automatically. Image conditioning includes extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog. The image can also be rotated digitally. 1/1.6" CMOS sensorUp to 2560x25601.76 mm lens, F1.8185° field of view, digital rotationExtreme WDR 120 dB, WiseNR II0.02 lux colour / 0.001 lux B/W

The XNF-A9014R works with a 1/1.6" CMOS imager and a fixed stereographic 1.76 mm lens covering 185° horizontally, vertically and diagonally. Top resolution is 3584x2688, encoded at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 5fps in MJPEG, with a maximum of 20fps in PoE mode. The aperture ratio is 1.8 at the wide and the tele end, object distance begins at 0.5 m, and the image can be rotated digitally. Stated sensitivity is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), with ICR taking care of day and night switching. Extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog condition the picture. The manufacturer additionally states a 20 m IR range, an IP42 rating, a dual NPU for AI-based image enhancement and support for object detection, intelligent video analytics and motion detection. Up to 3584x26881.76 mm fixed stereographic lens20 m IR rangeIP42 ratedDual NPU for AI-based image enhancementObject detection, intelligent video analytics

As an AI IR fisheye camera, the XNF-A9014RV works with a 1/1.6" CMOS imager and a fixed stereographic 1.76 mm lens covering 185° horizontally, vertically and diagonally. Top resolution is 3584x2688, encoded at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 5fps in MJPEG, with a maximum of 20fps in PoE mode. The aperture ratio is 1.8 at the wide and the tele end, object distance begins at 0.5 m, and the image can be rotated digitally. Stated sensitivity is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), with ICR taking care of day and night switching. Extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog condition the picture. 1/1.6" CMOS sensorUp to 3584x26881.76 mm lens, 185° field of viewDigital rotationExtreme WDR 120 dB, WiseNR IIDigital image stabilisation, defog

The XNV-6083R is a vandal-resistant AI IR dome camera built on a 1/2.8" CMOS sensor with a maximum resolution of 1920 x 1080 pixels (2 MP). With WDR off, H.265 and H.264 reach 120 fps or 100 fps depending on the mains frequency, dropping to 60 fps or 50 fps with WDR on, while MJPEG runs at 30 fps. Its motorised 2.8~12 mm varifocal lens with 4.3x optical zoom opens to F1.4 wide and F3.6 tele and covers 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally from an object distance of 0.5 m. Simple focus, manual focus, an IR-corrected adaptive P iris and ICR day and night switching govern sharpness and exposure. Minimum illumination is 0.01 lux in colour and 0.001 lux in black and white, and adjustment covers 0°~360° pan, 0°~85° tilt and 0°~355° rotation. 2 MP resolution (1920 x 1080)Up to 120 fps with WDR off2.8~12 mm motorised varifocal lens (4.3x)IR-corrected adaptive P iris0.01 lux colour, 0.001 lux black and whiteDay and night (ICR)

The XNV-8083RZ is a vandal-resistant AI IR dome camera whose 1/1.8" CMOS sensor delivers up to 3328 x 1872 pixels (6 MP). Its motorised 4.4 to 9.3 mm varifocal lens with 2.1x optical zoom opens to F1.3 wide and F2.15 tele, giving 113°~47° horizontal, 58°~26° vertical and 138°~54° diagonal coverage from a minimum object distance of 0.5 m. Pan, tilt and rotate travel across 0°~350°, 0°~85° and 0°~340° and can be trimmed remotely for a maximum of 200 cycles. H.265 and H.264 run at up to 30 fps or 25 fps and MJPEG at 30 fps, dropping to 5 fps at 6 MP. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, supported by simple focus, manual focus, an IR-corrected P iris and ICR day and night switching. 6 MP resolution (3328 x 1872)4.4~9.3 mm motorised varifocal lens (2.1x)Remote pan, tilt and rotate adjustment (max. 200 cycles)0.03 lux colour, 0.003 lux black and whiteIR-corrected P irisDay and night (ICR)

The XNV-8093R is a vandal-resistant AI IR dome camera with a 1/1.8" CMOS sensor and a maximum of 3328 x 1872 pixels (6 MP), aimed at longer observation distances. Its motorised varifocal lens runs from 10.9 to 29 mm (2.7x optical) at F1.7 wide and F1.73 tele, covering 42°~15° horizontally, 23°~8° vertically and 49°~17° diagonally, with a minimum object distance of 2.5 m at wide and 6 m at tele. Simple focus, manual focus and an IR-corrected adaptive P iris control sharpness and aperture, while WiseIR illuminates up to 70 m. H.265 and H.264 run at up to 30 fps or 25 fps and MJPEG at 30 fps, limited to 5 fps at 6 MP, with minimum illumination of 0.06 lux in colour and 0.006 lux in black and white. extremeWDR at 120 dB, ICR switching, the AI-based WiseNRⅡ and WiseStreamⅢ functions, a hard-coated dome bubble and adjustment of 0°~360°, 0°~85° and 0°~355° complete the camera. 6 MP resolution (3328 x 1872)10.9~29 mm motorised varifocal lens (2.7x)WiseIR with 70 m rangeextremeWDR at 120 dBAI-based WiseNRⅡ and WiseStreamⅢHard-coated dome bubble

The XNV-9082R is a vandal-resistant IR network dome camera with a 1/2.8" CMOS sensor recording 4K at 3840 x 2160 pixels. Its motorised 2.8 to 8.4 mm varifocal lens (3x optical) opens to F1.2 wide and F2.8 tele and covers 114°~40° horizontally, 62°~22° vertically and 133°~46° diagonally from 0.7 m, with simple focus working alongside an IR-corrected DC auto iris and P iris. At 4K, H.265 and H.264 allow up to 30 fps or 25 fps while MJPEG reaches 30 fps and 5 fps at 8 MP; minimum illumination is 0.05 lux in colour, 0.005 lux in black and white and 0 lux with the IR LED on. A built-in gyro sensor supports digital image stabilisation, the IR range is 40 m, and ICR day and night switching plus wide dynamic range are included. Video analytics cover defocus, direction, audio and shock detection as well as face and upper body detection, with adjustment across 0°~360°, 0°~85° and 0°~355°. 4K resolution (3840 x 2160)2.8~8.4 mm motorised varifocal lens (3x)40 m IR rangeDigital image stabilisation with built-in gyro sensorVideo analytics with face and upper body detectionDay and night (ICR) and wide dynamic range

The XNV-9083RZ is a vandal-resistant AI IR dome camera with a 1/1.8" CMOS sensor and a top resolution of 3840 x 2160 pixels (8 MP). Its motorised 4.4 to 9.3 mm varifocal lens provides 2.1x optical zoom at F1.3 wide and F2.15 tele and covers 113°~47° horizontally, 58°~26° vertically and 138°~54° diagonally from an object distance of 0.5 m. Focus and aperture are handled by simple focus, manual focus and an IR-corrected P iris, together with automatic ICR day and night switching. H.265 and H.264 allow up to 30 fps or 25 fps and MJPEG reaches 30 fps, limited to 5 fps at 8 MP, while minimum illumination is 0.03 lux in colour and 0.003 lux in black and white. Pan, tilt and rotate cover 0°~350°, 0°~85° and 0°~340° and can be trimmed remotely for a maximum of 200 cycles. 8 MP resolution (3840 x 2160)4.4~9.3 mm motorised varifocal lens (2.1x)Remote pan, tilt and rotate adjustment (max. 200 cycles)0.03 lux colour, 0.003 lux black and whiteIR-corrected P irisDay and night (ICR)

The XNV-A6084R is a vandal-resistant AI IR dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 1920 x 1080 pixels (2 MP). Its motorised 2.8 to 12 mm varifocal lens provides 4.3x optical zoom, opens to F1.4 wide and F3.6 tele and covers 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally from 0.5 m. Focusing works by simple focus or manually, the aperture is regulated by an IR-corrected P iris, and automatic ICR day and night switching is included. H.265 and H.264 allow up to 60 fps or 50 fps and MJPEG 30 fps, with minimum illumination of 0.02 lux in colour and 0.002 lux in black and white. The USB Type-C port is intended for preview and installation only and needs a WiFi dongle, while adjustment covers 0°~360° pan, 0°~75° tilt and 0°~355° rotation. 2 MP resolution (1920 x 1080)2.8~12 mm motorised varifocal lens (4.3x)IR-corrected P iris with simple focusUp to 60 fps in H.265/H.2640.02 lux colour, 0.002 lux black and whiteDay and night (ICR)

Built around a 1/2.8-inch CMOS sensor, the XNV-A8084R is a vandal-resistant dome camera with infrared illumination and AI analytics that records at up to 2560x1920 pixels. H.265 and H.264 streams run at 30fps in 60Hz mode and 25fps in 50Hz mode, while MJPEG reaches 30fps and is limited to 5fps at 5MP. Its 3.3 to 9.3mm lens provides 2.8x optical zoom with an aperture of F1.3 at the wide end and F2.3 at tele, covering 99 to 31 degrees horizontally and 71 to 23 degrees vertically. Minimum illumination is stated as 0.04 lux in colour and 0.004 lux in black and white, with automatic day and night switching via ICR. Installation is supported by a pan range of 0 to 360 degrees, tilt of 0 to 75 degrees and rotation of 0 to 355 degrees; the USB Type C output serves preview and setup only and needs a WiFi dongle. 5MP, up to 2560x1920 pixels1/2.8-inch CMOS sensor3.3-9.3mm lens with 2.8x optical zoom0.04 lux colour / 0.004 lux BWP iris, IR correctedDay & Night Auto (ICR)

The XNV-A9084R is an 8MP vandal-resistant IR dome camera whose 1/1.8-inch CMOS sensor reaches resolutions up to 3840x2160 pixels. H.265 and H.264 run at 30fps in 60Hz mode and 25fps in 50Hz mode, while MJPEG achieves 30fps and no more than 5fps at 8MP. The IR-corrected P iris lens spans 4.4 to 9.3mm with 2.1x optical zoom, F1.3 at the wide end and F2.15 at tele, giving 113 to 47 degrees horizontally and 138 to 54 degrees diagonally. Usable images are specified down to 0.04 lux in colour and 0.004 lux in black and white, with ICR switching between day and night automatically. Focus can be set through simple focus or manually, and the camera is aligned across 0 to 360 degrees of pan, 0 to 75 degrees of tilt and 0 to 355 degrees of rotation. 8MP, up to 3840x2160 pixels1/1.8-inch CMOS sensor4.4-9.3mm lens, 2.1x optical zoomF1.3 wide / F2.15 tele0.04 lux colour / 0.004 lux BWDay & Night Auto (ICR)
