Industrial 1xGbE PoE + 1xGbE SFP Media Converter
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- M30-011-30
- EAN / GTIN
- 4711502641306
Description

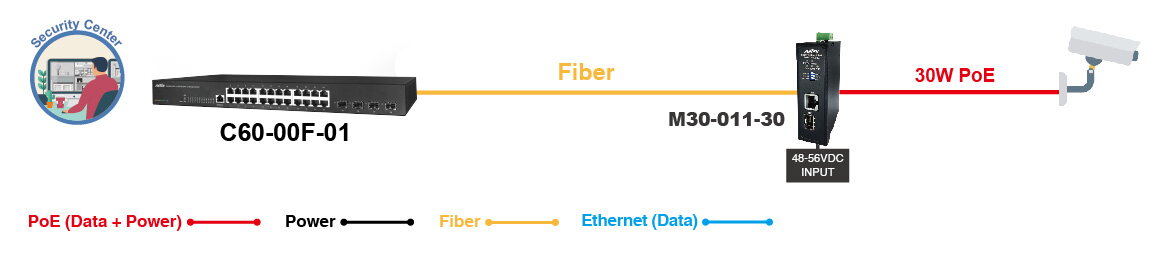

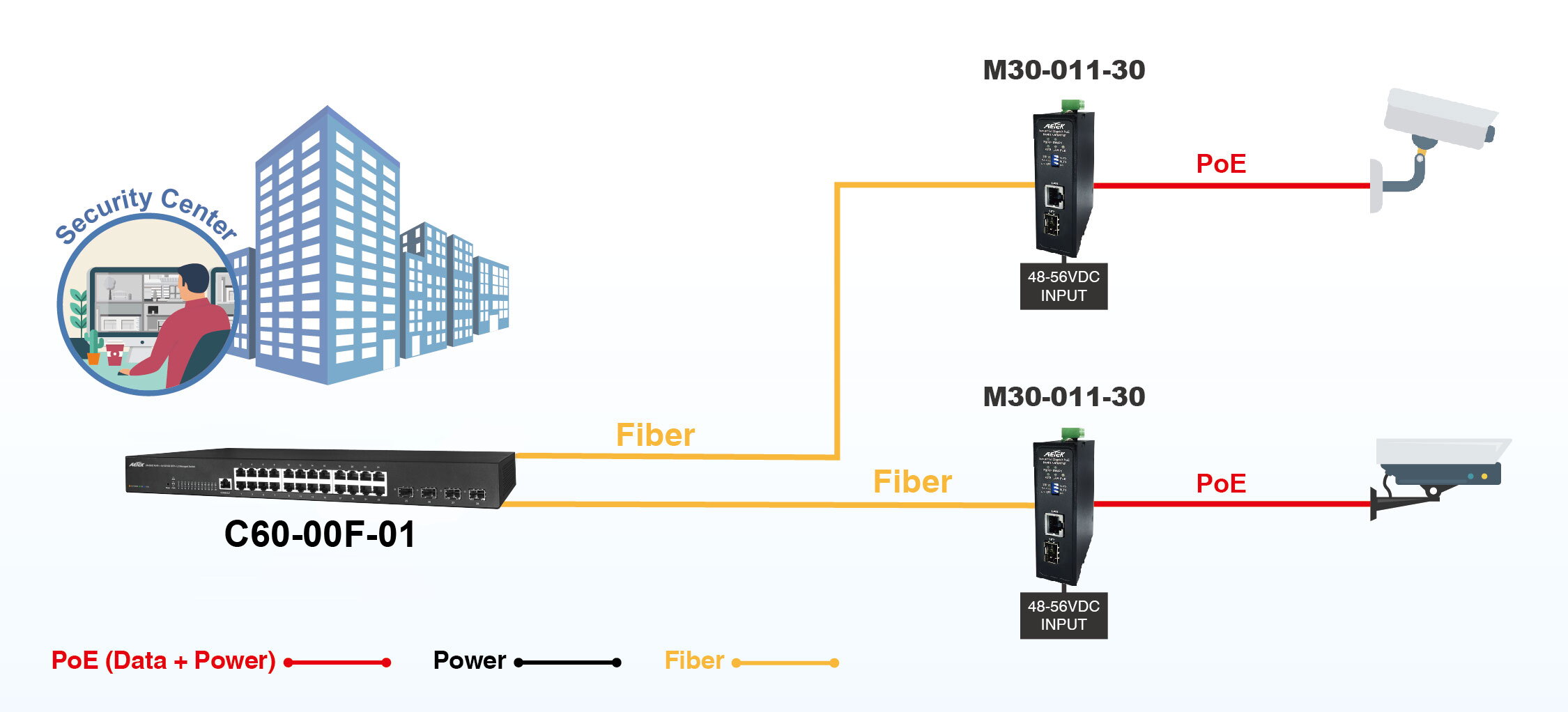

DIN-rail media converter with a PoE output: one 10/100/1000BASE-T copper port feeds a camera or an access point to IEEE 802.3af at 15.4 W or 802.3at at up to 30 W over pairs 12(+) and 36(-), while an SFP slot for 100/1000BASE-X carries the link on over fibre. PoE budget 30 W, input 48 to 56 V DC, standby draw 1 W at 48 V DC. Compact IP30 case without a fan, working range -40 °C to 75 °C, storage -40 °C to 85 °C. Switching capacity 4 Gbps, forwarding 2.976 Mpps, jumbo frames 9K bytes, Energy Efficient Ethernet to IEEE 802.3az. Surge protection 6 kV common mode per PoE port. 81.5 x 30 x 100 mm, 0.29 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental limits (4)
- Environmental limits IP Rating
- IP30
- Environmental limits – Operating Humidity
- 5% to 95% non-condensing
- Environmental limits – Operating Temperature
- -40°C ~ 75°C (-40°F ~ 167°F)
- Environmental limits – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical (4)
- Cooling Fan
- Fanless
- Dimensions (W x D x H)
- 81.5 x 30 x 100 mm (3.2 x 1.2 x 3.9 in)
- Mechanical Mounting
- Din-Rail
- Mechanical Weight
- 0.29 kg (0.64 lb)
Networking (6)
- Networking Forwarding Capacity
- 2.976 Mpps
- Networking Jumbo Frames
- 9K Bytes
- Networking Mac Table
- 4K
- Networking Switching Capacity
- 4 Gbps
- Networking – Gigabit Ethernet SFP Ports (100M/1G)
- 1
- Networking – Total Gigabit Ethernet Ports
- 2
Power (8)
- ESD
- Contact ±4 KV, Air ±8 KV
- PoE Output Power Budget
- 30W
- Power Input Voltage
- 48V-56V DC
- Power – Output Power per PoE Port PoE IEEE 802.3af (Max. 15.4W) PoE+ IEEE 802.3at (Max. 30W) Output PoE Power Pin Assignment
- 12(+),36(-)
- Power – Surge Protection for DC Power Input
- Differential mode : ±1 KV
- Power – Surge Protection for DC Power Output
- Differential mode : ±1 KV
- Standby Power Consumption
- 48V DC: 1W
- Surge Protection per PoE Port
- Common mode : ±6 KV
Regulatory/ Approvals (3)
- Regulatory/ Approvals EMC
- CE, FCC, VCCI, C-Tick
- Regulatory/ Approvals MTBF
- > 50000 hours
- Regulatory/ Approvals Surge
- EN61000-4-5
