Industrial 1xPoE PD GbE + 1xGbE SFP Media Converter
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- M31-011-01
- EAN / GTIN
- 4711502641320
Description

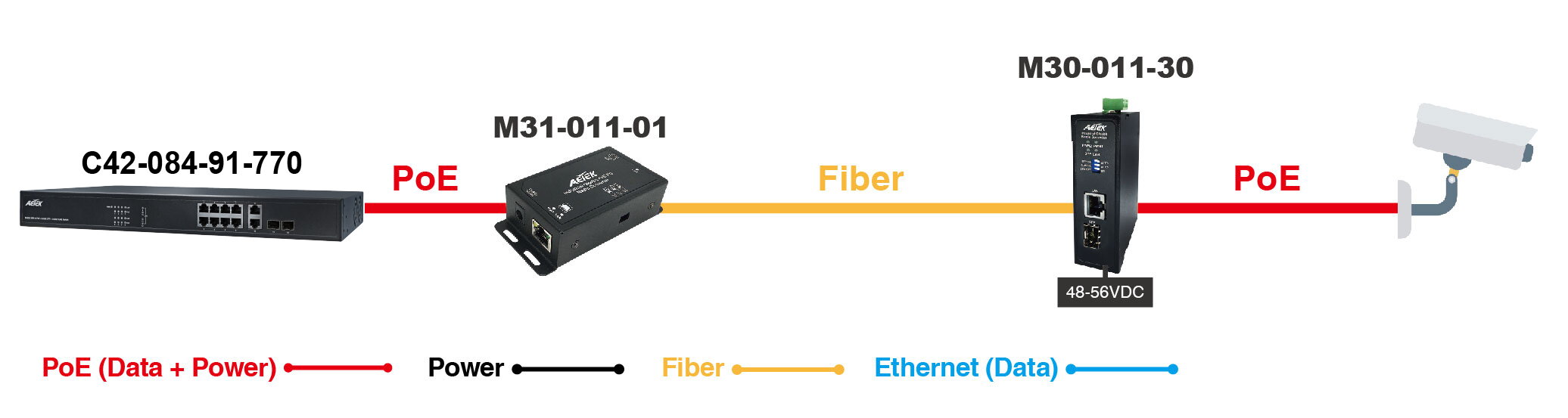

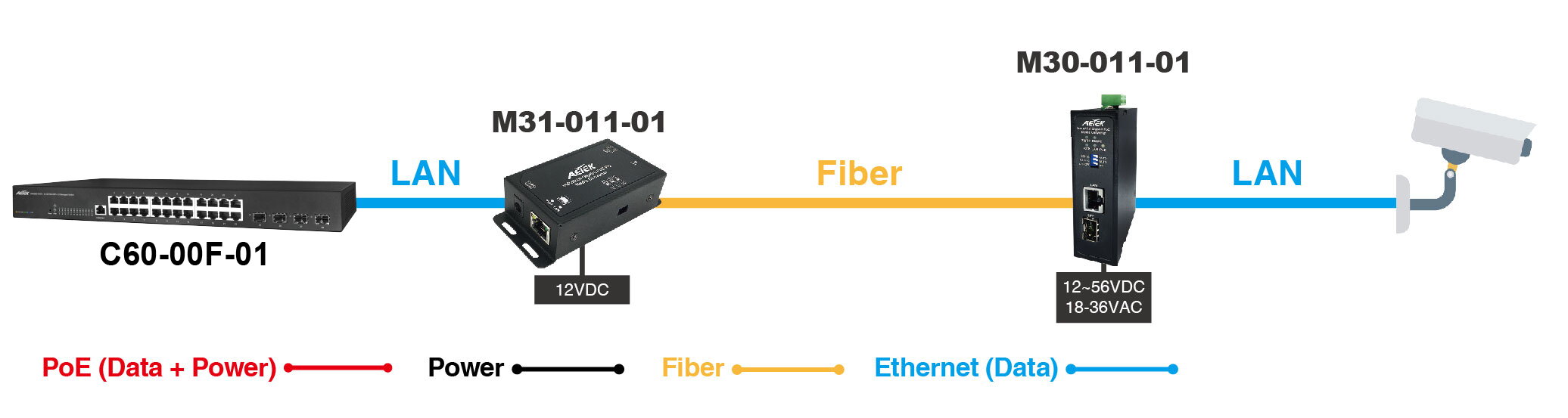

Media converter that draws its own power over the network: the Gigabit copper port acts as a PD and takes power from a bt PoE source, or the unit runs from 12 V DC instead. The SFP slot for 100/1000BASE-X carries the link on over fibre. This gives a copper-to-fibre transition at a location with no mains socket nearby. The PD input accepts either polarity, 12(-) with 36(+), then 45(+) with 78(-) as well as 12(+) with 36(-), then 45(+) with 78(-). Standby draw 0.36 W at 12 V DC. Switching capacity 4 Gbps, forwarding 2.976 Mpps, 4K MAC table, jumbo frames 9K bytes, link fault passthrough. IP30, fanless, -40 °C to 75 °C, 103.9 x 48.9 x 28.2 mm, 0.3 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental limits (4)
- Environmental limits IP Rating
- IP30
- Environmental limits – Operating Humidity
- 5% to 95% non-condensing
- Environmental limits – Operating Temperature
- -40°C ~ 75°C (-40°F ~ 167°F)
- Environmental limits – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical (3)
- Cooling Fan
- Fanless
- Dimensions (W x D x H)
- 103.9 x 48.9 x 28.2 mm ( 4.1 x 1.9 x 1.1 in)
- Mechanical Weight
- 0.3 kg (0.66 lb)
Networking (7)
- Gigabit Ethernet PoE PD Ports
- 1
- Networking Forwarding Capacity
- 2.976 Mpps
- Networking Jumbo Frames
- 9K Bytes
- Networking Mac Table
- 4K
- Networking Switching Capacity
- 4 Gbps
- Networking – Gigabit Ethernet SFP Ports (100M/1G)
- 1
- Networking – Total Gigabit Ethernet Ports
- 2
Power (7)
- ESD
- Contact ±4 KV, Air ±8 KV
- Power Input Voltage
- bt PoE
- Power – Input PoE PD Power Pin Assignment
- 12(-), 36(+), 45(+), 78(-) or 12(+), 36(-), 45(+), 78(-)
- Power – Surge Protection for DC Power Input
- Differential mode : ±1 KV
- Power – Surge Protection for DC Power Output
- Differential mode : ±1 KV
- Standby Power Consumption
- 12V DC: 0.36W
- Surge Protection per PoE Port
- Common mode : ±6 KV
Regulatory/ Approvals (3)
- Regulatory/ Approvals EMC
- CE, FCC, VCCI, C-Tick
- Regulatory/ Approvals MTBF
- > 50000 hours
- Regulatory/ Approvals Surge
- EN61000-4-5
