Industrial Gigabit 90W bt PoE Media Converter
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- M30-022-91-V2
- EAN / GTIN
- 4711502641344
Description

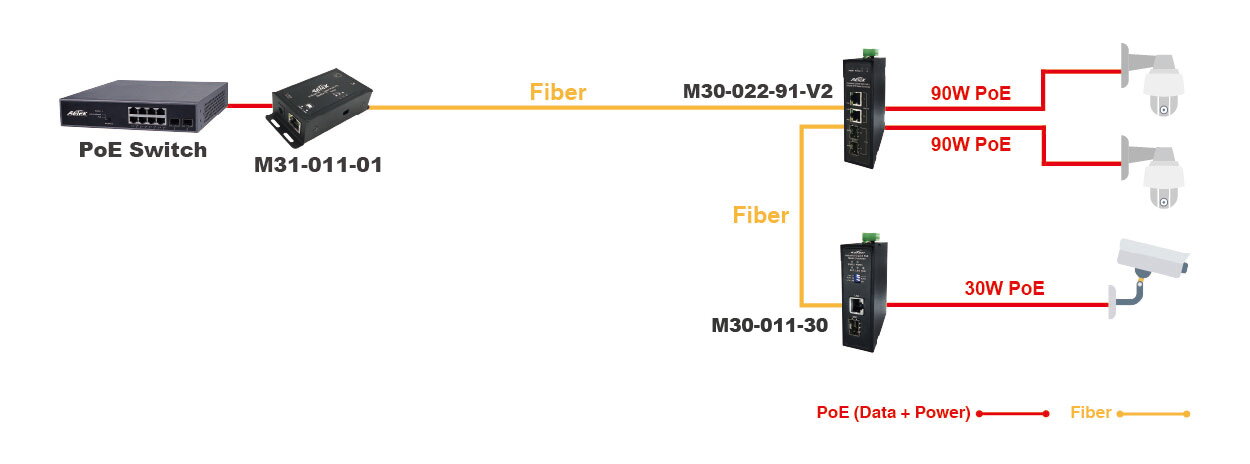

Industrial media converter with PoE to IEEE 802.3bt: two 10/100/1000BASE-T copper ports put out 15.4 W to 802.3af, 30 W to 802.3at or up to 90 W to 802.3bt across four pairs, pinned 12(-) with 36(+), then 45(+) with 78(-), alongside two SFP slots for 100/1000BASE-X. Four Gigabit ports in total, PoE budget 180 W. For 15.4 W and 30 W an input of 48 to 56 V DC is enough; 90 W calls for 52 to 56 V DC. Idle draw is 1.44 W at 48 V DC. IP30 case for a DIN rail, fanless, -40 °C to 75 °C. Switching capacity 8 Gbps, forwarding 5.952 Mpps, 4K MAC table, jumbo frames 9K bytes, surge protection 6 kV common mode per PoE port. 87 x 33 x 120 mm, 0.3 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental limits (4)
- Environmental limits IP Rating
- IP30
- Environmental limits – Operating Humidity
- 5% to 95% non-condensing
- Environmental limits – Operating Temperature
- -40°C ~ 75°C (-40°F ~ 167°F)
- Environmental limits – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical (4)
- Cooling Fan
- Fanless
- Dimensions (W x D x H)
- 87 x 33 x 120 mm (3.4 x 1.3 x 4.7 in)
- Mechanical Mounting
- Din-Rail
- Mechanical Weight
- 0.3 kg (0.66 lb)
Networking (7)
- Networking Forwarding Capacity
- 5.952 Mpps
- Networking Jumbo Frames
- 9K Bytes
- Networking Mac Table
- 4K
- Networking Switching Capacity
- 8 Gbps
- Networking – Gigabit Ethernet 802.3af/at/bt PoE Ports
- 2
- Networking – Gigabit Ethernet SFP Ports (100M/1G)
- 2
- Networking – Total Gigabit Ethernet Ports
- 4
Power (7)
- ESD
- Contact ±4 KV, Air ±8 KV
- PoE Output Power Budget
- 180W
- Power – Input Voltage DC: 48V ~ 56V for 30W at/af DC: 52 ~ 56VDC for 90W bt Output Power per PoE Port PoE IEEE 802.3af (Max. 15.4W) PoE+ IEEE 802.3at (Max. 30W) PoE++ IEEE 802.3bt (Max. 90W) Output PoE Power Pin Assignment
- 12(-), 36(+), 45(+), 78(-)
- Power – Surge Protection for DC Power Input
- Differential mode : ±1 KV
- Power – Surge Protection for DC Power Output
- Differential mode : ±1 KV
- Standby Power Consumption
- 48V DC: 1.44W
- Surge Protection per PoE Port
- Common mode : ±6 KV
Regulatory/ Approvals (3)
- Regulatory/ Approvals EMC
- CE, FCC, VCCI, C-Tick
- Regulatory/ Approvals MTBF
- > 50000 hours
- Regulatory/ Approvals Surge
- EN61000-4-5
