Industrial, Single-mode, SFP Type, 1310 nm, , FP-LD-10Km, Duplex LC, DC 3.3V

Managed L2 PRO switch with eight Gigabit PoE ports up to 30 W and two SFP slots for 100 Mbit/s or 1 Gbit/s. The switch is managed through the NTS interface: it discovers ONVIF cameras by itself, draws the topology, shows state, power draw and cable diagnostics per port and allows PoE to be switched off and on. An installer therefore needs no deep knowledge of managed switch configuration. The PoE budget is 120 W from a 130 W supply and the switching capacity 20 Gbit/s. Every PoE port carries 6 kV common-mode surge protection and the AC supply 4 kV. At idle the switch draws 3.5 W at 110 V and 3.36 W at 240 V. Dimensions 270 × 180 × 44 mm. Eight Gigabit PoE ports up to 30 WTwo SFP slots for 100 Mbit/s or 1 Gbit/s120 W PoE budget, 130 W supply20 Gbit/s switching capacity6 kV surge protection per PoE port, 4 kV on the supplyNTS interface, 270 × 180 × 44 mm

Managed L2 PRO switch with 16 Gigabit PoE ports up to 30 W, two SFP slots and two combo ports. The switch is managed through the NTS interface: it discovers ONVIF cameras by itself, draws the topology, shows state, power draw and cable diagnostics per port and allows PoE to be switched off and on. An installer therefore needs no deep knowledge of managed switch configuration. The PoE budget is 240 W from a 250 W supply and the switching capacity 40 Gbit/s. Every PoE port carries 6 kV common-mode surge protection and the AC supply 4 kV. At idle the switch draws 15.77 W at 110 V and 15.29 W at 240 V. 16 Gigabit PoE ports up to 30 WTwo SFP slots and two combo ports240 W PoE budget, 250 W supply40 Gbit/s switching capacity6 kV surge protection per PoE port, 4 kV on the supplyNTS interface with ONVIF camera discovery

Managed L2 PRO switch with 24 Gigabit PoE ports up to 30 W, two SFP slots and two combo ports. The switch is managed through the NTS interface: it discovers ONVIF cameras by itself, draws the topology, shows state, power draw and cable diagnostics per port and allows PoE to be switched off and on. An installer therefore needs no deep knowledge of managed switch configuration. The PoE budget is 370 W from a 380 W supply and the switching capacity 56 Gbit/s. Every PoE port carries 6 kV common-mode surge protection and the AC supply 4 kV. At idle the switch draws 12.23 W at 110 V and 11.56 W at 240 V. 24 Gigabit PoE ports up to 30 WTwo SFP slots and two combo ports370 W PoE budget, 380 W supply56 Gbit/s switching capacity6 kV surge protection per PoE port, 4 kV on the supplyNTS interface with ONVIF camera discovery

Managed L2 PRO switch with four PoE ports to IEEE 802.3bt up to 90 W and two Gigabit RJ45 ports. The bt ports feed devices needing more than 25.5 W, such as IR PTZ and multi-sensor cameras. The PoE budget is 360 W, the switching capacity 16 Gbit/s and the forwarding capacity 11.904 Mpps. Every PoE port carries 6 kV of surge protection and the supply is 100 to 240 V AC. Dimensions 320 × 207 × 44 mm, weight 3 kg, operating temperature 0 °C to 50 °C. Four PoE ports to IEEE 802.3bt up to 90 WTwo Gigabit RJ45 portsL2 PRO management through the NTS interface360 W PoE budget, 16 Gbit/s switching capacity6 kV surge protection per PoE port320 × 207 × 44 mm, 3 kg, 0 °C to 50 °C

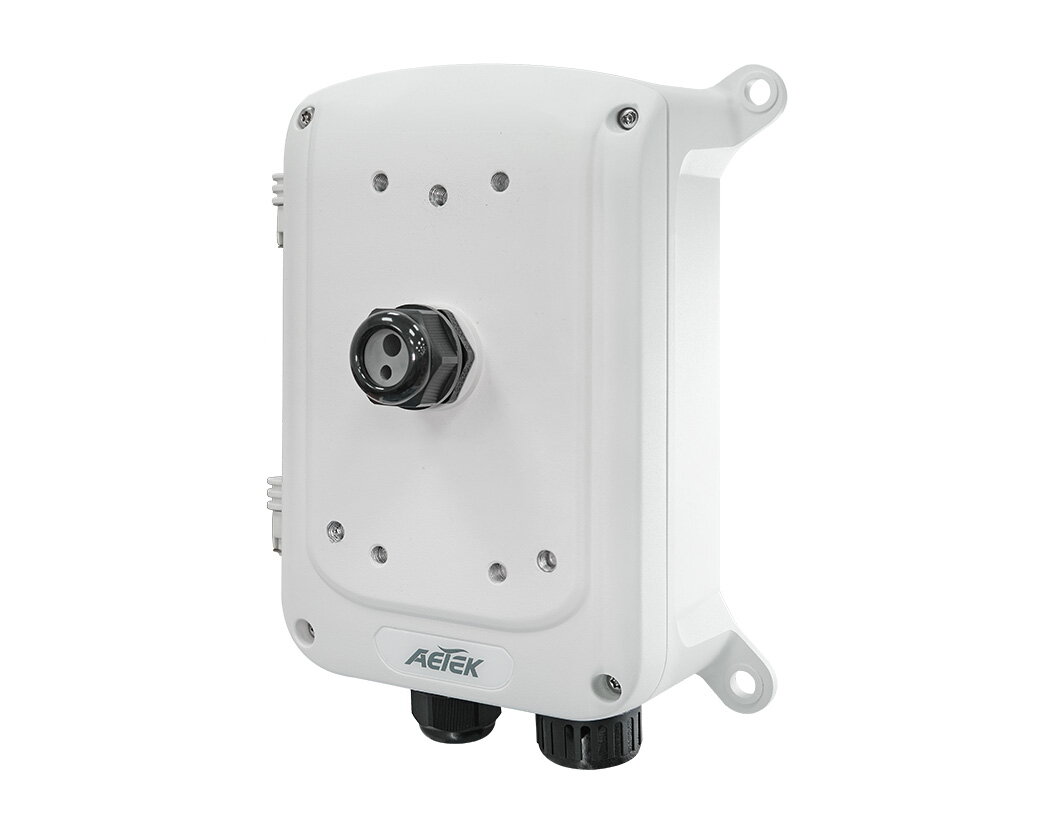

Outdoor switch with two PoE ports to IEEE 802.3bt up to 90 W and two SFP slots, built for PTZ and multi-sensor cameras from Avigilon, Axis and Hanwha. Avigilon cameras mount directly; the AT-401 and AT-402 adapter plates cover Axis and Hanwha. The PoE budget is 120 W, the switching capacity 8 Gbit/s and the power draw without PoE 5 W. The housing meets IP67 and IK10 and the switch works between -40 °C and 65 °C, so it is built for unprotected outdoor use. Every Ethernet port carries 6 kV of surge protection and the AC supply 40 kV. Besides 100 to 240 V AC the switch accepts 48 to 56 V DC as a backup and changes over by itself if the main supply fails. Two PoE ports to IEEE 802.3bt up to 90 WTwo SFP slots for a fibre uplinkFor Avigilon, Axis and Hanwha PTZ and multi-sensor camerasDirect mounting on Avigilon, AT-401 and AT-402 adapters120 W PoE budget, 8 Gbit/s switching capacityIP67, IK10, -40 °C to 65 °C, DC backup input

Outdoor switch with four Gigabit PoE ports up to 30 W, two additional Gigabit RJ45 ports and two SFP slots for the uplink. The supply delivers 150 W of which 120 W is available as PoE budget; the switching capacity is 16 Gbit/s. At idle the switch draws 7.6 W at 110 V and 10 W at 240 V. The housing meets IP67 and IK10 and the switch works between -40 °C and 65 °C, so it is built for unprotected outdoor use. Every Ethernet port carries 6 kV of surge protection and the AC supply 40 kV. Besides 100 to 240 V AC the switch accepts 48 to 56 V DC as a backup and changes over by itself if the main supply fails. Four Gigabit PoE ports up to 30 WTwo additional Gigabit RJ45 portsTwo SFP slots for a fibre uplink150 W supply, 120 W PoE budget16 Gbit/s switching capacityIP67, IK10, -40 °C to 65 °C, DC backup input

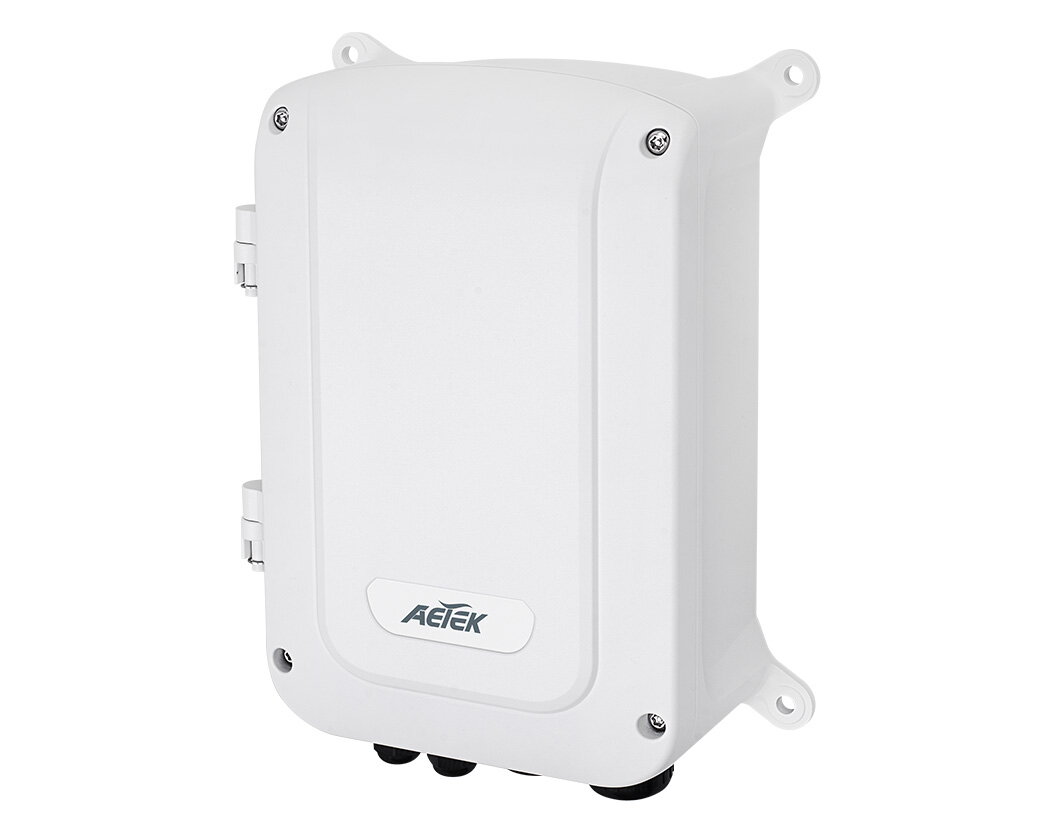

Outdoor switch with four Gigabit PoE ports to IEEE 802.3bt up to 90 W, two additional Gigabit RJ45 ports and two SFP slots. Against the H40-044-30-150-V3 the PoE ports deliver 90 W instead of 30 W, which feeds outdoor IR PTZ and multi-sensor cameras. The supply delivers 250 W and the switching capacity is 16 Gbit/s. The housing meets IP67 and IK10 and the switch works between -40 °C and 65 °C, so it is built for unprotected outdoor use. Every Ethernet port carries 6 kV of surge protection and the AC supply 40 kV. Besides 100 to 240 V AC the switch accepts 48 to 56 V DC as a backup and changes over by itself if the main supply fails. Four Gigabit PoE ports to IEEE 802.3bt up to 90 WTwo additional Gigabit RJ45 portsTwo SFP slots for a fibre uplink250 W supply, for IR PTZ and multi-sensor cameras16 Gbit/s switching capacityIP67, IK10, -40 °C to 65 °C, DC backup input

Outdoor switch with eight Gigabit PoE ports up to 30 W and two SFP slots for the uplink. The supply delivers 250 W of which 240 W is available as PoE budget; the switching capacity is 20 Gbit/s. At idle the switch draws 7.6 W at 110 V and 6 W at 240 V. The housing meets IP67 and IK10 and the switch works between -40 °C and 65 °C, so it is built for unprotected outdoor use. Every Ethernet port carries 6 kV of surge protection and the AC supply 40 kV. Besides 100 to 240 V AC the switch accepts 48 to 56 V DC as a backup and changes over by itself if the main supply fails. Eight Gigabit PoE ports up to 30 WTwo SFP slots for a fibre uplink250 W supply, 240 W PoE budget20 Gbit/s switching capacity6 kV surge protection per port, 40 kV on the supplyIP67, IK10, -40 °C to 65 °C, DC backup input

Managed outdoor switch with two PoE ports up to 90 W to IEEE 802.3bt and PoH plus two SFP slots, built for PTZ and multi-sensor cameras from Avigilon, Axis and Hanwha. Against the H40-022-91-120-B it is managed and supports PoH as well. Avigilon cameras mount directly; the AT-401 and AT-402 adapter plates cover Axis and Hanwha. PoE budget 120 W, switching capacity 8 Gbit/s, power draw without PoE 10 W. The housing meets IP67 and IK10 and the switch works between -40 °C and 65 °C, so it is built for unprotected outdoor use. Every Ethernet port carries 6 kV of surge protection and the AC supply 40 kV. Besides 100 to 240 V AC the switch accepts 48 to 56 V DC as a backup and changes over by itself if the main supply fails. Two PoE ports up to 90 W to IEEE 802.3bt and PoHTwo SFP slots for a fibre uplinkManaged, L2 PRO interface with ONVIF camera discoveryDirect mounting on Avigilon, AT-401 and AT-402 adapters120 W PoE budget, 8 Gbit/s switching capacityIP67, IK10, -40 °C to 65 °C, DC backup input

Managed outdoor switch with four Gigabit PoE ports up to 30 W, two additional Gigabit RJ45 ports and two SFP slots. The H60 line is the managed version of the outdoor switches: configuration, port status, power draw and cable diagnostics are available through the L2 PRO interface, which discovers ONVIF cameras by itself. The PoE budget is 120 W and the switching capacity 16 Gbit/s. At idle the switch draws 11 W at 110 V and 10.2 W at 240 V. The housing meets IP67 and IK10 and the switch works between -40 °C and 65 °C, so it is built for unprotected outdoor use. Every Ethernet port carries 6 kV of surge protection and the AC supply 40 kV. Besides 100 to 240 V AC the switch accepts 48 to 56 V DC as a backup and changes over by itself if the main supply fails. Four Gigabit PoE ports up to 30 WTwo additional Gigabit RJ45 ports and two SFP slotsManaged, L2 PRO interface with ONVIF camera discovery120 W PoE budget, 16 Gbit/s switching capacity6 kV surge protection per port, 40 kV on the supplyIP67, IK10, -40 °C to 65 °C, DC backup input
